2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#162343) — 75 parça

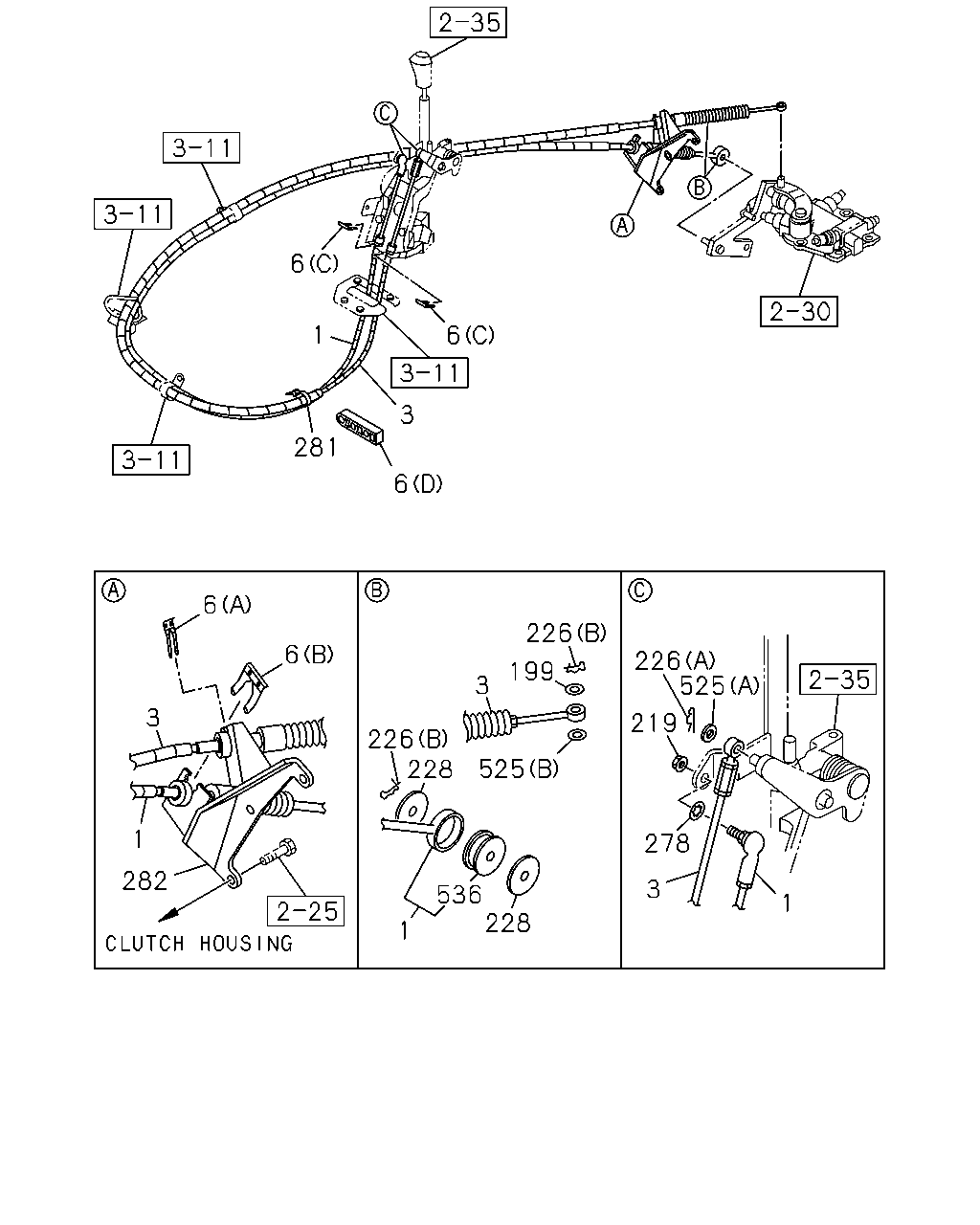

çizim 479425
6 1 281 3 6 6 6 6 3 1 1 228 536 228 226 525 3 226 199 226 525 219 278 3 1 282
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3115 		8-98146-878-0 01 1 1509- ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=3070 		8-98207-261-1 01 1 1506-1508 ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=3070 		8-98207-261-1 01 1 1509-1511 ●
1 00.854 CABLE; SHIFT,TRANS CONT
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070 		8-98207-261-1 01 1 1509-1511 ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. SMOOTHER-EX(TYPE2)(8NS) L=3070 		8-98207-261-1 01 1 1512- ●
1 00.854 CABLE; SHIFT,TRANS CONT
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070 		8-98207-261-1 01 1 1512- ●
1 00.854 CABLE; SHIFT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> L=3080 		8-98211-619-1 01 1 1506-1507 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> L=3080 		8-98211-619-1 01 1 1508-1508 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3080 		8-98211-619-1 01 1 1509- ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. FRAME STRAIGHT TYPE<7KJ> L=3065 		8-98146-877-1 01 1 1506-1508 ●
1 00.854 CABLE; SHIFT,TRANS CONT
EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3065 		8-98146-877-1 01 1 1509- ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=3140 		8-98146-879-0 01 1 1506-1508 ●
1 00.854 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98146-879-0 01 1 1509- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3247 		8-98025-445-4 01 1 1509- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3185 		8-98207-268-1 01 1 1506-1508 ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3185 		8-98207-268-1 01 1 1509-1511 ●
3 00.852 CABLE; SELECT,TRANS CONT
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3185 		8-98207-268-1 01 1 1509-1511 ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. SMOOTHER-EX(TYPE2)(8NS) L=3185 		8-98207-268-1 01 1 1512- ●
3 00.852 CABLE; SELECT,TRANS CONT
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3185 		8-98207-268-1 01 1 1512- ●
3 00.852 CABLE; SELECT,TRANS CONT
FRAME STRAIGHT TYPE<7KJ> L=3205 		8-98211-623-1 01 1 1506-1507 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> L=3205 		8-98211-623-1 01 1 1508-1508 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3205 		8-98211-623-1 01 1 1509- ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. FRAME STRAIGHT TYPE<7KJ> L=3175 		8-98025-444-2 01 1 1506-1508 ●
3 00.852 CABLE; SELECT,TRANS CONT
EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3175 		8-98025-444-2 01 1 1509- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3279 		8-98025-446-5 01 1 1506-1508 ●
3 00.852 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3279 		8-98025-446-5 01 1 1509- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1506-1508 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1509-1511 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 00.854 (A) ID=22.2 		1-09701-209-1 01 1 1512- ● ● ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1506-1508 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97011-448-0 02 1 1509-1511 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97011-448-0 02 1 1512- ● ● ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1506-1508 ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 1509-1511 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) (B) ID=19.2 		8-97211-011-0 01 1 1512- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1506-1508 ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 04.008 (D) 		8-97093-491-1 01 1 1509-1511 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.008 (D) 		8-97093-491-1 01 1 1512- ● ● ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1506-1508 ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1509-1511 ● ● ● ●
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1512- ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1506-1508 ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1509-1511 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 04.037 M8 T=8.0 		8-94363-045-0 01 1 1512- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1506-1508 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1509-1511 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 00.833 (A) L=27.7 		8-94111-137-0 01 1 1512- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1506-1508 ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 02 1 1509-1511 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) (B) L=23 		8-94170-378-0 02 1 1512- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1506-1508 ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40 		8-97182-975-0 02 1 1509-1511 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) ID=8.2 OD=40 		8-97182-975-0 02 1 1512- ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1506-1508 ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1509-1511 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1512- ● ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1506-1508 ● ● ●
281 04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 1509-1511 ● ● ● ●
281 04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 03.162 L=140 		5-09707-031-1 01 1 1512- ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-395-1 01 1 1509- ●
282 04.010 BRACKET; TRANS SIDE 8-98200-183-1 01 1 1506-1511 ●
282 04.010 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98200-183-1 01 1 1512- ●
282 04.010 BRACKET; TRANS SIDE 8-98242-509-1 01 1 1506-1507 ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCS ENG(LFB) 		8-98242-509-1 01 1 1508-1508 ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-509-1 01 1 1509- ●
282 04.010 BRACKET; TRANS SIDE 8-98032-396-2 01 1 1506-1508 ●
282 04.010 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-396-2 01 1 1509- ● ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1506-1508 ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1509-1511 ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1512- ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1506-1508 ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1509-1511 ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ,SMOOTHER-EX(TYPE2)(8NS) 00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1512- ● ● ● ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1506-1508 ● ● ●
536 00.854 DAMPER; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98097-681-0 01 1 1509- ● ● ● ●
