◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#162341) — 435 parça

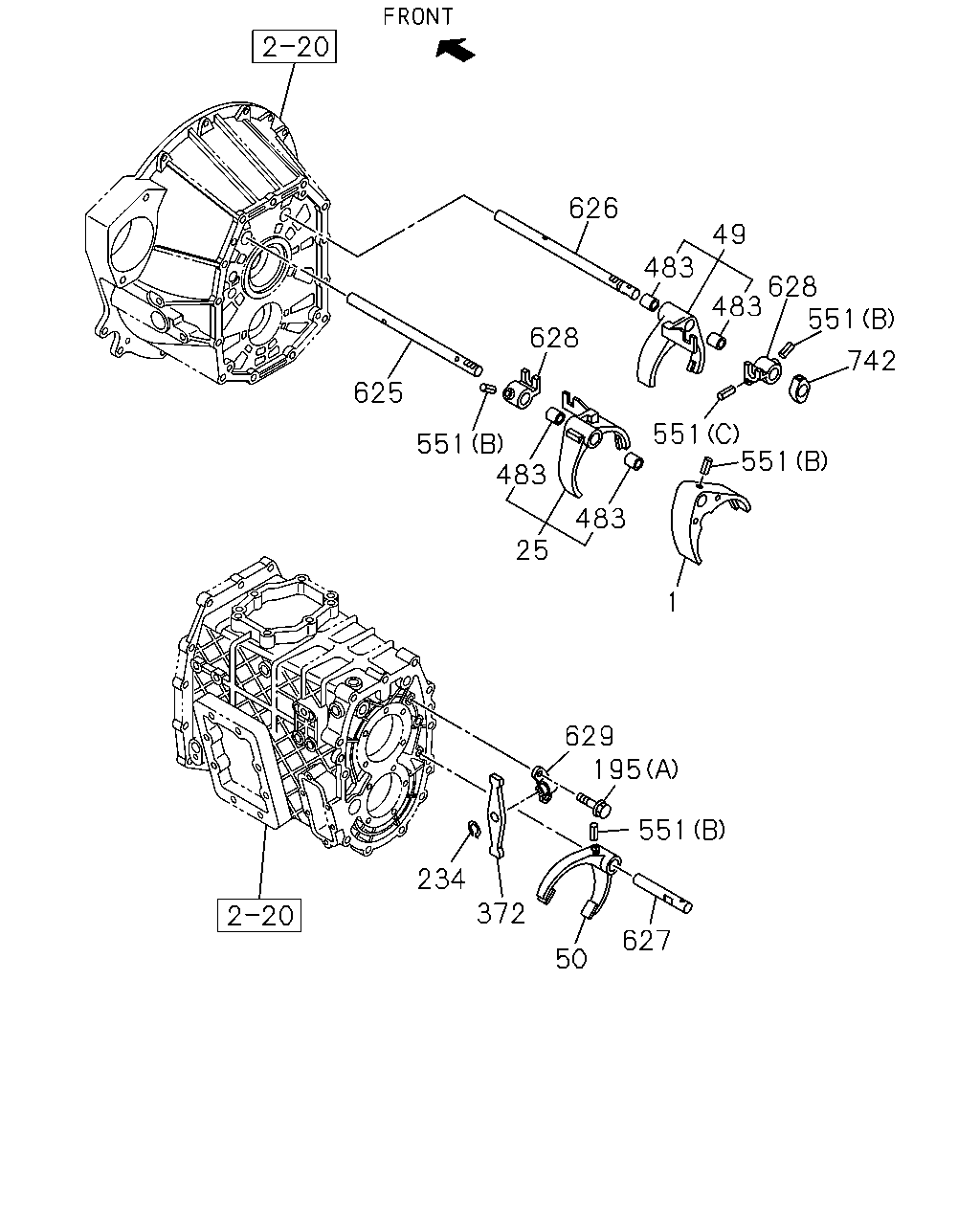

çizim 479190
626 483 49 483 628 551 551 628 551 625 483 25 1 483 629 195 551 627 50 372 234 742 551
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1506- ● ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1506-1508 ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1509- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1506- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1506-1508 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1509- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1506-1508 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1509- ● ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1506- ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 1506-1508 ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 1509- ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-1511 ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1506-1508 ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1509- ● ● ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1506- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1506-1508 ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1509- ● ● ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1506- ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 1506-1508 ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 1509- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1506-1508 ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1509- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1506-1508 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1509- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1506- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1506-1508 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1509- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-689-0 01 1 1510- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97383-754-0 01 1 1509- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1506-1509 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97366-024-1 01 1 1510- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98107-548-0 01 1 1506-1508 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98107-548-0 01 1 1509- ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1506-1508 ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1509- ● ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1506-1508 ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1509- ● ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1506- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1506-1508 ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1509- ● ● ●
742 04.162 COLLAR; ROD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-722-0 01 1 1510- ●

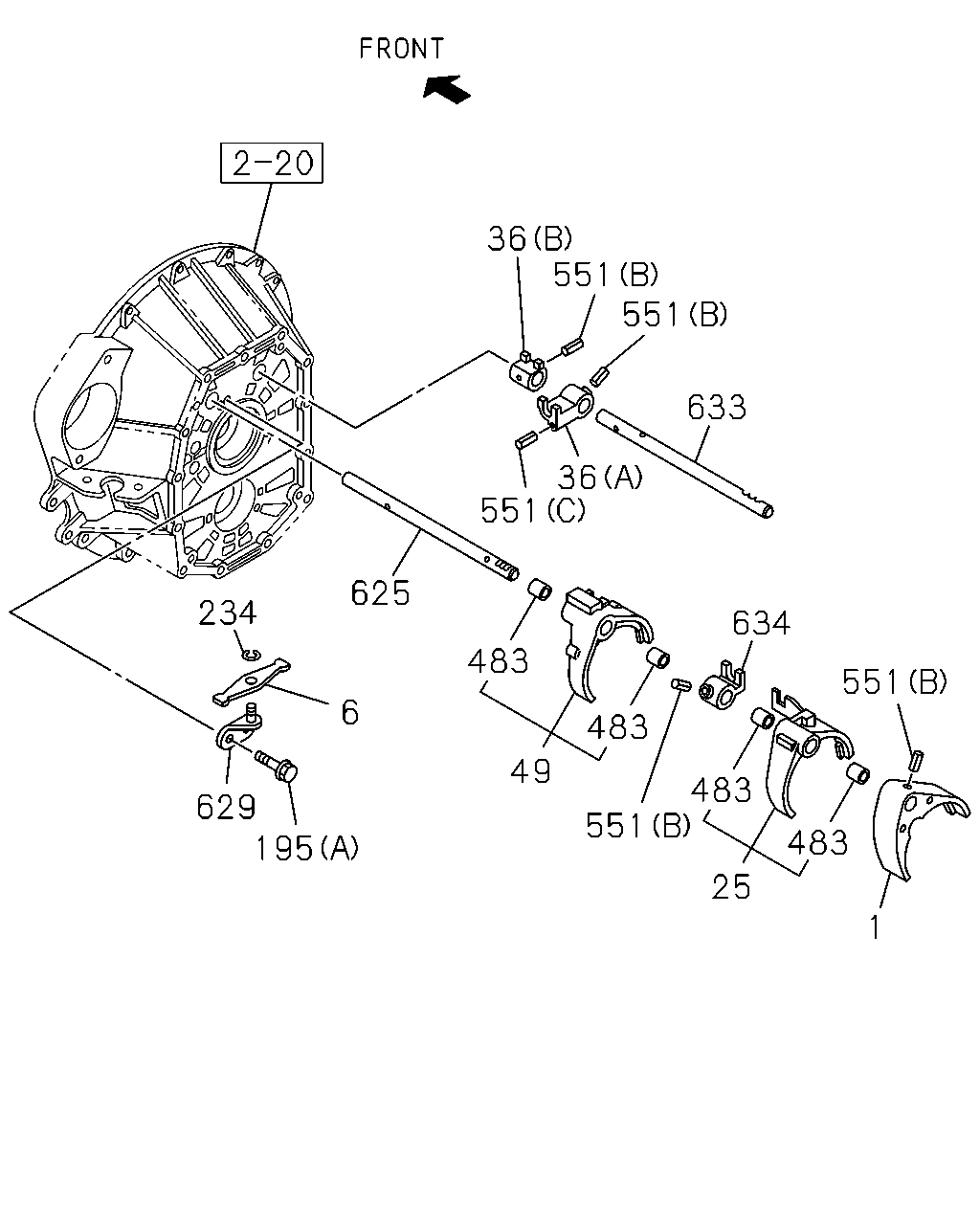

çizim 479440
36 551 551 633 36 551 625 234 6 629 195 483 49 483 483 551 25 1 483 551 634
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1506- ● ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1506-1508 ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1509- ● ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-995-0 01 1 1509-1511 ● ● ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-995-0 01 1 1512- ● ● ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1506- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1506- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1506-1508 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1509- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1506- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1506-1508 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1509- ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-1511 ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1506-1508 ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1509- ● ● ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1506- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1506-1508 ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1509- ● ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1506-1508 ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1509- ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1506-1508 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1509- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1506- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1506-1508 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1509- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1506- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1506-1508 ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1509- ● ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
SMOOTHER-EX(TYPE2)(8NS) 		8-98206-518-0 01 1 1512- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1506-1511 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97362-743-0 01 1 1512- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1506- ●

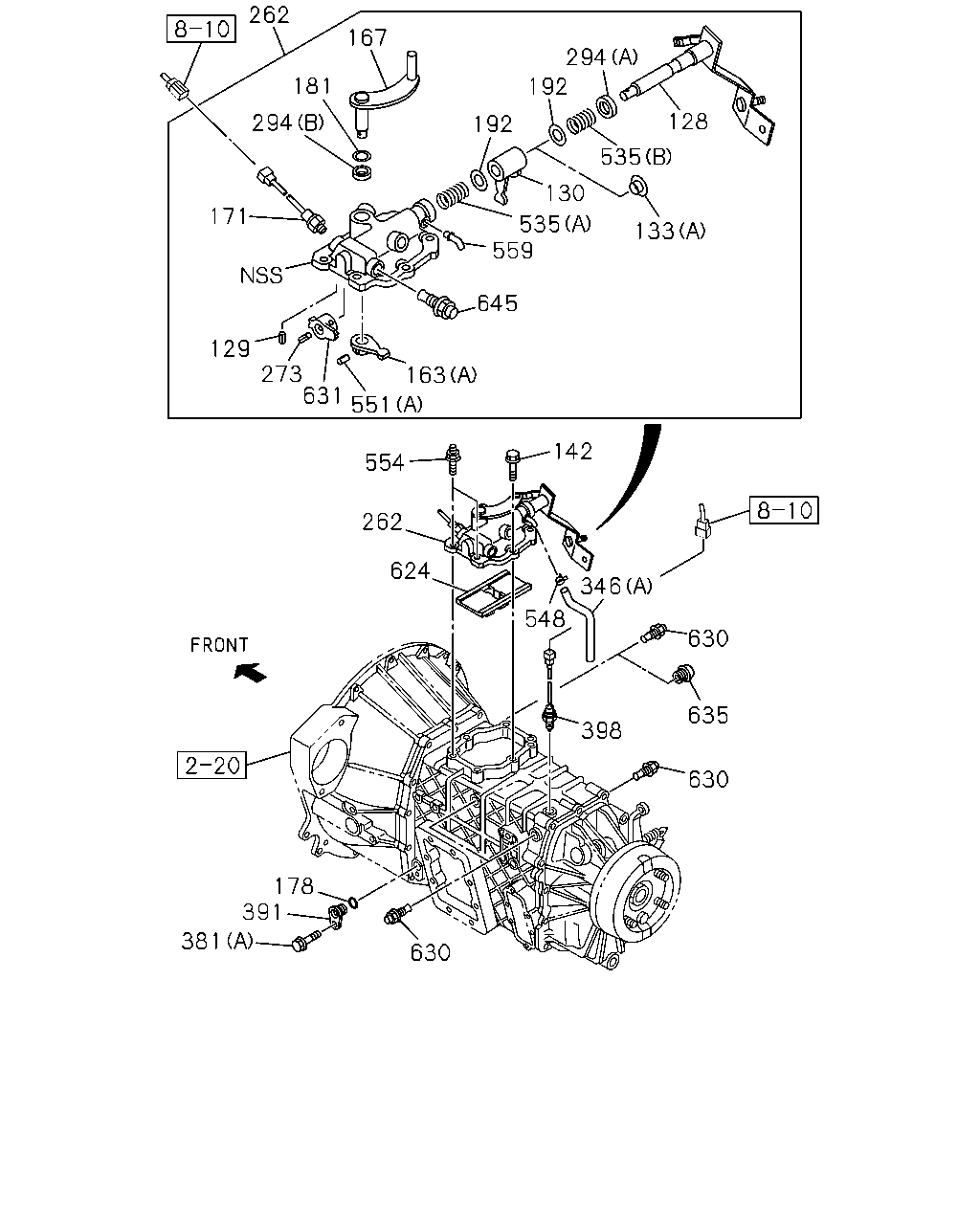

çizim 481025
262 167 181 294 171 129 631 273 551 63 645 559 535 133 535 128 294 192 192 554 262 624 142 346 548 630 635 398 630 630 178 391 381 130
BalonParca AdiParca NoAdetTipApplied Date A B C D
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1506-1511 ●
128 04.030 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-725-0 01 1 1512- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 1506-1508 ●
128 04.030 LEVER; SHIFT,EXTERNAL
4JJ1-TCS ENG(LFB) 		8-97363-226-0 01 1 1509- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-98021-595-0 01 1 1506-1508 ●
128 04.030 LEVER; SHIFT,EXTERNAL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-595-0 01 1 1509- ●
128 04.030 LEVER; SHIFT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-595-0 01 1 1509- ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1506-1508 ● ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1509-1511 ●
129 04.027 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 1509-1511 ● ● ●
129 04.027 PIN; SPR,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4 		1-09748-031-0 01 1 1512- ● ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1506-1508 ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1509-1511 ●
130 04.302 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 1509-1511 ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97306-647-0 01 1 1512- ● ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 1509-1511 ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1512- ● ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 1509-1511 ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1512- ● ● ● ●
133 04.027 SEAT; SPR
(A) 		8-97305-667-0 01 1 1506-1511 ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 1512- ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 1509-1511 ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1512- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 1509-1511 ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1512- ● ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1506-1508 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1509-1511 ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1509-1511 ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1512- ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 1509-1511 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1512- ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1506-1508 ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1509-1511 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCS ENG(LFB) 		8-98039-436-0 01 1 1509-1511 ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1512- ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCS ENG(LFB) 		8-98039-436-0 01 1 1512- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1506-1508 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 1509- ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 1509- ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1506-1508 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1509-1509 ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1506-1508 ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1509-1511 ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1509-1511 ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09567-113-0 01 1 1512- ● ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1506-1508 ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1509-1511 ●
181 04.302 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 1509-1511 ● ● ●
181 04.302 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97367-327-0 01 1 1512- ● ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 1509-1511 ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1512- ● ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1506-1511 ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1512- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1506-1508 ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1509-1511 ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1512- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-529-0 01 1 1509-1509 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-685-0 01 1 1510-1511 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1512- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1506-1511 ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1512- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-993-1 01 1 1506-1508 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) 		8-98240-993-2 01 1 1509- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-994-1 01 1 1506-1508 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-2 01 1 1509- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-2 01 1 1509- ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1506-1508 ● ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1509-1511 ●
273 04.309 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 1509-1511 ● ● ●
273 04.309 PIN; SPR,STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 1512- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 1509-1511 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1512- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1506-1508 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		8-97305-662-0 01 1 1509-1511 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1509-1511 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1512- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1506-1508 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		8-97363-225-0 01 1 1509-1511 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1509-1511 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1512- ● ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 1509-1511 ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1512- ● ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1506-1508 ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1509- ● ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M6X20 FLANGE 		0-28650-620-0 01 1 1509- ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1509-1511 ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1512- ● ● ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1506-1508 ● ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1509- ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1506-1508 ● ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1509-1511 ●
391 04.104 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1509-1511 ● ● ●
391 04.104 PLUG; SW HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97300-273-1 01 1 1512- ● ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-1 01 1 1509-1511 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1512- ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1506-1508 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1509-1511 ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1509-1511 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1512- ● ● ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1506-1511 ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97323-771-0 01 1 1512- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1506-1511 ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97323-772-0 01 1 1512- ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1506-1508 ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-659-0 01 1 1509-1511 ● ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-659-0 01 1 1512- ● ● ● ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1506-1508 ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-660-0 01 1 1509-1511 ● ● ●
535 04.302 SPRING; LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-660-0 01 1 1512- ● ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1506-1508 ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1506-1508 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1509- ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1506-1508 ● ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1509-1511 ●
554 04.302 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1509-1511 ● ● ●
554 04.302 STUD; CONT BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 1512- ● ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 1509-1511 ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1512- ● ● ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1506-1508 ● ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1509-1511 ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1509-1511 ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1512- ● ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1506-1508 ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1509- ● ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1506- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1506-1508 ● ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1509- ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 1509-1511 ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1512- ● ● ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1506-1508 ● ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1509-1511 ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1509-1511 ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1512- ● ● ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1506- ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1506-1508 ● ● ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1509-1511 ●
645 04.311 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 		8-98019-536-0 01 1 1509-1511 ● ● ●
645 04.311 DETENT ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.307 		8-98019-536-0 01 1 1512- ● ● ● ●

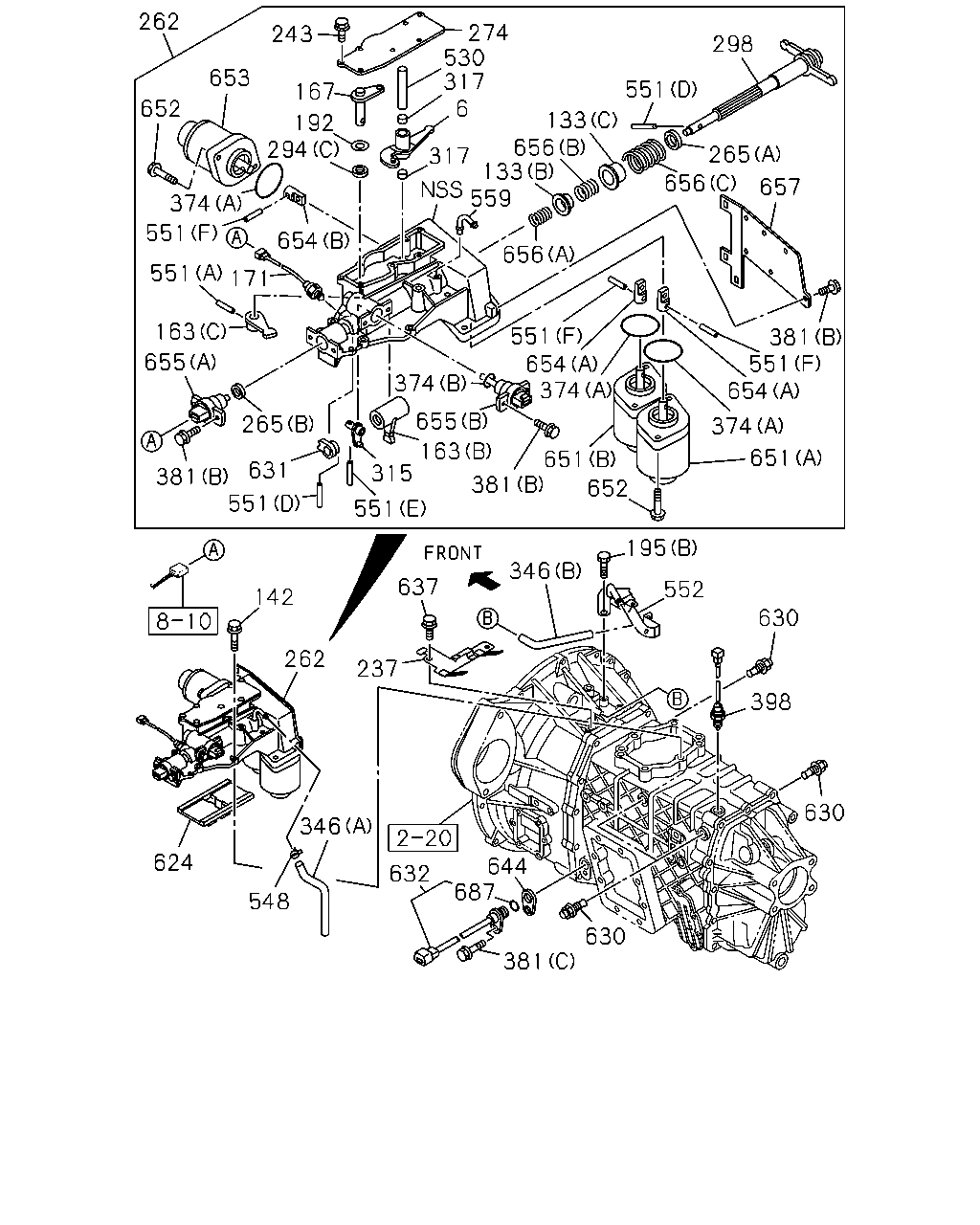

çizim 493221
262 652 374 551 551 163 655 381 551 631 265 171 654 294 192 167 243 653 274 530 317 6 317 374 655 163 315 551 381 651 652 374 654 551 656 559 133 656 133 551 298 265 656 657 381 551 454 374 651 142 262 624 548 346 237 637 632 687 644 346 195 552 630 398 630 630 381
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-995-0 01 1 1509-1511 ● ● ●
6 04.302 LEVER; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-995-0 01 1 1512- ● ● ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1506- ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-988-0 01 1 1509-1511 ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-988-0 01 1 1512- ● ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-989-0 01 1 1509-1511 ● ● ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-989-0 01 1 1512- ● ● ● ●
133 04.027 SEAT; SPR
(A) 		8-97305-667-0 01 1 1506-1511 ●
133 04.027 SEAT; SPR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-667-0 01 1 1512- ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE 		8-98020-384-0 03 1 1509-1511 ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X35 FLANGE 		8-98020-384-0 03 1 1512- ● ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE 		8-98020-385-0 03 1 1509-1511 ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) M8X75 FLANGE 		8-98020-385-0 03 1 1512- ● ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1506-1508 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1509-1511 ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1509-1511 ● ● ●
142 04.012 BOLT; QUAD BOX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1512- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-979-0 01 1 1509-1511 ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-979-0 01 1 1512- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-990-0 01 1 1509-1511 ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-990-0 01 1 1512- ● ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1506-1508 ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1509-1511 ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1509-1511 ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97305-663-0 01 1 1512- ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-994-0 01 1 1509-1511 ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-994-0 01 1 1512- ● ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1506-1508 ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1509-1511 ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCS ENG(LFB) 		8-98039-436-0 01 1 1509-1511 ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-436-0 01 1 1512- ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCS ENG(LFB) 		8-98039-436-0 01 1 1512- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1506-1508 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 1509- ●
167 04.302 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98039-444-0 01 1 1509- ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1506-1508 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1509-1509 ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		1-09503-280-0 01 1 1509-1511 ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 		1-09503-280-0 01 1 1512- ● ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1506-1511 ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 01 1 1512- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1506-1508 ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1509-1511 ● ● ●
192 04.309 WASHER; PL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-661-0 02 1 1512- ● ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-1511 ● ● ●
195 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ● ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1506-1508 ● ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1509- ● ● ● ●
237 04.057 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-905-1 01 1 1509-1511 ● ● ●
237 04.057 BRACKET; CABLE,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98018-905-1 01 1 1512- ● ● ● ●
243 04.105 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1509-1511 ● ● ●
243 04.105 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1512- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-529-0 01 1 1509-1509 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98331-685-0 01 1 1510-1511 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98331-685-0 01 1 1512- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1506-1511 ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98241-002-2 01 1 1512- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-993-1 01 1 1506-1508 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) 		8-98240-993-2 01 1 1509- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-994-1 01 1 1506-1508 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-2 01 1 1509- ●
262 04.105 BOX ASM; SHIFT CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-994-2 01 1 1509- ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97363-225-0 01 1 1509-1511 ● ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97363-225-0 01 1 1512- ● ● ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-981-0 01 1 1509-1511 ● ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-981-0 01 1 1512- ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-711-0 01 1 1509-1511 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-711-0 01 1 1512- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		1-09625-600-0 01 1 1509-1511 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		1-09625-600-0 01 1 1512- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1506-1508 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		8-97305-662-0 01 1 1509-1511 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1509-1511 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97305-662-0 01 1 1512- ● ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1506-1508 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		8-97363-225-0 01 1 1509-1511 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1509-1511 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97363-225-0 01 1 1512- ● ● ● ●
298 04.309 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-978-0 01 1 1509-1511 ● ● ●
298 04.309 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-978-0 01 1 1512- ● ● ● ●
315 04.302 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98296-526-0 01 1 1509-1511 ● ● ●
315 04.302 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98296-526-0 01 1 1512- ● ● ● ●
317 04.302 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-997-0 02 1 1509-1511 ● ● ●
317 04.302 BUSHING; LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-997-0 02 1 1512- ● ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97373-381-0 01 1 1509-1511 ● ● ●
346 04.545 HOSE; AIR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97373-381-0 01 1 1512- ● ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1506-1508 ● ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1509- ● ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-571-0 03 1 1509-1511 ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-571-0 03 1 1512- ● ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97349-573-0 01 1 1509-1511 ● ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97349-573-0 01 1 1512- ● ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M6X20 FLANGE 		0-28650-620-0 01 1 1509- ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1509-1511 ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1512- ● ● ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1506-1508 ● ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1509- ● ● ●
381 04.105 BOLT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1509- ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98242-173-1 01 1 1509-1511 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98242-173-1 01 1 1512- ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1506-1508 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1509-1511 ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1509-1511 ● ● ●
398 02.698 SWITCH; REV LAMP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98256-418-0 01 1 1512- ● ● ● ●
530 04.302 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-996-0 01 1 1509-1511 ● ● ●
530 04.302 SHAFT; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-996-0 01 1 1512- ● ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1506-1508 ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5 		8-97184-905-0 03 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.302 (F) OD=5 		8-97184-905-0 03 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97379-991-0 01 1 1509-1511 ● ● ●
551 04.303 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (E) 		8-97379-991-0 01 1 1512- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506-1508 ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1509- ● ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1506-1508 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1509- ● ●
552 04.105 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-914-1 01 1 1509-1511 ●
552 04.105 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97349-914-1 01 1 1512- ● ●
552 04.105 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 		8-97385-018-2 01 1 1509- ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-710-0 01 1 1509-1511 ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-710-0 01 1 1512- ● ● ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1506-1508 ● ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1509-1511 ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1509-1511 ● ● ●
559 04.302 PIPE; BREATHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.510 		8-97358-318-0 01 1 1512- ● ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1506-1508 ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1509- ● ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1506- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1506-1508 ● ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1509- ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97379-984-0 01 1 1509-1511 ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97379-984-0 01 1 1512- ● ● ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1506-1508 ● ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1509-1511 ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1509-1511 ● ● ●
631 04.105 STOPPER; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-666-0 01 1 1512- ● ● ● ●
632 04.054 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97315-604-1 01 1 1509-1511 ● ● ●
632 04.054 SENSOR; TRANS,REV
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-97315-604-1 01 1 1512- ● ● ● ●
637 04.105 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1509-1511 ● ● ●
637 04.105 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ● ● ●
644 04.302 SPACER; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-489-1 01 1 1509- ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98002-759-0 01 1 1509-1511 ● ● ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98002-759-0 01 1 1512- ● ● ● ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98002-760-0 01 1 1509-1511 ● ● ●
651 04.309 SOLENOID ASM; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98002-760-0 01 1 1512- ● ● ● ●
652 04.309 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1509-1511 ● ● ●
652 04.309 BOLT; SORENOID
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1512- ● ● ● ●
653 04.309 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-761-0 01 1 1509-1511 ● ● ●
653 04.309 SOLENOID ASM; SELECT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98002-761-0 01 1 1512- ● ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97349-473-0 02 1 1509-1511 ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97349-473-0 02 1 1512- ● ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97380-419-0 01 1 1509-1511 ● ● ●
654 04.309 JOINT; SOLENOID,CASE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97380-419-0 01 1 1512- ● ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98107-823-0 01 1 1509-1511 ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-98107-823-0 01 1 1512- ● ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98107-824-0 01 1 1509-1511 ● ● ●
655 04.309 SENSOR; STROKE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98107-824-0 01 1 1512- ● ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97379-985-0 01 1 1509-1511 ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97379-985-0 01 1 1512- ● ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97379-986-0 01 1 1509-1511 ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-97379-986-0 01 1 1512- ● ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97379-987-0 01 1 1509-1511 ● ● ●
656 04.307 SPRING; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (C) 		8-97379-987-0 01 1 1512- ● ● ● ●
657 04.105 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-712-0 01 1 1509-1511 ● ● ●
657 04.105 PLATE; SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98020-712-0 01 1 1512- ● ● ● ●
687 04.075 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 		9-09567-113-0 01 1 1509-1511 ● ● ●
687 04.075 GASKET; SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.307 		9-09567-113-0 01 1 1512- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
