Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#162340) — 767 parça

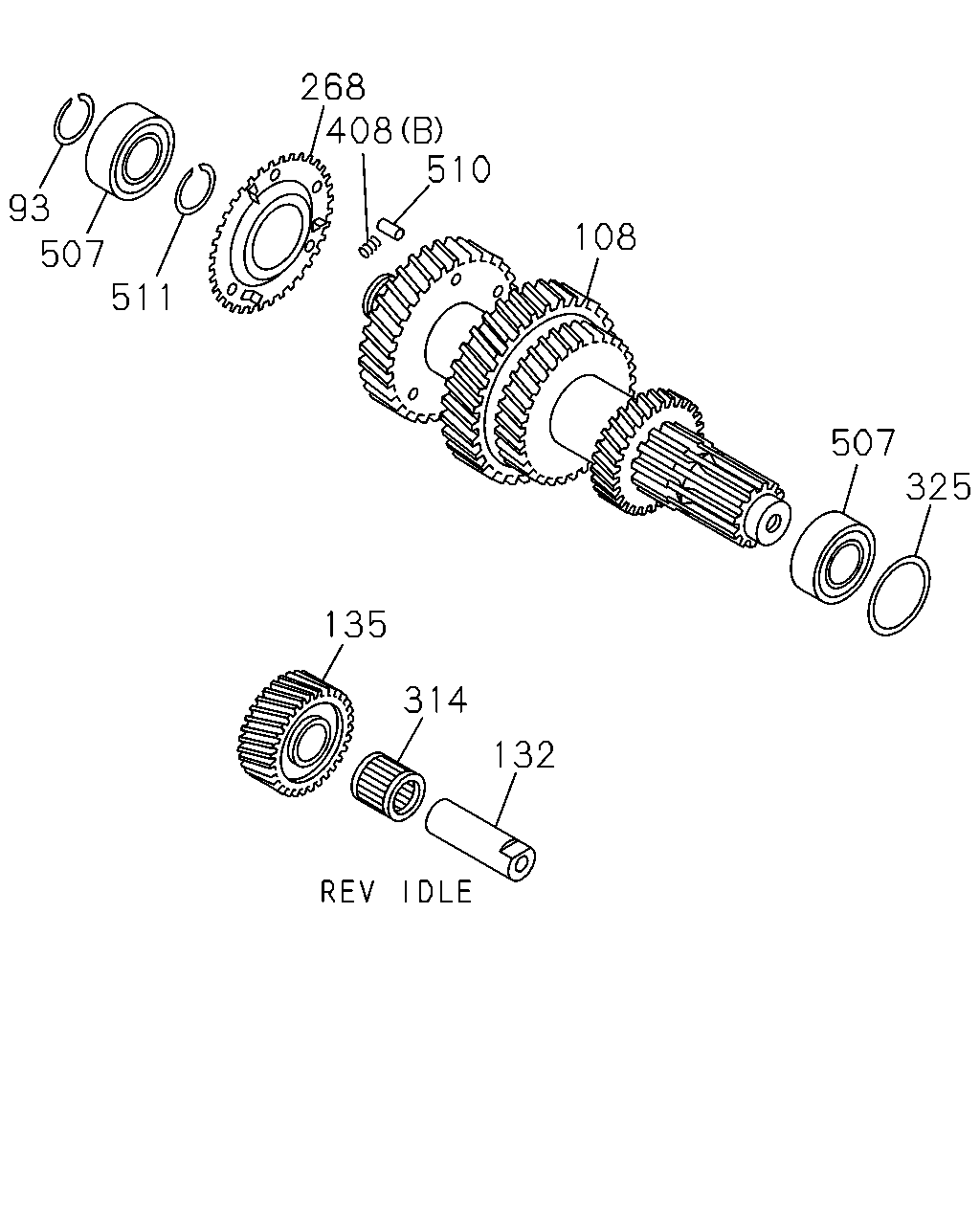

268 408 510 108 507 325 135 314 132 511 507 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1509-			●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1509-			●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1509-			●	●
108	04.428 SHAFT; COUNTER SMOOTHER-EX(TYPE2)(8NS) Z=45-49-33-20	8-97326-590-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	1509-		●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-98249-484-0	01	1	1509-				●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1506-1511	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1506-1508		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	1509-		●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1506-			●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1506-1508	●	●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1509-	●	●	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1506-	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1506-1508			●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1509-			●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1506-1511	●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	1512-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1506-1508		●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	1509-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1506-1508	●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1509-	●	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1509-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-		●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-1508	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1509-1511	●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1509-1511		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1506-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1506-1508			●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1509-			●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1506-1508	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1509-1511	●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	1509-1511		●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	1512-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1506-1508	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1509-1511	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	1509-1511		●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	1512-	●	●

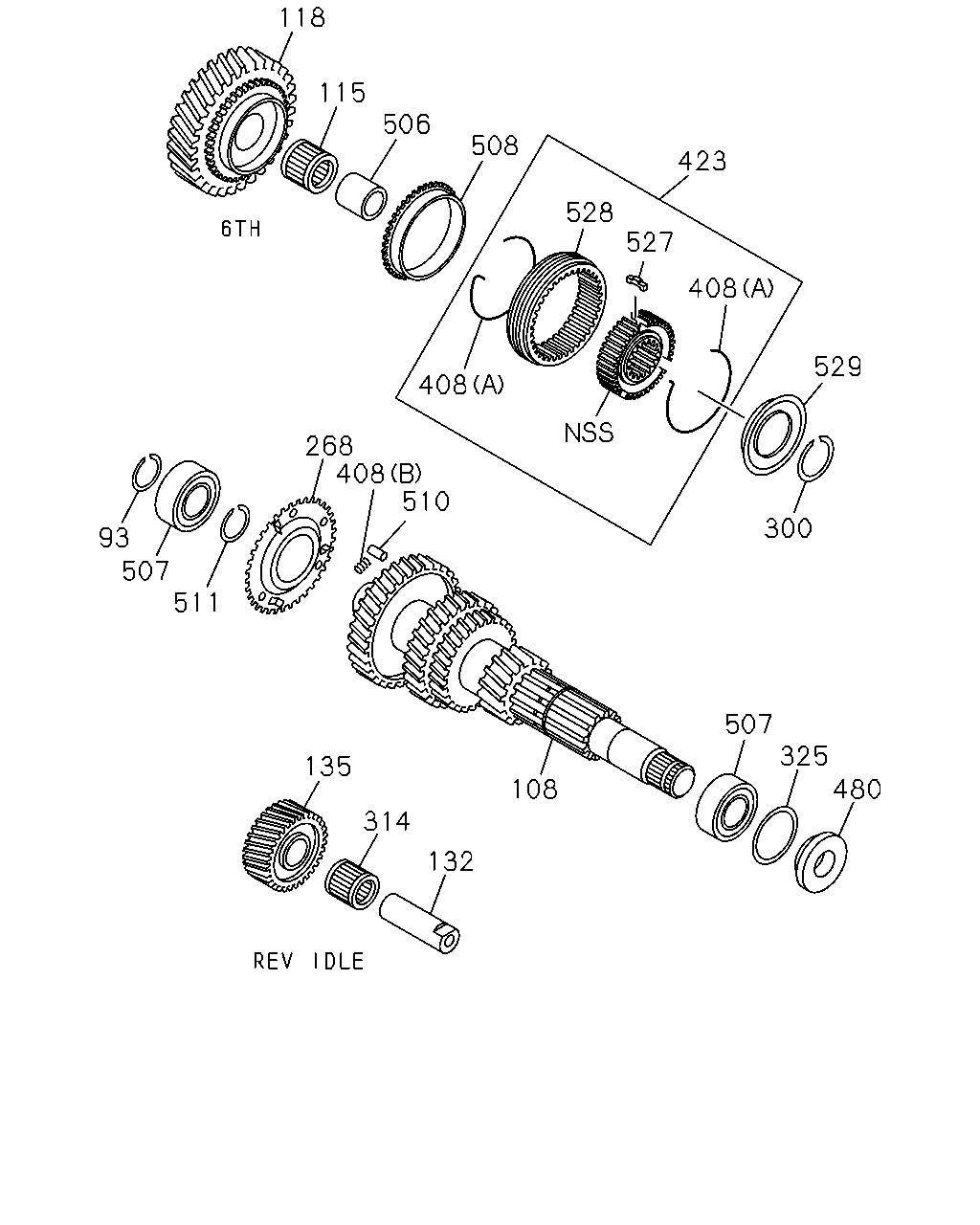

480 325 507 108 132 314 135 300 529 408 423 527 528 408 510 408 268 511 507 93 508 506 115 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1509-			●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1509-			●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1509-			●	●
108	04.428 SHAFT; COUNTER SMOOTHER-EX(TYPE2)(8NS) Z=45-49-33-20	8-97326-590-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	1509-		●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-98249-484-0	01	1	1509-				●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1506-1511	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1506-1508		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	1509-		●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1506-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1506-1508		●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1509-		●	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1506-1508		●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1509-		●	●	●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1506-		●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1506-1508			●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1509-			●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1506-1508	●	●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1509-	●	●	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1506-	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1506-1508			●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1509-			●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1506-1511	●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97257-300-1	01	1	1512-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1506-1508		●
268	04.537 PLATE; ANTI LASH,COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	1509-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1509-			●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1509-			●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1509-			●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1509-			●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1506-1508	●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1509-	●	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1509-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-		●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-1508	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1509-1511	●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1509-1511		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1506-		●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1506-		●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	1506-1508			●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	1509-			●	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1506-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1506-1508			●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1509-			●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1506-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1506-1508			●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1509-			●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1506-		●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1506-1508			●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1509-			●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1506-1508	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1509-1511	●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	1509-1511		●
510	04.540 PIN; STRAIGHT,ANTI LASH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	1512-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1506-1508	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1509-1511	●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	1509-1511		●
511	04.416 RING; SNAP,ANTI LASH PLATE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	1512-	●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	1506-		●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	1506-		●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	1506-		●

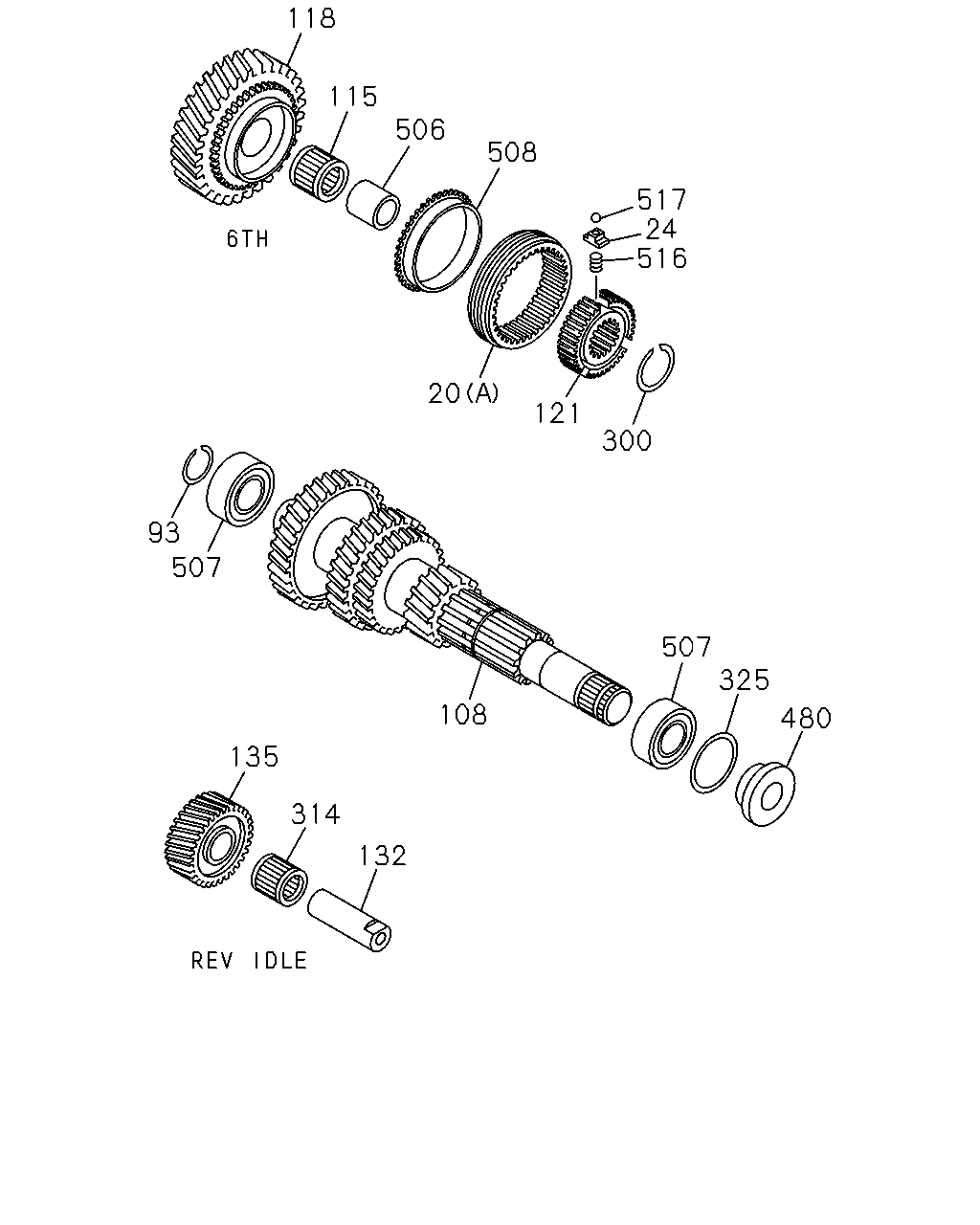

480 325 507 108 132 314 135 507 93 300 121 20 516 24 517 508 506 115 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	1506-1508			●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1509-			●	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1509-			●	●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1506-1508			●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-			●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1506-1508	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1509-	●	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1509-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	1506-1508			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	1509-			●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1506-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1509-			●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1509-			●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1506-1508			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1509-			●	●
108	04.428 SHAFT; COUNTER SMOOTHER-EX(TYPE2)(8NS) Z=45-49-33-20	8-97326-590-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	1509-		●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-98249-484-0	01	1	1509-				●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1506-1511	●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45-49-33-20	8-97380-630-1	01	1	1512-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1506-1508		●
108	04.428 SHAFT; COUNTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	1509-		●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1506-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1506-1508		●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1509-		●	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1506-1508		●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1509-		●	●	●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1506-		●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1506-1508			●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	1509-			●	●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	1506-1508			●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	1509-			●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1506-1508	●	●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1509-	●	●	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1506-	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1506-1508			●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1509-			●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1506-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1509-			●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1509-			●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1509-			●	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1506-1508			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1509-			●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1506-1508	●	●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1509-	●	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1506-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1509-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1506-1508			●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1509-			●	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1506-		●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	1506-1508			●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	1509-			●	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1506-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1506-1508			●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1509-			●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1506-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1506-1508			●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1509-			●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1506-		●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1506-1508			●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1506-1508	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	1506-1508			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1509-			●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1506-1508	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1509-	●	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1509-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	1506-1508			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1509-			●	●

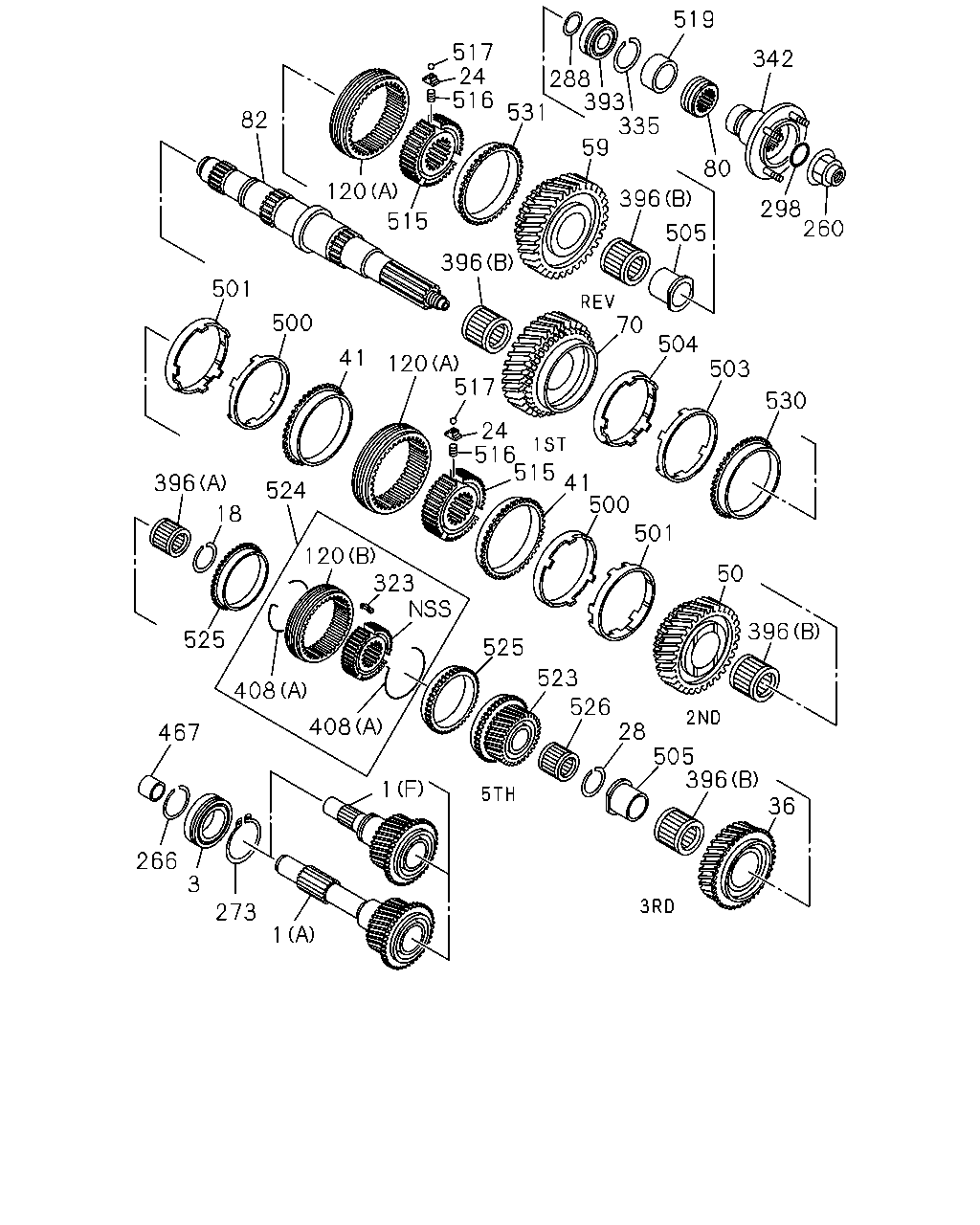

519 342 288 335 393 531 80 59 298 396 260 505 517 516 24 70 503 504 530 396 515 120 82 501 41 500 120 24 517 516 500 41 515 501 50 396 396 524 18 525 120 323 408 408 467 266 3 273 1 1 525 523 526 28 505 396 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS SMOOTHER-EX(TYPE2)(8NS) (F) Z=28	8-98031-849-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) Z=26	8-98021-267-0	01	1	1509-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (E) Z=25	8-97371-091-0	01	1	1509-			●	●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1506-1511	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS (B) Z=26	8-98021-266-0	01	1	1506-1508		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=26	8-98021-266-0	01	1	1509-		●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=25	8-97371-090-0	01	1	1506-1508			●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=25	8-97371-090-0	01	1	1509-			●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1506-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1506-1508			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1509-			●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1506-	●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1506-1508			●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1509-			●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1506-1508	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1509-	●	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1509-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	1506-1508			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	1509-			●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1506-1508	●	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1509-	●	●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	1509-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1506-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	1506-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1506-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1506-1508			●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1509-			●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1506-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1506-1508			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1509-			●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1506-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1506-1508			●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1509-			●	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	1509-1511		●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) Z=43	8-97352-815-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1506-1508	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1509-1511	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1509-1511		●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1506-1508			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1509-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1509-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1506-	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	1506-			●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1506-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1506-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1506-1508			●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1509-			●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1506-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1506-1508	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1509-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1509-	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1506-1508	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1509-	●	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1506-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1506-1508			●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1509-			●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1506-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1506-1508			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1509-			●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1506-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1506-1508			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1509-			●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1506-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1506-1508			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1509-			●	●
323	04.384 INSERT	8-94448-202-2	03	1	1506-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1506-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1506-1508			●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1509-			●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	1509-		●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-862-0	01	1	1509-		●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1506-1508	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1509-	●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-640-0	01	1	1509-		●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98031-640-0	01	1	1509-		●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1506-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1506-1508			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1509-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1506-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1506-1508	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1509-	●	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-099-1	01	1	1506-1508			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-099-1	01	1	1509-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-		●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-1508	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1509-1511	●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1509-1511		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1509-1511		●	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-97255-183-1	01	1	1512-	●	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1506-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1506-1508			●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1509-			●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1506-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1506-1508			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1509-			●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1506-1508	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1509-1511	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1509-1511		●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1512-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	1506-1508			●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	1509-			●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1506-1508	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1509-1511	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1509-1511		●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1512-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	1506-1508			●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	1509-			●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1506-1508	●	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1509-	●	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1506-1508	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1509-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1509-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	1506-1508			●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1509-			●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1506-1508	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	1506-1508			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1509-			●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1506-1508	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1509-	●	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1509-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	1506-1508			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1509-			●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1506-	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1506-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1506-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1506-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1506-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1506-1508	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1509-1511	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1509-1511		●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1512-	●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	1506-1508			●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1509-			●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1506-1508	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1509-1511	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1509-1511		●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1512-	●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	1506-1508			●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1509-			●	●

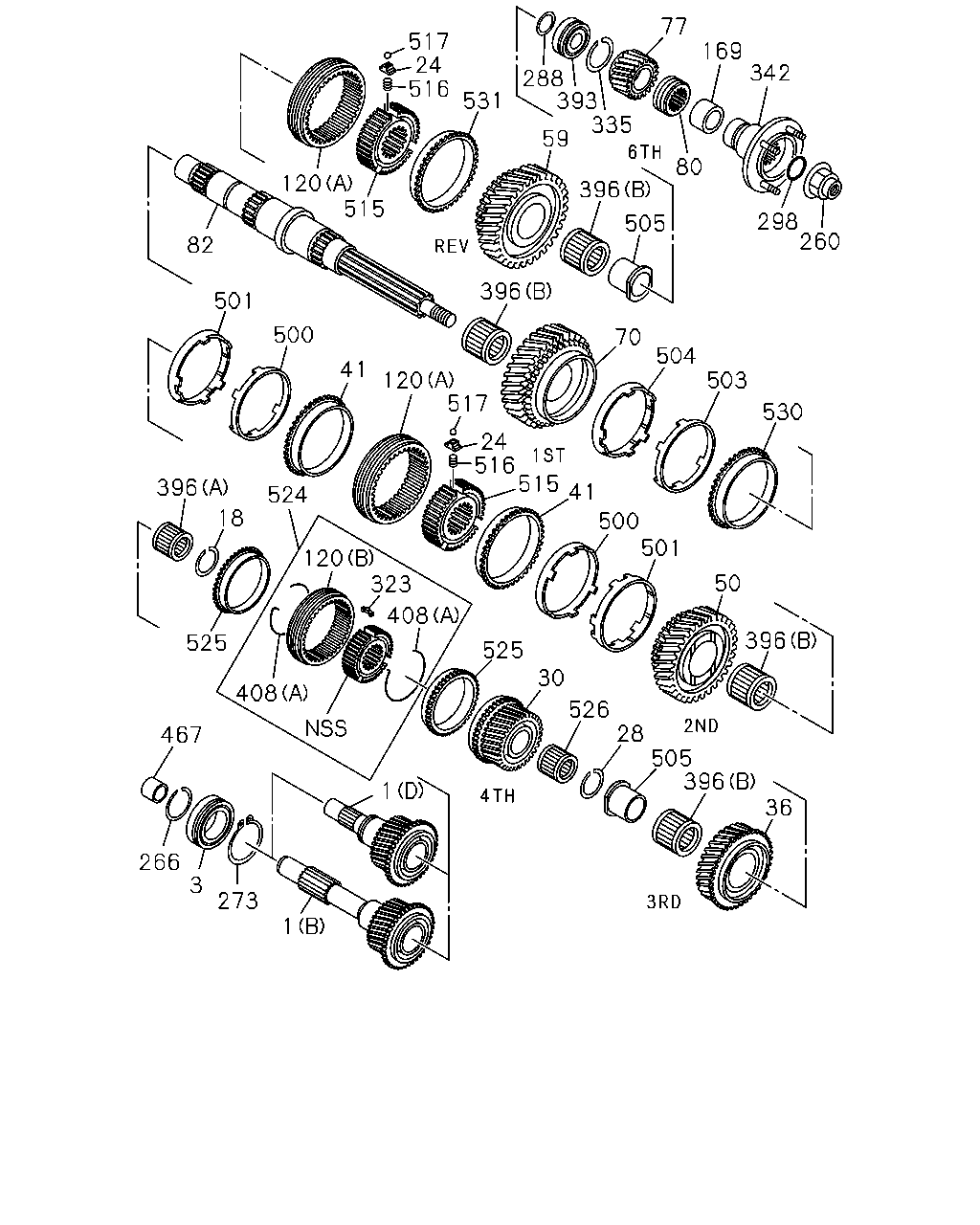

36 396 505 28 526 30 525 1 1 273 3 266 467 525 408 396 50 501 500 41 408 323 120 524 18 396 515 516 24 517 120 41 500 501 82 515 120 396 70 530 503 504 260 298 342 80 77 505 396 59 335 393 288 531 516 24 517 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS SMOOTHER-EX(TYPE2)(8NS) (F) Z=28	8-98031-849-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) Z=26	8-98021-267-0	01	1	1509-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (E) Z=25	8-97371-091-0	01	1	1509-			●	●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1506-1511	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS (B) Z=26	8-98021-266-0	01	1	1506-1508		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=26	8-98021-266-0	01	1	1509-		●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=25	8-97371-090-0	01	1	1506-1508			●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=25	8-97371-090-0	01	1	1509-			●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1506-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1506-1508			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1509-			●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1506-	●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1506-1508			●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1509-			●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1506-1508	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1509-	●	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1509-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	1506-1508			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	1509-			●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1506-1508	●	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1509-	●	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1509-				●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1506-		●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	1506-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	1509-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1506-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	1506-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1506-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1506-1508			●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1509-			●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1506-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1506-1508			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1509-			●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1506-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1506-1508			●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1509-			●	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	1509-1511		●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) Z=43	8-97352-815-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1506-1508	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1509-1511	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1509-1511		●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1506-1508			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1509-			●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1506-		●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1506-1508			●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1509-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1509-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1506-	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	1506-			●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1506-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1506-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1506-1508			●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1509-			●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1506-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1506-1508	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1509-	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1509-	●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	1506-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1506-1508	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1509-	●	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1506-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1506-1508			●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1509-			●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1506-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1506-1508			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1509-			●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1506-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1506-1508			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1509-			●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1506-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1506-1508			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1509-			●	●
323	04.384 INSERT	8-94448-202-2	03	1	1506-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1506-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1506-1508			●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1509-			●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	1509-		●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-862-0	01	1	1509-		●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1506-1508	●	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1509-	●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-640-0	01	1	1509-		●
342	05.545 FLANGE; OUTPUT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98031-640-0	01	1	1509-		●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1506-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1506-1508			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1509-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1506-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1506-1508	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1509-	●	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-099-1	01	1	1506-1508			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-099-1	01	1	1509-			●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-		●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-1508	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1509-1511	●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1509-1511		●
408	04.384 SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	1512-	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1509-1511		●	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-97255-183-1	01	1	1512-	●	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1506-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1506-1508			●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1509-			●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1506-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1506-1508			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1509-			●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1506-1508	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1509-1511	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1509-1511		●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1512-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	1506-1508			●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	1509-			●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1506-1508	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1509-1511	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1509-1511		●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1512-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	1506-1508			●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	1509-			●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1506-1508	●	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1509-	●	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1506-1508	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1509-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1509-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	1506-1508			●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1509-			●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1506-1508	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	1506-1508			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1509-			●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1506-1508	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1509-	●	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1509-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	1506-1508			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1509-			●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1506-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1506-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1506-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1506-1508	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1509-1511	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1509-1511		●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1512-	●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	1506-1508			●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1509-			●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1506-1508	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1509-1511	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1509-1511		●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1512-	●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	1506-1508			●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1509-			●	●

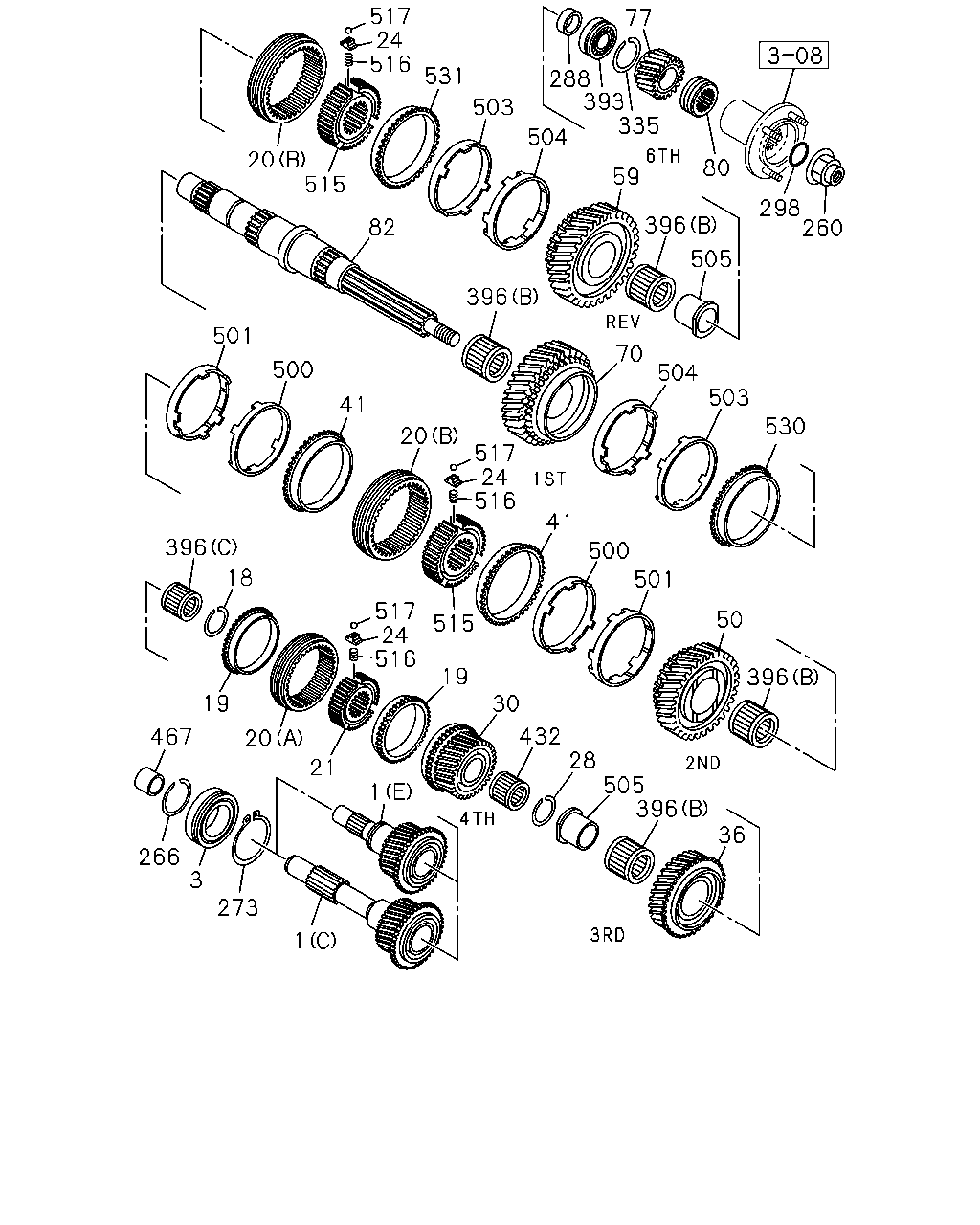

36 396 505 28 432 30 19 1 1 273 3 266 467 20 21 19 18 396 517 24 516 396 50 501 500 41 515 516 24 517 20 41 500 501 530 503 504 70 396 82 515 20 517 531 516 24 503 288 504 335 393 77 80 59 505 396 298 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS SMOOTHER-EX(TYPE2)(8NS) (F) Z=28	8-98031-849-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (D) Z=26	8-98021-267-0	01	1	1509-		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (E) Z=25	8-97371-091-0	01	1	1509-			●	●
1	04.351 SHAFT; TOP GEAR,TRANS (A) Z=28	8-98031-848-0	01	1	1506-1511	●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=28	8-98031-848-0	01	1	1512-	●
1	04.351 SHAFT; TOP GEAR,TRANS (B) Z=26	8-98021-266-0	01	1	1506-1508		●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=26	8-98021-266-0	01	1	1509-		●
1	04.351 SHAFT; TOP GEAR,TRANS (C) Z=25	8-97371-090-0	01	1	1506-1508			●
1	04.351 SHAFT; TOP GEAR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=25	8-97371-090-0	01	1	1509-			●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1506-	●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1506-1508			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1509-			●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1506-	●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1506-1508			●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1509-			●	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1506-1508			●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1509-			●	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	1506-1508			●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1509-			●	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	1509-			●	●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1506-1508			●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-			●	●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1506-1508			●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1509-			●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1506-1508	●	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	1509-	●	●	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	03	1	1509-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	1506-1508			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	1509-			●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1506-1508	●	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1509-	●	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1509-				●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1506-		●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	1506-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	1509-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1506-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	1506-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1506-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1506-1508			●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1509-			●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1506-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1506-1508			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1509-			●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1506-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1506-1508			●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	1509-			●	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	1509-1511		●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) Z=43	8-97352-815-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1506-1508	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1509-1511	●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1509-1511		●
70	04.417 GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	1512-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1506-1508			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	1509-			●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1506-		●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1506-1508			●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	1509-			●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1509-				●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1506-	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	1506-			●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1506-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1506-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1506-1508			●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	1509-			●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1506-1508	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1509-	●	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1506-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1506-1508			●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	1509-			●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1506-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1506-1508			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1509-			●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1506-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1506-1508			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1509-			●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1506-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1506-1508			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1509-			●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1506-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1506-1508			●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	1509-			●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1506-	●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1506-1508			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	1509-			●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1506-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1506-1508	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1509-	●	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-099-1	01	1	1506-1508			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-099-1	01	1	1509-			●	●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1506-1508			●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1509-			●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1509-1511		●	●	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS)	8-97255-183-1	01	1	1512-	●	●	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1506-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1506-1508			●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1509-			●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1506-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1506-1508			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1509-			●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1506-1508	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1509-1511	●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1509-1511		●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1512-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	1506-1508			●
503	04.383 RING; OUTSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	1509-			●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1506-1508	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1509-1511	●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1509-1511		●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1512-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	1506-1508			●
504	04.383 RING; INSIDE,LOW & REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	1509-			●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1506-1508	●	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1509-	●	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1506-1508	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1509-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	1509-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	1506-1508			●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1509-			●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	1509-			●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1506-1508	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	1509-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	1506-1508			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1509-			●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1506-1508	●	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	1509-	●	●	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	03	1	1509-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	1506-1508			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1509-			●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1506-1508	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1509-1511	●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1509-1511		●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	1512-	●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	1506-1508			●
530	04.383 RING; BLOCK,LOW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1509-			●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1506-1508	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1509-1511	●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1509-1511		●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1512-	●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	1506-1508			●
531	04.383 RING; BLOCK,REV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	1509-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
