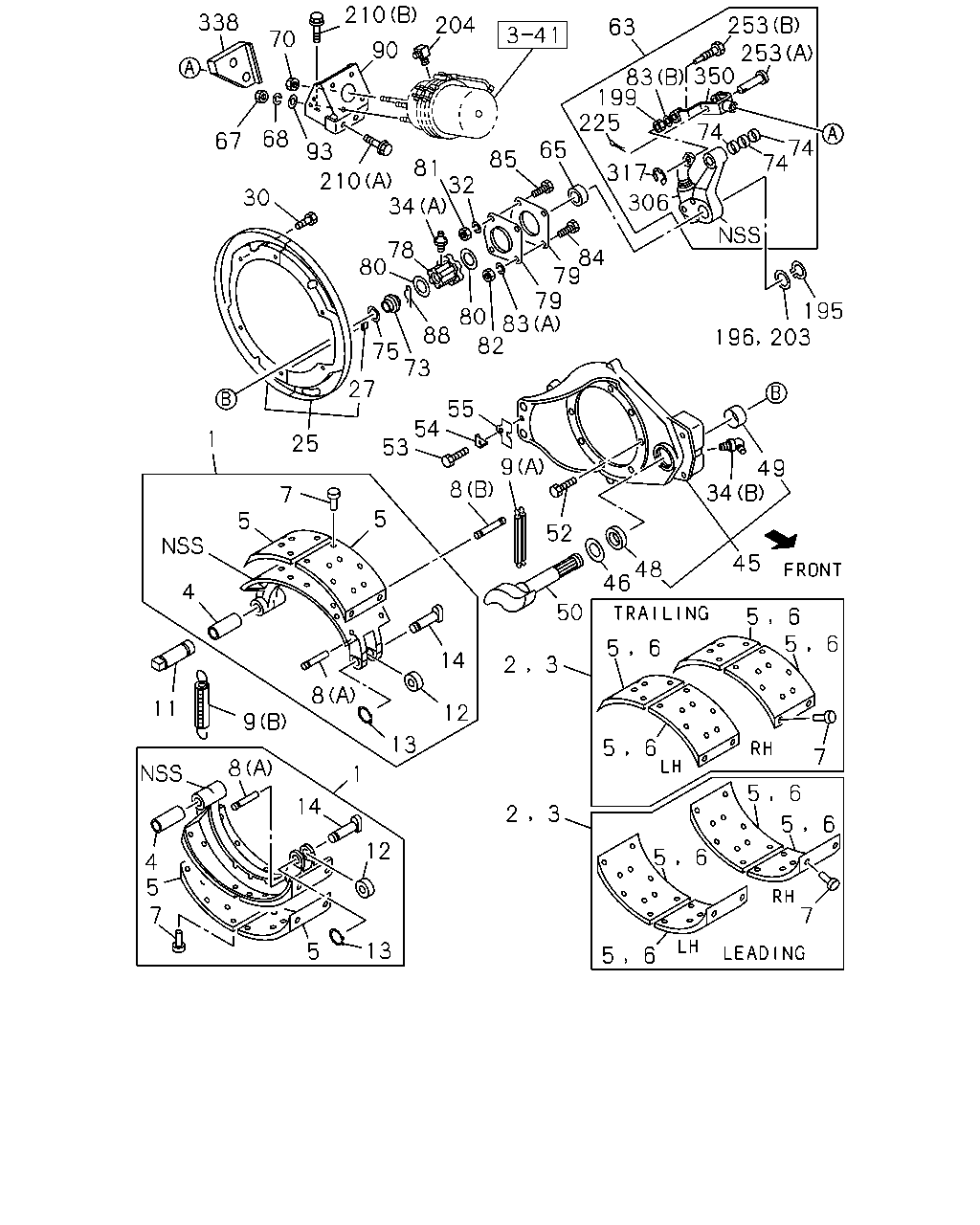

1 |
SHOE; BRK,RR
TRAILING
|
1-47120-341-0 |
01 |
1 |
0907- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-343-0 |
01 |
1 |
0907- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47170-398-0 |
01 |
1 |
0907- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47170-399-0 |
01 |
1 |
0907- |
| |
2 |
LINING SET; RR BRK,STANDARD
LEADING
|
1-88311-435-0 |
01 |
1 |
0907- |
| |
2 |
LINING SET; RR BRK,STANDARD
TRAILING
|
1-88310-319-0 |
01 |
1 |
0907- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
LEADING
|
1-88311-436-0 |
01 |
1 |
0907- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
TRAILING
|
1-88310-320-0 |
01 |
1 |
0907- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-012-0 |
04 |
1 |
0907- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
TRAILING
|
1-47125-440-0 |
04 |
1 |
0907- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
LEADING
|
1-47126-712-0 |
04 |
1 |
0907- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
TRAILING
|
1-47125-442-0 |
04 |
1 |
0907- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
LEADING
|
1-47126-713-0 |
04 |
1 |
0907- |
| |
7 |
RIVET; LINING,RR BRK
L=19.5
|
1-09732-035-0 |
AR |
1 |
0907- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B)
|
1-09744-074-0 |
04 |
1 |
0907- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
|
1-47119-029-0 |
04 |
1 |
0907- |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-09583-210-0 |
02 |
1 |
0907- |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-277-2 |
02 |
1 |
0907- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=121.5
|
1-47131-039-0 |
04 |
1 |
0907- |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47113-005-0 |
04 |
1 |
0907- |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
9-47119-022-0 |
04 |
1 |
0907- |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
|
1-09744-061-0 |
04 |
1 |
0907- |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-487-1 |
02 |
1 |
0907- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
0907- |
| |
30 |
BOLT; DRUM COVER
M10X12
|
1-47159-187-0 |
12 |
1 |
0907- |
| |
32 |
WASHER; LK
ID=10.2
|
0-91510-510-0 |
04 |
1 |
0907- |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
(A)
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0907- |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
(B)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
0907- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
|
1-47137-488-0 |
01 |
1 |
0907- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
|
1-47137-489-0 |
01 |
1 |
0907- |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
|
1-47143-005-0 |
02 |
1 |
0907- |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
|
1-09625-228-0 |
02 |
1 |
0907- |
| |
49 |
BUSHING; CM/SHF,RR BRK
|
1-47146-009-0 |
02 |
1 |
0907- |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-128-0 |
01 |
1 |
0907- |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-129-0 |
01 |
1 |
0907- |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
02 |
1 |
0907- |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20851-016-0 |
02 |
1 |
0907- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
0907- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
0907- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-097-0 |
01 |
1 |
0907- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-098-0 |
01 |
1 |
0907- |
| |
65 |
SPACER; SLACK ADJ,BRK
|
1-47143-014-0 |
02 |
1 |
0907- |
| |
67 |
NUT; POWER CHAMBER FIX
M16
|
0-91110-516-0 |
08 |
1 |
0907- |
| |
68 |
WASHER; LK,CHAMBER
ID=16.2
|
0-91510-816-0 |
08 |
1 |
0907- |
| |
70 |
NUT; LK,JAW JOINT
M16
|
0-91111-516-0 |
02 |
1 |
0907- |
| |
73 |
COLLAR; FELT RING,CM/SHF
|
1-47143-016-0 |
02 |
1 |
0907- |
| |
74 |
BUSHING; SLACK ADJ
|
1-48279-078-0 |
06 |
1 |
0907- |
| |
75 |
RING; FELT,CM/SHF
|
1-09620-009-0 |
02 |
1 |
0907- |
| |
78 |
BUSHING; BRKT
|
1-47146-008-0 |
02 |
1 |
0907- |
| |
79 |
BRACKET; CM/SHF
|
9-47145-013-0 |
04 |
1 |
0907- |
| |
80 |
GASKET; BUSHING
ID=39.7
|
9-09561-340-0 |
04 |
1 |
0907- |
| |
81 |
NUT
M10
|
0-91110-510-0 |
04 |
1 |
0907- |
| |
82 |
NUT
M16
|
0-91110-516-0 |
04 |
1 |
0907- |
| |
83 |
WASHER; PL
(B)
|
1-48279-033-0 |
02 |
1 |
0907- |
| |
83 |
WASHER; PL
(A)
ID=16.2
|
9-09851-672-2 |
08 |
1 |
0907- |
| |
84 |
BOLT; BRKT TO CASE
M16X40
|
0-20951-640-0 |
04 |
1 |
0907- |
| |
85 |
BOLT; CM/SHF BRKT
M10X20
|
0-20851-020-0 |
04 |
1 |
0907- |
| |
88 |
CLIP; BRKT
|
1-09589-018-0 |
02 |
1 |
0907- |
| |
90 |
BRACKET; CHAMBER
|
1-42129-449-0 |
01 |
1 |
0907- |
| |
90 |
BRACKET; CHAMBER
|
1-42129-450-0 |
01 |
1 |
0907- |
| |
93 |
WASHER; PL,CHAMBER
ID=17 OD=32
|
9-09160-616-0 |
08 |
1 |
0907- |
| |
195 |
RING; SNAP,CM/SHF
|
9-09180-038-0 |
02 |
1 |
0907- |
| |
196 |
DISTANCE; CM/SHF
|
1-47143-004-0 |
01 |
1 |
0907- |
| |
199 |
NUT
|
1-48279-034-0 |
02 |
1 |
0907- |
| |
203 |
DISTANCE; CM/SHF
|
1-47143-004-0 |
01 |
1 |
0907- |
| |
204 |
CONNECTOR; SPR CHAMBER
M16 & PT3/8 ELBOW
|
1-09650-438-0 |
04 |
1 |
0907- |
| |
210 |
BOLT; BRKT FIX
(A)
M16X50 FLANGE
|
0-28861-650-0 |
04 |
1 |
0907- |
| |
210 |
BOLT; BRKT FIX
(B)
M16X30 FLANGE
|
0-28891-630-0 |
04 |
1 |
0907- |
| |
225 |
PIN; SPLIT
|
1-48279-031-0 |
02 |
1 |
0907- |
| |
253 |
PIN; CLEVIS
(A)
|
1-48279-029-0 |
02 |
1 |
0907- |
| |
253 |
PIN; CLEVIS
(B)
|
1-48279-030-0 |
02 |
1 |
0907- |
| |
306 |
BOOT; SLACK ADJ
|
1-48279-044-0 |
02 |
1 |
0907- |
| |
317 |
RING; RETAINER
|
1-48279-032-0 |
02 |
1 |
0907- |
| |
338 |
PLATE; DISTANCE
|
1-42129-505-0 |
02 |
1 |
0907- |
| |
350 |
CLEVIS; SLACK ADJ
|
1-48279-060-0 |
02 |
1 |
0907- |
