◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#162335) — 12 parça

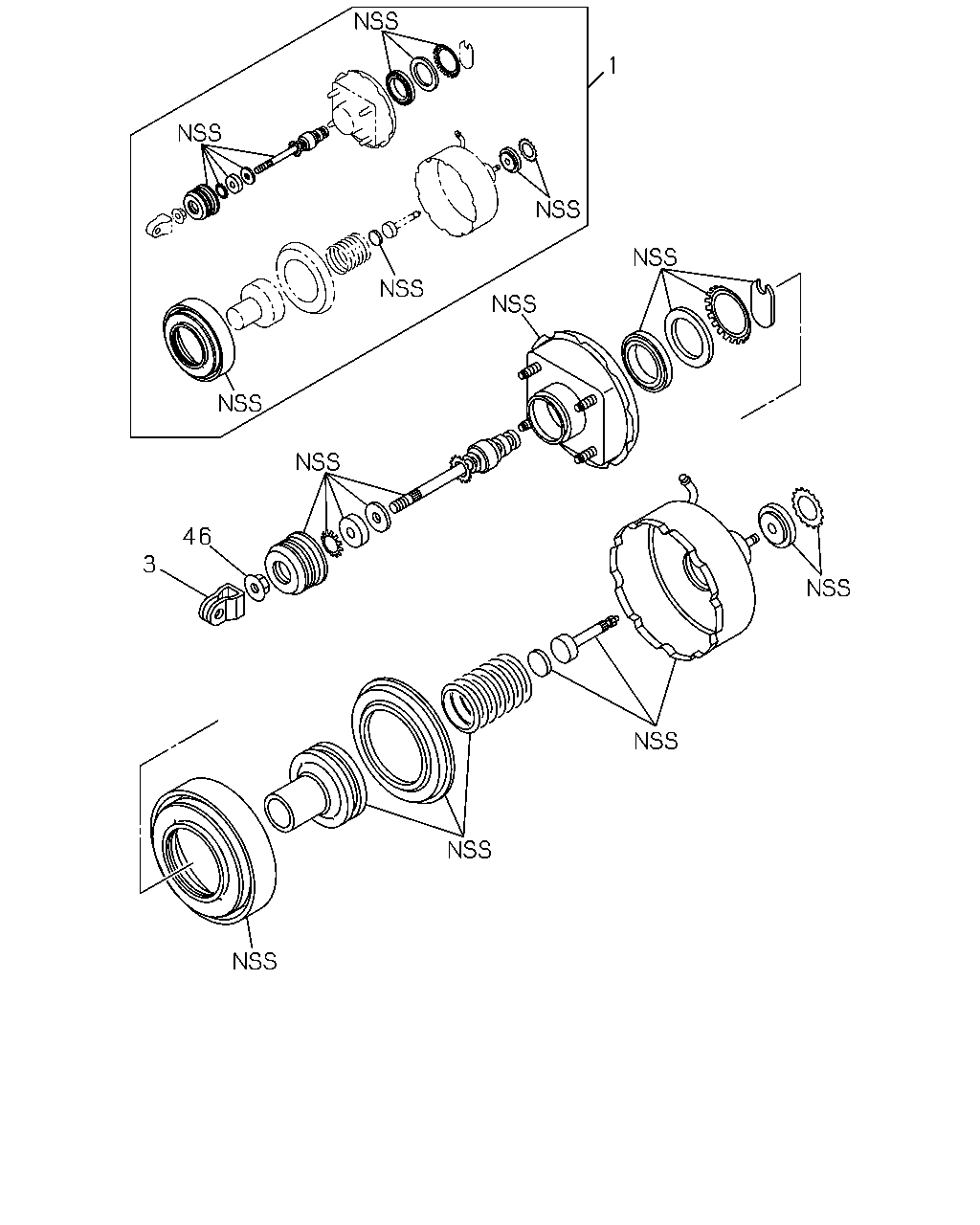

çizim 479509
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-98049-385-0 01 1 1506-1508 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-98049-385-0 01 1 1509-1511 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 1509-1511 ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 1512- ●
1 00.775 REPAIR KIT; CLU BOOSTER
4JJ1-TCS ENG(LFB) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 1512- ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-98049-386-0 01 1 1506-1508 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-386-0 01 1 1509- ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-386-0 01 1 1509- ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 1506-1508 ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 1509- ● ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 1506-1508 ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 1509- ● ● ● ●
