◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#162333) — 87 parça

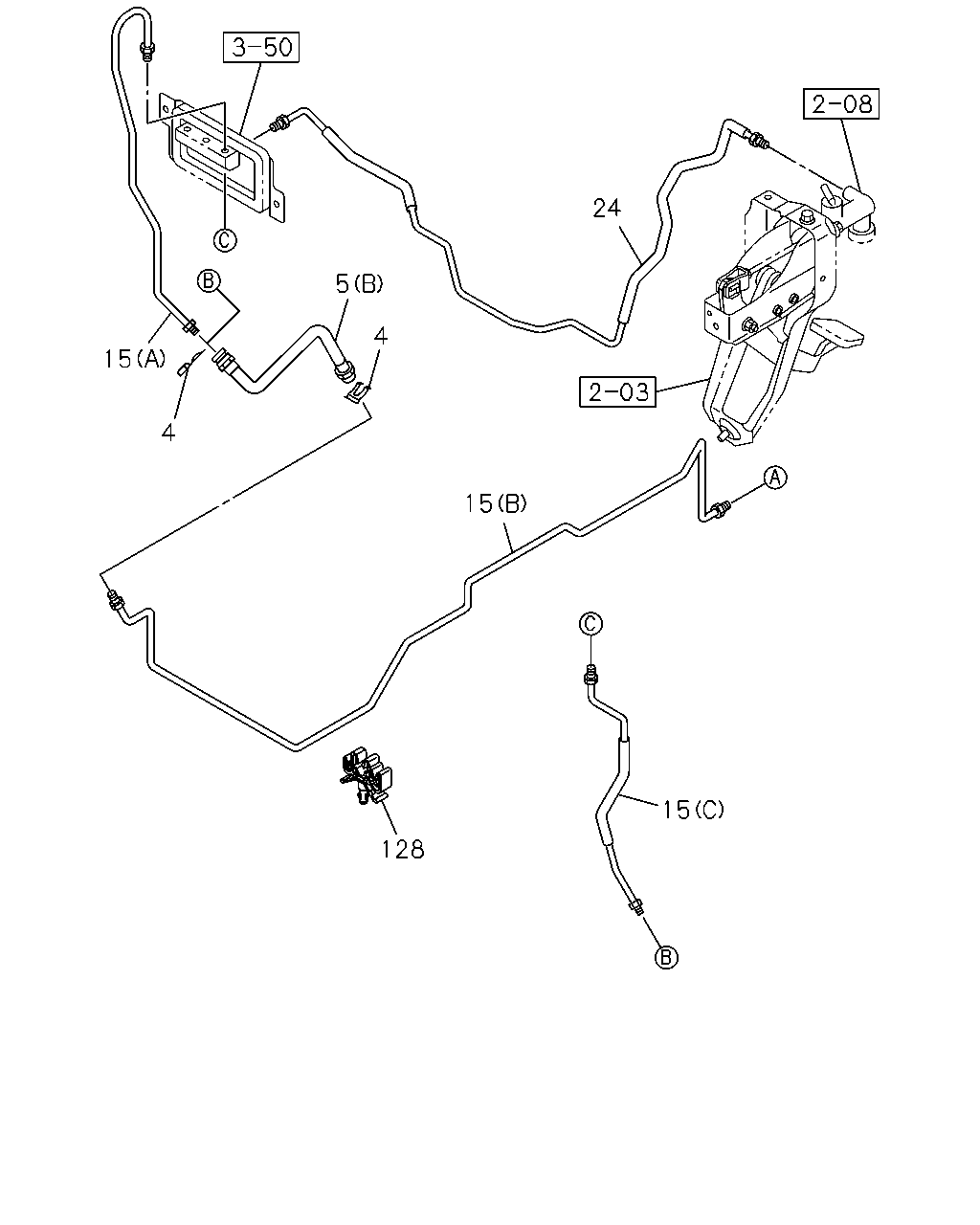

çizim 479457
15 4 5 4 15 128 15 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1506-1508 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1509-1511 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 1509-1511 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 02 1 1512- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1506-1508 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1509-1511 ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1509-1511 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1512- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1506-1508 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1509-1511 ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1509-1511 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1512- ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98047-202-3 01 1 1509- ●
15 00.785 PIPE; CLU,FLEX HOSE
NQR(NP***S) (C) 		8-98047-202-3 01 1 1509- ●
15 00.785 PIPE; CLU,FLEX HOSE
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98160-043-0 01 1 1509- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98046-883-0 01 1 1506-1508 ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-883-0 01 1 1506-1508 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98046-883-0 01 1 1509-1511 ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-883-0 01 1 1509-1511 ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98046-883-0 01 1 1512- ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98046-883-0 01 1 1512- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98100-910-0 01 1 1506-1508 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98100-910-0 01 1 1509-1511 ●
15 00.785 PIPE; CLU,FLEX HOSE
NPR(NP***N) 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98100-910-0 01 1 1509-1511 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98100-910-0 01 1 1509-1511 ●
15 00.785 PIPE; CLU,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98100-910-0 01 1 1512- ●
15 00.785 PIPE; CLU,FLEX HOSE
NPR(NP***N) 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98100-910-0 01 1 1512- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98100-910-0 01 1 1512- ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98210-360-0 01 1 1506-1507 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98210-360-0 01 1 1508-1508 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98210-360-0 01 1 1509- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1506-1508 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1509- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1506-1508 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1509- ● ● ● ●
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 01 1 1506-1507 ● ●
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 01 1 1508-1508 ● ● ●
128 00.785 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.3 5 		8-98153-939-1 01 1 1509- ● ● ●

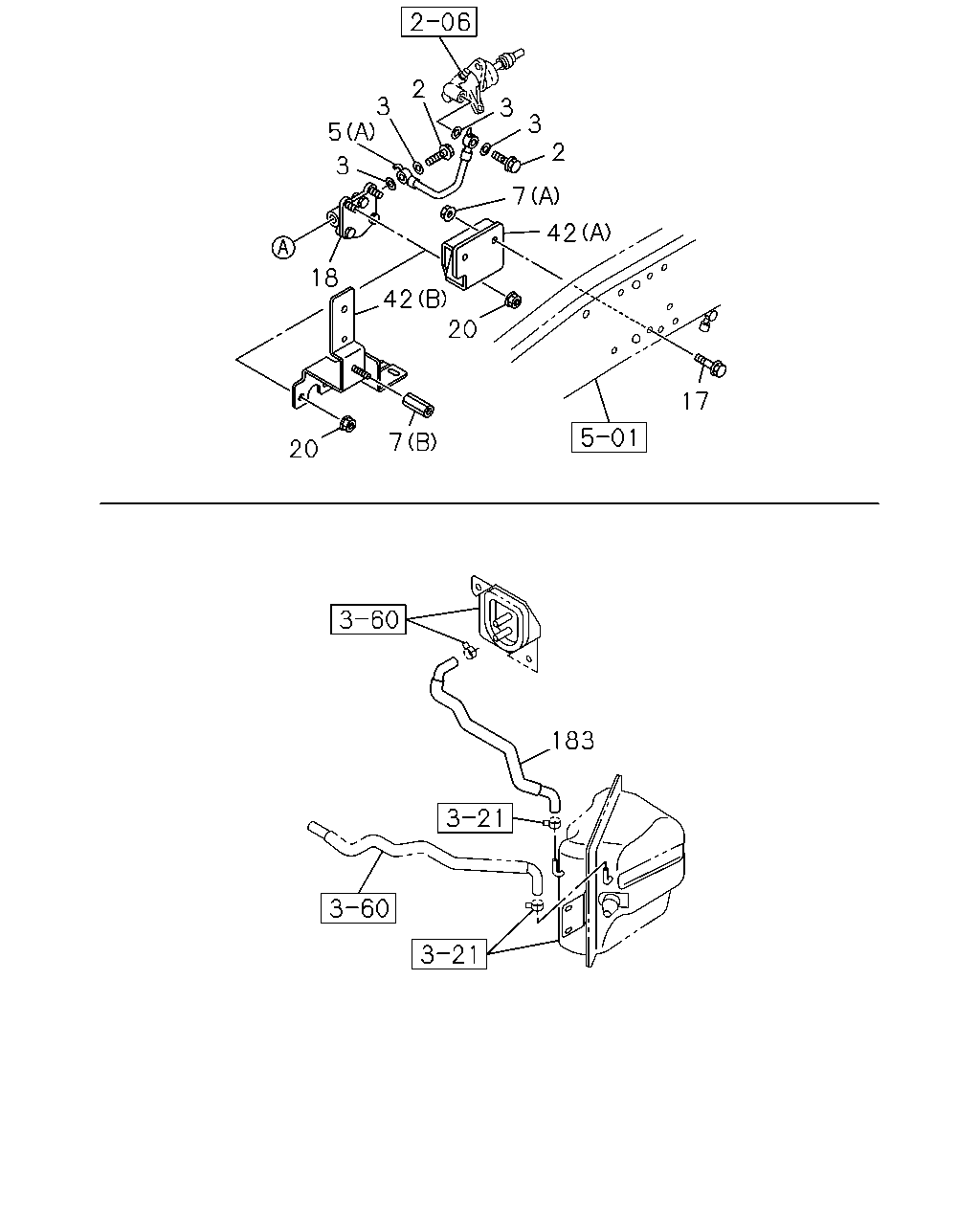

çizim 479458
2 3 5 3 3 3 2 7 42 17 7 20 20 42 18 183
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-98014-005-0 02 1 1506-1508 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-98014-005-0 02 1 1509-1511 ●
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 1509-1511 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 1512- ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-1508 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509-1511 ●
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509-1511 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1512- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1506-1508 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1509-1511 ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1509-1511 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1512- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1506-1508 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1509-1511 ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1509-1511 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1512- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
00.837 (B) M10 		8-98034-487-1 01 1 1506-1508 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 (B) M10 		8-98034-487-1 01 1 1506-1508 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
00.837 (B) M10 		8-98034-487-1 01 1 1509-1511 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 (B) M10 		8-98034-487-1 01 1 1509-1511 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.837 (B) M10 		8-98034-487-1 01 1 1512- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 (B) M10 		8-98034-487-1 01 1 1512- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1509- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
17 00.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ●
17 00.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
17 00.785 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
17 00.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
17 00.785 BOLT; BRKT
EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
18 00.830 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1506-1508 ● ● ●
18 00.830 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1509-1511 ●
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1509-1511 ● ● ●
18 00.830 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1512- ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-1511 ●
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509-1511 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1512- ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-450-0 01 1 1506-1508 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98041-450-0 01 1 1509-1511 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-450-0 01 1 1509-1511 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98041-450-0 01 1 1512- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98041-450-0 01 1 1512- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98082-472-2 01 1 1506-1508 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98082-472-2 01 1 1509- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 1506-1508 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 1509- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
