Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#162330) — 294 parça

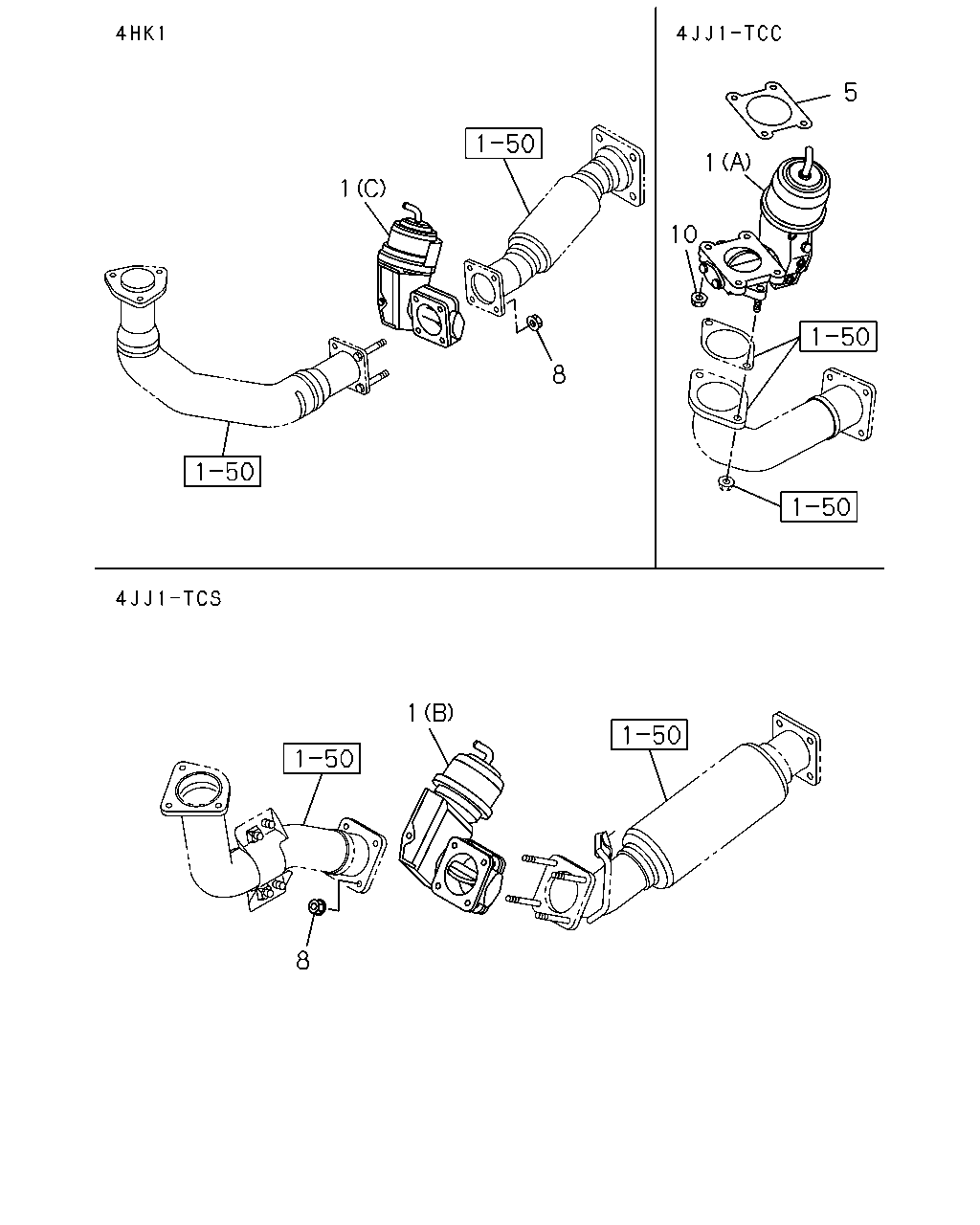

5 1 10 8 1 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98258-268-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-170-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98227-170-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH (C)	8-98227-170-0	01	1	1509-		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98258-269-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (A)	8-98228-983-0	01	1	1506-			●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98227-173-0	01	1	1506-1508	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98227-173-0	01	1	1509-1510	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98321-773-0	01	1	1511-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) (C)	8-98227-165-0	01	1	1506-1508	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98227-165-0	01	1	1509-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98321-772-0	01	1	1511-	●
5	03.634 GASKET; EXH BRAKE UNIT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.611 ID=64	8-97373-108-0	02	1	1509-	●
5	03.634 GASKET; EXH BRAKE UNIT	8-98228-984-1	01	1	1506-1508			●
5	03.634 GASKET; EXH BRAKE UNIT	8-98228-984-1	01	1	1509-			●
5	03.634 GASKET; EXH BRAKE UNIT EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98228-984-1	01	1	1509-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1506-1508	●
8	03.632 NUT; EXH BRAKE UNIT FIX TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●
8	03.632 NUT; EXH BRAKE UNIT FIX EURO5B+ SPECIFICATION(NT5) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●
8	03.632 NUT; EXH BRAKE UNIT FIX EXC. EURO5B+ SPECIFICATION(NT5) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-		●
10	03.634 NUT; BRKT,EXH BRAKE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 M10 FLANGE	8-97096-192-1	04	1	1506-1508			●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 M10 FLANGE	8-97096-192-1	04	1	1509-			●
10	03.634 NUT; BRKT,EXH BRAKE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 M10 FLANGE	8-97096-192-1	04	1	1509-	●

5 5 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98258-268-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98227-170-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98227-170-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH (C)	8-98227-170-0	01	1	1509-		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98258-269-0	01	1	1509-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (A)	8-98228-983-0	01	1	1506-			●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98227-173-0	01	1	1506-1508	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98227-173-0	01	1	1509-1510	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98321-773-0	01	1	1511-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) (C)	8-98227-165-0	01	1	1506-1508	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98227-165-0	01	1	1509-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98321-772-0	01	1	1511-	●
5	03.634 GASKET; EXH BRAKE UNIT TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.611 ID=64	8-97373-108-0	02	1	1509-	●
5	03.634 GASKET; EXH BRAKE UNIT	8-98228-984-1	01	1	1506-1508			●
5	03.634 GASKET; EXH BRAKE UNIT	8-98228-984-1	01	1	1509-			●
5	03.634 GASKET; EXH BRAKE UNIT EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98228-984-1	01	1	1509-	●
10	03.634 NUT; BRKT,EXH BRAKE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1509-	●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 M10 FLANGE	8-97096-192-1	04	1	1506-1508			●
10	03.634 NUT; BRKT,EXH BRAKE 03.613 M10 FLANGE	8-97096-192-1	04	1	1509-			●
10	03.634 NUT; BRKT,EXH BRAKE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.613 M10 FLANGE	8-97096-192-1	04	1	1509-	●

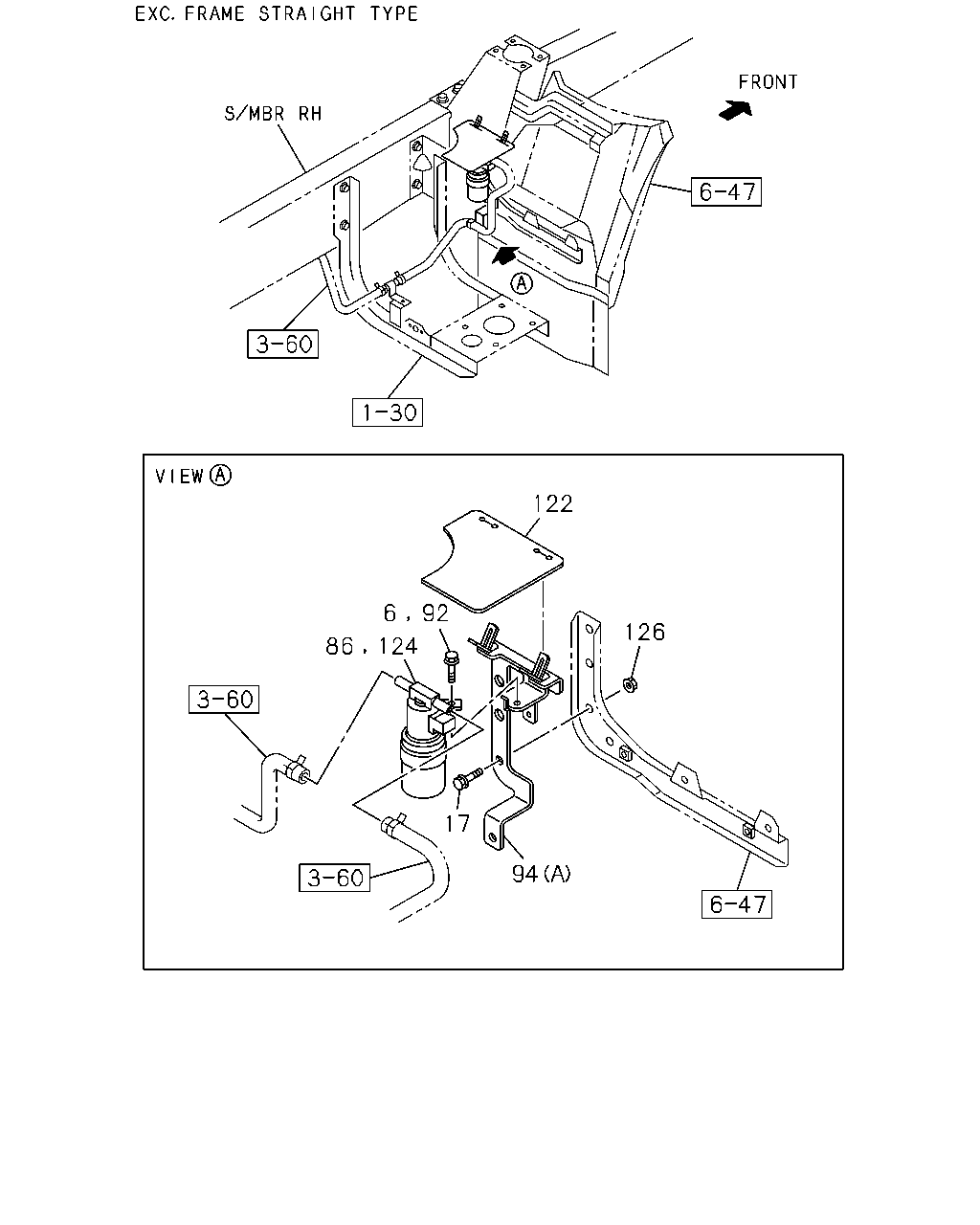

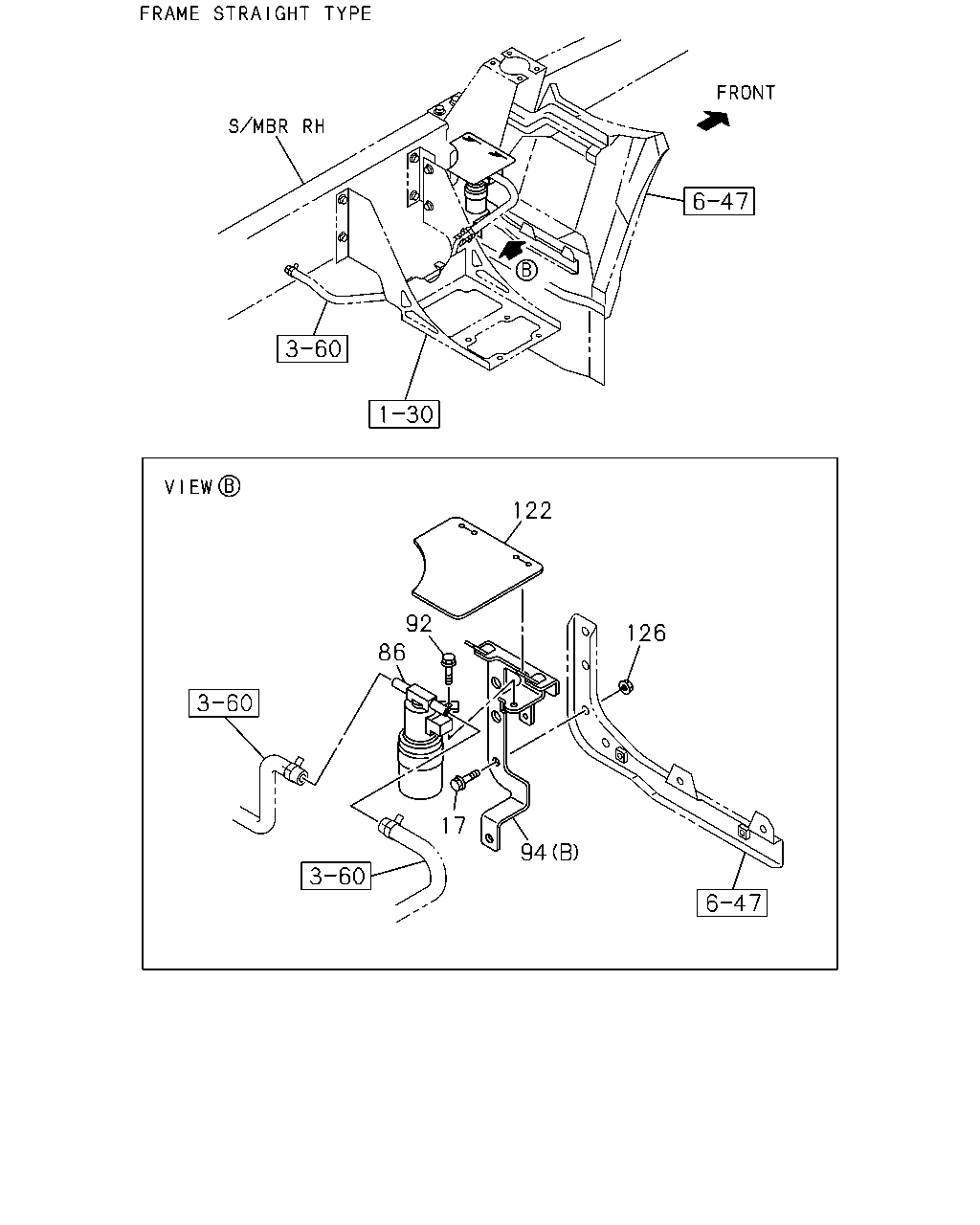

126 122 92 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●		●
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-1508			●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-1508	●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-1508	●
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1506-1508	●
86	03.636 VALVE; MAG,EXH BRK TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM)	8-98043-344-0	01	1	1509-	●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98043-344-0	01	1	1509-	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1509-		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
92	08.900 BOLT; MAG VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97370-883-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98125-497-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-096-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),CATALYSIS CONTROL(6MZ) (C)	8-98040-096-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1506-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1508-1508			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1508-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1509-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98092-656-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1508-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B)	8-98034-053-3	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98034-053-3	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1509-		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1506-1507	●		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1508-1508			●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-1508	●
122	03.640 PROTECTOR; MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-1508	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1509-		●	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1509-	●
122	03.640 PROTECTOR; MAG VLV EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1509-	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)	8-98087-988-0	01	1	1509-	●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●		●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508			●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508	●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●	●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●

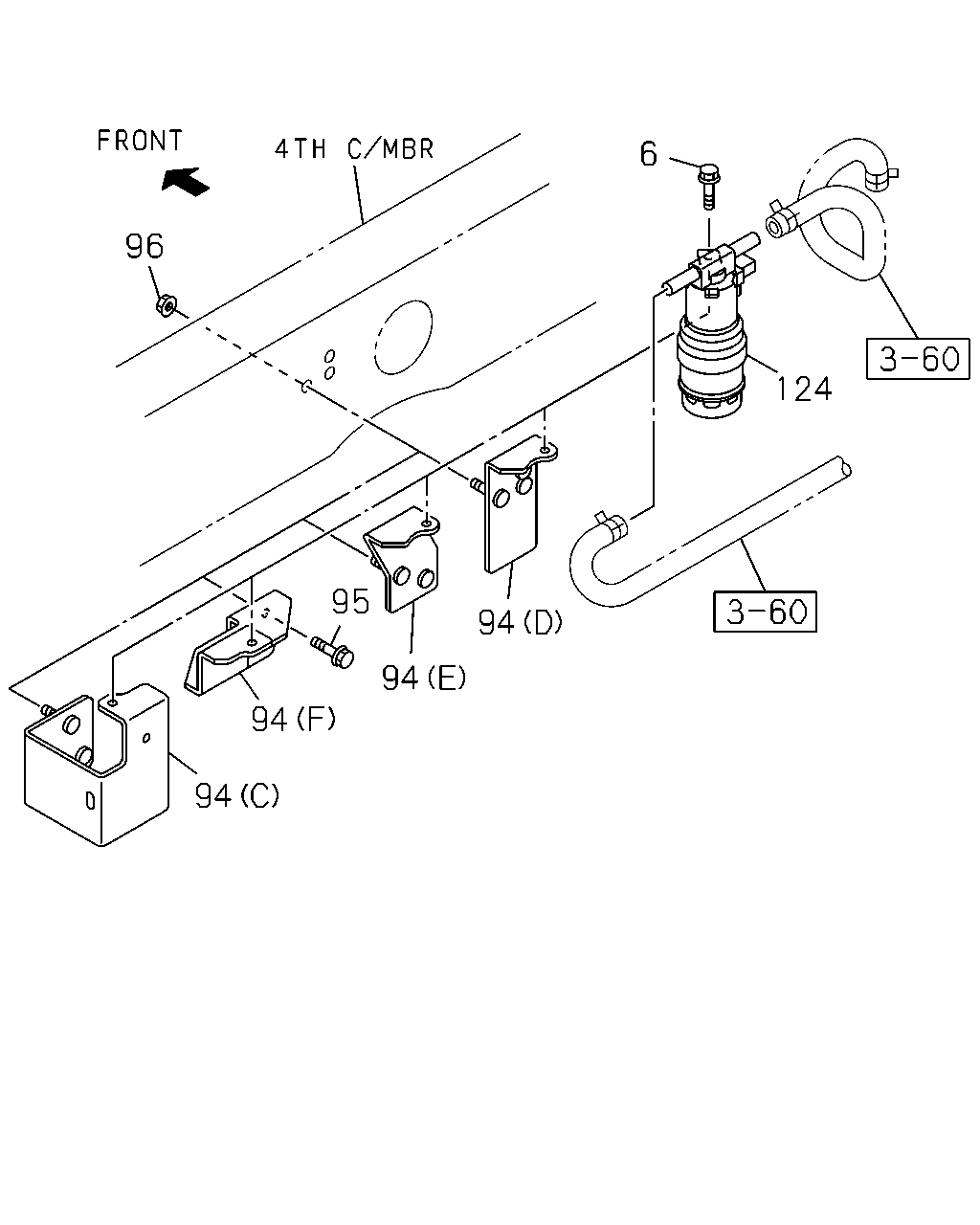

6 124 94 94 95 94 94 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 BOLT; EXH BRAKE UNIT FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508			●
6	03.632 BOLT; EXH BRAKE UNIT FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
6	03.632 BOLT; EXH BRAKE UNIT FIX EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97370-883-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98125-497-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-096-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),CATALYSIS CONTROL(6MZ) (C)	8-98040-096-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1506-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1508-1508			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1508-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1509-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98092-656-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1508-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B)	8-98034-053-3	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98034-053-3	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1509-		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),CATALYSIS CONTROL(6MZ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1506-1508			●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1509-			●
124	03.636 VALVE; MAG,DPD EXH THROTTLE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1509-	●

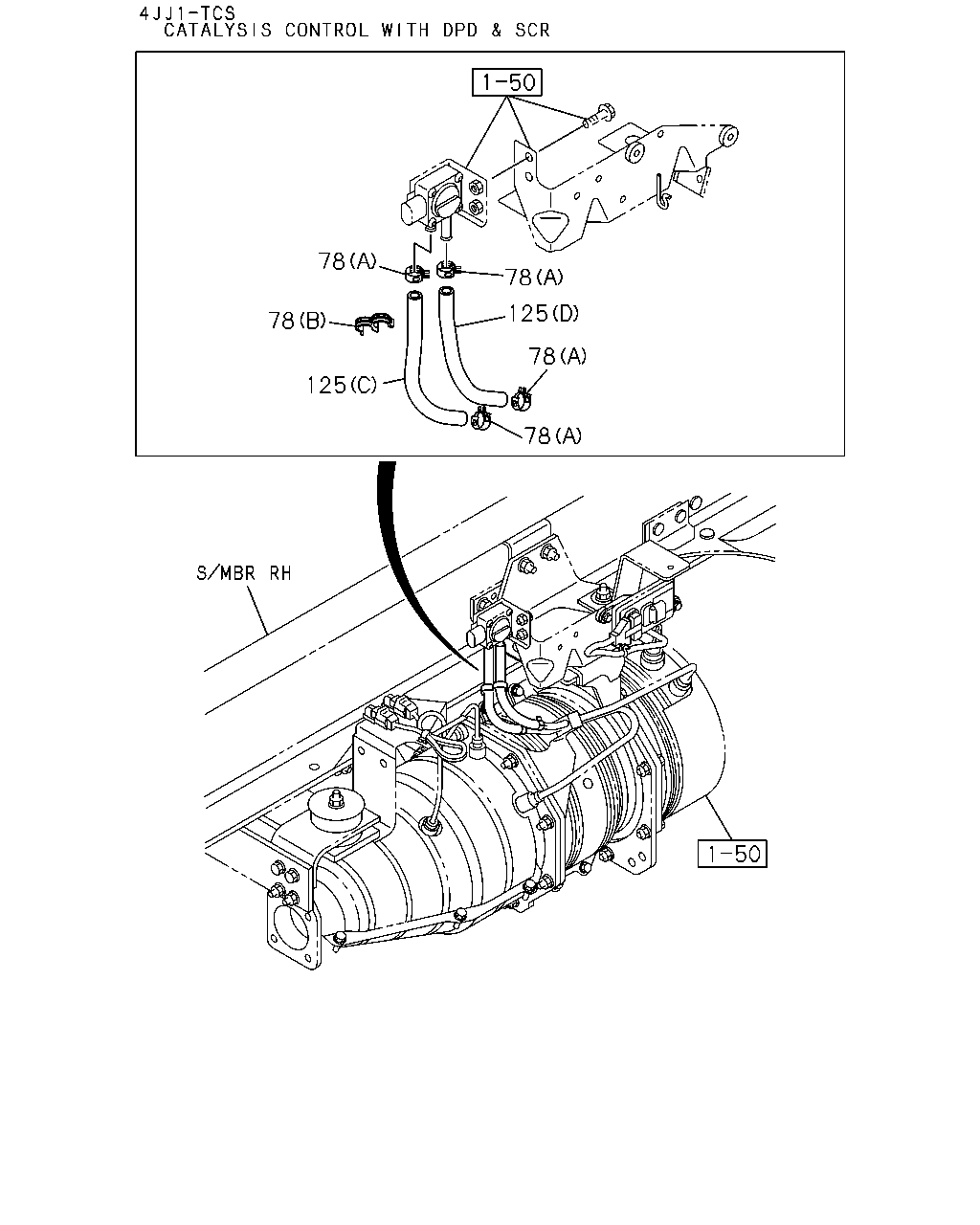

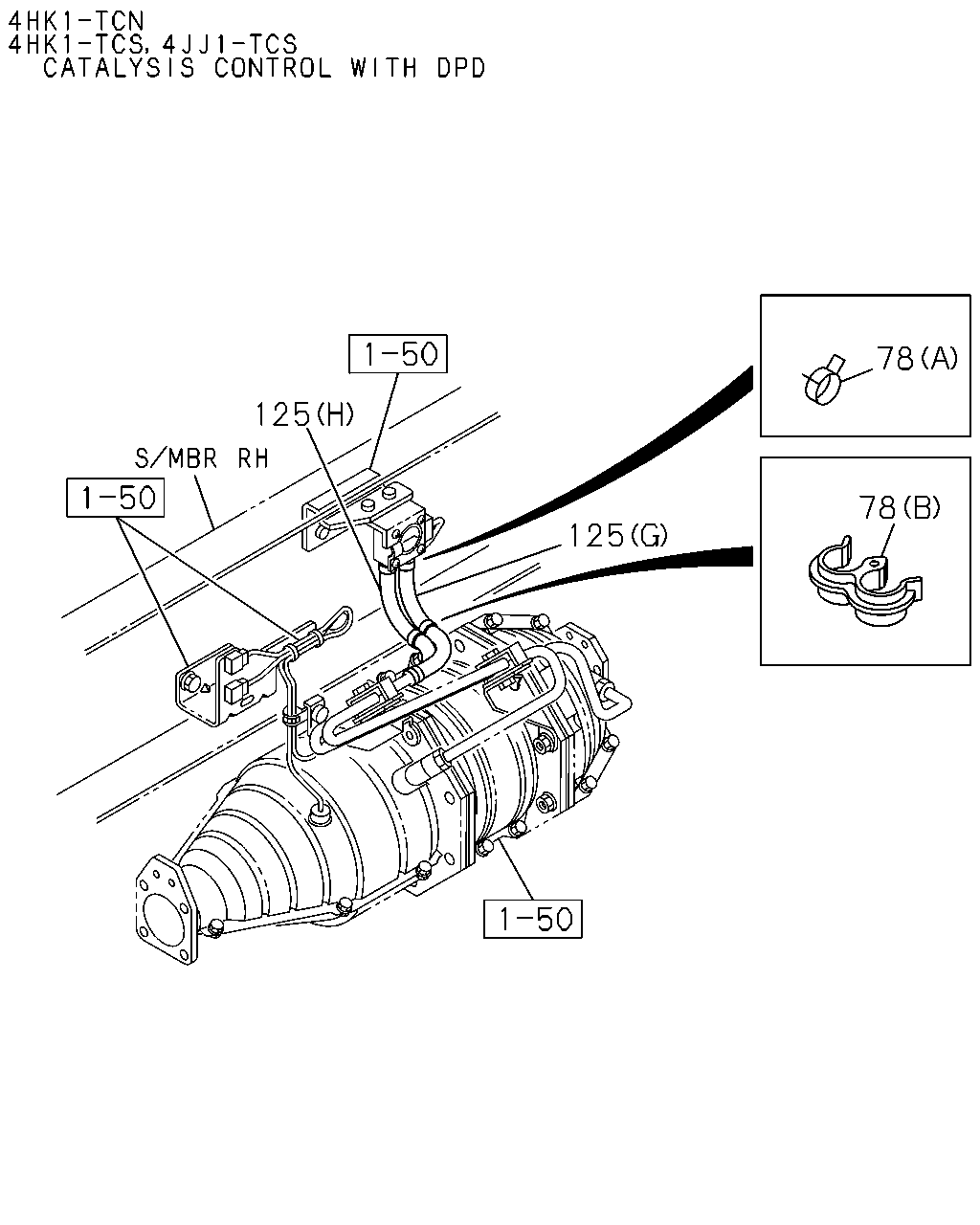

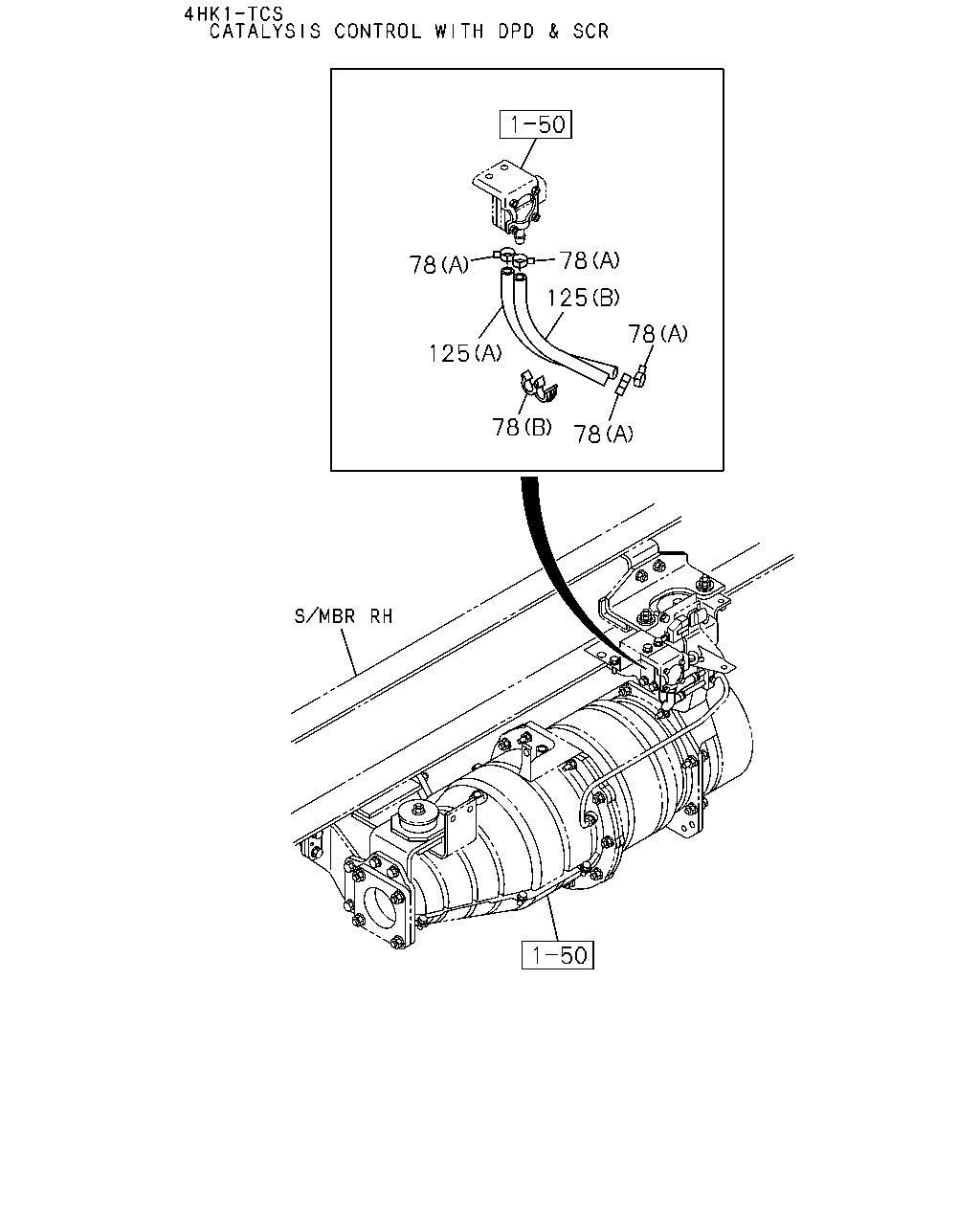

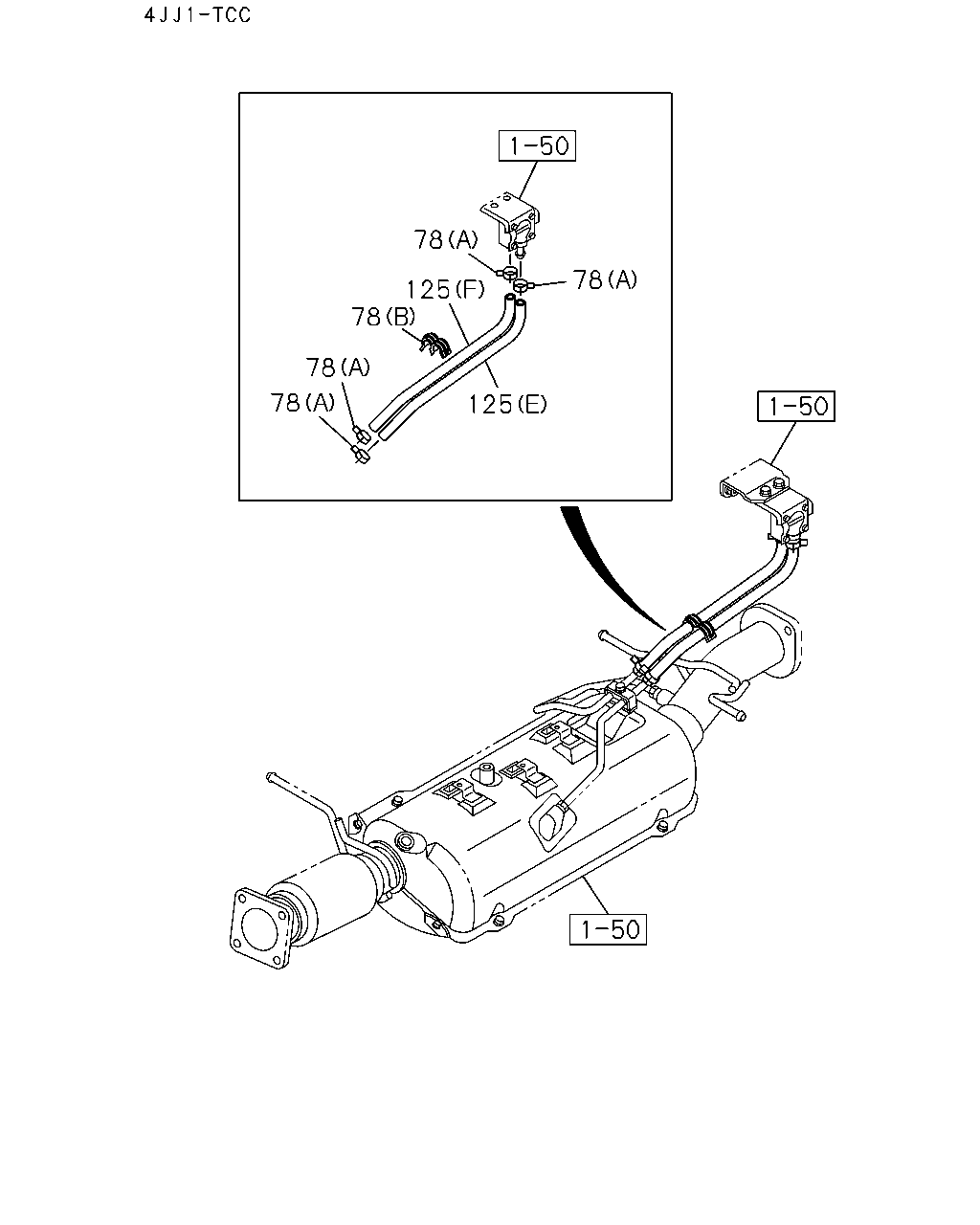

78 78 125 78 125 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98004-348-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98004-349-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.163 (H) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (G) L=170	8-98068-068-0	01	1	1509-	●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98236-430-1	01	1	1509-	●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (F)	8-98236-432-1	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98123-965-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98242-584-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98123-969-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B)	8-98123-970-0	01	1	1509-	●

122 126 6 92 86 124 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 BOLT; EXH BRAKE UNIT FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508			●
6	03.632 BOLT; EXH BRAKE UNIT FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
6	03.632 BOLT; EXH BRAKE UNIT FIX EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●		●
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-1508			●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-1508	●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1508-1508	●
17	03.634 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
17	03.634 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1506-1508	●
86	03.636 VALVE; MAG,EXH BRK TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM)	8-98043-344-0	01	1	1509-	●
86	03.636 VALVE; MAG,EXH BRK CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98043-344-0	01	1	1509-	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1509-		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
92	08.900 BOLT; MAG VLV TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97370-883-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-122-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98125-497-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-096-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),CATALYSIS CONTROL(6MZ) (C)	8-98040-096-2	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98092-656-0	01	1	1506-1507			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1508-1508			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1508-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-98092-656-0	01	1	1509-			●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A)	8-98092-656-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98092-656-0	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1506-1507	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> (B)	8-98034-053-3	01	1	1508-1508	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B)	8-98034-053-3	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) (B)	8-98034-053-3	01	1	1509-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCS ENG(RJS) (B)	8-98034-053-3	01	1	1509-		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1506-1507	●		●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1508-1508			●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-1508	●
122	03.640 PROTECTOR; MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1508-1508	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1509-		●	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1509-	●
122	03.640 PROTECTOR; MAG VLV EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ>	8-98087-988-0	01	1	1509-	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)	8-98087-988-0	01	1	1509-	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1506-1508			●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1509-			●
124	03.636 VALVE; MAG,DPD EXH THROTTLE EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1509-	●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●		●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508			●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508	●
126	03.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●	●
126	03.634 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●

78 125 78 78 78 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98004-348-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98004-349-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.163 (H) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (G) L=170	8-98068-068-0	01	1	1509-	●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98236-430-1	01	1	1509-	●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (F)	8-98236-432-1	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98123-965-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98242-584-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98123-969-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B)	8-98123-970-0	01	1	1509-	●

78 78 125 78 125 78 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98004-348-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98004-349-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.163 (H) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (G) L=170	8-98068-068-0	01	1	1509-	●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98236-430-1	01	1	1509-	●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (F)	8-98236-432-1	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98123-965-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98242-584-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98123-969-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B)	8-98123-970-0	01	1	1509-	●

78 78 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (B)	8-97173-119-0	01	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (B)	8-97173-119-0	01	1	1509-	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1506-1508	●	●
78	03.636 CLIP; HOSE 03.162 (A) ID=13	8-97329-627-0	04	1	1509-		●
78	03.636 CLIP; HOSE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) ID=13	8-97329-627-0	04	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98004-348-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-98004-349-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 03.163 (H) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> (G) L=170	8-98068-068-0	01	1	1509-	●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (E)	8-98236-430-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98236-430-1	01	1	1509-	●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1506-1508		●
125	03.630 HOSE; DPD (F)	8-98236-432-1	01	1	1509-		●
125	03.630 HOSE; DPD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (F)	8-98236-432-1	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (C)	8-98123-965-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98123-965-0	01	1	1509-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (D)	8-98242-584-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) M/T MYY6S(RST) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98242-584-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (A)	8-98123-969-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (A)	8-98123-969-0	01	1	1509-	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) (B)	8-98123-970-0	01	1	1506-1508	●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B)	8-98123-970-0	01	1	1509-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
