◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#162323) — 526 parça

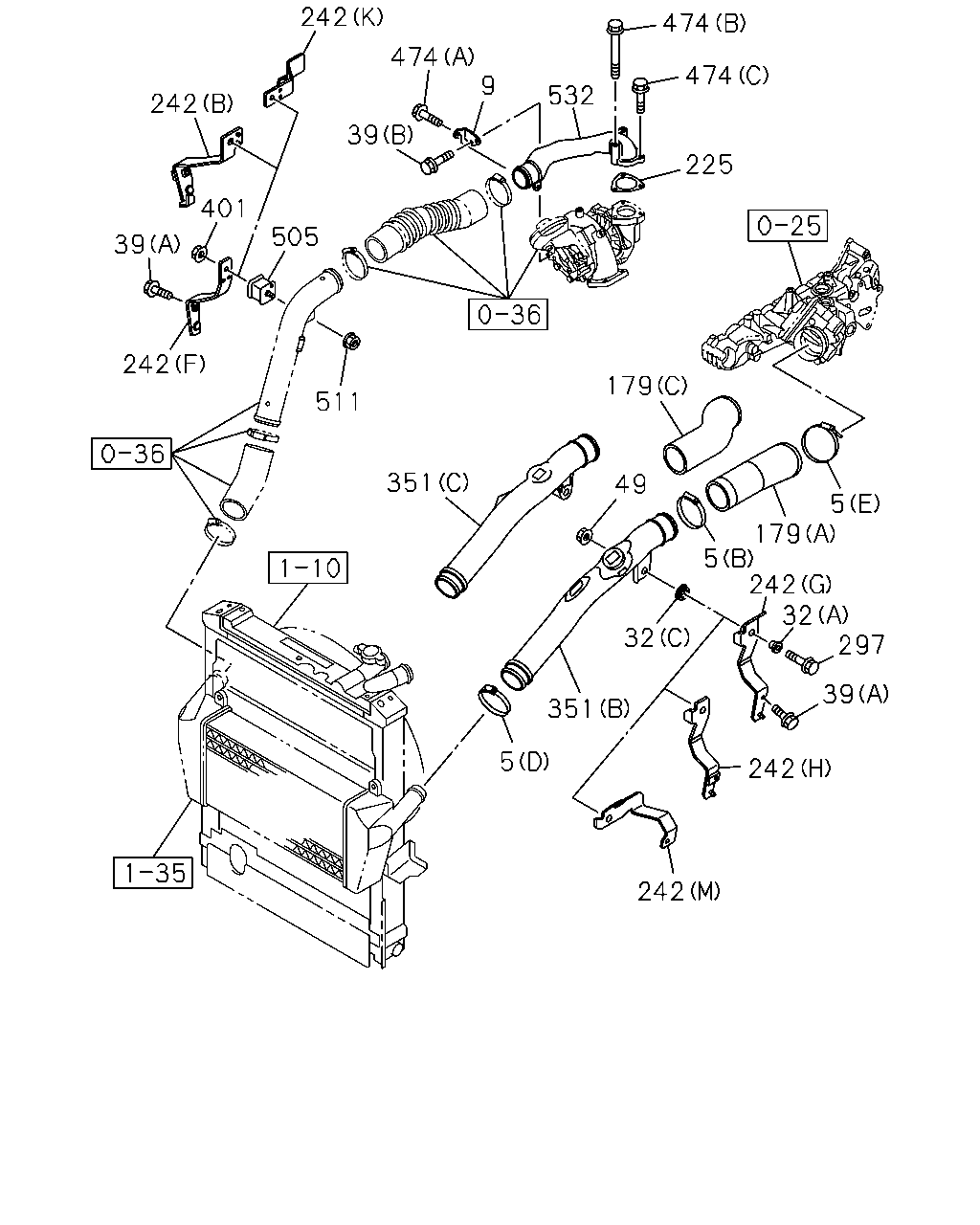

çizim 479516
242 242 401 39 242 505 474 39 9 532 474 474 225 179 49 5 179 242 5 32 351 5 242 242 39 32 297 351 511
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1509- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (F) ID=75-95 		8-98133-357-0 02 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(F) ID=75-95 		8-98133-357-0 02 1 1509- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) 		8-98009-086-0 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
01.277 (C) OD=32 		8-94395-766-0 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (C) OD=32 		8-94395-766-0 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 (A) OD=23 		8-97105-689-6 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (B) 		8-97081-886-0 01 1 1506-1508 ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97081-886-0 01 1 1509- ●
32 03.417 RUBBER; AIR DUCT MTG
(B) 		8-97081-886-0 01 1 1509- ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1506- ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98050-920-2 01 1 1509- ●
179 03.417 HOSE; AIR INT
(A) 		8-98111-374-1 01 1 1506-1507 ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98111-374-1 01 1 1506-1507 ●
179 03.417 HOSE; AIR INT
(A) 		8-98111-374-1 01 1 1508-1508 ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98111-374-1 01 1 1508-1508 ●
179 03.417 HOSE; AIR INT
(A) 		8-98111-374-1 01 1 1509- ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98111-374-1 01 1 1509- ●
179 03.417 HOSE; AIR INT
EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98111-374-1 01 1 1509- ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98117-928-2 01 1 1506-1508 ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) 		8-98117-928-2 01 1 1509- ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (B) 		8-98117-928-2 01 1 1509- ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98117-928-2 01 1 1509- ●
225 03.417 GASKET; AIR PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1509- ●
225 03.417 GASKET; AIR PIPE
4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1509- ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 ID=47 		8-97202-328-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98070-942-2 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98070-943-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME STRA IGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (I) 		8-98244-940-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (J) 		8-98205-147-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1509- ●
297 03.417 BOLT; DUCT
00.685 M8X40 FLANGE 		0-28650-840-0 01 1 1506- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 M8X40 FLANGE 		0-28650-840-0 01 1 1506- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A) 		8-98298-687-0 01 1 1509- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98298-687-0 01 1 1509- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98105-722-1 01 1 1509- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (C) 		8-98051-032-1 01 1 1506-1508 ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (C) 		8-98051-032-1 01 1 1509- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.417 (C) 		8-98051-032-1 01 1 1509- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1506-1508 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1509- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98205-145-0 01 1 1506-1508 ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98205-145-0 01 1 1509- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 1506- ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1506- ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1506-1508 ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1509- ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-98237-771-1 01 1 1506- ●

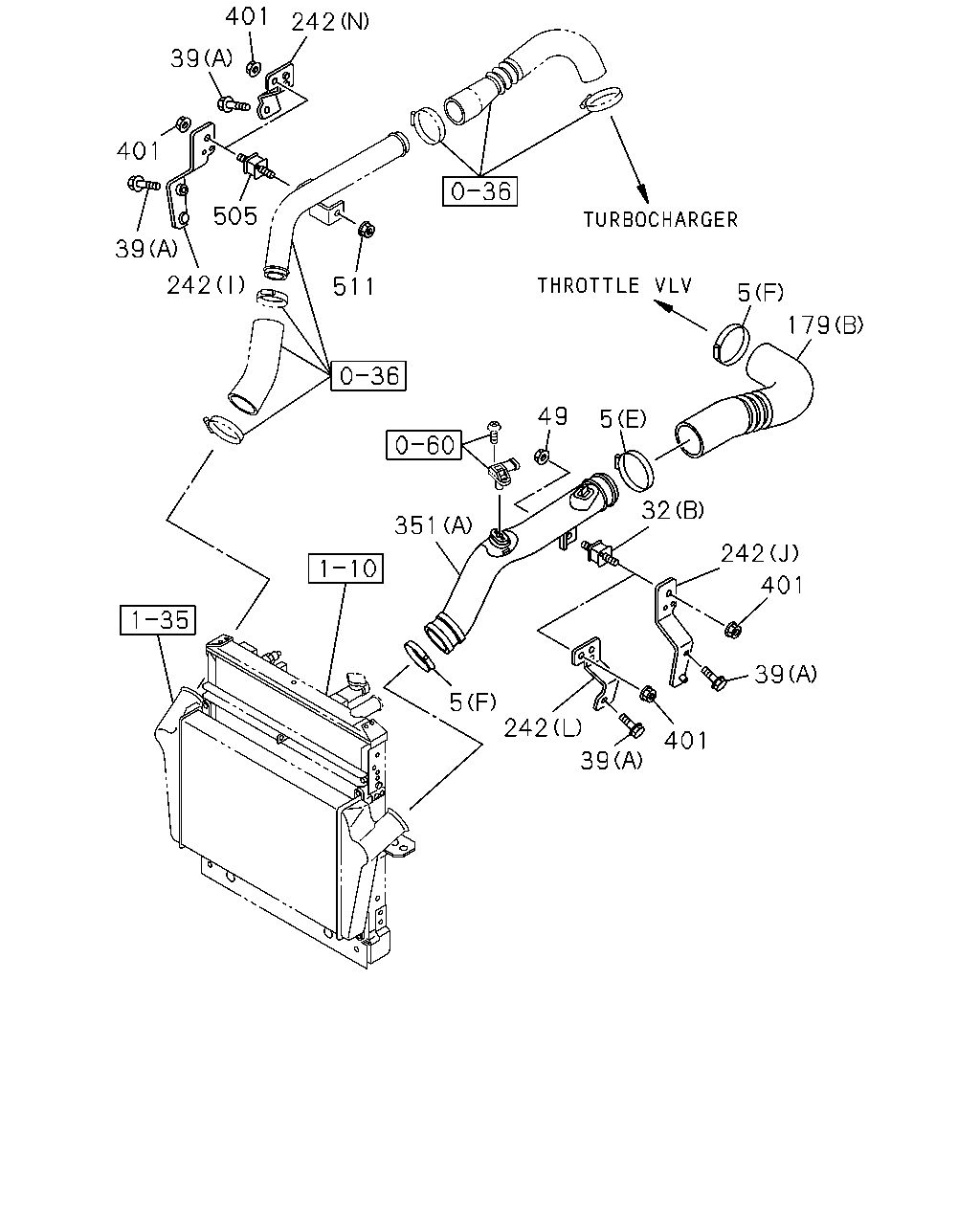

çizim 479586
401 242 39 401 505 39 242 511 49 5 5 179 32 242 401 39 401 39 242 5 351
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1509- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (F) ID=75-95 		8-98133-357-0 02 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(F) ID=75-95 		8-98133-357-0 02 1 1509- ●
32 03.417 RUBBER; AIR DUCT MTG
01.277 (C) OD=32 		8-94395-766-0 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (C) OD=32 		8-94395-766-0 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 (A) OD=23 		8-97105-689-6 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 1506- ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCS ENG(RJS) (B) 		8-97081-886-0 01 1 1506-1508 ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97081-886-0 01 1 1509- ●
32 03.417 RUBBER; AIR DUCT MTG
(B) 		8-97081-886-0 01 1 1509- ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506-1507 ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1508-1508 ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1506- ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98050-920-2 01 1 1509- ●
179 03.417 HOSE; AIR INT
(A) 		8-98111-374-1 01 1 1506-1507 ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98111-374-1 01 1 1506-1507 ●
179 03.417 HOSE; AIR INT
(A) 		8-98111-374-1 01 1 1508-1508 ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) (A) 		8-98111-374-1 01 1 1508-1508 ●
179 03.417 HOSE; AIR INT
(A) 		8-98111-374-1 01 1 1509- ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98111-374-1 01 1 1509- ●
179 03.417 HOSE; AIR INT
EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) 		8-98111-374-1 01 1 1509- ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98117-928-2 01 1 1506-1508 ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) 		8-98117-928-2 01 1 1509- ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (B) 		8-98117-928-2 01 1 1509- ●
179 03.417 HOSE; AIR INT
4HK1-TCS ENG(RJS) (B) 		8-98117-928-2 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98070-942-2 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98070-943-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME STRA IGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (I) 		8-98244-940-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (J) 		8-98205-147-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1509- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A) 		8-98298-687-0 01 1 1509- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98298-687-0 01 1 1509- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98105-722-1 01 1 1509- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (C) 		8-98051-032-1 01 1 1506-1508 ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (C) 		8-98051-032-1 01 1 1509- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.417 (C) 		8-98051-032-1 01 1 1509- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) (B) 		8-98205-465-0 01 1 1506-1508 ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B) 		8-98205-465-0 01 1 1509- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) (A) 		8-98205-145-0 01 1 1506-1508 ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A) 		8-98205-145-0 01 1 1509- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
401 03.403 NUT; BRKT,AIR INT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1506-1508 ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1509- ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●

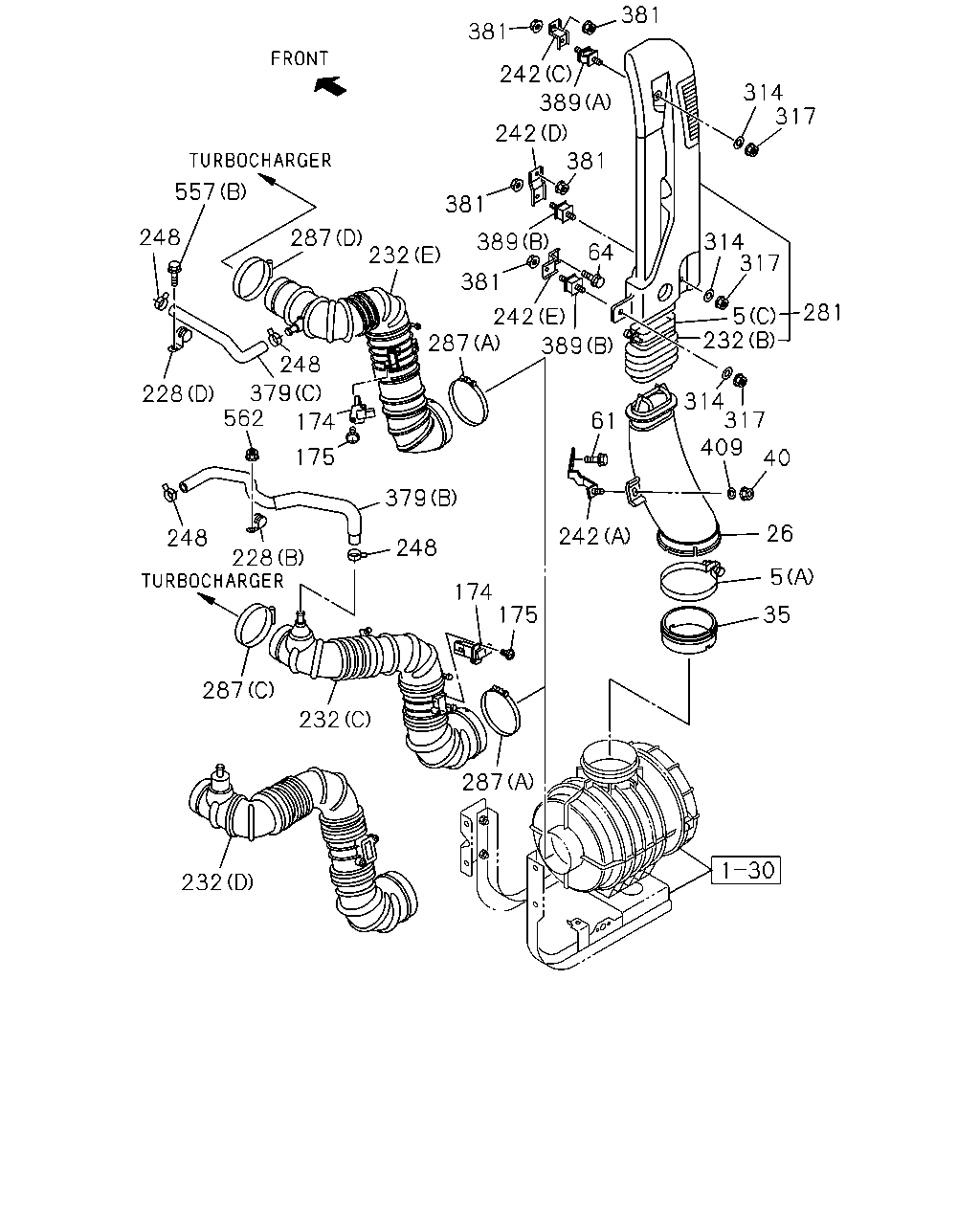

çizim 480992
281 5 317 314 317 314 232 314 40 409 317 26 5 35 242 61 389 242 64 389 287 381 381 242 242 381 381 389 381 232 287 175 174 248 379 175 174 379 248 562 228 248 557 232 287 232 287 228 248
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1509- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (F) ID=75-95 		8-98133-357-0 02 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(F) ID=75-95 		8-98133-357-0 02 1 1509- ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1506-1508 ● ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1509- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506-1508 ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1509- ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1506-1508 ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1509- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 		8-97601-967-0 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 		8-97601-967-0 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506-1508 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 		8-98113-202-1 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) 		8-98113-202-1 01 1 1509- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506-1508 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1509- ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) (D) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
(B) ID=22 L=22 		8-98120-916-0 01 1 1506-1508 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1506-1508 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO6 SPECIFICATION(NT6) (B) ID=22 L=22 		8-98120-916-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=22 L=22 		8-98120-916-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 08.846 (C) ID=21.7 		8-97203-074-0 01 1 1506- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1506- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (E) 		8-98048-137-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-178-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (F) 		8-98281-176-0 01 1 1509- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98242-344-0 01 1 1506-1508 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98242-344-0 01 1 1509- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),MULTI INFO RMATION DISPLAY<7NY> (D) 		8-98242-344-0 01 1 1509- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506-1508 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1509- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1506-1508 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C) 		8-98242-345-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1506-1508 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98205-139-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98070-942-2 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98070-943-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME STRA IGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (I) 		8-98244-940-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (J) 		8-98205-147-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1509- ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1506- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1506-1508 ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1509- ● ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT>, MULTI INFORMATION DISPLAY<7NY> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICA TION LABEL FOR KD<6UT>,MULTI INFORMATIONDISPLAY<7NY> 03.407 (D) ID=58-79 		1-09707-136-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) 03.407 (A) ID=112 		9-09915-074-1 01 1 1509-1511 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) 03.407 (A) ID=112 		9-09915-074-1 01 1 1509-1511 ●
287 03.417 CLIP; AIR DUCT
EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112 		9-09915-074-1 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112 		9-09915-074-1 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=77-99 		1-09707-141-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),MULTI INFO RMATION DISPLAY<7NY> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1506-1508 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) 03.407 (A) ID=117 		9-09915-075-1 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117 		9-09915-075-1 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117 		9-09915-075-1 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1506-1508 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1506-1508 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1509- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506-1508 ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1509- ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506-1508 ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1509- ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) (C) 		8-98156-950-0 01 1 1509- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) (D) 		8-98153-093-1 01 1 1509- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) 03.975 (E) 		8-98153-119-0 01 1 1509- ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) (B) 		8-98205-932-2 01 1 1506-1508 ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) (B) 		8-98205-932-2 01 1 1509- ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98205-932-2 01 1 1509- ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1506-1508 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1509- ●
379 03.675 HOSE; RUBBER
4HK1-TCS ENG(RJS) (A) 		8-98210-820-1 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1506-1508 ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1509- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1506-1508 ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1509- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506-1508 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1509- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506-1508 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1509- ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506-1508 ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1509- ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1509- ●
557 03.403 BOLT; HOSE CLIP
00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1509- ●
562 03.403 NUT; HOSE CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1506-1508 ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1506-1508 ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1509- ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1509- ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1509- ●

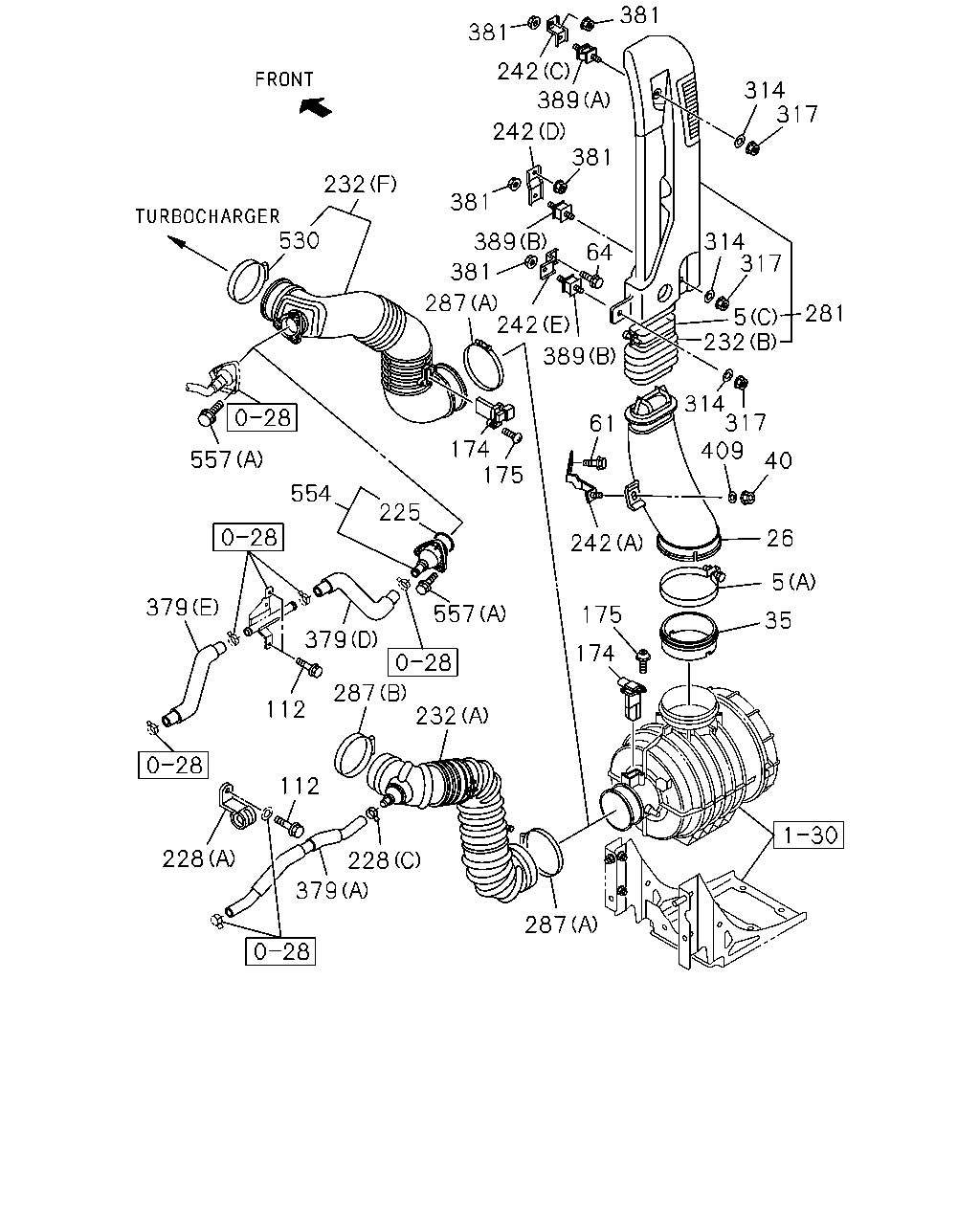

çizim 480994
232 530 557 554 225 557 379 379 112 112 228 379 287 228 232 287 175 174 61 242 175 174 35 26 5 40 409 317 314 232 5 281 317 314 317 314 381 242 381 389 381 64 381 242 389 381 287 389 242
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=77-99 		1-09707-141-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=45-65 		8-98133-348-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 01 1 1509- ● ●
5 03.407 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1509- ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1506-1508 ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1509- ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (F) ID=75-95 		8-98133-357-0 02 1 1506-1508 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=75-95 		8-98133-357-0 02 1 1509- ●
5 03.407 CLIP; AIR DUCT
(F) ID=75-95 		8-98133-357-0 02 1 1509- ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1506-1508 ● ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1509- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506-1508 ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1509- ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1506-1508 ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1509- ● ● ●
112 03.417 BOLT; CLIP
4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1509- ●
112 03.417 BOLT; CLIP
4HK1-TCS ENG(RJS) 00.206 M8X14,M8X14 L=33 		1-09300-058-1 01 1 1506- ●
174 03.682 SENSOR; AIR FLOW CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 		8-97601-967-0 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. KD PREPARATORY PACK<6HF> 		8-97601-967-0 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506-1508 ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 		8-98113-202-1 01 1 1509- ●
174 03.682 SENSOR; AIR FLOW CONT
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) 		8-98113-202-1 01 1 1509- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506-1508 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1509- ● ● ●
225 03.417 GASKET; AIR PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1509- ●
225 03.417 GASKET; AIR PIPE
4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 ID=43.7 		9-09561-344-0 01 1 1509- ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 ID=47 		8-97202-328-1 01 1 1506- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) (D) ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
(B) ID=22 L=22 		8-98120-916-0 01 1 1506-1508 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1506-1508 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) (B) ID=22 L=22 		8-98120-916-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO6 SPECIFICATION(NT6) (B) ID=22 L=22 		8-98120-916-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=22 L=22 		8-98120-916-0 01 1 1509- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 08.846 (C) ID=21.7 		8-97203-074-0 01 1 1506- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCS ENG(RJS) 02.343 (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1506- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (E) 		8-98048-137-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-178-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> (F) 		8-98281-176-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (F) 		8-98281-176-0 01 1 1509- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98242-344-0 01 1 1506-1508 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98242-344-0 01 1 1509- ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),MULTI INFO RMATION DISPLAY<7NY> (D) 		8-98242-344-0 01 1 1509- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506-1508 ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1509- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98242-345-0 01 1 1506-1508 ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (C) 		8-98242-345-0 01 1 1509- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) (A) 		8-98205-139-0 01 1 1506-1508 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98205-139-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (M) 		8-98070-942-2 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-98070-943-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (L) 		8-98032-143-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (N) 		8-98032-142-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98245-307-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1506-1507 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1508-1508 ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME STRA IGHT TYPE<7KJ> (G) 		8-98245-899-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1506-1508 ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1509- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-311-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98245-900-0 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98245-310-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (I) 		8-98244-940-1 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (I) 		8-98244-940-1 01 1 1509- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCS ENG(RJS) (J) 		8-98205-147-0 01 1 1506-1508 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (J) 		8-98205-147-0 01 1 1509- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1506-1508 ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-2 01 1 1509- ● ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT>, MULTI INFORMATION DISPLAY<7NY> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),IDENTIFICA TION LABEL FOR KD<6UT>,MULTI INFORMATIONDISPLAY<7NY> 03.407 (D) ID=58-79 		1-09707-136-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) 03.407 (A) ID=112 		9-09915-074-1 01 1 1509-1511 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) 03.407 (A) ID=112 		9-09915-074-1 01 1 1509-1511 ●
287 03.417 CLIP; AIR DUCT
EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112 		9-09915-074-1 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=112 		9-09915-074-1 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1512- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=77-99 		1-09707-141-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=55-75 		8-98133-349-0 01 1 1506-1508 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),MULTI INFO RMATION DISPLAY<7NY> 03.407 (C) ID=55-75 		8-98133-349-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=117 		9-09915-075-1 01 1 1506-1508 ● ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) 03.407 (A) ID=117 		9-09915-075-1 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117 		9-09915-075-1 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (A) ID=117 		9-09915-075-1 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1506-1508 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> EXC. MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (C) ID=65-85 		8-98133-350-0 01 1 1509- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1506-1508 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) IDENTIFICATION LABEL FOR KD<6UT> MULTI INFORMATION DISPLAY<7NY> 03.407 (B) ID=75-95 		8-98133-357-0 01 1 1509- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506-1508 ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1509- ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506-1508 ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1509- ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) (C) 		8-98156-950-0 01 1 1509- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) (D) 		8-98153-093-1 01 1 1509- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) 03.975 (E) 		8-98153-119-0 01 1 1509- ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) (B) 		8-98205-932-2 01 1 1506-1508 ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) (B) 		8-98205-932-2 01 1 1509- ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-98205-932-2 01 1 1509- ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) (B) 		8-98249-521-0 01 1 1506-1508 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B) 		8-98249-521-0 01 1 1509- ●
379 03.675 HOSE; RUBBER
4HK1-TCS ENG(RJS) (A) 		8-98210-820-1 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1506-1508 ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1509- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1506-1508 ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1509- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506-1508 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1509- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506-1508 ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1509- ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506-1508 ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1509- ● ● ●
530 03.407 CLAMP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) ID=77-99 		1-09707-141-0 01 1 1509- ●
530 03.407 CLAMP; AIR DUCT
4HK1-TCS ENG(RJS) ID=77-99 		1-09707-141-0 01 1 1509- ●
554 04.439 FLANGE; PIPE,PCV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1509- ●
554 04.439 FLANGE; PIPE,PCV
4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 		8-98038-208-0 01 1 1509- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1509- ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1509- ●
557 03.403 BOLT; HOSE CLIP
00.386 (A) M6X20 FLANGE 		0-28050-620-0 03 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
