◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

1-30 — AIR CLEANER (#162322) — 84 parça

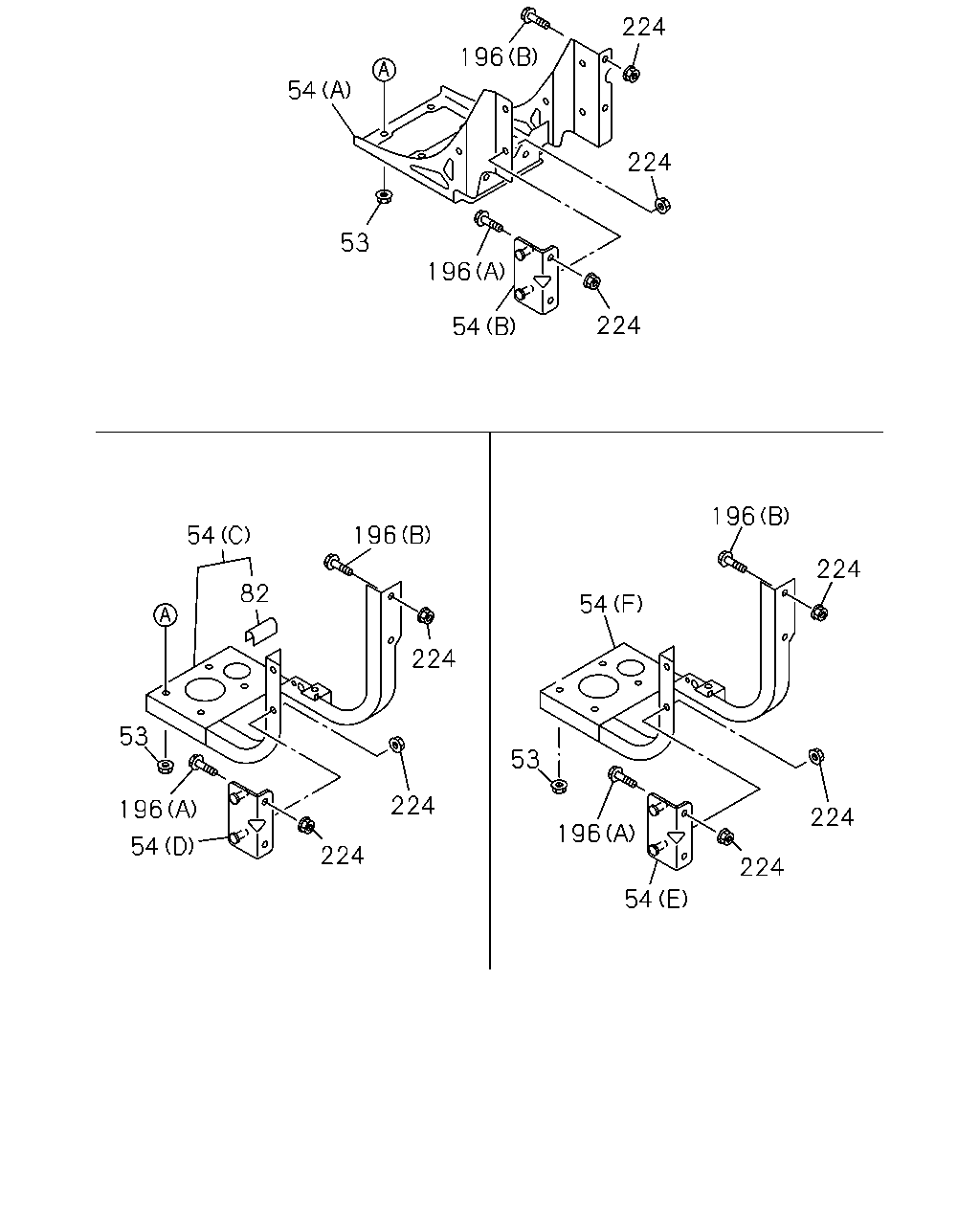

54 53 196 54 224 224 224 196 54 196 82 224 224 224 196 54 53 54 196 224 224 224 54 196 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-1508	●	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1509-	●	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98251-988-0	01	1	1509-		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) (F)	8-98251-988-0	01	1	1509-			●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) (E)	8-98032-125-1	01	1	1509-		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) (E)	8-98032-125-1	01	1	1509-			●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F)	8-98047-140-3	01	1	1509-		●
54	03.405 BRACKET; ACL (C)	8-98026-092-3	01	1	1506-1508	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1506-1508		●
54	03.405 BRACKET; ACL (C)	8-98026-092-3	01	1	1509-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1509-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> (C)	8-98026-092-3	01	1	1509-		●
54	03.405 BRACKET; ACL (D)	8-98070-835-3	01	1	1506-1508	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1506-1508		●
54	03.405 BRACKET; ACL (D)	8-98070-835-3	01	1	1509-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (D)	8-98070-835-3	01	1	1509-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-835-3	01	1	1509-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1506-1507		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) (A)	8-98109-385-2	01	1	1506-1507		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1508-1508		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1508-1508		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1509-		●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98109-385-2	01	1	1509-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1506-1507		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) (B)	8-98178-360-0	01	1	1506-1507		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1508-1508		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1508-1508		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1509-		●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98178-360-0	01	1	1509-		●
82	03.403 PROTECTOR 03.671	8-97327-172-0	01	1	1506-1508	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1506-1508		●
82	03.403 PROTECTOR 03.671	8-97327-172-0	01	1	1509-	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1509-		●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 03.671	8-97327-172-0	01	1	1509-		●
196	03.417 BOLT; BRKT,ACL 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-1508	●	●
196	03.417 BOLT; BRKT,ACL 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1509-	●		●
196	03.417 BOLT; BRKT,ACL EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1509-		●
196	03.417 BOLT; BRKT,ACL EURO6 SPECIFICATION(NT6) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1509-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1509-		●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1506-1508	●	●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1509-	●		●
196	03.417 BOLT; BRKT,ACL TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1509-		●
196	03.417 BOLT; BRKT,ACL EURO6 SPECIFICATION(NT6) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1509-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1509-		●
224	03.407 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	05	1	1509-		●
224	03.407 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	05	1	1509-			●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	1506-	●	●

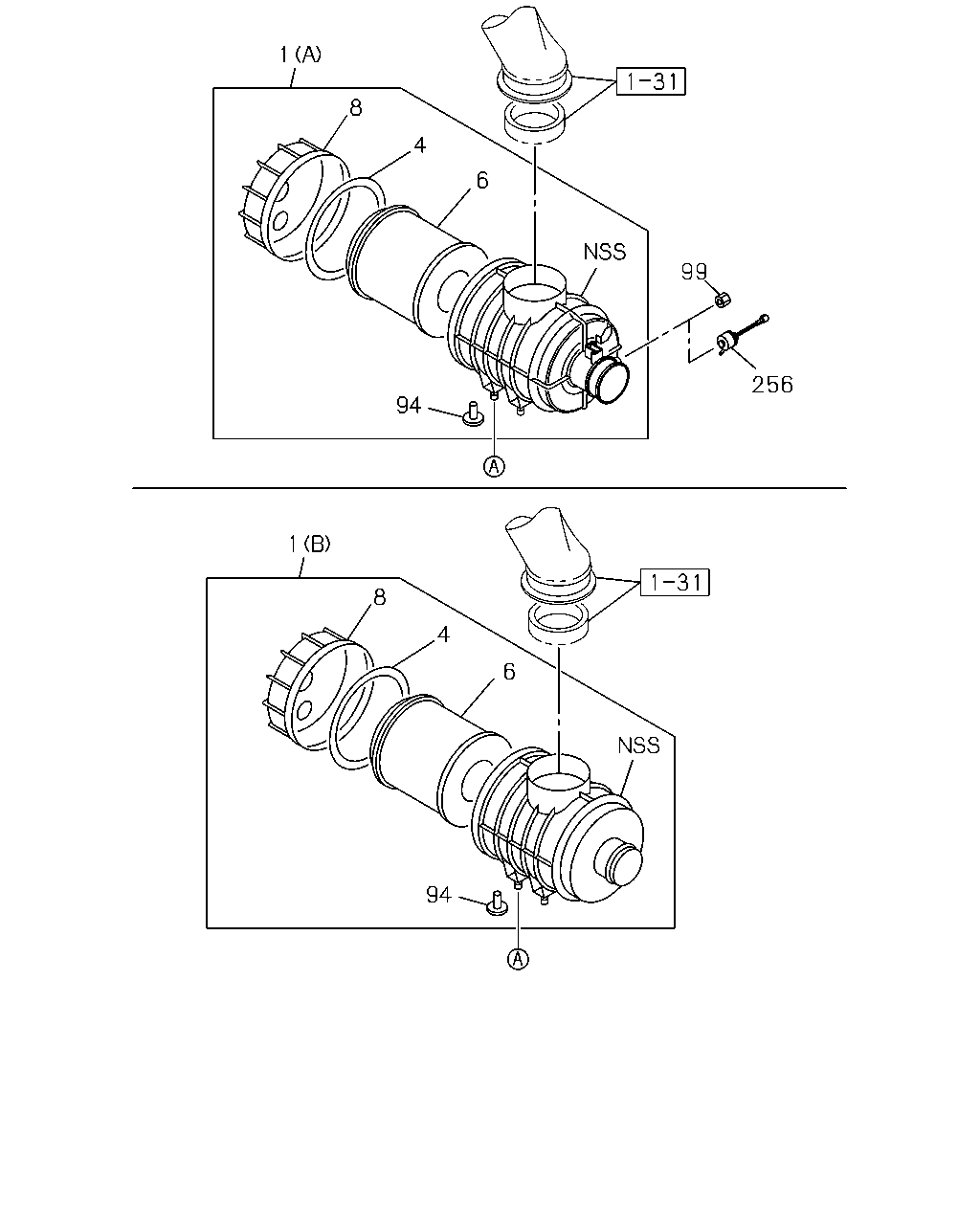

1 8 6 4 94 99 256 1 8 4 6 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR (B)	8-98050-415-2	01	1	1506-1508	●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB) (B)	8-98050-415-2	01	1	1506-1508		●
1	03.402 CLEANER ASM; AIR (B)	8-98050-415-2	01	1	1509-	●		●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) (B)	8-98050-415-2	01	1	1509-		●
1	03.402 CLEANER ASM; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B)	8-98050-415-2	01	1	1509-		●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS) (A)	8-98123-532-2	01	1	1506-1508		●
1	03.402 CLEANER ASM; AIR 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A)	8-98123-532-2	01	1	1509-		●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1506-1508	●	●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1509-	●		●
4	03.403 GASKET; COVER TO BODY 4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11)	8-97352-113-0	01	1	1509-		●
4	03.403 GASKET; COVER TO BODY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97352-113-0	01	1	1509-		●
6	03.410 FILTER; ACL	8-97062-294-0	01	1	1506-1508	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB)	8-97062-294-0	01	1	1506-1508		●
6	03.410 FILTER; ACL	8-97062-294-0	01	1	1509-	●		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11)	8-97062-294-0	01	1	1509-		●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5)	8-97062-294-0	01	1	1509-		●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS)	8-98177-271-0	01	1	1506-1508		●
6	03.410 FILTER; ACL 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6)	8-98177-271-0	01	1	1509-		●
6	03.410 FILTER; ACL BEST VALUE PARTS	5-87610-020-0	01	1	1506-1508	●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) BEST VALUE PARTS	5-87610-020-0	01	1	1506-1508		●
6	03.410 FILTER; ACL BEST VALUE PARTS	5-87610-020-0	01	1	1509-	●		●
6	03.410 FILTER; ACL 4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) BEST VALUE PARTS	5-87610-020-0	01	1	1509-		●
6	03.410 FILTER; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) BEST VALUE PARTS	5-87610-020-0	01	1	1509-		●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1506-1508	●	●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1509-	●		●
8	03.410 COVER ASM; ACL 4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11)	8-98050-434-1	01	1	1509-		●
8	03.410 COVER ASM; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98050-434-1	01	1	1509-		●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1506-1508	●	●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1509-	●		●
94	03.415 VALVE; VACUATOR 4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11)	8-97093-694-0	01	1	1509-		●
94	03.415 VALVE; VACUATOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97093-694-0	01	1	1509-		●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS)	8-94436-076-0	01	1	1506-1508		●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94436-076-0	01	1	1509-		●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. MULTI INFORMATION DISPLAY<7NY>	8-94436-076-0	01	1	1509-		●
99	03.403 CAP; NIPPLE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-94436-076-0	01	1	1509-		●
256	03.405 SENSOR; AIRFLOW 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TAIWAN EQUIPMENT(B04)	8-98156-478-1	01	1	1509-		●
256	03.405 SENSOR; AIRFLOW 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98152-742-1	01	1	1509-		●
