1-11 — RADIATOR HOSE AND SUB TANK (#162321) — 53 parça

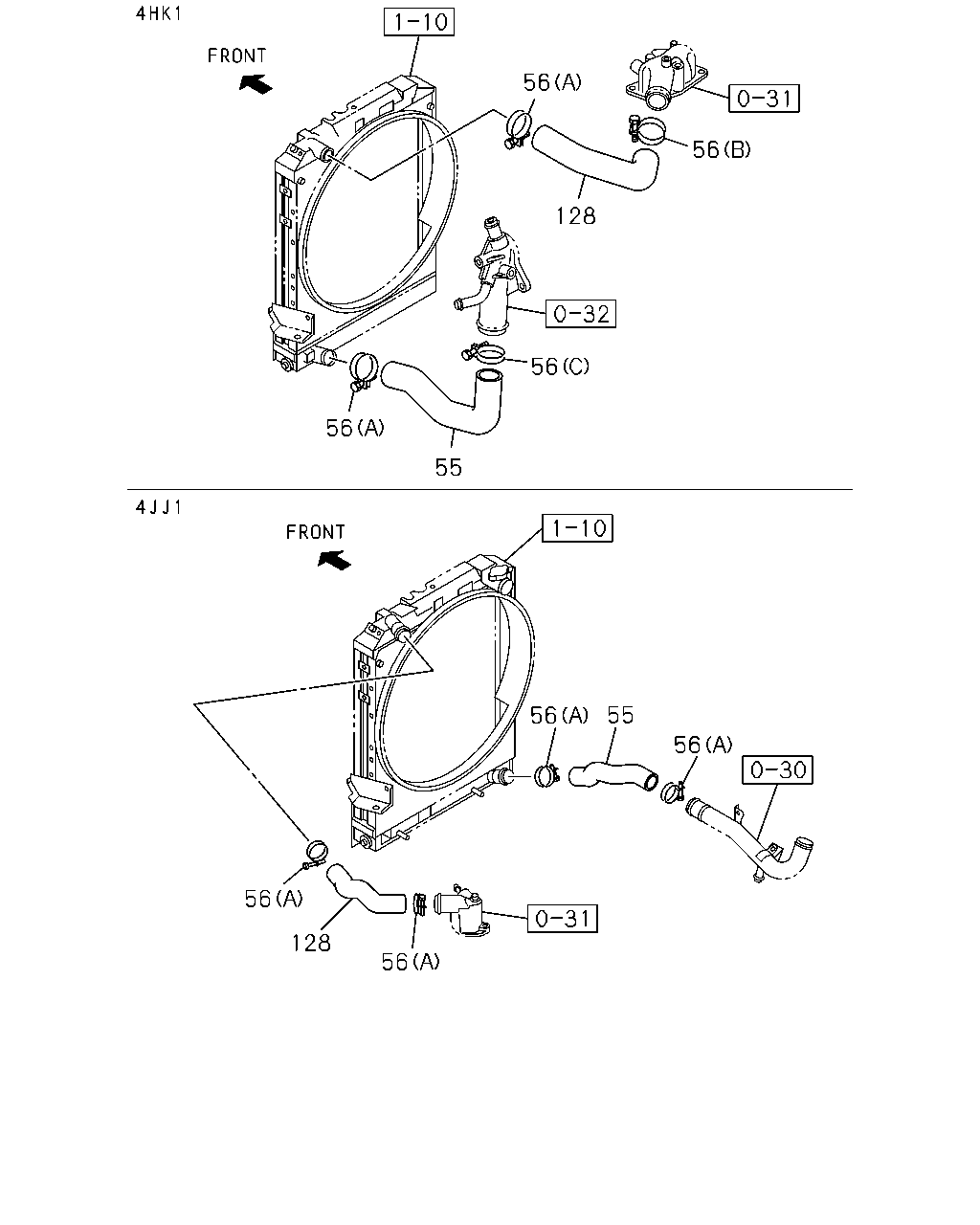

56 128 56 56 55 56 55 56 56 128 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	01.173 HOSE; WATER,RAD OUTLET	8-97383-814-1	01	1	1506-	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCS ENG(LFB)	8-97383-814-1	01	1	1506-		●
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCS ENG(RJS)	8-98006-453-0	01	1	1506-1508		●
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-453-0	01	1	1509-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-98006-453-0	01	1	1509-			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1506-1507	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1506-1507	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB) (A) ID=48	8-98133-956-0	02	1	1506-1507		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1508-1508	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	1508-1508	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB) (A) ID=48	8-98133-956-0	02	1	1508-1508		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1509-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	1509-	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCS ENG(LFB) (A) ID=48	8-98133-956-0	02	1	1509-		●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCS ENG(RJS) 00.413 (B) ID=52	1-09704-057-0	01	1	1506-1508		●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.413 (B) ID=52	1-09704-057-0	01	1	1509-		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (B) ID=52	1-09704-057-0	01	1	1509-			●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCS ENG(RJS) (C) ID=62	8-98133-957-0	01	1	1506-1508		●
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) ID=62	8-98133-957-0	01	1	1509-		●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1509-			●
128	01.159 HOSE; WATER,RAD INL	8-97383-812-1	01	1	1506-	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCS ENG(LFB)	8-97383-812-1	01	1	1506-		●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCS ENG(RJS)	8-98006-452-0	01	1	1506-1508		●
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-452-0	01	1	1509-		●
128	01.159 HOSE; WATER,RAD INL	8-98006-452-0	01	1	1509-			●

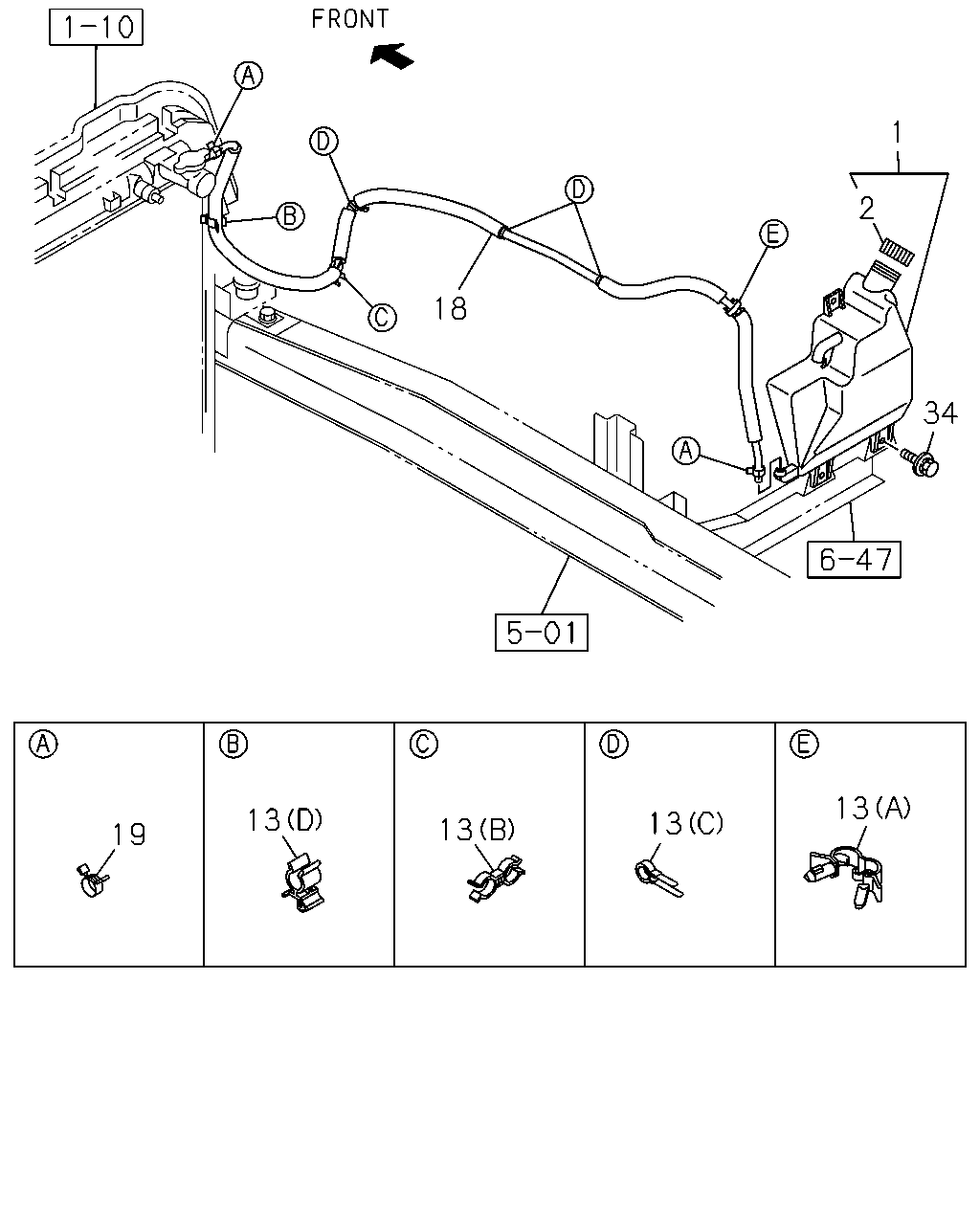

18 34 2 1 13 13 13 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD	8-98178-179-0	01	1	1506-1508	●	●
1	01.219 TANK; SURGE,RAD	8-98178-179-0	01	1	1509-	●	●	●
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1506-1508	●	●
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1509-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK EURO5B+ SPECIFICATION(NT5) (C) ID=14 L=47	5-09700-319-0	04	1	1509-		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	1509-			●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1506-1507	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-1508	●	●
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1509-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	03	1	1506-1508	●	●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	03	1	1509-	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (C) ID=14 L=47	5-09700-319-0	03	1	1509-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1506-1508	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	1509-	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCS ENG(RJS) (D) ID=12	8-98029-256-0	01	1	1506-1508		●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (D) ID=12	8-98029-256-0	01	1	1509-		●
13	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=12	8-98029-256-0	01	1	1509-			●
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1509-			●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) L=1450	8-98006-531-3	01	1	1509-		●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-98006-531-3	01	1	1509-			●
18	01.240 HOSE; RAD TO SURGE TANK L=1380	8-98207-290-0	01	1	1506-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCS ENG(LFB) L=1380	8-98207-290-0	01	1	1506-		●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCS ENG(RJS) L=1480	8-98206-938-0	01	1	1506-1508		●
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) L=1480	8-98206-938-0	01	1	1509-		●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1506-1508	●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1509-	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1506-1508	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1509-	●	●	●
