Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#162320) — 324 parça

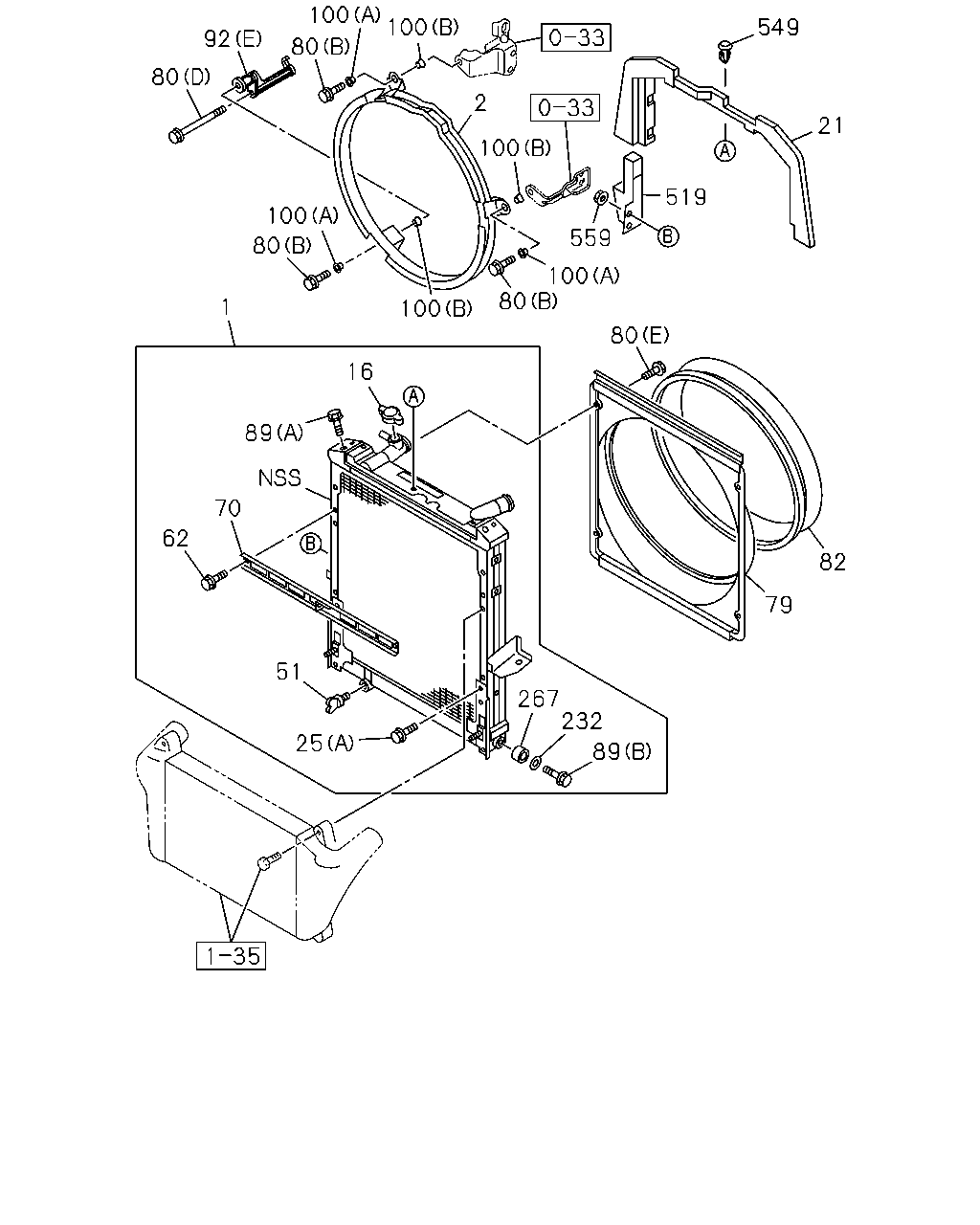

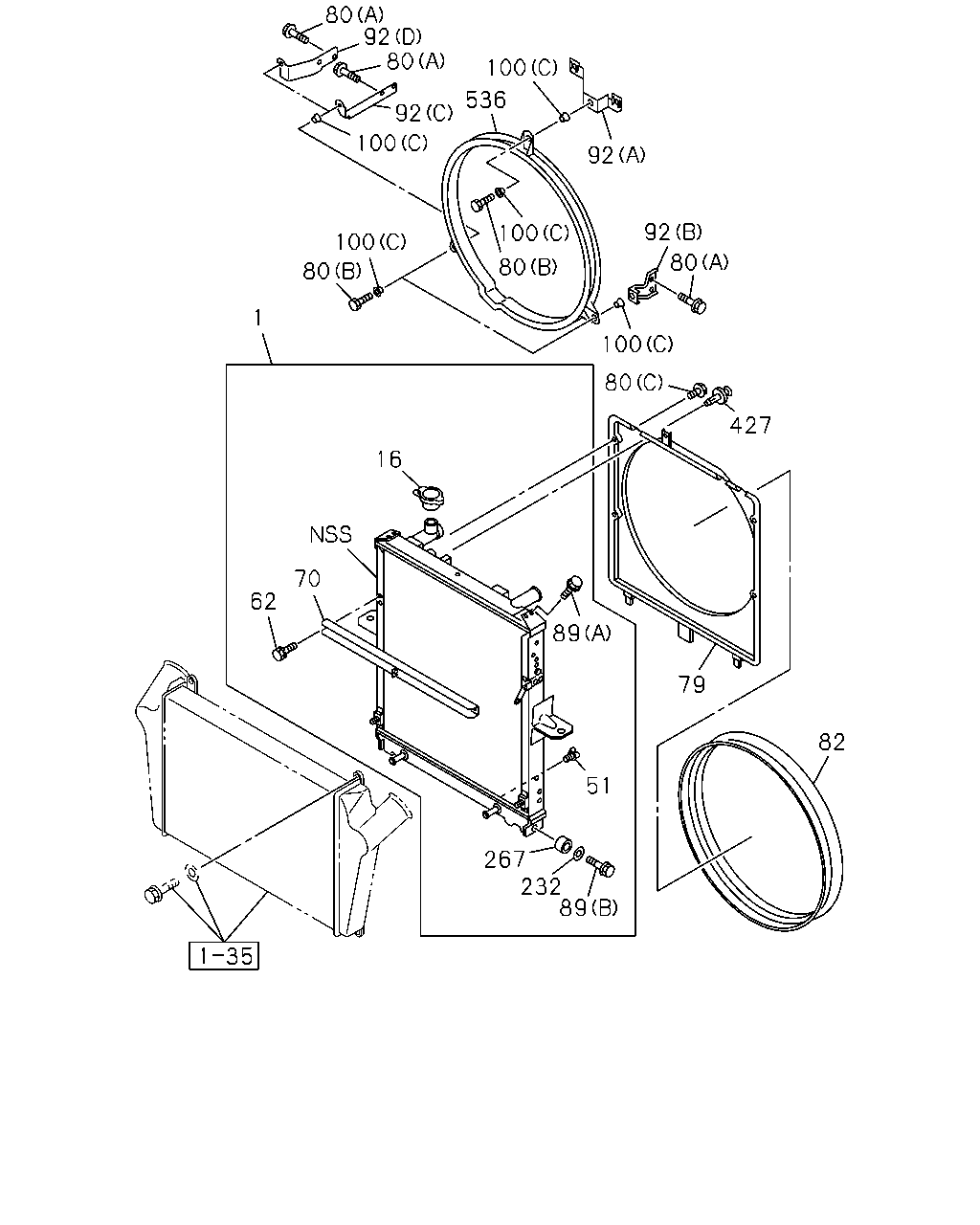

80 92 80 536 100 92 92 92 80 100 80 100 100 80 100 80 1 427 79 82 89 232 51 267 89 16 70 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS)	8-98227-682-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-596-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-595-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-711-0	01	1	1509-	●
1	01.219 RADIATOR ASM	8-98231-893-0	01	1	1506-1508		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98231-893-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98231-893-0	01	1	1509-1511		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1509-			●
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97239-187-0	01	1	1509-	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1506-1508	●	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1509-		●	●
16	01.203 CAP; RAD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98096-226-0	01	1	1509-	●
16	01.203 CAP; RAD EURO6 SPECIFICATION(NT6)	8-98096-226-0	01	1	1509-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1506-1508	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1509-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●	●
70	01.271 STAY; RAD	8-98114-297-0	01	1	1506-		●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB)	8-98114-297-0	01	1	1506-	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1506-1508	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1509-	●
70	01.271 STAY; RAD	8-98018-941-0	01	1	1509-			●
79	01.277 GUIDE; FAN,RAD	8-98234-712-0	01	1	1506-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-98234-712-0	01	1	1506-	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1506-1508	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1509-	●
79	01.277 GUIDE; FAN,RAD	8-98006-477-0	01	1	1509-			●
80	01.277 BOLT; FAN GUIDE (E) M6X12	8-98039-672-0	04	1	1506-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (E) M6X12	8-98039-672-0	04	1	1506-	●
80	01.277 BOLT; FAN GUIDE 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1506-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1506-	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1506-1508	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1509-	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (C) M6X16	1-21559-481-0	04	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) M6X16	1-21559-481-0	04	1	1509-	●
80	01.277 BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	1509-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1509-	●
80	01.277 BOLT; FAN GUIDE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1509-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1509-	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1509-	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1509-			●
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	1506-		●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-085-1	01	1	1506-	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1506-1508	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1509-	●
82	01.277 COVER; FAN,RAD	8-98006-478-0	01	1	1509-			●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1506-1508	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-		●	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL(6MZ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●
89	01.277 BOLT 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●
92	01.277 BRACKET; FAN GUIDE (E)	8-98237-770-0	01	1	1506-		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-98237-770-0	01	1	1506-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B)	8-97386-233-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B)	8-97386-233-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) (B)	8-97386-233-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1509-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE (A)	8-97382-827-2	01	1	1509-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D)	8-98032-526-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D)	8-98032-526-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D)	8-98032-526-0	01	1	1509-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (C)	8-97350-997-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C)	8-97350-997-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (C)	8-97350-997-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C)	8-97350-997-0	01	1	1509-			●
100	01.277 RUBBER; MTG (B) OD=32	8-94395-766-0	03	1	1506-		●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	1506-	●
100	01.277 RUBBER; MTG (A) OD=32	8-98058-502-1	03	1	1506-		●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (A) OD=32	8-98058-502-1	03	1	1506-	●
100	01.277 RUBBER; MTG 4HK1-TCS ENG(RJS) (C)	1-09337-027-0	06	1	1506-1508	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	1-09337-027-0	06	1	1509-	●
100	01.277 RUBBER; MTG (C)	1-09337-027-0	06	1	1509-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1506-1508		●
232	01.540 COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1509-		●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98141-232-0	02	1	1509-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1506-1508	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	1-87410-723-0	02	1	1509-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	1-87410-723-0	02	1	1509-	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1506-1508	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1509-		●	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	1-21467-023-0	02	1	1509-	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL(6MZ)	1-21467-023-0	02	1	1509-	●
267	01.277 RUBBER; CUSHION 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	1-21467-023-0	02	1	1509-	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	1506-1508	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	1509-	●
427	01.240 CLIP; FAN GUIDE 01.277	1-09470-009-0	01	1	1509-			●
536	01.020 SHROUD; FAN 4HK1-TCS ENG(RJS) 01.277	8-97350-995-0	01	1	1506-1508	●
536	01.020 SHROUD; FAN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	8-97350-995-0	01	1	1509-	●
536	01.020 SHROUD; FAN 01.277	8-97350-995-0	01	1	1509-			●

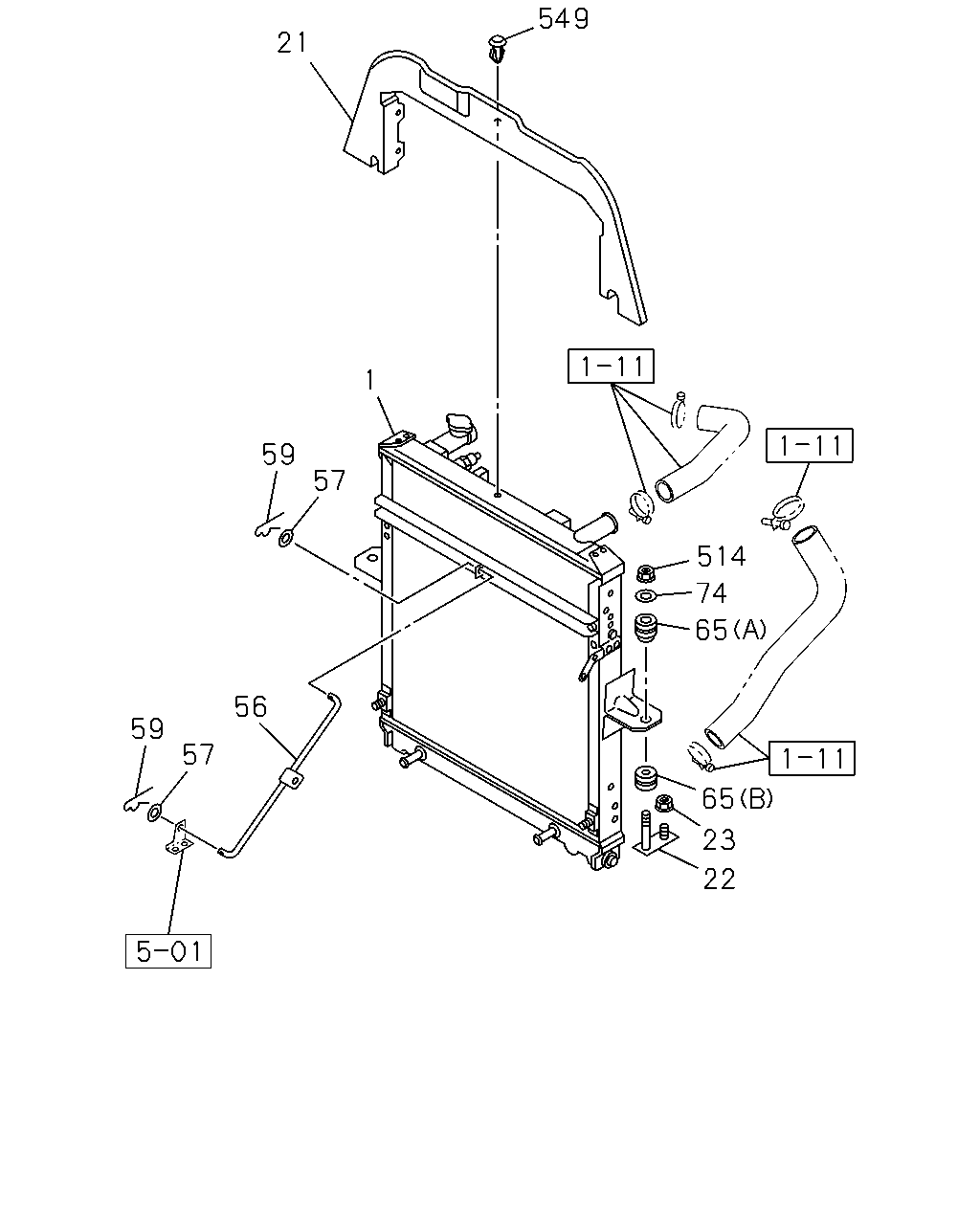

21 549 514 74 65 65 23 22 57 59 1 59 56 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS)	8-98227-682-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-596-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-595-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-711-0	01	1	1509-	●
1	01.219 RADIATOR ASM	8-98231-893-0	01	1	1506-1508		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98231-893-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98231-893-0	01	1	1509-1511		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1509-			●
21	01.276 SEAL; RAD	8-98025-371-0	01	1	1506-		●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB)	8-98025-371-0	01	1	1506-	●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS)	8-98006-486-3	01	1	1506-	●
22	01.270 BRACKET; RAD MTG	8-97387-640-0	01	1	1506-		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97387-640-0	01	1	1506-	●
22	01.270 BRACKET; RAD MTG	8-97387-641-0	01	1	1506-		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97387-641-0	01	1	1506-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-236-1	01	1	1506-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-238-1	01	1	1506-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) 01.277	8-97330-527-1	02	1	1506-1508	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.277	8-97330-527-1	02	1	1509-	●
22	01.270 BRACKET; RAD MTG 01.277	8-97330-527-1	02	1	1509-			●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-		●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-	●
23	01.271 NUT; RAD MTG 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
23	01.271 NUT; RAD MTG 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-			●
56	01.270 STAY; RAD	8-97387-650-0	01	1	1506-		●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB)	8-97387-650-0	01	1	1506-	●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-98049-051-0	01	1	1506-1508	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98049-051-0	01	1	1509-	●
56	01.270 STAY; RAD	8-98049-051-0	01	1	1509-			●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1506-1508	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1509-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1506-1508	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1509-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1506-1508	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1509-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1506-1508	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1509-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1506-1508	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1509-	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●	●
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	05	1	1506-		●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB) 01.276	8-97228-568-0	05	1	1506-	●
549	03.438 CLIP; SEAL,RAD 4HK1-TCS ENG(RJS) 01.276	8-97228-568-0	07	1	1506-	●

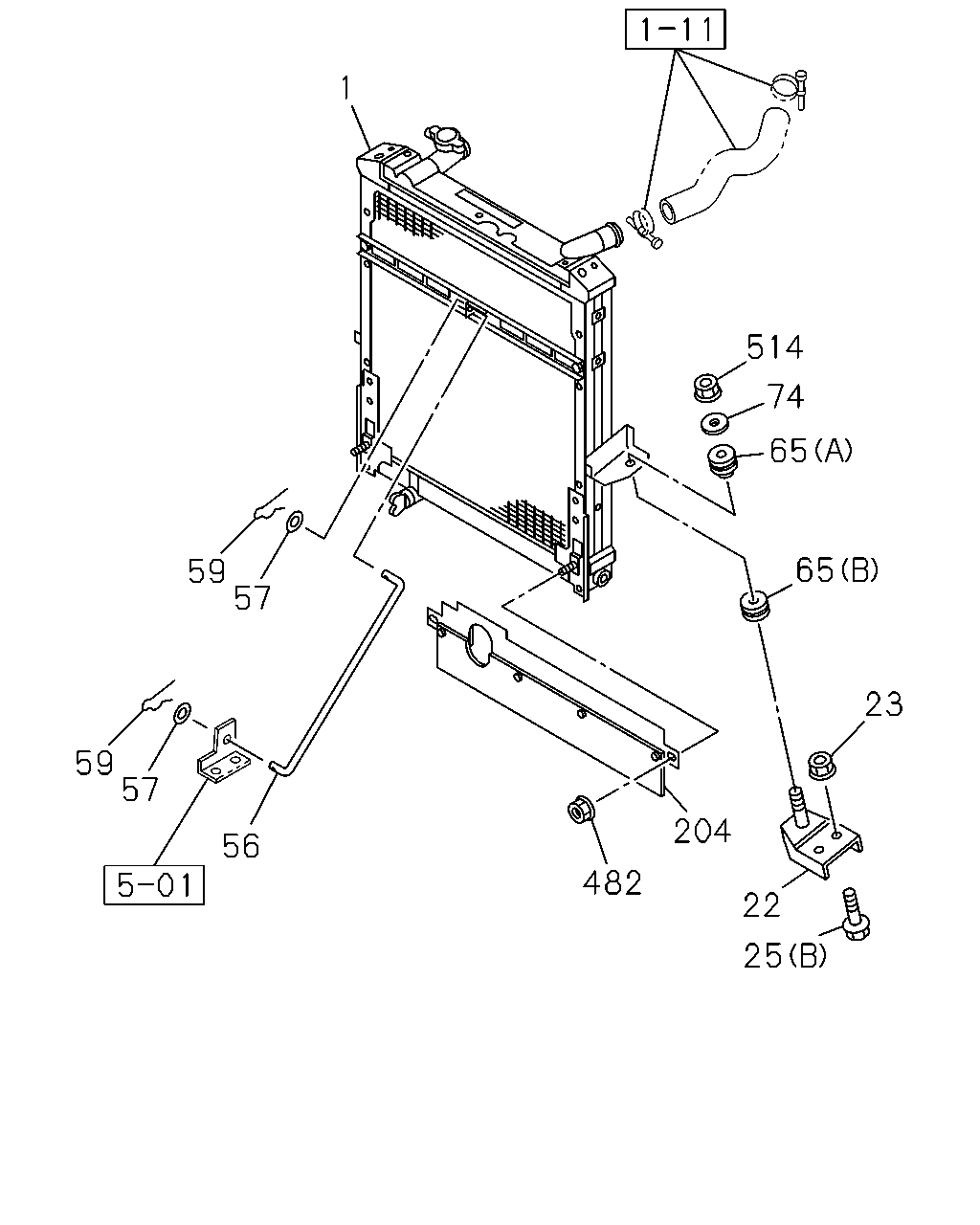

514 74 65 65 23 22 25 204 482 56 57 59 59 57 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS)	8-98227-682-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-596-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-595-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-711-0	01	1	1509-	●
1	01.219 RADIATOR ASM	8-98231-893-0	01	1	1506-1508		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98231-893-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98231-893-0	01	1	1509-1511		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1509-			●
22	01.270 BRACKET; RAD MTG	8-97387-640-0	01	1	1506-		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97387-640-0	01	1	1506-	●
22	01.270 BRACKET; RAD MTG	8-97387-641-0	01	1	1506-		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97387-641-0	01	1	1506-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-236-1	01	1	1506-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98207-238-1	01	1	1506-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCS ENG(RJS) 01.277	8-97330-527-1	02	1	1506-1508	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.277	8-97330-527-1	02	1	1509-	●
22	01.270 BRACKET; RAD MTG 01.277	8-97330-527-1	02	1	1509-			●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-		●
23	01.271 NUT; RAD MTG 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-	●
23	01.271 NUT; RAD MTG 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
23	01.271 NUT; RAD MTG 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-			●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-		●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1506-		●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1506-	●
56	01.270 STAY; RAD	8-97387-650-0	01	1	1506-		●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB)	8-97387-650-0	01	1	1506-	●
56	01.270 STAY; RAD 4HK1-TCS ENG(RJS)	8-98049-051-0	01	1	1506-1508	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98049-051-0	01	1	1509-	●
56	01.270 STAY; RAD	8-98049-051-0	01	1	1509-			●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1506-1508	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1509-	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1506-1508	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1509-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1506-1508	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1509-	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1506-1508	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1509-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1506-1508	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1509-	●	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB)	8-97383-928-1	01	1	1506-	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●	●

89 232 267 25 51 70 62 89 16 100 80 80 79 519 82 559 100 21 549 100 2 100 80 1 100 80 100 92 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS)	8-98227-682-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98227-682-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-596-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM)	8-98095-595-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-711-0	01	1	1509-	●
1	01.219 RADIATOR ASM	8-98231-893-0	01	1	1506-1508		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB)	8-98231-893-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98231-893-0	01	1	1509-1511		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1509-1511	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-		●
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98231-893-0	01	1	1512-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1506-1508	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-710-0	01	1	1509-	●
1	01.219 RADIATOR ASM 4HK1-TCS ENG(RJS)	8-98205-710-0	01	1	1509-			●
2	01.277 GUIDE; FAN	8-98054-659-0	01	1	1506-		●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB)	8-98054-659-0	01	1	1506-	●
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97239-187-0	01	1	1509-	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1506-1508	●	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1509-		●	●
16	01.203 CAP; RAD EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98096-226-0	01	1	1509-	●
16	01.203 CAP; RAD EURO6 SPECIFICATION(NT6)	8-98096-226-0	01	1	1509-	●
21	01.276 SEAL; RAD	8-98025-371-0	01	1	1506-		●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB)	8-98025-371-0	01	1	1506-	●
21	01.276 SEAL; RAD 4HK1-TCS ENG(RJS)	8-98006-486-3	01	1	1506-	●
25	01.271 BOLT; BRKT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-		●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1506-	●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1506-		●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1506-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1506-1508	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1509-	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●	●
70	01.271 STAY; RAD	8-98114-297-0	01	1	1506-		●
70	01.271 STAY; RAD 4JJ1-TCS ENG(LFB)	8-98114-297-0	01	1	1506-	●
70	01.271 STAY; RAD 4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1506-1508	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1509-	●
70	01.271 STAY; RAD	8-98018-941-0	01	1	1509-			●
79	01.277 GUIDE; FAN,RAD	8-98234-712-0	01	1	1506-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB)	8-98234-712-0	01	1	1506-	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1506-1508	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1509-	●
79	01.277 GUIDE; FAN,RAD	8-98006-477-0	01	1	1509-			●
80	01.277 BOLT; FAN GUIDE (E) M6X12	8-98039-672-0	04	1	1506-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) (E) M6X12	8-98039-672-0	04	1	1506-	●
80	01.277 BOLT; FAN GUIDE 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1506-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (D) M8X130 FLANGE	0-28055-813-0	01	1	1506-	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1506-1508	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1509-	●	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) (C) M6X16	1-21559-481-0	04	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) M6X16	1-21559-481-0	04	1	1509-	●
80	01.277 BOLT; FAN GUIDE (C) M6X16	1-21559-481-0	04	1	1509-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1509-	●
80	01.277 BOLT; FAN GUIDE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1509-			●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1506-1508	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1509-	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1509-	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1509-			●
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	1506-		●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB)	8-97387-085-1	01	1	1506-	●
82	01.277 COVER; FAN,RAD 4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1506-1508	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1509-	●
82	01.277 COVER; FAN,RAD	8-98006-478-0	01	1	1509-			●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1506-1508	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-		●	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL(6MZ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●
89	01.277 BOLT 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-	●
92	01.277 BRACKET; FAN GUIDE (E)	8-98237-770-0	01	1	1506-		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB) (E)	8-98237-770-0	01	1	1506-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B)	8-97386-233-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B)	8-97386-233-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) (B)	8-97386-233-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC> (B)	8-97386-233-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1509-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE (A)	8-97382-827-2	01	1	1509-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D)	8-98032-526-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D)	8-98032-526-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (D)	8-98032-526-0	01	1	1509-			●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (C)	8-97350-997-0	01	1	1506-1508	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C)	8-97350-997-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (C)	8-97350-997-0	01	1	1509-	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (C)	8-97350-997-0	01	1	1509-			●
100	01.277 RUBBER; MTG (B) OD=32	8-94395-766-0	03	1	1506-		●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	1506-	●
100	01.277 RUBBER; MTG (A) OD=32	8-98058-502-1	03	1	1506-		●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (A) OD=32	8-98058-502-1	03	1	1506-	●
100	01.277 RUBBER; MTG 4HK1-TCS ENG(RJS) (C)	1-09337-027-0	06	1	1506-1508	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	1-09337-027-0	06	1	1509-	●
100	01.277 RUBBER; MTG (C)	1-09337-027-0	06	1	1509-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1506-1508		●
232	01.540 COLLAR; DIST,CUSHION RUBBER	8-98141-232-0	02	1	1509-		●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98141-232-0	02	1	1509-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS)	1-87410-723-0	02	1	1506-1508	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	1-87410-723-0	02	1	1509-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	1-87410-723-0	02	1	1509-	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1506-1508	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1509-		●	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	1-21467-023-0	02	1	1509-	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL(6MZ)	1-21467-023-0	02	1	1509-	●
267	01.277 RUBBER; CUSHION 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	1-21467-023-0	02	1	1509-	●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB)	8-98038-591-0	01	1	1506-	●
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	05	1	1506-		●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB) 01.276	8-97228-568-0	05	1	1506-	●
549	03.438 CLIP; SEAL,RAD 4HK1-TCS ENG(RJS) 01.276	8-97228-568-0	07	1	1506-	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
