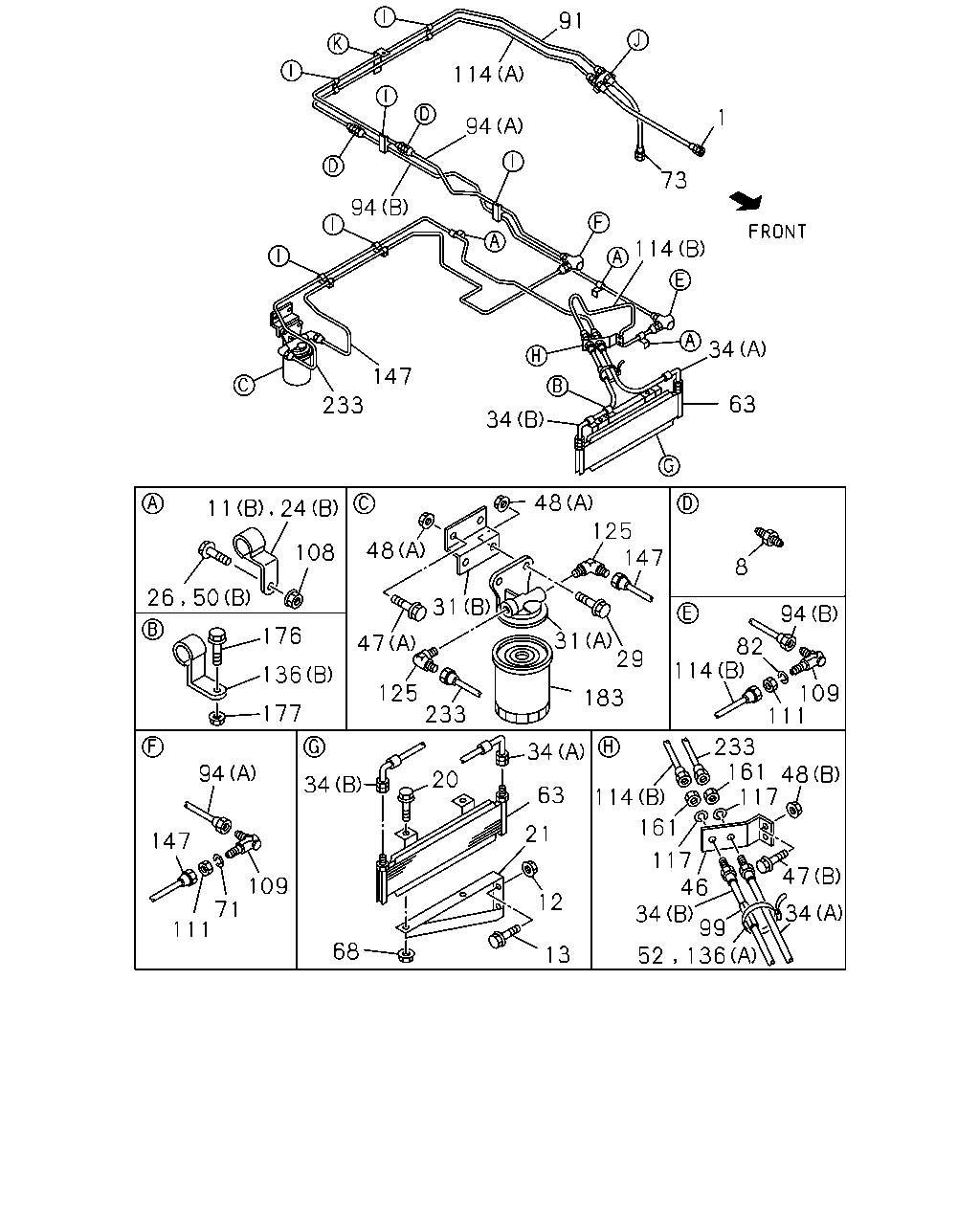

2-53 — TRANSMISSION OIL COOLER SYSTEM (#16232) — 77 parça

91 76 77 50 48 114 116 117 24 11 73 95 19 179 92 1 12 95 178 50 92 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF L=500	1-09365-150-0	01	1	0907-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0907-
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	05	1	0907-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
12	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0907-
19	BRACKET; FLEX HOSE	1-47479-298-0	01	1	0907-
24	CLIP; OIL PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0907-
24	CLIP; OIL PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0907-
48	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-
48	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0907-
50	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	02	1	0907-
50	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	06	1	0907-
50	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	03	1	0907-
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	0907-
76	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0907-
77	WASHER; LK ID=16.2	0-91510-516-0	01	1	0907-
91	PIPE; OIL,FLEX HOSE TO UNION L=1649 SERVICED BY L=1700	1-47428-880-0	01	1	0907-
92	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0907-
95	BRACKET; CLIP (A)	1-47475-427-1	05	1	0907-
95	BRACKET; CLIP (B) L=75	1-47477-119-0	01	1	0907-
114	PIPE; OIL,UNION TO FLEX HOSE (B) L=881 SERVICED BY L=900	1-47428-873-0	01	1	0907-
114	PIPE; OIL,UNION TO FLEX HOSE (A) L=1377 SERVICED BY L=1400	1-47428-878-0	01	1	0907-
116	NUT; BRKT,FLEX HOSE M16	0-91111-516-0	01	1	0907-
117	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	03	1	0907-
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0907-
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0907-

91 114 1 94 73 94 114 34 147 63 233 34 48 125 147 48 108 8 31 94 176 31 29 47 82 114 136 125 233 109 111 183 177 233 161 48 117 34 94 20 34 63 114 161 21 147 117 46 34 99 136 47 109 12 71 111 34 68 13 52 11 24 26 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF L=500	1-09365-150-0	01	1	0907-
8	UNION M16 STRAIGHT L=42	0-92123-010-0	02	1	0907-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	0907-
11	CLIP; PIPE (B) ID=11 H=20 L=20	8-98033-780-0	05	1	0907-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
12	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0907-
13	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0907-
20	BOLT; COOLER TO BRKT M10X25 FLANGE	0-28651-025-0	02	1	0907-
21	BRACKET; COOLER	8-98090-657-1	01	1	0907-
24	CLIP; OIL PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	0907-
24	CLIP; OIL PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0907-
26	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0907-
29	BOLT; FILTER TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0907-
31	BRACKET; OIL FILTER (B)	1-32569-081-0	01	1	0907-
31	BRACKET; OIL FILTER (A)	1-33119-222-0	01	1	0907-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE (A) L=420	1-09364-991-0	01	1	0907-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE (B)	1-09365-083-0	01	1	0907-
46	BRACKET; OIL PIPE	1-47478-516-1	01	1	0907-
47	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-
47	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28651-025-0	02	1	0907-
48	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0907-
48	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0907-
50	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	02	1	0907-
50	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	06	1	0907-
50	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	03	1	0907-
52	CLIP; FLEX HOSE,A/T L=140	5-09707-031-1	01	1	0907-
63	COOLER; OIL	1-21700-394-0	01	1	0907-1405
63	COOLER; OIL	8-98269-766-0	01	1	1406-
68	NUT; COOLER M10 FLANGE	0-91180-210-0	02	1	0907-
71	WASHER; CLIP ID=16.2	0-91510-516-0	01	1	0907-
73	HOSE; FLEX,TRANS L=430	1-09364-872-0	01	1	0907-
82	WASHER; LK,UNION ID=16.2	0-91510-516-0	01	1	0907-
91	PIPE; OIL,FLEX HOSE TO UNION L=1649 SERVICED BY L=1700	1-47428-880-0	01	1	0907-
94	PIPE; OIL,UNION TO UNION (A) L=1408 SERVICED BY L=1550	1-47428-879-0	01	1	0907-
94	PIPE; OIL,UNION TO UNION (B) L=1427 SERVICED BY L=1550	1-47428-879-0	01	1	0907-
99	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	02	1	0907-
108	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0907-
109	UNION M16 ELBOW	0-92135-210-0	02	1	0907-
111	NUT; UNION M16	0-91111-516-0	02	1	0907-
114	PIPE; OIL,UNION TO FLEX HOSE (B) L=881 SERVICED BY L=900	1-47428-873-0	01	1	0907-
114	PIPE; OIL,UNION TO FLEX HOSE (A) L=1377 SERVICED BY L=1400	1-47428-878-0	01	1	0907-
117	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	03	1	0907-
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0907-
136	CLIP; FLEX HOSE (B) ID=18 L=38 H=23	1-09701-147-0	01	1	0907-
136	CLIP; FLEX HOSE (A) L=140	5-09707-031-1	01	1	0907-
147	PIPE; OIL,UNION TO FILTER L=1799 SERVICED BY L=1900	1-47428-881-0	01	1	0907-
161	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0907-
176	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0907-
177	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	0907-
183	CARTRIDGE; OIL FILTER	8-94459-700-1	01	1	0907-
233	PIPE; OIL,FILTER TO HOSE L=1183 SERVICED BY L=1250	1-47428-876-0	01	1	0907-
