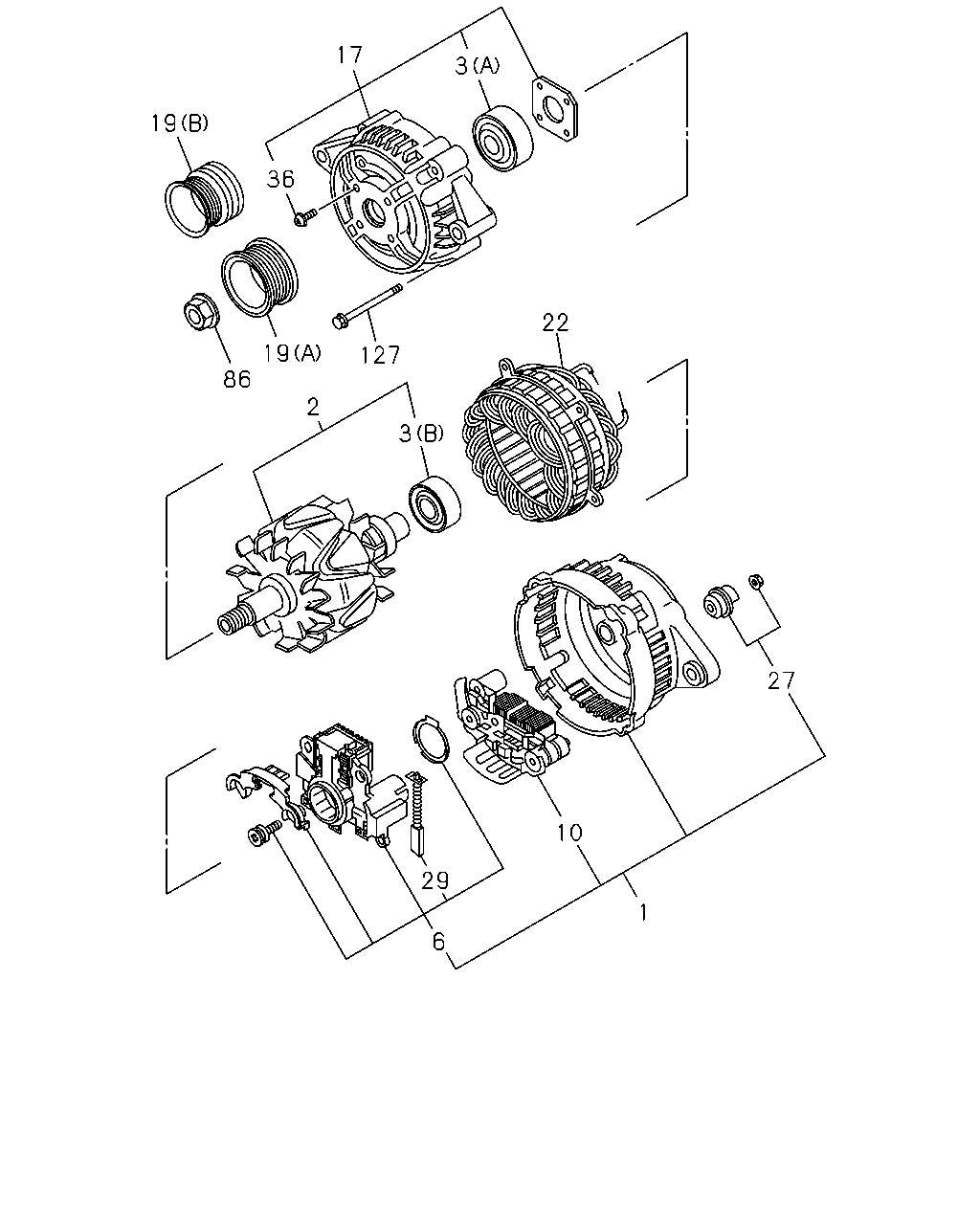

1 |
02.297 COVER ASM; RR,GEN
ASM PART: A = 8-98251-635-1, 98251635, D = 8-98268-793-0, 98268793
|
8-98273-821-0 |
01 |
1 |
- |
| |
1 |
02.297 COVER ASM; RR,GEN
ASM PART: B = 8-98268-791-0, 98268791, C = 8-98268-792-1, 98268792
|
8-98278-929-0 |
01 |
1 |
- |
| |
2 |
02.279 ROTOR; GEN
ASM PART: A = 8-98251-635-1, 98251635, D = 8-98268-793-0, 98268793
|
8-98273-816-0 |
01 |
1 |
- |
| |
2 |
02.279 ROTOR; GEN
ASM PART: B = 8-98268-791-0, 98268791, C = 8-98268-792-1, 98268792
|
8-98278-914-0 |
01 |
1 |
- |
| |
3 |
02.306 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-98273-814-0 |
01 |
1 |
- |
| |
3 |
02.306 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-98273-817-0 |
01 |
1 |
- |
| |
6 |
02.500 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-98273-825-0 |
01 |
1 |
- |
| |
10 |
02.319 RECTIFIER; GEN
ASM PART: A = 8-98251-635-1, 98251635, D = 8-98268-793-0, 98268793
|
8-98273-823-0 |
01 |
1 |
- |
| |
10 |
02.319 RECTIFIER; GEN
ASM PART: B = 8-98268-791-0, 98268791, C = 8-98268-792-1, 98268792
|
8-98278-931-0 |
01 |
1 |
- |
| |
17 |
02.305 COVER ASM; FRT,GEN
ASM PART: B = 8-98268-791-0, 98268791
|
8-98273-812-0 |
01 |
1 |
- |
| |
17 |
02.305 COVER ASM; FRT,GEN
ASM PART: A = 8-98251-635-1, 98251635, D = 8-98268-793-0, 98268793
|
8-98273-813-0 |
01 |
1 |
- |
| |
17 |
02.305 COVER ASM; FRT,GEN
ASM PART: C = 8-98268-792-1, 98268792
|
8-98292-305-0 |
01 |
1 |
- |
| |
19 |
02.274 PULLEY; GEN
(A) ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791
|
8-98273-829-0 |
01 |
1 |
- |
| |
19 |
02.274 PULLEY; GEN
(B) ASM PART: C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-98278-932-0 |
01 |
1 |
- |
| |
22 |
02.310 STATOR; GEN
ASM PART: A = 8-98251-635-1, 98251635, D = 8-98268-793-0, 98268793
|
8-98273-819-0 |
01 |
1 |
- |
| |
22 |
02.310 STATOR; GEN
ASM PART: B = 8-98268-791-0, 98268791, C = 8-98268-792-1, 98268792
|
8-98278-915-0 |
01 |
1 |
- |
| |
27 |
02.291 NUT; RECTIFIER,GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-98273-824-0 |
01 |
1 |
- |
| |
29 |
02.285 BRUSH; GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-98273-826-0 |
01 |
1 |
- |
| |
36 |
02.277 SCREW; FRT COVER
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-97178-136-0 |
01 |
1 |
- |
| |
86 |
02.280 NUT SET; PULLEY,GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-97145-327-0 |
01 |
1 |
- |
| |
127 |
02.277 BOLT SET; GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791,
C = 8-98268-792-1, 98268792, D = 8-98268-793-0, 98268793
|
8-97145-328-0 |
01 |
1 |
- |
