Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#162312) — 581 parça

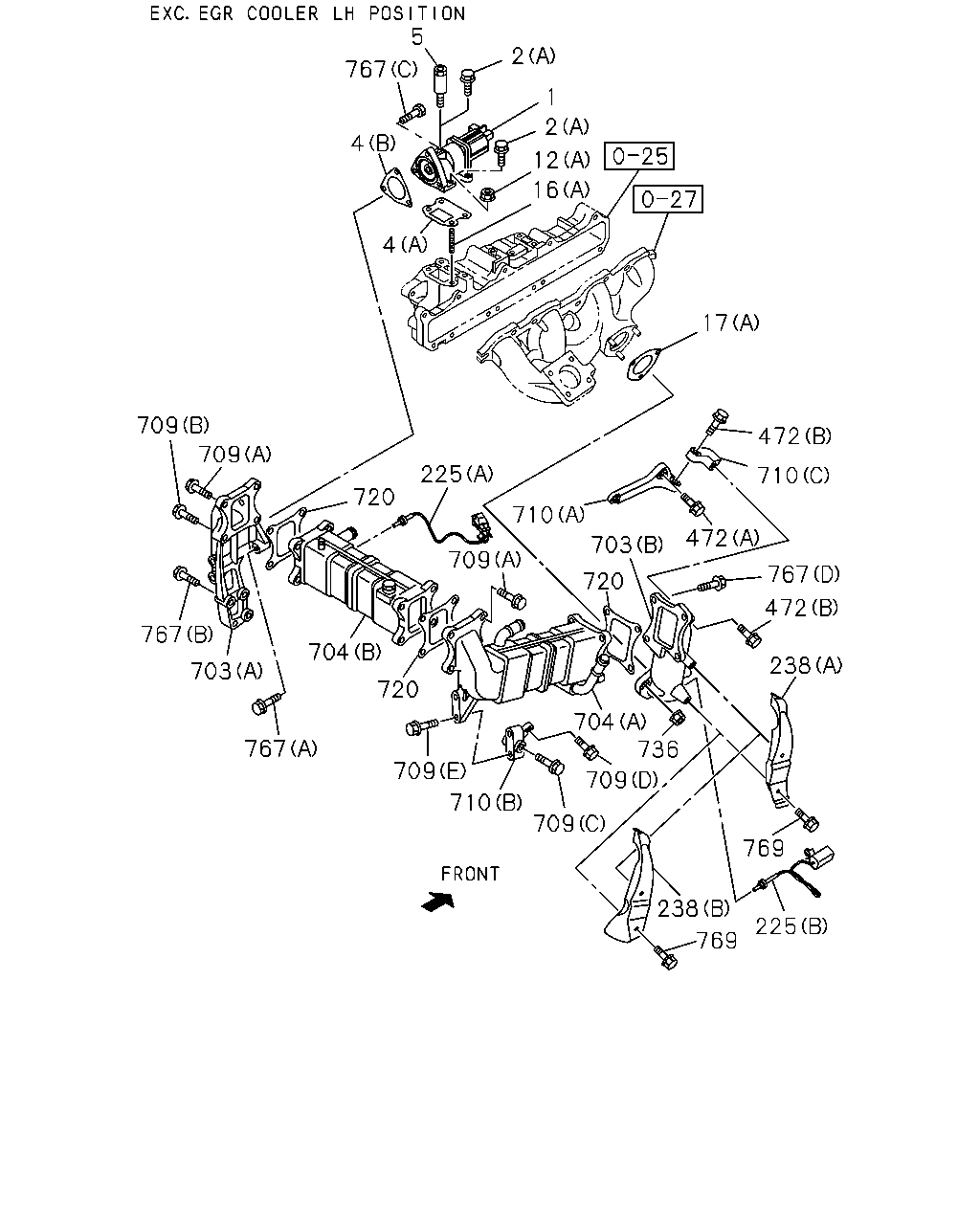

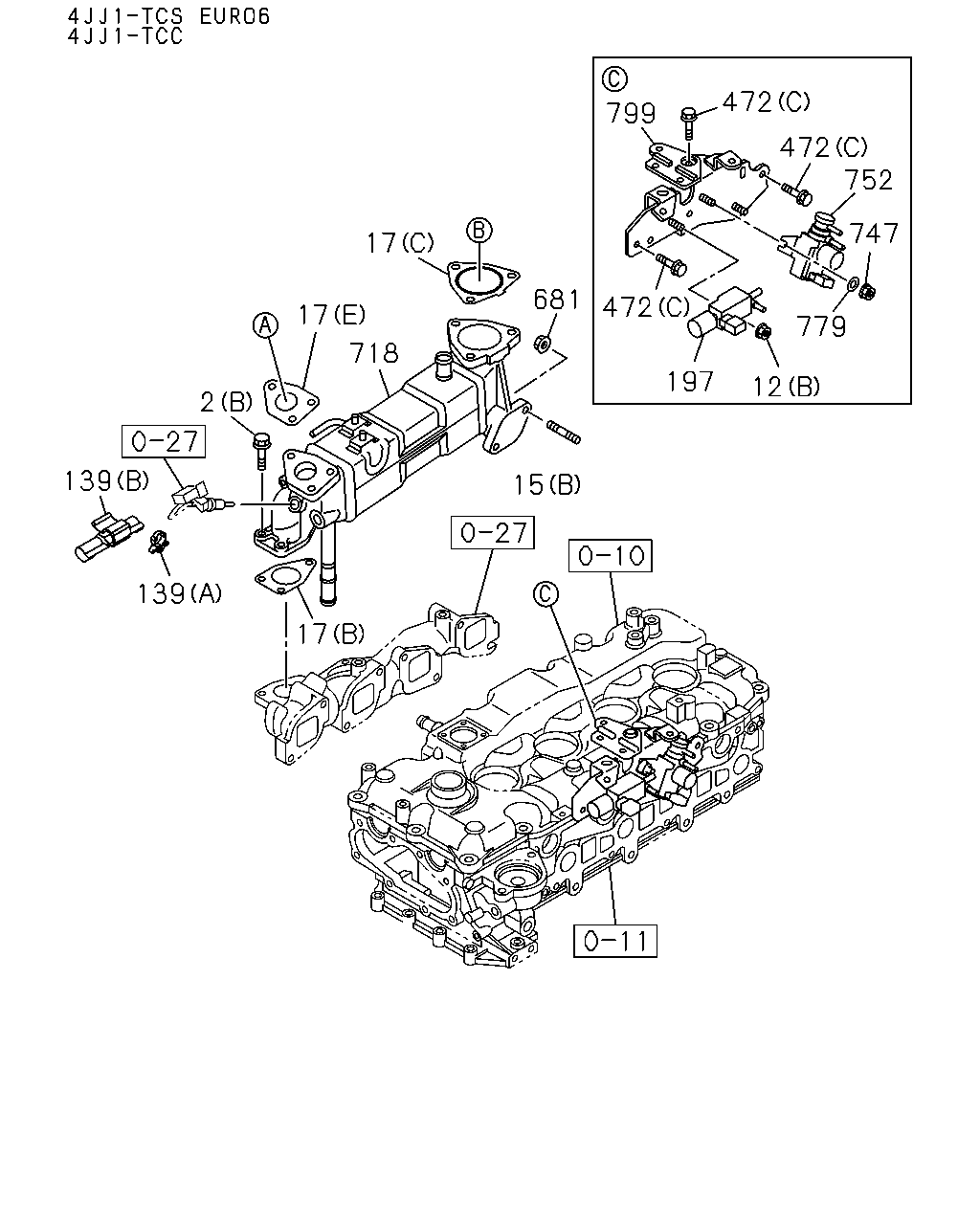

799 472 472 752 747 12 779 197 472 681 17 17 718 2 139 139 17 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-				●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-				●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508			●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-			●	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1506-	●	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1506-1508	●	●
15	03.670 STUD; EGR PIPE EURO6 SPECIFICATION(NT6) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●
15	03.670 STUD; EGR PIPE EURO5B+ SPECIFICATION(NT5) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (E)	8-98017-551-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (F)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98141-562-1	02	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.670 (D)	8-98150-745-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) 03.670 (D)	8-98150-745-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.680 (A) ID=51.5	8-98046-192-1	01	1	1506-1508			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1509-			●	●
139	02.559 CLIP; HARNESS 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1506-1508	●	●
139	02.559 CLIP; HARNESS EURO6 SPECIFICATION(NT6) 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1509-	●
139	02.559 CLIP; HARNESS EURO5B+ SPECIFICATION(NT5) 03.682 (A) ID=7 L=7.5	8-97369-561-0	01	1	1509-		●
139	02.559 CLIP; HARNESS (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1506-1508	●	●
139	02.559 CLIP; HARNESS EURO6 SPECIFICATION(NT6) (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1509-	●
139	02.559 CLIP; HARNESS EURO5B+ SPECIFICATION(NT5) (B) ID=10.2 & 5.2	8-98117-177-0	01	1	1509-		●
197	03.670 VALVE; VAC SWITCHING	8-97352-151-0	01	1	1506-1508	●	●
197	03.670 VALVE; VAC SWITCHING EURO6 SPECIFICATION(NT6)	8-97352-151-0	01	1	1509-	●
197	03.670 VALVE; VAC SWITCHING EURO5B+ SPECIFICATION(NT5)	8-97352-151-0	01	1	1509-		●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508	●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-	●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-		●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1509-			●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1509-			●	●
681	03.671 NUT; EGR PIPE EURO5B+ SPECIFICATION(NT5) 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-1508	●	●
681	03.671 NUT; EGR PIPE EURO6 SPECIFICATION(NT6) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-	●
681	03.671 NUT; EGR PIPE EURO5B+ SPECIFICATION(NT5) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-		●
718	03.337 COOLER; EGR EURO5B+ SPECIFICATION(NT5)	8-98063-283-8	01	1	1509-	●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1506-1508	●	●
718	03.337 COOLER; EGR EURO6 SPECIFICATION(NT6)	8-98201-683-2	01	1	1509-	●
718	03.337 COOLER; EGR EURO5B+ SPECIFICATION(NT5)	8-98201-683-2	01	1	1509-		●
718	03.337 COOLER; EGR EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1506-1508			●
718	03.337 COOLER; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1509-			●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1506-	●	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1506-	●	●
799	03.670 BRACKET; VSV	8-98209-312-2	01	1	1506-1508	●	●
799	03.670 BRACKET; VSV EURO6 SPECIFICATION(NT6)	8-98209-312-2	01	1	1509-	●
799	03.670 BRACKET; VSV EURO5B+ SPECIFICATION(NT5)	8-98209-312-2	01	1	1509-		●

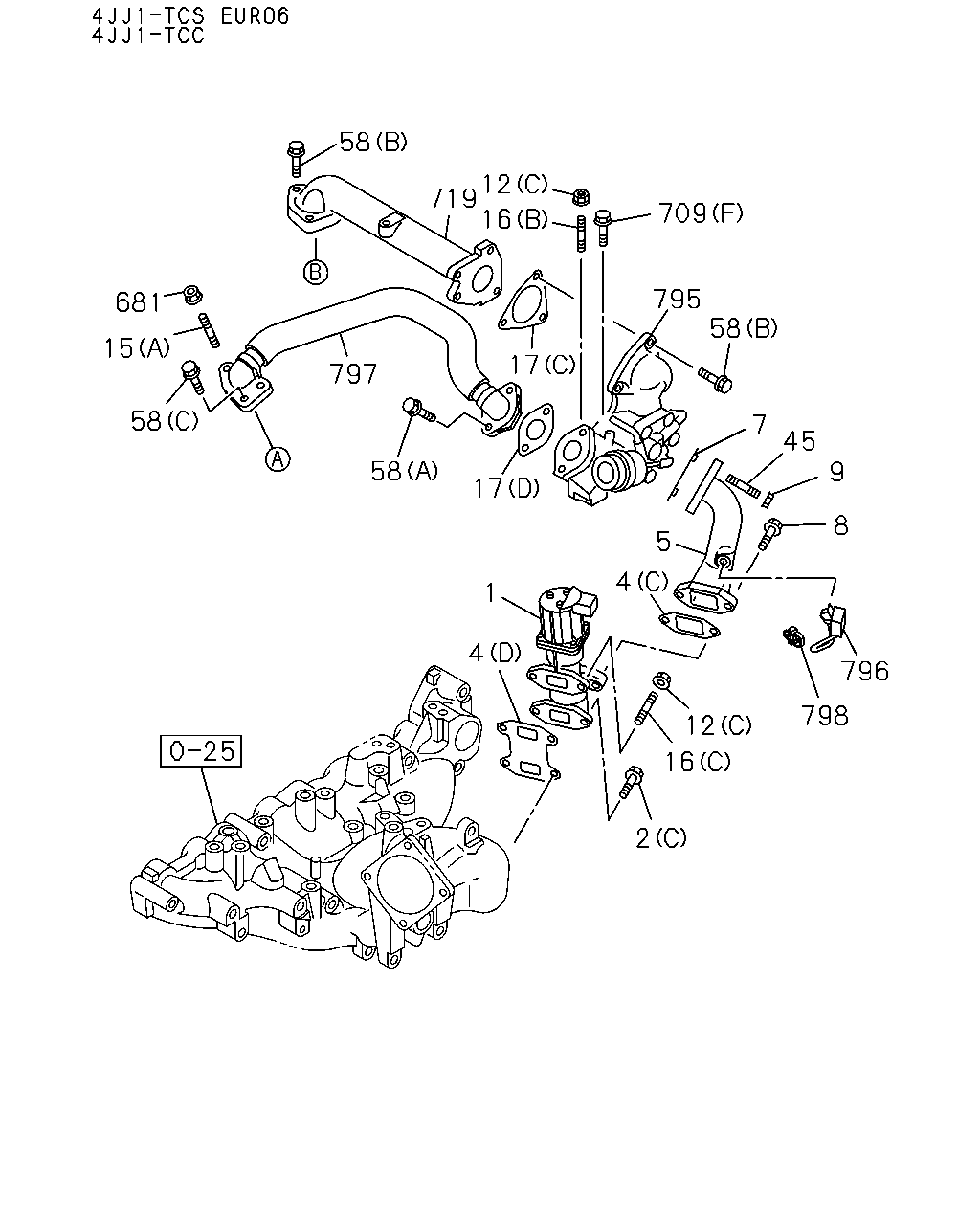

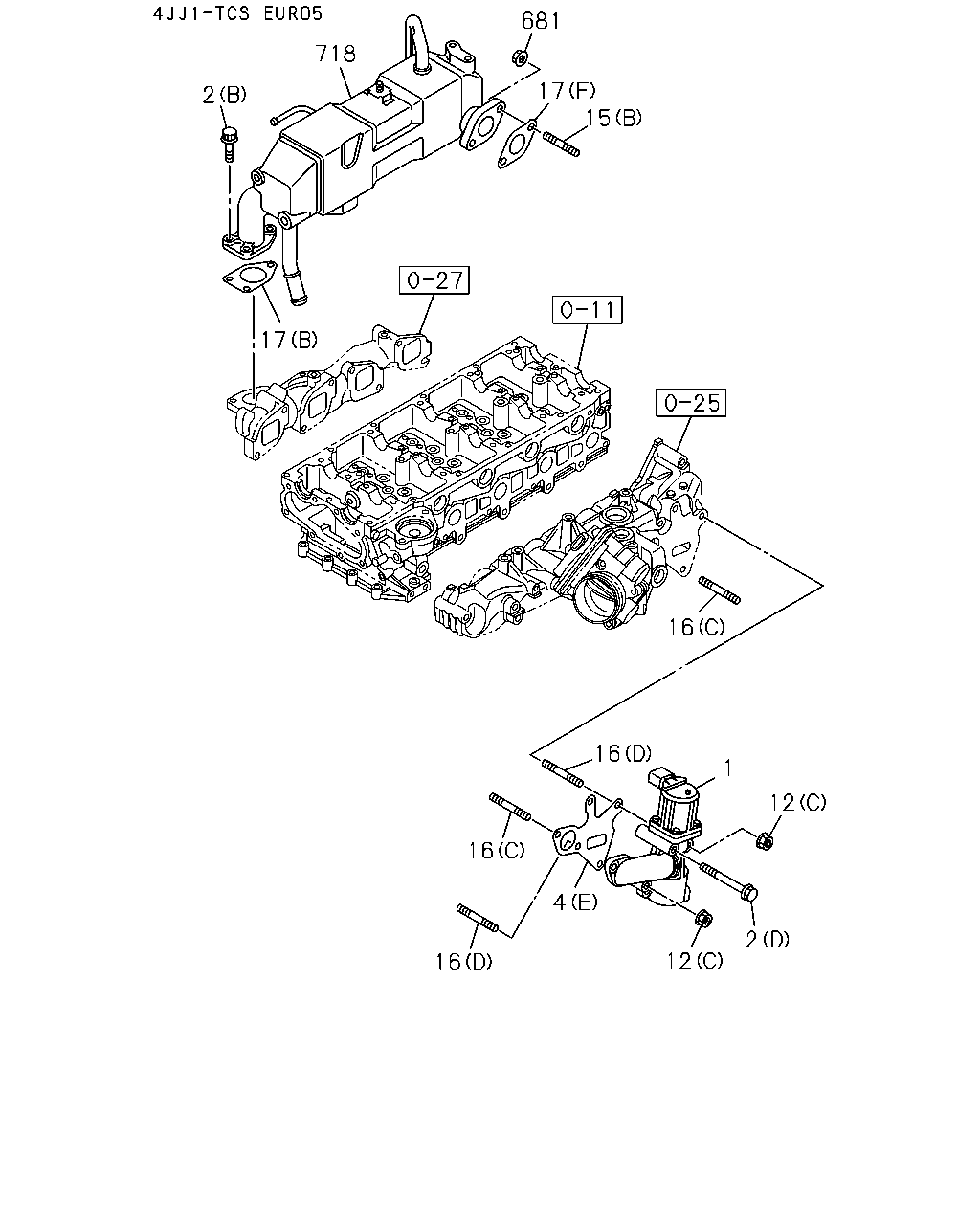

681 58 15 797 58 17 1 4 2 16 12 4 5 45 7 9 8 796 798 58 795 709 12 719 16 17 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5)	8-98238-259-1	01	1	1509-	●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98098-257-5	01	1	1509-			●	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1509-			●
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1506-		●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98211-742-0	01	1	1506-	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1506-1508			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-				●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-				●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98094-528-2	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98106-025-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98106-025-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (D)	8-98106-027-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (D)	8-98106-027-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (A)	8-97306-040-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1509-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.665 (B)	8-98036-507-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1509-			●	●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 00.269	8-97377-804-0	01	1	1509-			●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.269	8-97377-804-0	01	1	1509-				●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1506-1508	●	●
5	03.670 ADAPTER ASM EURO6 SPECIFICATION(NT6)	8-98106-747-1	01	1	1509-	●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5)	8-98106-747-1	01	1	1509-		●
7	03.670 GASKET; ADAPTER	8-98150-745-0	01	1	1506-1508	●	●
7	03.670 GASKET; ADAPTER EURO6 SPECIFICATION(NT6)	8-98150-745-0	01	1	1509-	●
7	03.670 GASKET; ADAPTER EURO5B+ SPECIFICATION(NT5)	8-98150-745-0	01	1	1509-		●
8	03.670 BOLT; EGR ADAPTER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1506-1508	●	●
8	03.670 BOLT; EGR ADAPTER EURO6 SPECIFICATION(NT6) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1509-	●
8	03.670 BOLT; EGR ADAPTER EURO5B+ SPECIFICATION(NT5) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
9	03.670 NUT; EGR ADAPTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-1508	●	●
9	03.670 NUT; EGR ADAPTER EURO6 SPECIFICATION(NT6) 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
9	03.670 NUT; EGR ADAPTER EURO5B+ SPECIFICATION(NT5) 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-		●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508			●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-			●	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1506-	●	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1506-1508	●	●
15	03.670 STUD; EGR PIPE EURO6 SPECIFICATION(NT6) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●
15	03.670 STUD; EGR PIPE EURO5B+ SPECIFICATION(NT5) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-		●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1509-	●	●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) (D) M8X50 L=62	0-40210-850-0	02	1	1509-	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-		●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1506-1508			●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1509-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (E)	8-98017-551-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (F)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98141-562-1	02	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.670 (D)	8-98150-745-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) 03.670 (D)	8-98150-745-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.680 (A) ID=51.5	8-98046-192-1	01	1	1506-1508			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1509-			●	●
45	09.173 STUD; ADAPTER,EGR 01.073 M8X22 L=34	0-41010-822-0	02	1	1506-1508	●	●
45	09.173 STUD; ADAPTER,EGR EURO6 SPECIFICATION(NT6) 01.073 M8X22 L=34	0-41010-822-0	02	1	1509-	●
45	09.173 STUD; ADAPTER,EGR EURO5B+ SPECIFICATION(NT5) 01.073 M8X22 L=34	0-41010-822-0	02	1	1509-		●
58	03.417 BOLT; PIPE 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508	●	●
58	03.417 BOLT; PIPE EURO6 SPECIFICATION(NT6) 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●
58	03.417 BOLT; PIPE EURO5B+ SPECIFICATION(NT5) 03.275 (A) M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
58	03.417 BOLT; PIPE 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1506-1508	●	●
58	03.417 BOLT; PIPE EURO6 SPECIFICATION(NT6) 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1509-	●
58	03.417 BOLT; PIPE EURO5B+ SPECIFICATION(NT5) 00.206 (B) M8X30 FLANGE	0-28050-830-0	06	1	1509-		●
58	03.417 BOLT; PIPE (C) M8X23 FLANGE	8-97378-077-0	01	1	1506-1508	●	●
58	03.417 BOLT; PIPE EURO6 SPECIFICATION(NT6) (C) M8X23 FLANGE	8-97378-077-0	01	1	1509-	●
58	03.417 BOLT; PIPE EURO5B+ SPECIFICATION(NT5) (C) M8X23 FLANGE	8-97378-077-0	01	1	1509-		●
681	03.671 NUT; EGR PIPE EURO5B+ SPECIFICATION(NT5) 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-1508	●	●
681	03.671 NUT; EGR PIPE EURO6 SPECIFICATION(NT6) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-	●
681	03.671 NUT; EGR PIPE EURO5B+ SPECIFICATION(NT5) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-		●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1506-1508	●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1509-	●
709	03.670 BOLT; EGR COOLER EURO5B+ SPECIFICATION(NT5) 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1509-		●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1509-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1509-			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1509-			●	●
719	03.675 PIPE; EGR	8-98136-683-1	01	1	1506-1508	●	●
719	03.675 PIPE; EGR EURO6 SPECIFICATION(NT6)	8-98136-683-1	01	1	1509-	●
719	03.675 PIPE; EGR EURO5B+ SPECIFICATION(NT5)	8-98136-683-1	01	1	1509-		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98299-182-0	01	1	1506-1508	●	●
795	03.670 VALVE; EGR COOLER BYPASS EURO6 SPECIFICATION(NT6)	8-98299-182-0	01	1	1509-	●
795	03.670 VALVE; EGR COOLER BYPASS EURO5B+ SPECIFICATION(NT5)	8-98299-182-0	01	1	1509-		●
796	03.670 SENSOR; TEMP,EGR COOLER OUT	8-98238-241-0	01	1	1506-		●
796	03.670 SENSOR; TEMP,EGR COOLER OUT EURO6 SPECIFICATION(NT6)	8-98240-072-0	01	1	1506-	●
797	01.540 PIPE; BYPASS	8-98214-448-1	01	1	1506-1508	●	●
797	01.540 PIPE; BYPASS EURO6 SPECIFICATION(NT6)	8-98214-448-1	01	1	1509-	●
797	01.540 PIPE; BYPASS EURO5B+ SPECIFICATION(NT5)	8-98214-448-1	01	1	1509-		●
798	03.671 CLIP; TEMP SENSOR 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1506-1508	●	●
798	03.671 CLIP; TEMP SENSOR EURO6 SPECIFICATION(NT6) 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1509-	●
798	03.671 CLIP; TEMP SENSOR EURO5B+ SPECIFICATION(NT5) 03.682 ID=7 L=7.5	8-97369-561-0	01	1	1509-		●

5 767 2 2 1 12 16 17 472 710 767 472 238 769 225 769 238 736 472 703 720 704 709 709 710 709 720 704 767 703 767 709 709 720 709 225 710 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5)	8-98238-259-1	01	1	1509-	●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98098-257-5	01	1	1509-			●	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1509-			●
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1506-		●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98211-742-0	01	1	1506-	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1506-1508			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-				●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-				●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98094-528-2	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98106-025-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98106-025-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (D)	8-98106-027-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (D)	8-98106-027-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (A)	8-97306-040-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1509-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.665 (B)	8-98036-507-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1509-			●	●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 00.269	8-97377-804-0	01	1	1509-			●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.269	8-97377-804-0	01	1	1509-				●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1506-1508	●	●
5	03.670 ADAPTER ASM EURO6 SPECIFICATION(NT6)	8-98106-747-1	01	1	1509-	●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5)	8-98106-747-1	01	1	1509-		●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508			●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-			●	●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1509-	●	●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) (D) M8X50 L=62	0-40210-850-0	02	1	1509-	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-		●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1506-1508			●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1509-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (E)	8-98017-551-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (F)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98141-562-1	02	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.670 (D)	8-98150-745-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) 03.670 (D)	8-98150-745-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.680 (A) ID=51.5	8-98046-192-1	01	1	1506-1508			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1509-			●	●
225	03.670 SENSOR; THERMO,EGR EURO6 SPECIFICATION(NT6) (A)	8-98028-398-0	01	1	1506-			●
225	03.670 SENSOR; THERMO,EGR EURO6 SPECIFICATION(NT6) 01.150 (B)	8-98160-440-0	01	1	1506-			●
238	03.330 PROTECTOR; HEAT,EGR EURO5B+ SPECIFICATION(NT5) (B)	8-98176-249-0	01	1	1509-			●	●
238	03.330 PROTECTOR; HEAT,EGR EURO6 SPECIFICATION(NT6) (A)	8-98056-572-0	01	1	1506-			●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508	●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-	●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-		●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1509-			●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1509-			●	●
703	03.675 DUCT; EGR EURO5B+ SPECIFICATION(NT5) (B)	8-98115-663-0	01	1	1509-			●	●
703	03.675 DUCT; EGR EURO5B+ SPECIFICATION(NT5) (A)	8-98115-665-1	01	1	1509-			●	●
703	03.675 DUCT; EGR EGR COOLER LH POSITION<KCC> (C)	8-98259-170-0	01	1	1506-1508			●
703	03.675 DUCT; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (C)	8-98259-170-0	01	1	1509-			●
703	03.675 DUCT; EGR EURO6 SPECIFICATION(NT6) (B)	8-98055-939-0	01	1	1506-			●
703	03.675 DUCT; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-251-1	01	1	1506-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (C)	8-98186-562-0	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (C)	8-98186-562-0	01	1	1509-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (D)	8-98200-784-1	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (D)	8-98200-784-1	01	1	1509-			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-248-5	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-248-5	01	1	1509-			●	●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (B)	8-98212-718-0	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (B)	8-98212-718-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1506-1508	●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1509-	●
709	03.670 BOLT; EGR COOLER EURO5B+ SPECIFICATION(NT5) 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1509-		●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1509-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1509-			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1509-			●	●
710	03.337 BRACKET; EGR COOLER EGR COOLER LH POSITION<KCC> (D)	8-98186-565-0	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (D)	8-98186-565-0	01	1	1509-			●
710	03.337 BRACKET; EGR COOLER EURO6 SPECIFICATION(NT6) 03.680 (A)	8-98025-253-2	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER 03.680 (A)	8-98025-253-2	01	1	1509-			●	●
710	03.337 BRACKET; EGR COOLER EURO6 SPECIFICATION(NT6) (C)	8-98055-940-1	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER (C)	8-98055-940-1	01	1	1509-			●	●
710	03.337 BRACKET; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98025-254-1	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98025-254-1	01	1	1509-			●	●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EGR COOLER LH POSITION<KCC>	8-98200-753-0	01	1	1506-1508			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC>	8-98200-753-0	01	1	1509-			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6)	8-98200-753-0	03	1	1506-1508			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98200-753-0	03	1	1509-			●	●
736	03.675 NUT; DUCT,EGR VLV EURO6 SPECIFICATION(NT6) 03.613 M8 FLANGE	8-97061-401-1	03	1	1506-1508			●
736	03.675 NUT; DUCT,EGR VLV 03.613 M8 FLANGE	8-97061-401-1	03	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1509-			●	●
769	01.750 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1506-1508			●
769	01.750 BOLT; HEAT PROTECTOR 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1509-			●	●

767 5 1 2 12 16 4 4 472 710 472 767 472 703 720 736 238 769 709 709 710 718 720 709 721 704 709 709 709 720 704 720 709 767 703 709 709 767 710 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5)	8-98238-259-1	01	1	1509-	●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98098-257-5	01	1	1509-			●	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1509-			●
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1506-		●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98211-742-0	01	1	1506-	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1506-1508			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-				●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-				●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98094-528-2	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98106-025-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98106-025-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (D)	8-98106-027-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (D)	8-98106-027-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (A)	8-97306-040-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1509-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.665 (B)	8-98036-507-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1509-			●	●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 00.269	8-97377-804-0	01	1	1509-			●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.269	8-97377-804-0	01	1	1509-				●
5	03.670 ADAPTER ASM	8-98106-747-1	01	1	1506-1508	●	●
5	03.670 ADAPTER ASM EURO6 SPECIFICATION(NT6)	8-98106-747-1	01	1	1509-	●
5	03.670 ADAPTER ASM EURO5B+ SPECIFICATION(NT5)	8-98106-747-1	01	1	1509-		●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508			●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-			●	●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1509-	●	●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) (D) M8X50 L=62	0-40210-850-0	02	1	1509-	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-		●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1506-1508			●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1509-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (E)	8-98017-551-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (F)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98141-562-1	02	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.670 (D)	8-98150-745-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) 03.670 (D)	8-98150-745-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.680 (A) ID=51.5	8-98046-192-1	01	1	1506-1508			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1509-			●	●
238	03.330 PROTECTOR; HEAT,EGR EURO5B+ SPECIFICATION(NT5) (B)	8-98176-249-0	01	1	1509-			●	●
238	03.330 PROTECTOR; HEAT,EGR EURO6 SPECIFICATION(NT6) (A)	8-98056-572-0	01	1	1506-			●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508	●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-	●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-		●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1509-			●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1509-			●	●
703	03.675 DUCT; EGR EURO5B+ SPECIFICATION(NT5) (B)	8-98115-663-0	01	1	1509-			●	●
703	03.675 DUCT; EGR EURO5B+ SPECIFICATION(NT5) (A)	8-98115-665-1	01	1	1509-			●	●
703	03.675 DUCT; EGR EGR COOLER LH POSITION<KCC> (C)	8-98259-170-0	01	1	1506-1508			●
703	03.675 DUCT; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (C)	8-98259-170-0	01	1	1509-			●
703	03.675 DUCT; EGR EURO6 SPECIFICATION(NT6) (B)	8-98055-939-0	01	1	1506-			●
703	03.675 DUCT; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-251-1	01	1	1506-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (C)	8-98186-562-0	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (C)	8-98186-562-0	01	1	1509-			●
704	03.337 COOLER ASM; EGR EGR COOLER LH POSITION<KCC> (D)	8-98200-784-1	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (D)	8-98200-784-1	01	1	1509-			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-248-5	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98025-248-5	01	1	1509-			●	●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (B)	8-98212-718-0	01	1	1506-1508			●
704	03.337 COOLER ASM; EGR EXC. EGR COOLER LH POSITION<KCC> (B)	8-98212-718-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1506-1508	●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1509-	●
709	03.670 BOLT; EGR COOLER EURO5B+ SPECIFICATION(NT5) 00.206 (F) M8X70 FLANGE	0-28050-870-0	01	1	1509-		●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	1509-			●
709	03.670 BOLT; EGR COOLER EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> 03.417 (H) M8X28 FLANGE	8-98043-528-0	04	1	1509-			●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 00.685 (C) M12X60 FLANGE	0-28151-260-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 03.680 (A) M8X30 FLANGE	0-28660-830-0	07	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EURO6 SPECIFICATION(NT6) 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1506-1508			●
709	03.670 BOLT; EGR COOLER 00.029 (E) M10X40 FLANGE	0-28751-040-0	02	1	1509-			●	●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1506-1508			●
709	03.670 BOLT; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B) M8X45 FLANGE	0-28060-845-0	01	1	1509-			●	●
710	03.337 BRACKET; EGR COOLER EGR COOLER LH POSITION<KCC> (D)	8-98186-565-0	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (D)	8-98186-565-0	01	1	1509-			●
710	03.337 BRACKET; EGR COOLER EURO6 SPECIFICATION(NT6) 03.680 (A)	8-98025-253-2	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER 03.680 (A)	8-98025-253-2	01	1	1509-			●	●
710	03.337 BRACKET; EGR COOLER EURO6 SPECIFICATION(NT6) (C)	8-98055-940-1	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER (C)	8-98055-940-1	01	1	1509-			●	●
710	03.337 BRACKET; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98025-254-1	01	1	1506-1508			●
710	03.337 BRACKET; EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98025-254-1	01	1	1509-			●	●
718	03.337 COOLER; EGR EURO5B+ SPECIFICATION(NT5)	8-98063-283-8	01	1	1509-	●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1506-1508	●	●
718	03.337 COOLER; EGR EURO6 SPECIFICATION(NT6)	8-98201-683-2	01	1	1509-	●
718	03.337 COOLER; EGR EURO5B+ SPECIFICATION(NT5)	8-98201-683-2	01	1	1509-		●
718	03.337 COOLER; EGR EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1506-1508			●
718	03.337 COOLER; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1509-			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EGR COOLER LH POSITION<KCC>	8-98200-753-0	01	1	1506-1508			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC>	8-98200-753-0	01	1	1509-			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6)	8-98200-753-0	03	1	1506-1508			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98200-753-0	03	1	1509-			●	●
721	03.675 DUCT; COOLER EGR COOLER LH POSITION<KCC>	8-98186-563-0	01	1	1506-1508			●
721	03.675 DUCT; COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC>	8-98186-563-0	01	1	1509-			●
736	03.675 NUT; DUCT,EGR VLV EURO6 SPECIFICATION(NT6) 03.613 M8 FLANGE	8-97061-401-1	03	1	1506-1508			●
736	03.675 NUT; DUCT,EGR VLV 03.613 M8 FLANGE	8-97061-401-1	03	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	1509-			●	●
767	03.670 BOLT; DUCT,EGR EURO6 SPECIFICATION(NT6) 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1506-1508			●
767	03.670 BOLT; DUCT,EGR 03.417 (D) M8X28 FLANGE	8-98043-528-0	04	1	1509-			●	●
769	01.750 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1506-1508			●
769	01.750 BOLT; HEAT PROTECTOR 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1509-			●	●

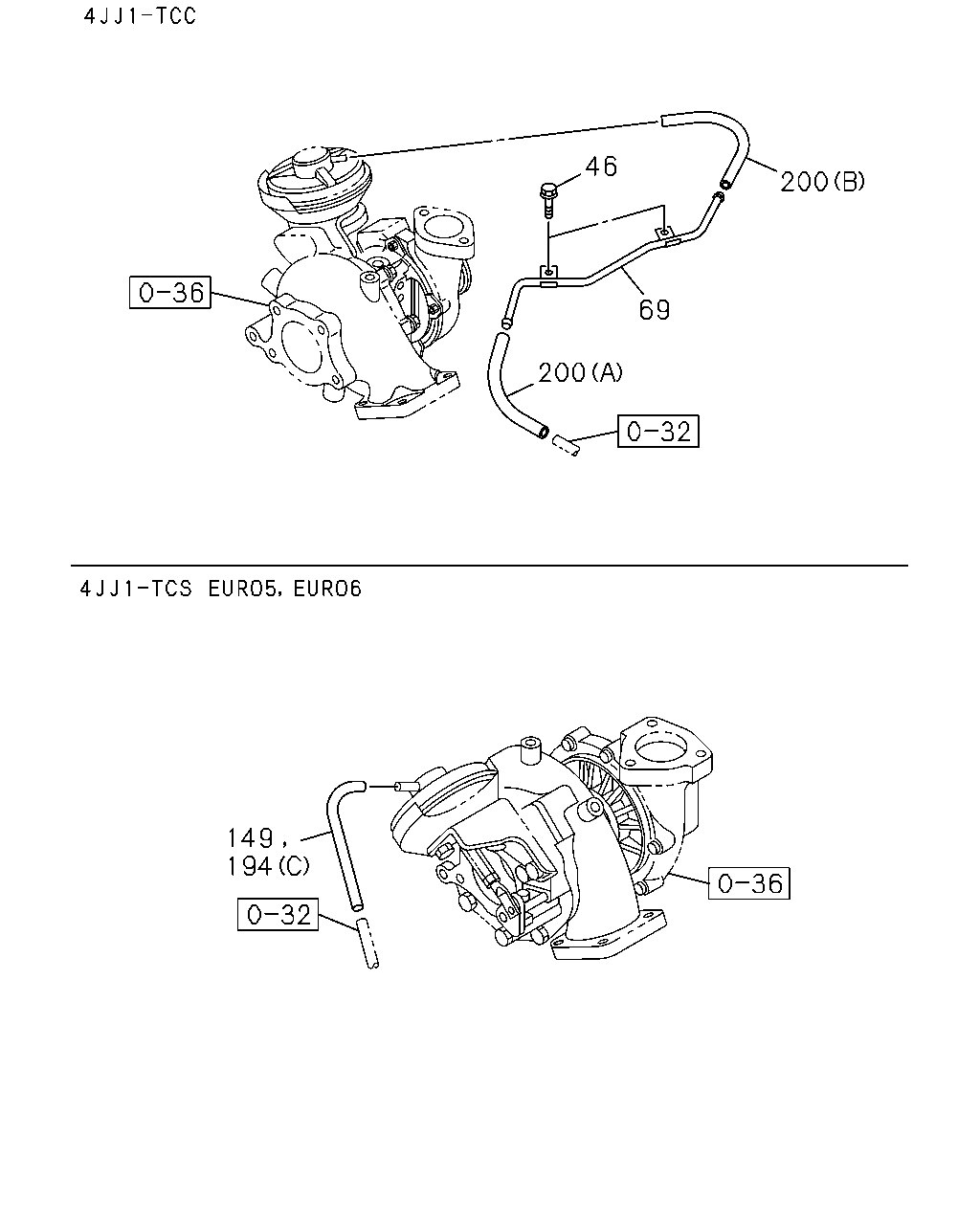

200 46 69 200 149 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	03.680 BOLT; VAC PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1507-		●
69	03.675 PIPE ASM; VAC	8-98287-564-0	01	1	1507-		●
149	08.962 HOSE; VAC PIPE	8-98175-025-0	01	1	1506-1506		●
149	08.962 HOSE; VAC PIPE EURO6 SPECIFICATION(NT6) 03.675	8-98107-557-0	01	1	1506-	●
194	03.675 HOSE; VAC EURO5B+ SPECIFICATION(NT5) (A)	0-04420-270-0	01	1	1509-	●
194	03.675 HOSE; VAC EURO5B+ SPECIFICATION(NT5) (B)	8-98085-688-0	01	1	1509-	●
194	03.675 HOSE; VAC EURO5B+ SPECIFICATION(NT5) (C)	8-98107-557-0	01	1	1509-	●
200	03.675 HOSE; VAC (B) L=150 SERVICED BY L=3000	0-14320-300-0	01	1	1507-		●
200	03.675 HOSE; VAC (A) L=110	0-14140-110-0	01	1	1507-		●

718 681 17 15 2 17 16 1 12 2 12 4 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5)	8-98238-259-1	01	1	1509-	●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98098-257-5	01	1	1509-			●	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1509-			●
1	03.670 VALVE; EGR	8-98194-599-0	01	1	1506-		●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98211-742-0	01	1	1506-	●
1	03.670 VALVE; EGR EURO6 SPECIFICATION(NT6)	8-98098-257-5	01	1	1506-1508			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-			●
1	03.670 VALVE; EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98219-180-0	01	1	1509-				●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1509-	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1509-				●
2	03.670 BOLT; EGR VLV 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1509-		●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1506-1508	●	●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1509-	●
2	03.670 BOLT; EGR VLV EURO6 SPECIFICATION(NT6) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
2	03.670 BOLT; EGR VLV EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1509-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98094-528-2	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98106-025-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98106-025-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98106-025-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98106-027-1	01	1	1506-1508	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (D)	8-98106-027-1	01	1	1509-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (D)	8-98106-027-1	01	1	1509-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (A)	8-97306-040-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1509-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.665 (B)	8-98036-507-0	01	1	1506-1508			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98036-507-0	01	1	1509-			●	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	04	1	1509-	●
12	03.671 NUT; EGR VLV 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 01.540 (C) M8 FLANGE	0-91180-208-0	03	1	1509-		●
12	03.671 NUT; EGR VLV 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1506-1508	●	●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-	●
12	03.671 NUT; EGR VLV EURO5B+ SPECIFICATION(NT5) 06.164 (B) M8 FLANGE	5-09440-010-0	01	1	1509-		●
12	03.671 NUT; EGR VLV EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508			●
12	03.671 NUT; EGR VLV 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-			●	●
15	03.670 STUD; EGR PIPE 03.275 (B) M8X25 L=37	0-41010-825-0	02	1	1506-	●	●
15	03.670 STUD; EGR PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1506-1508	●	●
15	03.670 STUD; EGR PIPE EURO6 SPECIFICATION(NT6) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-	●
15	03.670 STUD; EGR PIPE EURO5B+ SPECIFICATION(NT5) 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1509-		●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1509-	●	●
16	03.275 STUD; EGR VLV (C) M8X25 L=41	0-40210-825-0	02	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) (D) M8X50 L=62	0-40210-850-0	02	1	1509-	●
16	03.275 STUD; EGR VLV 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1506-1508	●	●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-	●
16	03.275 STUD; EGR VLV EURO5B+ SPECIFICATION(NT5) 00.349 (B) M8X65 L=81	9-04020-865-0	01	1	1509-		●
16	03.275 STUD; EGR VLV EURO6 SPECIFICATION(NT6) 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1506-1508			●
16	03.275 STUD; EGR VLV 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1509-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1509-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-98017-551-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (E)	8-98017-551-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (E)	8-98017-551-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98063-284-1	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (F)	8-97357-684-3	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98141-562-1	02	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C)	8-98141-562-1	02	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) (C)	8-98141-562-1	02	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (D)	8-98150-745-0	01	1	1506-1508	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.670 (D)	8-98150-745-0	01	1	1509-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5B+ SPECIFICATION(NT5) 03.670 (D)	8-98150-745-0	01	1	1509-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 03.680 (A) ID=51.5	8-98046-192-1	01	1	1506-1508			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.680 (A) ID=51.5	8-98046-192-1	01	1	1509-			●	●
681	03.671 NUT; EGR PIPE EURO5B+ SPECIFICATION(NT5) 01.540 M8 FLANGE	0-91180-208-0	02	1	1509-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-1508	●	●
681	03.671 NUT; EGR PIPE EURO6 SPECIFICATION(NT6) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-	●
681	03.671 NUT; EGR PIPE EURO5B+ SPECIFICATION(NT5) 01.540 M8 FLANGE	0-91180-208-0	04	1	1509-		●
718	03.337 COOLER; EGR EURO5B+ SPECIFICATION(NT5)	8-98063-283-8	01	1	1509-	●
718	03.337 COOLER; EGR	8-98201-683-2	01	1	1506-1508	●	●
718	03.337 COOLER; EGR EURO6 SPECIFICATION(NT6)	8-98201-683-2	01	1	1509-	●
718	03.337 COOLER; EGR EURO5B+ SPECIFICATION(NT5)	8-98201-683-2	01	1	1509-		●
718	03.337 COOLER; EGR EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1506-1508			●
718	03.337 COOLER; EGR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC>	8-98186-561-0	01	1	1509-			●

697 271 667 738 472 753 779 752 747 194 73 73 73 82 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
73	03.680 CLIP; VAC HOSE EURO5B+ SPECIFICATION(NT5) 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1509-	●
73	03.680 CLIP; VAC HOSE EURO5B+ SPECIFICATION(NT5) 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1509-	●
73	03.680 CLIP; VAC HOSE EURO5B+ SPECIFICATION(NT5) 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1509-	●
82	03.680 JOINT; 3 WAY EURO5B+ SPECIFICATION(NT5) 3WAY	8-98045-385-0	01	1	1509-	●
194	03.675 HOSE; VAC EURO5B+ SPECIFICATION(NT5) (A)	0-04420-270-0	01	1	1509-	●
194	03.675 HOSE; VAC EURO5B+ SPECIFICATION(NT5) (B)	8-98085-688-0	01	1	1509-	●
194	03.675 HOSE; VAC EURO5B+ SPECIFICATION(NT5) (C)	8-98107-557-0	01	1	1509-	●
271	03.675 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
472	03.671 BOLT; BRKT 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508	●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-	●
472	03.671 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	1509-		●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 02.277 (A) M8X25 FLANGE	0-28660-825-0	02	1	1509-			●	●
472	03.671 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1506-1508			●
472	03.671 BOLT; BRKT 00.029 (B) M10X40 FLANGE	0-28751-040-0	02	1	1509-			●	●
667	03.670 SENSOR; VAC EURO5B+ SPECIFICATION(NT5)	8-98044-520-0	01	1	1509-	●
697	03.680 BOLT; SENSOR EURO5B+ SPECIFICATION(NT5) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1509-	●
738	03.675 BRACKET; SENSOR,VAC EURO5B+ SPECIFICATION(NT5)	8-98044-607-0	01	1	1509-	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1506-	●	●
753	03.670 BRACKET; VALVE EURO5B+ SPECIFICATION(NT5)	8-97381-571-1	01	1	1509-	●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
