0-51 — OIL PUMP AND OIL STRAINER (#162310) — 42 parça

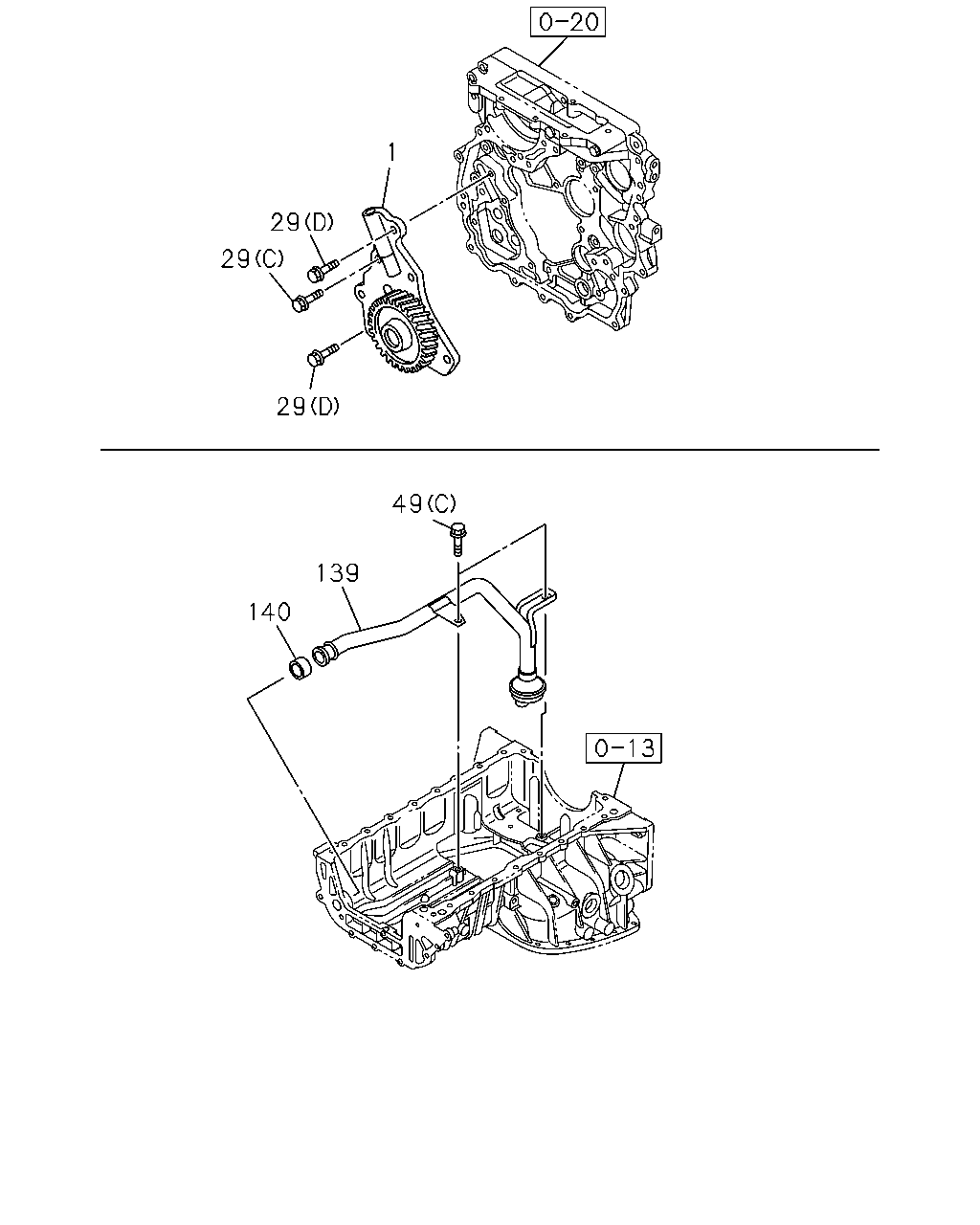

29 1 29 29 139 49 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-98232-624-1	01	1	1506-	●	●
1	01.652 PUMP ASM; OIL EURO6 SPECIFICATION(NT6)	8-98017-585-1	01	1	1506-1508			●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	1509-			●	●
29	01.652 BOLT; OIL PUMP 00.206 (C) M8X30 FLANGE	0-28050-830-0	04	1	1506-	●	●
29	01.652 BOLT; OIL PUMP 09.173 (D) M8X45 FLANGE	0-28050-845-0	02	1	1506-	●	●
29	01.652 BOLT; OIL PUMP EURO6 SPECIFICATION(NT6) 06.174 (A) M8X25 FLANGE	0-28060-825-0	02	1	1506-1508			●
29	01.652 BOLT; OIL PUMP 06.174 (A) M8X25 FLANGE	0-28060-825-0	02	1	1509-			●	●
29	01.652 BOLT; OIL PUMP EURO6 SPECIFICATION(NT6) (B) M8X30 FLANGE	0-28060-830-0	02	1	1506-1508			●
29	01.652 BOLT; OIL PUMP (B) M8X30 FLANGE	0-28060-830-0	02	1	1509-			●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP EURO6 SPECIFICATION(NT6) 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1506-1508			●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1509-			●	●
49	01.531 BOLT; STRAINER,OIL PUMP EURO6 SPECIFICATION(NT6) (A) M10X80	8-97071-956-0	01	1	1506-1508			●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	1509-			●	●
139	01.639 PIPE; OIL STRAINER	8-98149-035-0	01	1	1506-	●	●
140	01.639 GASKET; OIL STRAINER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97356-150-0	01	1	1506-	●	●

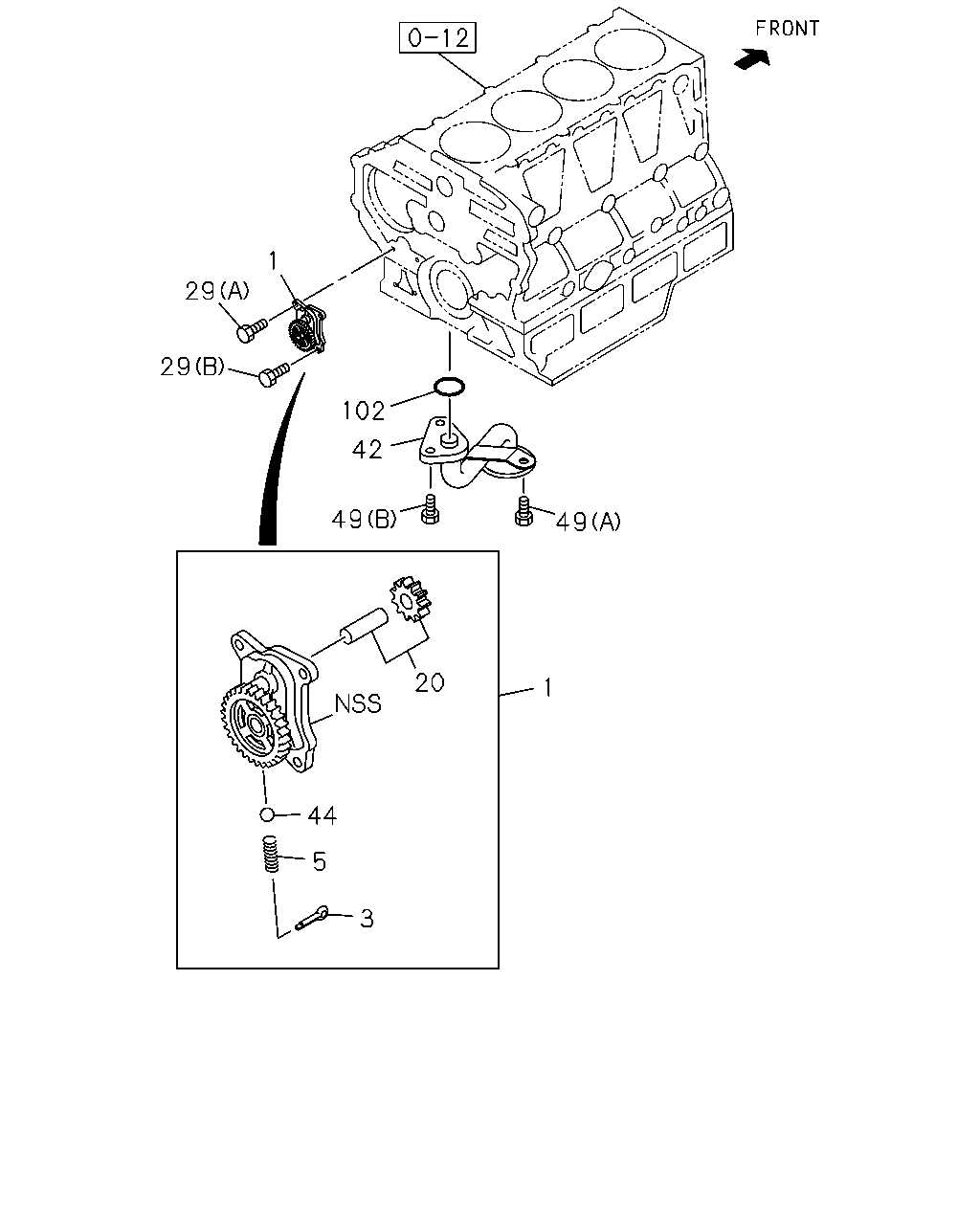

1 29 29 102 42 49 49 1 20 44 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-98232-624-1	01	1	1506-	●	●
1	01.652 PUMP ASM; OIL EURO6 SPECIFICATION(NT6)	8-98017-585-1	01	1	1506-1508			●
1	01.652 PUMP ASM; OIL	8-98017-585-1	01	1	1509-			●	●
3	01.639 PIN; SPLIT EURO6 SPECIFICATION(NT6) 06.022 L=30	9-08104-030-0	01	1	1506-1508			●
3	01.639 PIN; SPLIT 06.022 L=30	9-08104-030-0	01	1	1509-			●	●
5	01.609 SPRING; COIL EURO6 SPECIFICATION(NT6)	5-09580-098-0	01	1	1506-1508			●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	1509-			●	●
20	01.639 GEAR; DRIVE,OIL PUMP EURO6 SPECIFICATION(NT6)	8-98059-192-0	01	1	1506-1508			●
20	01.639 GEAR; DRIVE,OIL PUMP	8-98059-192-0	01	1	1509-			●	●
29	01.652 BOLT; OIL PUMP 00.206 (C) M8X30 FLANGE	0-28050-830-0	04	1	1506-	●	●
29	01.652 BOLT; OIL PUMP 09.173 (D) M8X45 FLANGE	0-28050-845-0	02	1	1506-	●	●
29	01.652 BOLT; OIL PUMP EURO6 SPECIFICATION(NT6) 06.174 (A) M8X25 FLANGE	0-28060-825-0	02	1	1506-1508			●
29	01.652 BOLT; OIL PUMP 06.174 (A) M8X25 FLANGE	0-28060-825-0	02	1	1509-			●	●
29	01.652 BOLT; OIL PUMP EURO6 SPECIFICATION(NT6) (B) M8X30 FLANGE	0-28060-830-0	02	1	1506-1508			●
29	01.652 BOLT; OIL PUMP (B) M8X30 FLANGE	0-28060-830-0	02	1	1509-			●	●
42	01.656 STRAINER; OIL,OIL PUMP EURO6 SPECIFICATION(NT6)	8-98213-868-0	01	1	1506-1508			●
42	01.656 STRAINER; OIL,OIL PUMP	8-98213-868-0	01	1	1509-			●	●
44	01.609 BALL; RELIEF VLV EURO6 SPECIFICATION(NT6)	5-09843-003-0	01	1	1506-1508			●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	1509-			●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP EURO6 SPECIFICATION(NT6) 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1506-1508			●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1509-			●	●
49	01.531 BOLT; STRAINER,OIL PUMP EURO6 SPECIFICATION(NT6) (A) M10X80	8-97071-956-0	01	1	1506-1508			●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	1509-			●	●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 ID=24.5	8-94399-398-0	01	1	1506-1508			●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5	8-94399-398-0	01	1	1509-			●	●
