◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11209 - LV434(RHD) EURO3/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#16231) — 66 parça
çizim 62774
51 45 52 49
BalonParca AdiParca NoAdetTipApplied Date
45 UNION; POWER ASSISTOR HOSE
M12 		0-92138-306-0 01 1 0907-
49 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0907-1111
49 NUT; FLEX HOSE
M12 		0-91111-512-0 01 1 1112-
51 PIPE ASM; AIR
L=616 SERVICED BY L=650 		1-47428-810-0 01 1 0907-
52 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0907-

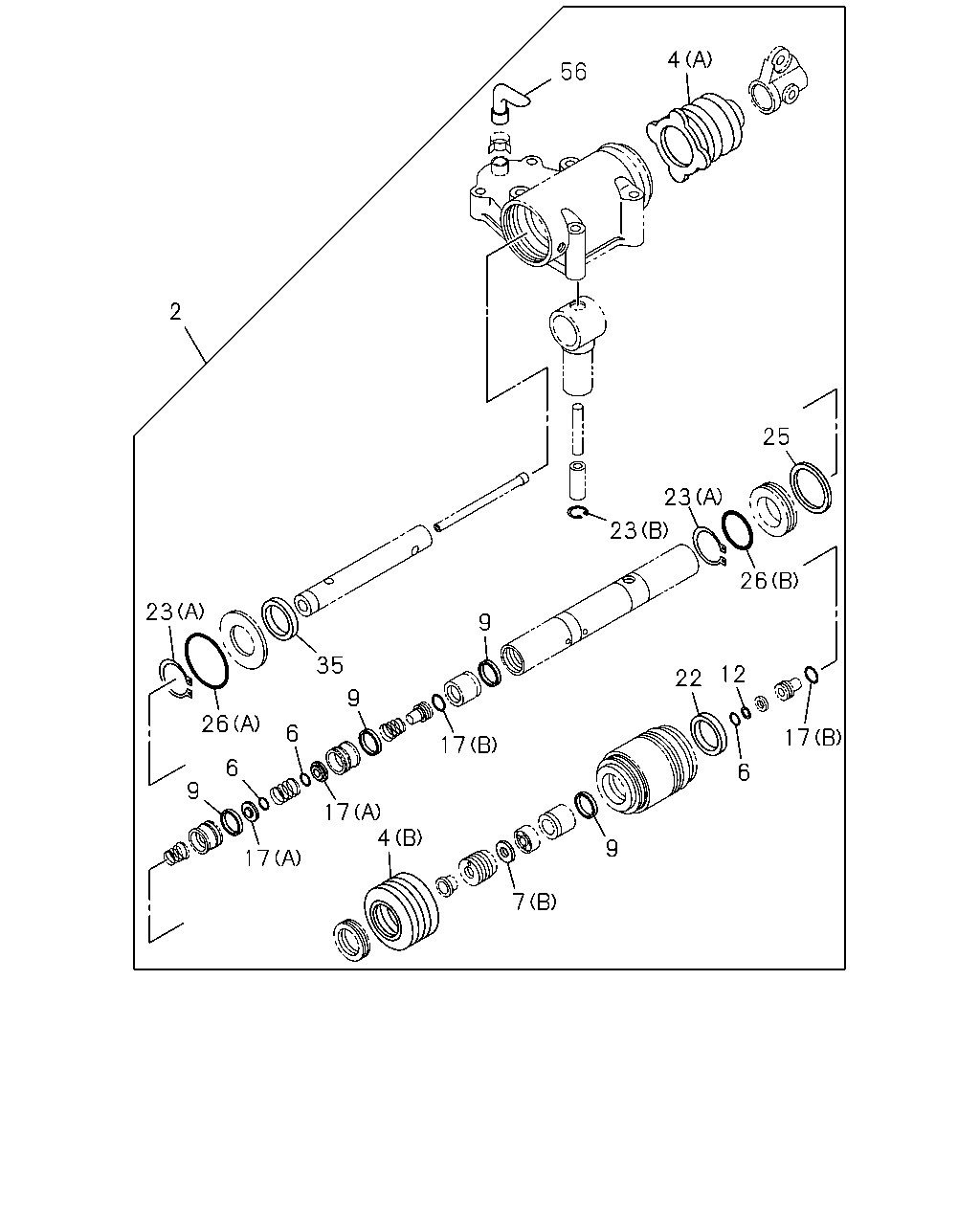

çizim 63049
4 56 2 25 23 23 26 23 9 35 12 22 9 26 6 17 17 6 6 9 17 4 9 17 7
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 1-33738-107-0 01 1 0907-
4 BOOT; POWER SHIFTER
(A) 		1-33738-101-0 01 1 0907-
4 BOOT; POWER SHIFTER
(B) 		1-33739-038-0 01 1 0907-
6 GASKET 1-33739-013-0 03 1 0907-
7 FILTER; AIR
(A) 		1-33738-036-0 01 1 0907-
7 FILTER; AIR
(B) 		1-33739-033-0 01 1 0907-
9 RING; SQUARE 1-33739-086-0 04 1 0907-
12 RING; RET 1-33739-016-0 01 1 0907-
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0907-
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0907-
22 SEAL; OIL 1-33739-353-0 01 1 0907-
23 RING; RET
(A) 		1-33739-022-0 02 1 0907-
23 RING; RET
(B) 		1-33739-564-0 01 1 0907-
25 RING; "X",PISTON 1-33739-350-0 01 1 0907-
26 GASKET
(A) 		1-33739-122-0 01 1 0907-
26 GASKET
(B) 		1-33739-124-0 01 1 0907-
35 GASKET; CUP 1-33739-073-0 01 1 0907-
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0907-

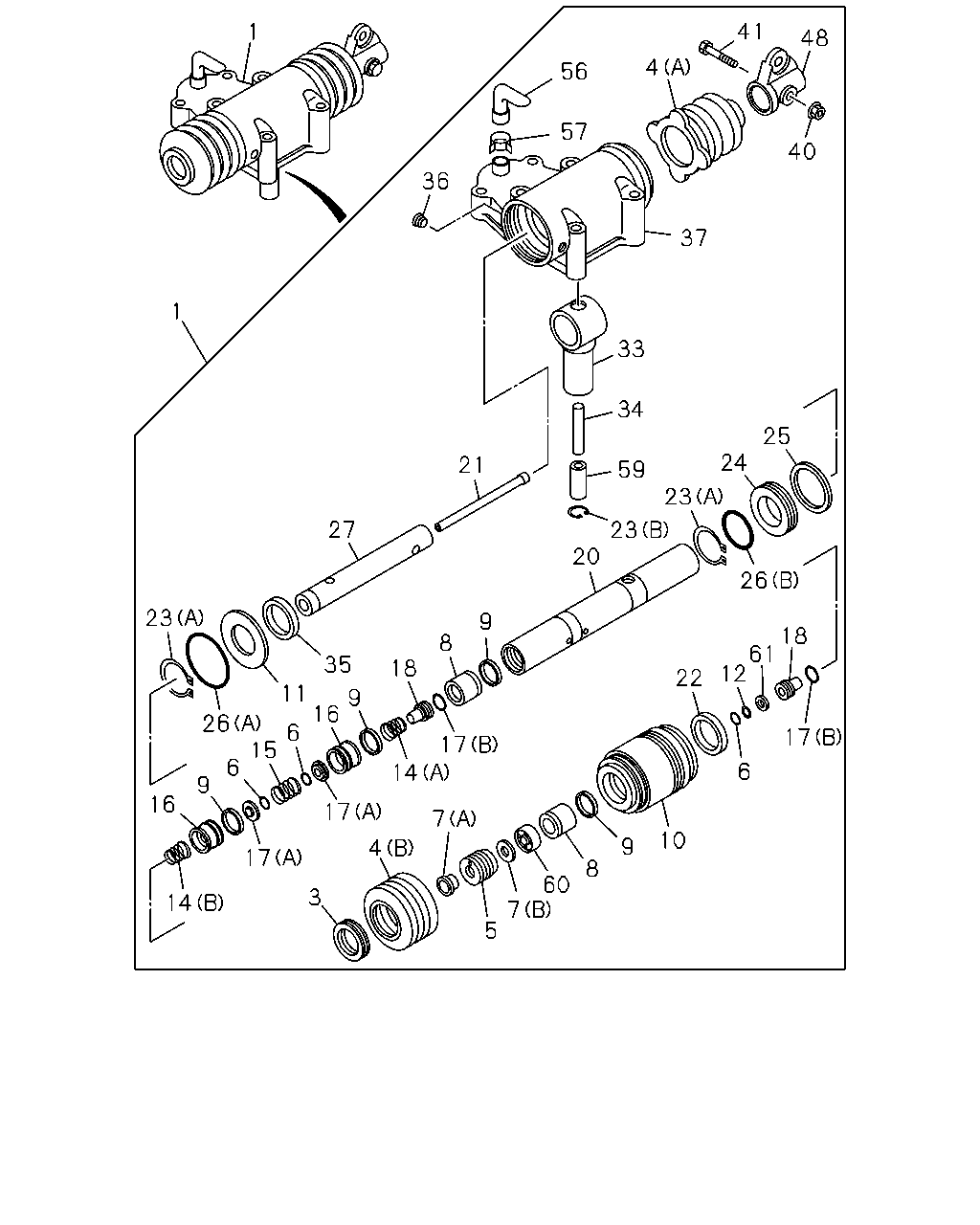

çizim 102289
41 1 48 4 56 57 40 36 37 1 33 34 25 24 21 59 23 27 23 20 26 23 9 18 8 61 12 35 18 22 11 9 16 26 15 6 17 17 6 6 14 9 16 17 7 10 9 4 17 8 60 7 3 14 5
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 1-33730-286-0 01 1 0907-
3 NUT; LK,ROD 1-33739-025-0 01 1 0907-
4 BOOT; POWER SHIFTER
(A) 		1-33738-101-0 01 1 0907-
4 BOOT; POWER SHIFTER
(B) 		1-33739-038-0 01 1 0907-
5 CONNECTOR; CYL 1-33739-596-0 01 1 0907-
6 GASKET 1-33739-013-0 03 1 0907-
7 FILTER; AIR
(A) 		1-33738-036-0 01 1 0907-
7 FILTER; AIR
(B) 		1-33739-033-0 01 1 0907-
8 TUBE 1-33739-560-0 02 1 0907-
9 RING; SQUARE 1-33739-086-0 04 1 0907-
10 CYLINDER; POWER SHIFTER 1-33739-352-0 01 1 0907-
11 PLATE; CYL 1-33739-108-0 01 1 0907-
12 RING; RET 1-33739-016-0 01 1 0907-
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 0907-
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 0907-
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 0907-
16 SEAT; VALVE 1-33739-067-0 02 1 0907-
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0907-
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0907-
18 LIFTER; VALVE 1-33739-586-0 02 1 0907-
20 ROD ASM; W/CAP 1-33739-599-0 01 1 0907-
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 0907-
22 SEAL; OIL 1-33739-353-0 01 1 0907-
23 RING; RET
(A) 		1-33739-022-0 02 1 0907-
23 RING; RET
(B) 		1-33739-564-0 01 1 0907-
24 PISTON 1-33739-499-0 01 1 0907-
25 RING; "X",PISTON 1-33739-350-0 01 1 0907-
26 GASKET
(A) 		1-33739-122-0 01 1 0907-
26 GASKET
(B) 		1-33739-124-0 01 1 0907-
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 0907-
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 0907-
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 0907-
35 GASKET; CUP 1-33739-073-0 01 1 0907-
36 SCREW; SET 1-33739-040-0 01 1 0907-
37 HOUSING; POWER SHIFTER 1-33739-606-0 01 1 0907-
40 NUT; LEVER 1-33739-940-0 01 1 0907-
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0907-
48 LEVER; CONT,CABLE 1-33739-591-1 01 1 0907-
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0907-
57 CLAMP; HOSE 1-33739-569-0 01 1 0907-
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 0907-
60 COLLAR; CYL 1-33739-595-0 01 1 0907-
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 0907-
