Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

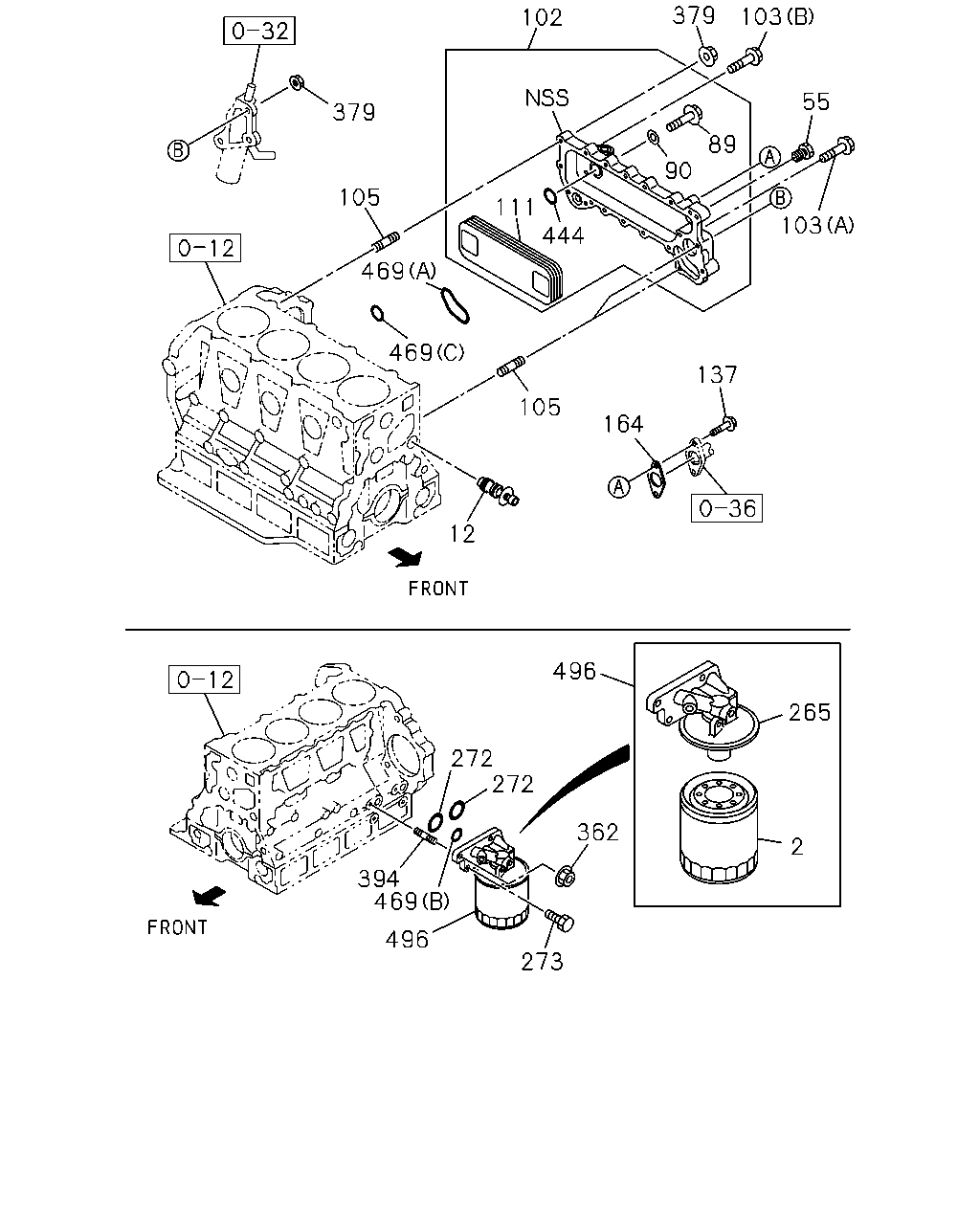

0-50 — OIL COOLER AND OIL FILTER (#162309) — 90 parça

12 105 137 164 105 379 102 379 103 55 89 90 111 469 469 444 103 496 265 272 272 394 469 496 362 273 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	1506-	●	●
2	01.836 ELEMENT; OIL FILTER EURO6 SPECIFICATION(NT6)	8-97148-270-1	01	1	1506-1508			●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	1509-1509			●	●
2	01.836 ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-			●	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-118-0	01	1	1506-	●	●
2	01.836 ELEMENT; OIL FILTER EURO6 SPECIFICATION(NT6) BEST VALUE PARTS	5-87610-117-0	02	1	1506-1508			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	02	1	1509-1509			●	●
12	01.540 VALVE ASM; BYPASS EURO6 SPECIFICATION(NT6)	8-97013-566-2	01	1	1506-1508			●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	1509-			●	●
55	01.540 PLUG; OIL COOLER EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 01.531 M14X16.5	8-97329-617-0	01	1	1509-			●
55	01.540 PLUG; OIL COOLER EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.531 M14X16.5	8-97329-617-0	01	1	1509-				●
89	01.540 BOLT; ELEMENT TO CASE EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1506-1508			●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1509-			●	●
90	01.540 GASKET; BOLT,OIL COOLER EURO6 SPECIFICATION(NT6) 01.550	1-21729-043-0	04	1	1506-1508			●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	1509-			●	●
102	01.540 COOLER ASM; OIL EURO6 SPECIFICATION(NT6)	8-98201-493-0	01	1	1509-			●
102	01.540 COOLER ASM; OIL EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98201-493-0	01	1	1509-			●
102	01.540 COOLER ASM; OIL EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98201-493-0	01	1	1509-				●
102	01.540 COOLER ASM; OIL EURO6 SPECIFICATION(NT6)	8-98201-493-0	01	1	1506-1508			●
102	01.540 COOLER ASM; OIL EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98085-312-5	01	1	1509-			●
102	01.540 COOLER ASM; OIL EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98085-312-5	01	1	1509-				●
103	01.540 BOLT; OIL COOLER EURO6 SPECIFICATION(NT6) 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	1506-1508			●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	1509-			●	●
103	01.540 BOLT; OIL COOLER EURO6 SPECIFICATION(NT6) 03.162 (B) M8X35 FLANGE	0-28050-835-0	08	1	1506-1508			●
103	01.540 BOLT; OIL COOLER 03.162 (B) M8X35 FLANGE	0-28050-835-0	08	1	1509-			●	●
105	01.540 STUD; OIL COOLER EURO6 SPECIFICATION(NT6) M8X52 L=63	8-97016-314-0	03	1	1506-1508			●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1509-			●	●
111	01.540 CORE; OIL COOLER EURO6 SPECIFICATION(NT6)	8-97334-100-2	01	1	1506-1508			●
111	01.540 CORE; OIL COOLER	8-97334-100-2	01	1	1509-			●	●
137	01.840 BOLT EURO6 SPECIFICATION(NT6) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1506-1508			●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1509-			●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) ID=18.6	8-97146-684-0	01	1	1506-1508			●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1509-			●	●
265	01.837 BODY; OIL FILTER EURO6 SPECIFICATION(NT6)	8-97096-677-4	01	1	1506-1508			●
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	1509-			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) ID=22.1	8-94399-399-0	02	1	1506-1508			●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1509-			●	●
273	01.840 BOLT; OIL FILTER EURO6 SPECIFICATION(NT6) M10X30	0-59331-030-0	03	1	1506-1508			●
273	01.840 BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1509-			●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-	●	●
362	01.837 NUT; OIL FILTER EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-1508			●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-			●	●
379	01.540 NUT; OIL COOLER EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	03	1	1506-1508			●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	1509-			●	●
394	01.837 STUD; OIL FILTER EURO6 SPECIFICATION(NT6) M10X25 L=48.5	0-49241-025-0	01	1	1506-1508			●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1509-			●	●
444	01.550 GASKET; ELEMENT TO BODY EURO6 SPECIFICATION(NT6)	8-97384-130-0	02	1	1506-1508			●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1509-			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (A)	8-94338-878-1	01	1	1506-1508			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1509-			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.844 (B) ID=9.8	8-94399-339-0	01	1	1506-1508			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	1509-			●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1506-1508			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1509-			●	●
496	01.835 FILTER ASM; OIL EURO6 SPECIFICATION(NT6)	8-97148-268-4	01	1	1506-1508			●
496	01.835 FILTER ASM; OIL	8-97148-268-4	01	1	1509-1509			●	●
496	01.835 FILTER ASM; OIL	8-98328-202-0	01	1	1510-			●	●

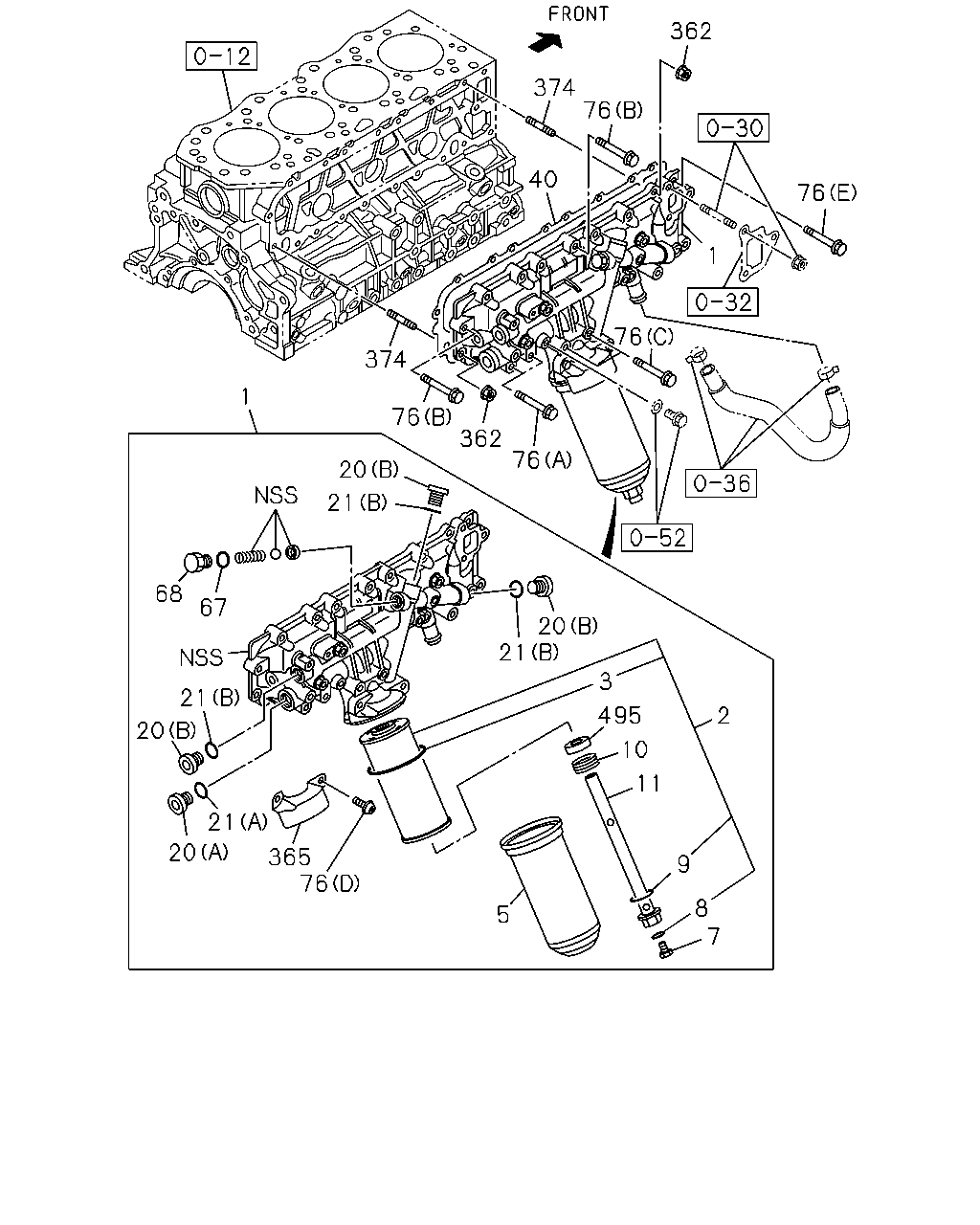

374 76 1 20 21 67 68 21 20 21 365 20 76 5 9 8 7 11 10 495 2 3 21 20 362 76 76 1 40 76 374 362 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.540 FILTER & COOLER ASM; OIL	8-98270-497-0	01	1	1506-	●	●
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	1506-	●	●
2	01.836 ELEMENT; OIL FILTER EURO6 SPECIFICATION(NT6)	8-97148-270-1	01	1	1506-1508			●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	1509-1509			●	●
2	01.836 ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-			●	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-118-0	01	1	1506-	●	●
2	01.836 ELEMENT; OIL FILTER EURO6 SPECIFICATION(NT6) BEST VALUE PARTS	5-87610-117-0	02	1	1506-1508			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	02	1	1509-1509			●	●
3	01.540 GASKET	8-98024-708-0	01	1	1506-	●	●
5	01.837 CASE; OIL FILTER	8-98018-862-0	01	1	1506-	●	●
7	01.840 PLUG; CENTER BOLT	8-98018-846-0	01	1	1506-	●	●
8	01.840 GASKET; PLUG 03.417 ID=9.8	1-09623-055-0	01	1	1506-	●	●
9	01.840 GASKET; CENTER BOLT	1-09623-500-0	01	1	1506-	●	●
10	01.840 SPRING; ELEMENT	8-98018-850-0	01	1	1506-	●	●
11	01.840 BOLT; CENTER	8-98018-847-0	01	1	1506-	●	●
20	01.540 PLUG; COOLER BODY (A)	8-94396-753-0	01	1	1506-	●	●
20	01.540 PLUG; COOLER BODY (B)	8-98133-978-0	03	1	1506-	●	●
21	01.550 GASKET; PLUG (A)	8-98133-060-0	01	1	1506-	●	●
21	01.550 GASKET; PLUG (B)	8-98133-979-0	03	1	1506-	●	●
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98074-746-0	01	1	1506-	●	●
67	01.550 GASKET; VLV	8-98133-059-0	01	1	1506-	●	●
68	01.837 PLUG; VLV 01.540	9-13263-010-0	01	1	1506-	●	●
76	01.840 BOLT; OIL FILTER 04.338 (E) M8X20 FLANGE	0-28050-820-0	01	1	1506-	●	●
76	01.840 BOLT; OIL FILTER 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1506-	●	●
76	01.840 BOLT; OIL FILTER 02.100 (C) M8X90 FLANGE	0-28050-890-0	02	1	1506-	●	●
76	01.840 BOLT; OIL FILTER 01.060 (B) M8X35 FLANGE	0-28650-835-0	12	1	1506-	●	●
76	01.840 BOLT; OIL FILTER (D)	8-98041-912-0	02	1	1506-	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-	●	●
362	01.837 NUT; OIL FILTER EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-1508			●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-			●	●
365	01.840 PROTECTOR; OIL FILTER	8-98133-061-0	01	1	1506-	●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	1506-	●	●
495	03.680 PLATE; OIL FILTER	8-98018-853-0	01	1	1506-	●	●
