0-42 — FUEL PUMP AND PIPE (#162308) — 81 parça

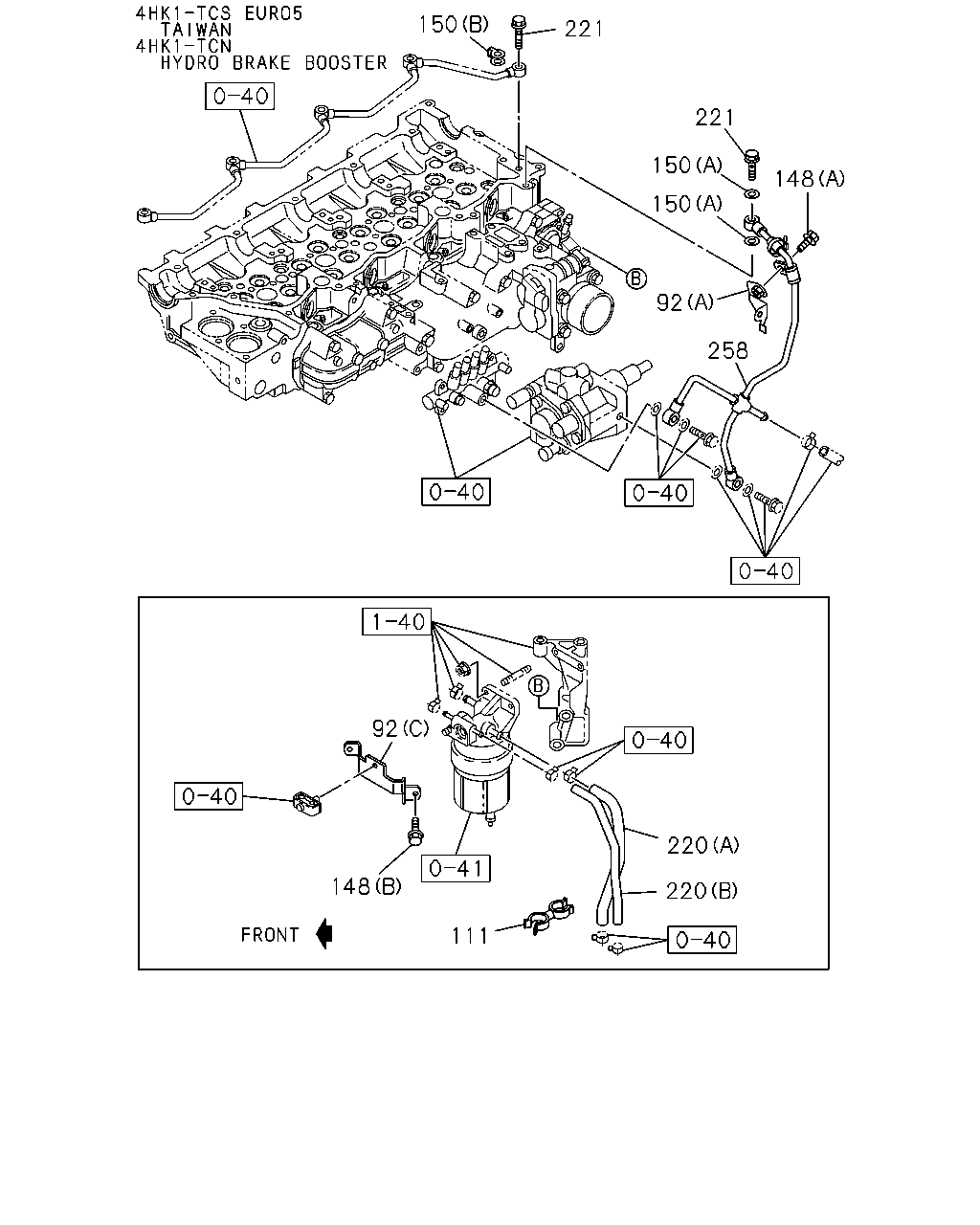

150 221 221 150 92 150 148 258 92 220 220 111 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (C)	8-98087-938-1	01	1	1509-	●
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98087-938-1	01	1	1509-		●
92	03.162 BRACKET; FUEL PIPE EURO6 SPECIFICATION(NT6) (B)	8-98200-798-1	01	1	1506-1508	●
92	03.162 BRACKET; FUEL PIPE EURO6 SPECIFICATION(NT6) (B)	8-98200-798-1	01	1	1509-	●
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98200-798-1	01	1	1509-	●
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98200-798-1	01	1	1509-		●
92	03.162 BRACKET; FUEL PIPE EURO6 SPECIFICATION(NT6) (A)	8-98045-008-1	01	1	1506-1508	●
92	03.162 BRACKET; FUEL PIPE (A)	8-98045-008-1	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE EURO6 SPECIFICATION(NT6) 02.589 ID=13 & 16.5	8-94169-028-0	03	1	1506-1508	●
111	03.162 CLIP; FUEL PIPE 02.589 ID=13 & 16.5	8-94169-028-0	03	1	1509-	●	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1509-		●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1506-1508	●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1509-		●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) (C) M8X60 FLANGE	0-28060-860-0	01	1	1506-1508	●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) (C) M8X60 FLANGE	0-28060-860-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (C) M8X60 FLANGE	0-28060-860-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) M8X60 FLANGE	0-28060-860-0	01	1	1509-		●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) (A) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●
148	03.162 BOLT; BRKT (A) M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1506-1508	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1506-1508	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1509-	●	●
220	03.163 HOSE; FUEL EURO6 SPECIFICATION(NT6) (A)	8-98036-180-3	01	1	1506-1508	●
220	03.163 HOSE; FUEL (A)	8-98036-180-3	01	1	1509-	●	●
220	03.163 HOSE; FUEL EURO6 SPECIFICATION(NT6) (B)	8-98036-181-2	01	1	1506-1508	●
220	03.163 HOSE; FUEL (B)	8-98036-181-2	01	1	1509-	●	●
221	03.163 BOLT; FUEL PIPE EURO6 SPECIFICATION(NT6) 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1506-1508	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1509-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO6 SPECIFICATION(NT6)	8-98200-788-1	01	1	1509-	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98200-788-1	01	1	1509-	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98200-788-1	01	1	1509-		●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO6 SPECIFICATION(NT6)	8-98200-788-1	01	1	1506-1508	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98096-205-0	01	1	1509-	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98096-205-0	01	1	1509-		●

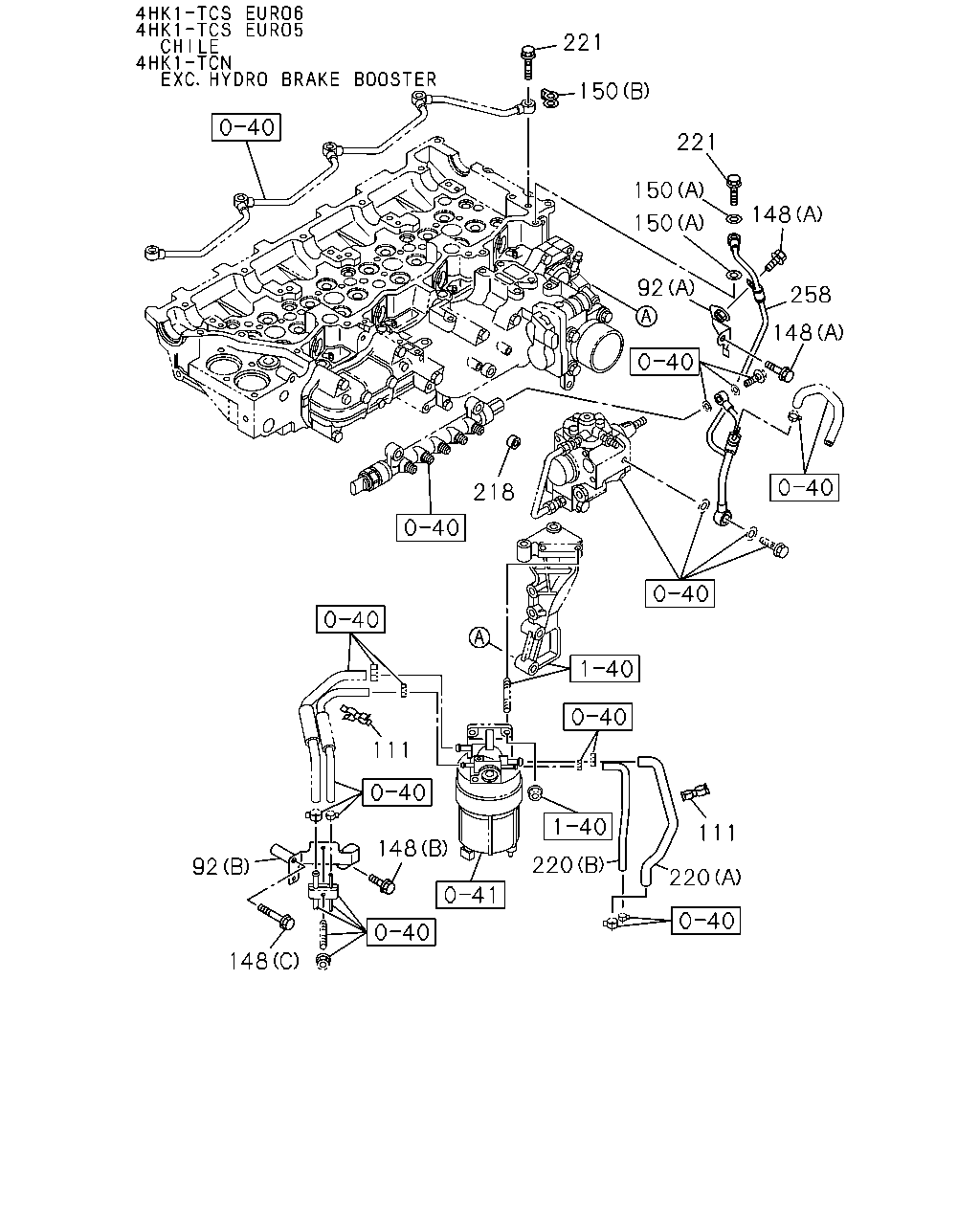

221 150 221 150 48 150 92 258 148 218 111 92 148 148 220 220 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (C)	8-98087-938-1	01	1	1509-	●
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98087-938-1	01	1	1509-		●
92	03.162 BRACKET; FUEL PIPE EURO6 SPECIFICATION(NT6) (B)	8-98200-798-1	01	1	1506-1508	●
92	03.162 BRACKET; FUEL PIPE EURO6 SPECIFICATION(NT6) (B)	8-98200-798-1	01	1	1509-	●
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98200-798-1	01	1	1509-	●
92	03.162 BRACKET; FUEL PIPE EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98200-798-1	01	1	1509-		●
92	03.162 BRACKET; FUEL PIPE EURO6 SPECIFICATION(NT6) (A)	8-98045-008-1	01	1	1506-1508	●
92	03.162 BRACKET; FUEL PIPE (A)	8-98045-008-1	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE EURO6 SPECIFICATION(NT6) 02.589 ID=13 & 16.5	8-94169-028-0	03	1	1506-1508	●
111	03.162 CLIP; FUEL PIPE 02.589 ID=13 & 16.5	8-94169-028-0	03	1	1509-	●	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1509-		●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1506-1508	●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 00.724 (B) M8X16 FLANGE	0-28060-816-0	01	1	1509-		●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) (C) M8X60 FLANGE	0-28060-860-0	01	1	1506-1508	●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) (C) M8X60 FLANGE	0-28060-860-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (C) M8X60 FLANGE	0-28060-860-0	01	1	1509-	●
148	03.162 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) M8X60 FLANGE	0-28060-860-0	01	1	1509-		●
148	03.162 BOLT; BRKT EURO6 SPECIFICATION(NT6) (A) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●
148	03.162 BOLT; BRKT (A) M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1506-1508	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1506-1508	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1509-	●	●
218	03.162 PIECE; DISTANCE EURO6 SPECIFICATION(NT6) 00.033 ID=8.5 L=10	5-13642-077-0	01	1	1506-	●
220	03.163 HOSE; FUEL EURO6 SPECIFICATION(NT6) (A)	8-98036-180-3	01	1	1506-1508	●
220	03.163 HOSE; FUEL (A)	8-98036-180-3	01	1	1509-	●	●
220	03.163 HOSE; FUEL EURO6 SPECIFICATION(NT6) (B)	8-98036-181-2	01	1	1506-1508	●
220	03.163 HOSE; FUEL (B)	8-98036-181-2	01	1	1509-	●	●
221	03.163 BOLT; FUEL PIPE EURO6 SPECIFICATION(NT6) 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1506-1508	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1509-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO6 SPECIFICATION(NT6)	8-98200-788-1	01	1	1509-	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98200-788-1	01	1	1509-	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98200-788-1	01	1	1509-		●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO6 SPECIFICATION(NT6)	8-98200-788-1	01	1	1506-1508	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98096-205-0	01	1	1509-	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98096-205-0	01	1	1509-		●

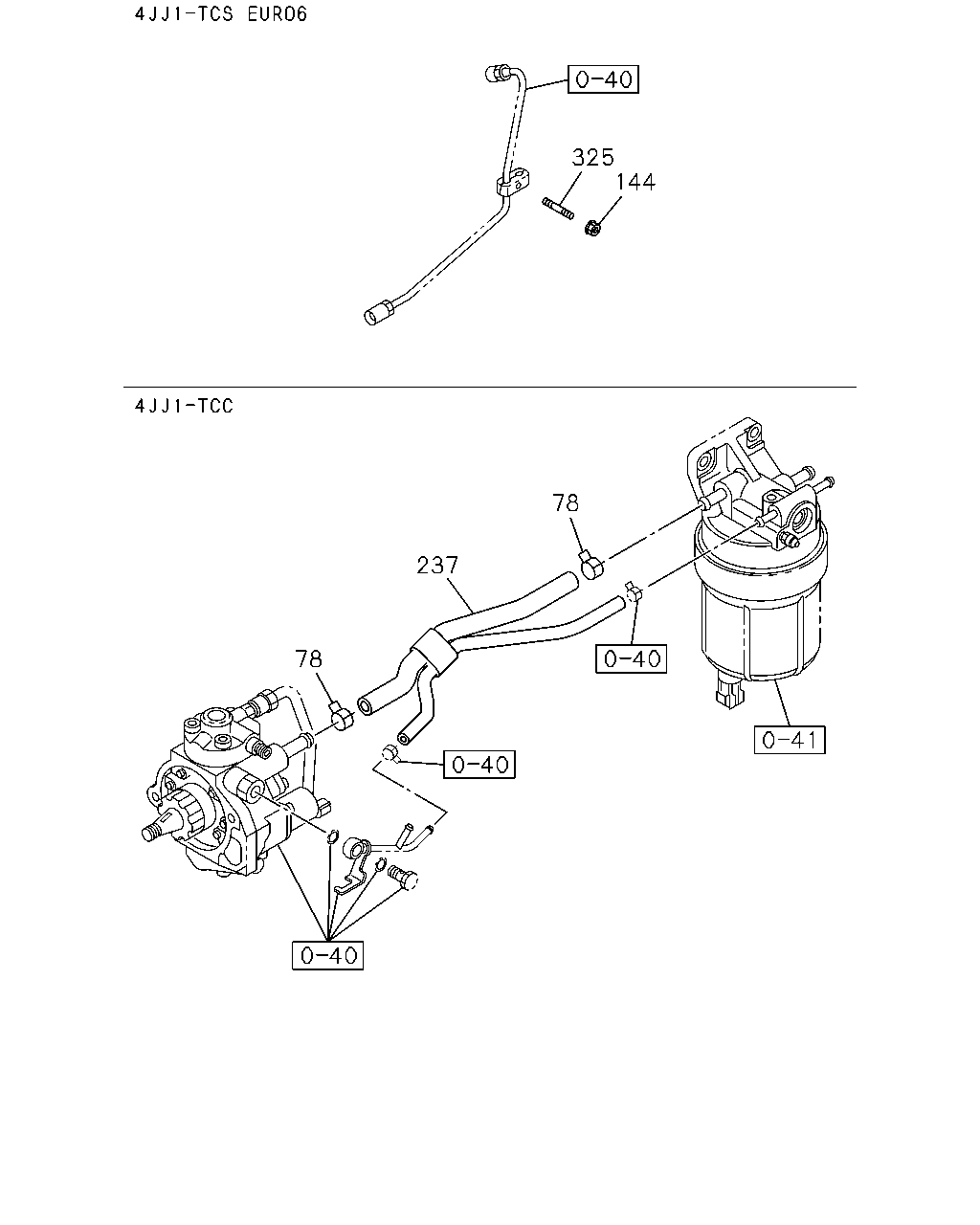

237 78 78 325 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
78	03.675 CLIP; RUBBER HOSE 01.240 ID=16	8-94392-924-0	02	1	1506-	●
144	03.162 NUT; CLIP EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-		●
237	03.163 HOSE; RUBBER,FUEL FILTER TO PUMP	8-98175-917-2	01	1	1506-	●
325	03.278 STUD; CLIP EURO6 SPECIFICATION(NT6) 00.413 M6X30 L=38	0-41010-630-0	01	1	1506-		●
