◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#162307) — 290 parça
çizim 479204
1 1 5 93 92 112 7 66 119 112 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-828-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-980-1 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
EURO5B+ SPECIFICATION(NT5) (A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98169-738-0 01 1 1506-1508 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98169-738-0 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
EURO6 SPECIFICATION(NT6) (A) 		8-98124-107-4 01 1 1506- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-830-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1506-1508 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-983-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98037-481-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98037-481-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1509- ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1506-1508 ● ● ●
5 03.890 BOLT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
5 03.890 BOLT; FUEL FILTER
EURO5B+ SPECIFICATION(NT5) EXC. POOR QUALITY DIESEL FUEL(KF0), FUELSEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
5 03.890 BOLT; FUEL FILTER
EURO6 SPECIFICATION(NT6) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
7 03.890 PLUG; SENSOR,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-97123-549-0 01 1 1506-1508 ●
7 03.890 PLUG; SENSOR,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) 		8-97123-549-0 01 1 1509- ●
66 03.890 GASKET; PLUG,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-94447-156-0 01 1 1506-1508 ●
66 03.890 GASKET; PLUG,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) 		8-94447-156-0 01 1 1509- ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1506-1508 ● ● ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1509- ● ● ● ●
92 03.417 CAP; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-97172-548-0 01 1 1506-1508 ●
92 03.417 CAP; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (A) 		8-97172-548-0 01 1 1509- ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1506-1508 ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1509- ● ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-97172-546-1 01 1 1506-1508 ●
93 03.890 CONNECTOR; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (A) 		8-97172-546-1 01 1 1509- ●
112 06.605 GASKET; SENSOR TO CASE
POOR QUALITY DIESEL FUEL(KF0) 03.417 		1-09623-649-0 01 1 1506-1508 ●
112 06.605 GASKET; SENSOR TO CASE
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) 03.417 		1-09623-649-0 01 1 1509- ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1506-1508 ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1509- ● ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-97603-456-0 01 1 1506-1508 ●
119 03.890 PLUG; DRAIN,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (A) 		8-97603-456-0 01 1 1509- ●

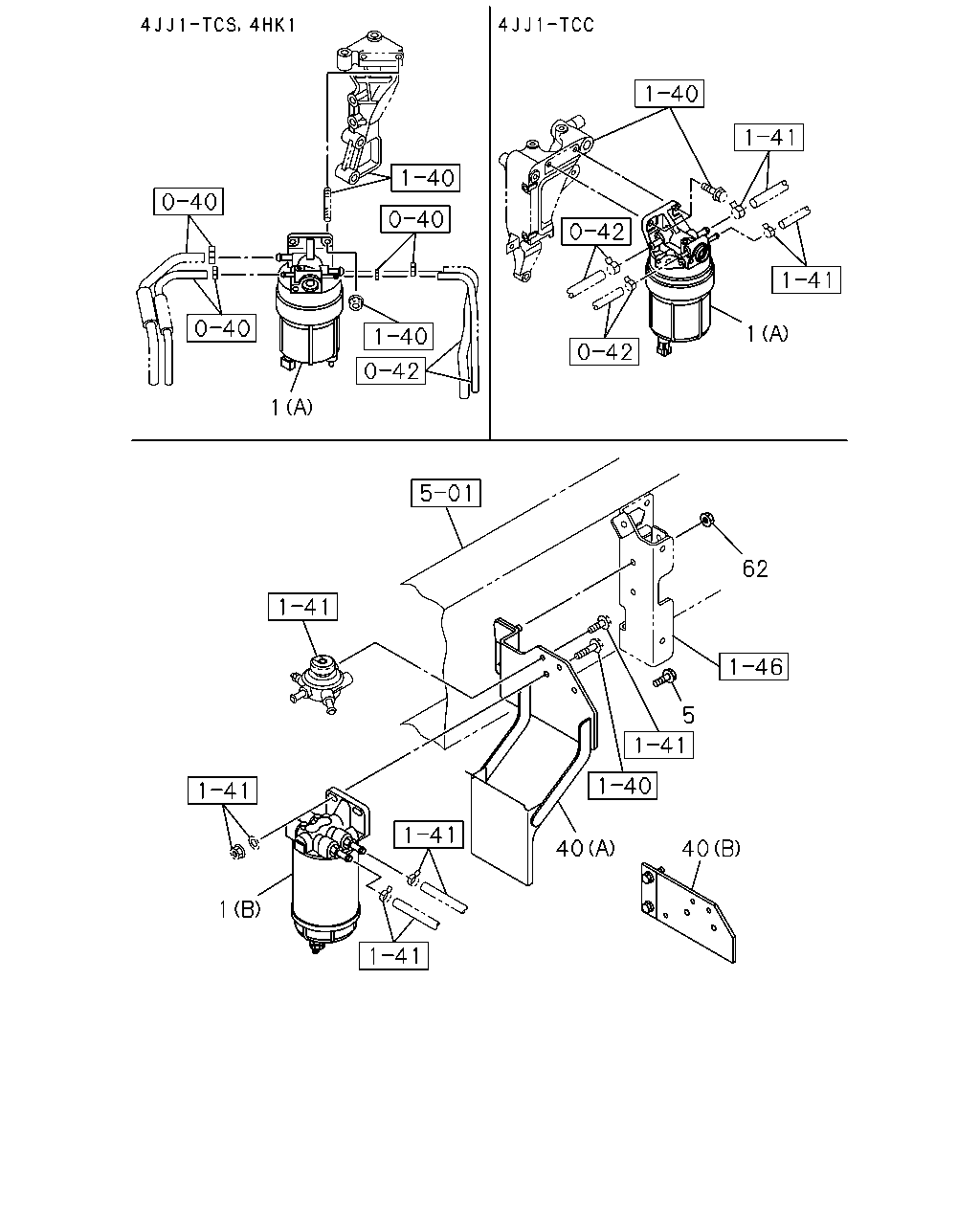

çizim 479205
1 1 1 5 62 40 40
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-828-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-980-1 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
EURO5B+ SPECIFICATION(NT5) (A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98169-738-0 01 1 1506-1508 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98169-738-0 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
EURO6 SPECIFICATION(NT6) (A) 		8-98124-107-4 01 1 1506- ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1506-1508 ● ● ●
5 03.890 BOLT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
5 03.890 BOLT; FUEL FILTER
EURO5B+ SPECIFICATION(NT5) EXC. POOR QUALITY DIESEL FUEL(KF0), FUELSEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
5 03.890 BOLT; FUEL FILTER
EURO6 SPECIFICATION(NT6) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (E) 		8-98180-843-0 01 1 1509-1509 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (E) 		8-98180-843-0 01 1 1510- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98180-843-0 01 1 1510- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) (C) 		8-98121-708-0 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1509-1511 ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) (D) 		8-98107-354-3 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98221-206-0 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
EURO6 SPECIFICATION(NT6) (B) 		8-98221-206-0 01 1 1509- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98207-320-2 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (A) 		8-98207-320-2 01 1 1509- ●
62 03.895 NUT; FUEL FILTER
FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ● ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ● ● ●
62 03.895 NUT; FUEL FILTER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ● ● ●

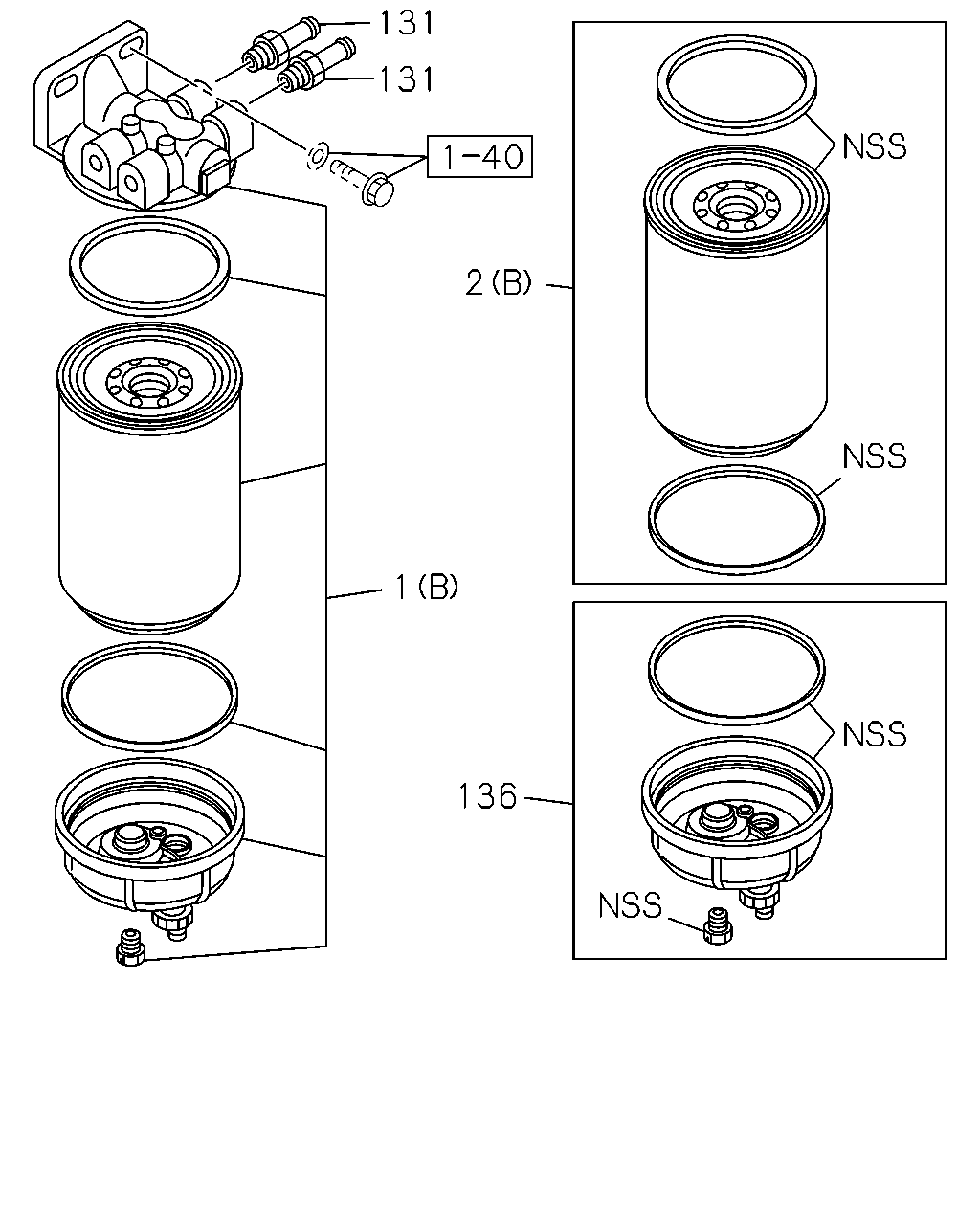

çizim 479650
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-828-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-980-1 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
EURO5B+ SPECIFICATION(NT5) (A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98169-738-0 01 1 1506-1508 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98169-738-0 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
EURO6 SPECIFICATION(NT6) (A) 		8-98124-107-4 01 1 1506- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-830-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1506-1508 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-983-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98037-481-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98037-481-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1509- ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1506-1508 ● ●
131 03.890 PIPE; FILTER
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1509- ●
131 03.890 PIPE; FILTER
EURO5B+ SPECIFICATION(NT5) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1509- ● ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1506-1508 ● ●
136 03.890 CAP KIT; FUEL FILTER
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98279-324-0 01 1 1509- ●
136 03.890 CAP KIT; FUEL FILTER
EURO5B+ SPECIFICATION(NT5) 		8-98279-324-0 01 1 1509- ● ● ●

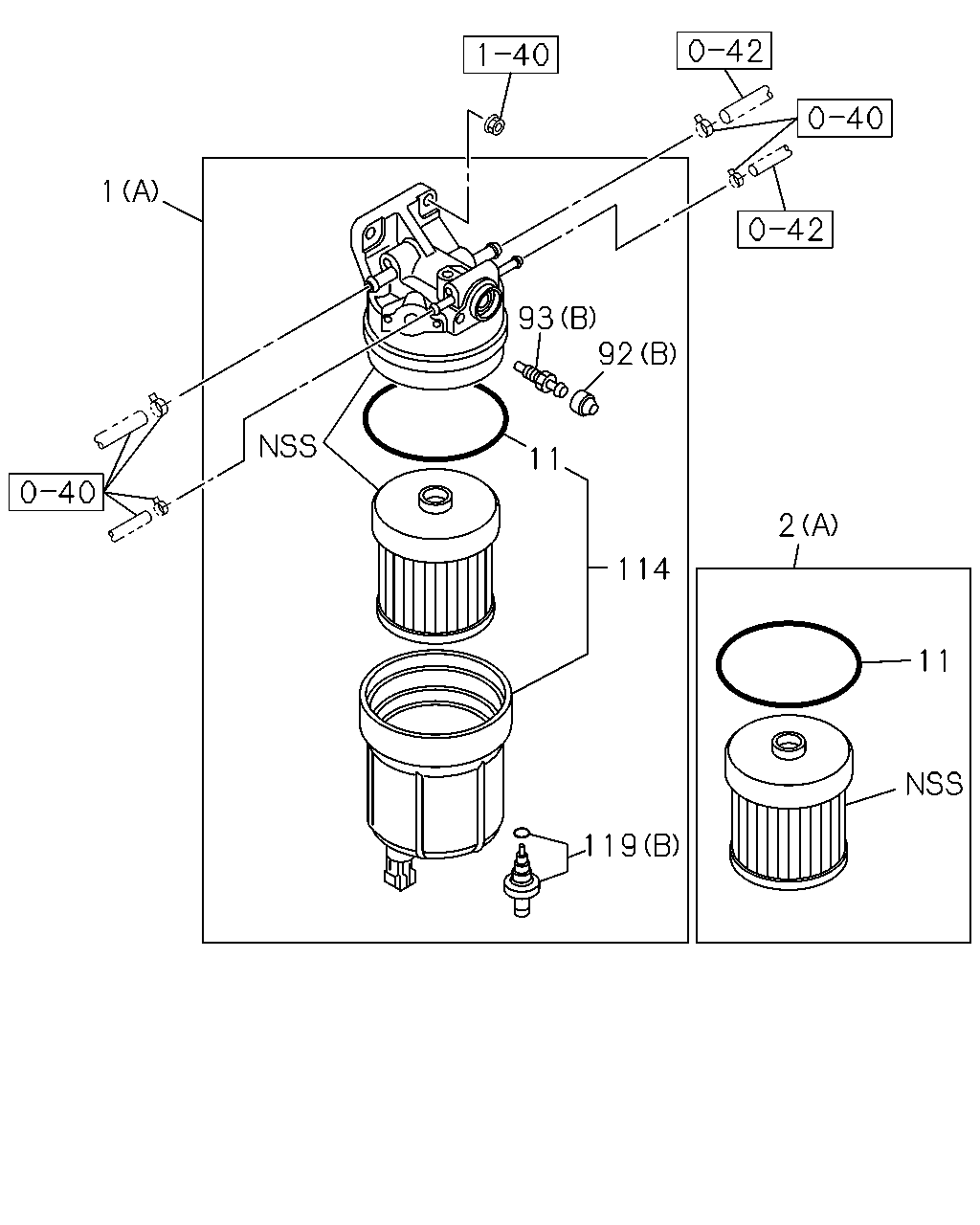

çizim 479944
2 11 114 11 92 93 1 119
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-828-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-980-1 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
EURO5B+ SPECIFICATION(NT5) (A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98169-738-0 01 1 1506-1508 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98169-738-0 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
EURO6 SPECIFICATION(NT6) (A) 		8-98124-107-4 01 1 1506- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-830-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1506-1508 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-983-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98037-481-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98037-481-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1509- ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1506-1508 ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1509- ● ● ● ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1506-1508 ● ● ●
92 03.417 CAP; FUEL FILTER
(B) 		8-98034-314-0 01 1 1509- ● ● ● ●
92 03.417 CAP; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-97172-548-0 01 1 1506-1508 ●
92 03.417 CAP; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (A) 		8-97172-548-0 01 1 1509- ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1506-1508 ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
(B) M8X10 		8-98034-312-0 01 1 1509- ● ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-97172-546-1 01 1 1506-1508 ●
93 03.890 CONNECTOR; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (A) 		8-97172-546-1 01 1 1509- ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1506-1508 ● ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1509- ● ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1506-1508 ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98037-095-0 01 1 1509- ● ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-97603-456-0 01 1 1506-1508 ●
119 03.890 PLUG; DRAIN,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (A) 		8-97603-456-0 01 1 1509- ●

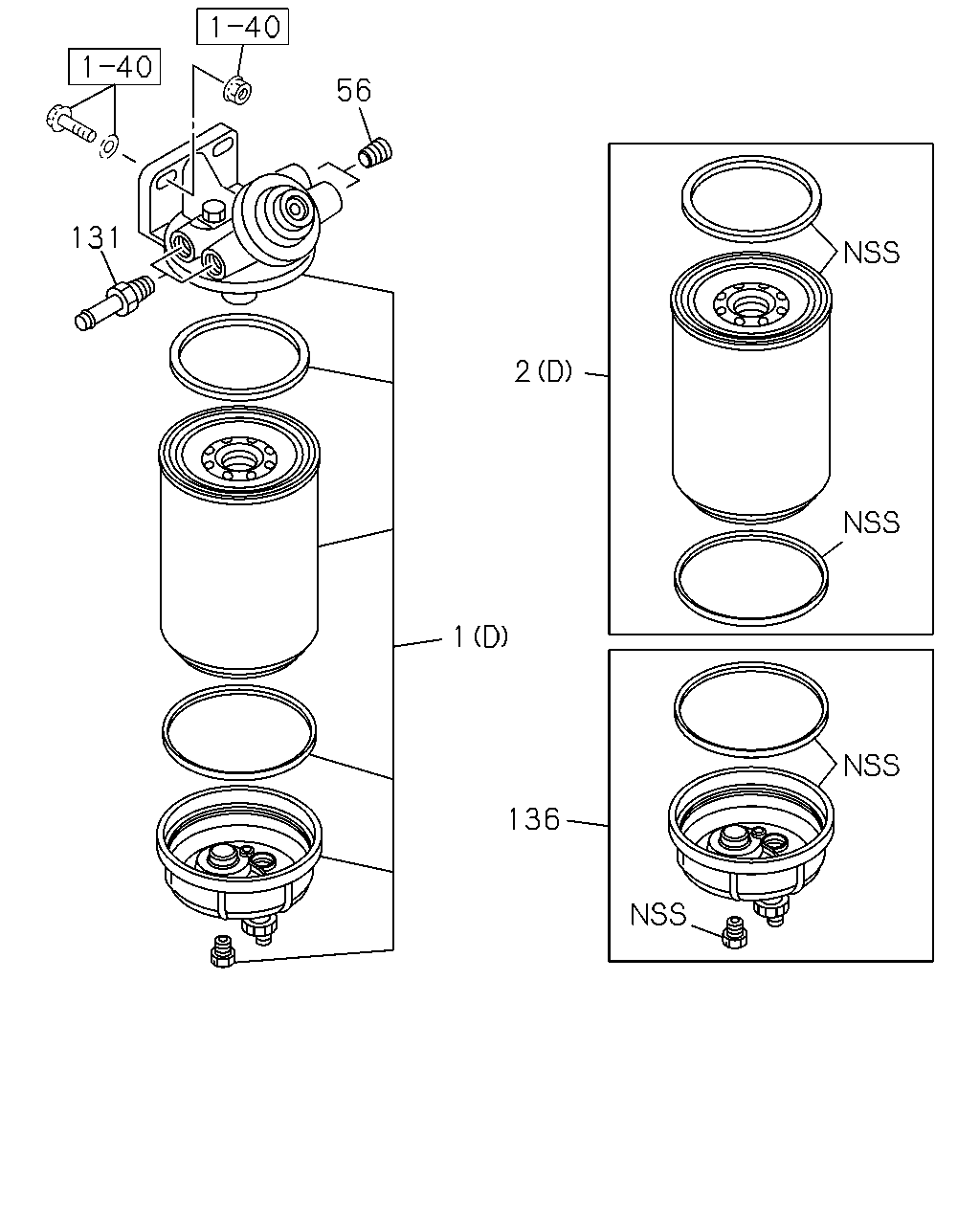

çizim 480137
131 56 2 1 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-828-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-980-1 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
EURO5B+ SPECIFICATION(NT5) (A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98169-738-0 01 1 1506-1508 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98169-738-0 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
EURO6 SPECIFICATION(NT6) (A) 		8-98124-107-4 01 1 1506- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-830-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1506-1508 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-983-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-983-0 01 1 1509- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98037-481-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98037-481-0 01 1 1509- ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1506-1508 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1509- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1506-1508 ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) BEST VALUE PARTS 		5-87610-157-0 01 1 1509- ●
56 03.890 PLUG; FUEL FILTER
EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 01.453 NPTF3/8-18 		8-97329-623-0 02 1 1509- ● ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1506-1508 ● ●
131 03.890 PIPE; FILTER
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1509- ●
131 03.890 PIPE; FILTER
EURO5B+ SPECIFICATION(NT5) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1509- ● ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1506-1508 ● ●
136 03.890 CAP KIT; FUEL FILTER
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 		8-98279-324-0 01 1 1509- ●
136 03.890 CAP KIT; FUEL FILTER
EURO5B+ SPECIFICATION(NT5) 		8-98279-324-0 01 1 1509- ● ● ●

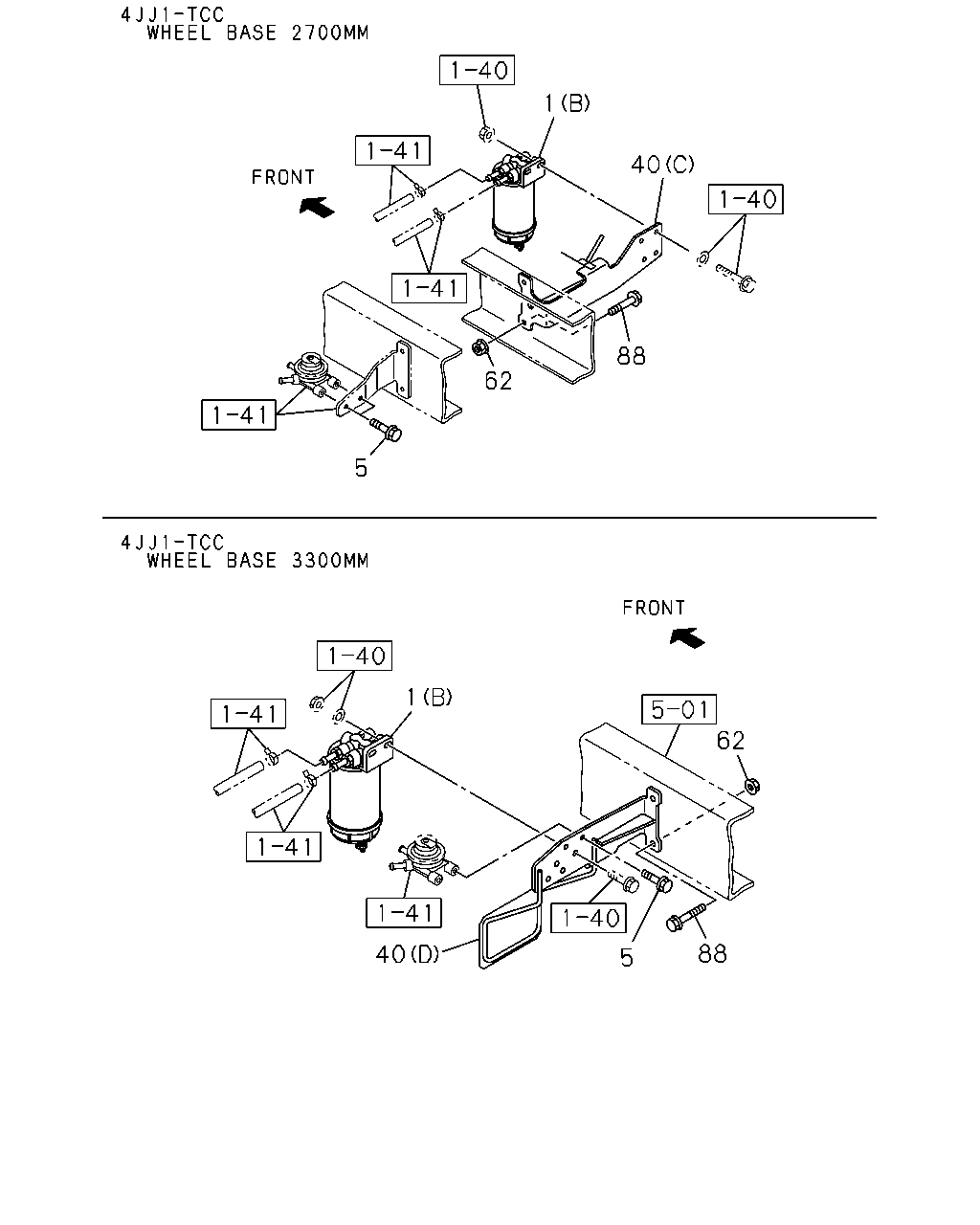

çizim 492147
1 40 62 88 5 1 62 88 5 40
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-828-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-980-1 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
EURO5B+ SPECIFICATION(NT5) (A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98169-738-0 01 1 1506-1508 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98169-738-0 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
EURO6 SPECIFICATION(NT6) (A) 		8-98124-107-4 01 1 1506- ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1506-1508 ● ● ●
5 03.890 BOLT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
5 03.890 BOLT; FUEL FILTER
EURO5B+ SPECIFICATION(NT5) EXC. POOR QUALITY DIESEL FUEL(KF0), FUELSEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ●
5 03.890 BOLT; FUEL FILTER
EURO6 SPECIFICATION(NT6) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (E) 		8-98180-843-0 01 1 1509-1509 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (E) 		8-98180-843-0 01 1 1510- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98180-843-0 01 1 1510- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) (C) 		8-98121-708-0 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1509-1511 ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) (D) 		8-98107-354-3 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98221-206-0 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
EURO6 SPECIFICATION(NT6) (B) 		8-98221-206-0 01 1 1509- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98207-320-2 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (A) 		8-98207-320-2 01 1 1509- ●
62 03.895 NUT; FUEL FILTER
FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ● ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ● ● ●
62 03.895 NUT; FUEL FILTER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1509- ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1507 ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR(NP***E) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1508-1508 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR/NPR/NQR(NPR***) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR/NPR/NQR(NPR***) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR/NPR/NQR(NPR***) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BAS E 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
çizim 492993
62 1 40 88
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (D) 		8-98139-828-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (B) 		8-98095-980-1 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) (B) 		8-98095-980-1 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1506-1508 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
EURO5B+ SPECIFICATION(NT5) (A) 		8-98162-903-3 01 1 1509- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98169-738-0 01 1 1506-1508 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) (C) 		8-98169-738-0 01 1 1509- ●
1 03.890 FILTER ASM; FUEL
EURO6 SPECIFICATION(NT6) (A) 		8-98124-107-4 01 1 1506- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (E) 		8-98180-843-0 01 1 1509-1509 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> (E) 		8-98180-843-0 01 1 1510- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98180-843-0 01 1 1510- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) (C) 		8-98121-708-0 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1509-1511 ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-98121-708-0 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) (D) 		8-98107-354-3 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1509-1511 ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (D) 		8-98107-354-3 01 1 1512- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98221-206-0 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
EURO6 SPECIFICATION(NT6) (B) 		8-98221-206-0 01 1 1509- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98207-320-2 01 1 1506-1508 ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> (A) 		8-98207-320-2 01 1 1509- ●
62 03.895 NUT; FUEL FILTER
FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ● ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506-1507 ●
62 03.895 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. EURO5B+ SPECIFICATION(NT5) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ● ● ●
62 03.895 NUT; FUEL FILTER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1508- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
FRAME STRAIGHT TYPE<7KJ> FUEL SEDIMENTER WITH HEATER HIGH CAPACI TY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1509- ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1507 ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR(NP***E) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1508-1508 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR/NPR/NQR(NPR***) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME ST RAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR/NPR/NQR(NPR***) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER HIGH C APACITY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
NNR/NPR/NQR(NPR***) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BAS E 4400MM(44W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
