Sayfa 0-36 - Isuzu EPC

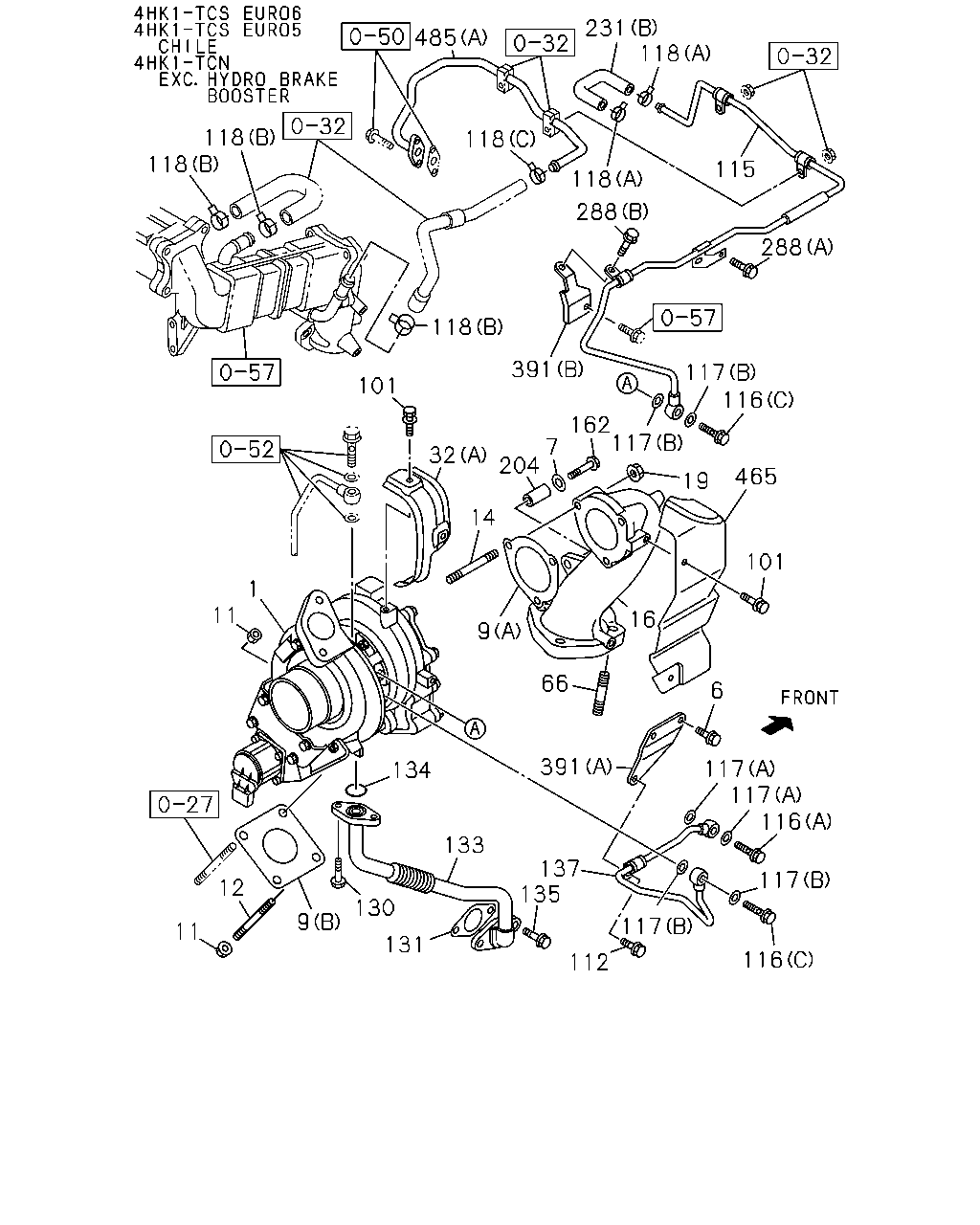

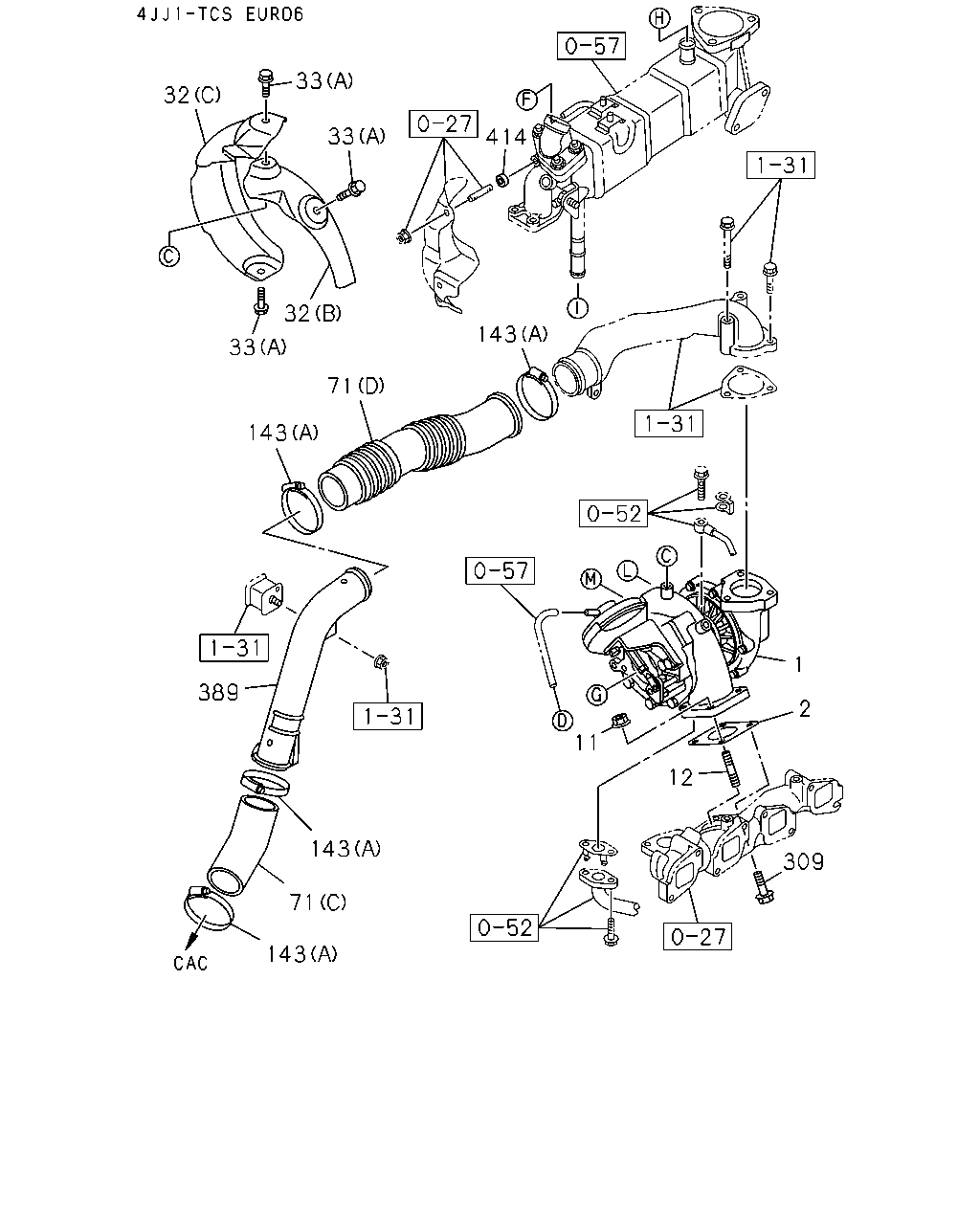

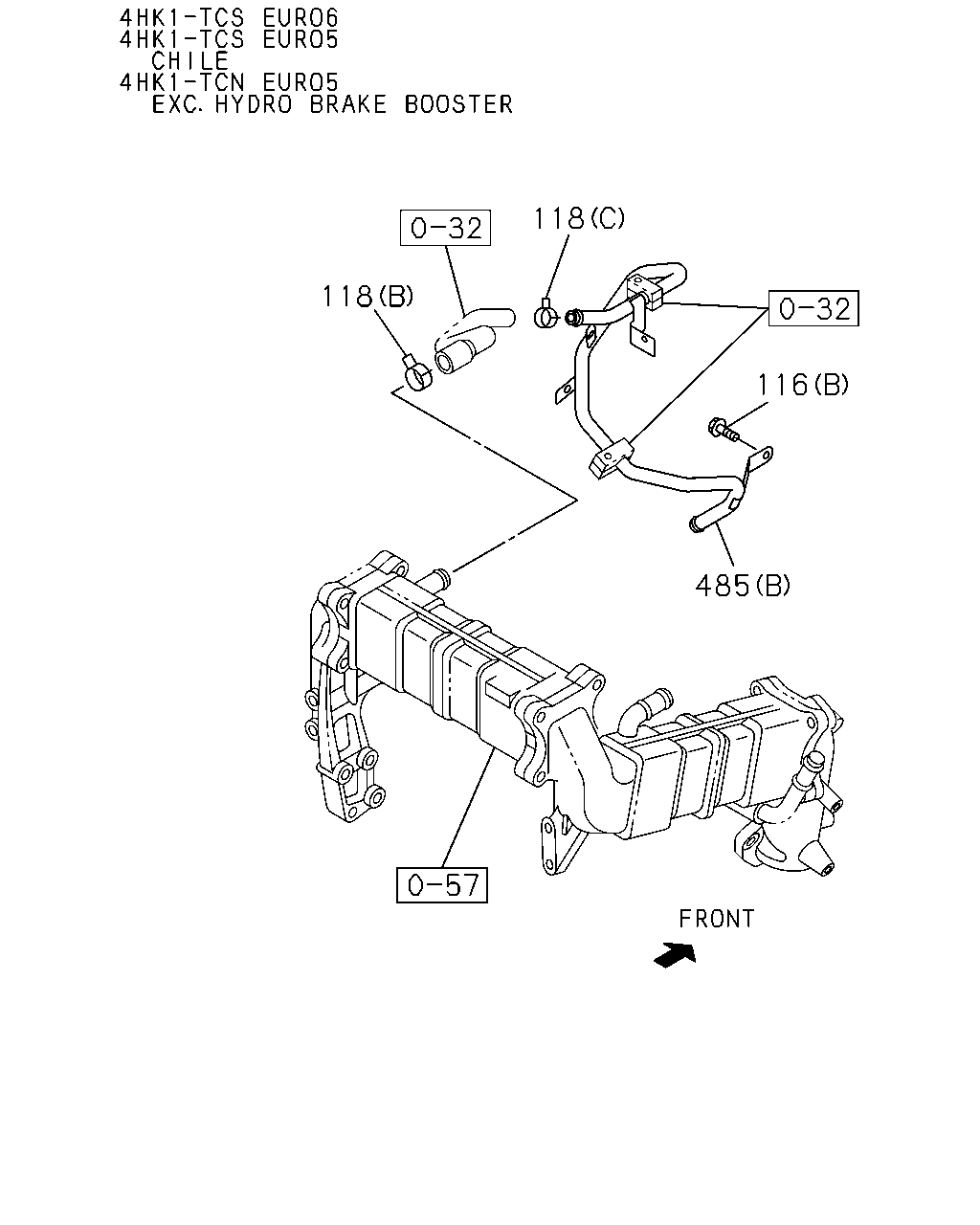

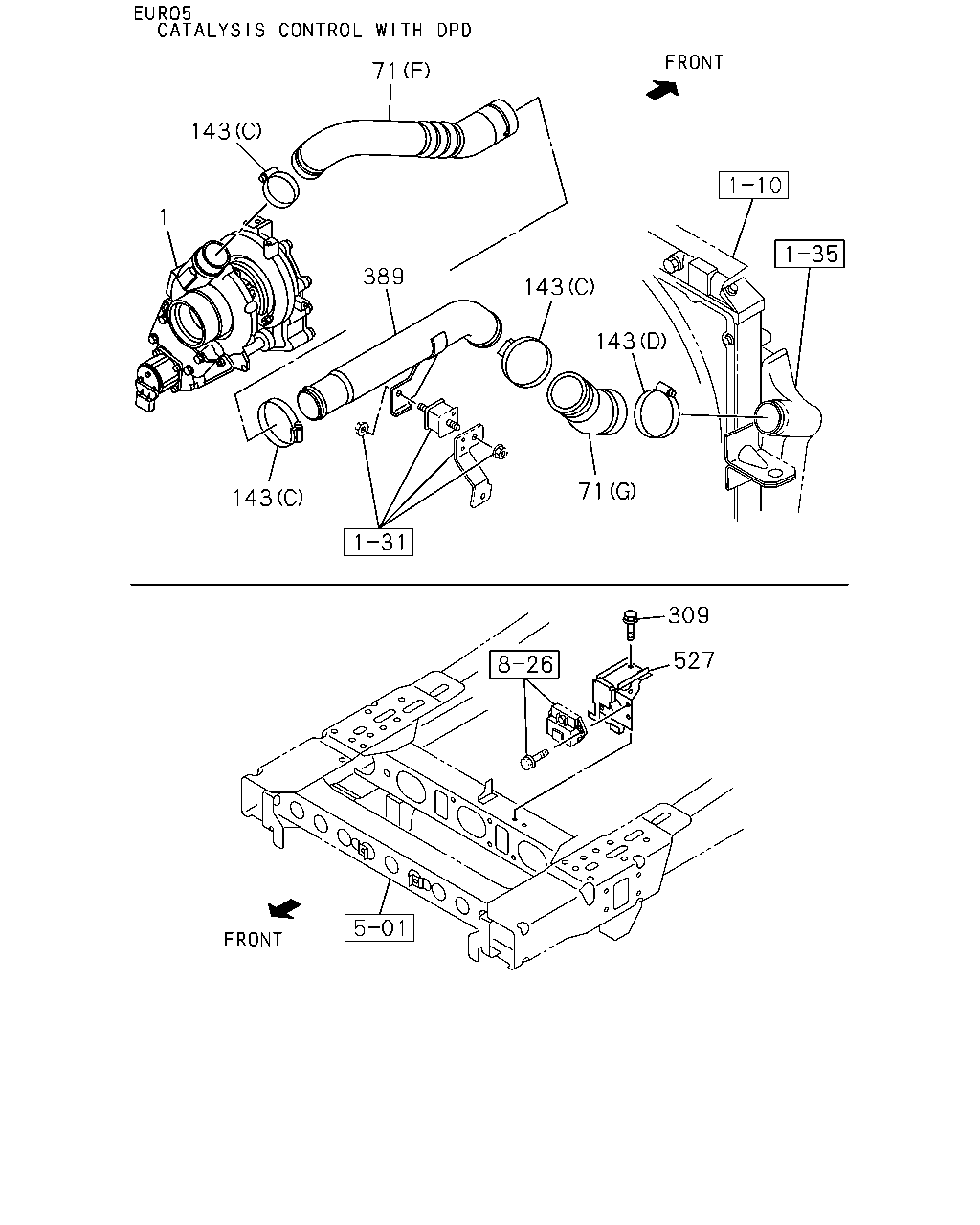

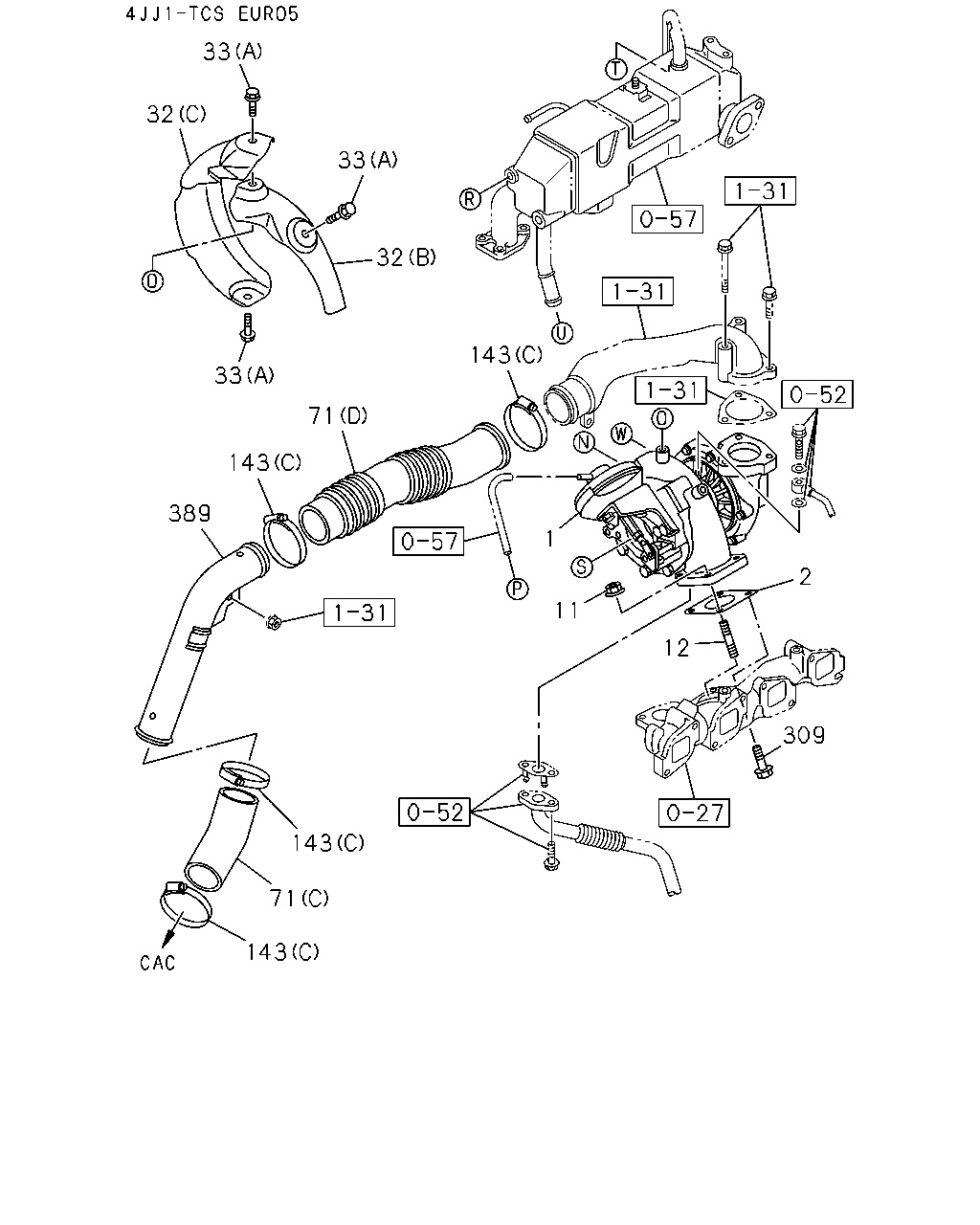

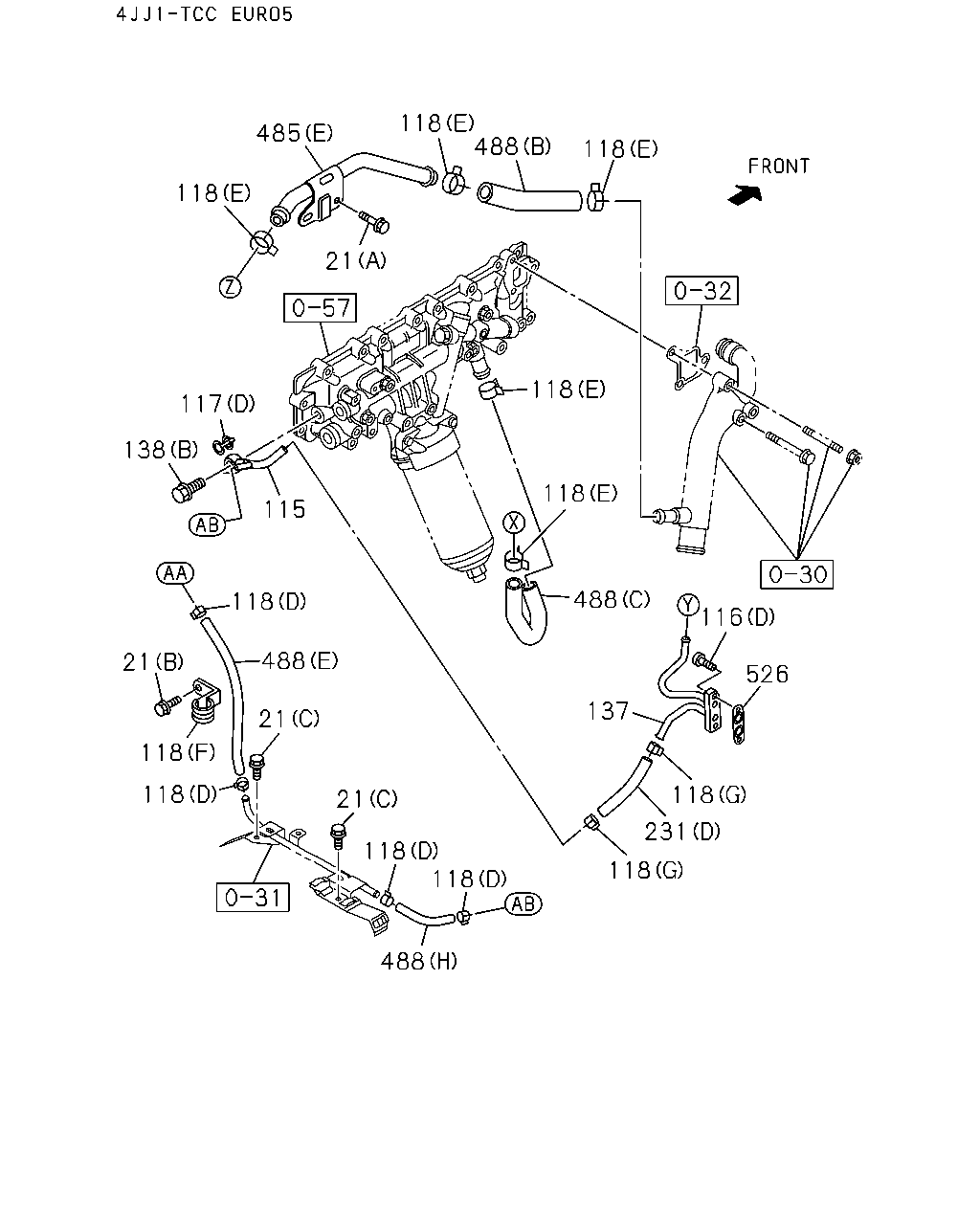

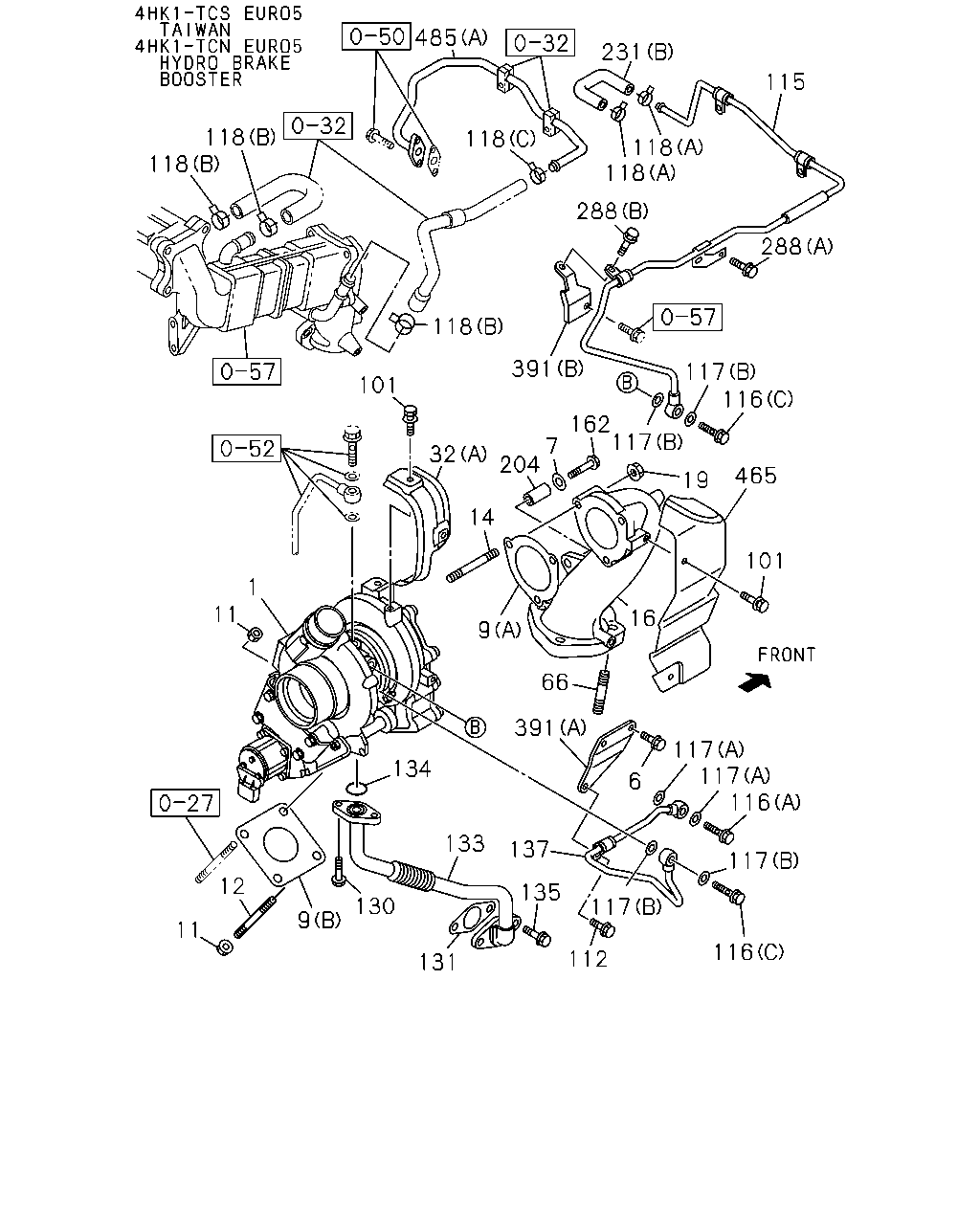

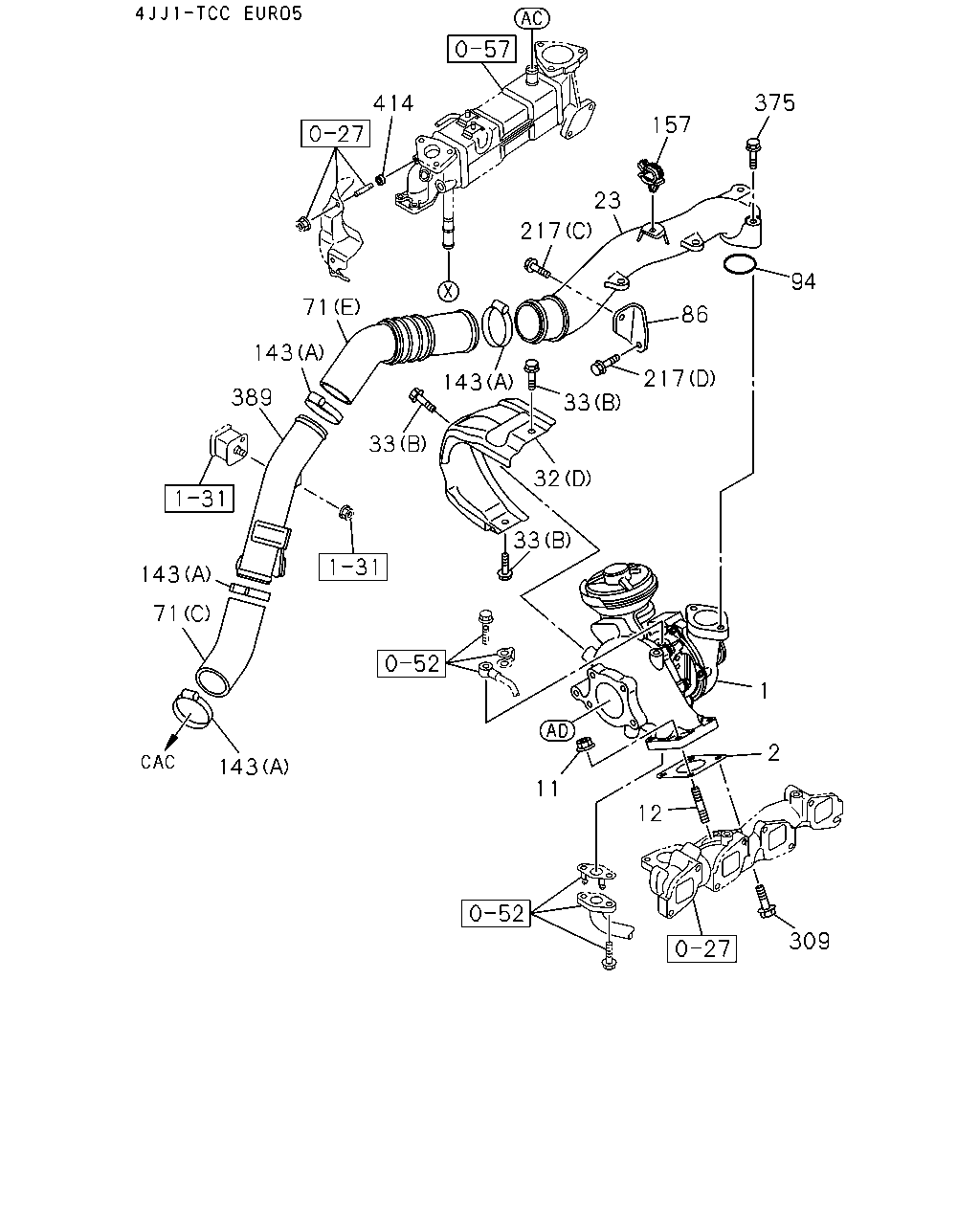

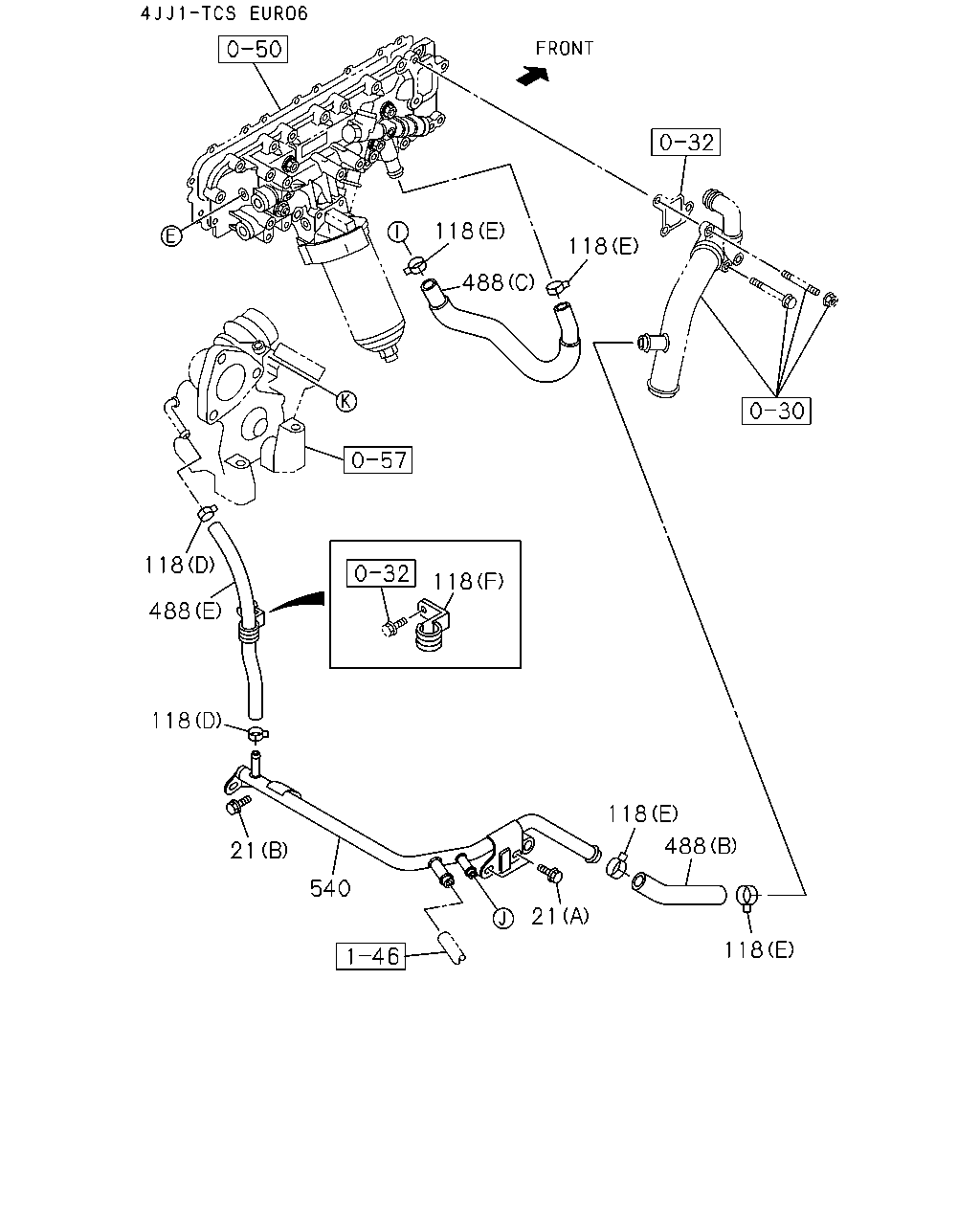

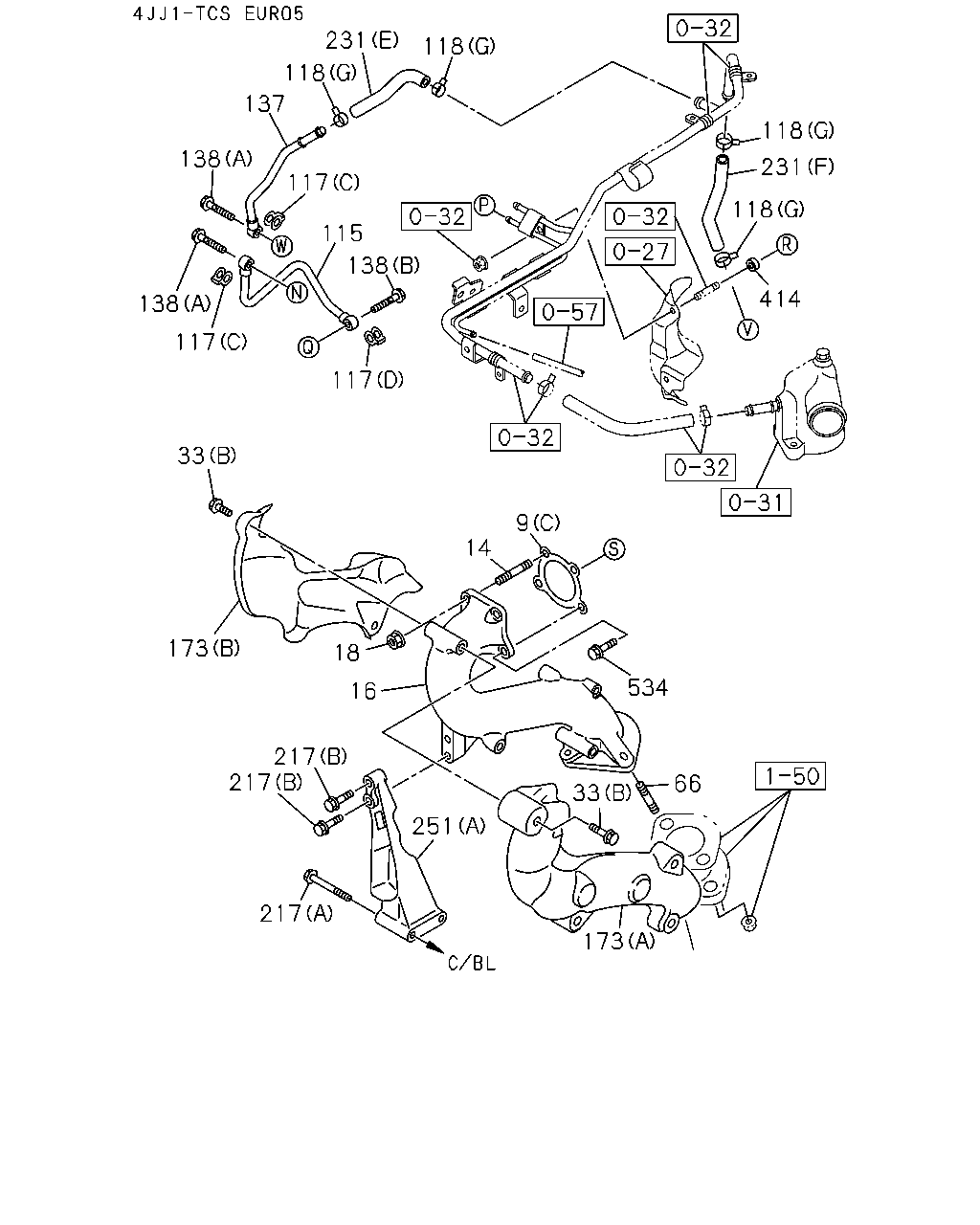

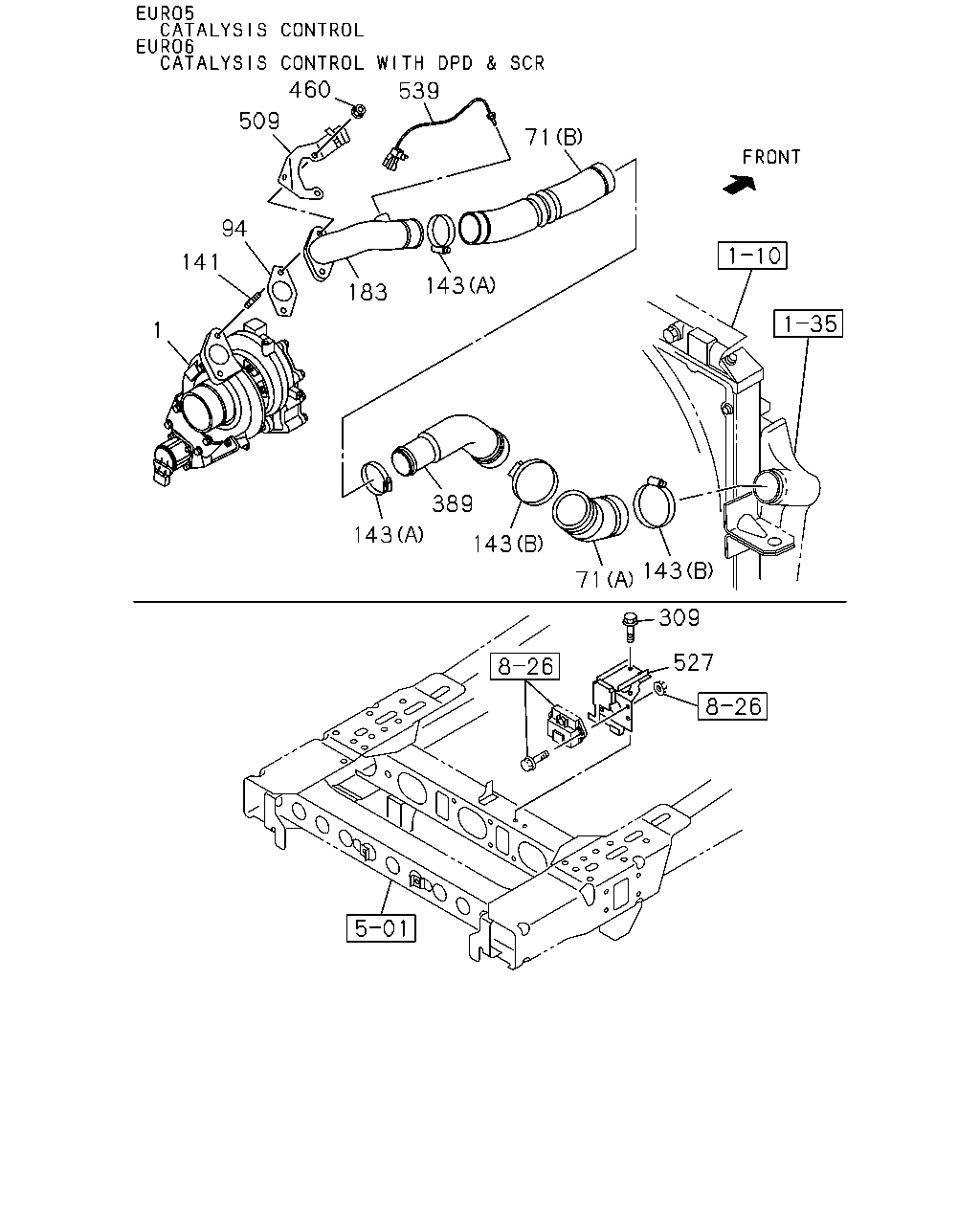

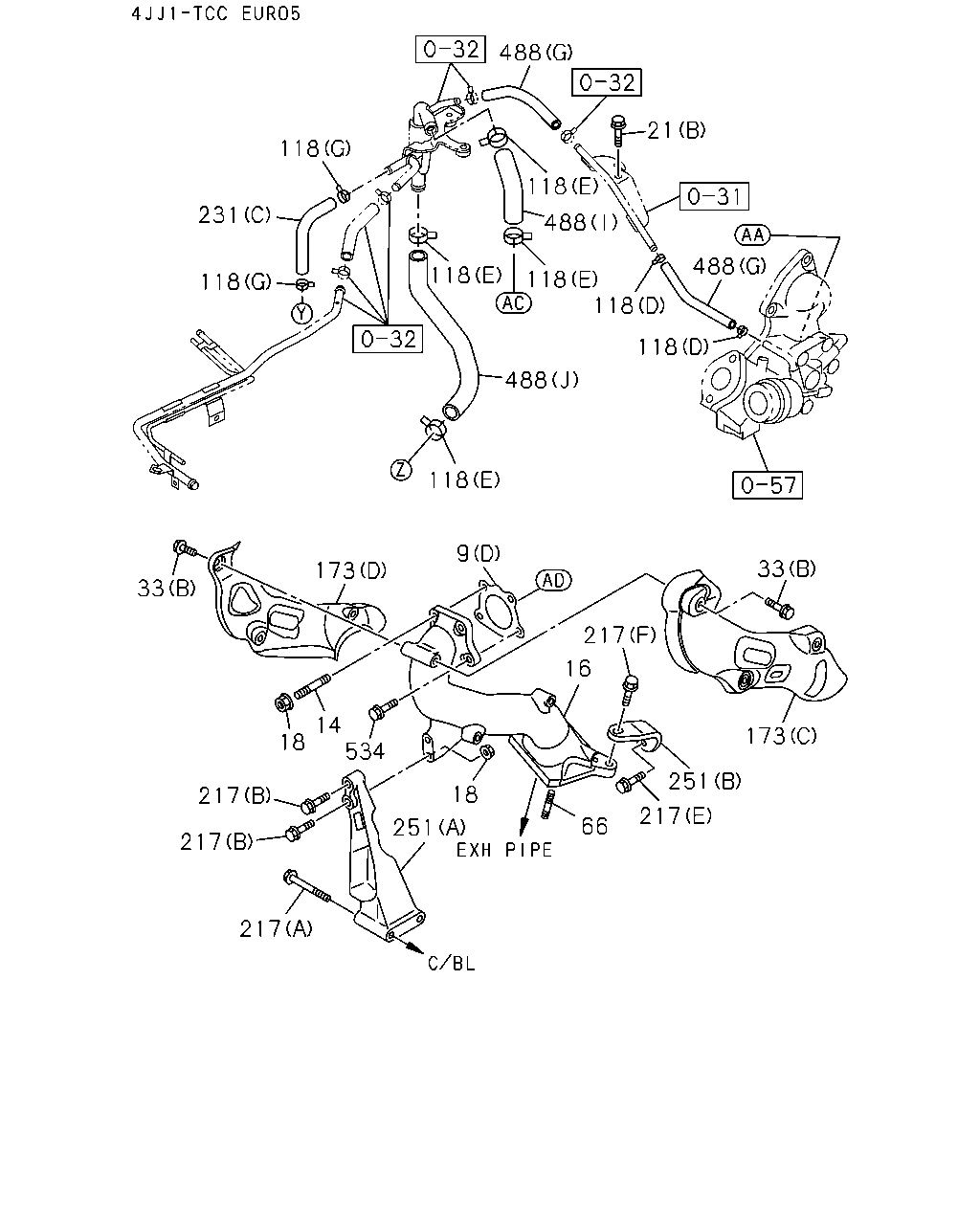

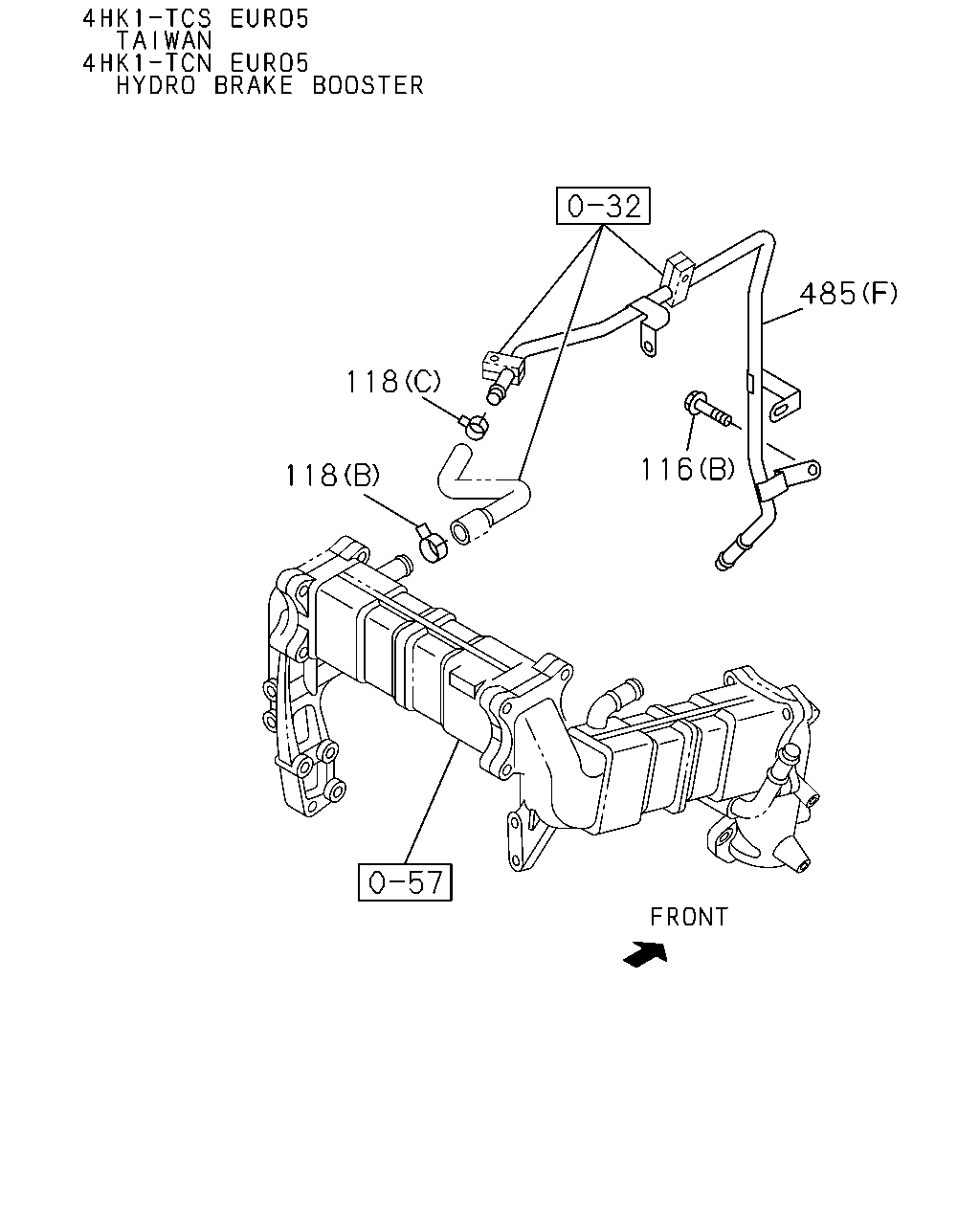

0-36 — TURBOCHARGER SYSTEM (#162305) — 1272 parça

485 231 115 118 118 118 288 288 118 118 118 391 117 116 162 117 465 19 101 32 7 204 101 14 1 11 9 66 16 117 117 116 117 6 391 134 133 137 135 117 116 112 131 130 9 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5)	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-		●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98165-448-1	01	1	1506-	●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1506-1508			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98027-772-5	01	1	1509-1509			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98027-772-5	01	1	1509-1509				●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98322-481-0	01	1	1510-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98322-481-0	01	1	1510-				●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98203-610-0	01	1	1509-				●
6	03.417 BOLT; BRKT TO C/BL EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1508			●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-			●	●
7	03.613 WASHER; PL,BRKT EURO6 SPECIFICATION(NT6) ID=8 OD=18 T=3	8-94174-537-0	01	1	1506-1508			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1509-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-98241-385-0	01	1	1506-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 03.611 (C)	8-98011-532-0	01	1	1506-1508	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (C)	8-98011-532-0	01	1	1509-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (A) ID=54	8-97376-758-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=54	8-97376-758-0	01	1	1509-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (B) ID=49	8-98046-241-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) ID=49	8-98046-241-0	01	1	1509-			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER EURO6 SPECIFICATION(NT6) 03.604 M10 FLANGE	8-97381-617-0	04	1	1506-1508			●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1509-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
12	03.342 STUD; TURBOCHARGER EURO6 SPECIFICATION(NT6) M10X30 L=45	1-09302-106-0	02	1	1506-1508			●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1509-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO6 SPECIFICATION(NT6) M8X49 L=63	8-97019-478-0	03	1	1506-1508			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1509-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1506-		●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98147-897-1	01	1	1506-1508	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1509-	●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98030-080-3	01	1	1506-1508			●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1509-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO6 SPECIFICATION(NT6) 03.604 M8 FLANGE	8-94170-486-0	03	1	1506-1508			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	1509-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1506-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (C)	8-98034-990-3	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (B)	8-98034-991-1	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (A)	8-98031-888-3	01	1	1506-1508			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1509-			●	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1506-		●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=45	0-43211-025-0	03	1	1506-1508	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1509-	●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=40	0-44011-025-0	03	1	1506-1508			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1509-			●	●
101	03.602 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) M6X12 W/PL WASHER	8-98054-289-0	06	1	1506-1508			●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1509-			●	●
112	03.417 BOLT; CLIP EURO6 SPECIFICATION(NT6) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-1508			●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1506-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98083-025-1	01	1	1506-1508	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1509-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98085-187-0	01	1	1506-1508			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1506-		●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (C) ID=12.6	8-97331-137-1	02	1	1506-1508	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1509-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D EURO6 SPECIFICATION(NT6) M6X20 W/LK WASHER	0-50540-620-0	02	1	1506-1508			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1509-			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) ID=30	8-94394-671-0	01	1	1506-1508			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1509-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO6 SPECIFICATION(NT6)	8-98172-661-0	01	1	1506-1508			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1509-			●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) ID=22.8	1-09623-462-0	01	1	1506-1508			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1509-			●	●
135	01.531 BOLT; OIL PIPE TO C/BL EURO6 SPECIFICATION(NT6) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1506-1508			●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1509-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5B+ SPECIFICATION(NT5)	8-98074-761-0	01	1	1509-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1506-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-98116-985-0	01	1	1506-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-97387-271-0	01	1	1506-1508			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1509-			●	●
162	03.613 BOLT; ADAPTER EURO6 SPECIFICATION(NT6) M8X57	5-09000-275-0	01	1	1506-1508			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1509-			●	●
204	03.342 COLLAR; PIPE ADAPTER EURO6 SPECIFICATION(NT6)	8-97214-384-1	01	1	1506-1508			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1509-			●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (E)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (F)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) 01.240 (A)	8-98117-662-1	01	1	1506-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) (B)	8-97209-950-0	01	1	1506-1508			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1509-			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO6 SPECIFICATION(NT6) 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1506-1508			●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1509-			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO6 SPECIFICATION(NT6) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-1508			●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-			●	●
391	03.342 BRACKET; WATER PIPE EURO6 SPECIFICATION(NT6) (A)	8-97371-730-0	01	1	1506-1508			●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1509-			●	●
391	03.342 BRACKET; WATER PIPE EURO6 SPECIFICATION(NT6) (B)	8-98013-958-0	01	1	1506-1508			●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	1509-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO6 SPECIFICATION(NT6) 03.417	8-98052-394-0	01	1	1506-1508			●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-				●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (H)	8-98082-424-1	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98041-637-1	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-637-1	01	1	1509-				●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (G)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (D)	8-98245-594-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (C)	8-98295-887-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (A)	8-98032-267-0	01	1	1506-1508			●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (B)	8-98207-976-1	01	1	1506-			●

118 118 116 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
116	03.342 BOLT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1506-		●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-				●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (H)	8-98082-424-1	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98041-637-1	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-637-1	01	1	1509-				●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (G)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (D)	8-98245-594-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (C)	8-98295-887-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (A)	8-98032-267-0	01	1	1506-1508			●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (B)	8-98207-976-1	01	1	1506-			●

116 118 118 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
116	03.342 BOLT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1506-		●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-				●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (H)	8-98082-424-1	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98041-637-1	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-637-1	01	1	1509-				●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (G)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (D)	8-98245-594-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (C)	8-98295-887-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (A)	8-98032-267-0	01	1	1506-1508			●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (B)	8-98207-976-1	01	1	1506-			●

143 71 143 143 389 1 143 71 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5)	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-		●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98165-448-1	01	1	1506-	●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1506-1508			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98027-772-5	01	1	1509-1509			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98027-772-5	01	1	1509-1509				●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98322-481-0	01	1	1510-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98322-481-0	01	1	1510-				●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98203-610-0	01	1	1509-				●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98116-953-0	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1506-1508	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1506-1508	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (A)	8-98205-323-2	01	1	1509-	●	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-323-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (B)	8-98205-324-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98205-324-2	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	04	1	1509-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) (C) ID=60-65	8-98096-418-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	1506-1508	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> EURO5B+ SPECIFICATION(NT5) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ) IDENTIFICATION LABEL FOR KD<6UT> EURO6 SPECIFICATION(NT6) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98298-682-0	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98042-688-1	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1506-1508		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98114-434-0	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1506-1508	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1506-1508			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98205-144-1	01	1	1509-			●	●
527	03.373 BRACKET; TURBOCHARGER	8-98060-887-2	01	1	1506-			●

32 33 33 32 33 71 143 143 414 389 143 71 143 12 2 1 309 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5)	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-		●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98165-448-1	01	1	1506-	●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1506-1508			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98027-772-5	01	1	1509-1509			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98027-772-5	01	1	1509-1509				●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98322-481-0	01	1	1510-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98322-481-0	01	1	1510-				●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98203-610-0	01	1	1509-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER EURO6 SPECIFICATION(NT6) 03.604 M10 FLANGE	8-97381-617-0	04	1	1506-1508			●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1509-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
12	03.342 STUD; TURBOCHARGER EURO6 SPECIFICATION(NT6) M10X30 L=45	1-09302-106-0	02	1	1506-1508			●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1509-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1506-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (C)	8-98034-990-3	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (B)	8-98034-991-1	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (A)	8-98031-888-3	01	1	1506-1508			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1509-			●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1506-		●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98116-953-0	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1506-1508	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1506-1508	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (A)	8-98205-323-2	01	1	1509-	●	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-323-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (B)	8-98205-324-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98205-324-2	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	04	1	1509-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) (C) ID=60-65	8-98096-418-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	1506-1508	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> EURO5B+ SPECIFICATION(NT5) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ) IDENTIFICATION LABEL FOR KD<6UT> EURO6 SPECIFICATION(NT6) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98298-682-0	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98042-688-1	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1506-1508		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98114-434-0	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1506-1508	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1506-1508			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98205-144-1	01	1	1509-			●	●
414	03.602 SPACER	8-98143-884-0	01	1	1506-	●	●

157 375 94 23 217 86 217 33 32 33 143 414 71 143 389 33 2 1 12 11 309 143 143 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5)	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-		●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98165-448-1	01	1	1506-	●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1506-1508			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98027-772-5	01	1	1509-1509			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98027-772-5	01	1	1509-1509				●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98322-481-0	01	1	1510-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98322-481-0	01	1	1510-				●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98203-610-0	01	1	1509-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER EURO6 SPECIFICATION(NT6) 03.604 M10 FLANGE	8-97381-617-0	04	1	1506-1508			●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1509-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
12	03.342 STUD; TURBOCHARGER EURO6 SPECIFICATION(NT6) M10X30 L=45	1-09302-106-0	02	1	1506-1508			●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1509-			●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98237-774-1	01	1	1506-1506		●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98308-040-0	01	1	1507-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1506-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (C)	8-98034-990-3	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (B)	8-98034-991-1	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (A)	8-98031-888-3	01	1	1506-1508			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1509-			●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1506-		●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98116-953-0	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1506-1508	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1506-1508	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (A)	8-98205-323-2	01	1	1509-	●	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-323-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (B)	8-98205-324-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98205-324-2	01	1	1509-			●	●
86	03.417 BRACKET; INL PIPE	8-98173-247-0	01	1	1506-		●
94	01.531 GASKET; INL PIPE ID=39.6	8-98243-868-0	01	1	1506-		●
94	01.531 GASKET; INL PIPE EURO6 SPECIFICATION(NT6) ID=56	8-98107-962-0	01	1	1506-1508			●
94	01.531 GASKET; INL PIPE EURO6 SPECIFICATION(NT6) ID=56	8-98107-962-0	01	1	1509-			●
94	01.531 GASKET; INL PIPE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) ID=56	8-98107-962-0	01	1	1509-			●
94	01.531 GASKET; INL PIPE EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=56	8-98107-962-0	01	1	1509-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	04	1	1509-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) (C) ID=60-65	8-98096-418-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	1506-1508	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> EURO5B+ SPECIFICATION(NT5) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ) IDENTIFICATION LABEL FOR KD<6UT> EURO6 SPECIFICATION(NT6) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
157	03.417 CLIP; HOSE,INL ID=8	8-98136-175-0	01	1	1506-1506		●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1506-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-	●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
375	03.342 BOLT; FLANGE 00.386 M8X50 FLANGE	0-28050-850-0	02	1	1506-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98298-682-0	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98042-688-1	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1506-1508		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98114-434-0	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1506-1508	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1506-1508			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98205-144-1	01	1	1509-			●	●
414	03.602 SPACER	8-98143-884-0	01	1	1506-	●	●

33 32 33 32 71 33 143 389 143 71 143 11 1 12 2 309 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5)	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-		●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98165-448-1	01	1	1506-	●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1506-1508			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98027-772-5	01	1	1509-1509			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98027-772-5	01	1	1509-1509				●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98322-481-0	01	1	1510-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98322-481-0	01	1	1510-				●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98203-610-0	01	1	1509-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER EURO6 SPECIFICATION(NT6) 03.604 M10 FLANGE	8-97381-617-0	04	1	1506-1508			●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1509-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
12	03.342 STUD; TURBOCHARGER EURO6 SPECIFICATION(NT6) M10X30 L=45	1-09302-106-0	02	1	1506-1508			●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1509-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1506-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (C)	8-98034-990-3	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (B)	8-98034-991-1	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (A)	8-98031-888-3	01	1	1506-1508			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1509-			●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1506-		●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98116-953-0	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1506-1508	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1506-1508	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (A)	8-98205-323-2	01	1	1509-	●	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-323-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (B)	8-98205-324-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98205-324-2	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	04	1	1509-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) (C) ID=60-65	8-98096-418-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	1506-1508	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> EURO5B+ SPECIFICATION(NT5) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ) IDENTIFICATION LABEL FOR KD<6UT> EURO6 SPECIFICATION(NT6) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98298-682-0	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98042-688-1	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1506-1508		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98114-434-0	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1506-1508	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1506-1508			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98205-144-1	01	1	1509-			●	●

509 460 539 71 143 183 94 141 1 143 389 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5)	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-		●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98165-448-1	01	1	1506-	●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1506-1508			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98027-772-5	01	1	1509-1509			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98027-772-5	01	1	1509-1509				●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98322-481-0	01	1	1510-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98322-481-0	01	1	1510-				●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98203-610-0	01	1	1509-				●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (F)	8-98006-133-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98039-732-3	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98116-953-0	01	1	1506-1508		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO5B+ SPECIFICATION(NT5) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (E)	8-98116-953-0	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	1506-1508	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (C)	8-98036-513-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	1506-1508	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) (D)	8-98055-062-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98205-323-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (A)	8-98205-323-2	01	1	1509-	●	●	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER NNR/NPR/NQR(NPR***) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-323-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98205-324-2	01	1	1506-1508			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) EURO5B+ SPECIFICATION(NT5) (B)	8-98205-324-2	01	1	1509-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98205-324-2	01	1	1509-			●	●
94	01.531 GASKET; INL PIPE ID=39.6	8-98243-868-0	01	1	1506-		●
94	01.531 GASKET; INL PIPE EURO6 SPECIFICATION(NT6) ID=56	8-98107-962-0	01	1	1506-1508			●
94	01.531 GASKET; INL PIPE EURO6 SPECIFICATION(NT6) ID=56	8-98107-962-0	01	1	1509-			●
94	01.531 GASKET; INL PIPE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) ID=56	8-98107-962-0	01	1	1509-			●
94	01.531 GASKET; INL PIPE EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=56	8-98107-962-0	01	1	1509-				●
141	03.417 STUD; INL PIPE TO BRKT EURO6 SPECIFICATION(NT6) M10X28 L=43	0-44011-028-0	02	1	1506-1508			●
141	03.417 STUD; INL PIPE TO BRKT EURO6 SPECIFICATION(NT6) M10X28 L=43	0-44011-028-0	02	1	1509-			●
141	03.417 STUD; INL PIPE TO BRKT EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) M10X28 L=43	0-44011-028-0	02	1	1509-			●
141	03.417 STUD; INL PIPE TO BRKT EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) M10X28 L=43	0-44011-028-0	02	1	1509-				●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	04	1	1509-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL(6MZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) (C) ID=60-65	8-98096-418-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	04	1	1506-1508	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	04	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	02	1	1506-1508			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> EURO5B+ SPECIFICATION(NT5) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD & SCR(JCQ) IDENTIFICATION LABEL FOR KD<6UT> EURO6 SPECIFICATION(NT6) (B) ID=65-85	8-98133-350-0	02	1	1509-			●	●
183	03.358 PIPE; INL,TURBOCHARGER EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98239-380-0	01	1	1509-			●
183	03.358 PIPE; INL,TURBOCHARGER EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98239-380-0	01	1	1509-				●
183	03.358 PIPE; INL,TURBOCHARGER EURO6 SPECIFICATION(NT6)	8-98239-381-0	01	1	1506-			●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ)	8-98298-682-0	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98042-688-1	01	1	1509-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98114-434-0	01	1	1506-1508		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98114-434-0	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	1506-1508	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5)	8-98036-505-1	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98205-144-1	01	1	1506-1508			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6)	8-98205-144-1	01	1	1509-			●	●
460	03.374 NUT; PIPE EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1508			●
460	03.374 NUT; PIPE EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-			●
460	03.374 NUT; PIPE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-			●
460	03.374 NUT; PIPE EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-				●
509	03.602 BRACKET; SENSOR EGR COOLER LH POSITION<KCC>	8-98259-171-2	01	1	1506-1508			●
509	03.602 BRACKET; SENSOR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC>	8-98259-171-2	01	1	1509-			●
509	03.602 BRACKET; SENSOR EXC. EGR COOLER LH POSITION<KCC>	8-98224-295-2	01	1	1506-			●
527	03.373 BRACKET; TURBOCHARGER	8-98060-887-2	01	1	1506-			●
539	03.337 SENSOR; TURBOCHARGER EURO6 SPECIFICATION(NT6)	8-98232-016-0	01	1	1506-			●

134 11 11 12 9 131 130 133 135 112 137 117 117 117 116 117 116 6 66 391 9 1 14 32 7 204 19 465 101 16 391 162 116 117 117 118 101 118 118 485 118 118 115 288 288 231 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5)	8-98083-041-2	01	1	1509-	●
1	03.342 TURBOCHARGER ASM	8-98195-143-1	01	1	1506-		●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98165-448-1	01	1	1506-	●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1506-1508			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98027-772-5	01	1	1509-1509			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98027-772-5	01	1	1509-1509				●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98322-481-0	01	1	1510-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98322-481-0	01	1	1510-				●
1	03.342 TURBOCHARGER ASM EURO6 SPECIFICATION(NT6)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98203-610-0	01	1	1509-			●
1	03.342 TURBOCHARGER ASM EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98203-610-0	01	1	1509-				●
6	03.417 BOLT; BRKT TO C/BL EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1508			●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-			●	●
7	03.613 WASHER; PL,BRKT EURO6 SPECIFICATION(NT6) ID=8 OD=18 T=3	8-94174-537-0	01	1	1506-1508			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1509-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-98241-385-0	01	1	1506-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 03.611 (C)	8-98011-532-0	01	1	1506-1508	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (C)	8-98011-532-0	01	1	1509-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (A) ID=54	8-97376-758-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=54	8-97376-758-0	01	1	1509-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (B) ID=49	8-98046-241-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) ID=49	8-98046-241-0	01	1	1509-			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
11	03.342 NUT; TURBOCHARGER EURO6 SPECIFICATION(NT6) 03.604 M10 FLANGE	8-97381-617-0	04	1	1506-1508			●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1509-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
12	03.342 STUD; TURBOCHARGER EURO6 SPECIFICATION(NT6) M10X30 L=45	1-09302-106-0	02	1	1506-1508			●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1509-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO6 SPECIFICATION(NT6) M8X49 L=63	8-97019-478-0	03	1	1506-1508			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1509-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1506-		●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98147-897-1	01	1	1506-1508	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1509-	●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98030-080-3	01	1	1506-1508			●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1509-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO6 SPECIFICATION(NT6) 03.604 M8 FLANGE	8-94170-486-0	03	1	1506-1508			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	1509-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98179-608-0	01	1	1506-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (C)	8-98034-990-3	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (B)	8-98034-991-1	01	1	1506-1508	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1509-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO6 SPECIFICATION(NT6) (A)	8-98031-888-3	01	1	1506-1508			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	1509-			●	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1506-		●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=45	0-43211-025-0	03	1	1506-1508	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1509-	●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=40	0-44011-025-0	03	1	1506-1508			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1509-			●	●
101	03.602 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) M6X12 W/PL WASHER	8-98054-289-0	06	1	1506-1508			●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1509-			●	●
112	03.417 BOLT; CLIP EURO6 SPECIFICATION(NT6) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-1508			●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1506-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98083-025-1	01	1	1506-1508	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1509-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98085-187-0	01	1	1506-1508			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1506-		●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (C) ID=12.6	8-97331-137-1	02	1	1506-1508	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1509-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D EURO6 SPECIFICATION(NT6) M6X20 W/LK WASHER	0-50540-620-0	02	1	1506-1508			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1509-			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) ID=30	8-94394-671-0	01	1	1506-1508			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1509-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO6 SPECIFICATION(NT6)	8-98172-661-0	01	1	1506-1508			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1509-			●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) ID=22.8	1-09623-462-0	01	1	1506-1508			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1509-			●	●
135	01.531 BOLT; OIL PIPE TO C/BL EURO6 SPECIFICATION(NT6) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1506-1508			●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1509-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5B+ SPECIFICATION(NT5)	8-98074-761-0	01	1	1509-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1506-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-98116-985-0	01	1	1506-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-97387-271-0	01	1	1506-1508			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1509-			●	●
162	03.613 BOLT; ADAPTER EURO6 SPECIFICATION(NT6) M8X57	5-09000-275-0	01	1	1506-1508			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1509-			●	●
204	03.342 COLLAR; PIPE ADAPTER EURO6 SPECIFICATION(NT6)	8-97214-384-1	01	1	1506-1508			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1509-			●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (E)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (F)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) 01.240 (A)	8-98117-662-1	01	1	1506-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) (B)	8-97209-950-0	01	1	1506-1508			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1509-			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO6 SPECIFICATION(NT6) 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1506-1508			●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1509-			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO6 SPECIFICATION(NT6) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-1508			●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-			●	●
391	03.342 BRACKET; WATER PIPE EURO6 SPECIFICATION(NT6) (A)	8-97371-730-0	01	1	1506-1508			●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1509-			●	●
391	03.342 BRACKET; WATER PIPE EURO6 SPECIFICATION(NT6) (B)	8-98013-958-0	01	1	1506-1508			●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	1509-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO6 SPECIFICATION(NT6) 03.417	8-98052-394-0	01	1	1506-1508			●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-				●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (H)	8-98082-424-1	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98041-637-1	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-637-1	01	1	1509-				●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (G)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (D)	8-98245-594-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (C)	8-98295-887-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (A)	8-98032-267-0	01	1	1506-1508			●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (B)	8-98207-976-1	01	1	1506-			●

118 118 488 118 488 118 21 540 21 118 488 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508		●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (K) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (L)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (M)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1506-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (E)	8-98138-272-1	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (E)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (C)	8-98188-477-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (C)	8-98188-477-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (B)	8-98192-304-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (B)	8-98192-304-0	01	1	1509-		●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (A)	0-03607-120-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (D)	8-98089-229-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (F)	8-98147-943-1	01	1	1506-	●
540	03.342 PIPE; WATER EURO6 SPECIFICATION(NT6)	8-98221-556-0	01	1	1506-	●

231 118 118 137 138 117 115 138 117 117 138 33 173 18 16 14 9 534 66 33 173 251 217 217 217 414 118 231 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-98241-385-0	01	1	1506-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 03.611 (C)	8-98011-532-0	01	1	1506-1508	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (C)	8-98011-532-0	01	1	1509-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (A) ID=54	8-97376-758-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=54	8-97376-758-0	01	1	1509-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (B) ID=49	8-98046-241-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) ID=49	8-98046-241-0	01	1	1509-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO6 SPECIFICATION(NT6) M8X49 L=63	8-97019-478-0	03	1	1506-1508			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1509-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1506-		●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98147-897-1	01	1	1506-1508	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1509-	●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98030-080-3	01	1	1506-1508			●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1509-			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1506-		●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1506-		●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=45	0-43211-025-0	03	1	1506-1508	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1509-	●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=40	0-44011-025-0	03	1	1506-1508			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1509-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1506-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98083-025-1	01	1	1506-1508	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1509-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98085-187-0	01	1	1506-1508			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (C) ID=12.6	8-97331-137-1	02	1	1506-1508	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1509-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5B+ SPECIFICATION(NT5)	8-98074-761-0	01	1	1509-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1506-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-98116-985-0	01	1	1506-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-97387-271-0	01	1	1506-1508			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1509-			●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1506-	●	●
138	03.342 BOLT; EYE,WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1506-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1506-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO6 SPECIFICATION(NT6) (A)	8-98032-022-3	01	1	1506-1508	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO6 SPECIFICATION(NT6) (B)	8-98032-024-3	01	1	1506-1508	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1509-	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1506-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (E)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (F)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) 01.240 (A)	8-98117-662-1	01	1	1506-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) (B)	8-97209-950-0	01	1	1506-1508			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1509-			●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1506-		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1506-	●	●
414	03.602 SPACER	8-98143-884-0	01	1	1506-	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1506-	●	●

488 459 118 485 118 459 118 21 485 118 488 118 118 488 488 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508		●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
459	03.341 HOSE; WATER EURO5B+ SPECIFICATION(NT5) (B)	8-98107-347-0	01	1	1509-	●
459	03.341 HOSE; WATER EURO5B+ SPECIFICATION(NT5) (C)	8-98108-321-0	01	1	1509-	●
459	03.341 HOSE; WATER EURO6 SPECIFICATION(NT6) 01.540 (A) L=140 SERVICED BY L=3000	0-03566-300-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-				●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (H)	8-98082-424-1	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98041-637-1	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-637-1	01	1	1509-				●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (G)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (D)	8-98245-594-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (C)	8-98295-887-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (A)	8-98032-267-0	01	1	1506-1508			●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (B)	8-98207-976-1	01	1	1506-			●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (K) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (L)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (M)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1506-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (E)	8-98138-272-1	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (E)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (C)	8-98188-477-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (C)	8-98188-477-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (B)	8-98192-304-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (B)	8-98192-304-0	01	1	1509-		●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (A)	0-03607-120-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (D)	8-98089-229-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (F)	8-98147-943-1	01	1	1506-	●

485 118 21 118 488 118 118 118 488 116 526 137 118 231 118 118 118 21 488 21 488 118 115 117 138 21 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508		●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1506-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98083-025-1	01	1	1506-1508	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1509-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98085-187-0	01	1	1506-1508			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE 00.724 (D) M6X16 HEX SOCKET	0-58330-616-0	02	1	1506-		●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508			●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-			●	●
116	03.342 BOLT; WATER PIPE EURO6 SPECIFICATION(NT6) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1506-1508			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (C) ID=12.6	8-97331-137-1	02	1	1506-1508	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1509-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5B+ SPECIFICATION(NT5)	8-98074-761-0	01	1	1509-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1506-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-98116-985-0	01	1	1506-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-97387-271-0	01	1	1506-1508			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1509-			●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1506-	●	●
138	03.342 BOLT; EYE,WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (E)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (F)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) 01.240 (A)	8-98117-662-1	01	1	1506-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) (B)	8-97209-950-0	01	1	1506-1508			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-				●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (H)	8-98082-424-1	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98041-637-1	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-637-1	01	1	1509-				●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (G)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (D)	8-98245-594-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (C)	8-98295-887-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (A)	8-98032-267-0	01	1	1506-1508			●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (B)	8-98207-976-1	01	1	1506-			●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (K) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (L)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (M)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1506-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (E)	8-98138-272-1	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (E)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (C)	8-98188-477-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (C)	8-98188-477-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (B)	8-98192-304-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (B)	8-98192-304-0	01	1	1509-		●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (A)	0-03607-120-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (D)	8-98089-229-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (F)	8-98147-943-1	01	1	1506-	●
526	03.342 GASKET; PLATE 01.519	8-97352-985-0	01	1	1506-		●

118 231 118 33 173 118 9 217 16 251 173 217 66 18 251 534 14 18 217 217 217 488 118 488 118 118 118 118 488 21 488 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-98241-385-0	01	1	1506-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 03.611 (C)	8-98011-532-0	01	1	1506-1508	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (C)	8-98011-532-0	01	1	1509-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (A) ID=54	8-97376-758-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=54	8-97376-758-0	01	1	1509-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (B) ID=49	8-98046-241-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) ID=49	8-98046-241-0	01	1	1509-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO6 SPECIFICATION(NT6) M8X49 L=63	8-97019-478-0	03	1	1506-1508			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1509-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1506-		●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98147-897-1	01	1	1506-1508	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1509-	●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98030-080-3	01	1	1506-1508			●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1509-			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508		●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1506-		●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1506-		●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=45	0-43211-025-0	03	1	1506-1508	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1509-	●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=40	0-44011-025-0	03	1	1506-1508			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1506-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1506-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO6 SPECIFICATION(NT6) (A)	8-98032-022-3	01	1	1506-1508	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO6 SPECIFICATION(NT6) (B)	8-98032-024-3	01	1	1506-1508	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1509-	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1506-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (E)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (F)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) 01.240 (A)	8-98117-662-1	01	1	1506-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) (B)	8-97209-950-0	01	1	1506-1508			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1509-			●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1506-		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1506-	●	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (K) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (L)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (M)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1506-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (E)	8-98138-272-1	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (E)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (C)	8-98188-477-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (C)	8-98188-477-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (B)	8-98192-304-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (B)	8-98192-304-0	01	1	1509-		●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (A)	0-03607-120-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (D)	8-98089-229-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (F)	8-98147-943-1	01	1	1506-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1506-	●	●

138 117 117 115 138 118 137 231 118 118 118 488 118 488 138 117 118 9 14 18 16 173 33 217 217 251 217 173 33 66 534 118 459 118 118 21 21 485 118 488 118 118 21 485 324 542 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D)	8-98241-385-0	01	1	1506-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 03.611 (C)	8-98011-532-0	01	1	1506-1508	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (C)	8-98011-532-0	01	1	1509-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (A) ID=54	8-97376-758-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) ID=54	8-97376-758-0	01	1	1509-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) (B) ID=49	8-98046-241-0	01	1	1506-1508			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) ID=49	8-98046-241-0	01	1	1509-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO6 SPECIFICATION(NT6) M8X49 L=63	8-97019-478-0	03	1	1506-1508			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1509-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98224-792-1	01	1	1506-		●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98147-897-1	01	1	1506-1508	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1509-	●
16	03.609 ADAPTER; EXH PIPE EURO6 SPECIFICATION(NT6)	8-98030-080-3	01	1	1506-1508			●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1509-			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1506-	●	●
21	03.358 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508		●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
21	03.358 BOLT; PIPE 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-	●	●
21	03.358 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	09	1	1506-		●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●
33	03.342 BOLT; HEAT PROTECTOR EURO6 SPECIFICATION(NT6) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-1508	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1509-	●
66	03.342 STUD; EXH PIPE 05.387 M10X31 L=43	8-98022-413-0	04	1	1506-		●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=45	0-43211-025-0	03	1	1506-1508	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1509-	●
66	03.342 STUD; EXH PIPE EURO6 SPECIFICATION(NT6) M10X25 L=40	0-44011-025-0	03	1	1506-1508			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1509-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98223-106-0	01	1	1506-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98083-025-1	01	1	1506-1508	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1509-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6)	8-98085-187-0	01	1	1506-1508			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (C) ID=12.6	8-97331-137-1	02	1	1506-1508	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	1509-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-			●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 08.955 (B) ID=12.2	9-09571-412-0	04	1	1506-1508			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.166 (H) ID=20.8	8-94125-862-1	02	1	1509-	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (G) ID=12.8	8-94367-943-0	04	1	1506-1508		●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 01.153 (G) ID=12.8	8-94367-943-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=11.5	8-97375-638-0	06	1	1506-		●
118	03.342 CLIP; WATER HOSE (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (F) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-		●
118	03.342 CLIP; WATER HOSE (E) ID=22	8-98192-446-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (E) ID=22	8-98192-446-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (E) ID=22	8-98192-446-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	04	1	1506-1508	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (E) ID=22	8-97359-141-0	04	1	1509-		●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (G) ID=12.8	8-94367-943-0	02	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (D) ID=11.5	8-97375-638-0	04	1	1506-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.162 (A) ID=15.5	8-94221-519-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	1509-			●	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 03.278 (C) ID=22	8-97359-141-0	02	1	1506-1508			●
118	03.342 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) 03.278 (C) ID=22	8-97359-141-0	06	1	1509-	●
118	03.342 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 01.153 (B) ID=24	8-98025-921-0	04	1	1506-1508			●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5B+ SPECIFICATION(NT5)	8-98074-761-0	01	1	1509-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98173-164-0	01	1	1506-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-98116-985-0	01	1	1506-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO6 SPECIFICATION(NT6)	8-97387-271-0	01	1	1506-1508			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1509-			●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1506-	●	●
138	03.342 BOLT; EYE,WATER PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-1508	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98224-793-1	01	1	1506-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-98224-794-1	01	1	1506-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO6 SPECIFICATION(NT6) (A)	8-98032-022-3	01	1	1506-1508	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1509-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO6 SPECIFICATION(NT6) (B)	8-98032-024-3	01	1	1506-1508	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1509-	●
217	03.417 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	01	1	1506-		●
217	03.417 BOLT; BRKT (E) M10X20 FLANGE	0-28151-020-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.613 (D) M8X14 FLANGE	8-97378-075-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.342 (F) M10X30 FLANGE	8-98173-443-0	01	1	1506-		●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (E)	8-98075-182-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5B+ SPECIFICATION(NT5) (F)	8-98120-394-1	01	1	1509-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (D) L=100	0-03609-100-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98239-698-0	01	1	1506-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) 01.240 (A)	8-98117-662-1	01	1	1506-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO6 SPECIFICATION(NT6) (B)	8-97209-950-0	01	1	1506-1508			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-97209-950-0	01	1	1509-			●	●
251	03.417 BRACKET; ADAPTER (B)	8-98225-284-0	01	1	1506-		●
251	03.417 BRACKET; ADAPTER (A)	8-98009-098-1	01	1	1506-	●	●
324	00.386 GASKET; PLUG EURO6 SPECIFICATION(NT6)	5-09503-132-1	01	1	1506-	●
459	03.341 HOSE; WATER EURO5B+ SPECIFICATION(NT5) (B)	8-98107-347-0	01	1	1509-	●
459	03.341 HOSE; WATER EURO5B+ SPECIFICATION(NT5) (C)	8-98108-321-0	01	1	1509-	●
459	03.341 HOSE; WATER EURO6 SPECIFICATION(NT6) 01.540 (A) L=140 SERVICED BY L=3000	0-03566-300-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98330-116-0	01	1	1509-				●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (H)	8-98082-424-1	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98041-637-1	01	1	1509-			●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98041-637-1	01	1	1509-				●
485	01.097 PIPE; WATER EGR (E)	8-98082-424-1	01	1	1506-1508		●
485	01.097 PIPE; WATER EGR EURO5B+ SPECIFICATION(NT5) (G)	8-98107-346-0	01	1	1509-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (D)	8-98245-594-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (C)	8-98295-887-0	01	1	1506-	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (A)	8-98032-267-0	01	1	1506-1508			●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-			●	●
485	01.097 PIPE; WATER EGR EURO6 SPECIFICATION(NT6) (B)	8-98207-976-1	01	1	1506-			●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (K) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (L)	8-98075-184-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (M)	8-98082-221-0	01	1	1509-	●
488	03.163 HOSE; RUBBER (G)	0-03607-140-0	02	1	1506-		●
488	03.163 HOSE; RUBBER (H)	8-98196-479-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (I)	8-98239-420-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (J)	8-98239-697-0	01	1	1506-		●
488	03.163 HOSE; RUBBER (E)	8-98138-272-1	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (E)	8-98138-272-1	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (E)	8-98138-272-1	01	1	1509-		●
488	03.163 HOSE; RUBBER (C)	8-98188-477-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (C)	8-98188-477-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (C)	8-98188-477-0	01	1	1509-		●
488	03.163 HOSE; RUBBER (B)	8-98192-304-0	01	1	1506-1508	●	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (B)	8-98192-304-0	01	1	1509-	●
488	03.163 HOSE; RUBBER EURO5B+ SPECIFICATION(NT5) (B)	8-98192-304-0	01	1	1509-		●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (A)	0-03607-120-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (D)	8-98089-229-0	01	1	1506-	●
488	03.163 HOSE; RUBBER EURO6 SPECIFICATION(NT6) (F)	8-98147-943-1	01	1	1506-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1506-	●	●
542	01.252 PLUG; AIR BLEED EURO6 SPECIFICATION(NT6) 10.701 M6X8	8-94155-893-0	01	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
