Sayfa 0-33 - Isuzu EPC

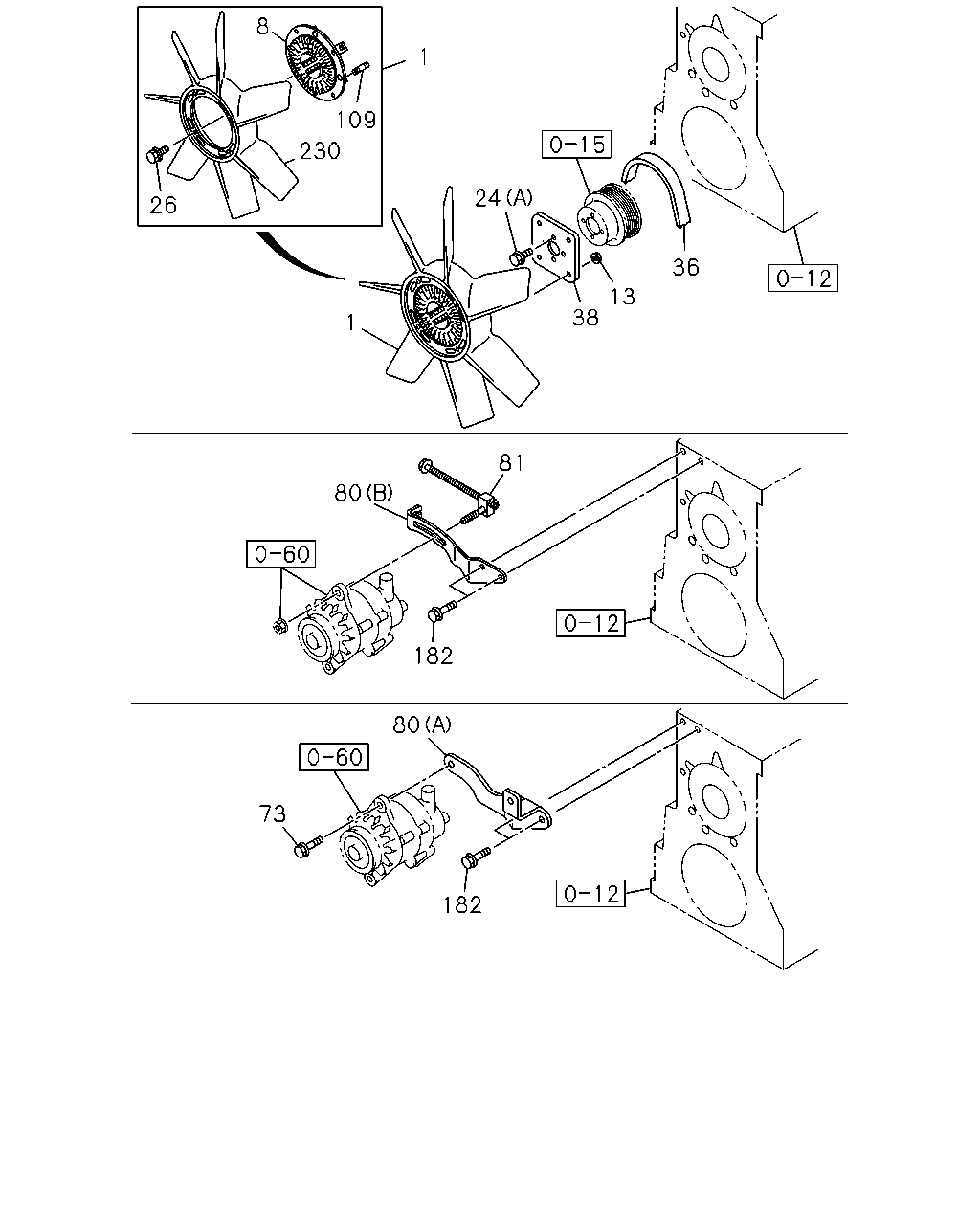

0-33 — FAN AND FAN BELT (#162303) — 156 parça

8 1 109 230 26 1 24 38 13 36 81 80 182 80 73 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1506-1508	●
1	01.064 FAN; COOLING EURO5B+ SPECIFICATION(NT5) OD=450	8-97382-603-1	01	1	1509-	●	●
1	01.064 FAN; COOLING OD=450	8-98244-139-0	01	1	1506-1508		●
1	01.064 FAN; COOLING EURO6 SPECIFICATION(NT6) OD=450	8-98244-139-0	01	1	1509-		●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1506-1508			●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1509-			●	●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1506-1508	●
8	01.064 CLUTCH; COOLING FAN EURO5B+ SPECIFICATION(NT5)	8-98024-684-0	01	1	1509-	●	●
8	01.064 CLUTCH; COOLING FAN	8-98243-244-0	01	1	1506-1508		●
8	01.064 CLUTCH; COOLING FAN EURO6 SPECIFICATION(NT6)	8-98243-244-0	01	1	1509-		●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1506-1508			●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1509-			●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1506-	●	●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1506-1508			●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1509-			●	●
24	01.062 BOLT; FAN 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	1506-	●	●
24	01.062 BOLT; FAN 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
24	01.062 BOLT; FAN EURO6 SPECIFICATION(NT6) 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1506-1508			●
24	01.062 BOLT; FAN 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1509-			●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1506-1508	●	●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1509-	●	●	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) L=1121	8-98038-423-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1046	8-98003-187-0	01	1	1506-1508	●	●
36	01.066 BELT; COOLING FAN EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1046	8-98003-187-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1046	8-98003-187-0	01	1	1509-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1006	8-97362-926-0	01	1	1506-	●	●
36	01.066 BELT; COOLING FAN EGR COOLER LH POSITION<KCC> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1131	8-98031-667-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> L=1131	8-98031-667-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> L=1111	8-98206-590-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC> L=1111	8-98206-590-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> L=1036	8-98132-367-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> L=1036	8-98132-367-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS	5-87610-101-0	01	1	1506-1508	●	●
36	01.066 BELT; COOLING FAN EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS	5-87610-101-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS	5-87610-101-0	01	1	1509-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS	5-87610-100-0	01	1	1506-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) BEST VALUE PARTS	5-87610-102-0	01	1	1509-			●	●
38	01.062 SPACER; FAN EURO6 SPECIFICATION(NT6)	8-97108-643-0	01	1	1506-1508			●
38	01.062 SPACER; FAN	8-97108-643-0	01	1	1509-			●	●
73	02.277 BOLT; GEN TO ADJ PLATE GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1506-1508			●
73	02.277 BOLT; GEN TO ADJ PLATE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1509-			●	●
73	02.277 BOLT; GEN TO ADJ PLATE EGR COOLER LH POSITION<KCC> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1509-			●
73	02.277 BOLT; GEN TO ADJ PLATE EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC> 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1509-			●
80	02.317 PLATE; ADJ 02.274 (C)	8-98039-816-1	01	1	1506-	●	●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A)	8-98288-436-1	01	1	1506-1508			●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A)	8-98288-436-1	01	1	1509-			●	●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (B)	8-98288-434-1	01	1	1506-1508			●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (B)	8-98288-434-1	01	1	1509-			●	●
81	02.317 PIECE; SLIDING	8-97132-048-0	01	1	1506-	●	●
81	02.317 PIECE; SLIDING GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC>	8-98075-762-0	01	1	1506-1508			●
81	02.317 PIECE; SLIDING EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98075-762-0	01	1	1509-			●	●
81	02.317 PIECE; SLIDING EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC>	8-98075-762-0	01	1	1509-			●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1506-	●	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1506-1508			●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1509-			●	●
182	01.062 BOLT; BRKT GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1506-	●	●
182	01.062 BOLT; BRKT EURO6 SPECIFICATION(NT6) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1506-1508			●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1509-			●	●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1506-	●	●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1506-1508			●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1509-			●	●

36 349 162 350 47 234 24 218 126 109 75 182 47 24 13 1 8 26 230 80 81 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING OD=450	8-97382-603-1	01	1	1506-1508	●
1	01.064 FAN; COOLING EURO5B+ SPECIFICATION(NT5) OD=450	8-97382-603-1	01	1	1509-	●	●
1	01.064 FAN; COOLING OD=450	8-98244-139-0	01	1	1506-1508		●
1	01.064 FAN; COOLING EURO6 SPECIFICATION(NT6) OD=450	8-98244-139-0	01	1	1509-		●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1506-1508			●
1	01.064 FAN; COOLING OD=510	8-98190-148-1	01	1	1509-			●	●
8	01.064 CLUTCH; COOLING FAN	8-98024-684-0	01	1	1506-1508	●
8	01.064 CLUTCH; COOLING FAN EURO5B+ SPECIFICATION(NT5)	8-98024-684-0	01	1	1509-	●	●
8	01.064 CLUTCH; COOLING FAN	8-98243-244-0	01	1	1506-1508		●
8	01.064 CLUTCH; COOLING FAN EURO6 SPECIFICATION(NT6)	8-98243-244-0	01	1	1509-		●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1506-1508			●
8	01.064 CLUTCH; COOLING FAN	8-98019-743-0	01	1	1509-			●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	1506-	●	●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1506-1508			●
13	01.062 NUT; COOLING FAN M8 FLANGE	0-91180-108-0	04	1	1509-			●	●
24	01.062 BOLT; FAN 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	1506-	●	●
24	01.062 BOLT; FAN 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
24	01.062 BOLT; FAN EURO6 SPECIFICATION(NT6) 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1506-1508			●
24	01.062 BOLT; FAN 08.900 (A) M8X18 FLANGE	0-28080-818-0	04	1	1509-			●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1506-1508	●	●	●
26	01.062 BOLT; FAN TO CLU	8-94389-764-0	04	1	1509-	●	●	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) L=1121	8-98038-423-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1046	8-98003-187-0	01	1	1506-1508	●	●
36	01.066 BELT; COOLING FAN EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1046	8-98003-187-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1046	8-98003-187-0	01	1	1509-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1006	8-97362-926-0	01	1	1506-	●	●
36	01.066 BELT; COOLING FAN EGR COOLER LH POSITION<KCC> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1131	8-98031-667-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> L=1131	8-98031-667-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> L=1111	8-98206-590-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC> L=1111	8-98206-590-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> L=1036	8-98132-367-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> L=1036	8-98132-367-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS	5-87610-101-0	01	1	1506-1508	●	●
36	01.066 BELT; COOLING FAN EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS	5-87610-101-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS	5-87610-101-0	01	1	1509-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS	5-87610-100-0	01	1	1506-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) BEST VALUE PARTS	5-87610-102-0	01	1	1509-			●	●
47	01.060 BRACKET; FAN (B)	8-98074-751-1	01	1	1506-1508	●	●
47	01.060 BRACKET; FAN EURO6 SPECIFICATION(NT6) (B)	8-98074-751-1	01	1	1509-		●
47	01.060 BRACKET; FAN EURO5B+ SPECIFICATION(NT5) (B)	8-98074-751-1	01	1	1509-	●
47	01.060 BRACKET; FAN (A)	8-98203-027-1	01	1	1506-1508	●	●
47	01.060 BRACKET; FAN EURO5B+ SPECIFICATION(NT5) (B)	8-97381-549-1	01	1	1509-		●
47	01.060 BRACKET; FAN (A)	8-98203-027-1	01	1	1509-	●	●
71	02.317 BOLT; ADJ PLATE,GEN 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●	●
71	02.317 BOLT; ADJ PLATE,GEN 02.277 (B) M8X50 FLANGE	8-98050-130-0	01	1	1506-	●	●
75	01.062 BRACKET; IDLE PULLEY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	8-97381-570-1	01	1	1506-	●	●
80	02.317 PLATE; ADJ 02.274 (C)	8-98039-816-1	01	1	1506-	●	●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A)	8-98288-436-1	01	1	1506-1508			●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A)	8-98288-436-1	01	1	1509-			●	●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (B)	8-98288-434-1	01	1	1506-1508			●
80	02.317 PLATE; ADJ GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (B)	8-98288-434-1	01	1	1509-			●	●
81	02.317 PIECE; SLIDING	8-97132-048-0	01	1	1506-	●	●
81	02.317 PIECE; SLIDING GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC>	8-98075-762-0	01	1	1506-1508			●
81	02.317 PIECE; SLIDING EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ)	8-98075-762-0	01	1	1509-			●	●
81	02.317 PIECE; SLIDING EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC>	8-98075-762-0	01	1	1509-			●
109	01.062 STUD; FAN CLU M6X18 L=27	0-41010-618-0	04	1	1506-	●	●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1506-1508			●
109	01.062 STUD; FAN CLU M8X13.5 L=22	8-97049-577-1	04	1	1509-			●	●
126	01.062 PULLEY; IDLE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 00.659	8-97371-903-1	01	1	1506-	●	●
162	01.062 BOLT; FAN CLU GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1506-	●	●
182	01.062 BOLT; BRKT GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1506-	●	●
182	01.062 BOLT; BRKT EURO6 SPECIFICATION(NT6) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1506-1508			●
182	01.062 BOLT; BRKT 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1509-			●	●
218	01.062 COVER; IDLE PULLEY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	8-98045-582-0	01	1	1506-	●	●
230	01.055 FAN; COOLING	8-97330-207-0	01	1	1506-	●	●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1506-1508			●
230	01.055 FAN; COOLING	8-98190-058-0	01	1	1509-			●	●
234	01.060 NUT; FAN BRKT 06.164 M8 FLANGE	5-09440-010-0	01	1	1506-	●	●
349	01.252 CAP; IDLE PULLEY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 00.724	8-97386-240-0	01	1	1506-	●	●
350	02.317 STUD; FAN BRKT 01.428 M8X18 L=30	0-41010-818-0	01	1	1506-	●	●

36 144 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) L=1121	8-98038-423-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1046	8-98003-187-0	01	1	1506-1508	●	●
36	01.066 BELT; COOLING FAN EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1046	8-98003-187-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1046	8-98003-187-0	01	1	1509-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) L=1006	8-97362-926-0	01	1	1506-	●	●
36	01.066 BELT; COOLING FAN EGR COOLER LH POSITION<KCC> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=1131	8-98031-667-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> L=1131	8-98031-667-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> L=1111	8-98206-590-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC> L=1111	8-98206-590-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> L=1036	8-98132-367-0	01	1	1506-1508			●
36	01.066 BELT; COOLING FAN EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> L=1036	8-98132-367-0	01	1	1509-			●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS	5-87610-101-0	01	1	1506-1508	●	●
36	01.066 BELT; COOLING FAN EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS	5-87610-101-0	01	1	1509-			●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) BEST VALUE PARTS	5-87610-101-0	01	1	1509-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) BEST VALUE PARTS	5-87610-100-0	01	1	1506-	●	●
36	01.066 BELT; COOLING FAN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) BEST VALUE PARTS	5-87610-102-0	01	1	1509-			●	●
144	01.060 TENSIONER; DRIVE BELT GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> 09.180 1-GROOVE	8-98031-811-1	01	1	1506-1508			●
144	01.060 TENSIONER; DRIVE BELT GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 09.180 1-GROOVE	8-98031-811-1	01	1	1509-			●	●
147	01.060 BOLT; BELT TENSIONER GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EGR COOLER LH POSITION<KCC> 03.417 M10X20 FLANGE	0-28151-020-0	02	1	1506-1508			●
147	01.060 BOLT; BELT TENSIONER GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO5B+ SPECIFICATION(NT5) 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1509-			●	●
147	01.060 BOLT; BELT TENSIONER EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) KD PREPARATORY PACK<6HF> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1509-			●	●
147	01.060 BOLT; BELT TENSIONER GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC>,KD PREPARATORY PACK<6HF> 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1509-			●
147	01.060 BOLT; BELT TENSIONER GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> 03.417 M10X20 FLANGE	0-28151-020-0	03	1	1506-1508			●
147	01.060 BOLT; BELT TENSIONER EGR COOLER LH POSITION<KCC> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) EXC. KD PREPARATORY PACK<6HF> 03.417 M10X20 FLANGE	0-28151-020-0	02	1	1509-			●
147	01.060 BOLT; BELT TENSIONER EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) KD PREPARATORY PACK<6HF> EXC. EGR COOLER LH POSITION<KCC> 03.417 M10X20 FLANGE	0-28151-020-0	02	1	1509-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
