Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#162302) — 192 parça

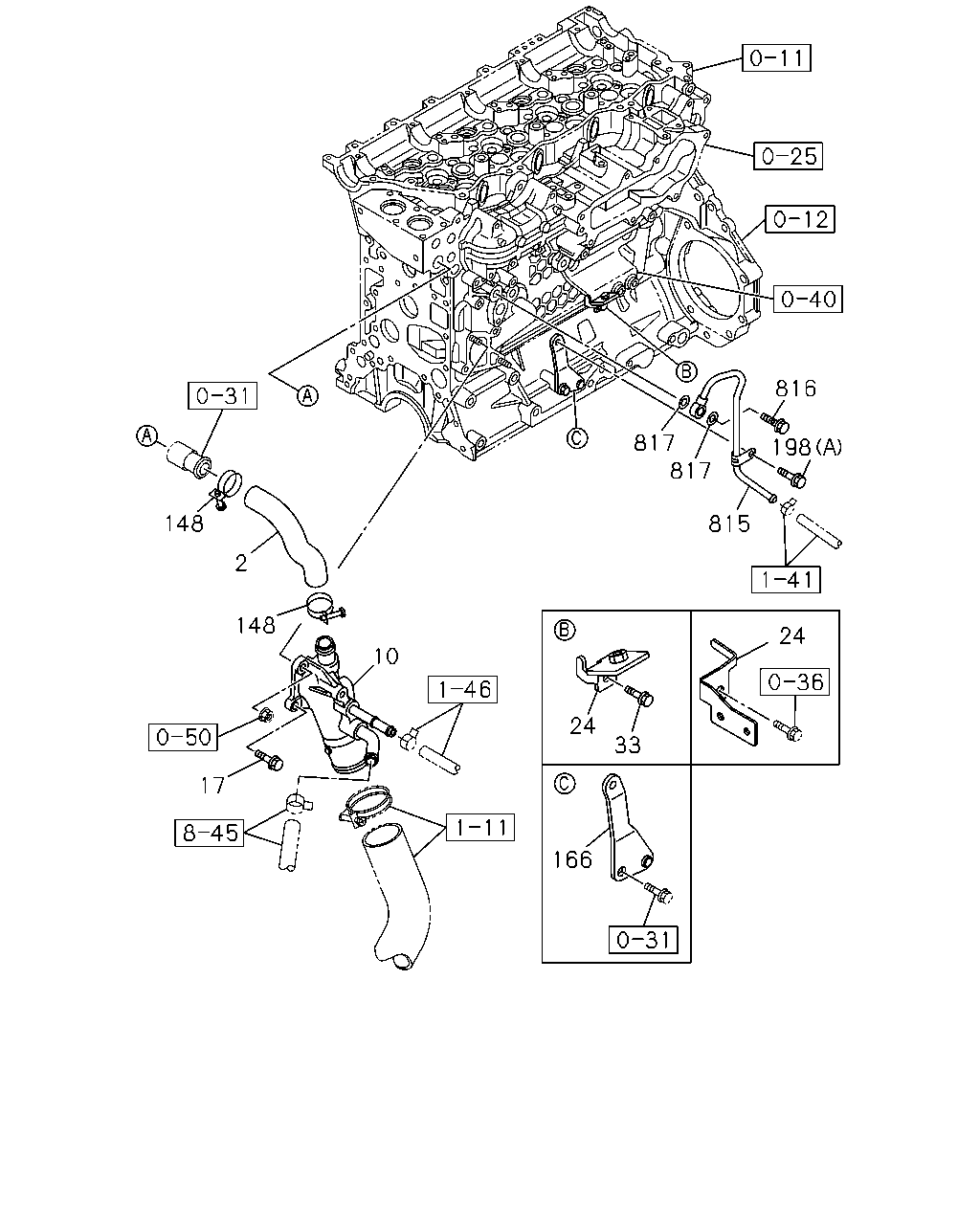

816 198 815 817 817 24 33 24 166 10 17 148 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.097 HOSE; WATER,BY-PASS EURO6 SPECIFICATION(NT6)	8-97379-228-1	01	1	1506-1508	●
2	01.097 HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1509-	●	●
10	01.153 PIPE; SUCTION EURO5B+ SPECIFICATION(NT5)	8-98166-991-0	01	1	1509-	●	●
10	01.153 PIPE; SUCTION EURO6 SPECIFICATION(NT6)	8-98200-775-2	01	1	1506-	●
17	01.153 BOLT; SUCTION PIPE EURO6 SPECIFICATION(NT6) 03.415 M8X48 FLANGE	8-94458-473-1	01	1	1506-1508	●
17	01.153 BOLT; SUCTION PIPE 03.415 M8X48 FLANGE	8-94458-473-1	01	1	1509-	●	●
24	01.166 BRACKET; WATER PIPE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98288-952-0	01	1	1509-	●
24	01.166 BRACKET; WATER PIPE EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98288-952-0	01	1	1509-		●
24	01.166 BRACKET; WATER PIPE EURO6 SPECIFICATION(NT6)	8-98209-357-1	01	1	1506-	●
33	01.166 BOLT; BRKT EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
148	01.097 CLIP; BYPASS HOSE EURO6 SPECIFICATION(NT6) 03.417 ID=30	9-09915-315-1	02	1	1506-1508	●
148	01.097 CLIP; BYPASS HOSE 03.417 ID=30	9-09915-315-1	02	1	1509-	●	●
166	01.166 BRACKET; CLIP EURO6 SPECIFICATION(NT6)	8-98226-851-1	01	1	1506-	●
198	01.242 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-			●	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-			●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
815	01.097 PIPE; WATER,DEF TANK FEED EURO6 SPECIFICATION(NT6)	8-98209-646-0	01	1	1506-			●
815	01.097 PIPE; WATER,DEF TANK FEED EURO6 SPECIFICATION(NT6)	8-98226-850-2	01	1	1506-	●
816	00.010 BOLT; EYE,DEF EURO6 SPECIFICATION(NT6) 04.866 M14X27 EYE-BOLT	1-09675-193-0	01	1	1506-	●
817	00.010 GASKET; DEF EURO6 SPECIFICATION(NT6) 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1506-	●

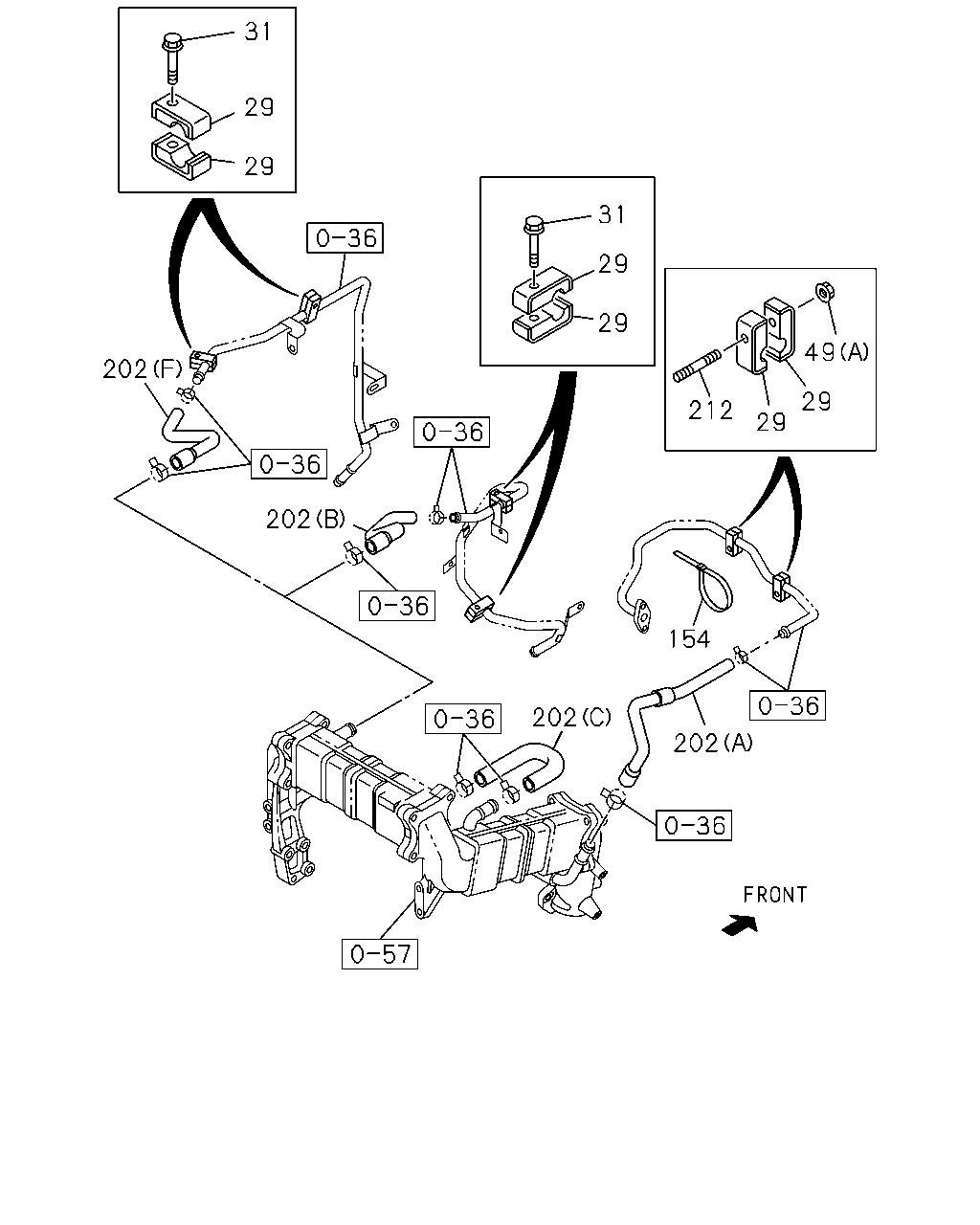

31 29 29 202 202 202 154 202 212 29 29 49 29 29 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	03	1	1509-			●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508			●	●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) 01.251	8-98120-917-0	01	1	1509-			●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	01	1	1509-				●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) ID=17 L=17	1-09701-284-0	08	1	1506-1508	●
29	01.166 CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	1509-	●	●
31	01.159 BOLT; CLIP EURO5B+ SPECIFICATION(NT5) 02.277 M8X40 FLANGE	0-28050-840-0	02	1	1509-	●	●
31	01.159 BOLT; CLIP EURO6 SPECIFICATION(NT6) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1506-	●
49	01.153 NUT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 01.540 (C) M6 FLANGE	0-91180-206-0	01	1	1509-			●
49	01.153 NUT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 03.613 (B) M8 FLANGE	8-97161-607-0	01	1	1509-			●
49	01.153 NUT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
49	01.153 NUT; WATER PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
154	01.153 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 02.559 L=170.3	1-09987-182-0	01	1	1506-1508	●
154	01.153 CLIP; WATER HOSE 02.559 L=170.3	1-09987-182-0	01	1	1509-	●	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98208-201-1	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98208-201-1	01	1	1509-		●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98028-170-0	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98028-170-0	01	1	1509-		●
202	01.240 HOSE; RUBBER,EGR COOLER EGR COOLER LH POSITION<KCC> (E)	8-98186-581-0	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (E)	8-98186-581-0	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EGR COOLER LH POSITION<KCC> (D)	8-98259-166-1	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (D)	8-98259-166-1	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO6 SPECIFICATION(NT6) (A)	8-98028-169-2	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER (A)	8-98028-169-2	01	1	1509-	●	●
202	01.240 HOSE; RUBBER,EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (C)	8-98028-171-0	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (C)	8-98028-171-0	01	1	1509-	●	●
202	01.240 HOSE; RUBBER,EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98291-073-0	01	1	1506-	●
212	01.153 STUD; PIPE EURO5B+ SPECIFICATION(NT5) 03.601 M8X25 L=36	8-97378-062-0	01	1	1509-			●
212	01.153 STUD; PIPE EURO6 SPECIFICATION(NT6) 00.413 M8X45 L=55	8-94217-227-0	02	1	1506-1508	●
212	01.153 STUD; PIPE 00.413 M8X45 L=55	8-94217-227-0	02	1	1509-	●	●

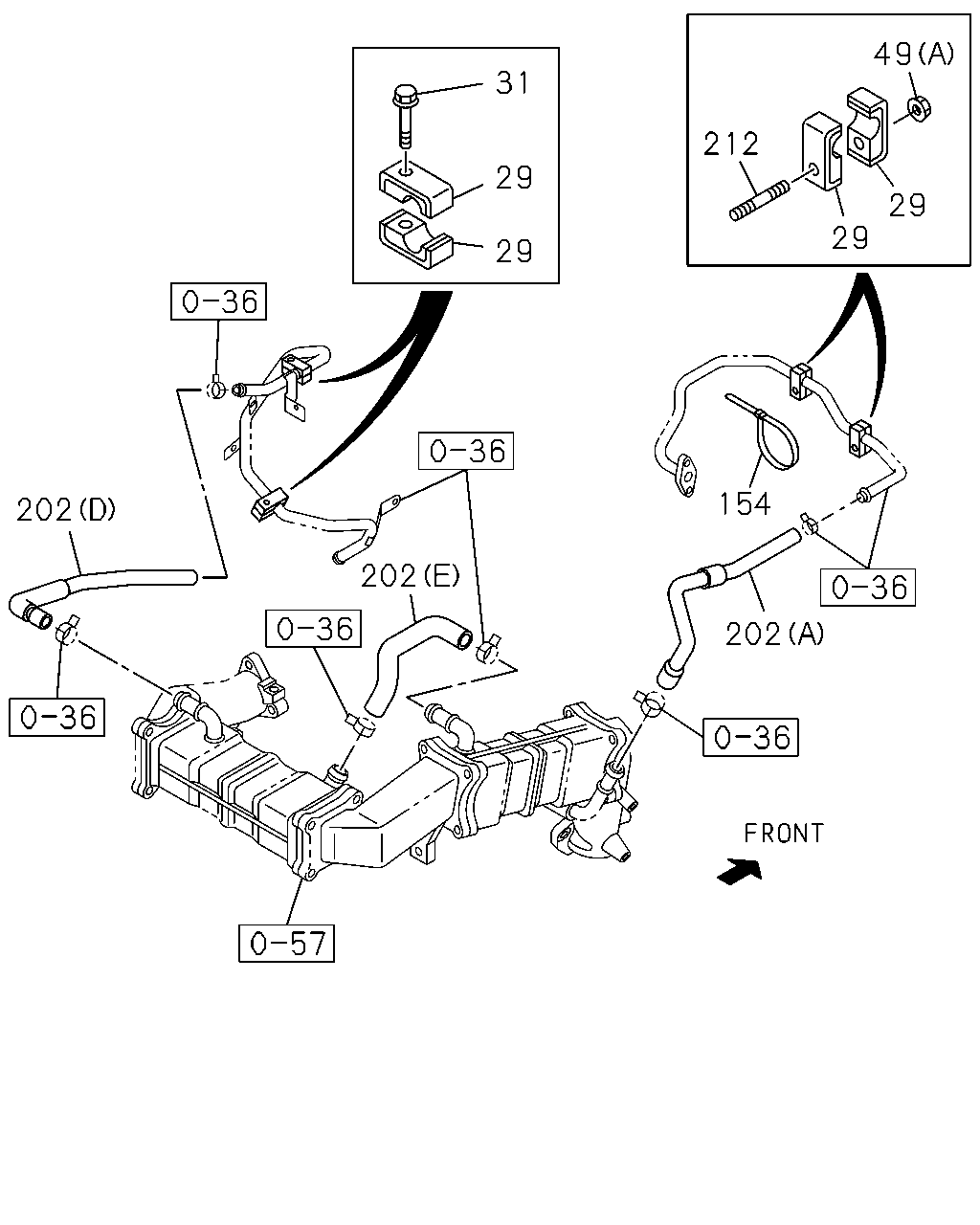

31 29 29 212 29 29 49 154 202 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	03	1	1509-			●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508			●	●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) 01.251	8-98120-917-0	01	1	1509-			●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	01	1	1509-				●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) ID=17 L=17	1-09701-284-0	08	1	1506-1508	●
29	01.166 CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	1509-	●	●
31	01.159 BOLT; CLIP EURO5B+ SPECIFICATION(NT5) 02.277 M8X40 FLANGE	0-28050-840-0	02	1	1509-	●	●
31	01.159 BOLT; CLIP EURO6 SPECIFICATION(NT6) 09.173 M8X45 FLANGE	0-28050-845-0	02	1	1506-	●
49	01.153 NUT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 01.540 (C) M6 FLANGE	0-91180-206-0	01	1	1509-			●
49	01.153 NUT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 03.613 (B) M8 FLANGE	8-97161-607-0	01	1	1509-			●
49	01.153 NUT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
49	01.153 NUT; WATER PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
154	01.153 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) 02.559 L=170.3	1-09987-182-0	01	1	1506-1508	●
154	01.153 CLIP; WATER HOSE 02.559 L=170.3	1-09987-182-0	01	1	1509-	●	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B)	8-98208-201-1	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98208-201-1	01	1	1509-		●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (F)	8-98028-170-0	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (F)	8-98028-170-0	01	1	1509-		●
202	01.240 HOSE; RUBBER,EGR COOLER EGR COOLER LH POSITION<KCC> (E)	8-98186-581-0	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (E)	8-98186-581-0	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EGR COOLER LH POSITION<KCC> (D)	8-98259-166-1	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (D)	8-98259-166-1	01	1	1509-	●
202	01.240 HOSE; RUBBER,EGR COOLER EURO6 SPECIFICATION(NT6) (A)	8-98028-169-2	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER (A)	8-98028-169-2	01	1	1509-	●	●
202	01.240 HOSE; RUBBER,EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (C)	8-98028-171-0	01	1	1506-1508	●
202	01.240 HOSE; RUBBER,EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (C)	8-98028-171-0	01	1	1509-	●	●
202	01.240 HOSE; RUBBER,EGR COOLER EXC. EGR COOLER LH POSITION<KCC> (B)	8-98291-073-0	01	1	1506-	●
212	01.153 STUD; PIPE EURO5B+ SPECIFICATION(NT5) 03.601 M8X25 L=36	8-97378-062-0	01	1	1509-			●
212	01.153 STUD; PIPE EURO6 SPECIFICATION(NT6) 00.413 M8X45 L=55	8-94217-227-0	02	1	1506-1508	●
212	01.153 STUD; PIPE 00.413 M8X45 L=55	8-94217-227-0	02	1	1509-	●	●

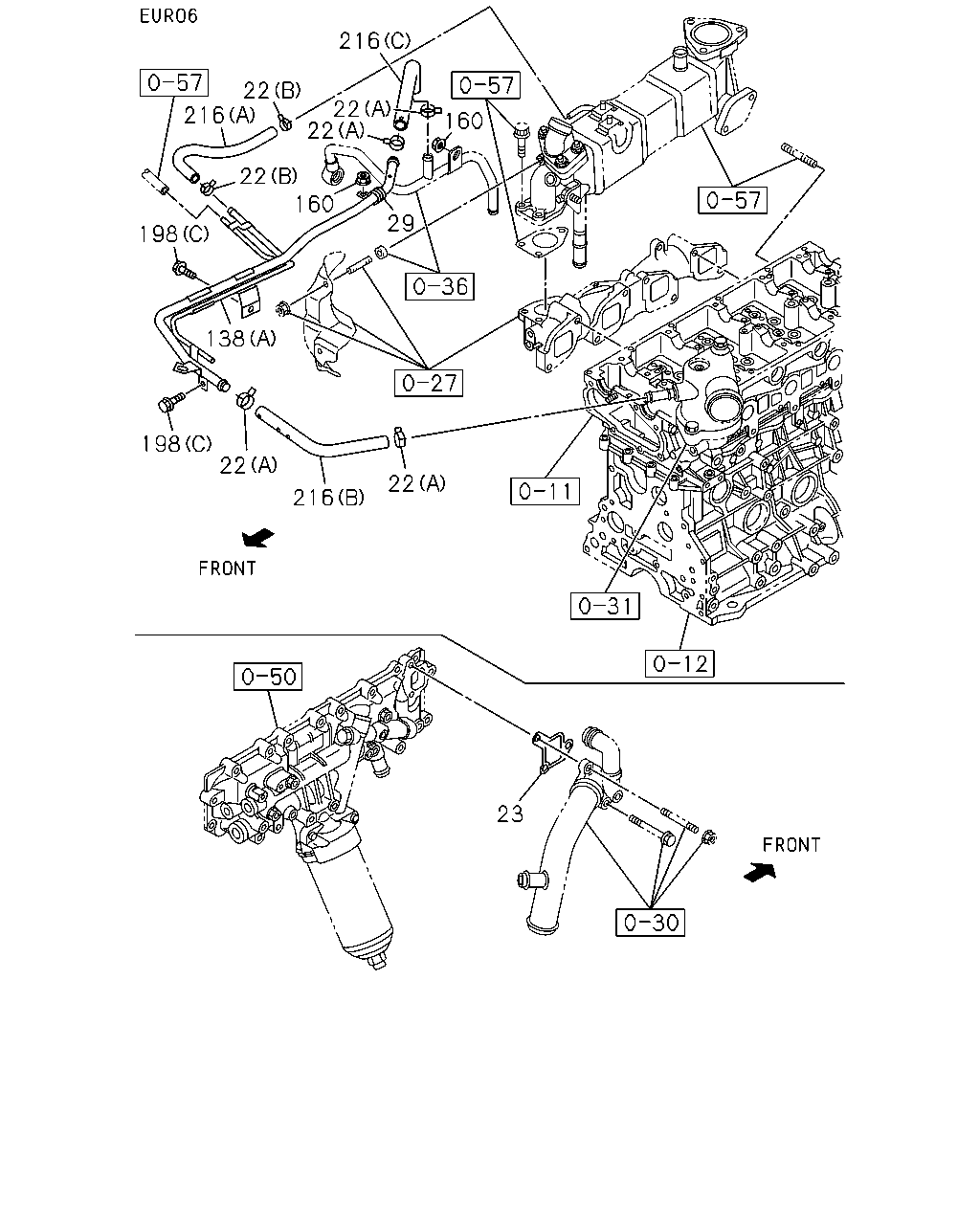

216 22 22 160 22 22 216 198 138 198 216 22 22 29 160 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1509-			●	●
22	01.153 CLIP; WATER HOSE (C) ID=11.5	8-97375-638-0	02	1	1506-				●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	04	1	1506-1508			●	●
22	01.153 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (A) ID=12.8	8-94367-943-0	04	1	1509-			●
22	01.153 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (A) ID=12.8	8-94367-943-0	04	1	1509-				●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1506-1508			●	●
22	01.153 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (A) ID=12.8	8-94367-943-0	02	1	1509-			●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1506-			●	●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	03	1	1509-			●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508			●	●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) 01.251	8-98120-917-0	01	1	1509-			●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	01	1	1509-				●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) ID=17 L=17	1-09701-284-0	08	1	1506-1508	●
29	01.166 CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	1509-	●	●
138	01.251 PIPE; WATER (A)	8-98201-792-0	01	1	1506-1506			●	●
138	01.251 PIPE; WATER (A)	8-98317-078-0	01	1	1507-1508			●	●
138	01.251 PIPE; WATER EURO6 SPECIFICATION(NT6) (A)	8-98317-078-0	01	1	1509-			●
138	01.251 PIPE; WATER EURO5B+ SPECIFICATION(NT5) (A)	8-98317-078-0	01	1	1509-				●
138	01.251 PIPE; WATER EURO5B+ SPECIFICATION(NT5) (A)	8-98131-462-4	01	1	1509-			●
138	01.251 PIPE; WATER (B)	8-98239-417-2	01	1	1506-				●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508			●	●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508			●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-			●	●
160	01.153 NUT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-			●
198	01.242 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-			●	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-			●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
216	01.240 HOSE; WATER 03.342 (D)	8-98075-182-1	01	1	1506-				●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1506-			●	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1506-			●	●
216	01.240 HOSE; WATER EURO6 SPECIFICATION(NT6) (C)	8-98117-662-1	01	1	1506-			●

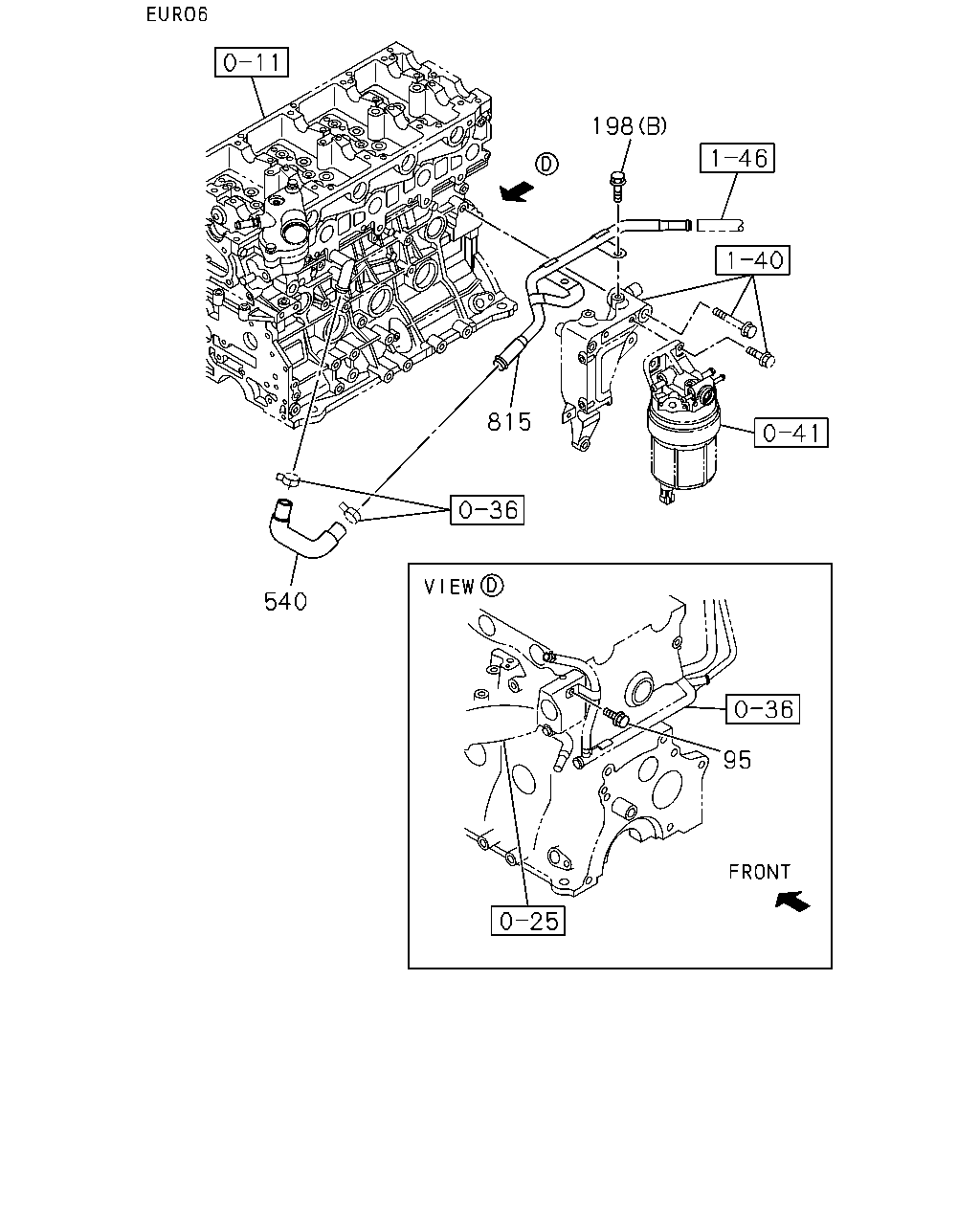

198 815 540 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
95	01.240 BOLT; CLIP EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1506-		●
198	01.242 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-		●	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-		●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
540	01.240 HOSE; WATER,DEF TANK FEED EURO6 SPECIFICATION(NT6)	8-98209-645-2	01	1	1506-		●
815	01.097 PIPE; WATER,DEF TANK FEED EURO6 SPECIFICATION(NT6)	8-98209-646-0	01	1	1506-		●
815	01.097 PIPE; WATER,DEF TANK FEED EURO6 SPECIFICATION(NT6)	8-98226-850-2	01	1	1506-	●

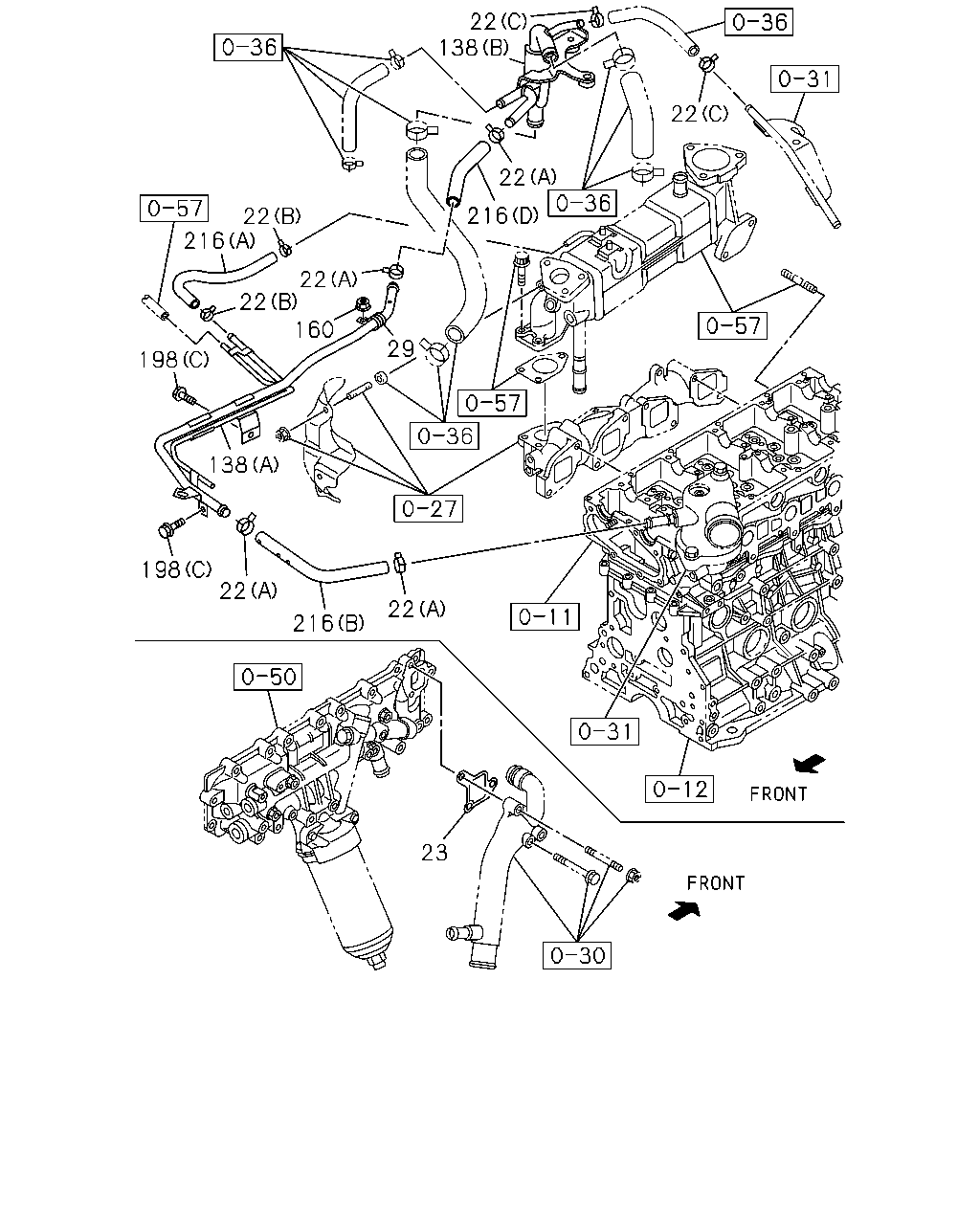

198 29 29 49 22 22 216 138 49 198 160 29 22 216 22 212 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1509-			●	●
22	01.153 CLIP; WATER HOSE (C) ID=11.5	8-97375-638-0	02	1	1506-				●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	04	1	1506-1508			●	●
22	01.153 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (A) ID=12.8	8-94367-943-0	04	1	1509-			●
22	01.153 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (A) ID=12.8	8-94367-943-0	04	1	1509-				●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1506-1508			●	●
22	01.153 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (A) ID=12.8	8-94367-943-0	02	1	1509-			●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1506-			●	●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	03	1	1509-			●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508			●	●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) 01.251	8-98120-917-0	01	1	1509-			●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	01	1	1509-				●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) ID=17 L=17	1-09701-284-0	08	1	1506-1508	●
29	01.166 CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	1509-	●	●
49	01.153 NUT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 01.540 (C) M6 FLANGE	0-91180-206-0	01	1	1509-			●
49	01.153 NUT; WATER PIPE EURO5B+ SPECIFICATION(NT5) 03.613 (B) M8 FLANGE	8-97161-607-0	01	1	1509-			●
49	01.153 NUT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
49	01.153 NUT; WATER PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
138	01.251 PIPE; WATER (A)	8-98201-792-0	01	1	1506-1506			●	●
138	01.251 PIPE; WATER (A)	8-98317-078-0	01	1	1507-1508			●	●
138	01.251 PIPE; WATER EURO6 SPECIFICATION(NT6) (A)	8-98317-078-0	01	1	1509-			●
138	01.251 PIPE; WATER EURO5B+ SPECIFICATION(NT5) (A)	8-98317-078-0	01	1	1509-				●
138	01.251 PIPE; WATER EURO5B+ SPECIFICATION(NT5) (A)	8-98131-462-4	01	1	1509-			●
138	01.251 PIPE; WATER (B)	8-98239-417-2	01	1	1506-				●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508			●	●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508			●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-			●	●
160	01.153 NUT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-			●
198	01.242 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-			●	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-			●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
212	01.153 STUD; PIPE EURO5B+ SPECIFICATION(NT5) 03.601 M8X25 L=36	8-97378-062-0	01	1	1509-			●
212	01.153 STUD; PIPE EURO6 SPECIFICATION(NT6) 00.413 M8X45 L=55	8-94217-227-0	02	1	1506-1508	●
212	01.153 STUD; PIPE 00.413 M8X45 L=55	8-94217-227-0	02	1	1509-	●	●
216	01.240 HOSE; WATER 03.342 (D)	8-98075-182-1	01	1	1506-				●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1506-			●	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1506-			●	●
216	01.240 HOSE; WATER EURO6 SPECIFICATION(NT6) (C)	8-98117-662-1	01	1	1506-			●

22 138 22 216 22 22 22 22 29 160 216 198 138 22 198 216 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1509-			●	●
22	01.153 CLIP; WATER HOSE (C) ID=11.5	8-97375-638-0	02	1	1506-				●
22	01.153 CLIP; WATER HOSE (A) ID=12.8	8-94367-943-0	04	1	1506-1508			●	●
22	01.153 CLIP; WATER HOSE EURO6 SPECIFICATION(NT6) (A) ID=12.8	8-94367-943-0	04	1	1509-			●
22	01.153 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (A) ID=12.8	8-94367-943-0	04	1	1509-				●
22	01.153 CLIP; WATER HOSE (B) ID=11	8-97375-639-0	02	1	1506-1508			●	●
22	01.153 CLIP; WATER HOSE EURO5B+ SPECIFICATION(NT5) (A) ID=12.8	8-94367-943-0	02	1	1509-			●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-98075-127-0	01	1	1506-			●	●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	03	1	1509-			●
29	01.166 CLIP; PIPE 01.251	8-98120-917-0	01	1	1506-1508			●	●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) 01.251	8-98120-917-0	01	1	1509-			●
29	01.166 CLIP; PIPE EURO5B+ SPECIFICATION(NT5) 01.251	8-98120-917-0	01	1	1509-				●
29	01.166 CLIP; PIPE EURO6 SPECIFICATION(NT6) ID=17 L=17	1-09701-284-0	08	1	1506-1508	●
29	01.166 CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	1509-	●	●
138	01.251 PIPE; WATER (A)	8-98201-792-0	01	1	1506-1506			●	●
138	01.251 PIPE; WATER (A)	8-98317-078-0	01	1	1507-1508			●	●
138	01.251 PIPE; WATER EURO6 SPECIFICATION(NT6) (A)	8-98317-078-0	01	1	1509-			●
138	01.251 PIPE; WATER EURO5B+ SPECIFICATION(NT5) (A)	8-98317-078-0	01	1	1509-				●
138	01.251 PIPE; WATER EURO5B+ SPECIFICATION(NT5) (A)	8-98131-462-4	01	1	1509-			●
138	01.251 PIPE; WATER (B)	8-98239-417-2	01	1	1506-				●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508			●	●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1506-1508			●
160	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-			●	●
160	01.153 NUT; WATER PIPE EURO6 SPECIFICATION(NT6) 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-			●
198	01.242 BOLT; PIPE 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-			●	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-			●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-	●
198	01.242 BOLT; PIPE EURO6 SPECIFICATION(NT6) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●
216	01.240 HOSE; WATER 03.342 (D)	8-98075-182-1	01	1	1506-				●
216	01.240 HOSE; WATER (A)	8-98074-982-0	01	1	1506-			●	●
216	01.240 HOSE; WATER 03.342 (B)	8-98113-336-0	01	1	1506-			●	●
216	01.240 HOSE; WATER EURO6 SPECIFICATION(NT6) (C)	8-98117-662-1	01	1	1506-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
