◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶

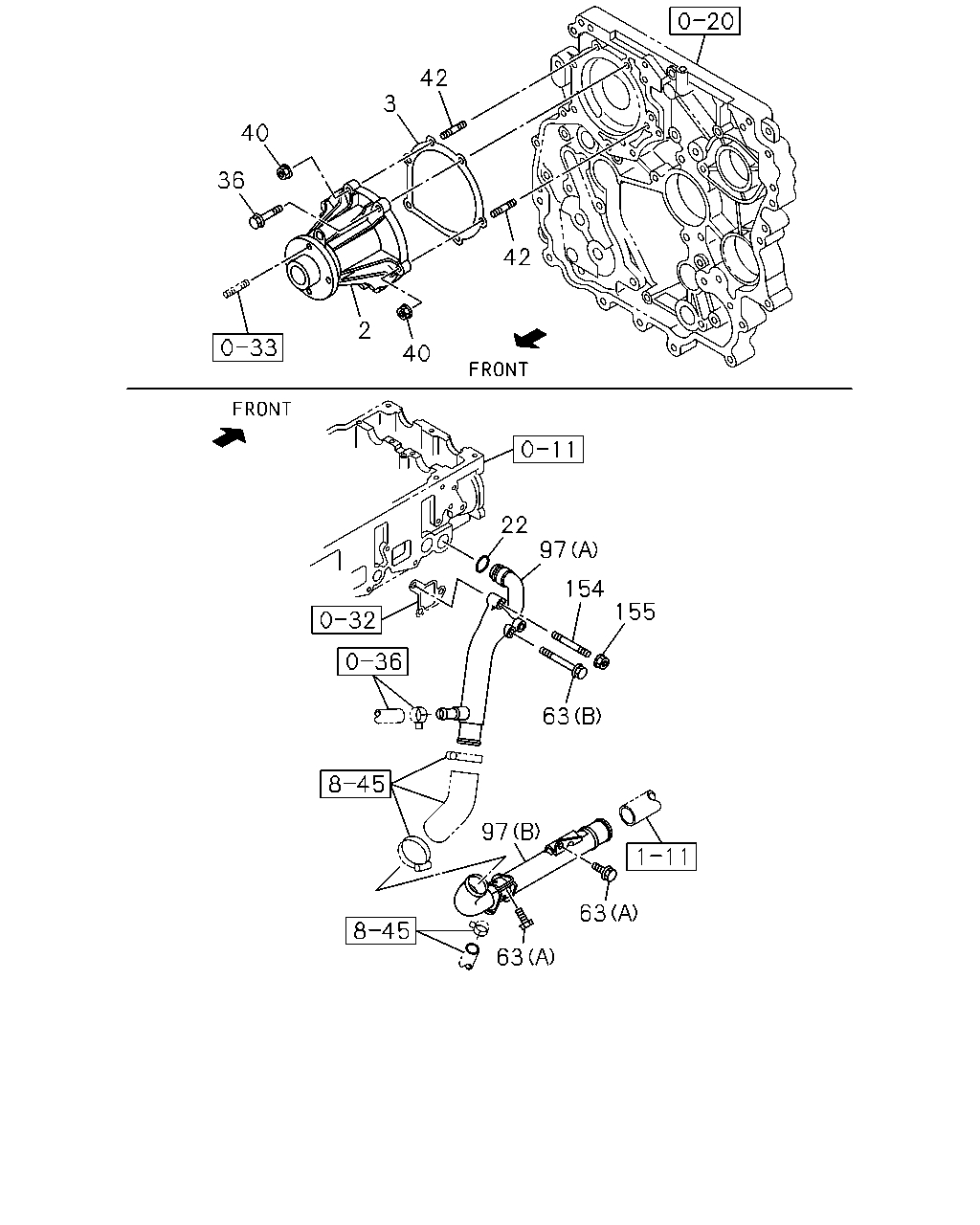

0-30 — WATER PUMP AND CORROSION RESISTOR (#162300) — 47 parça

40 2 36 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98078-831-2	01	1	1509-	●	●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5)	8-98004-292-3	01	1	1509-			●
2	01.069 PUMP ASM; WATER	8-98212-068-2	01	1	1506-1508			●	●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6)	8-98212-068-2	01	1	1509-			●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5)	8-98212-068-2	01	1	1509-				●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6)	8-97363-478-0	01	1	1506-1508		●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6)	8-97363-478-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-97363-478-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12)	8-97363-478-0	01	1	1509-	●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6) BEST VALUE PARTS	5-87610-089-0	01	1	1506-1508		●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6) BEST VALUE PARTS	5-87610-089-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) BEST VALUE PARTS	5-87610-089-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) BEST VALUE PARTS	5-87610-089-0	01	1	1509-	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 M8X60 FLANGE	0-28050-860-0	04	1	1506-			●	●
36	00.386 BOLT; WATER PUMP TO C/BL EURO6 SPECIFICATION(NT6) 00.685 M8X40 FLANGE	0-28650-840-0	06	1	1506-1508		●
36	00.386 BOLT; WATER PUMP TO C/BL 00.685 M8X40 FLANGE	0-28650-840-0	06	1	1509-	●	●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-			●	●
40	07.874 NUT; WATER PUMP EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●

42 42 40 2 3 36 40 22 154 155 97 63 97 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98078-831-2	01	1	1509-	●	●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5)	8-98004-292-3	01	1	1509-			●
2	01.069 PUMP ASM; WATER	8-98212-068-2	01	1	1506-1508			●	●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6)	8-98212-068-2	01	1	1509-			●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5)	8-98212-068-2	01	1	1509-				●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6)	8-97363-478-0	01	1	1506-1508		●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6)	8-97363-478-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-97363-478-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12)	8-97363-478-0	01	1	1509-	●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6) BEST VALUE PARTS	5-87610-089-0	01	1	1506-1508		●
2	01.069 PUMP ASM; WATER EURO6 SPECIFICATION(NT6) BEST VALUE PARTS	5-87610-089-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) BEST VALUE PARTS	5-87610-089-0	01	1	1509-		●
2	01.069 PUMP ASM; WATER EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) BEST VALUE PARTS	5-87610-089-0	01	1	1509-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-156-0	01	1	1506-			●	●
22	01.079 GASKET 01.159	0-95690-226-0	01	1	1506-			●	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 M8X60 FLANGE	0-28050-860-0	04	1	1506-			●	●
36	00.386 BOLT; WATER PUMP TO C/BL EURO6 SPECIFICATION(NT6) 00.685 M8X40 FLANGE	0-28650-840-0	06	1	1506-1508		●
36	00.386 BOLT; WATER PUMP TO C/BL 00.685 M8X40 FLANGE	0-28650-840-0	06	1	1509-	●	●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-			●	●
40	07.874 NUT; WATER PUMP EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
42	01.073 STUD; WATER PUMP M8X28 L=40	0-41010-828-0	02	1	1506-			●	●
63	01.073 BOLT; INL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-			●	●
63	01.073 BOLT; INL PIPE 00.206 (B) M8X70 FLANGE	0-28050-870-0	01	1	1506-			●	●
97	01.097 PIPE; WATER (B)	8-98152-996-2	01	1	1506-			●	●
97	01.097 PIPE; WATER (A)	8-98237-773-1	01	1	1506-			●	●
154	01.097 STUD; PIPE 01.780 M8X35 L=47	0-41010-835-0	02	1	1506-			●	●
155	01.097 NUT; PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
