11209 - LV434(RHD) EURO3/5
▶
2 - Clutch, Transmission, Trans Axle
▶

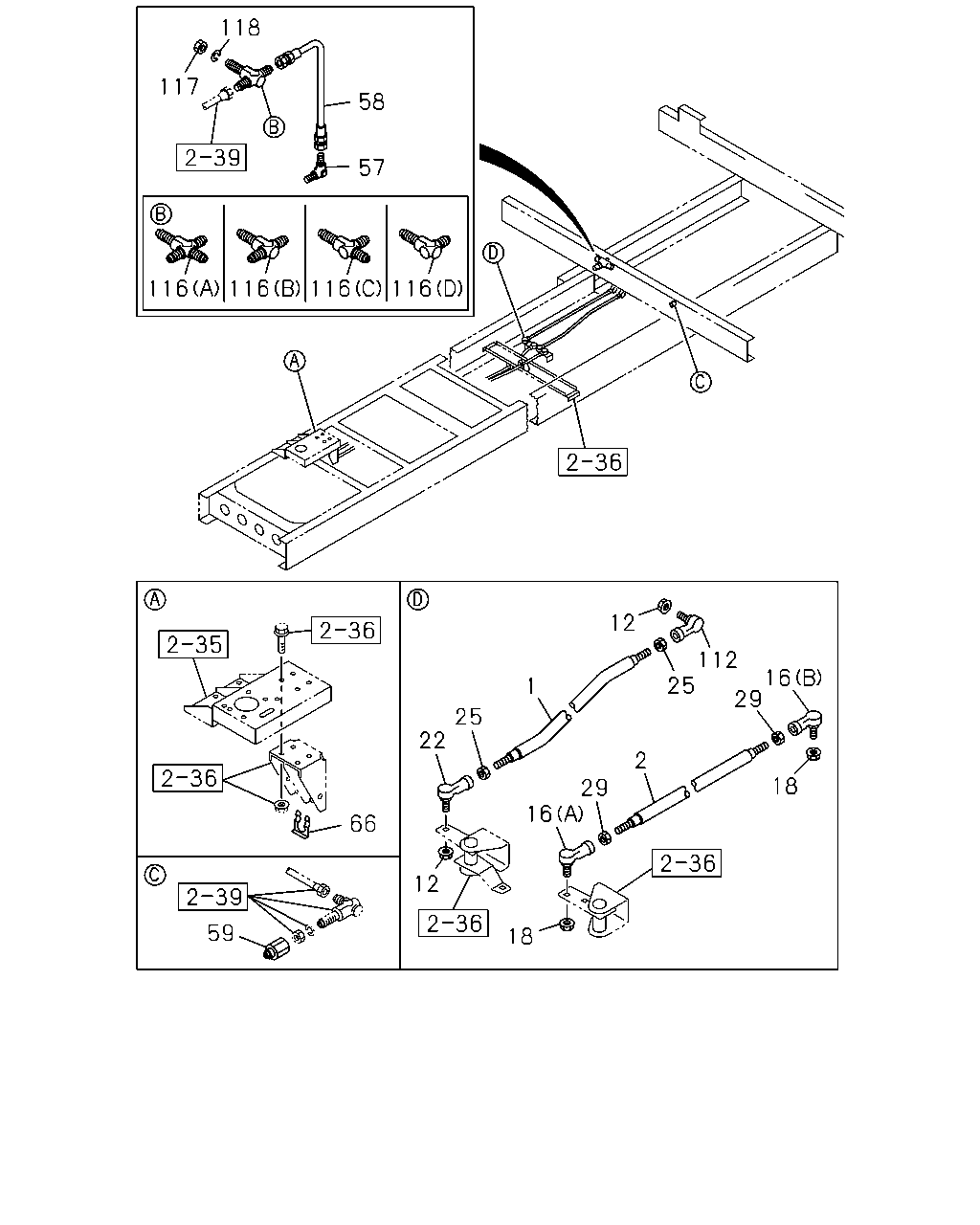

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#16230) — 24 parça
118
117
58
57
116
116
116
116
12
112
25
16
29
1
25
22
2
18
29
16
66
12
59
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ROD; LINK,1ST SHIFT
L=894
1-33672-018-0
01
1
0907-
2
ROD; LINK,1ST SELECT
1-33672-019-0
01
1
0907-
12
NUT; 1ST LINK ROD,SHIFT
M10 FLANGE
1-09440-061-0
02
1
0907-
16
JOINT ASM; BALL,CONT ROD
(A) LH THREAD
1-09760-058-0
01
1
0907-1008
16
JOINT ASM; BALL,CONT ROD
(A) LH THREAD
8-98095-878-0
01
1
1009-
16
JOINT ASM; BALL,CONT ROD
(B)
1-09760-108-0
01
1
0907-
18
NUT; 1ST LINK ROD
M8 FLANGE
1-09440-062-1
02
1
0907-
22
JOINT; BALL,SCREW,LINK ROD
1-09760-125-0
01
1
0907-
25
NUT; LK,RIGHT SCREW,LINK ROD
M12
0-91111-512-0
02
1
0907-
29
NUT; LK,RIGHT SCREW,LINK ROD
M8 RH THREAD
0-91111-508-0
01
1
0907-
29
NUT; LK,RIGHT SCREW,LINK ROD
M8 LH THREAD
1-09400-002-0
01
1
0907-
57
NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0907-
58
HOSE; FLEX,POWER ASSISTOR
L=300
1-09363-611-0
01
1
0907-
59
CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0907-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
01
1
0907-
112
JOINT; RUBBER
1-33670-413-1
01
1
0907-
116
UNION; AIR PIPE
EURO3 SPECIFICATION(NT3) BRAKE SYSTEM RETARDER<RE2> (C) M12 3WAY
0-92138-906-0
01
1
0910-
116
UNION; AIR PIPE
EURO3 SPECIFICATION(NT3) EXC. BRAKE SYSTEM RETARDER<RE2> (D) M12 ELBOW
0-92125-206-0
01
1
0910-
116
UNION; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> (A)
0-92149-206-0
01
1
0907-0909
116
UNION; AIR PIPE
EURO5 SPECIFICATION(NT5) BRAKE SYSTEM RETARDER<RE2> (A)
0-92149-206-0
01
1
0910-
116
UNION; AIR PIPE
EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12 3WAY
0-92138-606-0
01
1
0907-0909
116
UNION; AIR PIPE
EURO5 SPECIFICATION(NT5) EXC. BRAKE SYSTEM RETARDER<RE2> (B) M12 3WAY
0-92138-606-0
01
1
0910-
117
NUT; UNION,AIR PIPE
M12
9-09840-280-0
01
1
0907-
118
WASHER; LK,UNION
ID=12.2
0-91510-512-0
01
1
0907-
