Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#1623) — 324 parça

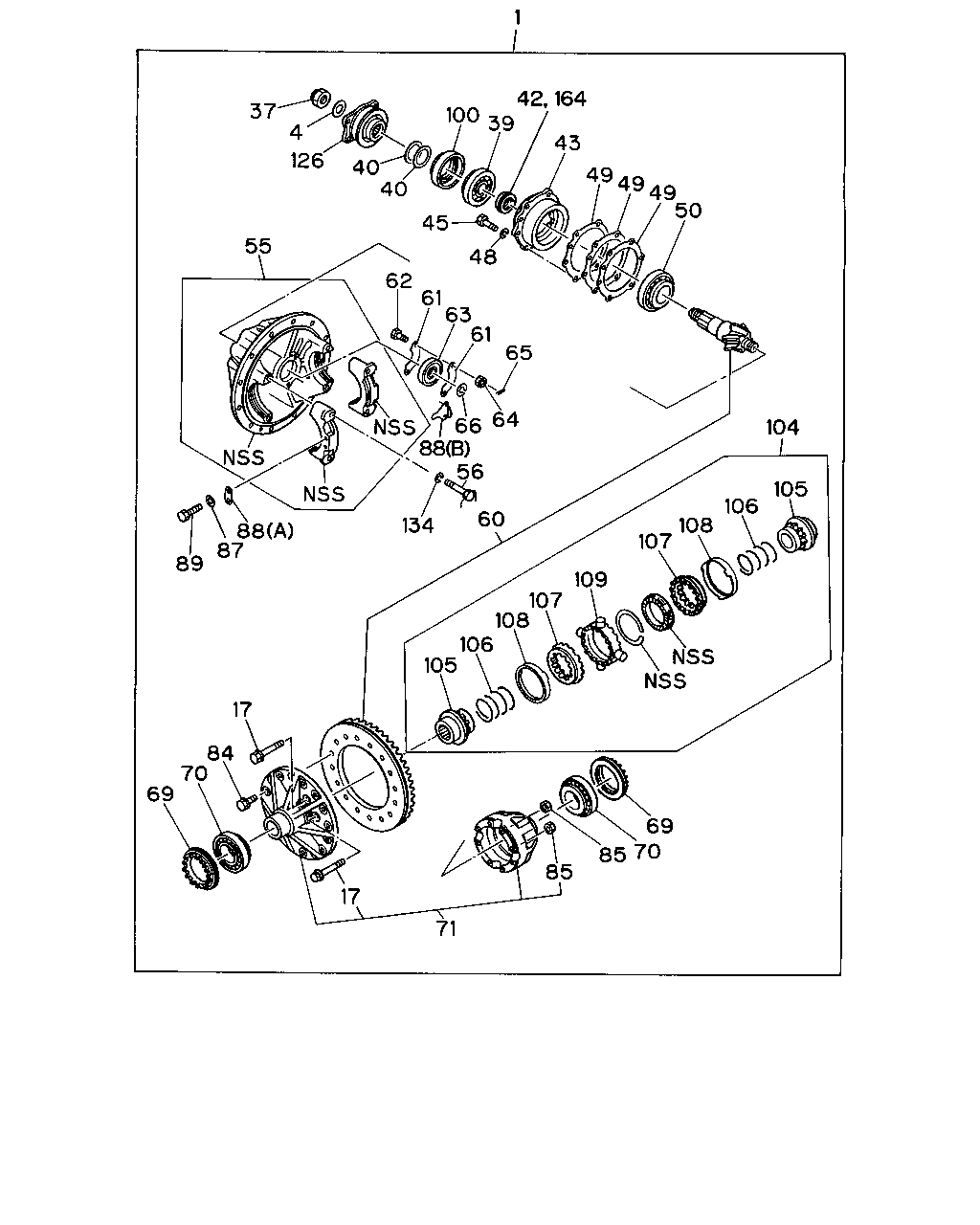

1 164 42 39 100 37 4 126 40 40 45 48 43 49 49 49 50 104 106 105 108 107 109 107 108 106 105 60 134 56 88 66 64 65 61 63 61 62 55 88 87 89 17 84 70 69 17 71 85 85 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/7	1-41000-922-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/7	1-41000-620-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 41/8	1-41001-378-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 41/8	1-41001-682-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> LIMITED SLIP DIFF<G86> 39/6	1-41001-340-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. LIMITED SLIP DIFF<G86> 39/6	1-41001-311-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, LIMITED SLIP DIFF<G86> 39/6	1-41000-602-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 39/6	1-41000-789-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> LIMITED SLIP DIFF<G86> 39/7	1-41001-338-0	01	1	9207-				●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. LIMITED SLIP DIFF<G86> 39/7	1-41001-276-0	01	1	9207-				●
1	DRIVE ASM; FINAL,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, LIMITED SLIP DIFF<G86> 39/7	1-41000-605-0	01	1	9207-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 39/7	1-41000-792-0	01	1	9207-				●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9207-	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9207-			●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9207-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9207-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9207-			●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9207-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9207-			●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9207-	●	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9207-			●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-020-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.51	1-41229-021-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.52	1-41229-022-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.53	1-41229-023-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.54	1-41229-024-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.55	1-41229-025-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.56	1-41229-026-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.57	1-41229-027-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.58	1-41229-028-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.59	1-41229-029-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.60	1-41229-030-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-053-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-054-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-055-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-056-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-057-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9405-			●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9207-	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9207-			●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9207-	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9207-			●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9207-	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9207-			●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9207-	●	●	●	●
55	CARRIER; DIFF	1-41110-048-0	01	1	9207-	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9207-			●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9207-	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9207-			●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9207-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	9207-		●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9207-			●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9207-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9207-	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9207-	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9207-			●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9207-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-074-1	01	1	9207-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9207-9509			●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	9510-			●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9207-9509			●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-			●	●
64	NUT; RET M8	9-09117-408-0	02	1	9207-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9207-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9207-	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9207-			●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9207-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9207-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9207-			●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9207-			●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9207-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9207-	●	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9207-			●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9207-			●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9207-			●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9207-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9207-			●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9207-	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9207-			●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9207-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9207-			●	●
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	9207-			●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9207-	●	●
88	PLATE; LK,ADJ NUT (A)	9-41124-005-0	02	1	9207-	●	●	●	●
88	PLATE; LK,ADJ NUT (B)	1-41124-002-0	02	1	9207-			●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9207-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9207-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9207-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9207-			●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF<G86>	1-41530-020-1	01	1	9207-	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF<G86>	1-41530-025-0	01	1	9207-		●
104	DIFF ASM; NO SPIN BRK LINING MATERIAL L709 NON ASBESTOS<BBY> LIMITED SLIP DIFF<G86>	1-41530-032-0	01	1	9207-			●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF<G86> EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-41530-033-0	01	1	9207-			●	●
105	GEAR; SIDE LIMITED SLIP DIFF<G86>	1-41539-019-1	02	1	9207-	●
105	GEAR; SIDE LIMITED SLIP DIFF<G86>	1-41539-018-0	02	1	9207-		●
105	GEAR; SIDE BRK LINING MATERIAL L709 NON ASBESTOS<BBY> LIMITED SLIP DIFF<G86>	1-41561-083-0	02	1	9207-			●	●
105	GEAR; SIDE LIMITED SLIP DIFF<G86> EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>	1-41561-044-0	02	1	9207-			●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF<G86>	1-41539-006-0	02	1	9207-	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF<G86>	1-09580-314-0	02	1	9207-			●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF<G86>	1-41539-003-0	02	1	9207-	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF<G86>	1-41532-003-0	02	1	9207-			●	●
108	RING; HOLD OUT LIMITED SLIP DIFF<G86>	1-41539-004-0	02	1	9207-	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF<G86>	1-41539-032-0	02	1	9207-			●	●
109	SPIDER; DIFF LIMITED SLIP DIFF<G86>	1-41539-014-0	01	1	9207-	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF<G86>	1-41521-034-0	01	1	9207-			●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9207-	●	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9207-			●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9207-	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9207-			●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9207-	●	●

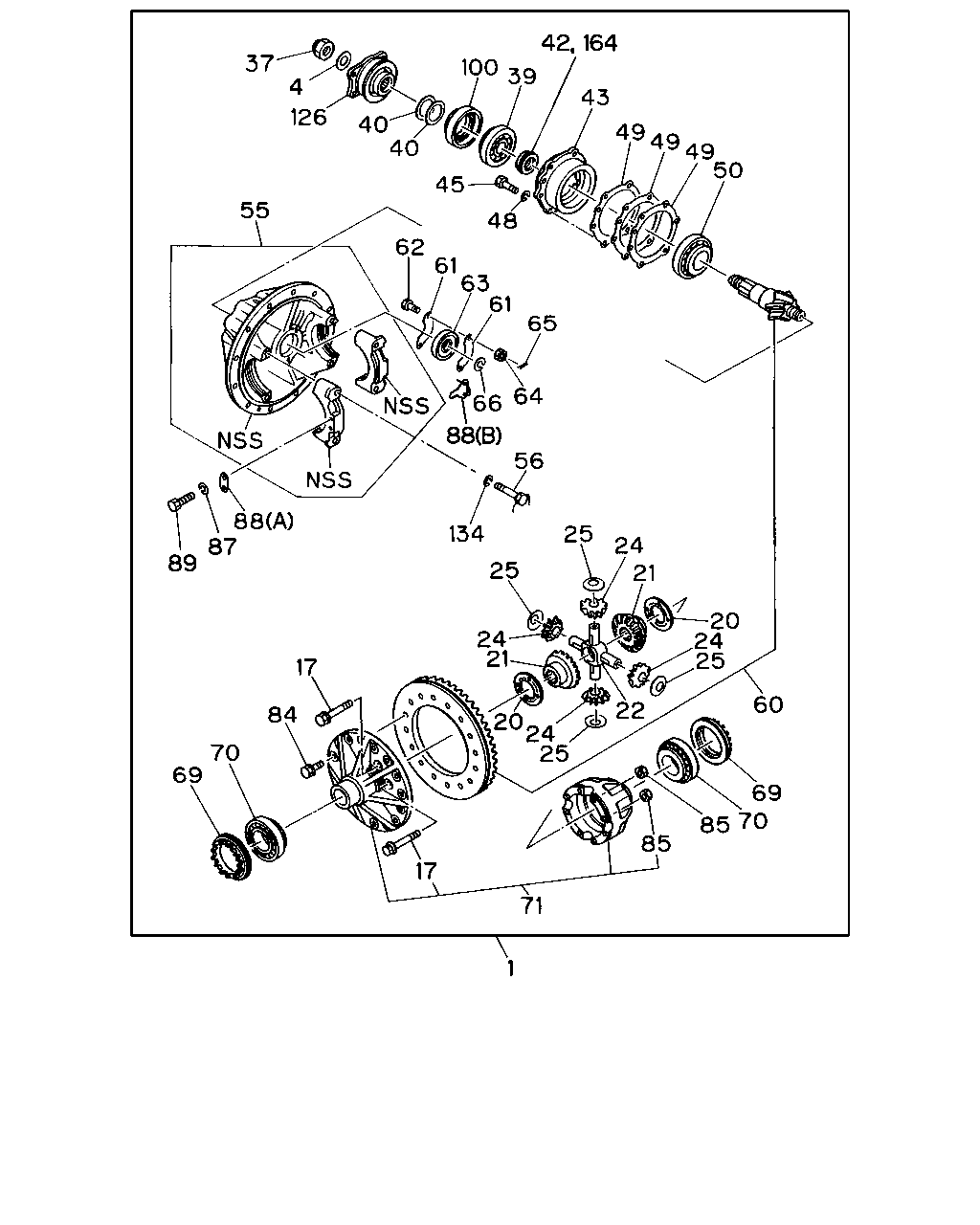

37 4 126 40 100 39 42 164 40 45 43 48 49 49 49 50 65 61 63 61 62 55 66 64 88 88 87 89 134 56 25 24 21 25 24 21 20 24 25 60 22 25 24 20 69 70 85 85 71 1 17 17 84 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 39/7	1-41000-922-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 39/7	1-41000-620-0	01	1	9207-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> 41/8	1-41001-378-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<G86> 41/8	1-41001-682-0	01	1	9207-		●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> LIMITED SLIP DIFF<G86> 39/6	1-41001-340-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. LIMITED SLIP DIFF<G86> 39/6	1-41001-311-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, LIMITED SLIP DIFF<G86> 39/6	1-41000-602-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 39/6	1-41000-789-0	01	1	9207-			●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> LIMITED SLIP DIFF<G86> 39/7	1-41001-338-0	01	1	9207-				●
1	DRIVE ASM; FINAL,RR BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. LIMITED SLIP DIFF<G86> 39/7	1-41001-276-0	01	1	9207-				●
1	DRIVE ASM; FINAL,RR EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, LIMITED SLIP DIFF<G86> 39/7	1-41000-605-0	01	1	9207-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<G86> EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 39/7	1-41000-792-0	01	1	9207-				●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	9207-	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9207-			●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	04	1	9207-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9207-	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.80	1-41562-061-0	AR	1	9207-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.00	1-41562-062-0	AR	1	9207-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.20	1-41562-063-0	AR	1	9207-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.40	1-41562-064-0	AR	1	9207-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.90	1-41562-080-0	AR	1	9207-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.10	1-41562-081-0	AR	1	9207-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.30	1-41562-082-0	AR	1	9207-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.75	1-41562-139-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.80	1-41562-140-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.85	1-41562-141-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.90	1-41562-142-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=2.95	1-41562-143-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.00	1-41562-144-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.05	1-41562-145-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.10	1-41562-146-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.15	1-41562-147-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.20	1-41562-148-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.25	1-41562-149-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.30	1-41562-150-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.35	1-41562-151-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.40	1-41562-152-0	AR	1	9207-			●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G86> T=3.45	1-41562-153-0	AR	1	9207-			●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G86> Z=16	1-41561-022-0	02	1	9207-9312	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G86> Z=16	1-41561-105-0	02	1	9401-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G86> Z=16	1-41561-069-0	02	1	9207-9312		●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G86>	1-41561-107-0	02	1	9401-		●
21	GEAR; SIDE,DIFF BRK LINING MATERIAL L709 NON ASBESTOS<BBY> EXC. LIMITED SLIP DIFF<G86>	1-41561-075-0	02	1	9207-			●	●
21	GEAR; SIDE,DIFF EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY>, LIMITED SLIP DIFF<G86>	1-41561-027-1	02	1	9207-			●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF<G86>	1-41521-018-1	01	1	9207-9311	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF<G86>	1-41521-050-0	01	1	9312-	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF<G86>	1-41521-014-1	01	1	9207-			●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G86> Z=10	1-41551-016-0	04	1	9207-9312	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G86> Z=10	1-41551-032-0	04	1	9401-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G86> Z=10	1-41551-010-2	04	1	9207-			●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF<G86> ID=29 OD=60	1-41562-119-0	04	1	9207-	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF<G86>	1-41552-012-0	04	1	9207-			●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-058-2	01	1	9207-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9207-			●	●
39	BEARING; FINAL PINION NSK	1-09812-026-0	01	1	9207-	●	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9207-			●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	9207-	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-020-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.51	1-41229-021-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.52	1-41229-022-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.53	1-41229-023-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.54	1-41229-024-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.55	1-41229-025-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.56	1-41229-026-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.57	1-41229-027-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.58	1-41229-028-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.59	1-41229-029-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9405-			●	●
40	SHIM; FINAL PINION T=3.60	1-41229-030-0	AR	1	9207-9404			●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-053-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-054-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-055-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-056-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9405-			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-057-0	AR	1	9207-9404			●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9405-			●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	9207-	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9207-			●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	9207-	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9207-			●	●
48	WASHER; LK,FINAL PINION ID=12.2	9-09150-512-0	06	1	9207-	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	9207-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9207-			●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9207-			●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9207-	●	●	●	●
55	CARRIER; DIFF	1-41110-048-0	01	1	9207-	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9207-			●	●
56	BOLT; BRG CAP M16X100	9-91661-600-0	04	1	9207-	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9207-			●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	9207-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-453-0	01	1	9207-		●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9207-			●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9207-				●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9207-	●	●	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-034-0	02	1	9207-	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9207-			●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	9207-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-074-1	01	1	9207-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-007-0	01	1	9207-9509			●	●
63	BEARING; PINION PILOT KOYO	1-09810-229-2	01	1	9510-			●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9207-9509			●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-			●	●
64	NUT; RET M8	9-09117-408-0	02	1	9207-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9207-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-066-1	01	1	9207-	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9207-			●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	9207-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	9207-	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9207-			●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9207-			●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	9207-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	9207-	●	●
70	BEARING; DIFF CAGE ID=80 OD=140 T=35.3 NACHI	1-09812-144-0	02	1	9207-			●	●
70	BEARING; DIFF CAGE KOYO ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9207-			●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9207-			●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-112-0	01	1	9207-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9207-			●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	9207-	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9207-			●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	9207-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9207-			●	●
87	WASHER; LK ID=16.2	9-09150-516-0	04	1	9207-			●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	9-41124-015-0	02	1	9207-	●	●
88	PLATE; LK,ADJ NUT (A)	9-41124-005-0	02	1	9207-	●	●	●	●
88	PLATE; LK,ADJ NUT (B)	1-41124-002-0	02	1	9207-			●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9207-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-0	01	1	9207-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-432-0	01	1	9207-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9207-			●	●
126	COUPLING; DRIVING PINION	1-37245-069-6	01	1	9207-	●	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9207-			●	●
134	WASHER; LK,BRG CAP ID=16.2	9-09150-516-0	04	1	9207-	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9207-			●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	9207-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	9207-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
