0-28 — VENTILATION SYSTEM (#162299) — 84 parça

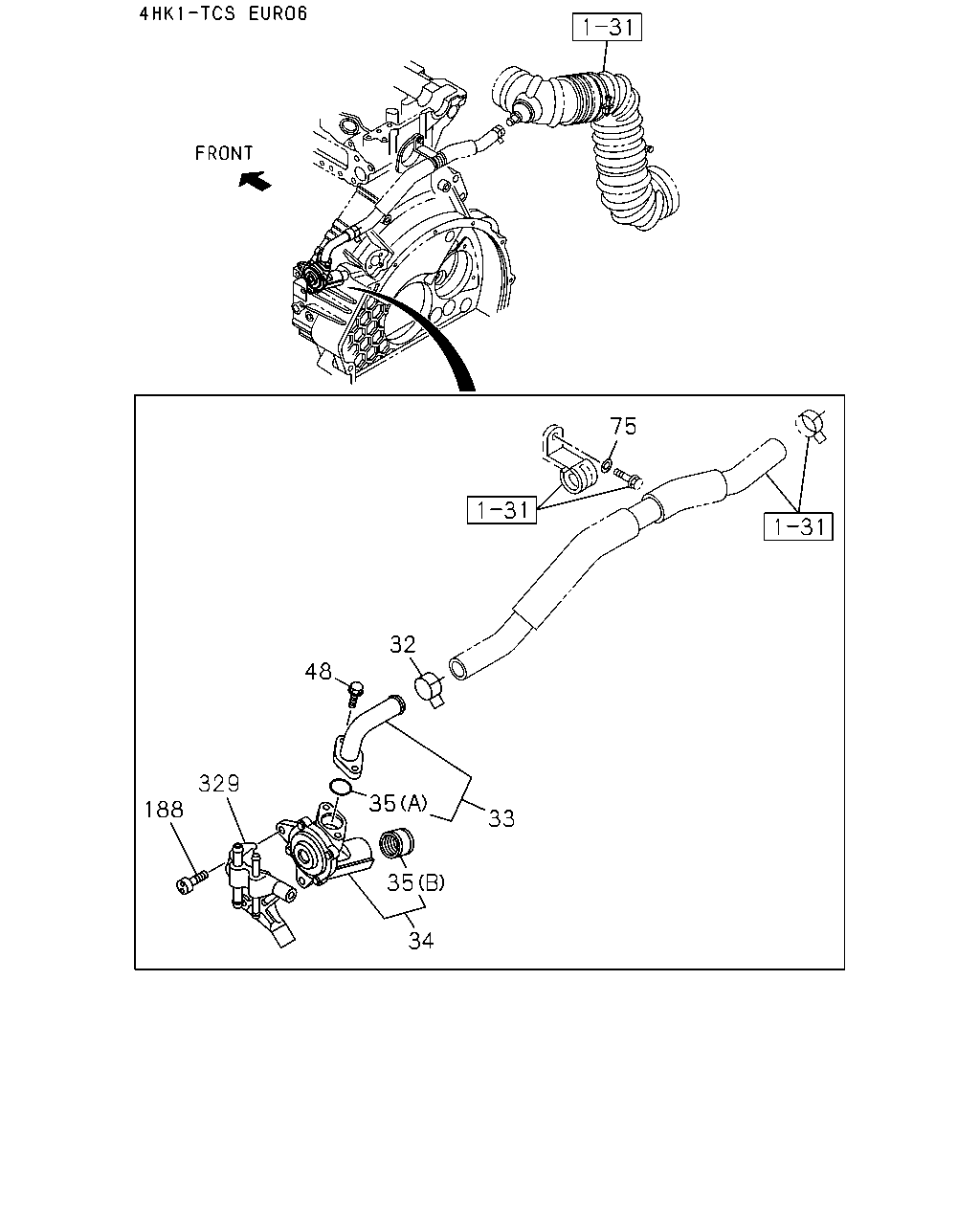

çizim 479130
75 32 48 329 188 33 35 34 35
BalonParca AdiParca NoAdetTipApplied Date A B
32 03.417 CLIP; VENT HOSE
RUSSIA EQUIPMENT(B12) 08.846 ID=21.7 		8-97203-074-0 04 1 1509- ● ●
32 03.417 CLIP; VENT HOSE
EURO6 SPECIFICATION(NT6) 08.846 ID=21.7 		8-97203-074-0 01 1 1506- ●
33 03.278 PIPE; VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98075-640-1 01 1 1506-1508 ●
33 03.278 PIPE; VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98075-640-1 01 1 1509- ●
33 03.278 PIPE; VENTILATOR
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98075-640-1 01 1 1509- ●
34 03.415 VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98245-392-0 01 1 1506-1508 ●
34 03.415 VENTILATOR 8-98245-392-0 01 1 1509- ● ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1506-1508 ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
35 03.415 GASKET; VENTILATOR
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) (B) 		8-98038-692-0 01 1 1506-1508 ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 1509- ● ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO6 SPECIFICATION(NT6) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
48 03.278 BOLT; PIPE
EURO6 SPECIFICATION(NT6) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ●
75 00.010 WASHER
EURO6 SPECIFICATION(NT6) 02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 1506- ●
188 01.780 BOLT; BRKT
EURO6 SPECIFICATION(NT6) 00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1506-1508 ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1509- ● ●
329 01.750 BRACKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98171-059-0 01 1 1506-1508 ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1509- ● ●

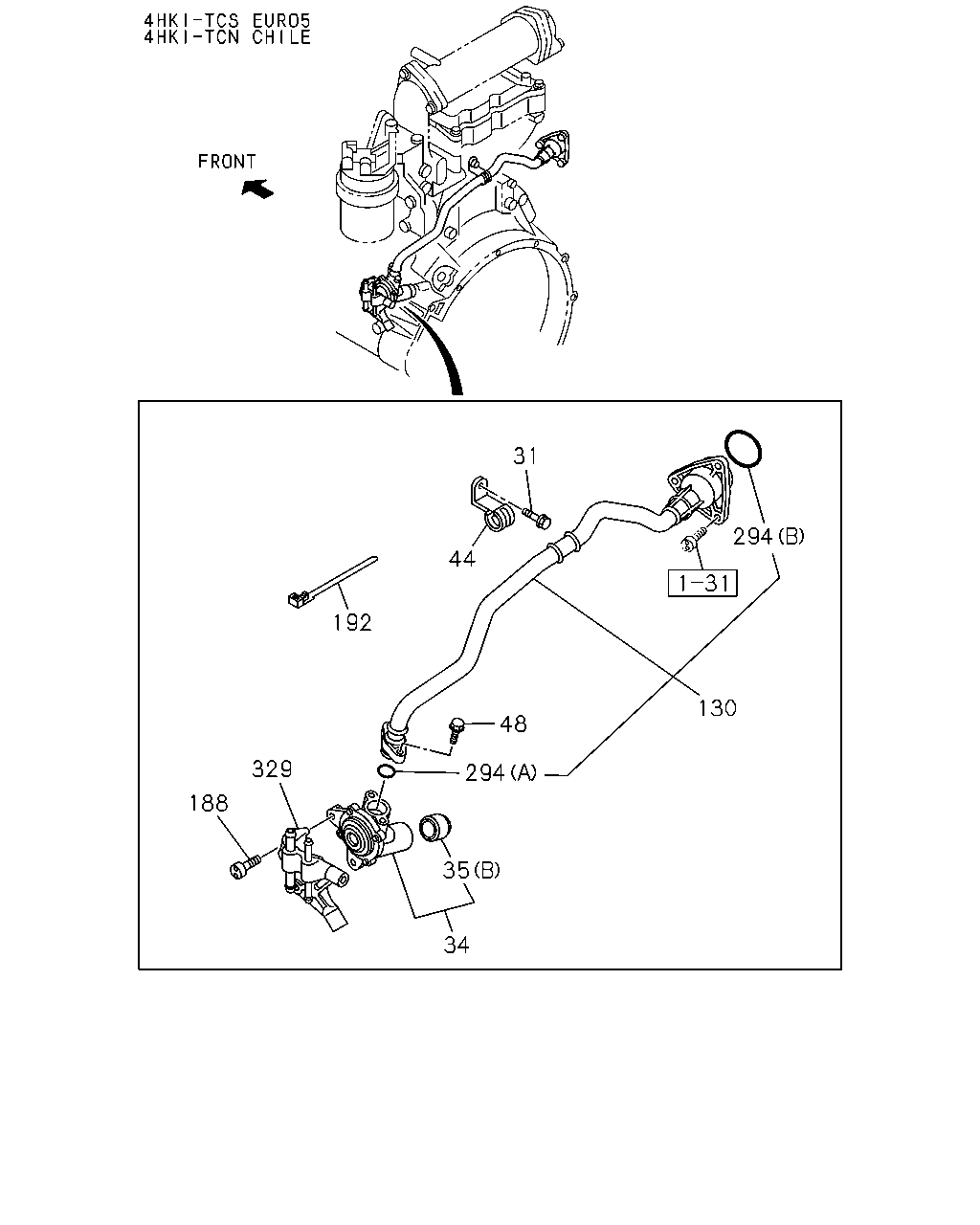

çizim 492079
31 44 192 48 294 130 294 35 34 329 188
BalonParca AdiParca NoAdetTipApplied Date A B
31 03.417 BOLT; HOSE CLIP
EURO5B+ SPECIFICATION(NT5) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1509- ●
31 03.417 BOLT; HOSE CLIP
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1509- ●
31 03.417 BOLT; HOSE CLIP
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1509- ●
34 03.415 VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98245-392-0 01 1 1506-1508 ●
34 03.415 VENTILATOR 8-98245-392-0 01 1 1509- ● ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1506-1508 ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
35 03.415 GASKET; VENTILATOR
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) (B) 		8-98038-692-0 01 1 1506-1508 ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 1509- ● ●
44 03.278 CLIP; HOSE,PCV
EURO5B+ SPECIFICATION(NT5) 02.483 ID=20 H=23 L=27 		1-09700-861-0 01 1 1509- ●
44 03.278 CLIP; HOSE,PCV
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 02.483 ID=20 H=23 L=27 		1-09700-861-0 01 1 1509- ●
44 03.278 CLIP; HOSE,PCV
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 02.483 ID=20 H=23 L=27 		1-09700-861-0 01 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO6 SPECIFICATION(NT6) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
48 03.278 BOLT; PIPE
EURO6 SPECIFICATION(NT6) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ●
130 03.278 PIPE; PCV
EURO5B+ SPECIFICATION(NT5) 		8-98036-533-1 01 1 1509- ●
130 03.278 PIPE; PCV
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-533-1 01 1 1509- ●
130 03.278 PIPE; PCV
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 		8-98036-533-1 01 1 1509- ●
188 01.780 BOLT; BRKT
EURO6 SPECIFICATION(NT6) 00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1506-1508 ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1509- ● ●
192 03.280 CLIP; BAND
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) 03.162 L=140 		5-09707-031-1 01 1 1509- ●
192 03.280 CLIP; BAND
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 03.162 L=140 		5-09707-031-1 01 1 1509- ●
294 03.278 GASKET; PCV
EURO5B+ SPECIFICATION(NT5) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
294 03.278 GASKET; PCV
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
294 03.278 GASKET; PCV
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
294 03.278 GASKET; PCV
EURO5B+ SPECIFICATION(NT5) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1509- ●
294 03.278 GASKET; PCV
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1509- ●
294 03.278 GASKET; PCV
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1509- ●
329 01.750 BRACKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98171-059-0 01 1 1506-1508 ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1509- ● ●

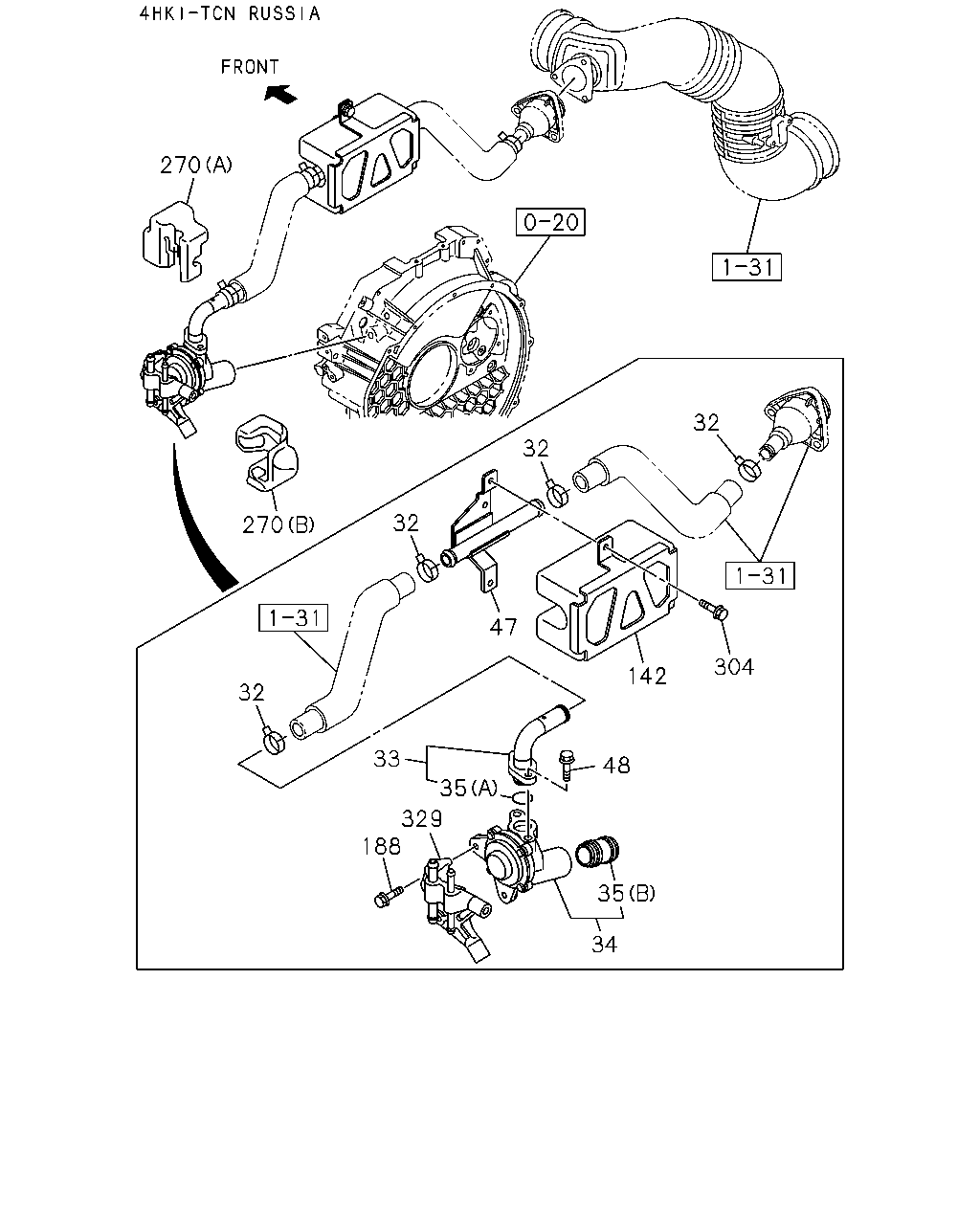

çizim 492089
304 32 32 32 270 32 33 47 142 48 35 34 188 35 329 270
BalonParca AdiParca NoAdetTipApplied Date A B
32 03.417 CLIP; VENT HOSE
RUSSIA EQUIPMENT(B12) 08.846 ID=21.7 		8-97203-074-0 04 1 1509- ● ●
32 03.417 CLIP; VENT HOSE
EURO6 SPECIFICATION(NT6) 08.846 ID=21.7 		8-97203-074-0 01 1 1506- ●
33 03.278 PIPE; VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98075-640-1 01 1 1506-1508 ●
33 03.278 PIPE; VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98075-640-1 01 1 1509- ●
33 03.278 PIPE; VENTILATOR
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98075-640-1 01 1 1509- ●
34 03.415 VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98245-392-0 01 1 1506-1508 ●
34 03.415 VENTILATOR 8-98245-392-0 01 1 1509- ● ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1506-1508 ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
35 03.415 GASKET; VENTILATOR
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.550 (A) ID=17.8 		1-09623-588-0 01 1 1509- ●
35 03.415 GASKET; VENTILATOR
EURO6 SPECIFICATION(NT6) (B) 		8-98038-692-0 01 1 1506-1508 ●
35 03.415 GASKET; VENTILATOR
(B) 		8-98038-692-0 01 1 1509- ● ●
47 03.278 PIPE ASM; PCV
RUSSIA EQUIPMENT(B12) 		8-98153-108-0 01 1 1509- ● ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) EXC. HYDRO BRAKE BOOSTER(7QQ) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 00.386 M6X20 FLANGE 		0-28050-620-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO6 SPECIFICATION(NT6) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1506-1508 ●
48 03.278 BOLT; PIPE
EURO6 SPECIFICATION(NT6) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ●
48 03.278 BOLT; PIPE
EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12) EXC. HYDRO BRAKE BOOSTER(7QQ) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1509- ●
142 01.745 COVER; PCV
RUSSIA EQUIPMENT(B12) 		8-98153-109-0 01 1 1509- ● ●
188 01.780 BOLT; BRKT
EURO6 SPECIFICATION(NT6) 00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1506-1508 ●
188 01.780 BOLT; BRKT
00.206 M8X30 FLANGE 		0-28050-830-0 04 1 1509- ● ●
270 01.750 COVER; VENTILATOR
RUSSIA EQUIPMENT(B12) (A) 		8-98152-829-0 01 1 1509- ● ●
270 01.750 COVER; VENTILATOR
RUSSIA EQUIPMENT(B12) (B) 		8-98152-830-0 01 1 1509- ● ●
304 03.275 BOLT; COVER
RUSSIA EQUIPMENT(B12) 02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1509- ● ●
329 01.750 BRACKET; VENTILATOR
EURO6 SPECIFICATION(NT6) 		8-98171-059-0 01 1 1506-1508 ●
329 01.750 BRACKET; VENTILATOR 8-98171-059-0 01 1 1509- ● ●
