◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶

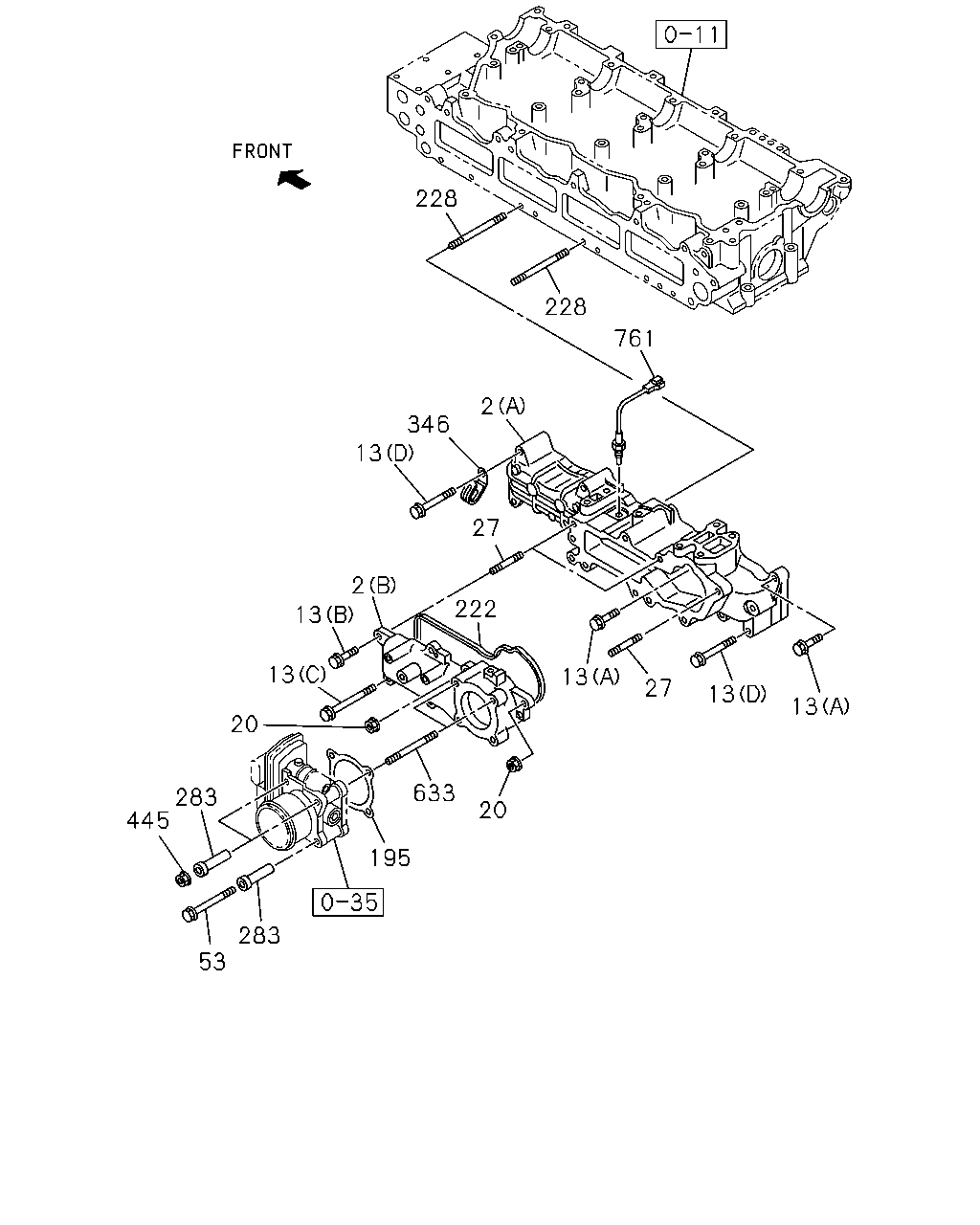

0-25 — INLET MANIFOLD (#162297) — 127 parça

346 228 228 761 2 27 13 2 13 13 20 283 445 53 195 283 633 20 222 13 27 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL EURO5B+ SPECIFICATION(NT5) (A)	8-98115-667-1	01	1	1509-	●	●
2	03.407 COVER; INL EURO6 SPECIFICATION(NT6) (A)	8-98028-421-2	01	1	1506-		●
2	03.407 COVER; INL EURO6 SPECIFICATION(NT6) (B)	8-98085-730-1	01	1	1506-1508		●
2	03.407 COVER; INL (B)	8-98085-730-1	01	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) (G) M8X110 FLANGE	0-28055-811-0	02	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) (H) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1509-			●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1509-				●
13	03.275 BOLT; INL MANIF 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1509-				●
13	03.275 BOLT; INL MANIF 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1509-				●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) (B) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508		●
13	03.275 BOLT; INL MANIF (B) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1506-1508		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1506-1508		●
13	03.275 BOLT; INL MANIF 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1506-1508		●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1509-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-			●	●
20	03.275 NUT; INL MANIF EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1506-			●	●
27	03.275 STUD; INL MANIF EURO6 SPECIFICATION(NT6) M8X25 L=37	0-41010-825-0	02	1	1506-1508		●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	02	1	1509-	●	●
53	03.602 BOLT; INL PIPE EURO6 SPECIFICATION(NT6) 00.206 M8X70 FLANGE	0-28050-870-0	02	1	1506-1508		●
53	03.602 BOLT; INL PIPE 00.206 M8X70 FLANGE	0-28050-870-0	02	1	1509-	●	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6)	8-98032-612-0	01	1	1506-1508		●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE).	8-98032-612-0	01	1	1509-	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) 03.275	8-98032-611-0	01	1	1506-1508		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.275	8-98032-611-0	01	1	1509-	●	●
228	03.407 STUD; INL COVER EURO6 SPECIFICATION(NT6) 03.342 M8X126 L=137	8-97378-069-0	02	1	1506-1508		●
228	03.407 STUD; INL COVER 03.342 M8X126 L=137	8-97378-069-0	02	1	1509-	●	●
283	03.265 RUBBER EURO6 SPECIFICATION(NT6) L=58	8-97387-995-1	04	1	1506-1508		●
283	03.265 RUBBER L=58	8-97387-995-1	04	1	1509-	●	●
346	02.559 CLIP; ENG HARNESS EURO6 SPECIFICATION(NT6) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1506-1508		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1509-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
633	03.275 STUD; THROTTLE BODY EURO6 SPECIFICATION(NT6) M8X71 L=83	9-09830-212-0	02	1	1506-1508		●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	02	1	1509-	●	●
761	03.682 SENSOR; MANIF EURO6 SPECIFICATION(NT6)	8-97381-182-0	01	1	1506-		●

27 7 1 27 20 373 731 184 13 13 13 13 13 20 784 619 779

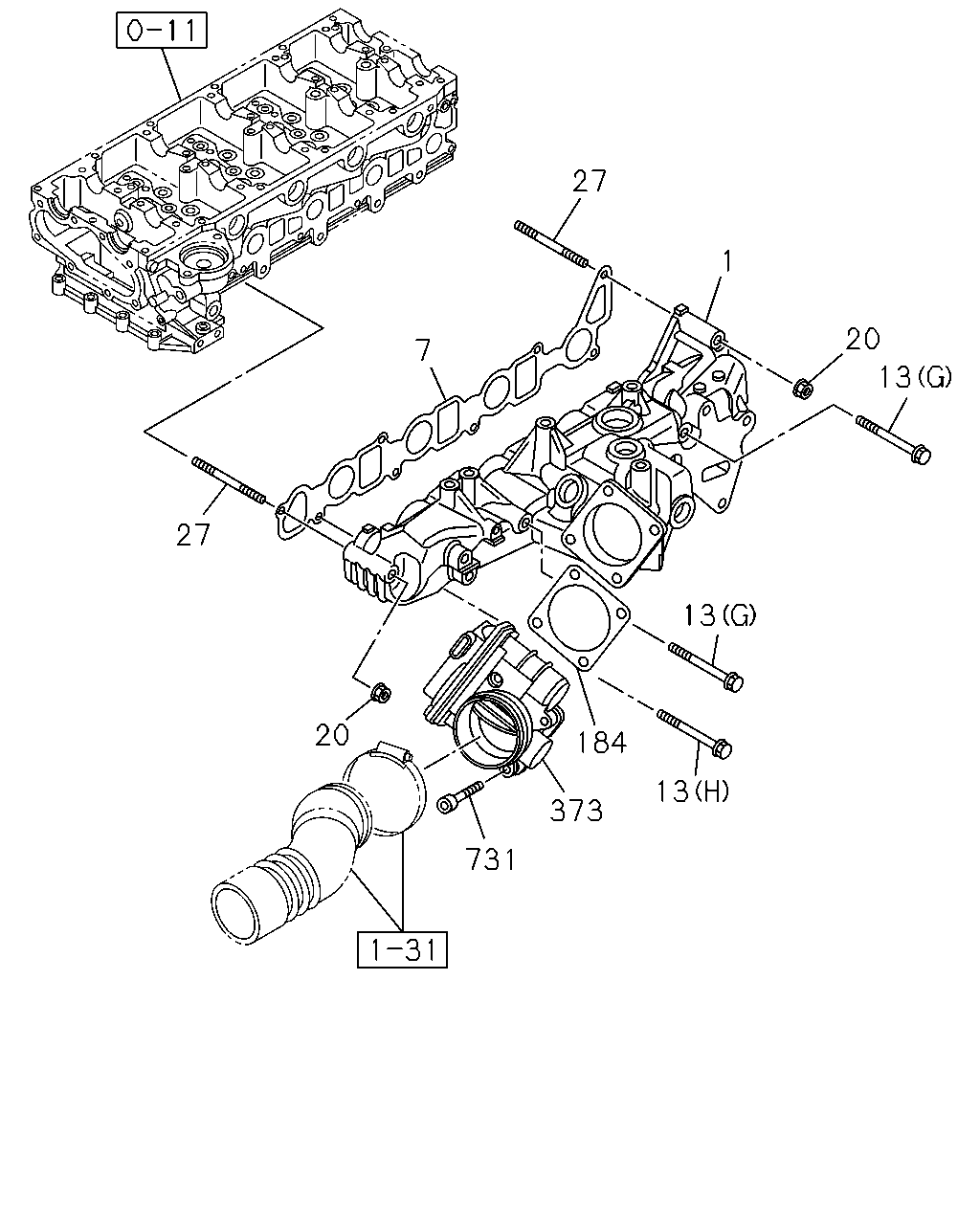

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL EURO5B+ SPECIFICATION(NT5)	8-98024-411-1	01	1	1509-			●
1	03.265 MANIFOLD; INL	8-98233-553-3	01	1	1506-				●
1	03.265 MANIFOLD; INL EURO6 SPECIFICATION(NT6)	8-98233-063-3	01	1	1506-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5)	8-98212-999-0	01	1	1509-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98284-081-0	01	1	1506-1508			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6)	8-98284-081-0	01	1	1509-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5)	8-98284-081-0	01	1	1509-				●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) (G) M8X110 FLANGE	0-28055-811-0	02	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) (H) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1509-			●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1509-				●
13	03.275 BOLT; INL MANIF 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1509-				●
13	03.275 BOLT; INL MANIF 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1509-				●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) (B) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508		●
13	03.275 BOLT; INL MANIF (B) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1506-1508		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1506-1508		●
13	03.275 BOLT; INL MANIF 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1506-1508		●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1509-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-			●	●
20	03.275 NUT; INL MANIF EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1506-			●	●
27	03.275 STUD; INL MANIF EURO6 SPECIFICATION(NT6) M8X25 L=37	0-41010-825-0	02	1	1506-1508		●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	02	1	1509-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98096-968-0	01	1	1506-			●	●
373	03.265 THROTTLE ASM; INT EURO5B+ SPECIFICATION(NT5)	8-98040-003-4	01	1	1509-			●
373	03.265 THROTTLE ASM; INT	8-98100-891-4	01	1	1506-1508			●	●
373	03.265 THROTTLE ASM; INT EURO6 SPECIFICATION(NT6)	8-98100-891-4	01	1	1509-			●
373	03.265 THROTTLE ASM; INT EURO5B+ SPECIFICATION(NT5)	8-98100-891-4	01	1	1509-				●
619	01.150 SENSOR; MAP EURO6 SPECIFICATION(NT6)	8-98121-697-1	01	1	1506-			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1506-			●	●
779	03.682 BOLT; SENSOR EURO6 SPECIFICATION(NT6) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1506-			●
784	03.265 PIN; KNOCK 04.399 OD=4 L=12	1-09740-032-0	02	1	1506-1508			●	●
784	03.265 PIN; KNOCK EURO6 SPECIFICATION(NT6) 04.399 OD=4 L=12	1-09740-032-0	02	1	1509-			●
784	03.265 PIN; KNOCK EURO5B+ SPECIFICATION(NT5) 04.399 OD=4 L=12	1-09740-032-0	02	1	1509-				●

27 7 27 20 731 373 184 13 13 13 20 1

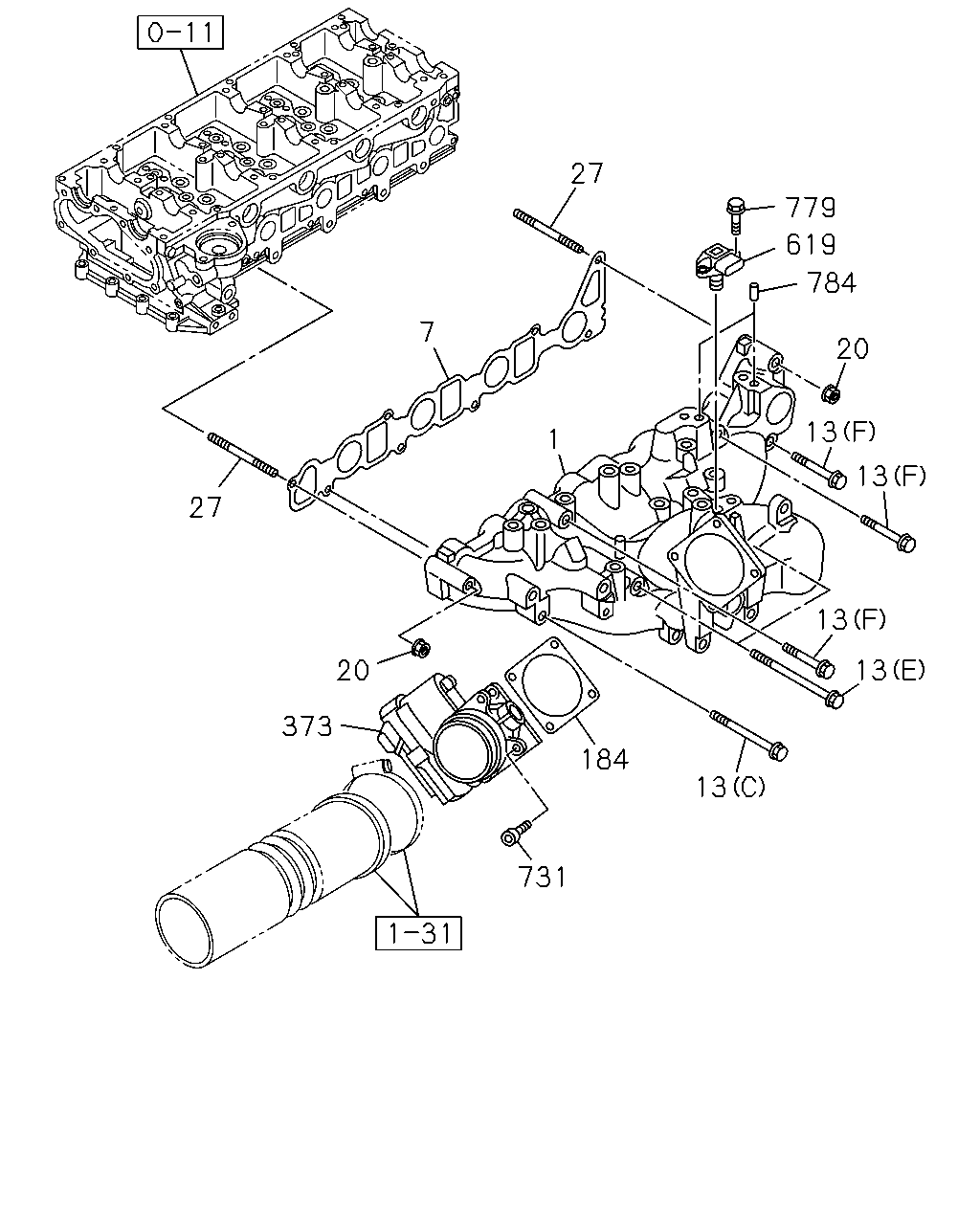

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL EURO5B+ SPECIFICATION(NT5)	8-98024-411-1	01	1	1509-			●
1	03.265 MANIFOLD; INL	8-98233-553-3	01	1	1506-				●
1	03.265 MANIFOLD; INL EURO6 SPECIFICATION(NT6)	8-98233-063-3	01	1	1506-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5)	8-98212-999-0	01	1	1509-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98284-081-0	01	1	1506-1508			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6)	8-98284-081-0	01	1	1509-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5)	8-98284-081-0	01	1	1509-				●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) (G) M8X110 FLANGE	0-28055-811-0	02	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) (H) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1509-			●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 01.780 (C) M8X120 FLANGE	0-28055-812-0	01	1	1509-				●
13	03.275 BOLT; INL MANIF 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 03.278 (E) M8X150 FLANGE	0-28055-815-0	02	1	1509-				●
13	03.275 BOLT; INL MANIF 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1506-1508			●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1509-			●
13	03.275 BOLT; INL MANIF EURO5B+ SPECIFICATION(NT5) 03.162 (F) M8X66 FLANGE	8-98081-507-0	03	1	1509-				●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) (B) M8X25 FLANGE	0-28050-825-0	02	1	1506-1508		●
13	03.275 BOLT; INL MANIF (B) M8X25 FLANGE	0-28050-825-0	02	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1506-1508		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1506-1508		●
13	03.275 BOLT; INL MANIF 04.686 (D) M8X60 FLANGE	0-28050-860-0	05	1	1509-	●	●
13	03.275 BOLT; INL MANIF EURO6 SPECIFICATION(NT6) 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1506-1508		●
13	03.275 BOLT; INL MANIF 01.780 (C) M8X120 FLANGE	0-28055-812-0	03	1	1509-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1506-			●	●
20	03.275 NUT; INL MANIF EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1506-			●	●
27	03.275 STUD; INL MANIF EURO6 SPECIFICATION(NT6) M8X25 L=37	0-41010-825-0	02	1	1506-1508		●
27	03.275 STUD; INL MANIF M8X25 L=37	0-41010-825-0	02	1	1509-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98096-968-0	01	1	1506-			●	●
373	03.265 THROTTLE ASM; INT EURO5B+ SPECIFICATION(NT5)	8-98040-003-4	01	1	1509-			●
373	03.265 THROTTLE ASM; INT	8-98100-891-4	01	1	1506-1508			●	●
373	03.265 THROTTLE ASM; INT EURO6 SPECIFICATION(NT6)	8-98100-891-4	01	1	1509-			●
373	03.265 THROTTLE ASM; INT EURO5B+ SPECIFICATION(NT5)	8-98100-891-4	01	1	1509-				●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1506-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
