Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#162294) — 198 parça

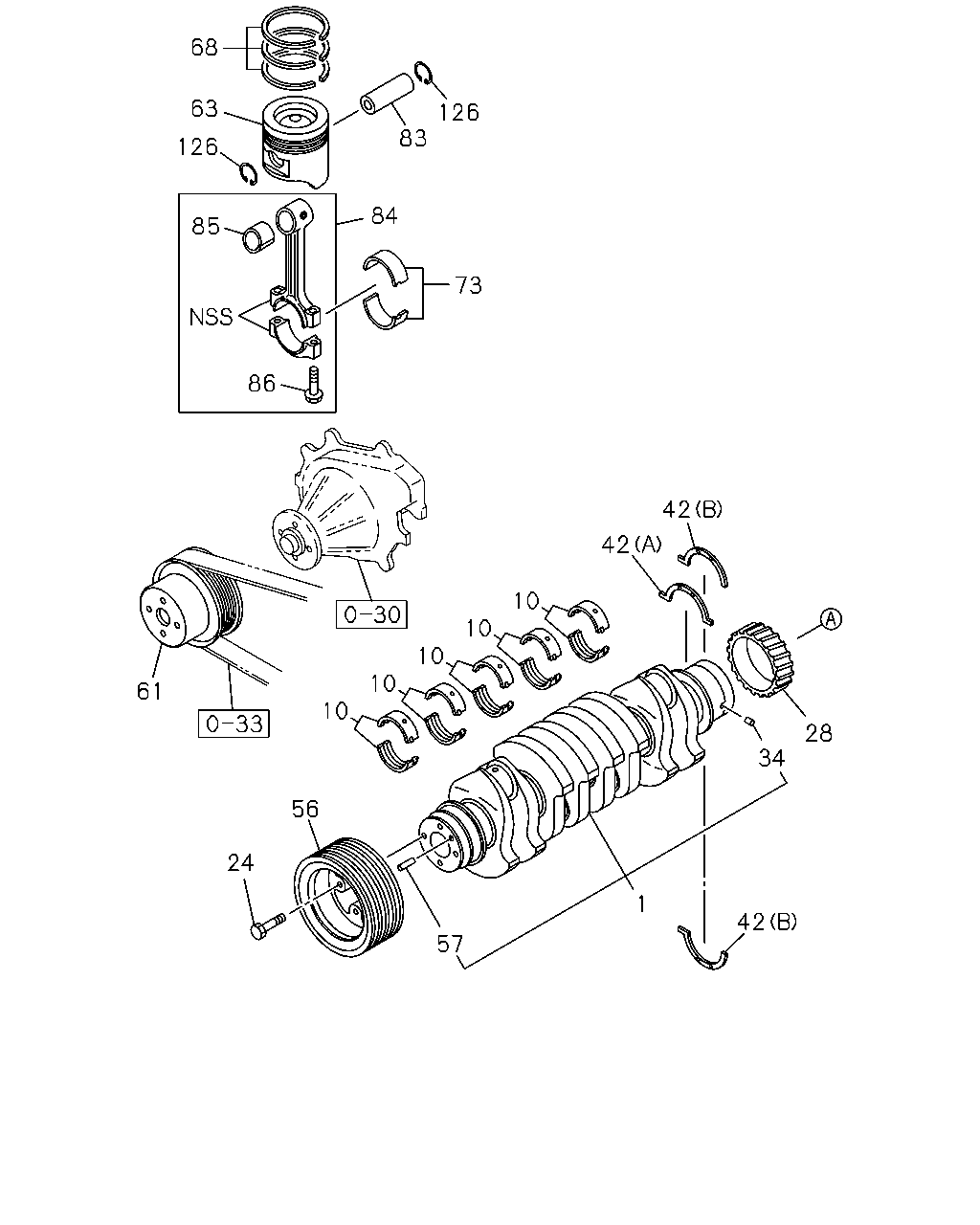

126 83 126 63 68 84 85 73 86 42 42 10 10 10 10 10 61 28 34 42 1 57 56 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1506-	●	●
1	00.646 CRANKSHAFT EURO6 SPECIFICATION(NT6)	8-98029-270-0	01	1	1506-1508			●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1509-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EURO6 SPECIFICATION(NT6) BLUE	8-97372-076-1	05	1	1506-1508			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1509-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EURO6 SPECIFICATION(NT6) BLACK	8-97372-077-1	05	1	1506-1508			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1509-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EURO6 SPECIFICATION(NT6) BROWN	8-97372-078-1	05	1	1506-1508			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1509-			●	●
24	00.659 BOLT; DAMPER EURO6 SPECIFICATION(NT6) M16X42	8-97028-733-0	04	1	1506-1508			●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	1509-			●	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1506-	●	●
28	00.728 GEAR; CR/SHF EURO6 SPECIFICATION(NT6) Z=42	8-94394-342-4	01	1	1506-1508			●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1509-			●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1506-	●	●
34	00.738 PIN; GEAR SETTING EURO6 SPECIFICATION(NT6) OD=5 L=6	9-09878-626-0	01	1	1506-1508			●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1509-			●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1506-	●	●
42	00.095 WASHER; THRUST,CR/SHF EURO6 SPECIFICATION(NT6) (A)	8-97386-548-0	01	1	1506-1508			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1509-			●	●
42	00.095 WASHER; THRUST,CR/SHF EURO6 SPECIFICATION(NT6) (B)	8-97386-549-0	02	1	1506-1508			●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1509-			●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1506-	●	●
56	00.659 PULLEY; CR/SHF DAMPER EURO6 SPECIFICATION(NT6) 3-GROOVE	8-98004-024-3	01	1	1506-1508			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1509-			●	●
57	00.662 PIN; PULLEY EURO6 SPECIFICATION(NT6) 00.862 OD=8 L=20	9-08150-820-0	02	1	1506-1508			●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	1509-			●	●
61	00.659 PULLEY; FAN DRIVE EURO5B+ SPECIFICATION(NT5) 1-GROOVE	8-98003-384-1	01	1	1509-			●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1506-	●	●
61	00.659 PULLEY; FAN DRIVE EURO6 SPECIFICATION(NT6) 1-GROOVE	8-98164-798-0	01	1	1506-			●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) NON GRADE ALSO INCLUDED IN LINER SET.	8-98215-307-0	04	1	1509-			●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) NON GRADE ALSO INCLUDED IN LINER SET.	8-98215-307-0	04	1	1509-				●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) NON GRADE ALSO INCLUDED IN LINER SET.	8-98041-141-2	04	1	1509-			●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) NON GRADE ALSO INCLUDED IN LINER SET.	8-98041-141-2	04	1	1509-				●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	1506-1508		●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) GRADE=A	8-98043-703-0	04	1	1509-	●	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	1506-1508		●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) GRADE=B	8-98043-704-0	04	1	1509-	●	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	1506-1508		●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) GRADE=C	8-98043-705-0	04	1	1509-	●	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) GRADE A	8-98209-865-2	04	1	1506-	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) GRADE B	8-98209-866-2	04	1	1506-	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) GRADE C	8-98209-867-2	04	1	1506-	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) NON GRADE ALSO INCLUDED IN LINER SET.	8-98215-307-0	04	1	1506-			●
68	00.643 RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1506-	●	●
68	00.643 RING SET; PISTON,STANDARD EURO6 SPECIFICATION(NT6) ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1506-1508			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1509-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1506-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD EURO6 SPECIFICATION(NT6) YELLOW	8-98055-479-0	04	1	1506-1508			●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1509-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD EURO6 SPECIFICATION(NT6) GREEN	8-98055-480-0	04	1	1506-1508			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1509-			●	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	1506-	●	●
83	00.636 PIN; PISTON EURO6 SPECIFICATION(NT6) ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1506-1508			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1509-			●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1506-	●	●
84	00.603 ROD ASM; CONN EURO6 SPECIFICATION(NT6)	8-98018-425-3	04	1	1506-1508			●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1509-			●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1506-	●	●
85	00.613 BUSHING; CONNROD EURO6 SPECIFICATION(NT6) ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1506-1508			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1509-			●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1506-	●	●
86	00.623 BOLT; CONNROD EURO6 SPECIFICATION(NT6) M13X57 FLANGE	8-98091-141-0	08	1	1506-1508			●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1509-			●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1506-	●	●
126	00.639 RING; SNAP,PISTON PIN EURO6 SPECIFICATION(NT6) OD=43.7 ALSO INCLUDED IN LINER SET.	8-98006-828-0	08	1	1506-1508			●
126	00.639 RING; SNAP,PISTON PIN OD=43.7 ALSO INCLUDED IN LINER SET.	8-98006-828-0	08	1	1509-			●	●

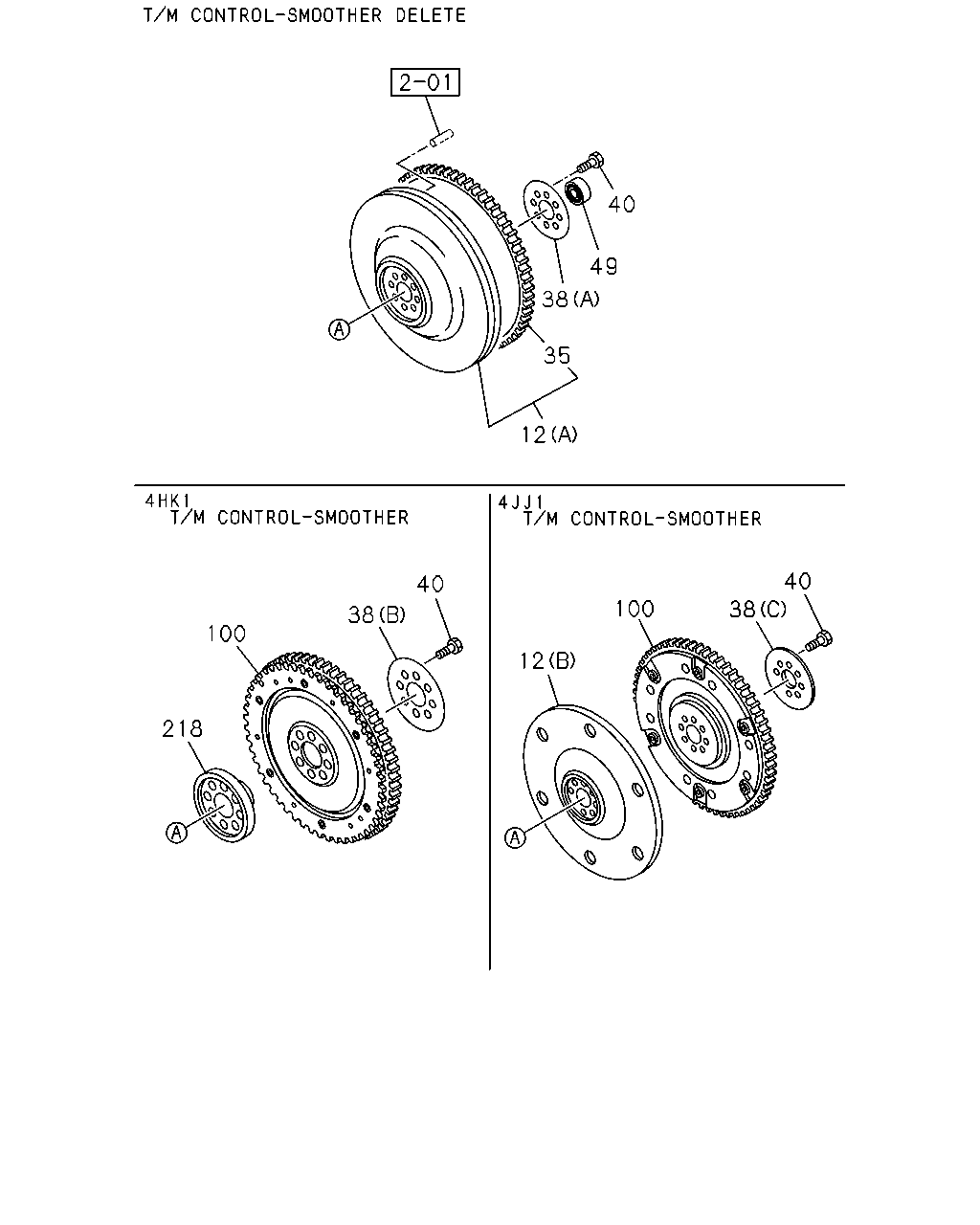

40 49 38 35 12 40 38 100 12 40 38 100 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	00.666 FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	1509-1511	●
12	00.666 FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98029-611-0	01	1	1512-	●
12	00.666 FLYWHEEL M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) (B)	8-98029-611-0	01	1	1512-		●
12	00.666 FLYWHEEL (A)	8-98148-063-1	01	1	1506-1508	●	●
12	00.666 FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98148-063-1	01	1	1509-1511	●
12	00.666 FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98148-063-1	01	1	1512-	●
12	00.666 FLYWHEEL M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98148-063-1	01	1	1512-		●
12	00.666 FLYWHEEL EURO6 SPECIFICATION(NT6) (A)	8-97326-227-2	01	1	1506-1508			●
12	00.666 FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97326-227-2	01	1	1509-			●	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1506-1508	●	●	●
35	00.673 GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=138	8-97046-366-1	01	1	1509-	●	●	●	●
38	00.862 WASHER; FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97386-162-2	01	1	1509-1511	●
38	00.862 WASHER; FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97386-162-2	01	1	1512-	●
38	00.862 WASHER; FLYWHEEL M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS) (C)	8-97386-162-2	01	1	1512-		●
38	00.862 WASHER; FLYWHEEL EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=50 OD=140	8-98176-366-0	01	1	1509-			●
38	00.862 WASHER; FLYWHEEL EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=50 OD=140	8-98176-366-0	01	1	1509-			●
38	00.862 WASHER; FLYWHEEL EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=50 OD=140	8-98176-366-0	01	1	1509-				●
38	00.862 WASHER; FLYWHEEL (A) ID=50.5 OD=97	8-98171-700-0	01	1	1506-1508	●	●
38	00.862 WASHER; FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=50.5 OD=97	8-98171-700-0	01	1	1509-1511	●
38	00.862 WASHER; FLYWHEEL M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=50.5 OD=97	8-98171-700-0	01	1	1512-	●
38	00.862 WASHER; FLYWHEEL M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=50.5 OD=97	8-98171-700-0	01	1	1512-		●
38	00.862 WASHER; FLYWHEEL EURO6 SPECIFICATION(NT6) (A) ID=55 OD=110	8-94397-496-1	01	1	1506-1508			●
38	00.862 WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=55 OD=110	8-94397-496-1	01	1	1509-			●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1506-	●	●
40	00.669 BOLT; FLYWHEEL EURO6 SPECIFICATION(NT6) M16X42	8-97178-013-0	08	1	1506-1508			●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1509-			●	●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	1506-1508	●	●
49	00.669 BEARING; PILOT M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97325-153-0	01	1	1509-1511	●
49	00.669 BEARING; PILOT M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97325-153-0	01	1	1512-	●
49	00.669 BEARING; PILOT M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97325-153-0	01	1	1512-		●
49	00.669 BEARING; PILOT EURO6 SPECIFICATION(NT6)	8-97258-239-0	01	1	1506-1508			●
49	00.669 BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97258-239-0	01	1	1509-			●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1506-1508	●	●
49	00.669 BEARING; PILOT M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-166-0	01	1	1509-1511	●
49	00.669 BEARING; PILOT M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-166-0	01	1	1512-	●
49	00.669 BEARING; PILOT M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-166-0	01	1	1512-		●
49	00.669 BEARING; PILOT EURO6 SPECIFICATION(NT6) BEST VALUE PARTS	5-87610-164-0	01	1	1506-1508			●
49	00.669 BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-164-0	01	1	1509-			●	●
100	00.666 PLATE; FLEX M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-1	01	1	1509-1511	●
100	00.666 PLATE; FLEX M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-612-1	01	1	1512-	●
100	00.666 PLATE; FLEX M/T MYY5T(RSM) SMOOTHER-EX(TYPE2)(8NS)	8-98029-612-1	01	1	1512-		●
100	00.666 PLATE; FLEX EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-336-3	01	1	1509-			●
100	00.666 PLATE; FLEX EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-336-3	01	1	1509-			●
100	00.666 PLATE; FLEX EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97362-336-3	01	1	1509-				●
218	00.662 SPACER; CRANK END EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97332-858-1	01	1	1509-			●
218	00.662 SPACER; CRANK END EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97332-858-1	01	1	1509-			●
218	00.662 SPACER; CRANK END EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97332-858-1	01	1	1509-				●

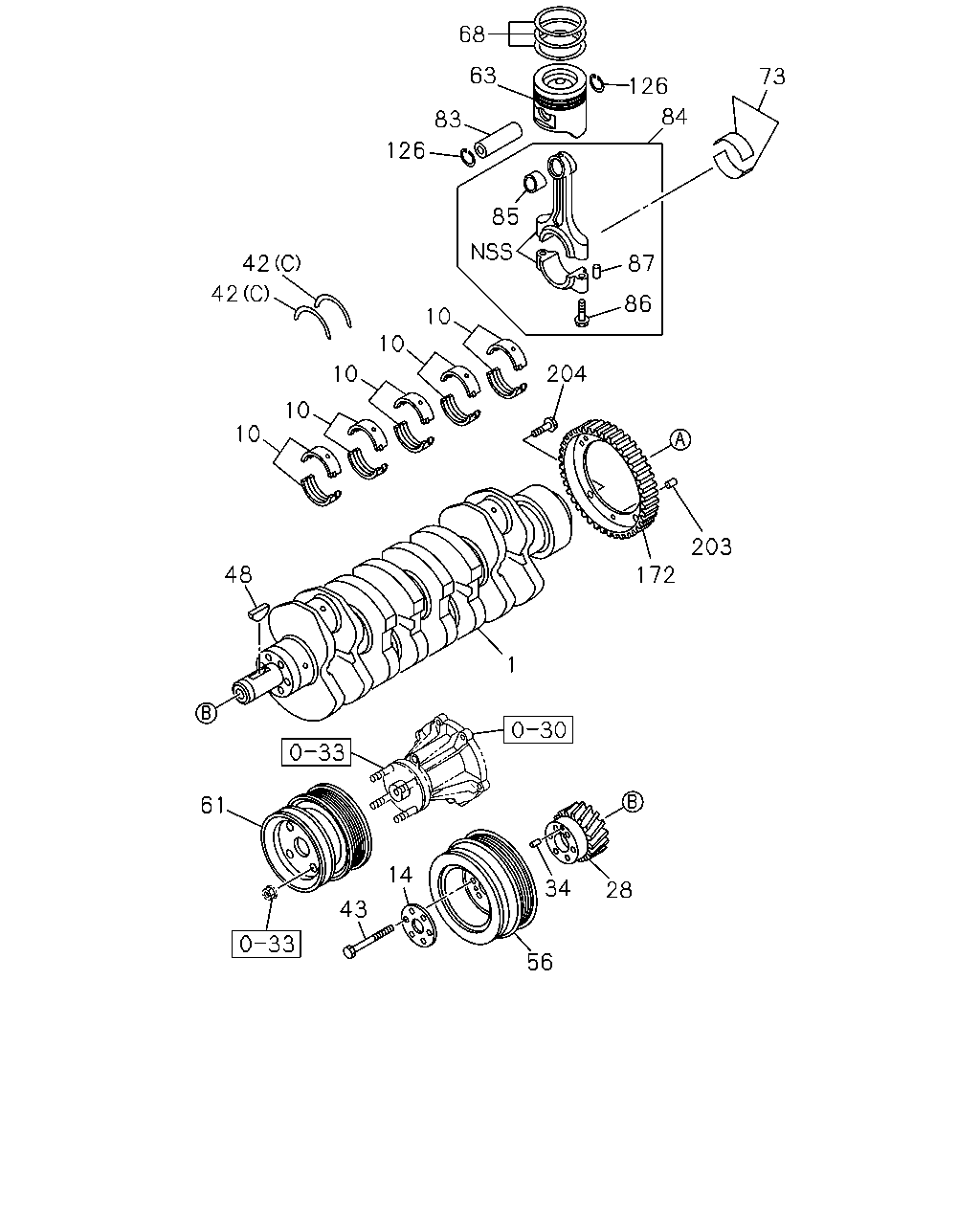

73 84 126 68 63 83 126 85 87 86 10 10 10 10 10 42 42 203 172 204 1 48 61 14 28 34 43 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1506-	●	●
1	00.646 CRANKSHAFT EURO6 SPECIFICATION(NT6)	8-98029-270-0	01	1	1506-1508			●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1509-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1506-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EURO6 SPECIFICATION(NT6) BLUE	8-97372-076-1	05	1	1506-1508			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1509-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EURO6 SPECIFICATION(NT6) BLACK	8-97372-077-1	05	1	1506-1508			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1509-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD EURO6 SPECIFICATION(NT6) BROWN	8-97372-078-1	05	1	1506-1508			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1509-			●	●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1506-	●	●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1506-	●	●
28	00.728 GEAR; CR/SHF EURO6 SPECIFICATION(NT6) Z=42	8-94394-342-4	01	1	1506-1508			●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1509-			●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1506-	●	●
34	00.738 PIN; GEAR SETTING EURO6 SPECIFICATION(NT6) OD=5 L=6	9-09878-626-0	01	1	1506-1508			●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1509-			●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1506-	●	●
42	00.095 WASHER; THRUST,CR/SHF EURO6 SPECIFICATION(NT6) (A)	8-97386-548-0	01	1	1506-1508			●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1509-			●	●
42	00.095 WASHER; THRUST,CR/SHF EURO6 SPECIFICATION(NT6) (B)	8-97386-549-0	02	1	1506-1508			●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1509-			●	●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1506-	●	●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	1506-	●	●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1506-	●	●
56	00.659 PULLEY; CR/SHF DAMPER EURO6 SPECIFICATION(NT6) 3-GROOVE	8-98004-024-3	01	1	1506-1508			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1509-			●	●
61	00.659 PULLEY; FAN DRIVE EURO5B+ SPECIFICATION(NT5) 1-GROOVE	8-98003-384-1	01	1	1509-			●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1506-	●	●
61	00.659 PULLEY; FAN DRIVE EURO6 SPECIFICATION(NT6) 1-GROOVE	8-98164-798-0	01	1	1506-			●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) NON GRADE ALSO INCLUDED IN LINER SET.	8-98215-307-0	04	1	1509-			●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) NON GRADE ALSO INCLUDED IN LINER SET.	8-98215-307-0	04	1	1509-				●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) NON GRADE ALSO INCLUDED IN LINER SET.	8-98041-141-2	04	1	1509-			●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) NON GRADE ALSO INCLUDED IN LINER SET.	8-98041-141-2	04	1	1509-				●
63	00.629 PISTON GRADE=A	8-98043-703-0	04	1	1506-1508		●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) GRADE=A	8-98043-703-0	04	1	1509-	●	●
63	00.629 PISTON GRADE=B	8-98043-704-0	04	1	1506-1508		●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) GRADE=B	8-98043-704-0	04	1	1509-	●	●
63	00.629 PISTON GRADE=C	8-98043-705-0	04	1	1506-1508		●
63	00.629 PISTON EURO5B+ SPECIFICATION(NT5) GRADE=C	8-98043-705-0	04	1	1509-	●	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) GRADE A	8-98209-865-2	04	1	1506-	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) GRADE B	8-98209-866-2	04	1	1506-	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) GRADE C	8-98209-867-2	04	1	1506-	●
63	00.629 PISTON EURO6 SPECIFICATION(NT6) NON GRADE ALSO INCLUDED IN LINER SET.	8-98215-307-0	04	1	1506-			●
68	00.643 RING SET; PISTON,STANDARD	8-98185-780-0	04	1	1506-	●	●
68	00.643 RING SET; PISTON,STANDARD EURO6 SPECIFICATION(NT6) ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1506-1508			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1509-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1506-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD EURO6 SPECIFICATION(NT6) YELLOW	8-98055-479-0	04	1	1506-1508			●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1509-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD EURO6 SPECIFICATION(NT6) GREEN	8-98055-480-0	04	1	1506-1508			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1509-			●	●
83	00.636 PIN; PISTON	8-98015-193-1	04	1	1506-	●	●
83	00.636 PIN; PISTON EURO6 SPECIFICATION(NT6) ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1506-1508			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1509-			●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1506-	●	●
84	00.603 ROD ASM; CONN EURO6 SPECIFICATION(NT6)	8-98018-425-3	04	1	1506-1508			●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1509-			●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1506-	●	●
85	00.613 BUSHING; CONNROD EURO6 SPECIFICATION(NT6) ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1506-1508			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1509-			●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1506-	●	●
86	00.623 BOLT; CONNROD EURO6 SPECIFICATION(NT6) M13X57 FLANGE	8-98091-141-0	08	1	1506-1508			●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1509-			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1506-	●	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1506-	●	●
126	00.639 RING; SNAP,PISTON PIN EURO6 SPECIFICATION(NT6) OD=43.7 ALSO INCLUDED IN LINER SET.	8-98006-828-0	08	1	1506-1508			●
126	00.639 RING; SNAP,PISTON PIN OD=43.7 ALSO INCLUDED IN LINER SET.	8-98006-828-0	08	1	1509-			●	●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1506-	●	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1506-	●	●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
