Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#162293) — 353 parça

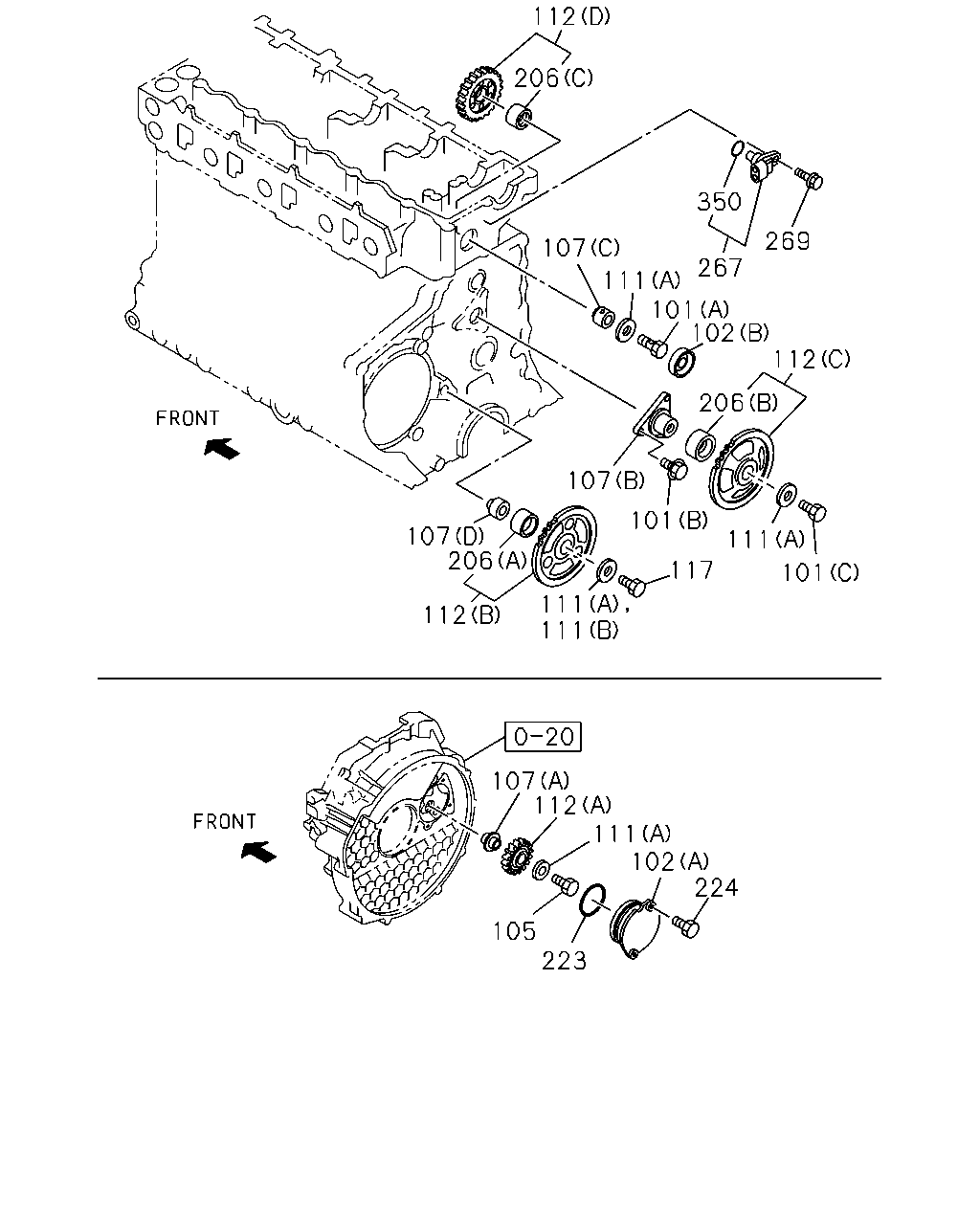

112 206 107 101 350 267 269 111 112 102 206 107 101 117 101 111 111 111 112 107 206 107 112 111 102 224 223 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
101	00.724 BOLT; THRUST COLLAR EURO6 SPECIFICATION(NT6) (C) M14X25	0-23951-425-0	01	1	1506-1508	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1509-	●	●
101	00.724 BOLT; THRUST COLLAR EURO6 SPECIFICATION(NT6) (B) M8X16 FLANGE	0-28060-816-0	03	1	1506-1508	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1509-	●	●
101	00.724 BOLT; THRUST COLLAR EURO6 SPECIFICATION(NT6) (A) M14X36.5	8-94372-221-1	01	1	1506-1508	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1509-	●	●
102	00.724 COVER; IDLE GEAR EURO6 SPECIFICATION(NT6) (A)	8-94334-681-1	01	1	1506-1508	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1509-	●	●
102	00.724 COVER; IDLE GEAR EURO6 SPECIFICATION(NT6) (B) OD=51	8-97096-826-0	01	1	1506-1508	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1509-	●	●
105	00.724 BOLT; IDLE GEAR SHAFT EURO6 SPECIFICATION(NT6) M14X60	0-16956-460-0	01	1	1506-1508	●
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (D)	8-98163-984-0	01	1	1509-	●
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98163-984-0	01	1	1509-		●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	1506-1508			●	●
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) (F)	8-97312-322-1	01	1	1509-			●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	1509-			●	●
107	00.724 SHAFT; IDLE GEAR (F)	8-98201-549-0	01	1	1506-1508			●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (F)	8-98201-549-0	01	1	1509-			●
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) (F)	8-98201-549-0	01	1	1509-				●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (A)	8-94334-682-1	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (B)	8-97350-021-0	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (C)	8-97606-990-1	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97606-990-1	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (D)	8-98060-780-0	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1509-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B) ID=14.5 OD=59	1-12535-030-1	01	1	1509-	●
111	00.724 COLLAR; THRUST,IDLE GEAR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) ID=14.5 OD=59	1-12535-030-1	01	1	1509-		●
111	00.724 COLLAR; THRUST,IDLE GEAR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (A) ID=14.5 OD=46	8-97209-728-2	04	1	1509-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EURO6 SPECIFICATION(NT6) (A) ID=14.5 OD=46	8-97209-728-2	04	1	1509-	●
111	00.724 COLLAR; THRUST,IDLE GEAR EURO6 SPECIFICATION(NT6) (A) ID=14.5 OD=46	8-97209-728-2	04	1	1506-1508	●
111	00.724 COLLAR; THRUST,IDLE GEAR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (A) ID=14.5 OD=46	8-97209-728-2	03	1	1509-	●
111	00.724 COLLAR; THRUST,IDLE GEAR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) ID=14.5 OD=46	8-97209-728-2	03	1	1509-		●
112	00.724 GEAR; IDLE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B) Z=72-60-30	8-98145-647-1	01	1	1509-	●
112	00.724 GEAR; IDLE EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) Z=72-60-30	8-98145-647-1	01	1	1509-		●
112	00.724 GEAR; IDLE (E) Z=34	8-97381-518-0	01	1	1506-			●	●
112	00.724 GEAR; IDLE (F) Z=35	8-97381-520-3	01	1	1506-			●	●
112	00.724 GEAR; IDLE (G) Z=80	8-98232-105-1	01	1	1506-			●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (A) Z=34	8-97120-005-1	01	1	1506-1508	●
112	00.724 GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (C) Z=61	8-97606-767-0	01	1	1506-1508	●
112	00.724 GEAR; IDLE (C) Z=61	8-97606-767-0	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (D) Z=41	8-98058-320-1	01	1	1506-1508	●
112	00.724 GEAR; IDLE (D) Z=41	8-98058-320-1	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (B) Z=72-60-30	8-98254-970-0	01	1	1506-1508	●
112	00.724 GEAR; IDLE EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (B) Z=72-60-30	8-98254-970-0	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (B) Z=72-60-30	8-98254-970-0	01	1	1509-	●
117	00.662 BOLT; FLANGE EURO6 SPECIFICATION(NT6) M14X65 FLANGE	8-97113-167-0	01	1	1506-1508	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1509-	●	●
206	00.724 BUSHING; IDLE GEAR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (A) AFTER PRESS FITTING, MACHINE IT.	8-98021-070-0	01	1	1509-	●
206	00.724 BUSHING; IDLE GEAR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A) AFTER PRESS FITTING, MACHINE IT.	8-98021-070-0	01	1	1509-		●
206	00.724 BUSHING; IDLE GEAR EURO6 SPECIFICATION(NT6) (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1506-1508	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1509-	●	●
206	00.724 BUSHING; IDLE GEAR EURO6 SPECIFICATION(NT6) (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1506-1508	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1509-	●	●
206	00.724 BUSHING; IDLE GEAR EURO6 SPECIFICATION(NT6) (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1506-1508	●
206	00.724 BUSHING; IDLE GEAR EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1509-	●	●
206	00.724 BUSHING; IDLE GEAR EURO6 SPECIFICATION(NT6) (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1509-	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) ID=105.6	1-09623-423-0	01	1	1506-1508	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1509-	●	●
224	00.724 BOLT; COVER EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1508	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
267	00.724 SENSOR; CAM ANGLE EURO6 SPECIFICATION(NT6)	8-98019-024-0	01	1	1506-1508	●
267	00.724 SENSOR; CAM ANGLE	8-98019-024-0	01	1	1509-	●	●
269	00.685 BOLT; SENSOR EURO6 SPECIFICATION(NT6) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1506-1508	●
269	00.685 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1509-	●	●
350	00.724 GASKET; SENSOR,CAM ANGLE EURO6 SPECIFICATION(NT6) ID=14.2 OD=18.8	8-97369-404-0	01	1	1506-1508	●
350	00.724 GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8	8-97369-404-0	01	1	1509-	●	●

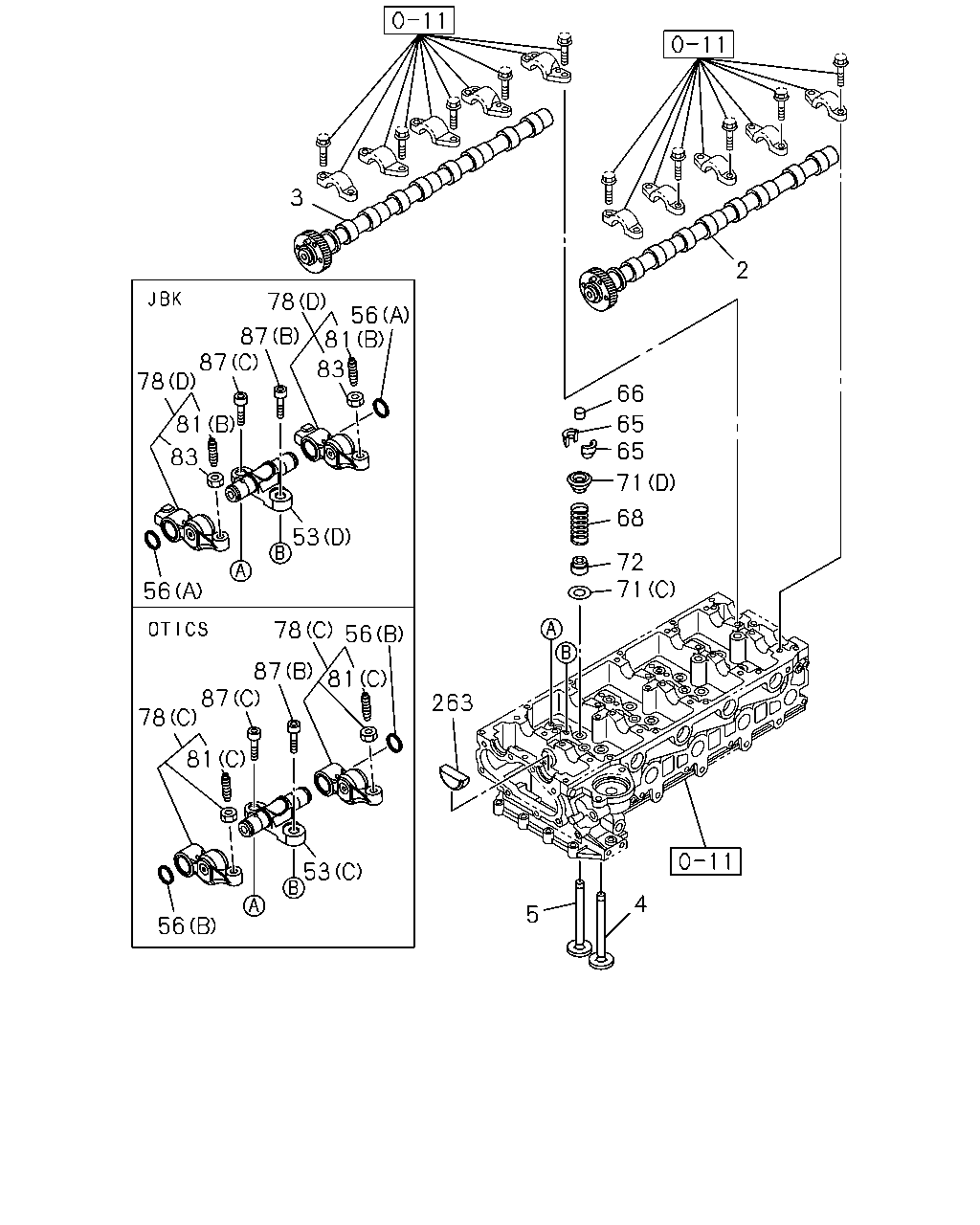

56 81 78 3 87 83 87 78 83 53 56 78 56 81 87 87 78 81 53 56 263 5 4 66 65 65 71 72 71 68 2 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL EURO5B+ SPECIFICATION(NT5)	8-98003-129-4	01	1	1509-			●
2	00.519 CAMSHAFT; INL	8-98205-037-1	01	1	1506-1508			●	●
2	00.519 CAMSHAFT; INL EURO6 SPECIFICATION(NT6)	8-98205-037-1	01	1	1509-			●
2	00.519 CAMSHAFT; INL EURO5B+ SPECIFICATION(NT5)	8-98205-037-1	01	1	1509-				●
3	00.519 CAMSHAFT; EXH EURO5B+ SPECIFICATION(NT5)	8-98003-130-4	01	1	1509-			●
3	00.519 CAMSHAFT; EXH	8-98205-041-1	01	1	1506-1508			●	●
3	00.519 CAMSHAFT; EXH EURO6 SPECIFICATION(NT6)	8-98205-041-1	01	1	1509-			●
3	00.519 CAMSHAFT; EXH EURO5B+ SPECIFICATION(NT5)	8-98205-041-1	01	1	1509-				●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1506-			●	●
4	00.296 VALVE; INL EURO6 SPECIFICATION(NT6)	8-94395-882-2	08	1	1506-1508	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	1509-	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1506-			●	●
5	00.297 VALVE; EXH EURO6 SPECIFICATION(NT6)	8-97209-876-4	08	1	1506-1508	●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	1509-	●	●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) INLET	8-97364-809-2	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) EXHAUST	8-97364-811-2	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (D) INLET	8-98025-071-1	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (D) EXHAUST	8-98025-074-1	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM (B)	8-98271-105-0	02	1	1506-1508			●	●
53	00.353 SHAFT; ROCKER ARM EURO6 SPECIFICATION(NT6) (B)	8-98271-105-0	02	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (B)	8-98271-105-0	02	1	1509-				●
53	00.353 SHAFT; ROCKER ARM EURO6 SPECIFICATION(NT6) (A)	8-97389-921-0	01	1	1506-1508	●
53	00.353 SHAFT; ROCKER ARM (A)	8-97389-921-0	01	1	1509-	●	●
56	00.349 RING; SNAP,ROCKER ARM EURO5B+ SPECIFICATION(NT5) 00.353 (A)	8-98025-496-0	16	1	1509-			●
56	00.349 RING; SNAP,ROCKER ARM EURO5B+ SPECIFICATION(NT5) (B)	8-98109-470-0	16	1	1509-			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1506-			●	●
65	00.310 COLLAR; SPLIT EURO6 SPECIFICATION(NT6)	5-12565-004-0	32	1	1506-1508	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	1509-	●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1506-			●	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1506-			●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1506-			●	●
68	00.303 SPRING; VLV EURO6 SPECIFICATION(NT6) EXHAUST MARK RED	8-97210-682-0	08	1	1506-1508	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1509-	●	●
68	00.303 SPRING; VLV EURO6 SPECIFICATION(NT6) INLET MARK BLUE	8-97352-888-0	08	1	1506-1508	●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1509-	●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	1506-			●	●
71	00.309 SEAT; SPR (D)	8-98017-067-0	16	1	1506-			●	●
71	00.309 SEAT; SPR EURO6 SPECIFICATION(NT6) (A) OD=32.8 T=12.75	8-94390-783-2	16	1	1506-1508	●
71	00.309 SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	1509-	●	●
71	00.309 SEAT; SPR EURO6 SPECIFICATION(NT6) (B) ID=14.3 T=1.0	8-94391-468-0	16	1	1506-1508	●
71	00.309 SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	1509-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1506-			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6)	8-97376-720-0	16	1	1506-1508	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97376-720-0	16	1	1509-	●	●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) 00.353 (D)	8-98025-059-4	16	1	1509-			●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) (C)	8-98029-537-6	16	1	1509-			●
78	00.333 ARM; ROCKER (B)	8-98236-198-0	16	1	1506-1508			●	●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (B)	8-98236-198-0	16	1	1509-			●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) (B)	8-98236-198-0	16	1	1509-				●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (A) INLET	8-97306-421-3	04	1	1506-1508	●
78	00.333 ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1509-	●	●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (A) EXHAUST	8-97306-424-3	04	1	1506-1508	●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97306-424-3	04	1	1509-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98025-497-0	16	1	1509-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98025-497-0	16	1	1506-1508			●	●
81	00.429 SCREW; ADJ,ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) M8 L=22	8-98029-893-0	16	1	1509-			●
81	00.429 SCREW; ADJ,ROCKER ARM EURO6 SPECIFICATION(NT6) (A) M10 L=32	8-94395-024-0	08	1	1506-1508	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M10 L=32	8-94395-024-0	08	1	1509-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1506-			●	●
83	00.787 NUT; ADJ SCREW,LK EURO6 SPECIFICATION(NT6) M10	0-91111-510-0	08	1	1506-1508	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1509-	●	●
87	00.349 BOLT; ROCKER SHAFT EURO5B+ SPECIFICATION(NT5) (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1509-			●
87	00.349 BOLT; ROCKER SHAFT EURO5B+ SPECIFICATION(NT5) (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	1509-			●
87	00.349 BOLT; ROCKER SHAFT EURO6 SPECIFICATION(NT6) 02.277 (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1508	●
87	00.349 BOLT; ROCKER SHAFT 02.277 (A) M8X40 FLANGE	0-28050-840-0	02	1	1509-	●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5)	8-98216-269-0	04	1	1509-			●

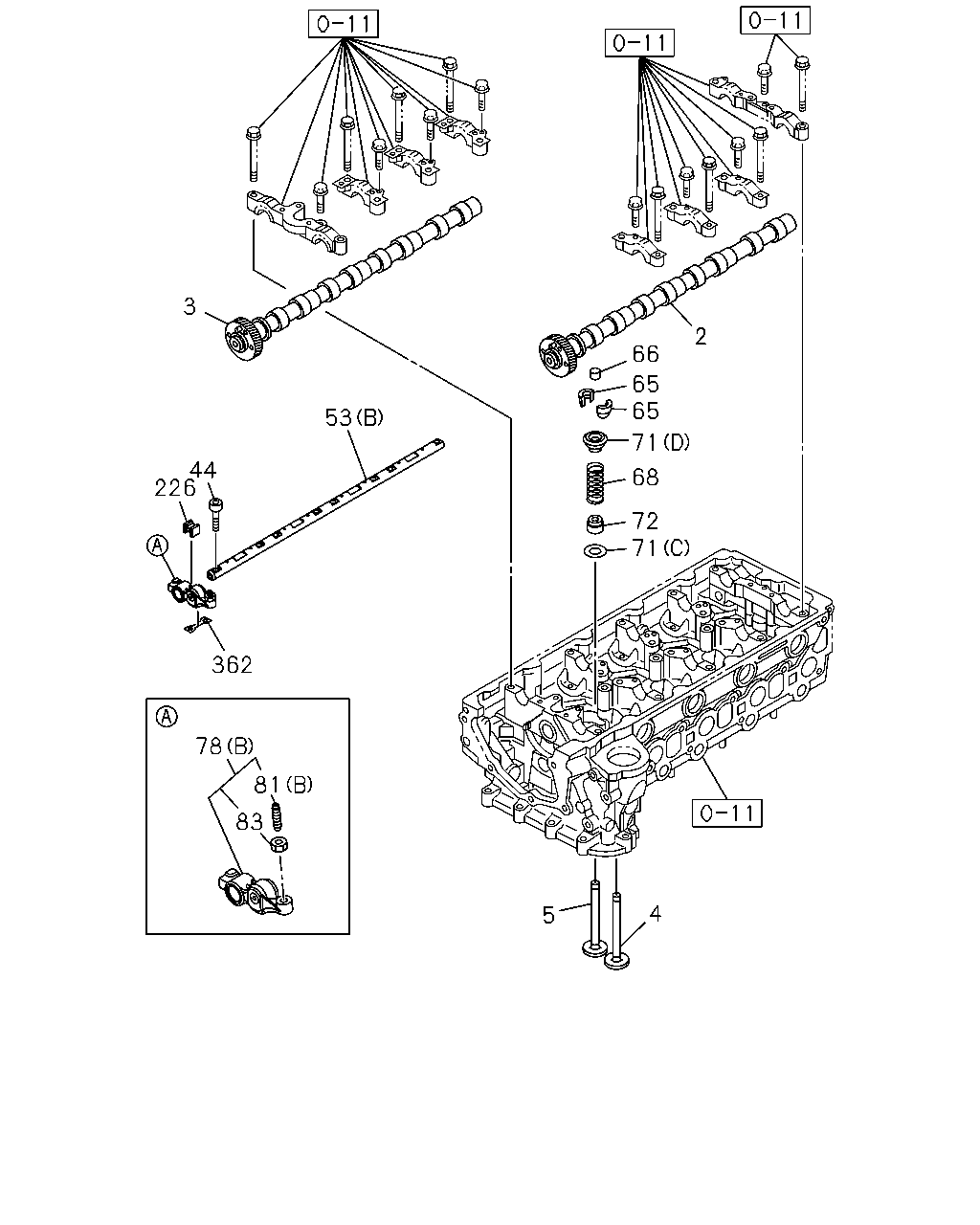

66 2 65 71 65 68 71 72 53 3 226 44 362 78 81 83 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL EURO5B+ SPECIFICATION(NT5)	8-98003-129-4	01	1	1509-			●
2	00.519 CAMSHAFT; INL	8-98205-037-1	01	1	1506-1508			●	●
2	00.519 CAMSHAFT; INL EURO6 SPECIFICATION(NT6)	8-98205-037-1	01	1	1509-			●
2	00.519 CAMSHAFT; INL EURO5B+ SPECIFICATION(NT5)	8-98205-037-1	01	1	1509-				●
3	00.519 CAMSHAFT; EXH EURO5B+ SPECIFICATION(NT5)	8-98003-130-4	01	1	1509-			●
3	00.519 CAMSHAFT; EXH	8-98205-041-1	01	1	1506-1508			●	●
3	00.519 CAMSHAFT; EXH EURO6 SPECIFICATION(NT6)	8-98205-041-1	01	1	1509-			●
3	00.519 CAMSHAFT; EXH EURO5B+ SPECIFICATION(NT5)	8-98205-041-1	01	1	1509-				●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1506-			●	●
4	00.296 VALVE; INL EURO6 SPECIFICATION(NT6)	8-94395-882-2	08	1	1506-1508	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	1509-	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1506-			●	●
5	00.297 VALVE; EXH EURO6 SPECIFICATION(NT6)	8-97209-876-4	08	1	1506-1508	●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	1509-	●	●
44	00.738 BOLT M6X25 HEX SOCKET	8-98224-626-0	14	1	1506-1508			●	●
44	00.738 BOLT EURO6 SPECIFICATION(NT6) M6X25 HEX SOCKET	8-98224-626-0	14	1	1509-			●
44	00.738 BOLT EURO5B+ SPECIFICATION(NT5) M6X25 HEX SOCKET	8-98224-626-0	14	1	1509-				●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) INLET	8-97364-809-2	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) EXHAUST	8-97364-811-2	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (D) INLET	8-98025-071-1	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (D) EXHAUST	8-98025-074-1	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM (B)	8-98271-105-0	02	1	1506-1508			●	●
53	00.353 SHAFT; ROCKER ARM EURO6 SPECIFICATION(NT6) (B)	8-98271-105-0	02	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (B)	8-98271-105-0	02	1	1509-				●
53	00.353 SHAFT; ROCKER ARM EURO6 SPECIFICATION(NT6) (A)	8-97389-921-0	01	1	1506-1508	●
53	00.353 SHAFT; ROCKER ARM (A)	8-97389-921-0	01	1	1509-	●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1506-			●	●
65	00.310 COLLAR; SPLIT EURO6 SPECIFICATION(NT6)	5-12565-004-0	32	1	1506-1508	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	1509-	●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1506-			●	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1506-			●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1506-			●	●
68	00.303 SPRING; VLV EURO6 SPECIFICATION(NT6) EXHAUST MARK RED	8-97210-682-0	08	1	1506-1508	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1509-	●	●
68	00.303 SPRING; VLV EURO6 SPECIFICATION(NT6) INLET MARK BLUE	8-97352-888-0	08	1	1506-1508	●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1509-	●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	1506-			●	●
71	00.309 SEAT; SPR (D)	8-98017-067-0	16	1	1506-			●	●
71	00.309 SEAT; SPR EURO6 SPECIFICATION(NT6) (A) OD=32.8 T=12.75	8-94390-783-2	16	1	1506-1508	●
71	00.309 SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	1509-	●	●
71	00.309 SEAT; SPR EURO6 SPECIFICATION(NT6) (B) ID=14.3 T=1.0	8-94391-468-0	16	1	1506-1508	●
71	00.309 SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	1509-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1506-			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6)	8-97376-720-0	16	1	1506-1508	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97376-720-0	16	1	1509-	●	●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) 00.353 (D)	8-98025-059-4	16	1	1509-			●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) (C)	8-98029-537-6	16	1	1509-			●
78	00.333 ARM; ROCKER (B)	8-98236-198-0	16	1	1506-1508			●	●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (B)	8-98236-198-0	16	1	1509-			●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) (B)	8-98236-198-0	16	1	1509-				●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (A) INLET	8-97306-421-3	04	1	1506-1508	●
78	00.333 ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1509-	●	●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (A) EXHAUST	8-97306-424-3	04	1	1506-1508	●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97306-424-3	04	1	1509-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98025-497-0	16	1	1509-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98025-497-0	16	1	1506-1508			●	●
81	00.429 SCREW; ADJ,ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) M8 L=22	8-98029-893-0	16	1	1509-			●
81	00.429 SCREW; ADJ,ROCKER ARM EURO6 SPECIFICATION(NT6) (A) M10 L=32	8-94395-024-0	08	1	1506-1508	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M10 L=32	8-94395-024-0	08	1	1509-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1506-			●	●
83	00.787 NUT; ADJ SCREW,LK EURO6 SPECIFICATION(NT6) M10	0-91111-510-0	08	1	1506-1508	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1509-	●	●
226	00.303 SPRING; CMPR,ROCKER ARM	8-98204-889-0	08	1	1506-1508			●	●
226	00.303 SPRING; CMPR,ROCKER ARM EURO6 SPECIFICATION(NT6)	8-98204-889-0	08	1	1509-			●
226	00.303 SPRING; CMPR,ROCKER ARM EURO5B+ SPECIFICATION(NT5)	8-98204-889-0	08	1	1509-				●
362	00.662 PLATE	8-98225-381-1	06	1	1506-1508			●	●
362	00.662 PLATE EURO6 SPECIFICATION(NT6)	8-98225-381-1	06	1	1509-			●
362	00.662 PLATE EURO5B+ SPECIFICATION(NT5)	8-98225-381-1	06	1	1509-				●

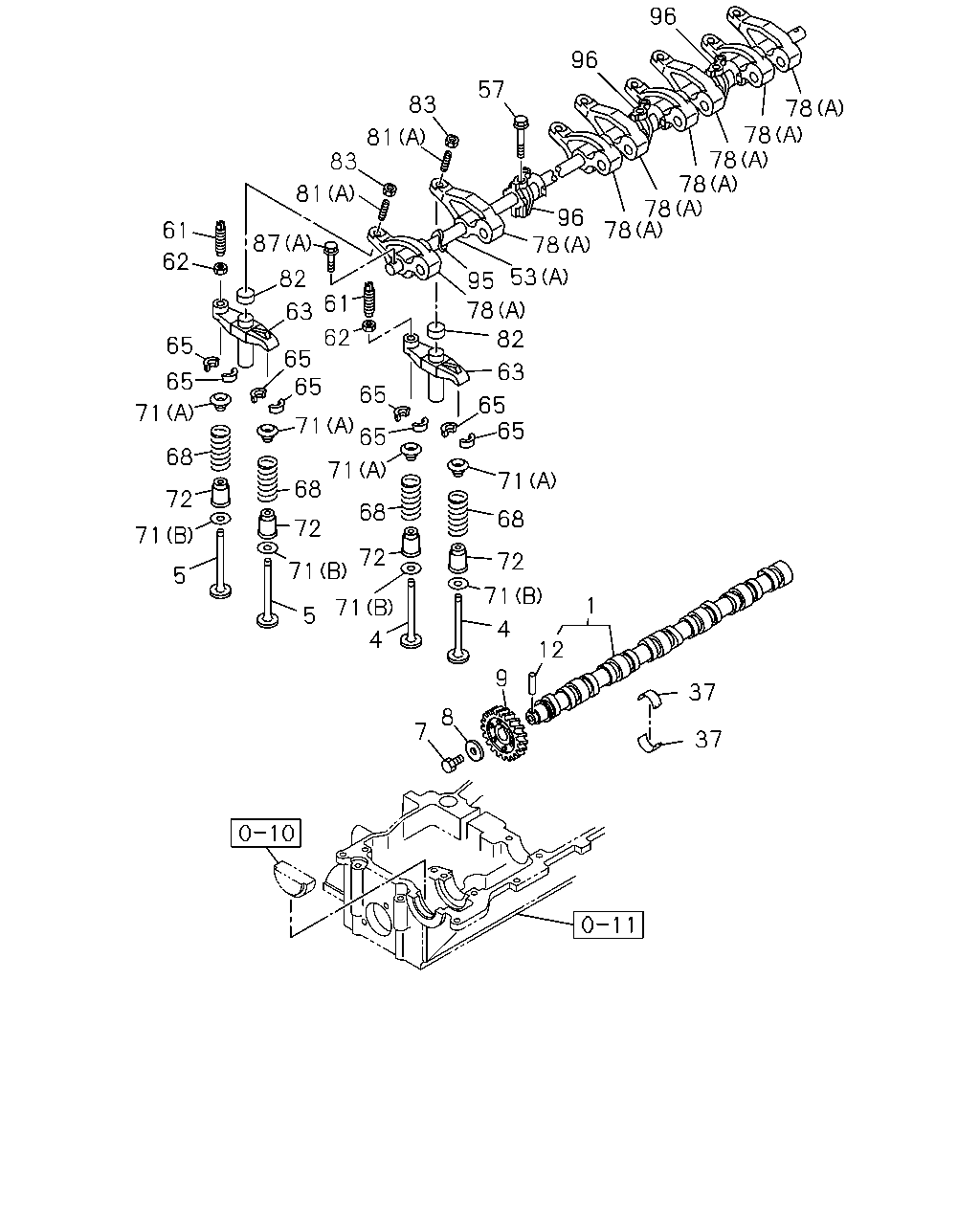

83 57 96 96 78 78 78 78 78 78 96 78 53 95 78 63 82 65 71 68 72 71 4 12 9 8 7 1 37 37 4 71 72 68 71 65 65 71 68 72 71 5 5 71 68 72 71 65 65 62 61 87 82 63 65 65 62 61 81 83 81 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT EURO6 SPECIFICATION(NT6)	8-97262-166-0	01	1	1506-1508	●
1	00.519 CAMSHAFT	8-97262-166-0	01	1	1509-	●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1506-			●	●
4	00.296 VALVE; INL EURO6 SPECIFICATION(NT6)	8-94395-882-2	08	1	1506-1508	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	1509-	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1506-			●	●
5	00.297 VALVE; EXH EURO6 SPECIFICATION(NT6)	8-97209-876-4	08	1	1506-1508	●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	1509-	●	●
7	00.738 BOLT; CM/SHF GEAR EURO6 SPECIFICATION(NT6) M14X40	8-94396-439-0	01	1	1506-1508	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1509-	●	●
8	00.738 WASHER; CM/SHF GEAR EURO6 SPECIFICATION(NT6) ID=14.5	9-09851-850-3	01	1	1506-1508	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1509-	●	●
9	00.736 GEAR; CM/SHF EURO6 SPECIFICATION(NT6) Z=35	8-98018-935-3	01	1	1506-1508	●
9	00.736 GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1509-	●	●
12	00.738 KEY; CAM GEAR SET EURO6 SPECIFICATION(NT6) OD=7 L=7.5	8-94399-487-0	02	1	1506-1508	●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1509-	●	●
37	00.539 METAL; CM/SHF EURO6 SPECIFICATION(NT6) B=16	8-97386-189-0	10	1	1506-1508	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	1509-	●	●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) INLET	8-97364-809-2	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) EXHAUST	8-97364-811-2	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (D) INLET	8-98025-071-1	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (D) EXHAUST	8-98025-074-1	04	1	1509-			●
53	00.353 SHAFT; ROCKER ARM (B)	8-98271-105-0	02	1	1506-1508			●	●
53	00.353 SHAFT; ROCKER ARM EURO6 SPECIFICATION(NT6) (B)	8-98271-105-0	02	1	1509-			●
53	00.353 SHAFT; ROCKER ARM EURO5B+ SPECIFICATION(NT5) (B)	8-98271-105-0	02	1	1509-				●
53	00.353 SHAFT; ROCKER ARM EURO6 SPECIFICATION(NT6) (A)	8-97389-921-0	01	1	1506-1508	●
53	00.353 SHAFT; ROCKER ARM (A)	8-97389-921-0	01	1	1509-	●	●
57	00.349 BOLT; ROCKER ARM BRKT EURO6 SPECIFICATION(NT6) M10X62 FLANGE	8-94393-131-0	03	1	1506-1508	●
57	00.349 BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1509-	●	●
61	00.349 SCREW; ADJ,BRIDGE EURO6 SPECIFICATION(NT6) M8X21	8-94394-803-0	08	1	1506-1508	●
61	00.349 SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1509-	●	●
62	00.349 NUT; ADJ SCREW LK BRIDGE EURO6 SPECIFICATION(NT6) 00.429 M8 FLANGE	9-09844-574-0	08	1	1506-1508	●
62	00.349 NUT; ADJ SCREW LK BRIDGE 00.429 M8 FLANGE	9-09844-574-0	08	1	1509-	●	●
63	00.349 BRIDGE EURO6 SPECIFICATION(NT6)	8-94392-002-3	08	1	1506-1508	●
63	00.349 BRIDGE	8-94392-002-3	08	1	1509-	●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1506-			●	●
65	00.310 COLLAR; SPLIT EURO6 SPECIFICATION(NT6)	5-12565-004-0	32	1	1506-1508	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	1509-	●	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	1506-			●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	1506-			●	●
68	00.303 SPRING; VLV EURO6 SPECIFICATION(NT6) EXHAUST MARK RED	8-97210-682-0	08	1	1506-1508	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	1509-	●	●
68	00.303 SPRING; VLV EURO6 SPECIFICATION(NT6) INLET MARK BLUE	8-97352-888-0	08	1	1506-1508	●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	1509-	●	●
71	00.309 SEAT; SPR (C) OD=31	8-97144-584-0	16	1	1506-			●	●
71	00.309 SEAT; SPR (D)	8-98017-067-0	16	1	1506-			●	●
71	00.309 SEAT; SPR EURO6 SPECIFICATION(NT6) (A) OD=32.8 T=12.75	8-94390-783-2	16	1	1506-1508	●
71	00.309 SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	1509-	●	●
71	00.309 SEAT; SPR EURO6 SPECIFICATION(NT6) (B) ID=14.3 T=1.0	8-94391-468-0	16	1	1506-1508	●
71	00.309 SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	1509-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	1506-			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6)	8-97376-720-0	16	1	1506-1508	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97376-720-0	16	1	1509-	●	●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) 00.353 (D)	8-98025-059-4	16	1	1509-			●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) (C)	8-98029-537-6	16	1	1509-			●
78	00.333 ARM; ROCKER (B)	8-98236-198-0	16	1	1506-1508			●	●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (B)	8-98236-198-0	16	1	1509-			●
78	00.333 ARM; ROCKER EURO5B+ SPECIFICATION(NT5) (B)	8-98236-198-0	16	1	1509-				●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (A) INLET	8-97306-421-3	04	1	1506-1508	●
78	00.333 ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1509-	●	●
78	00.333 ARM; ROCKER EURO6 SPECIFICATION(NT6) (A) EXHAUST	8-97306-424-3	04	1	1506-1508	●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97306-424-3	04	1	1509-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98025-497-0	16	1	1509-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98025-497-0	16	1	1506-1508			●	●
81	00.429 SCREW; ADJ,ROCKER ARM EURO5B+ SPECIFICATION(NT5) (C) M8 L=22	8-98029-893-0	16	1	1509-			●
81	00.429 SCREW; ADJ,ROCKER ARM EURO6 SPECIFICATION(NT6) (A) M10 L=32	8-94395-024-0	08	1	1506-1508	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M10 L=32	8-94395-024-0	08	1	1509-	●	●
82	00.356 CAP; ROCKER SHAFT EURO6 SPECIFICATION(NT6) 00.303	8-94396-015-2	08	1	1506-1508	●
82	00.356 CAP; ROCKER SHAFT 00.303	8-94396-015-2	08	1	1509-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1506-			●	●
83	00.787 NUT; ADJ SCREW,LK EURO6 SPECIFICATION(NT6) M10	0-91111-510-0	08	1	1506-1508	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1509-	●	●
87	00.349 BOLT; ROCKER SHAFT EURO5B+ SPECIFICATION(NT5) (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1509-			●
87	00.349 BOLT; ROCKER SHAFT EURO5B+ SPECIFICATION(NT5) (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	1509-			●
87	00.349 BOLT; ROCKER SHAFT EURO6 SPECIFICATION(NT6) 02.277 (A) M8X40 FLANGE	0-28050-840-0	02	1	1506-1508	●
87	00.349 BOLT; ROCKER SHAFT 02.277 (A) M8X40 FLANGE	0-28050-840-0	02	1	1509-	●	●
95	00.376 SPRING; ROCKER SHAFT EURO6 SPECIFICATION(NT6)	8-94392-999-0	04	1	1506-1508	●
95	00.376 SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1509-	●	●
96	00.349 BRACKET; ROCKER ARM SHAFT EURO6 SPECIFICATION(NT6)	8-97334-414-0	03	1	1506-1508	●
96	00.349 BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1509-	●	●

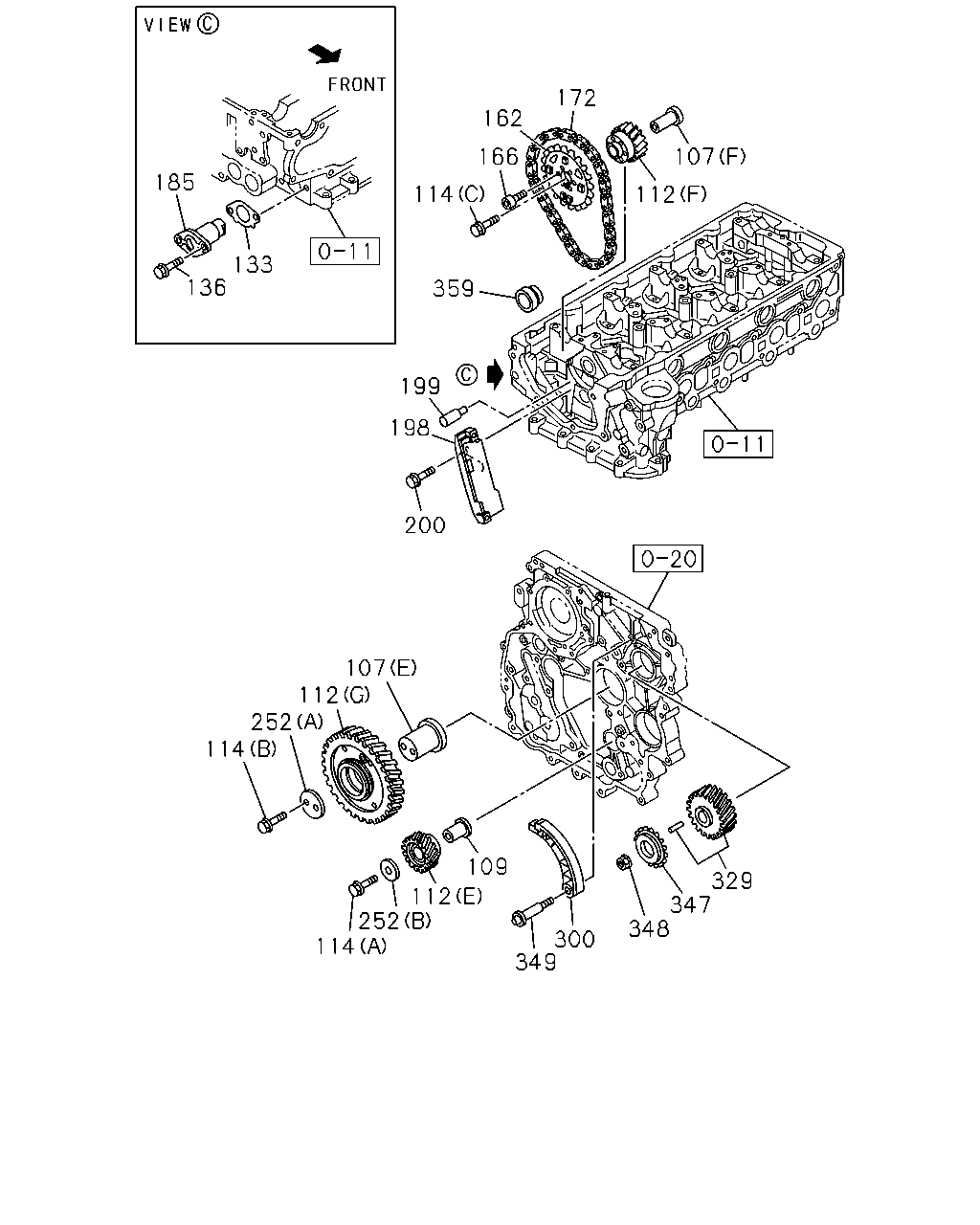

107 172 162 166 114 185 133 136 199 359 200 198 112 329 347 348 300 349 109 112 252 114 107 112 252 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (D)	8-98163-984-0	01	1	1509-	●
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98163-984-0	01	1	1509-		●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	1506-1508			●	●
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) (F)	8-97312-322-1	01	1	1509-			●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	1509-			●	●
107	00.724 SHAFT; IDLE GEAR (F)	8-98201-549-0	01	1	1506-1508			●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (F)	8-98201-549-0	01	1	1509-			●
107	00.724 SHAFT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) (F)	8-98201-549-0	01	1	1509-				●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (A)	8-94334-682-1	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (B)	8-97350-021-0	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (C)	8-97606-990-1	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97606-990-1	01	1	1509-	●	●
107	00.724 SHAFT; IDLE GEAR EURO6 SPECIFICATION(NT6) (D)	8-98060-780-0	01	1	1506-1508	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1509-	●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1506-			●	●
112	00.724 GEAR; IDLE EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) (B) Z=72-60-30	8-98145-647-1	01	1	1509-	●
112	00.724 GEAR; IDLE EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) Z=72-60-30	8-98145-647-1	01	1	1509-		●
112	00.724 GEAR; IDLE (E) Z=34	8-97381-518-0	01	1	1506-			●	●
112	00.724 GEAR; IDLE (F) Z=35	8-97381-520-3	01	1	1506-			●	●
112	00.724 GEAR; IDLE (G) Z=80	8-98232-105-1	01	1	1506-			●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (A) Z=34	8-97120-005-1	01	1	1506-1508	●
112	00.724 GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (C) Z=61	8-97606-767-0	01	1	1506-1508	●
112	00.724 GEAR; IDLE (C) Z=61	8-97606-767-0	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (D) Z=41	8-98058-320-1	01	1	1506-1508	●
112	00.724 GEAR; IDLE (D) Z=41	8-98058-320-1	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (B) Z=72-60-30	8-98254-970-0	01	1	1506-1508	●
112	00.724 GEAR; IDLE EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) (B) Z=72-60-30	8-98254-970-0	01	1	1509-	●	●
112	00.724 GEAR; IDLE EURO6 SPECIFICATION(NT6) (B) Z=72-60-30	8-98254-970-0	01	1	1509-	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1509-			●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1506-1508			●	●
114	00.724 BOLT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) (B) M12X60 FLANGE	0-28161-260-0	02	1	1509-			●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	01	1	1506-1508			●	●
114	00.724 BOLT; IDLE GEAR EURO6 SPECIFICATION(NT6) (A) M12X60 FLANGE	0-28161-260-0	01	1	1509-			●
114	00.724 BOLT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) (A) M12X60 FLANGE	0-28161-260-0	01	1	1509-				●
114	00.724 BOLT; IDLE GEAR 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1506-1508			●	●
114	00.724 BOLT; IDLE GEAR EURO6 SPECIFICATION(NT6) 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1509-			●
114	00.724 BOLT; IDLE GEAR EURO5B+ SPECIFICATION(NT5) 05.506 (C) M12X75 FLANGE	8-98176-233-0	01	1	1509-				●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	1506-			●	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1506-			●	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1506-			●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1506-			●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1506-			●	●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1506-			●	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1506-			●	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1506-			●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1506-			●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1506-1508			●	●
252	00.724 FLANGE; IDLE SHAFT EURO5B+ SPECIFICATION(NT5) (B)	8-98016-893-0	01	1	1509-			●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1509-			●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	01	1	1506-1508			●	●
252	00.724 FLANGE; IDLE SHAFT EURO6 SPECIFICATION(NT6) (B)	8-98016-893-0	01	1	1509-			●
252	00.724 FLANGE; IDLE SHAFT EURO5B+ SPECIFICATION(NT5) (B)	8-98016-893-0	01	1	1509-				●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1506-			●	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1506-1508				●
329	00.724 GEAR; INJ PUMP EURO5B+ SPECIFICATION(NT5) Z=44	8-98017-539-1	01	1	1509-			●	●
329	00.724 GEAR; INJ PUMP EURO6 SPECIFICATION(NT6) Z=44	8-98088-473-0	01	1	1506-			●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1506-1508				●
347	00.429 SPROCKET; I/PUMP EURO5B+ SPECIFICATION(NT5)	8-98210-266-0	01	1	1509-			●	●
347	00.429 SPROCKET; I/PUMP EURO6 SPECIFICATION(NT6)	8-98210-404-0	01	1	1506-			●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1506-1508				●
348	00.429 NUT; SPROCKET EURO5B+ SPECIFICATION(NT5) M14 FLANGE	8-97312-423-2	01	1	1509-			●	●
348	00.429 NUT; SPROCKET EURO6 SPECIFICATION(NT6) M18 FLANGE	8-98088-462-0	01	1	1506-			●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1506-			●	●
359	02.530 SLEEVE; GEAR	8-98201-554-0	01	1	1506-1508			●	●
359	02.530 SLEEVE; GEAR EURO6 SPECIFICATION(NT6)	8-98201-554-0	01	1	1509-			●
359	02.530 SLEEVE; GEAR EURO5B+ SPECIFICATION(NT5)	8-98201-554-0	01	1	1509-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
