Sayfa 0-11 - Isuzu EPC

0-11 — CYLINDER HEAD (#162290) — 353 parça

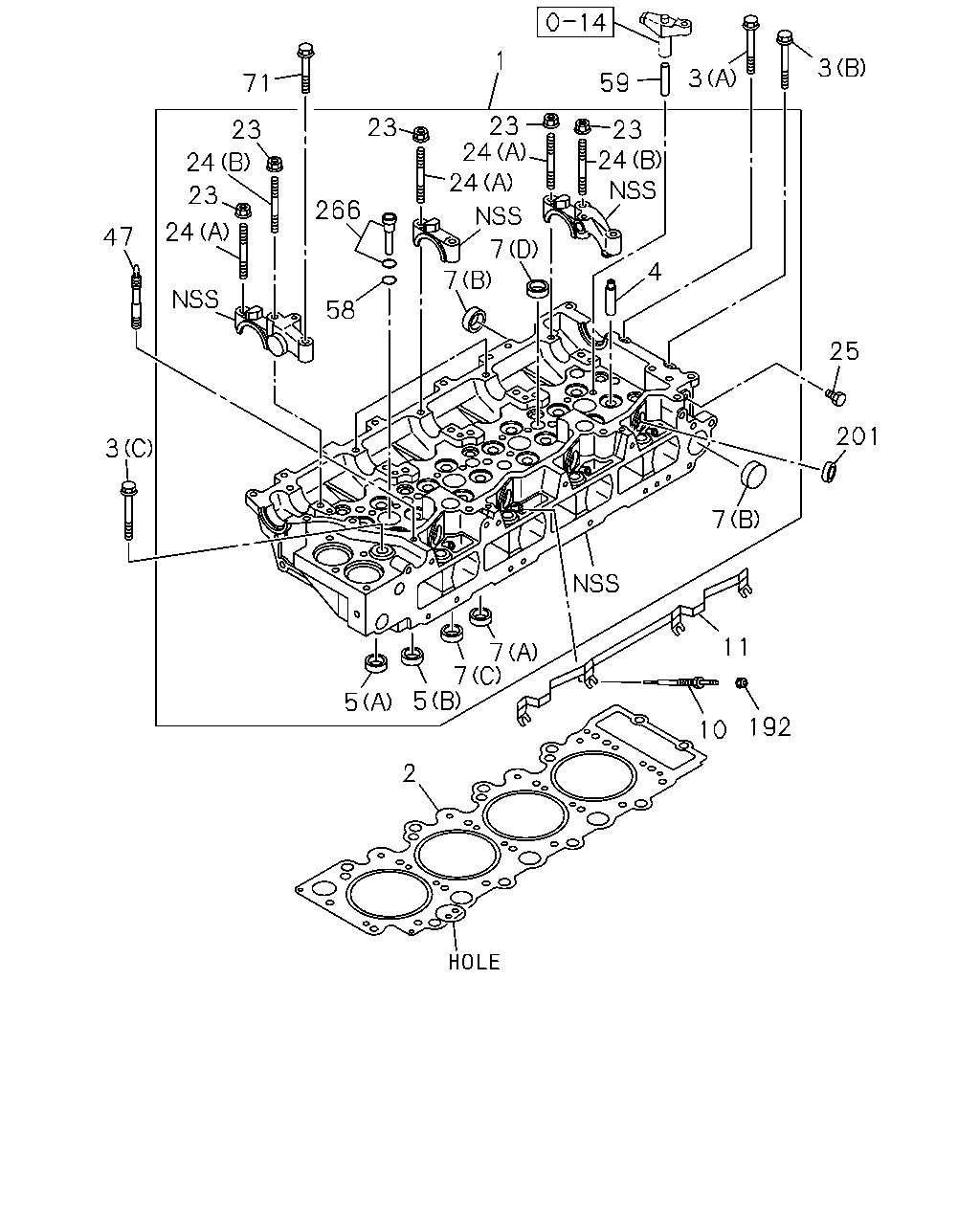

71 23 24 23 24 47 3 58 266 23 1 23 24 24 7 7 4 24 23 59 3 3 25 201 7 11 192 10 7 7 5 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98223-080-2	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98170-619-0	01	1	1509-		●	●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL	8-98270-378-1	01	1	1506-1508	●			●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98270-378-1	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98270-378-1	01	1	1509-				●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1506-1508			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE	8-98288-501-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE	8-98288-502-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE	8-98288-503-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH	8-98291-683-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH	8-98291-684-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH	8-98291-685-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.14 1-HOLE	8-98261-311-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE	8-98261-311-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.14 1-HOLE	8-98261-311-0	01	1	1509-				●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.19 2-HOLE	8-98261-312-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE	8-98261-312-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.19 2-HOLE	8-98261-312-0	01	1	1509-				●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.24 3-HOLE	8-98261-313-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE	8-98261-313-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.24 3-HOLE	8-98261-313-0	01	1	1509-				●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114 W/WASHER	8-98201-019-0	18	1	1506-	●			●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (A) M10X73	8-94399-554-0	01	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	1509-		●	●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (B) M10X43	8-94399-555-0	01	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	1509-		●	●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1509-		●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1506-	●			●
4	00.283 GUIDE; VLV EURO6 SPECIFICATION(NT6) L=57	8-97376-719-2	16	1	1506-1508			●
4	00.283 GUIDE; VLV L=57	8-97376-719-2	16	1	1509-		●	●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1506-	●			●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1506-	●			●
5	00.253 SEAT; VLV INSERT EURO6 SPECIFICATION(NT6) (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1506-1508			●
5	00.253 SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1509-		●	●
5	00.253 SEAT; VLV INSERT EURO6 SPECIFICATION(NT6) (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1506-1508			●
5	00.253 SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (F) OD=18	5-11219-008-0	07	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (F) OD=18	5-11219-008-0	07	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (I) OD=32	1-09600-012-2	02	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (G) OD=14	5-11219-011-0	07	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	07	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (F) OD=18	5-11219-008-0	13	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	02	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) 00.034 (G) OD=14	5-11219-011-0	02	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (G) OD=14	5-11219-011-0	02	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD (H) OD=8	8-97233-429-0	01	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (H) OD=8	8-97233-429-0	01	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (H) OD=8	8-97233-429-0	01	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD (E) OD=24	8-97333-120-0	05	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (E) OD=24	8-97333-120-0	05	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (E) OD=24	8-97333-120-0	05	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) 00.293 (D) OD=25	1-09600-016-0	04	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD 00.293 (D) OD=25	1-09600-016-0	04	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (A) OD=16	5-11129-006-0	05	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (A) OD=16	5-11129-006-0	05	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (B) OD=32	8-97096-821-0	05	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=32	8-97096-821-0	05	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (C) OD=20	9-11129-128-0	07	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (C) OD=20	9-11129-128-0	07	1	1509-		●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1506-1508			●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1509-		●	●
10	02.270 PLUG; GLOW EURO5B+ SPECIFICATION(NT5) NGK	8-94390-777-6	04	1	1509-	●			●
10	02.270 PLUG; GLOW EURO6 SPECIFICATION(NT6) BOSCH	8-98238-424-0	04	1	1506-	●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	1506-	●			●
11	02.251 CONNECTOR; GLOW PLUG EURO6 SPECIFICATION(NT6)	8-97332-358-2	01	1	1506-1508			●
11	02.251 CONNECTOR; GLOW PLUG	8-97332-358-2	01	1	1509-		●	●
23	00.349 NUT; CAM BRKT EURO6 SPECIFICATION(NT6) 01.540 M8 FLANGE	0-91180-208-0	10	1	1506-1508			●
23	00.349 NUT; CAM BRKT 01.540 M8 FLANGE	0-91180-208-0	10	1	1509-		●	●
24	00.413 STUD; CM/SHF BRKT EURO6 SPECIFICATION(NT6) (B) M8X54 L=79	8-94322-512-2	02	1	1506-1508			●
24	00.413 STUD; CM/SHF BRKT (B) M8X54 L=79	8-94322-512-2	02	1	1509-		●	●
24	00.413 STUD; CM/SHF BRKT EURO6 SPECIFICATION(NT6) (A) M8X41 L=66	8-94322-513-2	08	1	1506-1508			●
24	00.413 STUD; CM/SHF BRKT (A) M8X41 L=66	8-94322-513-2	08	1	1509-		●	●
25	00.293 PLUG; CYL HD EURO6 SPECIFICATION(NT6) 00.309 M8X10	8-98003-416-0	01	1	1506-1508			●
25	00.293 PLUG; CYL HD 00.309 M8X10	8-98003-416-0	01	1	1509-		●	●
47	00.413 STUD; CYL HD EURO6 SPECIFICATION(NT6) 01.073 M8X60 L=72	0-49140-860-0	02	1	1506-1508			●
47	00.413 STUD; CYL HD 01.073 M8X60 L=72	0-49140-860-0	02	1	1509-		●	●
58	00.289 GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) ID=26.4	8-97604-916-0	04	1	1506-1508			●
58	00.289 GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=26.4	8-97604-916-0	04	1	1509-		●	●
59	00.283 GUIDE; BRIDGE EURO6 SPECIFICATION(NT6)	8-97381-603-1	08	1	1506-1508			●
59	00.283 GUIDE; BRIDGE	8-97381-603-1	08	1	1509-		●	●
71	00.413 BOLT; CAM BRKT EURO6 SPECIFICATION(NT6) 03.162 M8X35 FLANGE	0-28050-835-0	02	1	1506-1508			●
71	00.413 BOLT; CAM BRKT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	1509-		●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1506-1508	●		●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1509-	●	●	●	●
201	03.306 GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) OD=30	1-09639-034-0	04	1	1506-1508			●
201	03.306 GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=30	1-09639-034-0	04	1	1509-		●	●
266	00.293 SLEEVE ASM; NOZZLE HOLDER EURO6 SPECIFICATION(NT6)	8-98018-462-0	04	1	1506-1508			●
266	00.293 SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1509-		●	●

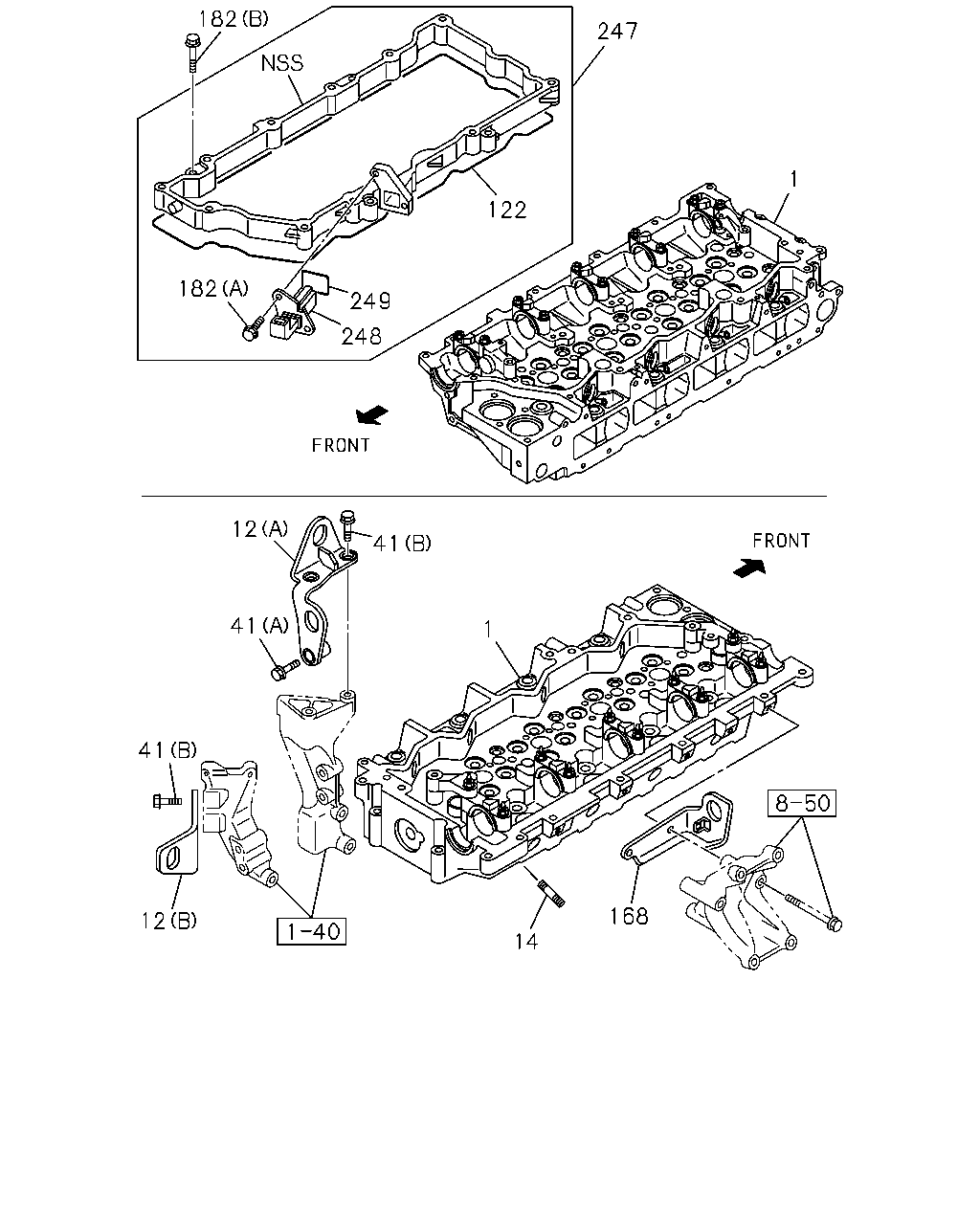

1 247 122 249 182 248 41 1 12 41 41 12 168 14 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98223-080-2	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98170-619-0	01	1	1509-		●	●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL	8-98270-378-1	01	1	1506-1508	●			●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98270-378-1	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98270-378-1	01	1	1509-				●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1506-1508			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-		●
12	00.004 HANGER; ENG,RR EGR COOLER LH POSITION<KCC> (B)	8-98186-568-0	01	1	1506-1508			●
12	00.004 HANGER; ENG,RR EURO6 SPECIFICATION(NT6) EGR COOLER LH POSITION<KCC> (B)	8-98186-568-0	01	1	1509-			●
12	00.004 HANGER; ENG,RR EXC. EGR COOLER LH POSITION<KCC> (A)	8-98074-691-1	01	1	1506-1508			●
12	00.004 HANGER; ENG,RR EURO6 SPECIFICATION(NT6) EXC. EGR COOLER LH POSITION<KCC> (A)	8-98074-691-1	01	1	1509-			●
12	00.004 HANGER; ENG,RR (A)	8-98074-691-1	01	1	1509-		●
14	03.275 STUD; EXH MANIF EURO6 SPECIFICATION(NT6) M10X60 L=75	8-94397-286-0	02	1	1506-1508			●
14	03.275 STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1509-		●	●
41	09.181 BOLT; ENG HANGER EURO6 SPECIFICATION(NT6) 03.162 (B) M12X20 FLANGE	0-28151-220-0	02	1	1506-1508			●
41	09.181 BOLT; ENG HANGER 03.162 (B) M12X20 FLANGE	0-28151-220-0	02	1	1509-		●	●
41	09.181 BOLT; ENG HANGER EXC. EGR COOLER LH POSITION<KCC> (A) M12X80	0-28151-280-0	01	1	1506-1508			●
41	09.181 BOLT; ENG HANGER EXC. EGR COOLER LH POSITION<KCC> (A) M12X80	0-28151-280-0	01	1	1509-		●	●
122	00.206 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6)	8-97331-360-1	01	1	1506-1508			●
122	00.206 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-360-1	01	1	1509-		●	●
168	00.004 HANGER; ENG,FRT EURO6 SPECIFICATION(NT6)	8-98032-250-1	01	1	1506-1508			●
168	00.004 HANGER; ENG,FRT	8-98032-250-1	01	1	1509-		●	●
182	00.206 BOLT; CASE EURO6 SPECIFICATION(NT6) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1506-1508			●
182	00.206 BOLT; CASE 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-		●	●
182	00.206 BOLT; CASE EURO6 SPECIFICATION(NT6) 09.173 (B) M8X45 FLANGE	0-28050-845-0	04	1	1506-1508			●
182	00.206 BOLT; CASE 09.173 (B) M8X45 FLANGE	0-28050-845-0	04	1	1509-		●	●
247	00.269 CASE; CYL HEAD,C/H COVER EURO6 SPECIFICATION(NT6)	8-97331-362-1	01	1	1506-1508			●
247	00.269 CASE; CYL HEAD,C/H COVER	8-97331-362-1	01	1	1509-		●	●
248	02.251 CONNECTOR EURO6 SPECIFICATION(NT6) 01.150	8-94390-858-1	01	1	1506-1508			●
248	02.251 CONNECTOR 01.150	8-94390-858-1	01	1	1509-		●	●
249	03.300 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO6 SPECIFICATION(NT6) 01.152	8-94391-310-0	01	1	1506-1508			●
249	03.300 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE). 01.152	8-94391-310-0	01	1	1509-		●	●

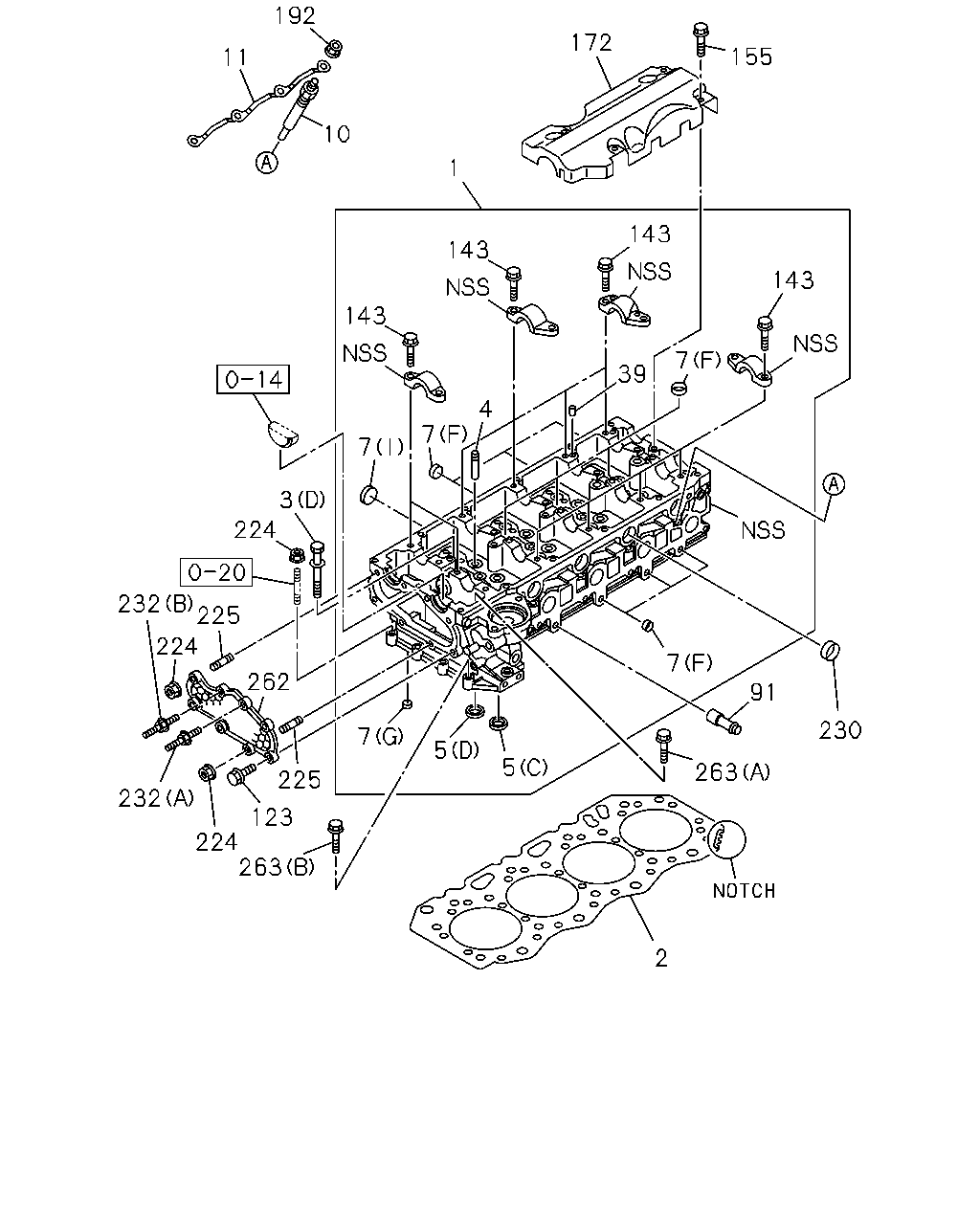

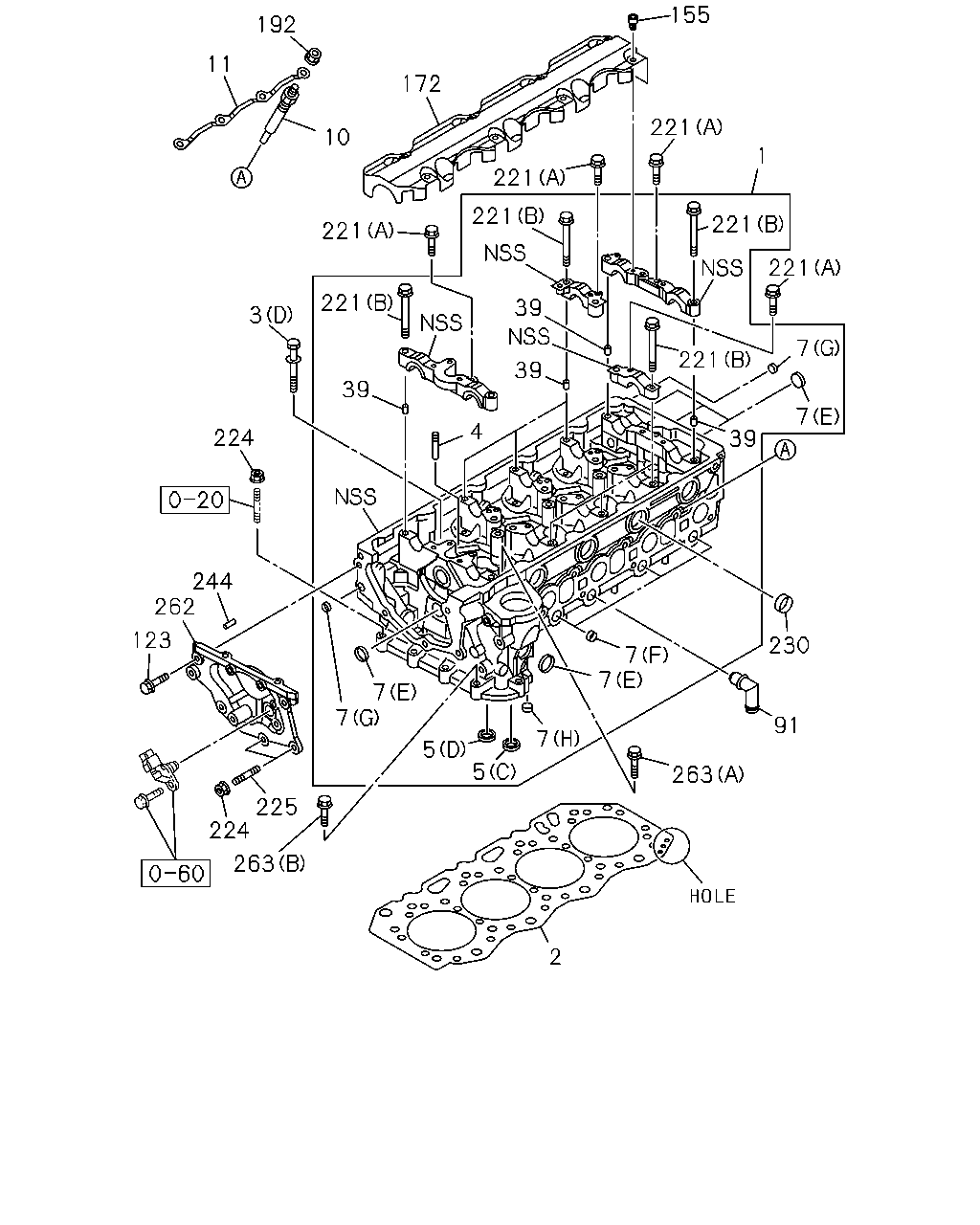

192 11 172 10 221 221 39 221 155 1 221 7 7 221 221 39 39 4 39 221 221 3 224 244 262 123 225 224 263 7 7 5 5 7 7 7 91 230 263 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98223-080-2	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98170-619-0	01	1	1509-		●	●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL	8-98270-378-1	01	1	1506-1508	●			●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98270-378-1	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98270-378-1	01	1	1509-				●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1506-1508			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE	8-98288-501-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE	8-98288-502-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE	8-98288-503-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH	8-98291-683-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH	8-98291-684-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH	8-98291-685-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.14 1-HOLE	8-98261-311-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE	8-98261-311-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.14 1-HOLE	8-98261-311-0	01	1	1509-				●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.19 2-HOLE	8-98261-312-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE	8-98261-312-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.19 2-HOLE	8-98261-312-0	01	1	1509-				●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.24 3-HOLE	8-98261-313-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE	8-98261-313-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.24 3-HOLE	8-98261-313-0	01	1	1509-				●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114 W/WASHER	8-98201-019-0	18	1	1506-	●			●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (A) M10X73	8-94399-554-0	01	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	1509-		●	●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (B) M10X43	8-94399-555-0	01	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	1509-		●	●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1509-		●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1506-	●			●
4	00.283 GUIDE; VLV EURO6 SPECIFICATION(NT6) L=57	8-97376-719-2	16	1	1506-1508			●
4	00.283 GUIDE; VLV L=57	8-97376-719-2	16	1	1509-		●	●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1506-	●			●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1506-	●			●
5	00.253 SEAT; VLV INSERT EURO6 SPECIFICATION(NT6) (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1506-1508			●
5	00.253 SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1509-		●	●
5	00.253 SEAT; VLV INSERT EURO6 SPECIFICATION(NT6) (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1506-1508			●
5	00.253 SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (F) OD=18	5-11219-008-0	07	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (F) OD=18	5-11219-008-0	07	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (I) OD=32	1-09600-012-2	02	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (G) OD=14	5-11219-011-0	07	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	07	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (F) OD=18	5-11219-008-0	13	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	02	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) 00.034 (G) OD=14	5-11219-011-0	02	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (G) OD=14	5-11219-011-0	02	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD (H) OD=8	8-97233-429-0	01	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (H) OD=8	8-97233-429-0	01	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (H) OD=8	8-97233-429-0	01	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD (E) OD=24	8-97333-120-0	05	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (E) OD=24	8-97333-120-0	05	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (E) OD=24	8-97333-120-0	05	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) 00.293 (D) OD=25	1-09600-016-0	04	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD 00.293 (D) OD=25	1-09600-016-0	04	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (A) OD=16	5-11129-006-0	05	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (A) OD=16	5-11129-006-0	05	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (B) OD=32	8-97096-821-0	05	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=32	8-97096-821-0	05	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (C) OD=20	9-11129-128-0	07	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (C) OD=20	9-11129-128-0	07	1	1509-		●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1506-1508			●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1509-		●	●
10	02.270 PLUG; GLOW EURO5B+ SPECIFICATION(NT5) NGK	8-94390-777-6	04	1	1509-	●			●
10	02.270 PLUG; GLOW EURO6 SPECIFICATION(NT6) BOSCH	8-98238-424-0	04	1	1506-	●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	1506-	●			●
11	02.251 CONNECTOR; GLOW PLUG EURO6 SPECIFICATION(NT6)	8-97332-358-2	01	1	1506-1508			●
11	02.251 CONNECTOR; GLOW PLUG	8-97332-358-2	01	1	1509-		●	●
39	00.413 DOWEL; CAP,CM/SHF EURO5B+ SPECIFICATION(NT5)	8-97329-129-1	20	1	1509-	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	26	1	1506-1508	●			●
39	00.413 DOWEL; CAP,CM/SHF EURO6 SPECIFICATION(NT6)	8-97329-129-1	26	1	1509-	●
39	00.413 DOWEL; CAP,CM/SHF EURO5B+ SPECIFICATION(NT5)	8-97329-129-1	26	1	1509-				●
91	08.846 PIPE; HTR EURO5B+ SPECIFICATION(NT5) 01.251	8-94343-211-1	01	1	1509-	●
91	08.846 PIPE; HTR	8-98209-467-2	01	1	1506-1508	●			●
91	08.846 PIPE; HTR EURO6 SPECIFICATION(NT6)	8-98209-467-2	01	1	1509-	●
91	08.846 PIPE; HTR EURO5B+ SPECIFICATION(NT5)	8-98209-467-2	01	1	1509-				●
123	00.206 BOLT; COVER EURO5B+ SPECIFICATION(NT5) M8X20 FLANGE	8-97366-632-0	04	1	1509-	●
123	00.206 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	03	1	1506-1508	●			●
123	00.206 BOLT; COVER EURO6 SPECIFICATION(NT6) 04.338 M8X20 FLANGE	0-28050-820-0	03	1	1509-	●
123	00.206 BOLT; COVER EURO5B+ SPECIFICATION(NT5) 04.338 M8X20 FLANGE	0-28050-820-0	03	1	1509-				●
155	00.349 BOLT; BAFFLE PLATE EURO5B+ SPECIFICATION(NT5) M6X10 HEX SOCKET	0-58330-610-0	04	1	1509-	●
155	00.349 BOLT; BAFFLE PLATE M6X10 HEX SOCKET	0-58330-610-0	08	1	1506-1508	●			●
155	00.349 BOLT; BAFFLE PLATE EURO6 SPECIFICATION(NT6) M6X10 HEX SOCKET	0-58330-610-0	08	1	1509-	●
155	00.349 BOLT; BAFFLE PLATE EURO5B+ SPECIFICATION(NT5) M6X10 HEX SOCKET	0-58330-610-0	08	1	1509-				●
172	00.207 PLATE; BAFFLE,CYL HD EURO5B+ SPECIFICATION(NT5)	8-98016-865-0	01	1	1509-	●
172	00.207 PLATE; BAFFLE,CYL HD	8-98212-020-0	01	1	1506-1508	●			●
172	00.207 PLATE; BAFFLE,CYL HD EURO6 SPECIFICATION(NT6)	8-98212-020-0	01	1	1509-	●
172	00.207 PLATE; BAFFLE,CYL HD EURO5B+ SPECIFICATION(NT5)	8-98212-020-0	01	1	1509-				●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1506-1508	●		●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1509-	●	●	●	●
221	00.413 BOLT; BRKT 01.531 (A) M6X30 FLANGE	0-28050-630-0	08	1	1506-1508	●			●
221	00.413 BOLT; BRKT EURO6 SPECIFICATION(NT6) 01.531 (A) M6X30 FLANGE	0-28050-630-0	08	1	1509-	●
221	00.413 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 01.531 (A) M6X30 FLANGE	0-28050-630-0	08	1	1509-				●
221	00.413 BOLT; BRKT 01.531 (B) M8X85	1-09044-074-0	21	1	1506-1508	●			●
221	00.413 BOLT; BRKT EURO6 SPECIFICATION(NT6) 01.531 (B) M8X85	1-09044-074-0	21	1	1509-	●
221	00.413 BOLT; BRKT EURO5B+ SPECIFICATION(NT5) 01.531 (B) M8X85	1-09044-074-0	21	1	1509-				●
224	00.349 NUT; COVER 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-	●			●
225	00.349 STUD; COVER M8X15.5 L=33.5	8-98017-062-0	02	1	1506-	●			●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.306 OD=30	1-09639-034-0	04	1	1506-	●			●
244	00.206 PIN; HEAD GASKET 08.939 OD=5 L=10	9-08150-510-0	01	1	1506-1508	●			●
244	00.206 PIN; HEAD GASKET EURO6 SPECIFICATION(NT6) 08.939 OD=5 L=10	9-08150-510-0	01	1	1509-	●
244	00.206 PIN; HEAD GASKET EURO5B+ SPECIFICATION(NT5) 08.939 OD=5 L=10	9-08150-510-0	01	1	1509-				●
262	00.206 COVER; CYL HEAD EURO5B+ SPECIFICATION(NT5)	8-97355-516-4	01	1	1509-	●
262	00.206 COVER; CYL HEAD	8-98201-552-0	01	1	1506-1508	●			●
262	00.206 COVER; CYL HEAD EURO6 SPECIFICATION(NT6)	8-98201-552-0	01	1	1509-1510	●
262	00.206 COVER; CYL HEAD EURO5B+ SPECIFICATION(NT5)	8-98201-552-0	01	1	1509-1510				●
262	00.206 COVER; CYL HEAD EURO6 SPECIFICATION(NT6)	8-98243-226-0	01	1	1511-	●
262	00.206 COVER; CYL HEAD EURO5B+ SPECIFICATION(NT5)	8-98243-226-0	01	1	1511-				●
263	00.293 BOLT; CYL HD 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1506-	●			●
263	00.293 BOLT; CYL HD 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1506-	●			●

192 11 10 1 172 155 143 143 143 143 4 7 7 3 224 232 225 224 262 225 123 232 224 263 7 5 5 2 263 91 230 7 7 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98223-080-2	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04)	8-98170-619-0	01	1	1509-		●	●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL	8-98270-378-1	01	1	1506-1508	●			●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98270-378-1	01	1	1509-	●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5)	8-98270-378-1	01	1	1509-				●
1	00.269 HEAD ASM; CYL EURO6 SPECIFICATION(NT6)	8-98170-619-0	01	1	1506-1508			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-			●
1	00.269 HEAD ASM; CYL EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98170-620-0	01	1	1509-		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE	8-98288-501-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE	8-98288-502-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-1508			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE	8-98288-503-0	01	1	1509-		●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH	8-98291-683-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH	8-98291-684-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH	8-98291-685-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.14 1-HOLE	8-98261-311-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE	8-98261-311-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.14 1-HOLE	8-98261-311-0	01	1	1509-				●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.19 2-HOLE	8-98261-312-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE	8-98261-312-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.19 2-HOLE	8-98261-312-0	01	1	1509-				●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.24 3-HOLE	8-98261-313-0	01	1	1506-1508	●			●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE	8-98261-313-0	01	1	1509-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO5B+ SPECIFICATION(NT5) T=1.24 3-HOLE	8-98261-313-0	01	1	1509-				●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114 W/WASHER	8-98201-019-0	18	1	1506-	●			●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (A) M10X73	8-94399-554-0	01	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	1509-		●	●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (B) M10X43	8-94399-555-0	01	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	1509-		●	●
3	00.293 BOLT; CYL HD TO BLOCK EURO6 SPECIFICATION(NT6) (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1506-1508			●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1509-		●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1506-	●			●
4	00.283 GUIDE; VLV EURO6 SPECIFICATION(NT6) L=57	8-97376-719-2	16	1	1506-1508			●
4	00.283 GUIDE; VLV L=57	8-97376-719-2	16	1	1509-		●	●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1506-	●			●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1506-	●			●
5	00.253 SEAT; VLV INSERT EURO6 SPECIFICATION(NT6) (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1506-1508			●
5	00.253 SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1509-		●	●
5	00.253 SEAT; VLV INSERT EURO6 SPECIFICATION(NT6) (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1506-1508			●
5	00.253 SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (F) OD=18	5-11219-008-0	07	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (F) OD=18	5-11219-008-0	07	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (I) OD=32	1-09600-012-2	02	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (G) OD=14	5-11219-011-0	07	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	07	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (F) OD=18	5-11219-008-0	13	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	02	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) 00.034 (G) OD=14	5-11219-011-0	02	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) 00.034 (G) OD=14	5-11219-011-0	02	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD (H) OD=8	8-97233-429-0	01	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (H) OD=8	8-97233-429-0	01	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (H) OD=8	8-97233-429-0	01	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD (E) OD=24	8-97333-120-0	05	1	1506-1508	●			●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (E) OD=24	8-97333-120-0	05	1	1509-	●
7	00.253 CUP; SEALING,CYL HEAD EURO5B+ SPECIFICATION(NT5) (E) OD=24	8-97333-120-0	05	1	1509-				●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) 00.293 (D) OD=25	1-09600-016-0	04	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD 00.293 (D) OD=25	1-09600-016-0	04	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (A) OD=16	5-11129-006-0	05	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (A) OD=16	5-11129-006-0	05	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (B) OD=32	8-97096-821-0	05	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=32	8-97096-821-0	05	1	1509-		●	●
7	00.253 CUP; SEALING,CYL HEAD EURO6 SPECIFICATION(NT6) (C) OD=20	9-11129-128-0	07	1	1506-1508			●
7	00.253 CUP; SEALING,CYL HEAD (C) OD=20	9-11129-128-0	07	1	1509-		●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1506-1508			●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1509-		●	●
10	02.270 PLUG; GLOW EURO5B+ SPECIFICATION(NT5) NGK	8-94390-777-6	04	1	1509-	●			●
10	02.270 PLUG; GLOW EURO6 SPECIFICATION(NT6) BOSCH	8-98238-424-0	04	1	1506-	●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	1506-	●			●
11	02.251 CONNECTOR; GLOW PLUG EURO6 SPECIFICATION(NT6)	8-97332-358-2	01	1	1506-1508			●
11	02.251 CONNECTOR; GLOW PLUG	8-97332-358-2	01	1	1509-		●	●
39	00.413 DOWEL; CAP,CM/SHF EURO5B+ SPECIFICATION(NT5)	8-97329-129-1	20	1	1509-	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	26	1	1506-1508	●			●
39	00.413 DOWEL; CAP,CM/SHF EURO6 SPECIFICATION(NT6)	8-97329-129-1	26	1	1509-	●
39	00.413 DOWEL; CAP,CM/SHF EURO5B+ SPECIFICATION(NT5)	8-97329-129-1	26	1	1509-				●
91	08.846 PIPE; HTR EURO5B+ SPECIFICATION(NT5) 01.251	8-94343-211-1	01	1	1509-	●
91	08.846 PIPE; HTR	8-98209-467-2	01	1	1506-1508	●			●
91	08.846 PIPE; HTR EURO6 SPECIFICATION(NT6)	8-98209-467-2	01	1	1509-	●
91	08.846 PIPE; HTR EURO5B+ SPECIFICATION(NT5)	8-98209-467-2	01	1	1509-				●
123	00.206 BOLT; COVER EURO5B+ SPECIFICATION(NT5) M8X20 FLANGE	8-97366-632-0	04	1	1509-	●
123	00.206 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	03	1	1506-1508	●			●
123	00.206 BOLT; COVER EURO6 SPECIFICATION(NT6) 04.338 M8X20 FLANGE	0-28050-820-0	03	1	1509-	●
123	00.206 BOLT; COVER EURO5B+ SPECIFICATION(NT5) 04.338 M8X20 FLANGE	0-28050-820-0	03	1	1509-				●
143	02.251 BOLT; FIX EURO5B+ SPECIFICATION(NT5) 00.685 M8X40 FLANGE	0-28650-840-0	20	1	1509-	●
155	00.349 BOLT; BAFFLE PLATE EURO5B+ SPECIFICATION(NT5) M6X10 HEX SOCKET	0-58330-610-0	04	1	1509-	●
155	00.349 BOLT; BAFFLE PLATE M6X10 HEX SOCKET	0-58330-610-0	08	1	1506-1508	●			●
155	00.349 BOLT; BAFFLE PLATE EURO6 SPECIFICATION(NT6) M6X10 HEX SOCKET	0-58330-610-0	08	1	1509-	●
155	00.349 BOLT; BAFFLE PLATE EURO5B+ SPECIFICATION(NT5) M6X10 HEX SOCKET	0-58330-610-0	08	1	1509-				●
172	00.207 PLATE; BAFFLE,CYL HD EURO5B+ SPECIFICATION(NT5)	8-98016-865-0	01	1	1509-	●
172	00.207 PLATE; BAFFLE,CYL HD	8-98212-020-0	01	1	1506-1508	●			●
172	00.207 PLATE; BAFFLE,CYL HD EURO6 SPECIFICATION(NT6)	8-98212-020-0	01	1	1509-	●
172	00.207 PLATE; BAFFLE,CYL HD EURO5B+ SPECIFICATION(NT5)	8-98212-020-0	01	1	1509-				●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1506-1508	●		●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1509-	●	●	●	●
224	00.349 NUT; COVER 01.540 M8 FLANGE	0-91180-208-0	04	1	1506-	●			●
225	00.349 STUD; COVER M8X15.5 L=33.5	8-98017-062-0	02	1	1506-	●			●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.306 OD=30	1-09639-034-0	04	1	1506-	●			●
232	00.413 STUD; CAM,CARRIER EURO5B+ SPECIFICATION(NT5) (B) M6X12 M8X17 L=37	8-97375-460-0	01	1	1509-	●
232	00.413 STUD; CAM,CARRIER EURO5B+ SPECIFICATION(NT5) (A) M8X15 M8X17 L=40	8-98166-373-0	01	1	1509-	●
262	00.206 COVER; CYL HEAD EURO5B+ SPECIFICATION(NT5)	8-97355-516-4	01	1	1509-	●
262	00.206 COVER; CYL HEAD	8-98201-552-0	01	1	1506-1508	●			●
262	00.206 COVER; CYL HEAD EURO6 SPECIFICATION(NT6)	8-98201-552-0	01	1	1509-1510	●
262	00.206 COVER; CYL HEAD EURO5B+ SPECIFICATION(NT5)	8-98201-552-0	01	1	1509-1510				●
262	00.206 COVER; CYL HEAD EURO6 SPECIFICATION(NT6)	8-98243-226-0	01	1	1511-	●
262	00.206 COVER; CYL HEAD EURO5B+ SPECIFICATION(NT5)	8-98243-226-0	01	1	1511-				●
263	00.293 BOLT; CYL HD 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1506-	●			●
263	00.293 BOLT; CYL HD 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1506-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
