2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#16229) — 86 parça

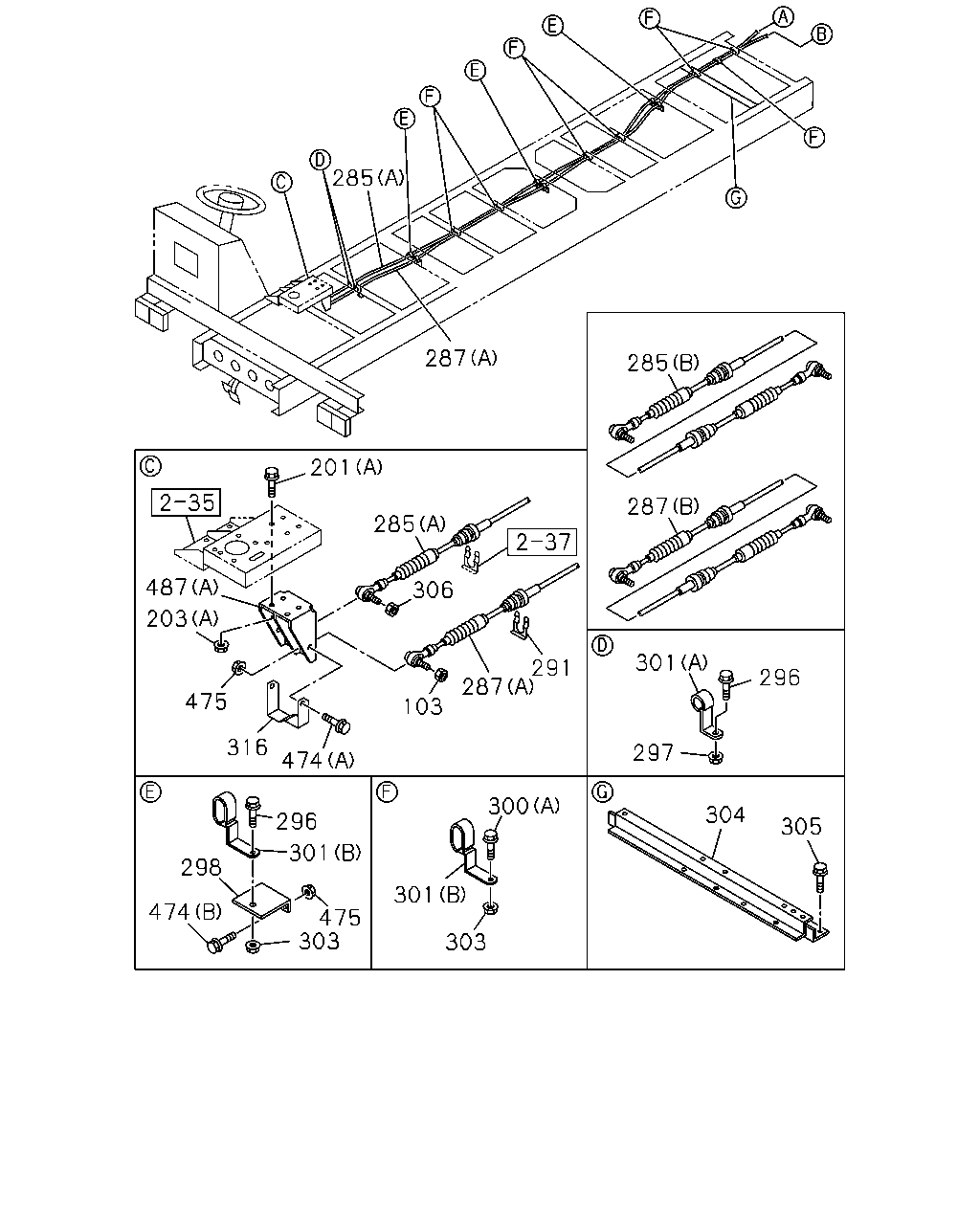

çizim 62878
285 287 285 201 287 285 487 306 203 301 291 296 287 475 103 316 297 474 300 304 296 305 301 298 301 474 475 303 303
BalonParca AdiParca NoAdetTipApplied Date
103 NUT
M8 FLANGE 		1-09440-062-1 01 1 0907-
201 BOLT; BRKT
(C) M6X20 FLANGE 		0-28050-620-0 01 1 1212-
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0907-1211
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212-
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0907-
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 06 1 0907-1211
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1212-
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-
285 WIRE; SHIFT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8372 		1-33672-063-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8734 		1-33672-062-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
(A) L=5294 		1-33672-014-1 01 1 0907-
287 WIRE; SELECT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8299 		1-33672-065-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8661 		1-33672-064-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
(A) L=5206.5 		1-33672-015-0 01 1 0907-
291 CLIP; SHIFT TO SELECT,FRAME
ID=22.2 		1-09701-209-1 01 1 0907-
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28650-820-0 03 1 0907-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0907-
298 BRACKET
L=40 		1-47478-410-0 04 1 0907-
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 08 1 0907-
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
301 CLIP; WIRE
(A) ID=13 H=40 L=25 		1-09700-620-0 02 1 0907-
301 CLIP; WIRE
(B) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 09 1 0907-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 0907-
304 BRACKET; WIRE,TRANS CONT 1-47478-902-2 01 1 0907-
305 BOLT; WIRE BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0907-
306 NUT; WIRE BRKT
M10 FLANGE 		1-09440-061-0 01 1 0907-
316 BRACKET; CLIP 1-33657-736-0 01 1 0907-
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0907-
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0907-
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0907-
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0907-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0907-
487 BRACKET; CONT CABLE
(B) 		1-33657-783-0 01 1 0907-1211

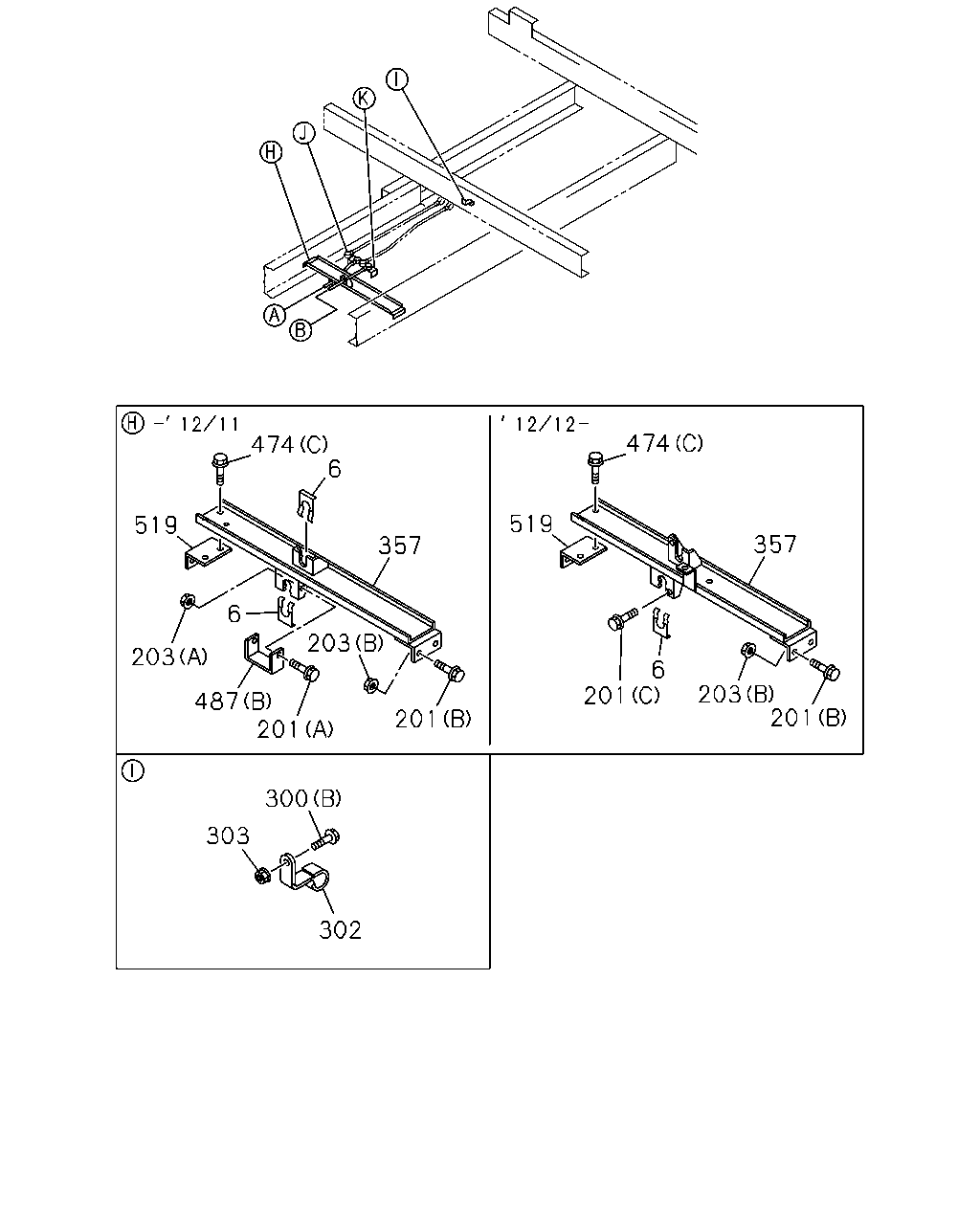

çizim 62956
474 357 203 201 201 201 201 300 302 303 203 519 6 357 203 487 519 6 474 6
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ID=22.2 		1-09701-209-1 02 1 0907-
201 BOLT; BRKT
(C) M6X20 FLANGE 		0-28050-620-0 01 1 1212-
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0907-1211
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212-
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0907-
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 06 1 0907-1211
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1212-
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0907-
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 08 1 0907-
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
302 CLIP; BAND
ID=6 H=20 L=20 		1-09700-603-0 01 1 0907-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 0907-
357 BRACKET; RELAY LEVER 1-33657-787-1 01 1 0907-1211
357 BRACKET; RELAY LEVER 8-98230-474-0 01 1 1212-
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0907-
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0907-
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0907-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0907-
487 BRACKET; CONT CABLE
(B) 		1-33657-783-0 01 1 0907-1211
519 BRACKET; FRAME 1-33657-782-0 01 1 0907-

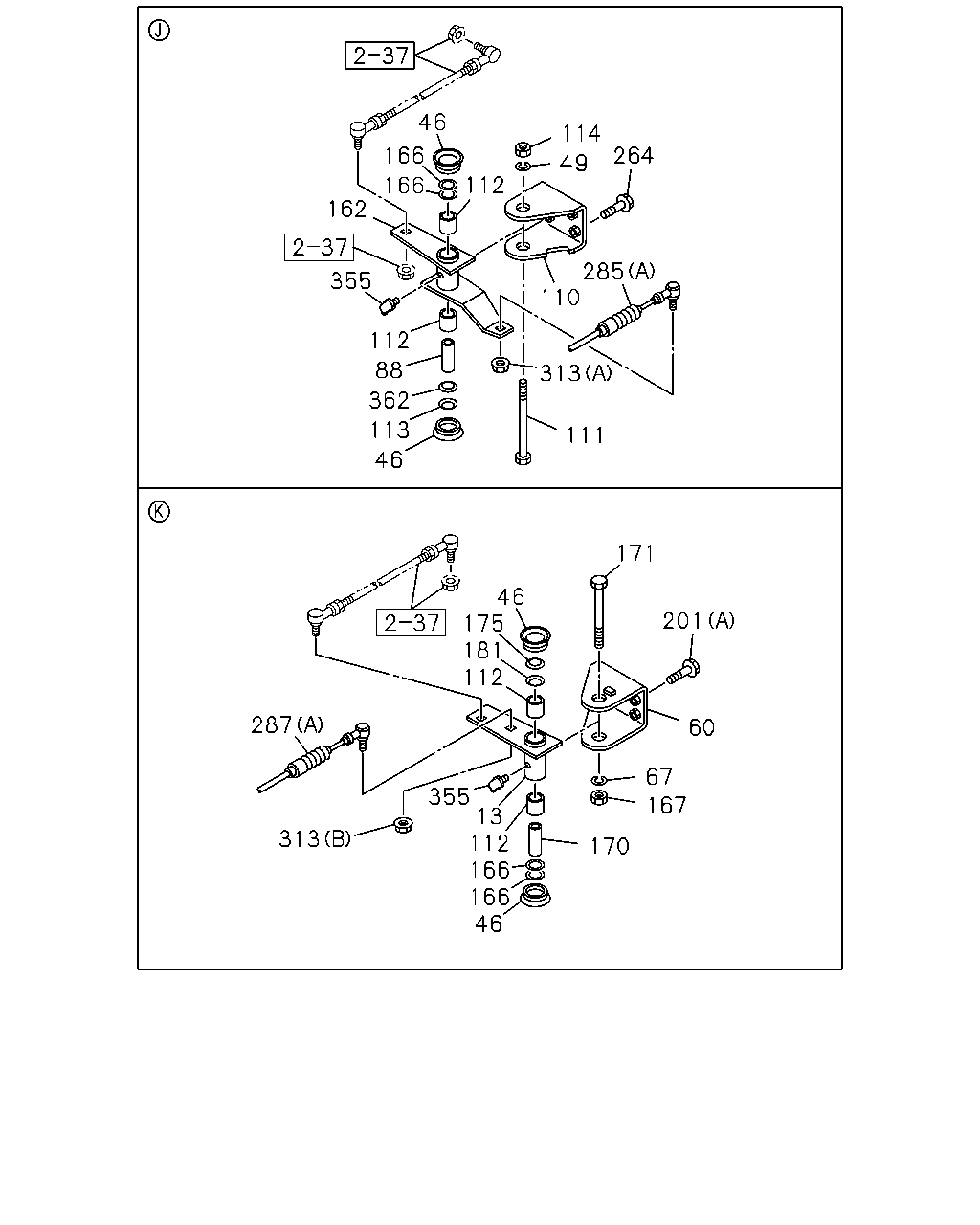

çizim 102367
46 114 166 264 49 112 166 162 285 110 355 112 88 313 362 113 111 46 171 46 175 181 112 201 287 60 67 355 13 112 166 166 46 167 313 170
BalonParca AdiParca NoAdetTipApplied Date
13 LEVER; RELAY,1ST SELECT INNER 1-33651-787-0 01 1 0907-
46 SEAL; DUST,RELAY LEVER 1-33659-113-0 04 1 0907-
49 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0907-
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-543-0 01 1 0907-
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0907-
88 COLLAR; RELAY LEVER 1-33659-146-0 01 1 0907-
110 BRACKET; RELAY LEVER,1ST 1-33657-786-0 01 1 0907-
111 SHAFT; RELAY LEVER,1ST 1-33619-210-0 01 1 0907-
112 BUSHING; RELAY LEVER
ID=22 OD=25 L=18 		1-09330-050-0 04 1 0907-
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 0907-
114 NUT; RELAY LEVER
M14 		0-91111-514-0 01 1 0907-
162 LEVER; RELAY 1-33651-788-0 01 1 0907-
166 WASHER; NYLON,RELAY LEVER 1-09503-187-0 04 1 0907-
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0907-
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 0907-
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 0907-
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 0907-
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 0907-
201 BOLT; BRKT
(C) M6X20 FLANGE 		0-28050-620-0 01 1 1212-
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0907-1211
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212-
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0907-
264 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28650-825-0 08 1 0907-
285 WIRE; SHIFT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8372 		1-33672-063-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8734 		1-33672-062-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
(A) L=5294 		1-33672-014-1 01 1 0907-
287 WIRE; SELECT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8299 		1-33672-065-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8661 		1-33672-064-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
(A) L=5206.5 		1-33672-015-0 01 1 0907-
313 NUT; CLIP BRKT
(A) M10 FLANGE 		1-09440-061-0 01 1 0907-
313 NUT; CLIP BRKT
(B) M8 FLANGE 		1-09440-062-1 01 1 0907-
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 02 1 0907-
362 SHIM 1-33659-092-0 01 1 0907-
