51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6
▶
0 - Engine, Emission, Engine Electrical
▶
0-05 - ENGINE GASKET KIT
▶
0-05 — ENGINE GASKET KIT
(#162288) — 138 parça
Tümü
A - 4HK1-TCS ENG
B - 4HK1-TCN ENG
C - 4JJ1-TCS ENG
D - 4JJ1-TCC ENG
◀

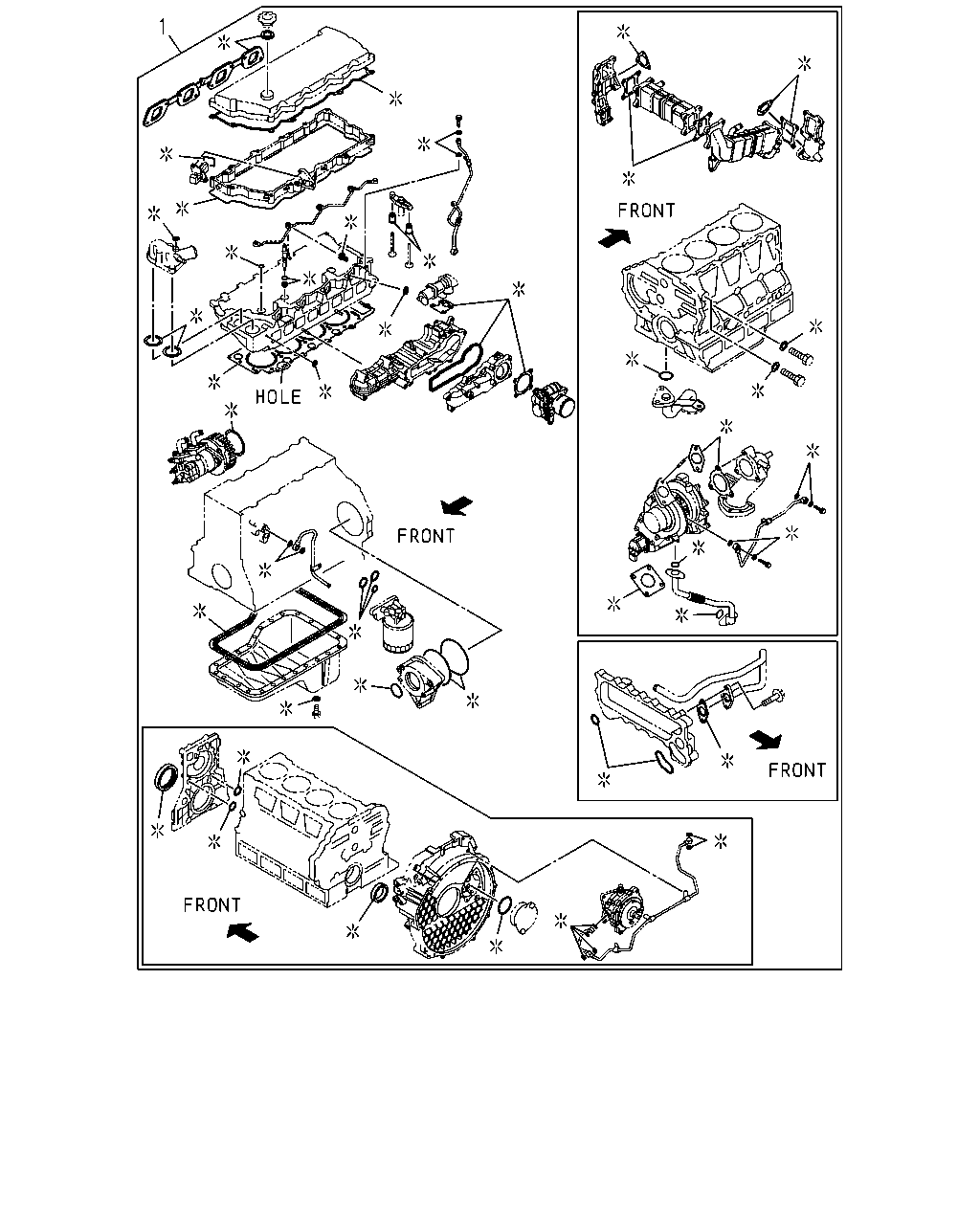

[005A] ENG OVERHAUL GASKET SET;4JJ1-TCS EURO5 (27 parça)

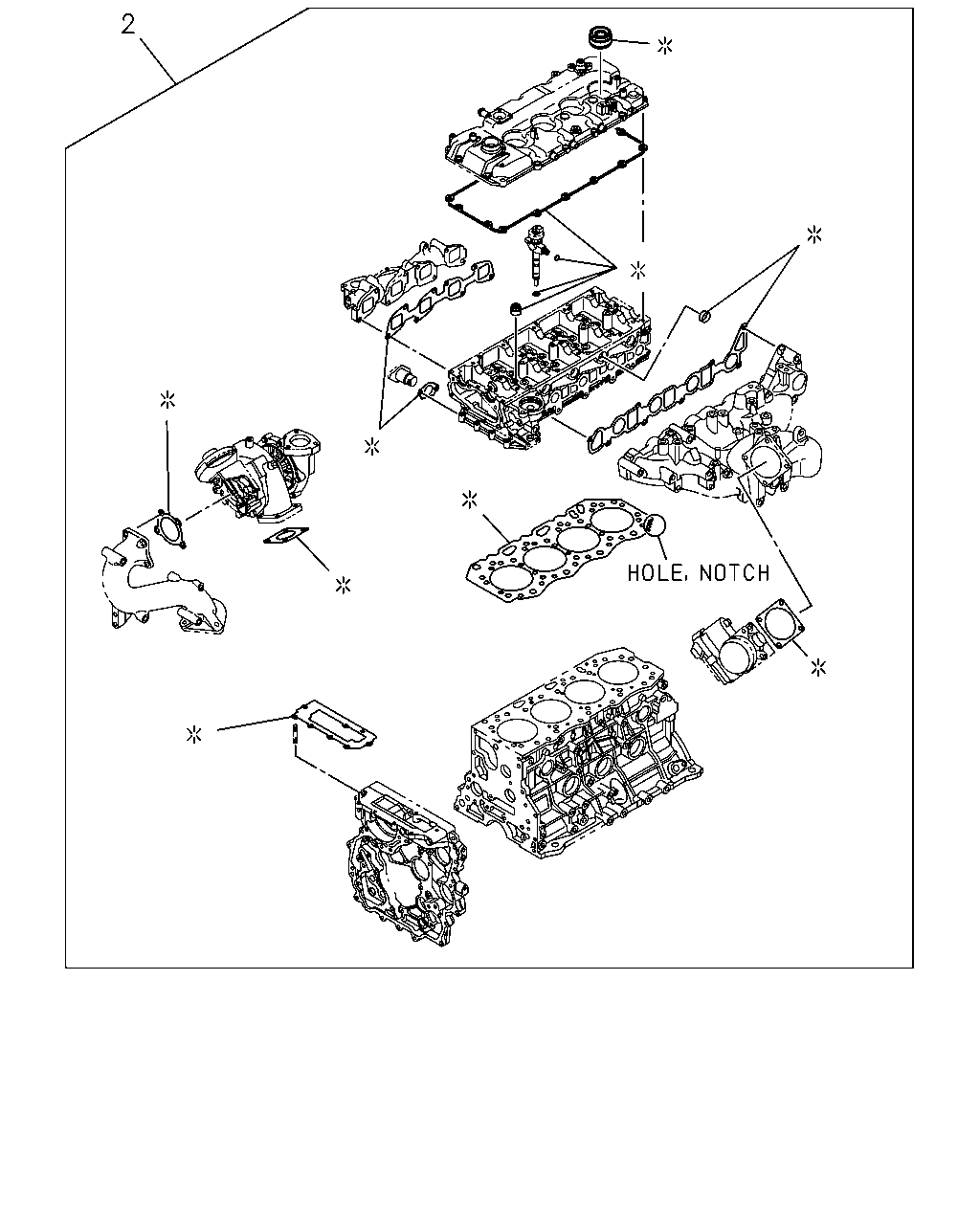

[005A] ENG HD OVERHAUL GASKET SET;4HK1 (15 parça)

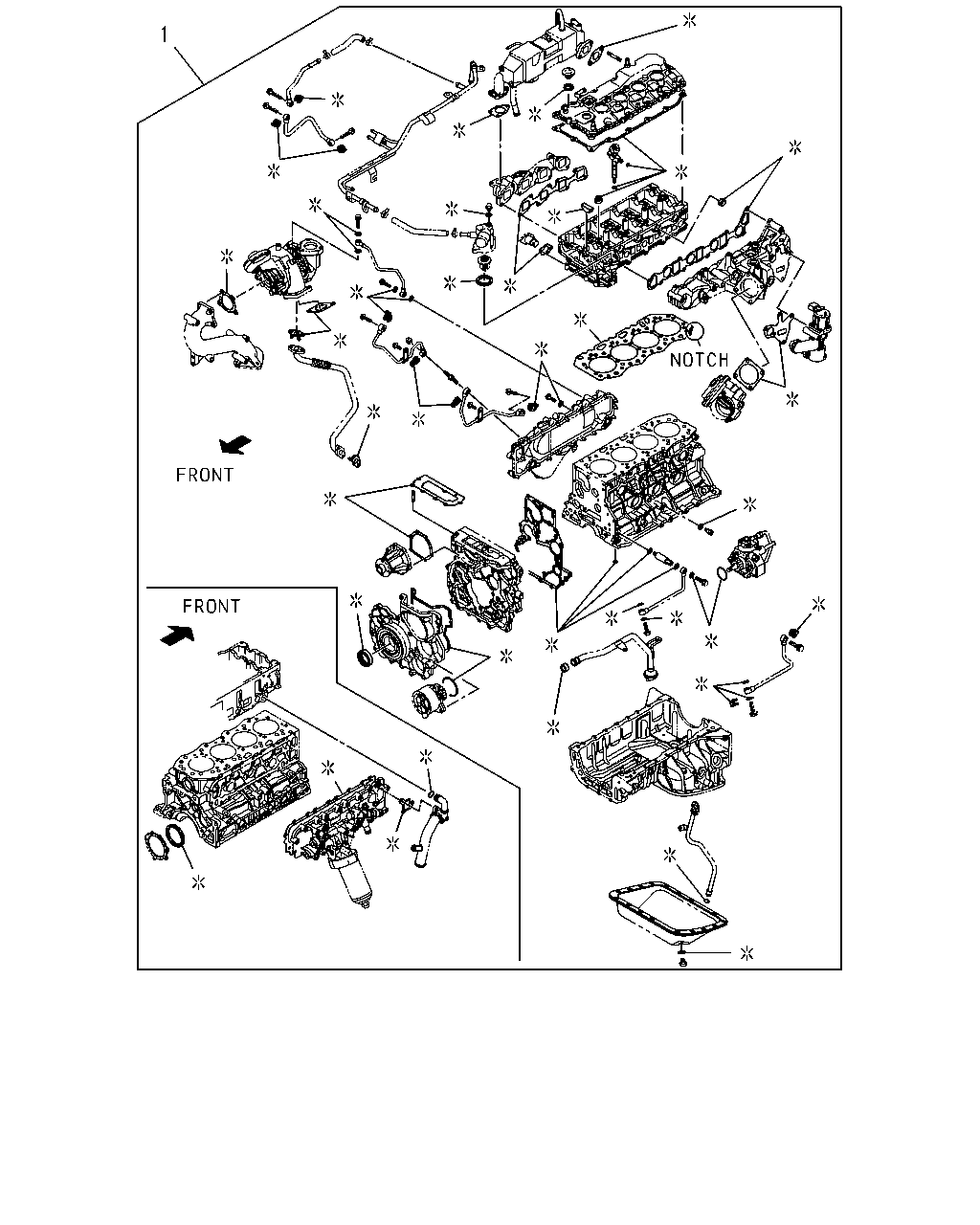

[005A] ENG OVERHAUL GASKET SET;4JJ1-TCS EURO6 (27 parça)

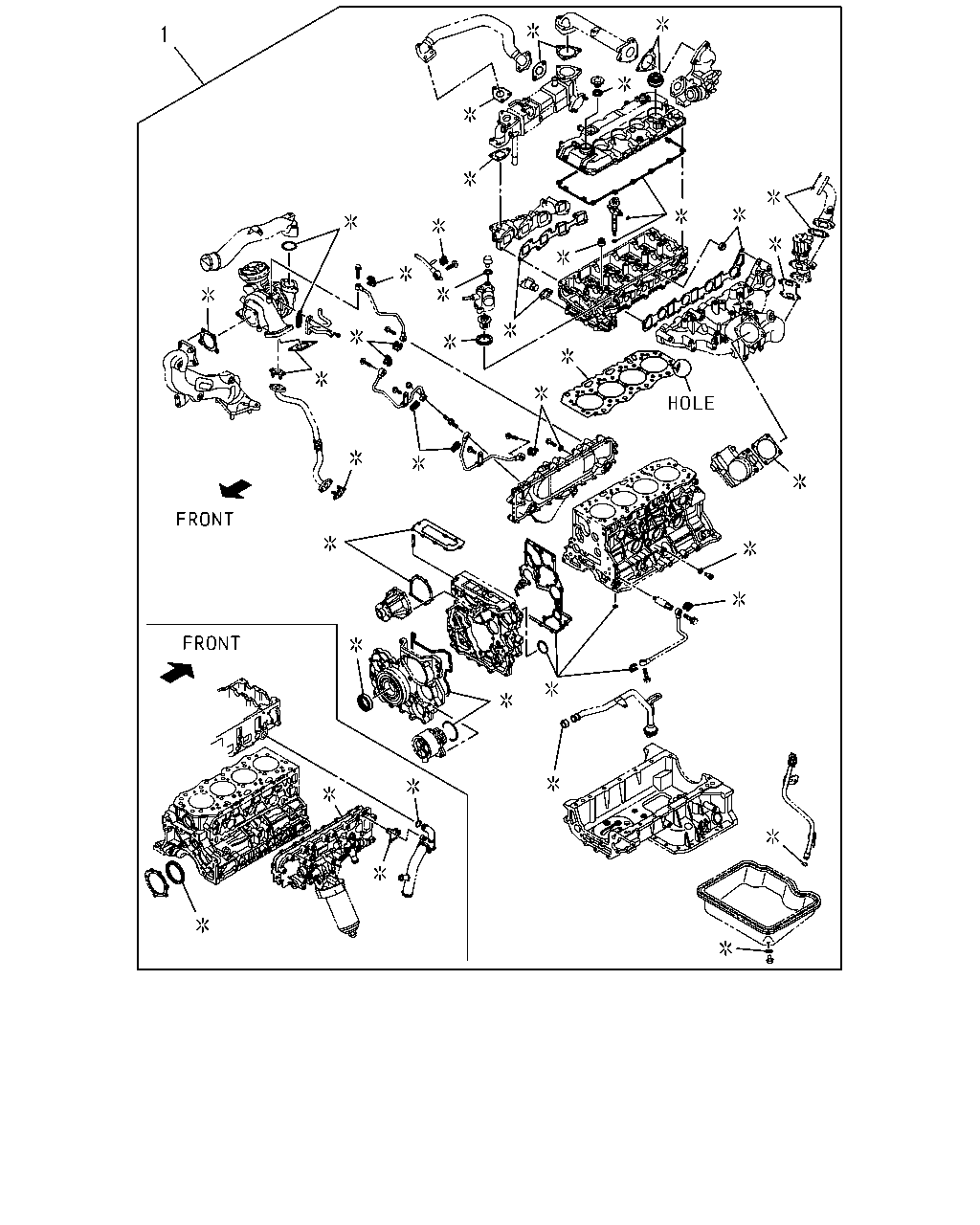

[005A] ENG OVERHAUL GASKET SET;4JJ1-TCC (27 parça)

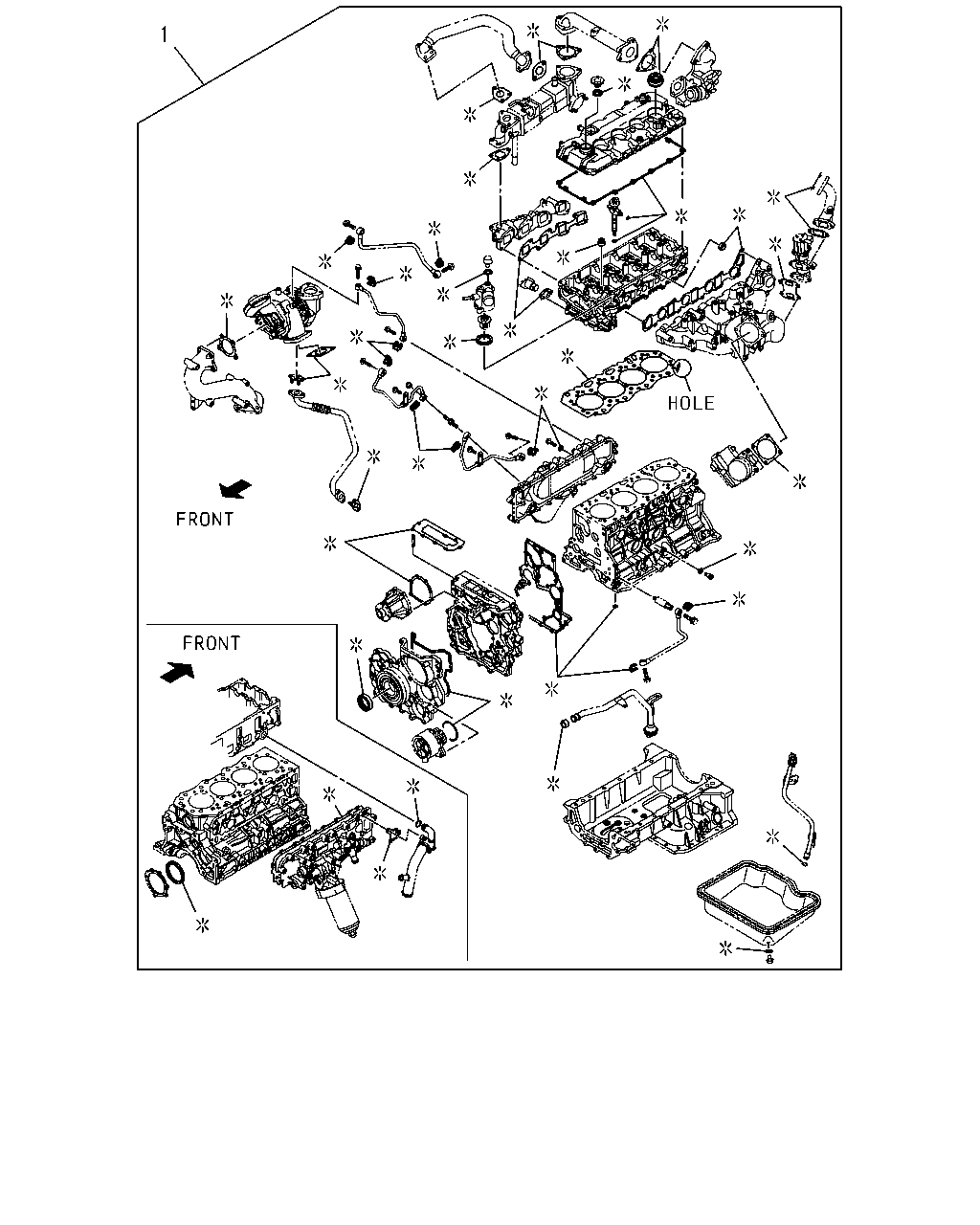

[005A] ENG OVERHAUL GASKET SET;4HK1 (27 parça)

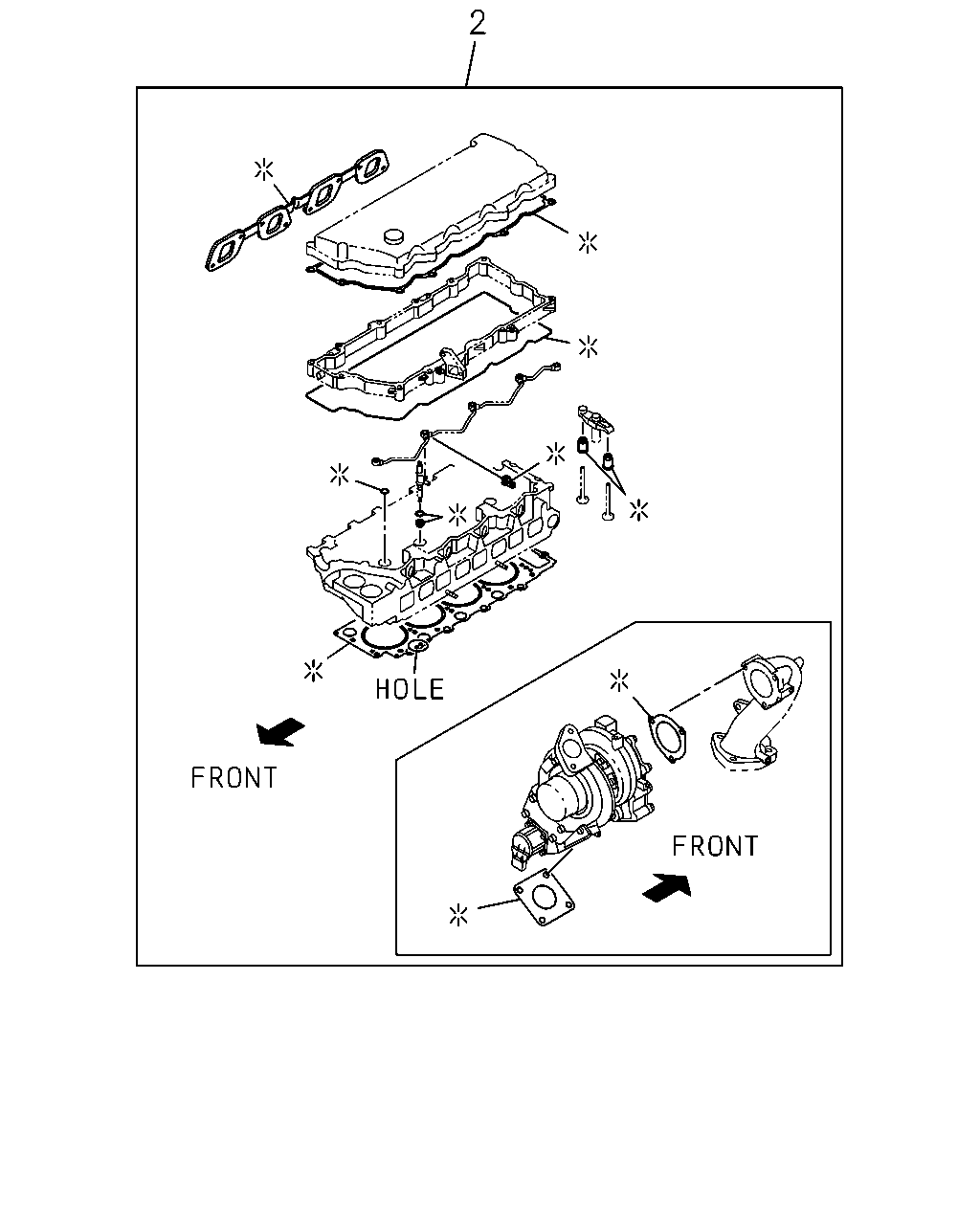

[005A] ENG HD OVERHAUL GASKET SET;4JJ1 (15 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH
5-87817-644-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH
5-87817-645-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH
5-87817-646-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE
5-87817-496-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE
5-87817-497-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE
5-87817-498-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE
5-87817-502-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE
5-87817-503-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE
5-87817-504-0
01
1
1506-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-921-0
01
1
1506-1508
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87817-921-0
01
1
1509-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-922-0
01
1
1506-1508
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87817-922-0
01
1
1509-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-923-0
01
1
1506-1508
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87817-923-0
01
1
1509-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH
5-87817-647-0
01
1
1509-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH
5-87817-648-0
01
1
1509-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH
5-87817-649-0
01
1
1509-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE
5-87817-499-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE
5-87817-500-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE
5-87817-501-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE
5-87817-505-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE
5-87817-506-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE
5-87817-507-0
01
1
1506-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH
5-87817-644-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH
5-87817-645-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH
5-87817-646-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE
5-87817-496-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE
5-87817-497-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE
5-87817-498-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE
5-87817-502-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE
5-87817-503-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE
5-87817-504-0
01
1
1506-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH
5-87817-644-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH
5-87817-645-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH
5-87817-646-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE
5-87817-496-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE
5-87817-497-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE
5-87817-498-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE
5-87817-502-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE
5-87817-503-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE
5-87817-504-0
01
1
1506-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-936-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-937-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1506-1508
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) CHILE EQUIPMENT(KE1) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) EXC. HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-938-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH
5-87817-644-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH
5-87817-645-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH
5-87817-646-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.475 NON-HOLE
5-87817-942-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.525 1-HOLE
5-87817-943-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) TAIWAN EQUIPMENT(B04) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) T=1.575 2-HOLE
5-87817-944-0
01
1
1509-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE
5-87817-496-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE
5-87817-497-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE
5-87817-498-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE
5-87817-502-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE
5-87817-503-0
01
1
1506-
●
1
00.010 GASKET SET; ENG OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE
5-87817-504-0
01
1
1506-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.475 NON-HOLE
5-87817-921-0
01
1
1506-1508
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
5-87817-921-0
01
1
1509-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.525 1-HOLE
5-87817-922-0
01
1
1506-1508
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
5-87817-922-0
01
1
1509-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.575 2-HOLE
5-87817-923-0
01
1
1506-1508
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
5-87817-923-0
01
1
1509-
●
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.14 1-NOTCH
5-87817-647-0
01
1
1509-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.19 2-NOTCH
5-87817-648-0
01
1
1509-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO5B+ SPECIFICATION(NT5) T=1.24 3-NOTCH
5-87817-649-0
01
1
1509-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE
5-87817-499-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE
5-87817-500-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE
5-87817-501-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.14 1-HOLE
5-87817-505-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.19 2-HOLE
5-87817-506-0
01
1
1506-
●
2
00.010 GASKET SET; ENG HD OVERHAUL
EURO6 SPECIFICATION(NT6) T=1.24 3-HOLE
5-87817-507-0
01
1
1506-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
