9-01 — TOOLS (#162286) — 60 parça

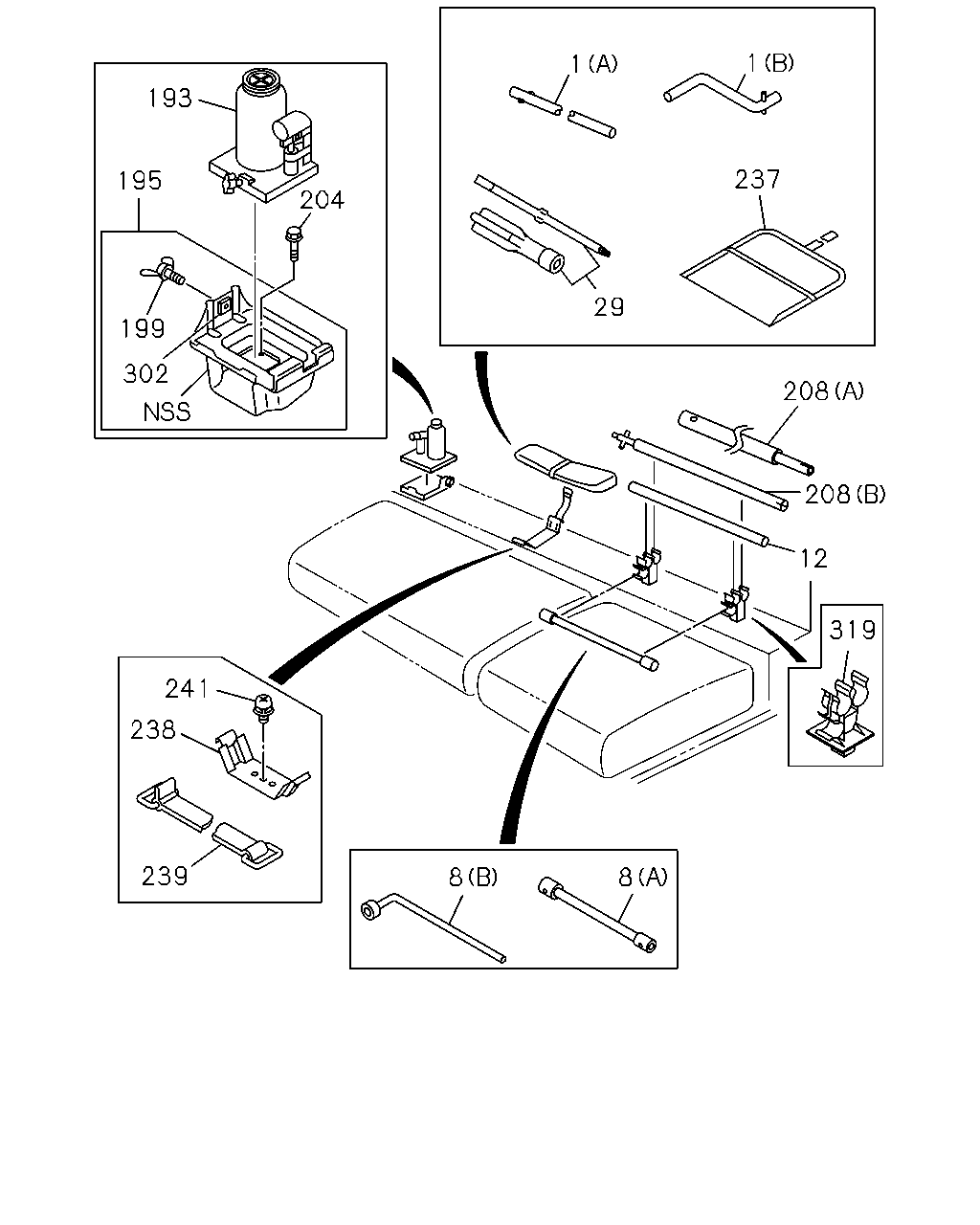

çizim 480931
193 195 199 302 29 237 1 1 208 208 12 319 8 8 238 241 239 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (B) 		8-97218-985-0 01 1 1506-1508 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (B) 		8-97218-985-0 01 1 1509- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (A) L=280 		8-98181-251-0 01 1 1506-1508 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. TAIWAN EQUIPMENT(B04),SPARE WHEEL CARRIER<P10> (A) L=280 		8-98181-251-0 01 1 1509- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (A) L=280 		8-98181-251-0 01 1 1509- ● ●
8 08.821 WRENCH; WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5 .5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RI B 16X5.5J-85 SILVER(CYR) EXC. TAIWAN EQUIPMENT(B04) (B) B=23 L=300 		9-85113-935-0 01 1 1509- ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 1506-1508 ●
8 08.821 WRENCH; WHEEL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) EXC. TAIWAN EQUIPMENT(B04) (A) B=41X19 L=330 		8-94386-490-1 01 1 1509- ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) EXC. TAIWAN EQUIPMENT(B04) (A) B=41X19 L=330 		8-94386-490-1 01 1 1509- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=480 		8-98257-407-0 01 1 1506-1508 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04),SINGLE RR TIRE(6TD) OD=25 L=480 		8-98257-407-0 01 1 1509- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) OD=25 L=480 		8-98257-407-0 01 1 1509- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1506-1508 ●
29 08.821 DRIVER; SCREW
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DIS C 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),FRT&RR 185/85R16 16X5 .5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR),F&R 205 /75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ), F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER (CYR) EXC. TAIWAN EQUIPMENT(B04) <+>,<-> L=160 		8-94242-798-1 01 1 1509- ●
29 08.821 DRIVER; SCREW
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) EXC. TAIWAN EQUIPMENT(B04) <+>,<-> L=160 		8-94242-798-1 01 1 1509- ●
193 08.820 JACK ASM
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) 4TON 		8-98239-828-0 01 1 1509- ●
193 08.820 JACK ASM
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD) 4TON 		8-98239-828-0 01 1 1509- ●
193 08.820 JACK ASM
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 1509- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1506-1508 ●
193 08.820 JACK ASM
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 1509- ●
193 08.820 JACK ASM
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 4TON 		8-98012-285-0 01 1 1509- ●
195 08.820 BRACKET; JACK
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-2 01 1 1509- ●
195 08.820 BRACKET; JACK
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 		8-97589-376-2 01 1 1509- ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 1506-1508 ●
195 08.820 BRACKET; JACK
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 		8-98033-737-2 01 1 1509- ●
195 08.820 BRACKET; JACK
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98033-737-2 01 1 1509- ●
199 08.820 BOLT; JACK
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 1509- ●
199 08.820 BOLT; JACK
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 1509- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1506-1508 ●
199 08.820 BOLT; JACK
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) M8X50 WING 		8-98005-537-0 01 1 1509- ●
199 08.820 BOLT; JACK
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M8X50 WING 		8-98005-537-0 01 1 1509- ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (B) L=642 		8-98181-477-0 01 1 1506-1508 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> (B) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) SPARE WHEEL CARRIER<P10> (B) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (A) L=580 		8-98181-249-0 01 1 1506-1508 ●
208 08.820 HANDLE; JACK
EXC. TAIWAN EQUIPMENT(B04),SPARE WHEEL CARRIER<P10> (A) L=580 		8-98181-249-0 01 1 1509- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. TAIWAN EQUIPMENT(B04) (A) L=580 		8-98181-249-0 01 1 1509- ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1506-1508 ●
237 08.821 BAG; TOOL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DIS C 5.5F-15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),FRT&RR 185/85R16 16X5 .5J-116.5 SILVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR),F&R 205 /75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ), F&R 205/75R16C L.R.R RIB 16X5.5J-85 SILVER (CYR) EXC. TAIWAN EQUIPMENT(B04) 		8-97130-903-1 01 1 1509- ●
237 08.821 BAG; TOOL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),F&R 205/75R16C L.R.R RIB 16X5.5 J-116.5 SILVER(CYS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) EXC. TAIWAN EQUIPMENT(B04) 		8-97130-903-1 01 1 1509- ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1506-1508 ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1509- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1506-1508 ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1509- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1506-1508 ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1509- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1506-1508 ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1509- ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1506-1508 ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1509- ● ●

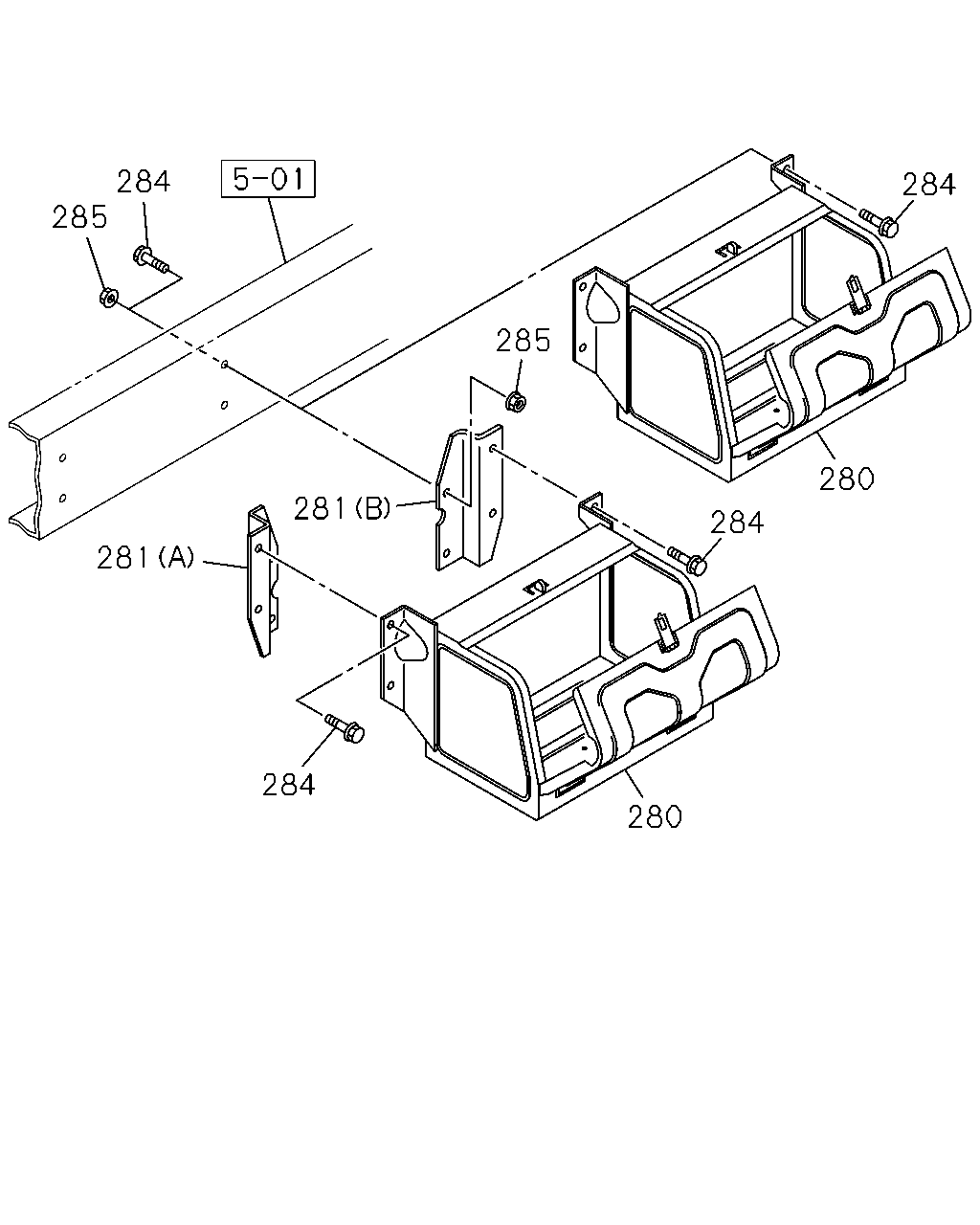

çizim 492589
285 284 281 284 280 284 280 285 281 284
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 		8-98054-885-0 01 1 1509- ● ●
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1509- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1509- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1509- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1509- ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1509- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ● ●
