8-90 — RADIO AND TV (#162285) — 63 parça

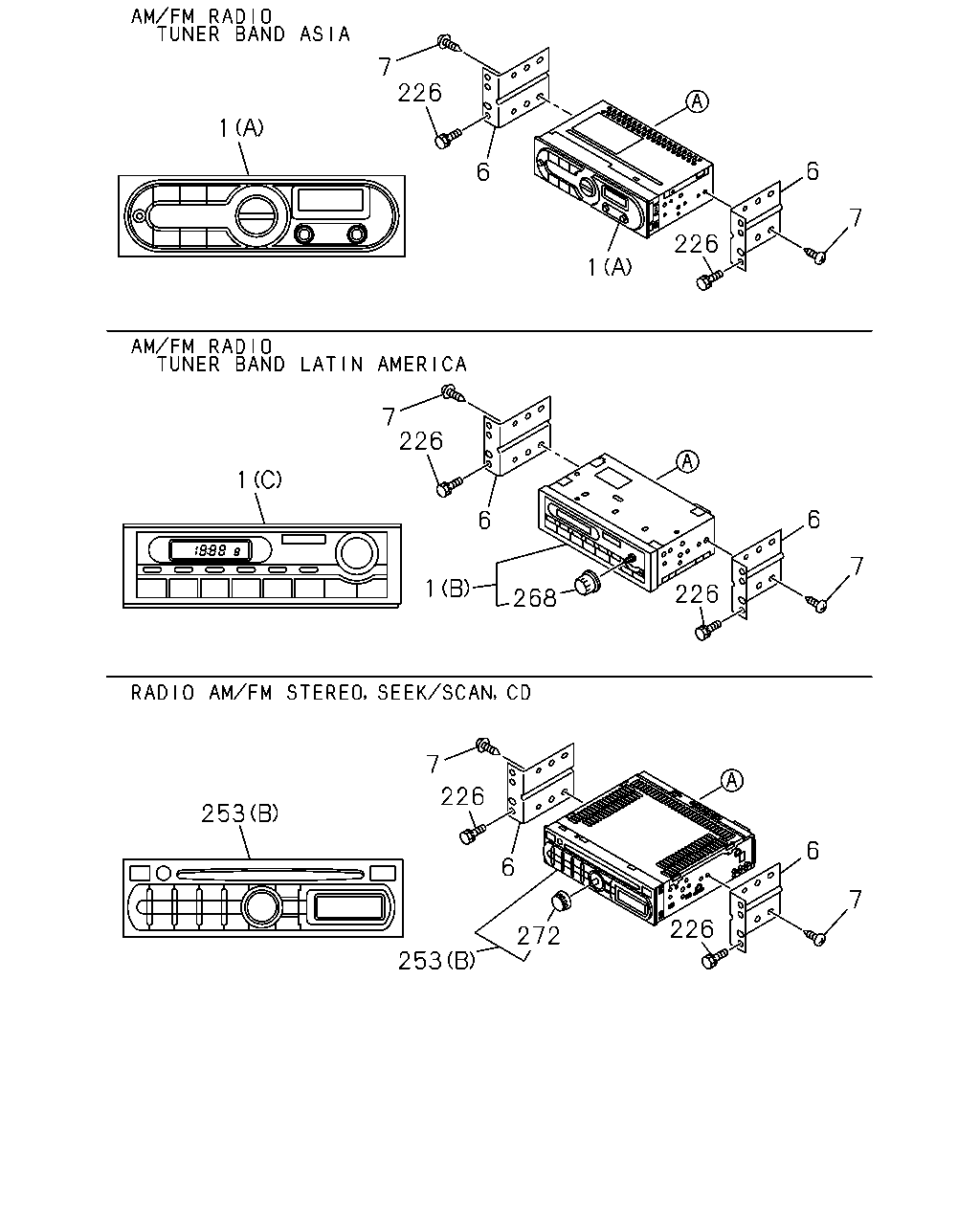

1 7 226 6 1 226 6 7 1 7 226 6 1 268 226 6 7 253 7 226 6 253 272 226 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND LATIN AMERICA<7DM> (C)	8-98032-643-0	01	1	1509-	●	●
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A)	8-98270-738-0	01	1	1506-1508	●
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A)	8-98270-738-0	01	1	1509-	●	●
1	09.650 RADIO TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B)	8-98273-253-0	01	1	1506-1508	●
1	09.650 RADIO TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B)	8-98273-253-0	01	1	1509-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1506-1508	●
6	09.645 BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1509-	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1506-1508	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1509-	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) TUNER BAND LATIN AMERICA<7DM> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1509-	●	●
226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1506-1508	●
226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1509-	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> (B)	8-98112-329-0	01	1	1509-	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> (A)	8-98270-736-0	01	1	1506-1508	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> (A)	8-98270-736-0	01	1	1509-	●	●
268	09.649 KNOB; VOL AM/FM RADIO(U69) TUNER BAND LATIN AMERICA<7DM> CLARION	8-97375-820-0	01	1	1509-	●	●
272	09.649 KNOB; AUDIO CONTROL RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> CLARION	8-98048-329-0	01	1	1509-	●	●

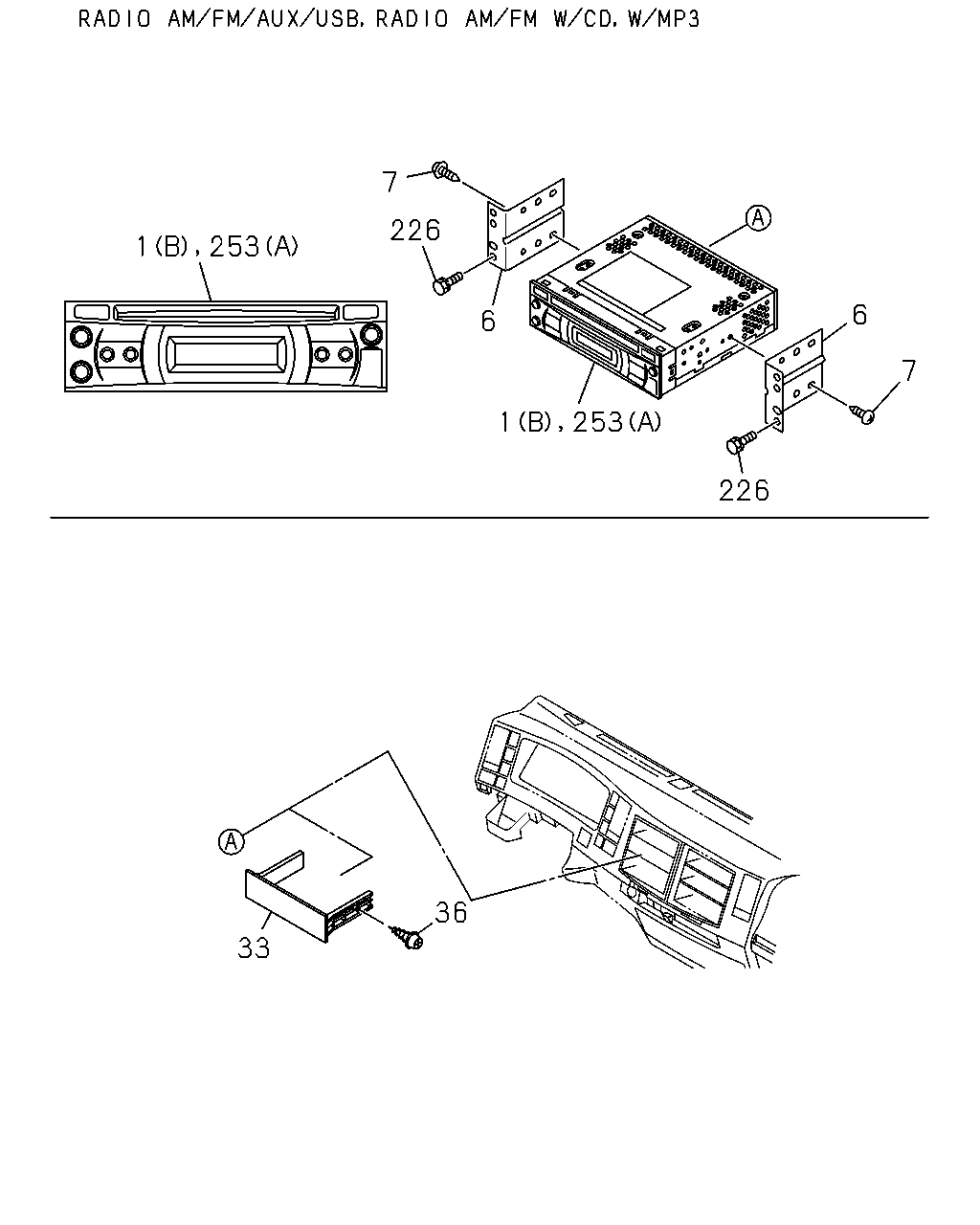

1 253 7 226 6 1 253 6 7 226 33 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND LATIN AMERICA<7DM> (C)	8-98032-643-0	01	1	1509-	●	●
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A)	8-98270-738-0	01	1	1506-1508	●
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A)	8-98270-738-0	01	1	1509-	●	●
1	09.650 RADIO TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B)	8-98273-253-0	01	1	1506-1508	●
1	09.650 RADIO TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B)	8-98273-253-0	01	1	1509-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1506-1508	●
6	09.645 BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1509-	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1506-1508	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1509-	●	●
7	09.650 SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) TUNER BAND LATIN AMERICA<7DM> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1509-	●	●
33	09.650 COVER; RADIO EXC. RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) BLACK	8-97407-896-2	01	1	1506-1508	●
33	09.650 COVER; RADIO EXC. RADIO AM/FM W/CD,W/MP3(ULA),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) BLACK	8-97407-896-2	01	1	1509-	●	●
36	09.779 SCREW; COVER EXC. RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1506-1508	●
36	09.779 SCREW; COVER EXC. RADIO AM/FM W/CD,W/MP3(ULA),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY) 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1509-	●	●
226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1506-1508	●
226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1509-	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> (B)	8-98112-329-0	01	1	1509-	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> (A)	8-98270-736-0	01	1	1506-1508	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> (A)	8-98270-736-0	01	1	1509-	●	●

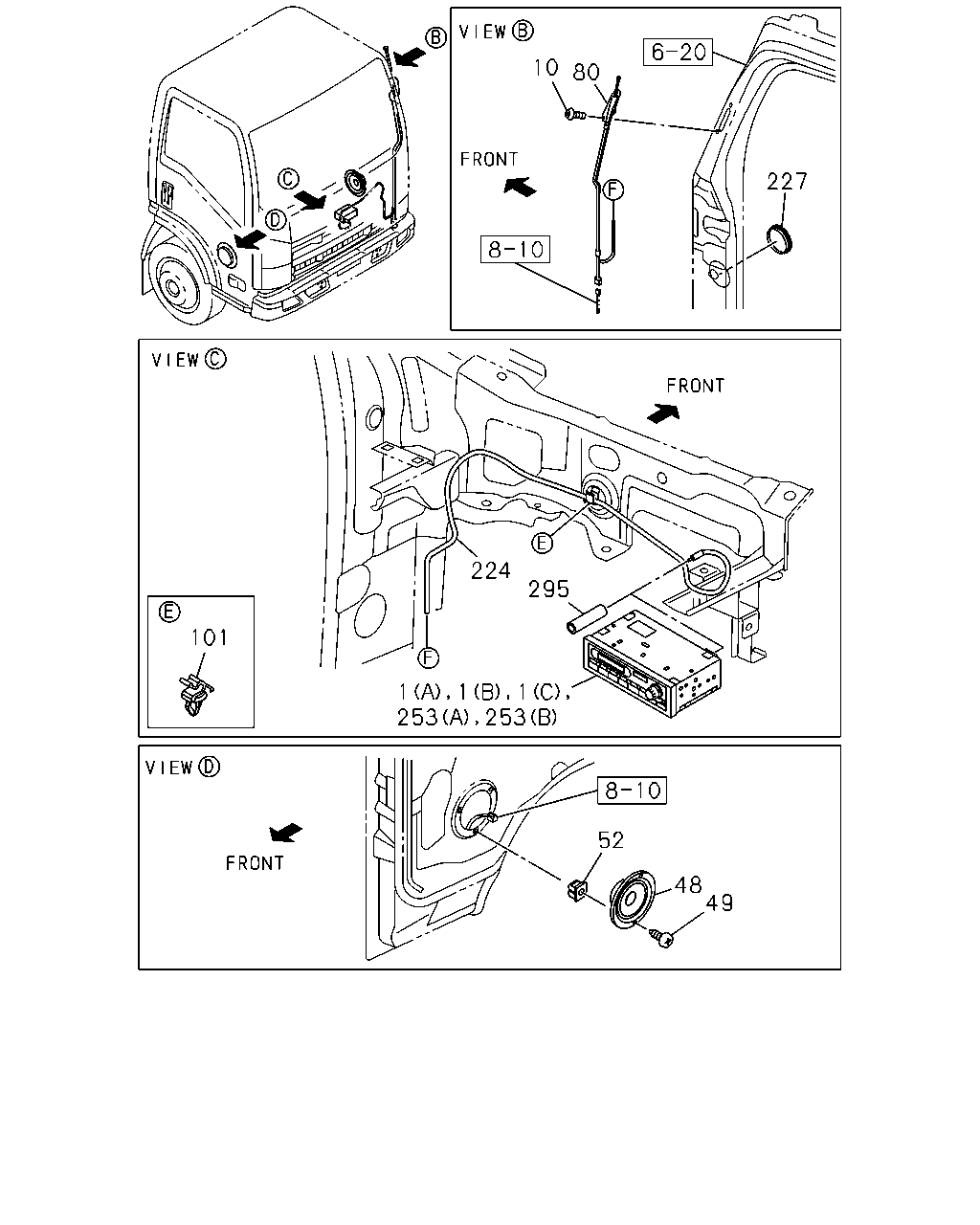

10 80 227 101 224 295 1 1 1 253 253 52 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND LATIN AMERICA<7DM> (C)	8-98032-643-0	01	1	1509-	●	●
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A)	8-98270-738-0	01	1	1506-1508	●
1	09.650 RADIO AM/FM RADIO(U69) TUNER BAND ASIA<7DN> (A)	8-98270-738-0	01	1	1509-	●	●
1	09.650 RADIO TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B)	8-98273-253-0	01	1	1506-1508	●
1	09.650 RADIO TUNER BAND ASIA<7DN> RADIO AM/FM/AUX/USB(8PY) (B)	8-98273-253-0	01	1	1509-	●	●
10	09.647 SCREW; ANTENNA CABLE M5X11 TAPPING W/TORQUES	8-98061-742-0	02	1	1506-1508	●
10	09.647 SCREW; ANTENNA CABLE M5X11 TAPPING W/TORQUES	8-98061-742-0	02	1	1509-	●	●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95>	8-97317-001-1	02	1	1506-1508	●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95>	8-97317-001-1	02	1	1509-	●	●
49	09.655 SCREW; SPEAKER 2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1506-1508	●
49	09.655 SCREW; SPEAKER 2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1509-	●	●
52	09.655 GROMMET; SCREW,SPEAKER 2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1506-1508	●
52	09.655 GROMMET; SCREW,SPEAKER 2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1509-	●	●
80	09.645 ANTENNA	8-97387-265-3	01	1	1506-1508	●
80	09.645 ANTENNA	8-97387-265-3	01	1	1509-	●	●
101	09.649 CLIP; FEEDER TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 09.647 ID=4.8	8-94128-483-0	01	1	1509-	●	●
101	09.649 CLIP; FEEDER TO BRKT 04.342 ID=6.5	5-09709-117-0	01	1	1506-1508	●
101	09.649 CLIP; FEEDER TO BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.342 ID=6.5	5-09709-117-0	01	1	1509-	●	●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1506-1508	●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1509-	●	●
227	09.647 PROTECTOR; EDGE	8-98053-117-0	01	1	1506-1508	●
227	09.647 PROTECTOR; EDGE	8-98053-117-0	01	1	1509-	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> (B)	8-98112-329-0	01	1	1509-	●	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> (A)	8-98270-736-0	01	1	1506-1508	●
253	09.645 DECK ASM; RADIO & CD RADIO AM/FM W/CD,W/MP3(ULA) TUNER BAND ASIA<7DN> (A)	8-98270-736-0	01	1	1509-	●	●
295	09.665 INSULATOR; ANTENNA EXC. RADIO AM/FM W/CD,W/MP3(ULA),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY)	8-98095-617-1	01	1	1506-1508	●
295	09.665 INSULATOR; ANTENNA EXC. RADIO AM/FM W/CD,W/MP3(ULA),RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69),RADIO AM/FM/AUX/USB(8PY)	8-98095-617-1	01	1	1509-	●	●
