Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#162279) — 188 parça

41 207 234 235 235 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	1506-1508	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	1509-	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1506-1508	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1509-	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1506-1508	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1509-	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1506-1508	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1509-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1506-1508	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1509-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1506-1508	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1509-	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-1508	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1509-	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-1508	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1509-	●	●

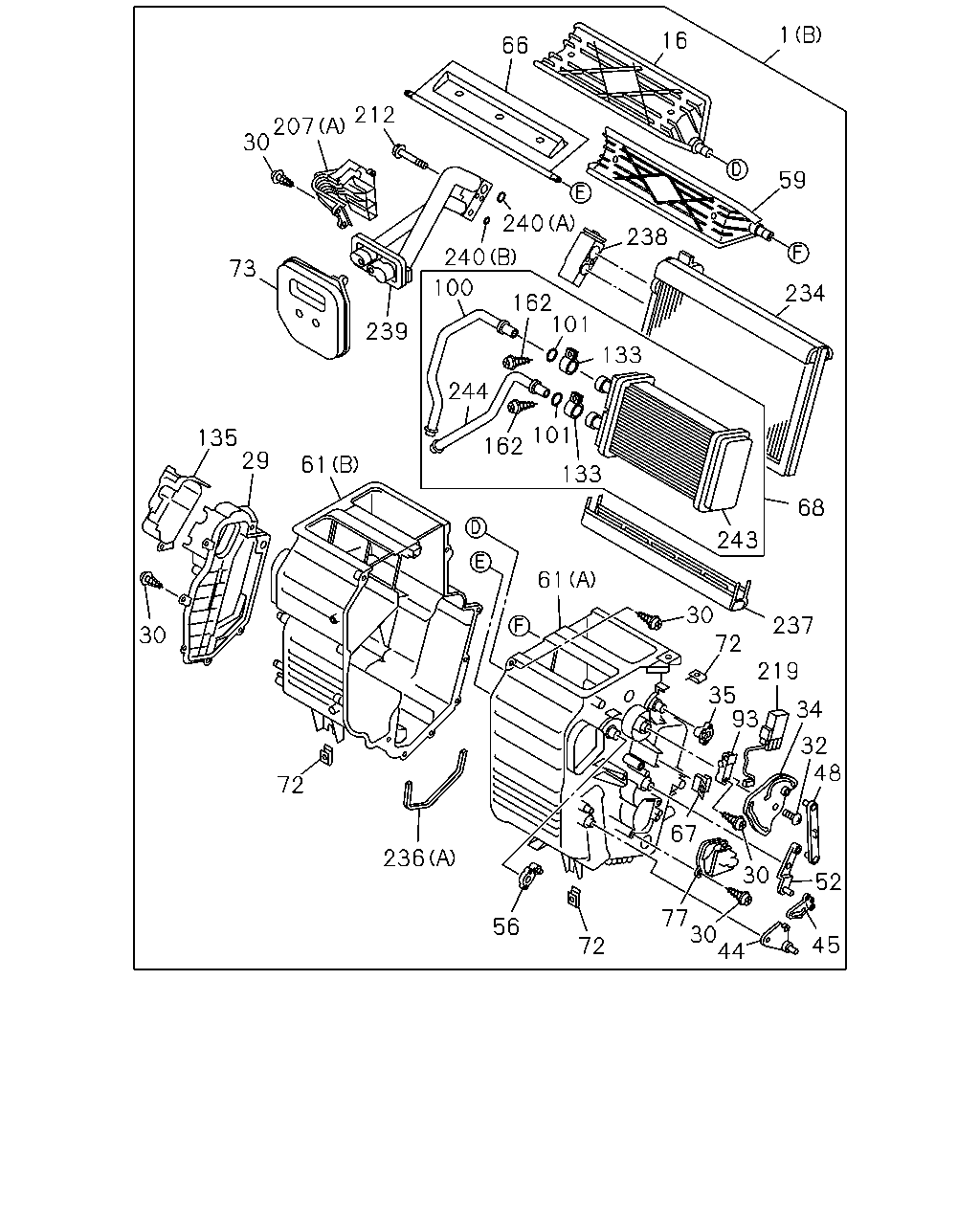

1 16 66 212 207 30 73 135 30 72 236 56 72 77 30 44 45 52 30 67 48 32 34 93 35 219 72 237 30 61 61 29 239 240 100 162 101 133 133 101 162 244 243 68 234 59 238 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) (A)	8-98175-726-0	01	1	1509-	●	●
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98174-913-0	01	1	1509-	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1506-1508	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1509-	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1509-		●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1506-1508	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1509-	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1509-		●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1506-1508	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1509-	●	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1506-1508	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1509-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1506-1508	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1509-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1506-1508	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1509-	●	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1506-1508	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1509-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98196-569-0	01	1	1509-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1506-1508	●
34	09.786 LEVER; SHUTTER,HTR UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-	●
34	09.786 LEVER; SHUTTER,HTR UNIT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-		●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1506-1508	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1509-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1506-1508	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1509-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1506-1508	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1509-	●	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1506-1508	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1509-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1506-1508	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1509-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1506-1508	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1509-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1506-1508	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1509-	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1506-1508	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1509-	●	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1506-1508	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1509-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1506-1508	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1509-	●	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1506-1508	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1509-	●	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1506-1508	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1509-	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1506-1508	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1509-	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1506-1508	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1509-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1506-1508	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1509-	●	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1506-1508	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1509-	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1506-1508	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1509-	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1506-1508	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1509-	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1506-1508	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1509-	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1506-1508	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1509-	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	1506-1508	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	1509-	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1506-1508	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1509-	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1506-1508	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1509-	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1506-1508	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1509-	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1506-1508	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1509-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1506-1508	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1509-	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1506-1508	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1509-	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-1508	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1509-	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-1508	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1509-	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1506-1508	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1509-	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1506-1508	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1509-	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	1506-1508	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	1509-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1506-1508	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1509-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1506-1508	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1509-	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1506-1508	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1509-	●	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1506-1508	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1509-	●	●

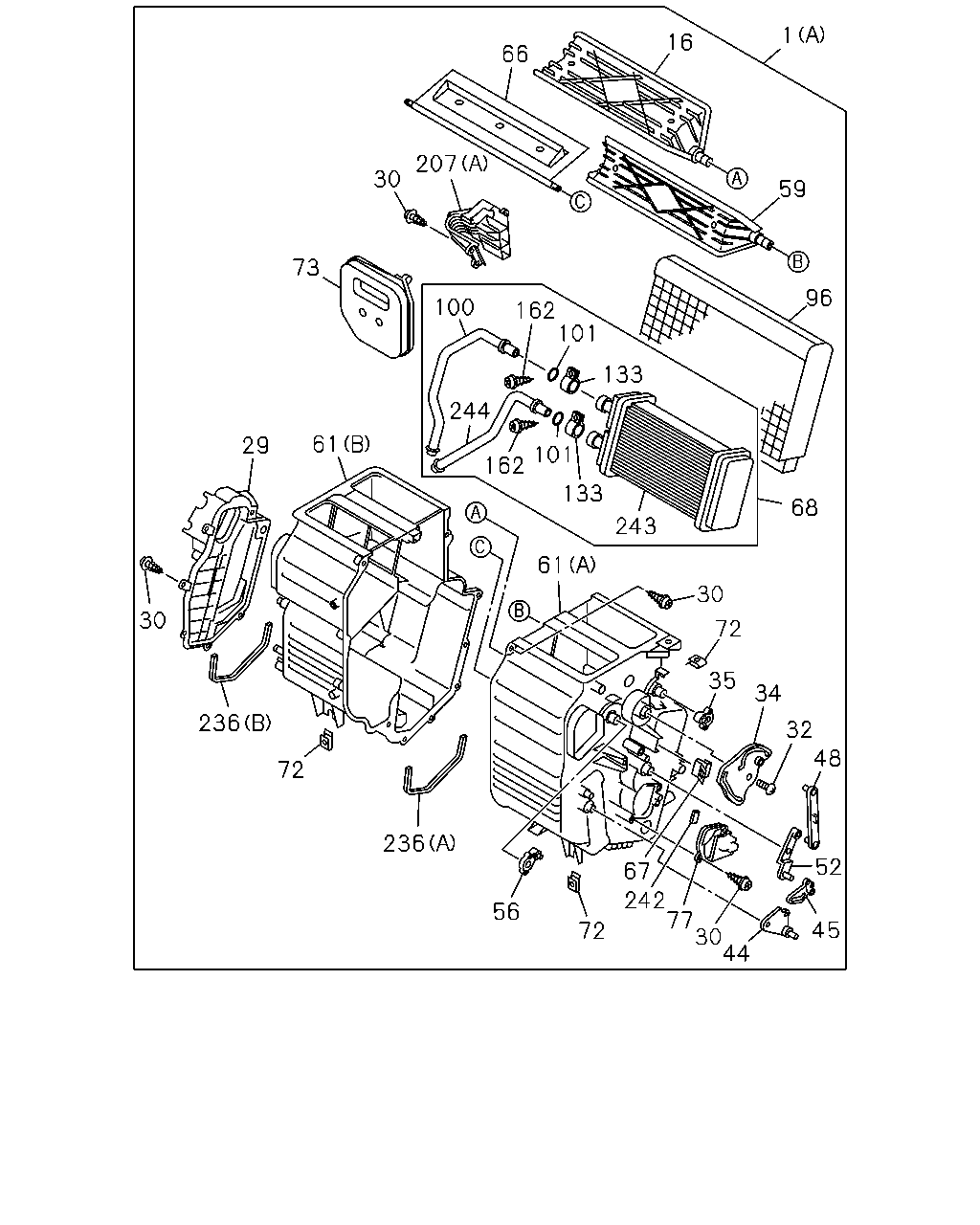

1 16 59 96 133 162 100 30 207 73 61 29 30 236 72 236 56 72 77 30 67 32 48 34 35 72 30 68 243 133 162 101 244 101 44 52 45 242 61 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) (A)	8-98175-726-0	01	1	1509-	●	●
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98174-913-0	01	1	1509-	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1506-1508	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1509-	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1509-		●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1506-1508	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1509-	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1509-		●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1506-1508	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1509-	●	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1506-1508	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1509-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1506-1508	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1509-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1506-1508	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1509-	●	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1506-1508	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1509-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98196-569-0	01	1	1509-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1506-1508	●
34	09.786 LEVER; SHUTTER,HTR UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-	●
34	09.786 LEVER; SHUTTER,HTR UNIT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-		●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1506-1508	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1509-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1506-1508	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1509-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1506-1508	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1509-	●	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1506-1508	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1509-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1506-1508	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1509-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1506-1508	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1509-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1506-1508	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1509-	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1506-1508	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1509-	●	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1506-1508	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1509-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1506-1508	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1509-	●	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1506-1508	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1509-	●	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1506-1508	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1509-	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1506-1508	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1509-	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1506-1508	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1509-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1506-1508	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1509-	●	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1506-1508	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1509-	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1506-1508	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1509-	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1506-1508	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1509-	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1506-1508	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1509-	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1506-1508	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1509-	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1506-1508	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1509-	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1506-1508	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1509-	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1506-1508	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1509-	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-1508	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1509-	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-1508	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1509-	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1506-1508	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1509-	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1506-1508	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1509-	●	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1506-1508	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
