8-40 — HEATER SYSTEM (#162275) — 52 parça

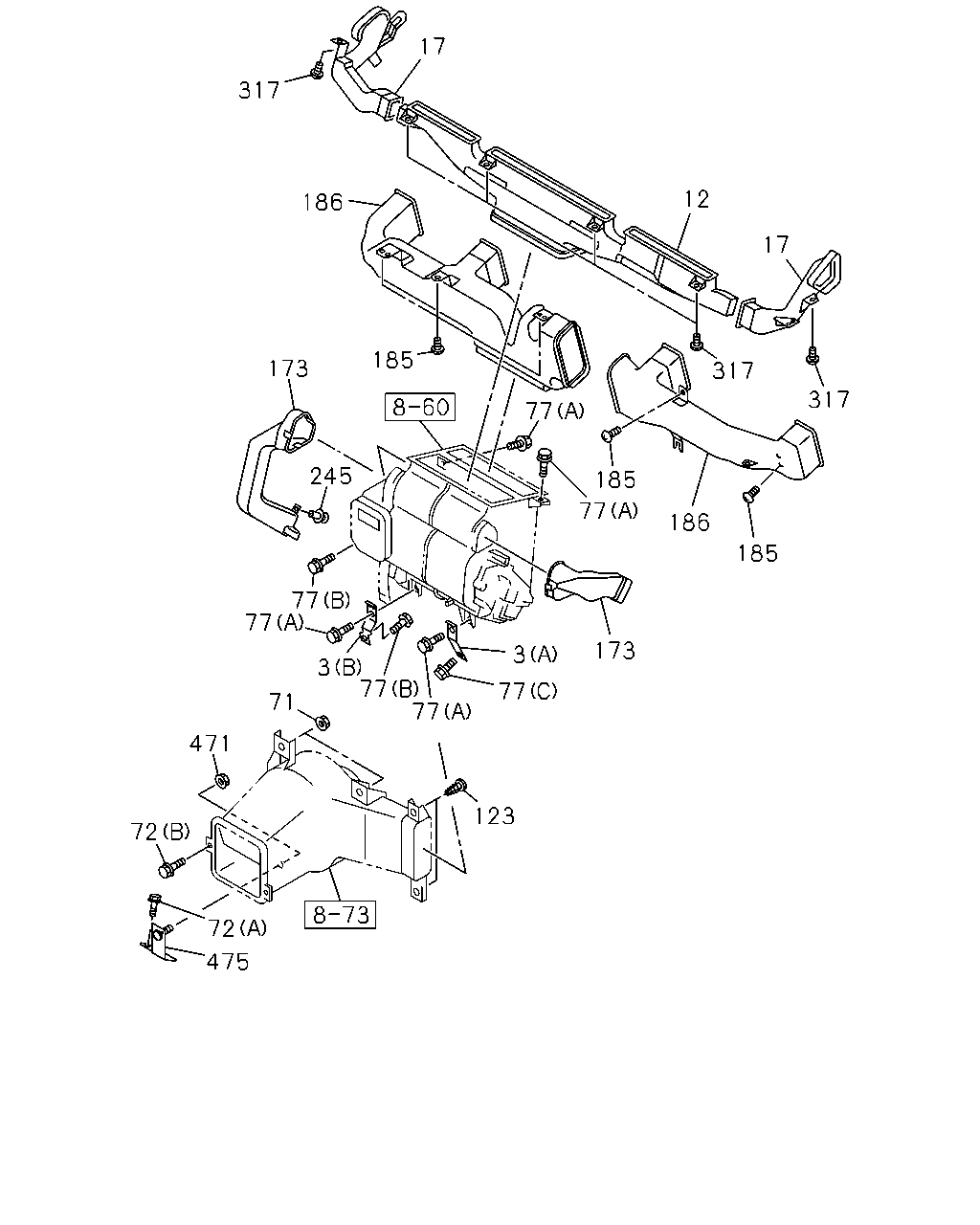

çizim 480935
317 17 12 17 186 317 317 185 77 185 77 186 185 173 245 77 77 3 77 77 77 3 173 71 471 72 72 475 123
BalonParca AdiParca NoAdetTipApplied Date A B
3 08.854 BRACKET; HTR UNIT
(A) 		8-98082-473-1 01 1 1506-1508 ●
3 08.854 BRACKET; HTR UNIT
(A) 		8-98082-473-1 01 1 1509- ● ●
3 08.854 BRACKET; HTR UNIT
(B) 		8-98082-475-1 01 1 1506-1508 ●
3 08.854 BRACKET; HTR UNIT
(B) 		8-98082-475-1 01 1 1509- ● ●
12 09.779 NOZZLE; DEFROSTER 8-97585-479-0 01 1 1506-1508 ●
12 09.779 NOZZLE; DEFROSTER 8-97585-479-0 01 1 1509- ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-98040-497-1 01 1 1506-1508 ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-98040-497-1 01 1 1509- ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-98040-498-4 01 1 1506-1508 ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-98040-498-4 01 1 1509- ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506-1508 ●
71 08.845 NUT; BLOWER UNIT TO DASH
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
72 08.857 BOLT; BLOWER UNIT
16.085 (A) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1506-1508 ●
72 08.857 BOLT; BLOWER UNIT
16.085 (A) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1509- ● ●
72 08.857 BOLT; BLOWER UNIT
(B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506-1508 ●
72 08.857 BOLT; BLOWER UNIT
(B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1509- ● ●
77 08.845 BOLT; HTR UNIT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1506-1508 ●
77 08.845 BOLT; HTR UNIT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ●
77 08.845 BOLT; HTR UNIT
08.857 (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506-1508 ●
77 08.845 BOLT; HTR UNIT
08.857 (B) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1509- ● ●
77 08.845 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 01 1 1506-1508 ●
77 08.845 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 01 1 1509- ● ●
123 09.786 SCREW; DUCT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1506-1508 ●
123 09.786 SCREW; DUCT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509- ● ●
173 09.786 DUCT; FOOT,HTR 8-98163-183-0 01 1 1506-1508 ●
173 09.786 DUCT; FOOT,HTR 8-98163-183-0 01 1 1509- ● ●
173 09.786 DUCT; FOOT,HTR 8-98163-188-0 01 1 1506-1508 ●
173 09.786 DUCT; FOOT,HTR 8-98163-188-0 01 1 1509- ● ●
185 09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1506-1508 ●
185 09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509- ● ●
186 09.786 DUCT; VENTILATOR 8-98285-584-0 01 1 1506-1508 ●
186 09.786 DUCT; VENTILATOR 8-98285-584-0 01 1 1509- ● ●
186 09.786 DUCT; VENTILATOR 8-98285-590-0 01 1 1506-1508 ●
186 09.786 DUCT; VENTILATOR 8-98285-590-0 01 1 1509- ● ●
245 09.786 CLIP; FOOT DUCT
09.264 		1-09987-144-0 02 1 1506-1508 ●
245 09.786 CLIP; FOOT DUCT
09.264 		1-09987-144-0 02 1 1509- ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1506-1508 ●
317 09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1509- ● ●
471 08.866 NUT; BLOWER
01.062 M6 FLANGE 		0-91180-106-0 01 1 1506-1508 ●
471 08.866 NUT; BLOWER
01.062 M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
475 09.277 BRACKET; BLOWER 8-98021-703-1 01 1 1506-1508 ●
475 09.277 BRACKET; BLOWER 8-98021-703-1 01 1 1509- ● ●

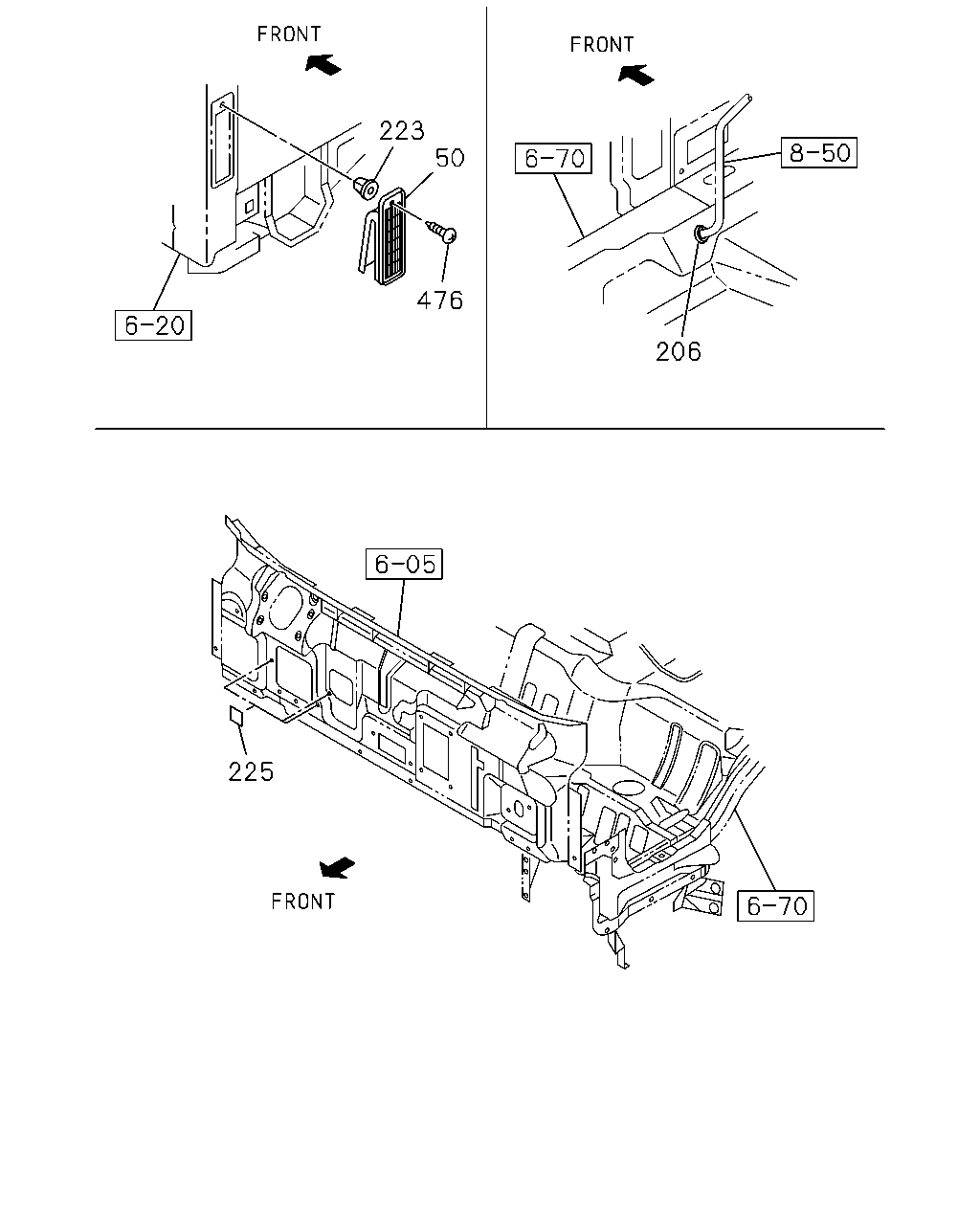

çizim 480957
223 50 476 206 225
BalonParca AdiParca NoAdetTipApplied Date A B
50 08.845 VALVE ASM; HTR 8-98080-998-1 01 1 1506-1508 ●
50 08.845 VALVE ASM; HTR 8-98080-998-1 01 1 1509- ● ●
206 09.743 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1506-1508 ●
206 09.743 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1509- ● ●
223 08.845 GROMMET; SCREW
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1506-1508 ●
223 08.845 GROMMET; SCREW
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1509- ● ●
225 08.845 SEAL; WATER 8-97856-616-0 03 1 1506-1508 ●
225 08.845 SEAL; WATER 8-97856-616-0 03 1 1509- ● ●
476 09.222 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1506-1508 ●
476 09.222 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1509- ● ●
