◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#162274) — 53 parça

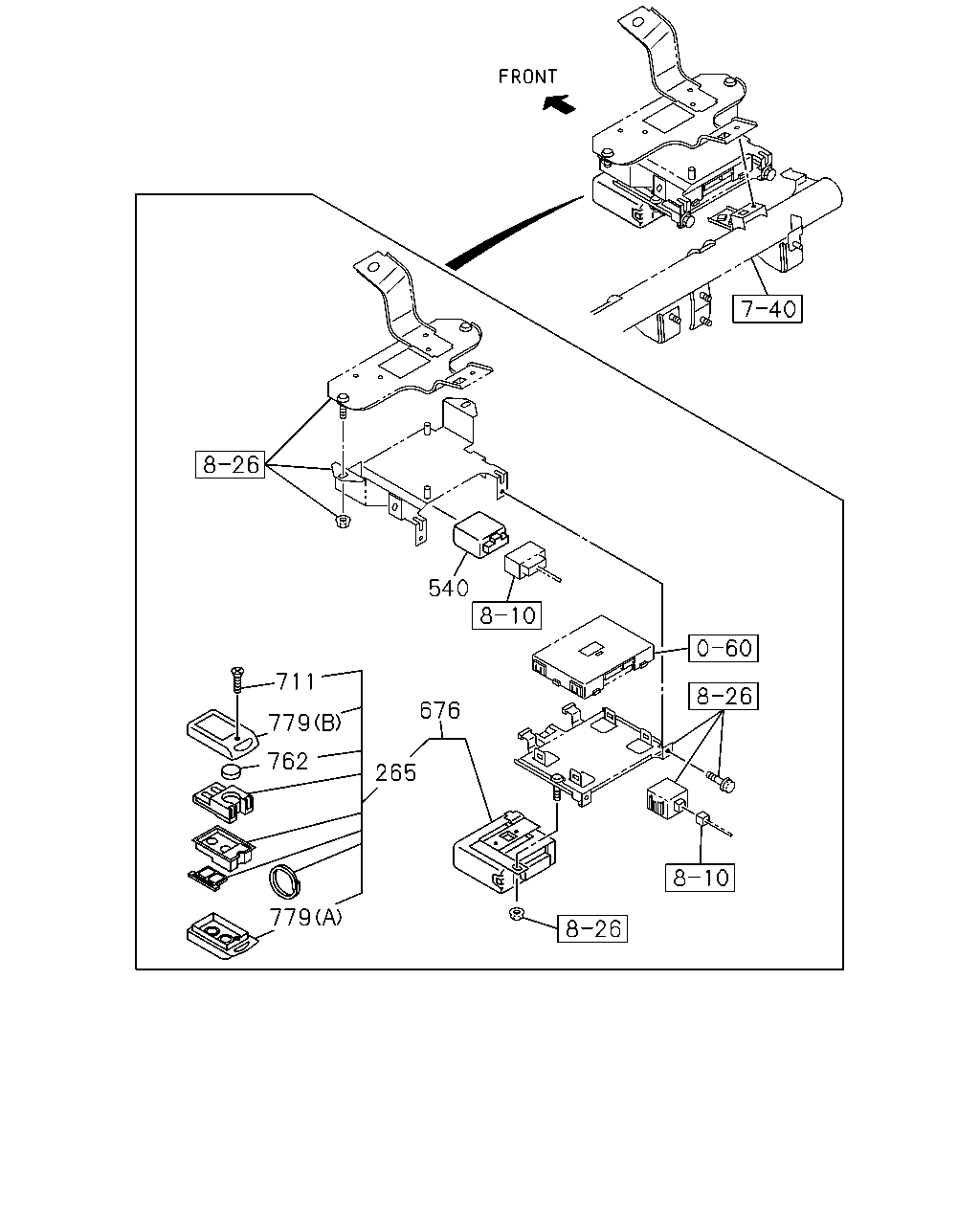

çizim 480098
540 711 779 762 779 265 676
BalonParca AdiParca NoAdetTipApplied Date A B
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-522-0 02 1 1509- ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1506-1508 ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
TURKEY EQUIPMENT(B11) REMOTE CONT DOOR LOCK<6NF> 		8-98218-236-0 02 1 1509- ●
540 16.067 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1506-1508 ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1509- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 		8-98249-524-0 01 1 1509- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TURKEY EQUIPMENT(B11) REMOTE CONT DOOR LOCK<6NF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98218-233-0 01 1 1509- ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY 8-98216-693-2 01 1 1506-1508 ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> REMOTE CONT DOOR LOCK<6NF> 		8-98216-693-2 01 1 1509- ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1506-1508 ●
711 02.510 SCREW; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> M2X5 		8-98218-239-0 02 1 1509- ● ●
762 02.559 BATTERY 8-98078-061-0 02 1 1506-1508 ●
762 02.559 BATTERY
REMOTE CONT DOOR LOCK<6NF> 		8-98078-061-0 02 1 1509- ● ●
779 04.115 COVER; TRANSMITTER
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98250-559-0 02 1 1509- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (A) 		8-98218-240-0 02 1 1506-1508 ●
779 04.115 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<6NF> 02.510 (A) 		8-98218-240-0 02 1 1509- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1506-1508 ●
779 04.115 COVER; TRANSMITTER
TURKEY EQUIPMENT(B11) REMOTE CONT DOOR LOCK<6NF> 02.510 (B) 		8-98218-243-0 02 1 1509- ●

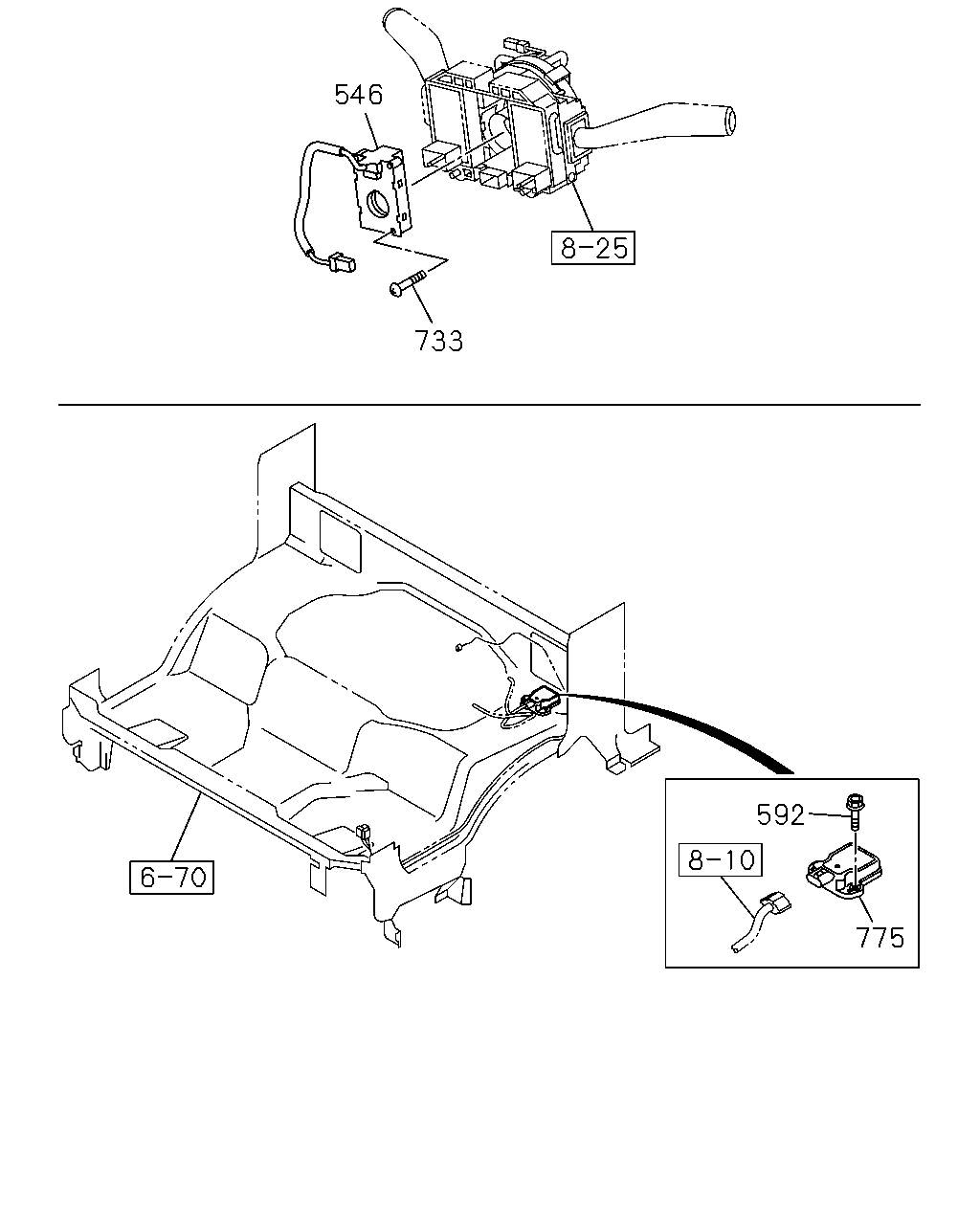

çizim 480878
546 733 775 592
BalonParca AdiParca NoAdetTipApplied Date A B
546 01.150 SENSOR; STEERING POSITION
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98187-727-1 01 1 1509- ● ●
546 01.150 SENSOR; STEERING POSITION 8-98208-932-2 01 1 1506-1508 ●
546 01.150 SENSOR; STEERING POSITION
TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98208-932-2 01 1 1509- ●
592 02.490 BOLT; SENSOR
06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1506-1508 ●
592 02.490 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04) 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1509- ● ●
733 00.010 SCREW; SENSOR
M3X25 TAPPING 		0-71240-325-0 03 1 1506-1508 ●
733 00.010 SCREW; SENSOR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> M3X25 TAPPING 		0-71240-325-0 03 1 1509- ●
733 00.010 SCREW; SENSOR
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> M3X25 TAPPING 		0-71240-325-0 03 1 1509- ●
775 01.150 SENSOR ASM; YAW RATE 8-98206-892-0 01 1 1506-1508 ●
775 01.150 SENSOR ASM; YAW RATE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04) 		8-98206-892-0 01 1 1509- ● ●
çizim 480909
531 666 333
BalonParca AdiParca NoAdetTipApplied Date A B
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506-1508 ●
333 09.277 RELAY; MARKER LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
531 02.769 RELAY; MAIN
4JJ1-TCC ENG(RDU) 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1506-1508 ●
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1509- ● ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1506-1508 ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1509- ● ●

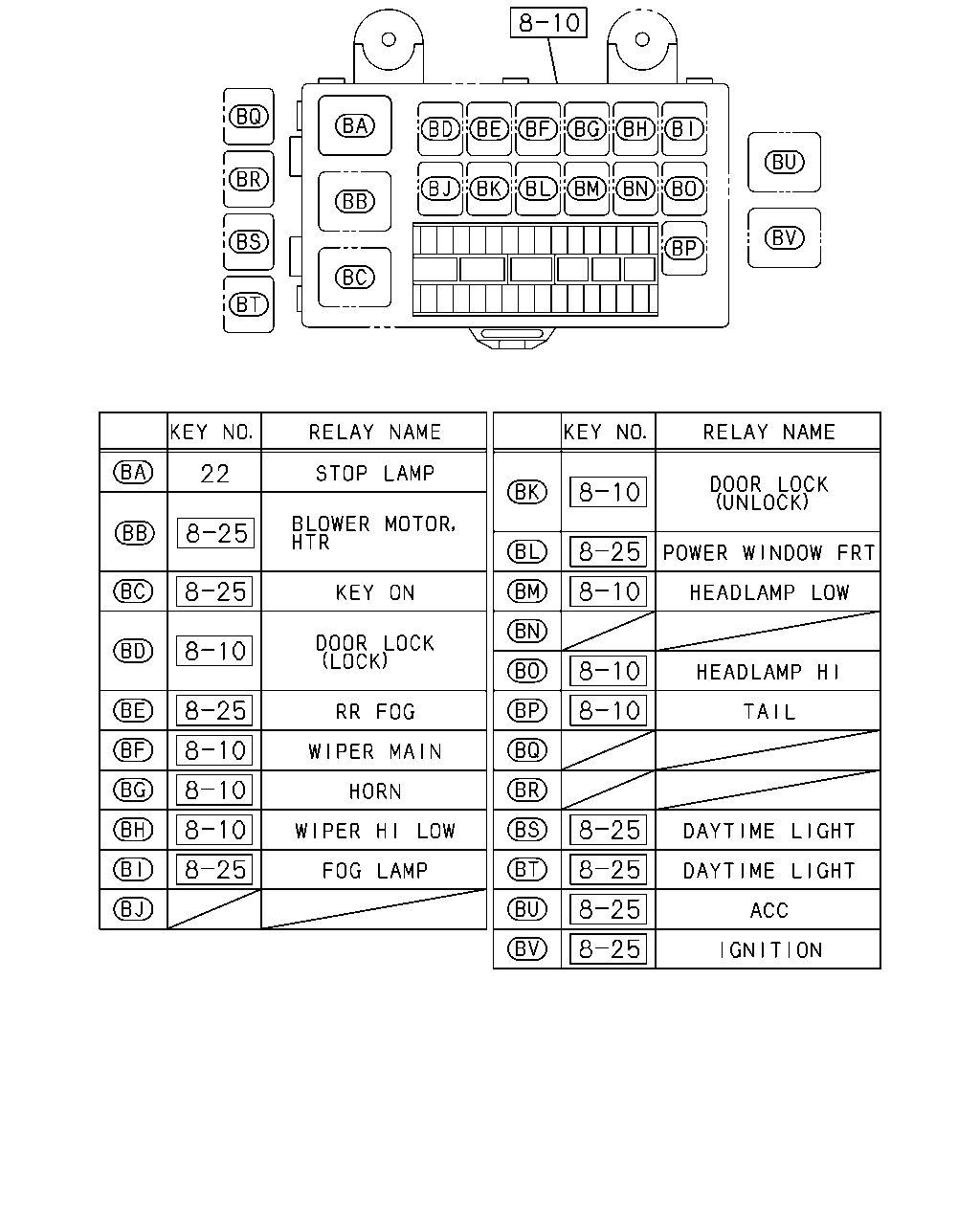

çizim 480945
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506-1508 ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●

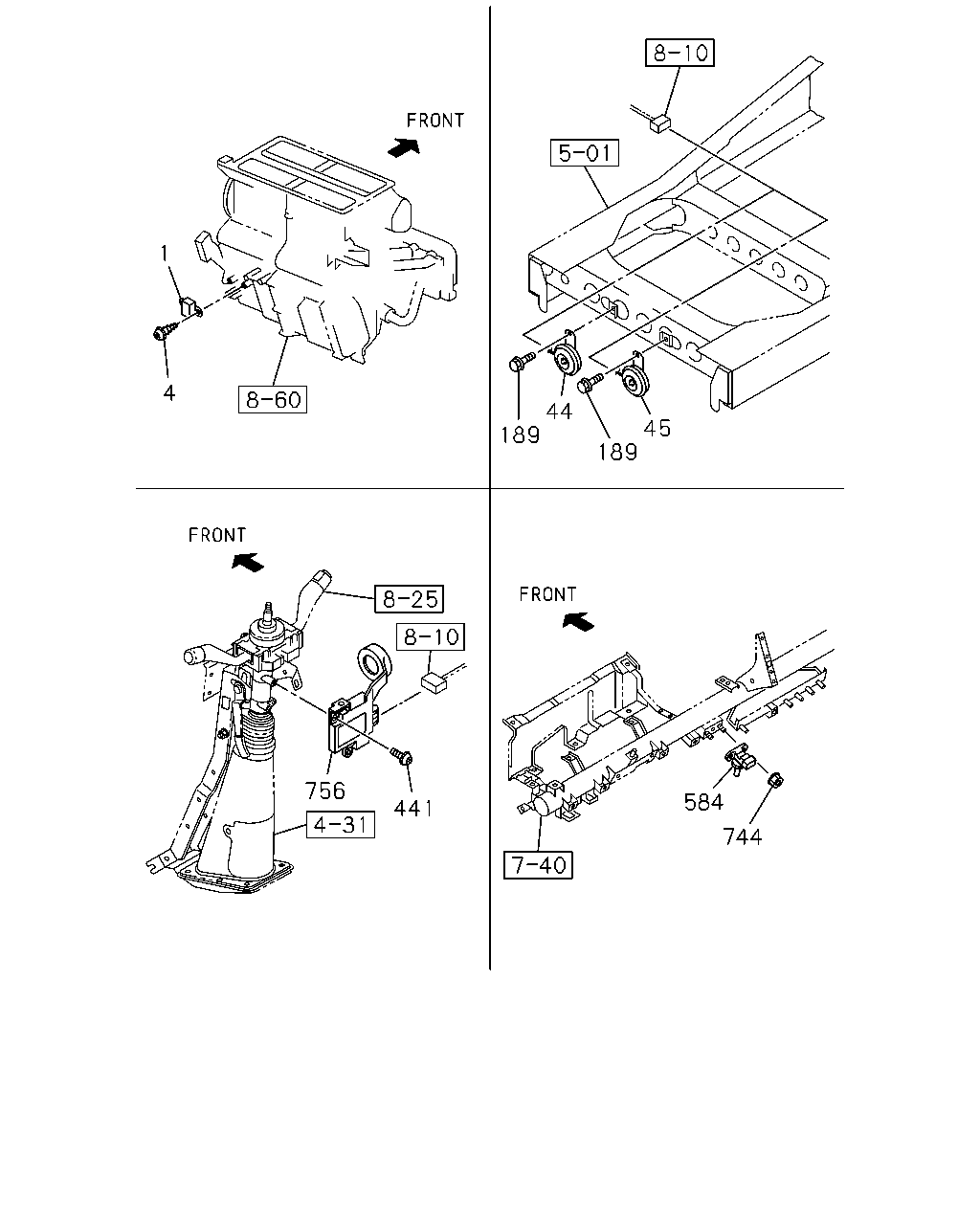

çizim 480971
1 4 189 44 189 45 756 441 584 744
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1506-1508 ●
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1509- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1506-1508 ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ●
44 02.810 HORN; HIGH NOTE 8-98022-022-0 01 1 1506-1508 ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 1509- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1506-1508 ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1509- ● ●
189 02.812 BOLT; HORN
EXC. DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1509- ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1506-1508 ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1509- ● ●
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1506-1508 ●
441 02.575 SCREW; CONT UNIT
IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1509- ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 03.331 		8-98020-514-0 01 1 1509- ● ●
744 09.277 NUT; SENSOR
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1506-1508 ●
756 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM(7KC) 		8-98158-127-0 01 1 1509- ●
