◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#162271) — 122 parça

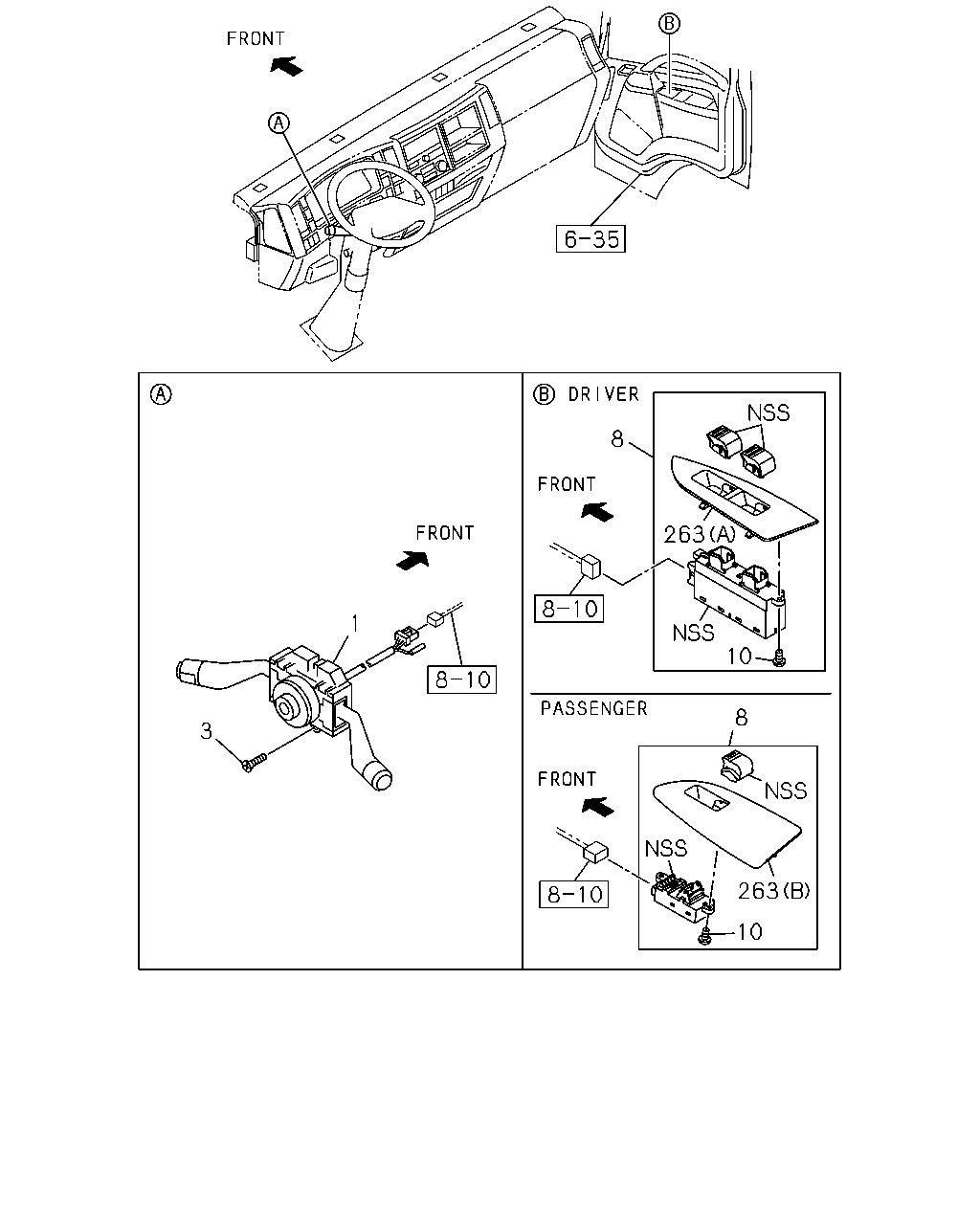

çizim 479791
8 1 3 263 10 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87> 		8-98243-740-0 01 1 1509- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87> 		8-98243-740-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CORNERING LAMP<T87> 		8-98243-757-0 01 1 1509- ● ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,CORNERING LAMP<T87> 		8-98243-757-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,CORNERING LAMP<T87> 		8-98243-757-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1509- ● ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, CORNERING LAMP<T87> 		8-98243-750-0 01 1 1509- ● ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, 4WHEEL ANTI LOCK BRAKE<JE5>,CORNERING LAMP<T87> 		8-98243-750-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, 4WHEEL ANTI LOCK BRAKE<JE5>,CORNERING LAMP<T87> 		8-98243-750-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, RR FOG LAMP<T79> 		8-98243-748-0 01 1 1509- ● ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, 4WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>, 4WHEEL ANTI LOCK BRAKE<JE5>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1509- ●
1 02.895 SWITCH; COMB
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CORNERING LAMP<T87> 		8-98286-970-0 01 1 1509- ●
1 02.895 SWITCH; COMB
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,CORNERING LAMP<T87> 		8-98286-970-0 01 1 1509- ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-742-0 01 1 1506-1508 ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. EXHAUST BRAKE<NF8>,CORNERING LAMP<T87> 		8-98243-742-0 01 1 1509- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. EXHAUST BRAKE<NF8>,CORNERING LAMP<T87> 		8-98243-742-0 01 1 1509- ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 		8-98286-924-0 01 1 1506-1508 ●
1 02.895 SWITCH; COMB
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,EXHAUST BRAKE<NF8>, CORNERING LAMP<T87> 		8-98286-924-0 01 1 1509- ●
1 02.895 SWITCH; COMB
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,EXHAUST BRAKE<NF8>, CORNERING LAMP<T87> 		8-98286-924-0 01 1 1509- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1506-1508 ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1509- ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98001-737-2 01 1 1506-1508 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98001-737-2 01 1 1509-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
06.609 DRIVER SIDE 		8-98159-544-0 01 1 1506-1508 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE 		8-98159-544-0 01 1 1509-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
10 03.885 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1506-1508 ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1509- ● ●
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 1506-1508 ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1509- ● ●
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 1506-1508 ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1509- ● ●
çizim 480081
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506-1508 ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506-1508 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1509- ● ●

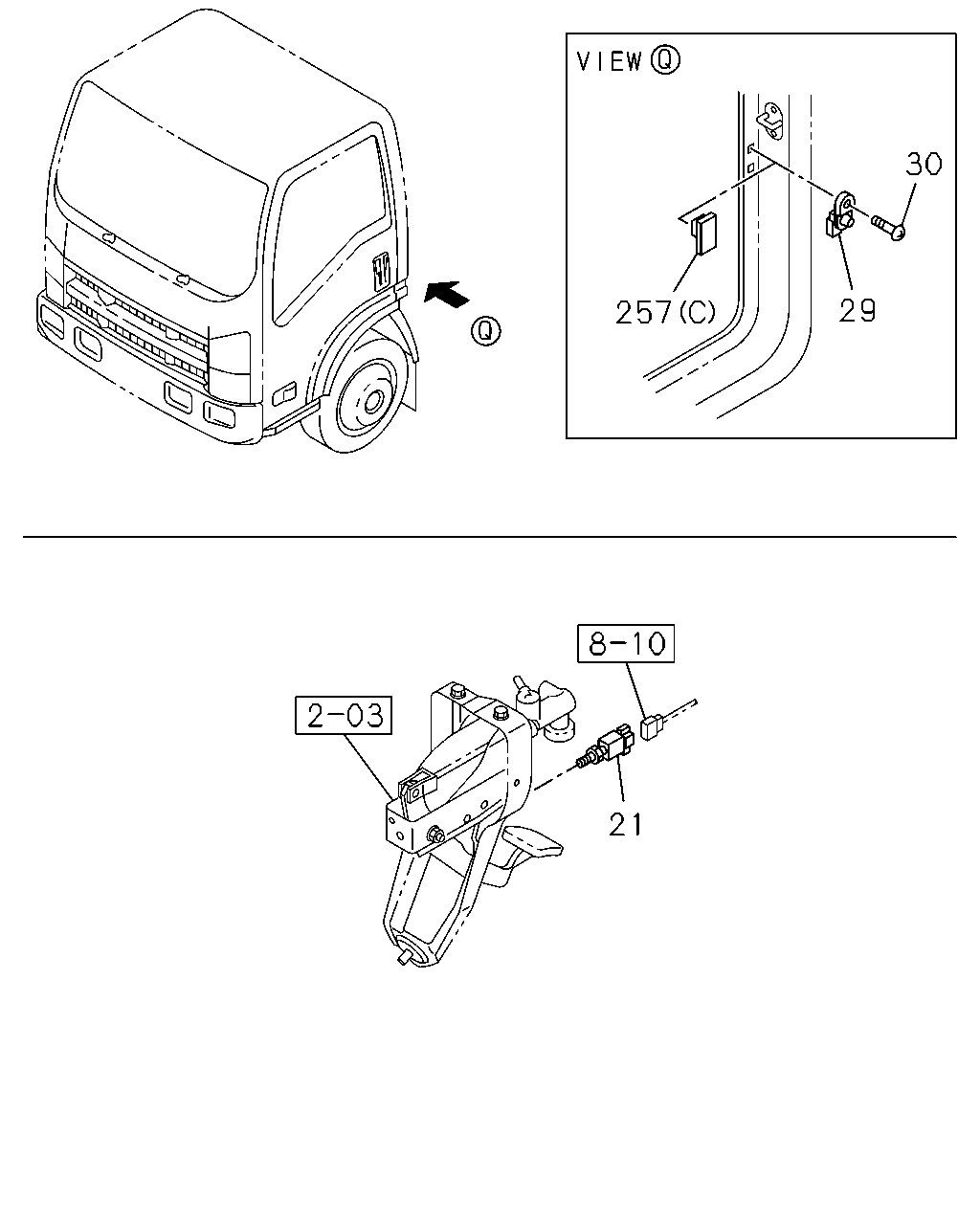

çizim 480457
30 29 257 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1506-1508 ●
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1509- ● ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1506-1508 ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1506-1508 ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1509- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) BLACK 		8-98022-211-0 01 1 1509- ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X18 		8-98047-201-0 01 1 1509- ● ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 1506-1508 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X18 		8-98047-201-0 02 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
CATALYSIS CONTROL(6MZ) (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1509- ● ●

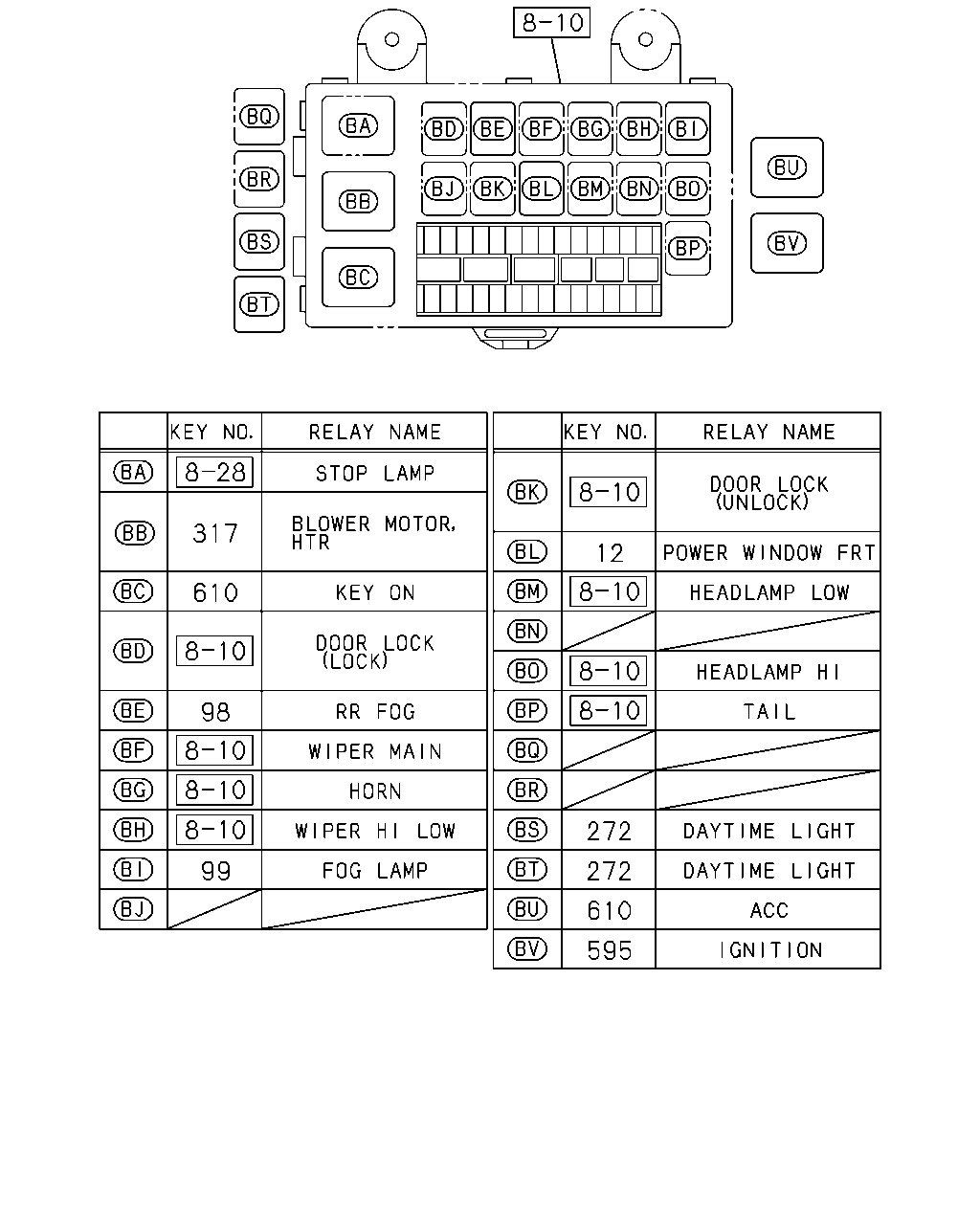

çizim 480510
317 610 98 99 12 272 272 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1506-1508 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506-1508 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506-1508 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
272 02.510 RELAY; DAYTIME LIGHT
08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1506-1508 ●
272 02.510 RELAY; DAYTIME LIGHT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1509- ●
272 02.510 RELAY; DAYTIME LIGHT
RUSSIA EQUIPMENT(B12) FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 02 1 1509- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506-1508 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506-1508 ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1506-1508 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1509- ● ●

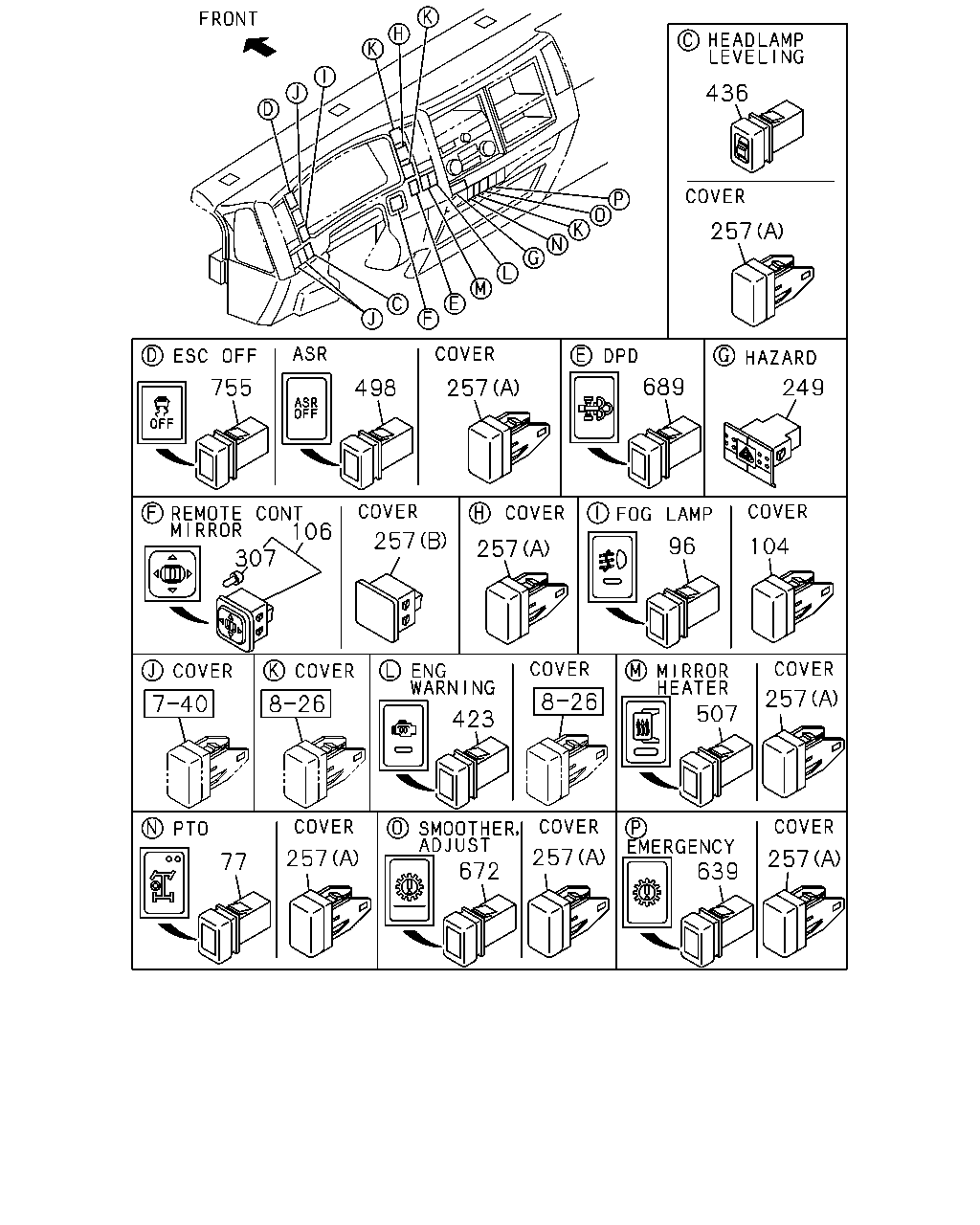

çizim 480846
436 257 249 689 257 498 755 307 106 257 257 96 104 257 507 423 77 257 672 257 639 257
BalonParca AdiParca NoAdetTipApplied Date A B
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1509- ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1506-1508 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1509- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1509- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1509- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1506-1508 ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 02 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506-1508 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
CATALYSIS CONTROL(6MZ) (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1509- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1509- ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1509- ● ●
423 03.883 SWITCH; ENG WARMING
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-97387-010-2 01 1 1509- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1506-1508 ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 1509- ● ●
498 03.883 SWITCH; ASR
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-98251-095-2 01 1 1509- ● ●
498 03.883 SWITCH; ASR
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) THROTTLE CONTROL SYSTEM<6XH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98251-095-2 01 1 1509- ●
498 03.883 SWITCH; ASR
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) THROTTLE CONTROL SYSTEM<6XH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98251-095-2 01 1 1509- ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1509- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1509- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1509- ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1506-1508 ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 1509- ● ●
755 03.883 SWITCH; ESC OFF 8-98190-384-1 01 1 1506-1508 ●
755 03.883 SWITCH; ESC OFF
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-98190-384-1 01 1 1509- ●
755 03.883 SWITCH; ESC OFF
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> 		8-98190-384-1 01 1 1509- ●

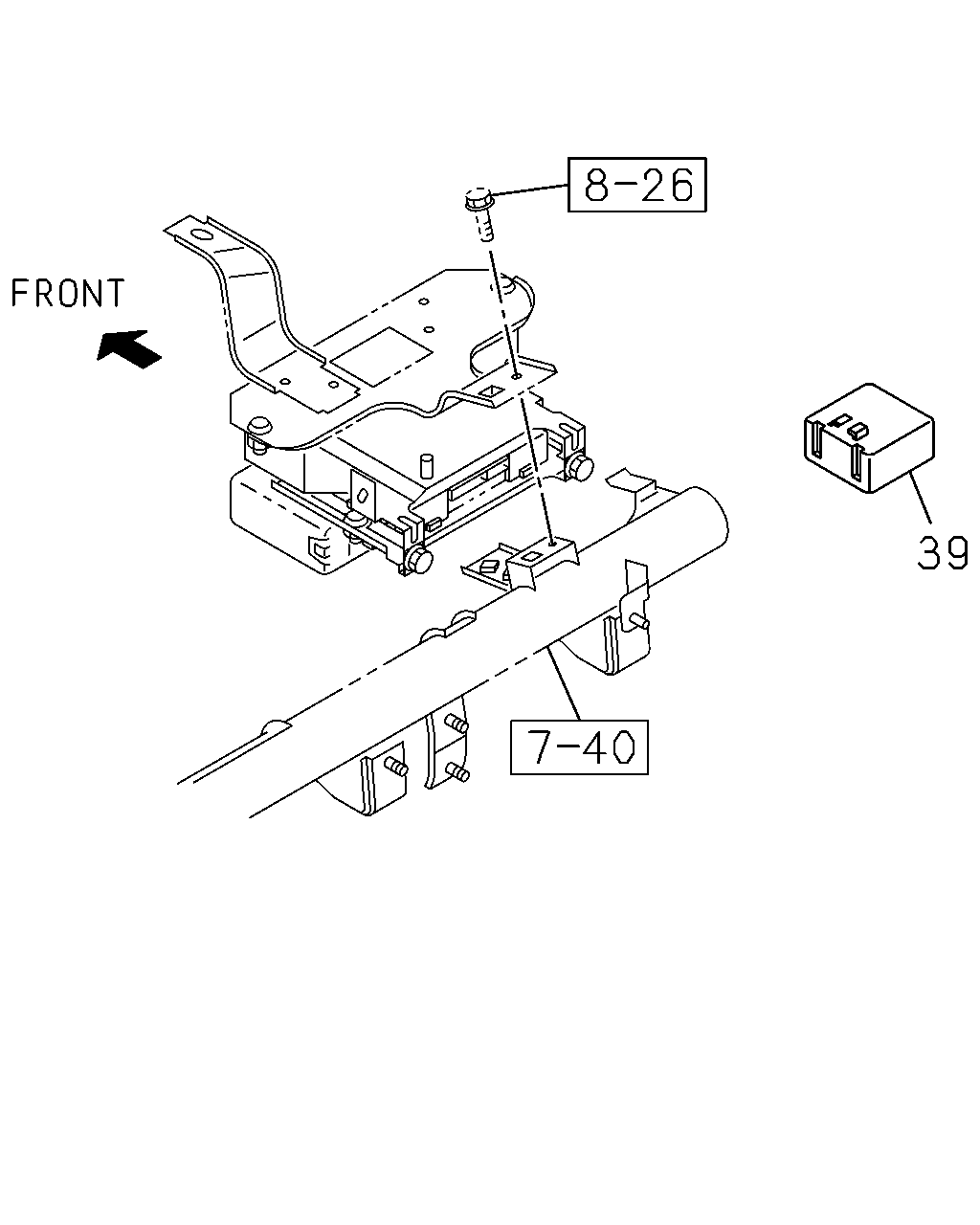

çizim 493033
39
BalonParca AdiParca NoAdetTipApplied Date A B
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
