◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#162270) — 55 parça

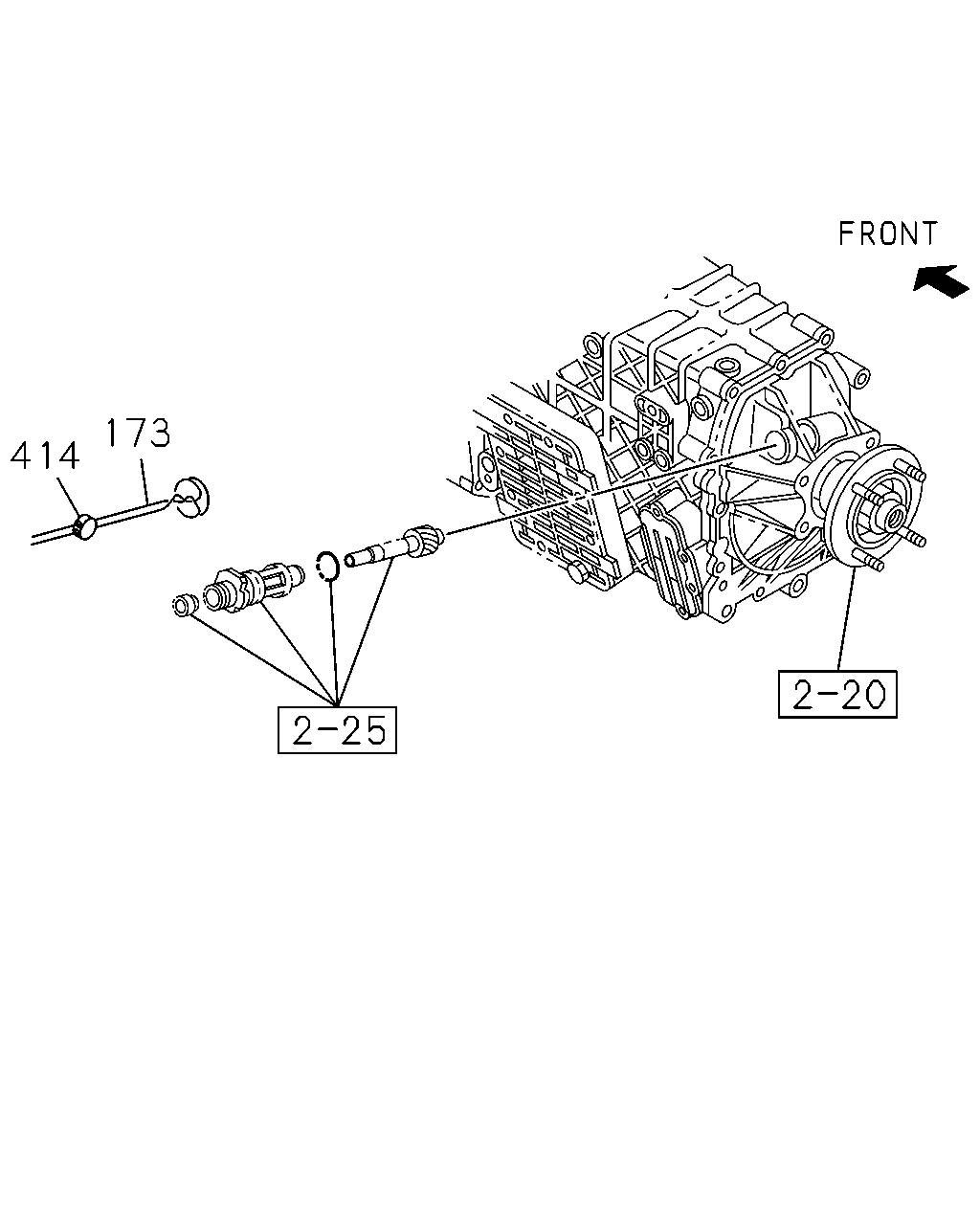

çizim 480020
414 173
BalonParca AdiParca NoAdetTipApplied Date A B
173 09.744 WIRE; LEAD
4JJ1-TCC ENG(RDU) 		1-80249-010-0 01 1 1506-1508 ●
173 09.744 WIRE; LEAD
4JJ1-TCC ENG(RDU) SPEED LIMITER 90KM(NMJ) 		1-80249-010-0 01 1 1509- ● ●
173 09.744 WIRE; LEAD
4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SPEED LIMITE R 90KM(NMJ) 		1-80249-010-0 01 1 1509- ● ●
414 09.772 SEAL; LEAD
4JJ1-TCC ENG(RDU) 		1-15739-008-0 01 1 1506-1508 ●
414 09.772 SEAL; LEAD
4JJ1-TCC ENG(RDU) SPEED LIMITER 90KM(NMJ) 		1-15739-008-0 01 1 1509- ● ●
414 09.772 SEAL; LEAD
4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),SPEED LIMITE R 90KM(NMJ) 		1-15739-008-0 01 1 1509- ● ●

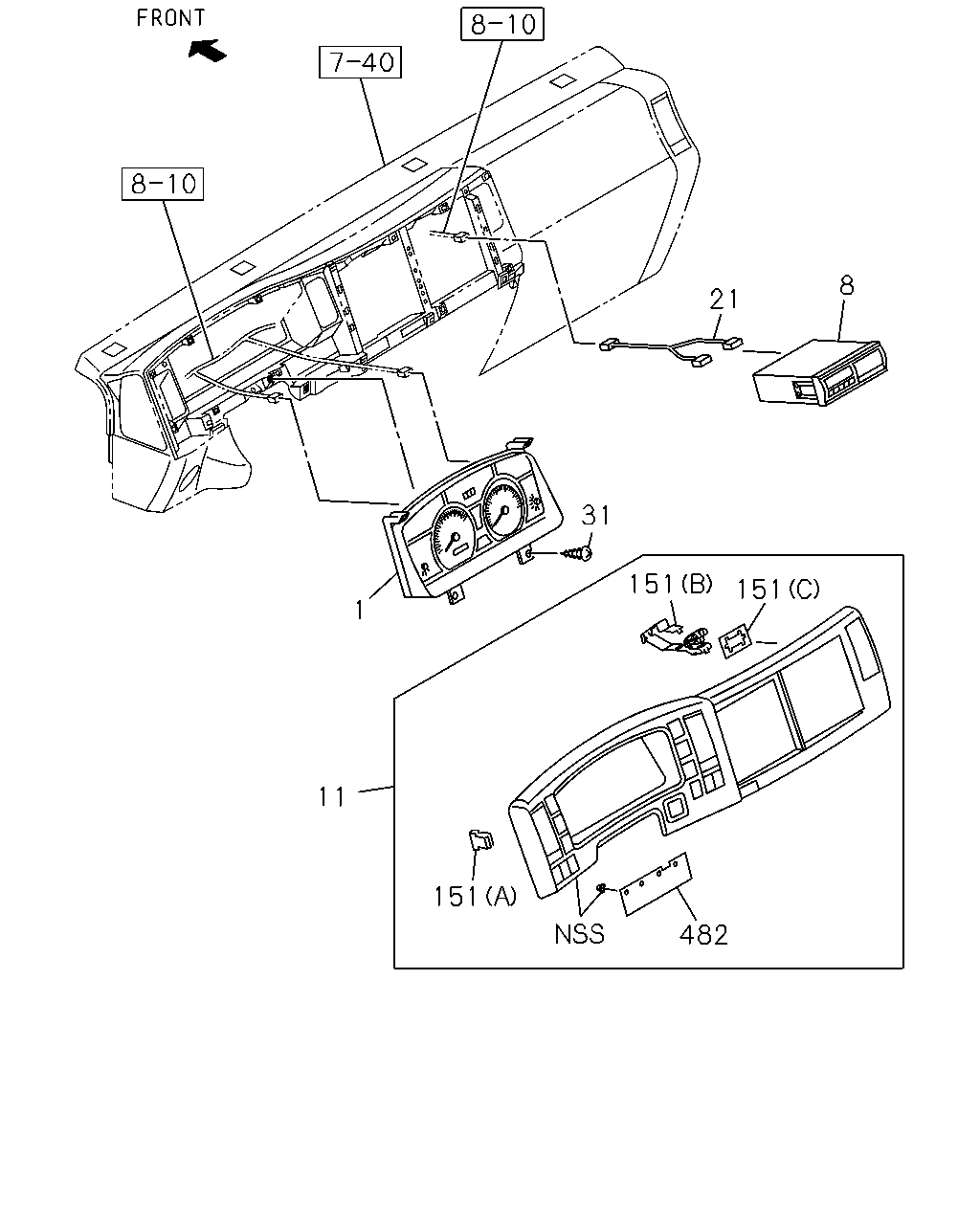

çizim 480695
21 8 31 1 11 151 151 151 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-992-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-983-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98299-512-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98299-511-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-989-1 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98275-982-1 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER 8-98275-990-0 01 1 1506-1508 ●
1 09.735 METER COMPL; CLUSTER
TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-990-0 01 1 1509- ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98204-004-0 01 1 1506-1508 ●
8 09.750 TACHOGRAPH; CLUSTER METER
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98204-004-0 01 1 1509- ● ●
11 09.743 CLUSTER ASM; METER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97418-531-1 01 1 1509- ● ●
11 09.743 CLUSTER ASM; METER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97418-534-1 01 1 1509- ● ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97414-682-3 01 1 1506-1508 ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) DARK GRAY 		8-97414-682-3 01 1 1509- ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97406-005-6 01 1 1506-1508 ●
11 09.743 CLUSTER ASM; METER
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97406-005-6 01 1 1509- ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98204-878-0 01 1 1506-1508 ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98204-878-0 01 1 1509- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1506-1508 ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509- ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 12 1 1509- ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.090 (B) 		8-98152-030-0 01 1 1509- ● ●
151 09.747 CLIP; METER CLUSTER
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.090 (C) 		8-98152-031-0 01 1 1509- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 1506-1508 ●
151 09.747 CLIP; METER CLUSTER
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A) 		8-98021-271-0 13 1 1509- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1506-1508 ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1509- ● ●

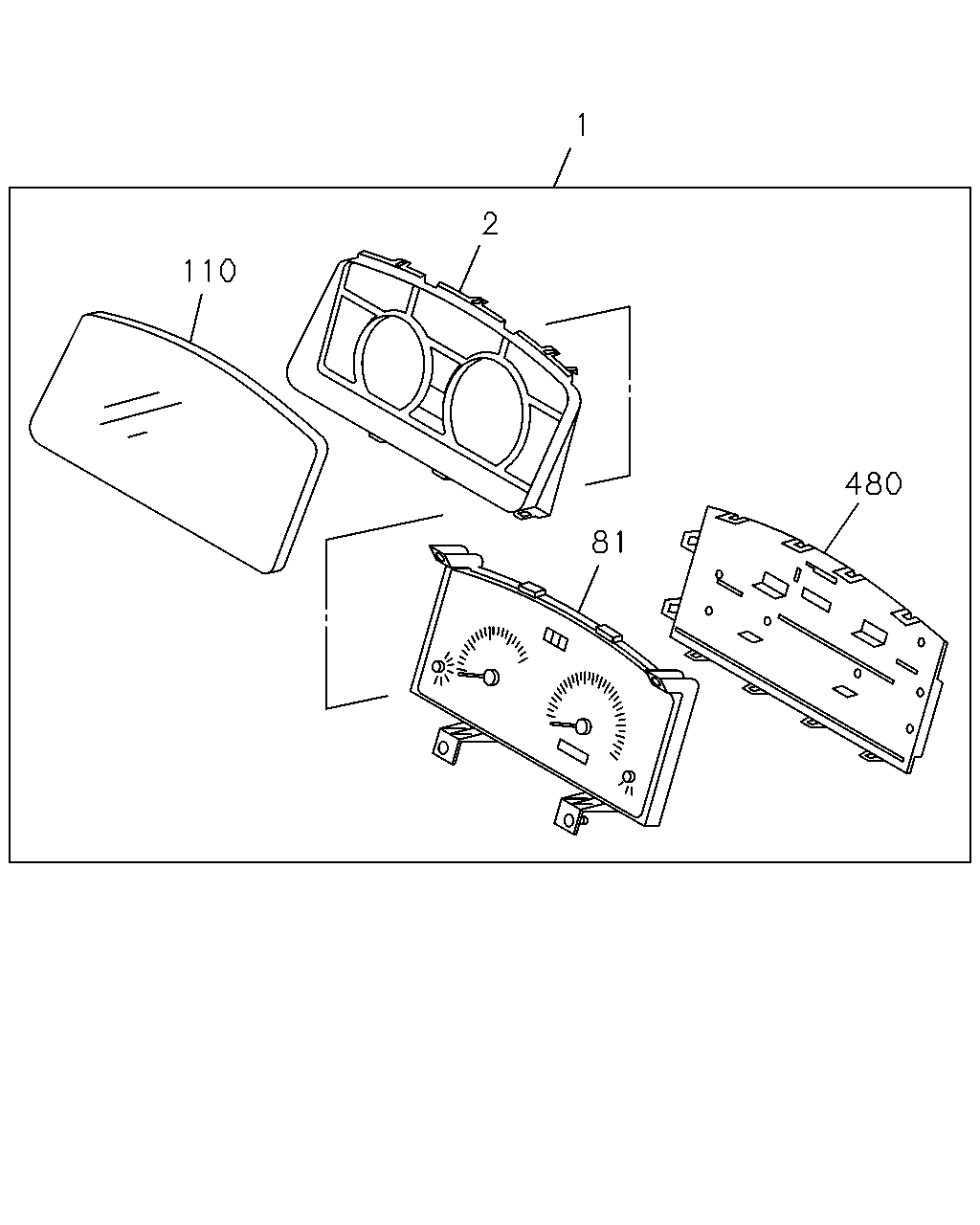

çizim 480726
1 2 110 81 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-992-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-983-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98299-512-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98299-511-0 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-989-1 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER
CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98275-982-1 01 1 1509- ● ●
1 09.735 METER COMPL; CLUSTER 8-98275-990-0 01 1 1506-1508 ●
1 09.735 METER COMPL; CLUSTER
TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-990-0 01 1 1509- ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1506-1508 ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1509- ● ●
81 09.735 METER SUB ASM
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-222-0 01 1 1509- ● ●
81 09.735 METER SUB ASM
TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-213-0 01 1 1509- ● ●
81 09.735 METER SUB ASM
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98300-429-0 01 1 1509- ● ●
81 09.735 METER SUB ASM
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98300-428-0 01 1 1509- ● ●
81 09.735 METER SUB ASM
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-219-0 01 1 1509- ● ●
81 09.735 METER SUB ASM
CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98288-212-0 01 1 1509- ● ●
81 09.735 METER SUB ASM 8-98288-220-0 01 1 1506-1508 ●
81 09.735 METER SUB ASM
TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-220-0 01 1 1509- ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1506-1508 ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1509- ● ●
480 09.748 COVER; METER 8-98151-362-0 01 1 1506-1508 ●
480 09.748 COVER; METER 8-98151-362-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
