Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#162269) — 312 parça

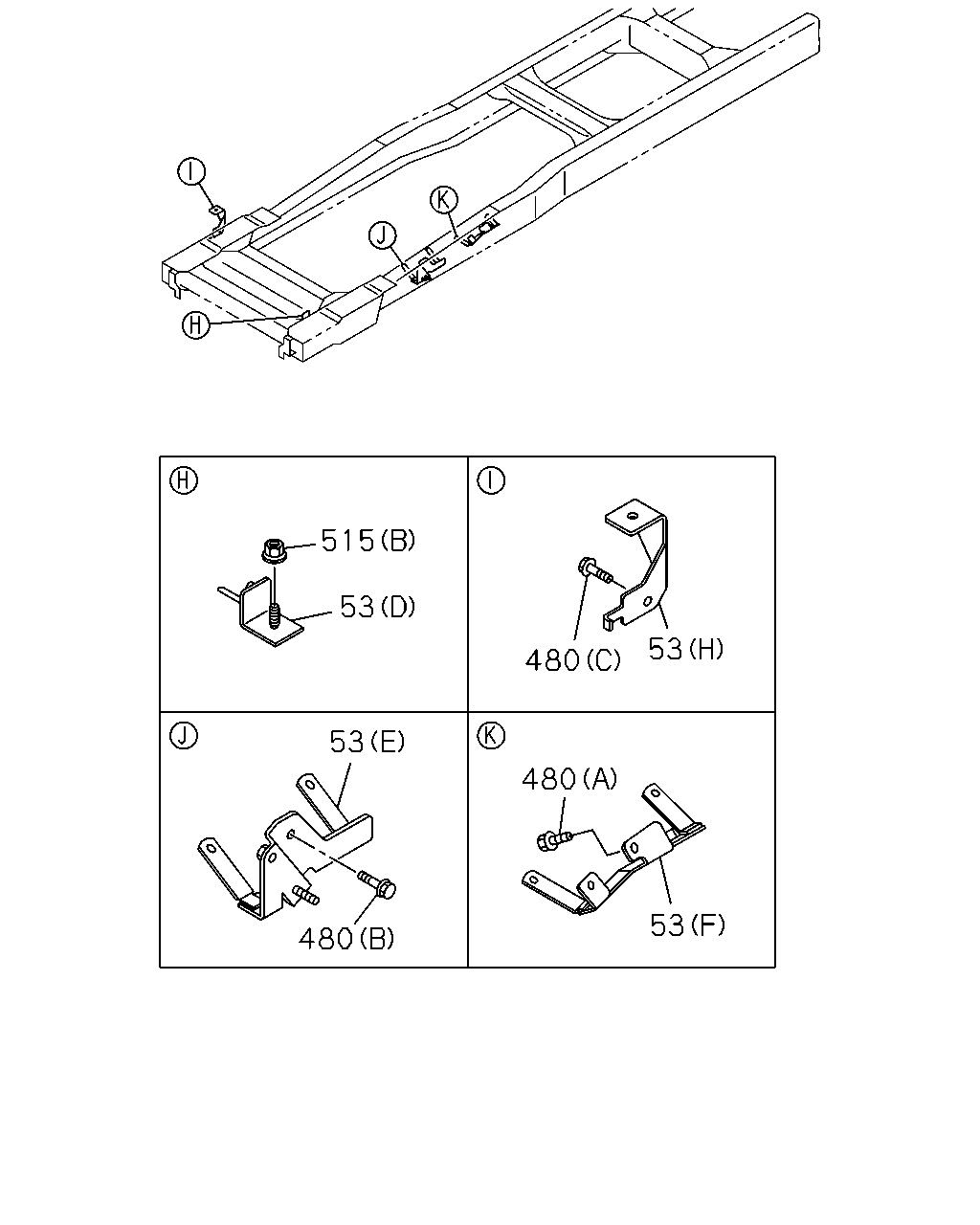

515 53 53 480 480 53 480 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1509-	●	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (I)	8-98282-934-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	1509-	●
53	02.483 BRACKET; HARNESS (J)	8-98074-502-0	01	1	1509-		●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) (H)	8-98227-632-0	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (H)	8-98227-632-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1509-	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
480	02.483 BOLT; BRKT HEATER & DEFROSTER(C41) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1506-1508	●
480	02.483 BOLT; BRKT HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1506-1508	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1509-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1508	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) (B) M8 FLANGE	8-98040-024-0	01	1	1506-1508	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1509-	●	●

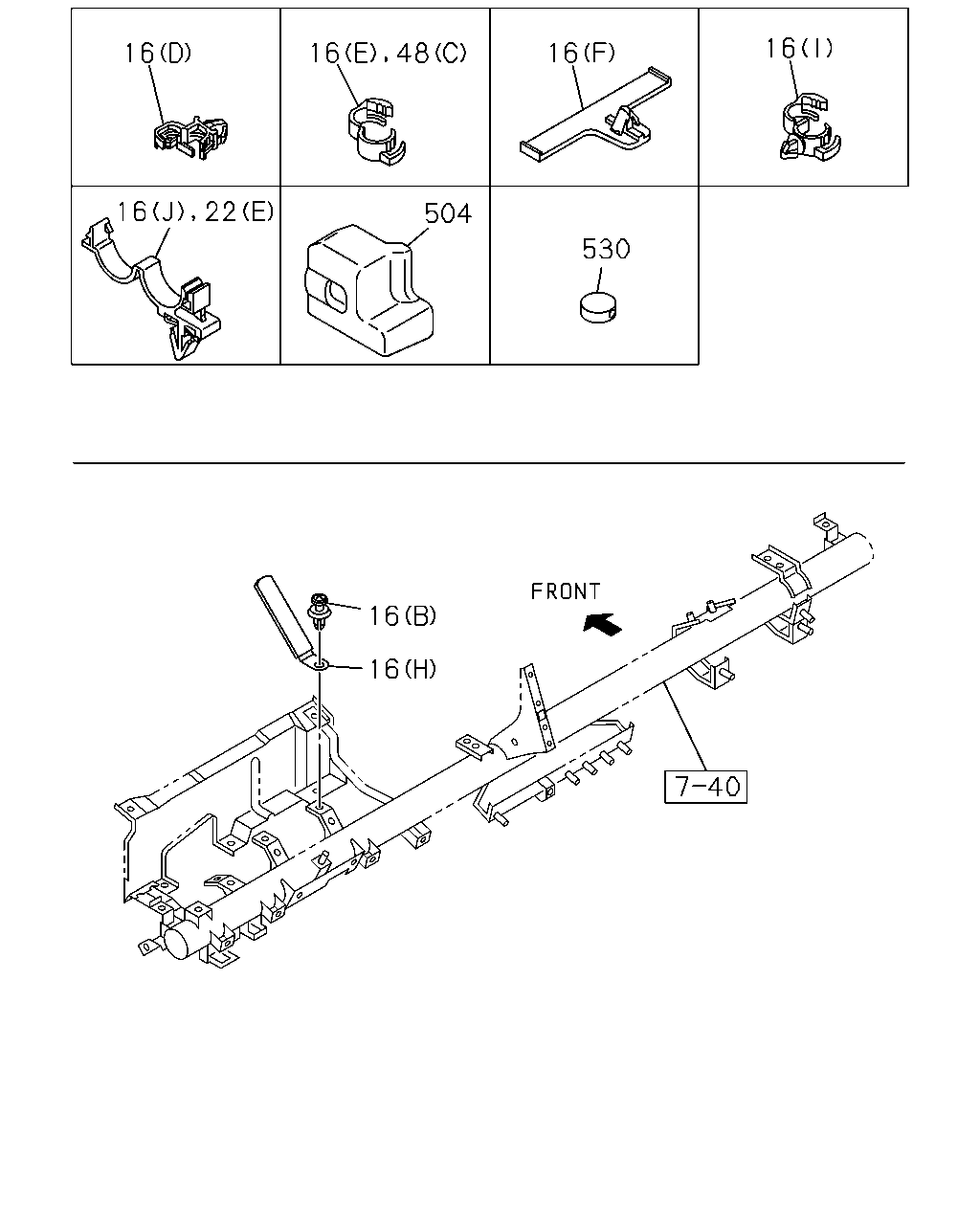

22 22 16 16 48 48 22 22 22 22 22 16 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) RR FOG LAMP<T79> (G) L=250	5-09707-030-1	01	1	1509-	●	●
16	02.559 CLIP; HARNESS CHILE EQUIPMENT(KE1) EXC. RR FOG LAMP<T79> (G) L=250	5-09707-030-1	01	1	1509-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (I) ID=6 & 10-13	8-97069-515-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (G) L=250	5-09707-030-1	14	1	1506-1508	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (G) L=250	5-09707-030-1	14	1	1509-	●	●
16	02.559 CLIP; HARNESS (G) L=250	5-09707-030-1	04	1	1506-1508	●
16	02.559 CLIP; HARNESS TURKEY EQUIPMENT(B11) RR FOG LAMP<T79> (G) L=250	5-09707-030-1	04	1	1509-	●
16	02.559 CLIP; HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (E) ID=20	8-94241-972-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (E) ID=20	8-94241-972-0	01	1	1509-	●
16	02.559 CLIP; HARNESS WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (E) ID=20	8-94241-972-0	01	1	1509-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	1509-		●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS 16.578 (B) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 16.578 (B) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-1508	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-1508	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1509-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1509-	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) 04.594 (D) L=100	5-09707-036-1	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (E) ID=34	8-98069-482-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) L=140	5-09707-031-1	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (G) ID=6 & 8.3	8-94167-742-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (H) ID=13.2 & 14.5	8-94475-649-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (A) L=119.5	1-09707-197-0	01	1	1506-1508	●
22	02.559 CLIP; ENG HARNESS 02.343 (A) L=119.5	1-09707-197-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (B) ID=12 & 6.8	8-97125-842-0	01	1	1506-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) ID=6.8	8-97134-154-0	01	1	1506-1508	●
22	02.559 CLIP; ENG HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (C) ID=6.8	8-97134-154-0	01	1	1509-	●	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (C) ID=20	8-94241-972-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (C) ID=20	8-94241-972-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (C) ID=20	8-94241-972-0	01	1	1509-		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-		●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	01	1	1509-	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	02	1	1509-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	06	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1509-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1506-1508	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1509-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1506-1508	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1509-		●
48	02.559 CLIP; FRAME HARNESS 03.890 (A) ID=4.8	1-09701-218-0	01	1	1506-1508	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.890 (A) ID=4.8	1-09701-218-0	01	1	1509-	●	●

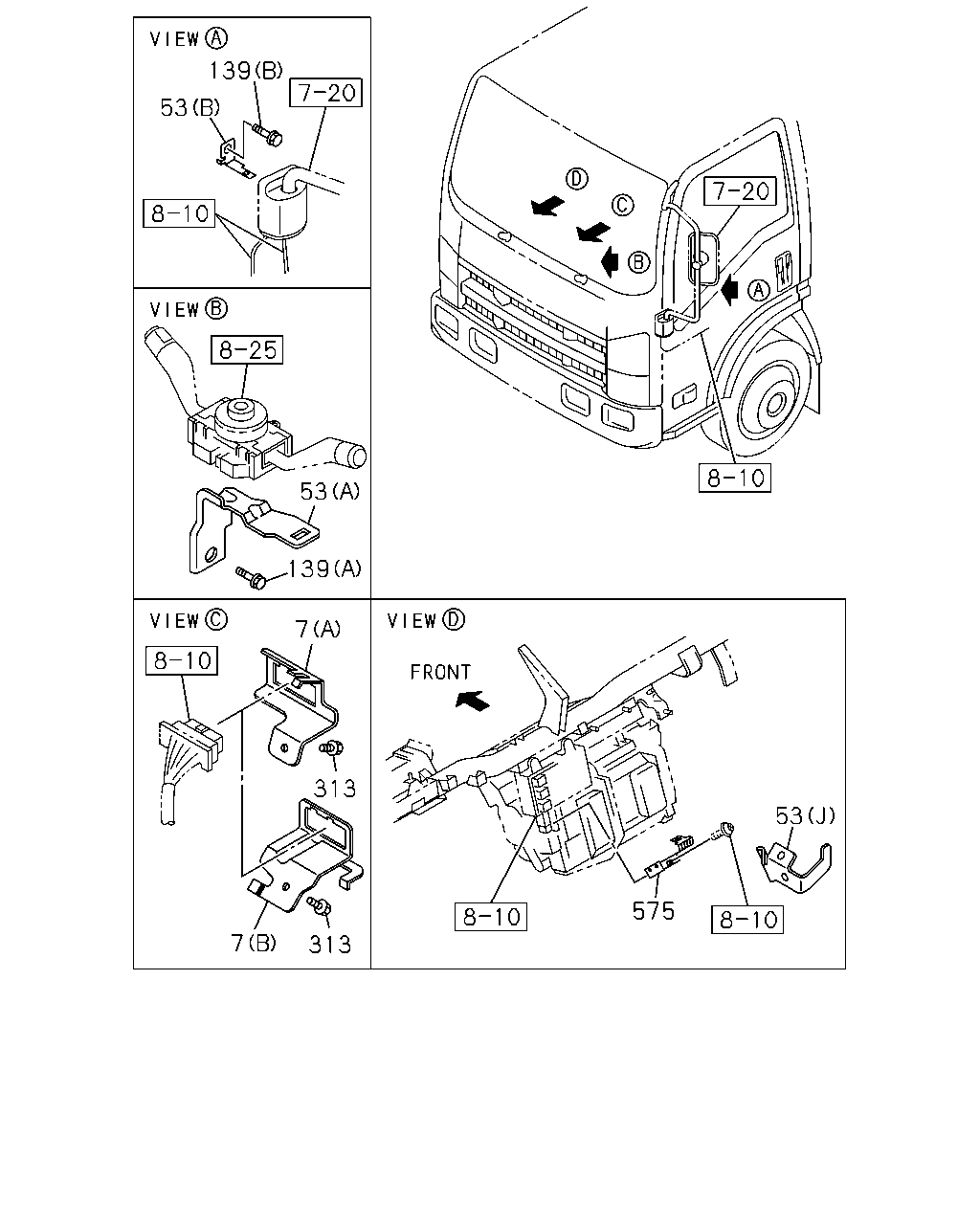

139 53 53 139 7 575 313 7 53 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98114-514-0	01	1	1509-	●	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1506-1508	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1509-	●	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (I)	8-98282-934-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	1509-	●
53	02.483 BRACKET; HARNESS (J)	8-98074-502-0	01	1	1509-		●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) (H)	8-98227-632-0	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (H)	8-98227-632-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1509-	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1509-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-1508	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1509-	●	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-2	01	1	1506-1508	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-2	01	1	1509-	●	●

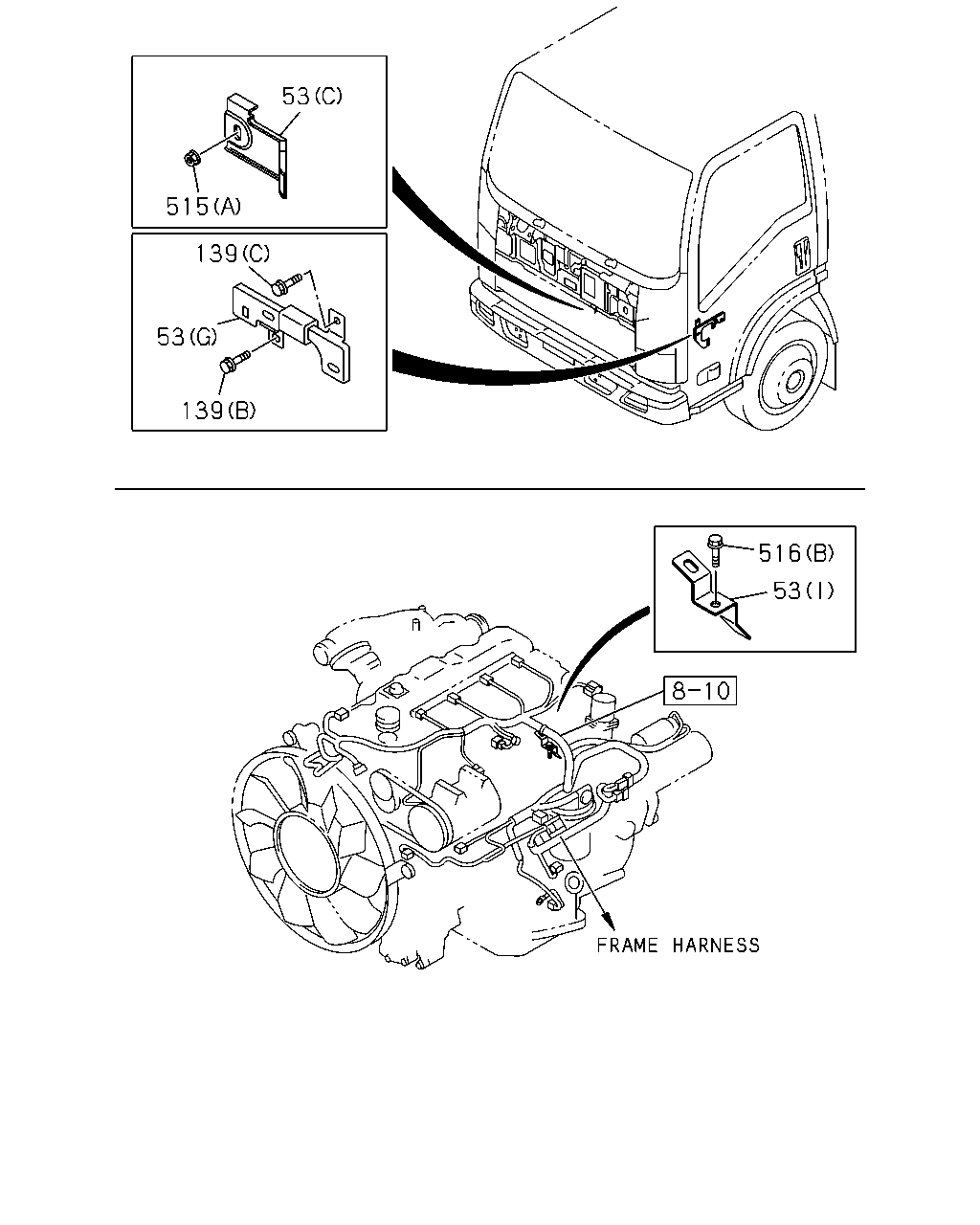

53 516 139 53 139 515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	1509-	●	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (I)	8-98282-934-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	1509-	●
53	02.483 BRACKET; HARNESS (J)	8-98074-502-0	01	1	1509-		●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) (H)	8-98227-632-0	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (H)	8-98227-632-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1509-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1506-1508	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1509-	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1509-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) (B) M8 FLANGE	8-98040-024-0	01	1	1506-1508	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1509-	●	●
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (C) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1509-	●
516	02.559 BOLT; HARNESS 09.650 (C) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1509-		●
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●

516 38 139 313 480 481 38 139 516 38 139 516 480 460 38 480 480 242 529 377 377 386 386 24 515 577 219 294 469 515 524 552 519 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1506-1508	●
24	02.559 NUT; HARNESS EXC. CATALYSIS CONTROL(6MZ) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1509-	●	●
24	02.559 NUT; HARNESS CATALYSIS CONTROL(6MZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. RUSSIA EQUIPMENT(B12) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1509-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1509-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
38	02.559 BOLT; CLIP,HARNESS 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1509-	●	●
38	02.559 BOLT; CLIP,HARNESS 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	1506-1508	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	1509-	●	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1506-1508	●
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	1509-	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●
219	02.559 NUT 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
242	02.483 BOLT; BRKT,HARNESS CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1509-	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-1508	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1509-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1506-1508	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1509-	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1508	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1509-	●	●
386	02.559 BOLT; GRAND HARNESS 4JJ1-TCS ENG(LFB) 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1509-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1506-1508	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1509-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1506-1508	●
386	02.559 BOLT; GRAND HARNESS 4JJ1-TCC ENG(RDU) 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1509-	●	●
460	02.559 BOLT; HARNESS PROTECTOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●
460	02.559 BOLT; HARNESS PROTECTOR 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
469	02.559 NUT; PROTECTOR TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
480	02.483 BOLT; BRKT HEATER & DEFROSTER(C41) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1506-1508	●
480	02.483 BOLT; BRKT HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1509-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1506-1508	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1509-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-1508	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
481	13.090 BOLT; CABLE HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1506-1507	●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1508-1508	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1509-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1509-	●	●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) (B) M8 FLANGE	8-98040-024-0	01	1	1506-1508	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1509-	●	●
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (C) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1509-	●
516	02.559 BOLT; HARNESS 09.650 (C) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1509-		●
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-1508	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
519	02.559 NUT; EARTH CABLE 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-1508	●
519	02.559 NUT; EARTH CABLE 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
524	02.559 NUT; HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1506-1508	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1508	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●

530 504 22 16 16 16 16 48 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) RR FOG LAMP<T79> (G) L=250	5-09707-030-1	01	1	1509-	●	●
16	02.559 CLIP; HARNESS CHILE EQUIPMENT(KE1) EXC. RR FOG LAMP<T79> (G) L=250	5-09707-030-1	01	1	1509-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (J) ID=28	8-94362-106-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (I) ID=6 & 10-13	8-97069-515-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (G) L=250	5-09707-030-1	14	1	1506-1508	●
16	02.559 CLIP; HARNESS IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (G) L=250	5-09707-030-1	14	1	1509-	●	●
16	02.559 CLIP; HARNESS (G) L=250	5-09707-030-1	04	1	1506-1508	●
16	02.559 CLIP; HARNESS TURKEY EQUIPMENT(B11) RR FOG LAMP<T79> (G) L=250	5-09707-030-1	04	1	1509-	●
16	02.559 CLIP; HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (E) ID=20	8-94241-972-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (E) ID=20	8-94241-972-0	01	1	1509-	●
16	02.559 CLIP; HARNESS WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (E) ID=20	8-94241-972-0	01	1	1509-	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	1509-		●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS 16.578 (B) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS 16.578 (B) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-1508	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-1508	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1509-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1509-	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1506-1508	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1509-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) 04.594 (D) L=100	5-09707-036-1	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (E) ID=34	8-98069-482-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) L=140	5-09707-031-1	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (G) ID=6 & 8.3	8-94167-742-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (H) ID=13.2 & 14.5	8-94475-649-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (A) L=119.5	1-09707-197-0	01	1	1506-1508	●
22	02.559 CLIP; ENG HARNESS 02.343 (A) L=119.5	1-09707-197-0	01	1	1509-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (B) ID=12 & 6.8	8-97125-842-0	01	1	1506-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) (C) ID=6.8	8-97134-154-0	01	1	1506-1508	●
22	02.559 CLIP; ENG HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (C) ID=6.8	8-97134-154-0	01	1	1509-	●	●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (C) ID=20	8-94241-972-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (C) ID=20	8-94241-972-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (C) ID=20	8-94241-972-0	01	1	1509-		●
48	02.559 CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) EXC. TURKEY EQUIPMENT(B11) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-	●
48	02.559 CLIP; FRAME HARNESS CATALYSIS CONTROL WITH DPD(8JM) (D) T=4.5 & 9	8-97371-947-0	01	1	1509-		●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	01	1	1509-	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD(8JM) (E) T=5.5	8-97371-951-0	02	1	1509-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	06	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (B) ID=14 L=47	5-09700-319-0	08	1	1509-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1506-1508	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1509-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1506-1508	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1509-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1509-		●
48	02.559 CLIP; FRAME HARNESS 03.890 (A) ID=4.8	1-09701-218-0	01	1	1506-1508	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 03.890 (A) ID=4.8	1-09701-218-0	01	1	1509-	●	●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB)	8-98208-886-0	01	1	1509-	●	●
530	02.559 SEAL; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> SPEED LIMITER 90KM(NMJ) 09.772	1-15739-008-0	01	1	1509-	●	●

459 459 459 552 552 459 552 459 552 459 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
242	02.483 BOLT; BRKT,HARNESS CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (A)	8-98018-899-1	01	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (B)	8-98030-988-2	01	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (C)	8-98030-991-2	01	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (F)	8-98044-758-2	01	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (E)	8-98020-227-3	01	1	1506-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS (E)	8-98020-227-3	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98020-227-3	01	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98020-227-3	01	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (D)	8-98196-974-0	01	1	1506-1507	●
459	02.483 BRACKET; SUPPORT,HARNESS (D)	8-98196-974-0	01	1	1508-1508	●
459	02.483 BRACKET; SUPPORT,HARNESS EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98196-974-0	01	1	1509-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98196-974-0	01	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-1508	●
552	02.483 NUT; BRKT,HARNESS CATALYSIS CONTROL(6MZ),CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
