Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#162268) — 277 parça

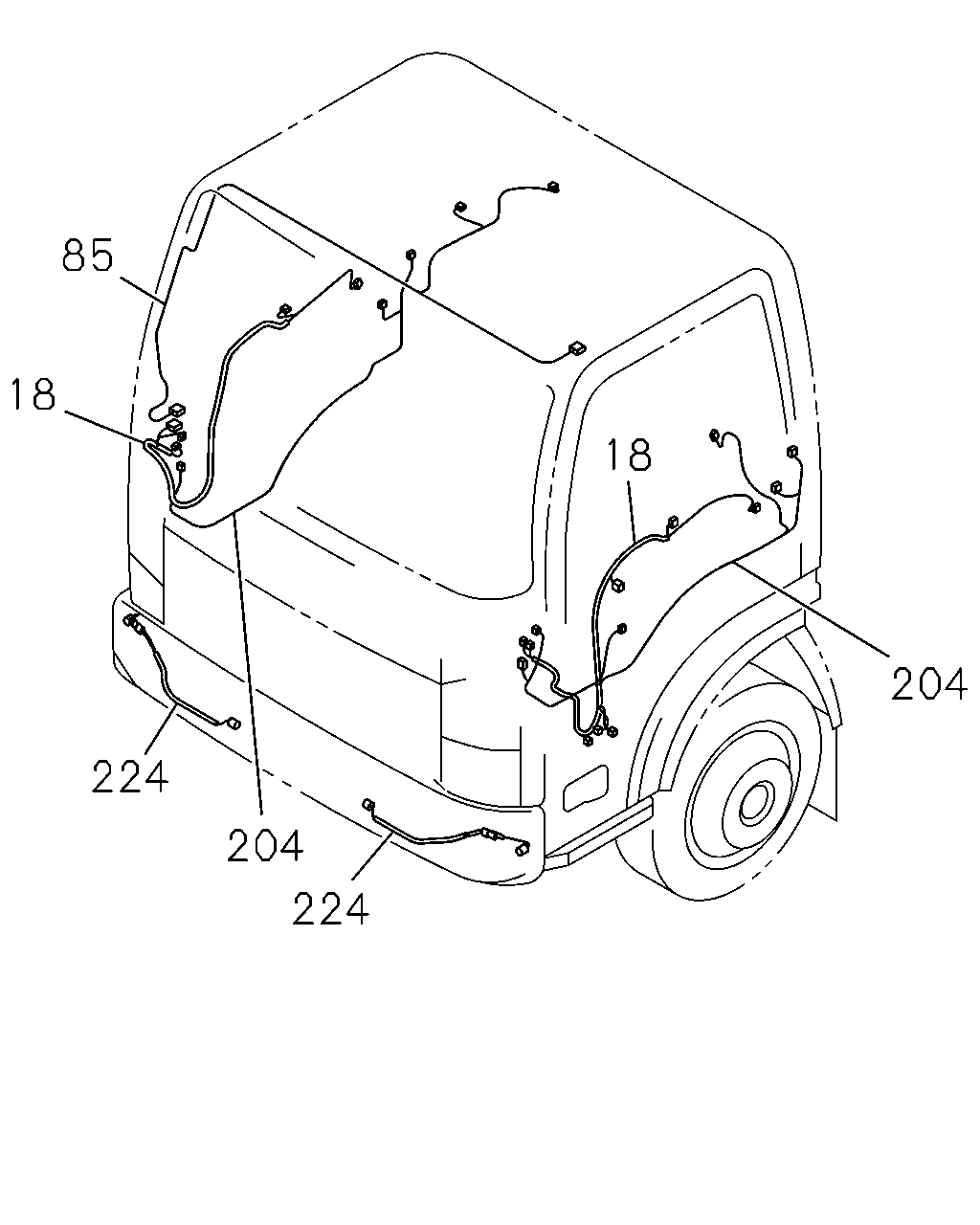

85 18 224 204 224 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> TAIWAN EQUIPMENT(B04) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV>	8-98071-088-3	01	1	1509-	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98286-580-0	01	1	1509-	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98286-580-0	01	1	1509-		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98300-024-0	01	1	1509-	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98300-024-0	01	1	1509-		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-082-3	01	1	1509-	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98077-592-3	01	1	1509-	●	●
18	02.480 HARNESS; DOOR TAIWAN EQUIPMENT(B04) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98071-087-2	01	1	1509-	●	●
18	02.480 HARNESS; DOOR TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87>	8-98286-579-0	01	1	1509-	●
18	02.480 HARNESS; DOOR RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87>	8-98286-579-0	01	1	1509-		●
18	02.480 HARNESS; DOOR TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV>	8-98300-023-0	01	1	1509-	●
18	02.480 HARNESS; DOOR RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV>	8-98300-023-0	01	1	1509-		●
18	02.480 HARNESS; DOOR TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98286-576-0	01	1	1509-	●
18	02.480 HARNESS; DOOR RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98286-576-0	01	1	1509-		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87>	8-98071-081-3	01	1	1509-	●	●
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O /SIDE RR VIEW,HEATED<7SV>	8-98077-591-2	01	1	1509-	●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98071-079-2	01	1	1509-	●	●
18	02.480 HARNESS; DOOR	8-98071-080-3	01	1	1506-1508	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV>	8-98071-080-3	01	1	1509-	●	●
18	02.480 HARNESS; DOOR	8-98286-577-0	01	1	1506-1508	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV>	8-98286-577-0	01	1	1509-	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE R R VIEW,HEATED<7SV>	8-98286-577-0	01	1	1509-		●
85	06.495 HARNESS; ROOM LAMP	8-98072-201-2	01	1	1506-1508	●
85	06.495 HARNESS; ROOM LAMP	8-98072-201-2	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TAIWAN EQUIPMENT(B04)	8-98207-335-1	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF)	8-98287-846-0	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98240-892-0	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98240-892-0	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98240-890-0	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98240-890-0	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98206-506-1	01	1	1506-1508	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04)	8-98206-506-1	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98287-847-0	01	1	1506-1508	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF)	8-98287-847-0	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98206-505-1	01	1	1506-1508	●
204	02.559 HARNESS; CABLE,FLOOR 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,TAIWAN EQUIPMENT(B04)	8-98206-505-1	01	1	1509-	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1506-1508	●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	1509-	●	●
224	02.480 HARNESS; EXT,HEADLAMP	8-98225-330-2	02	1	1506-1508	●
224	02.480 HARNESS; EXT,HEADLAMP FOG LAMP FRONT VAR2<X99> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12)	8-98225-330-2	02	1	1509-	●	●

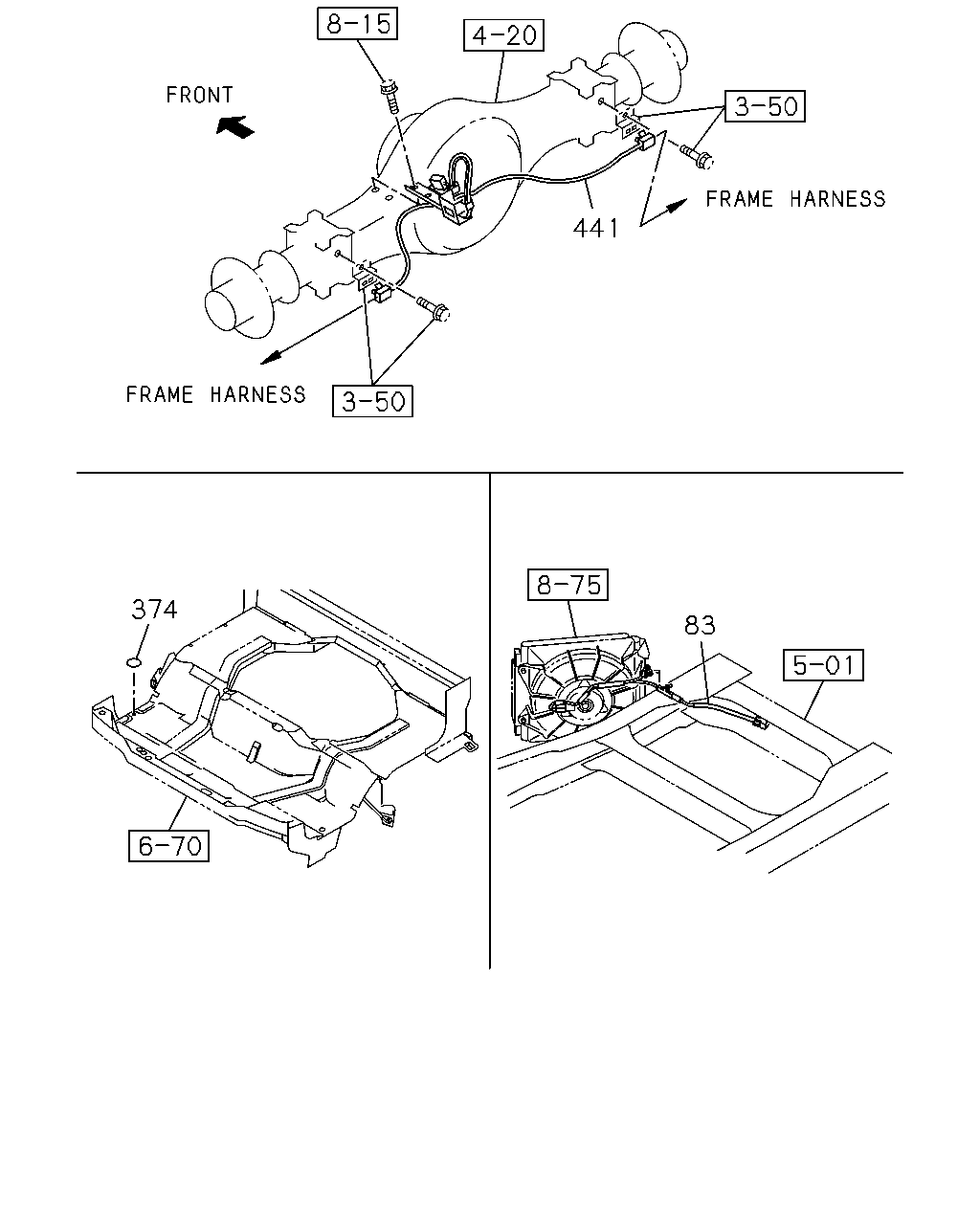

83 441 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
83	02.480 HARNESS; AIR CONDITIONER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60)	8-98140-371-3	01	1	1509-	●	●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOMLAMP W/ALL DOORS SW(SDF) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1509-	●	●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD)	8-98080-696-1	01	1	1509-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ>	8-98080-696-1	01	1	1509-		●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,SUSPENSION -RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-97308-212-3	01	1	1509-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD)	8-97308-220-4	01	1	1509-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9>	8-97308-220-4	01	1	1509-		●
441	02.480 HARNESS; CABLE,SPEED SENSOR REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9>,SINGLE RR TIRE(6TD)	8-97308-213-3	01	1	1509-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) EXC. 4 WHEEL DISC BRAKE<JF9>,SUSPENSION -RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98246-125-0	01	1	1509-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98236-734-0	01	1	1506-1507	●
441	02.480 HARNESS; CABLE,SPEED SENSOR	8-98236-734-0	01	1	1508-1508	●
441	02.480 HARNESS; CABLE,SPEED SENSOR AXLE REAR - LIGHT DUTY(8PB) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SINGLE RR TIRE(6TD)	8-98236-734-0	01	1	1509-	●

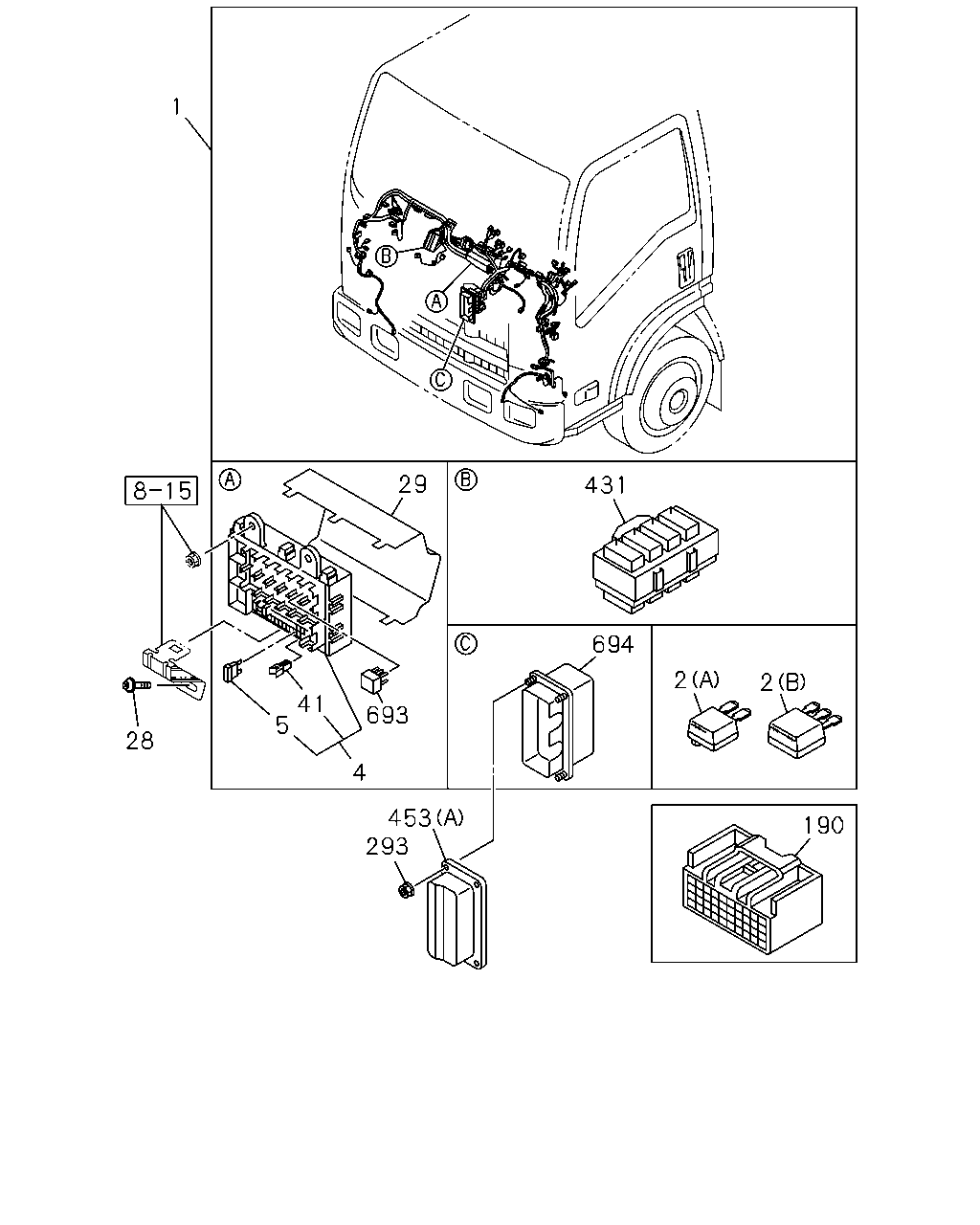

1 29 431 694 28 41 5 4 453 293 2 2 190 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98300-366-3	01	1	1509-	●	●
1	02.480 HARNESS; CAB TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98303-866-1	01	1	1509-	●	●
1	02.480 HARNESS; CAB TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98300-370-1	01	1	1509-	●	●
1	02.480 HARNESS; CAB TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98303-865-1	01	1	1509-	●	●
1	02.480 HARNESS; CAB TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98300-369-1	01	1	1509-	●	●
1	02.480 HARNESS; CAB RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98300-365-2	01	1	1509-	●	●
1	02.480 HARNESS; CAB RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,FOG LAMP FRONT VAR2<X99>,REMOTE CONT DOOR LOCK<6NF>	8-98300-364-2	01	1	1509-	●	●
1	02.480 HARNESS; CAB CHILE EQUIPMENT(KE1) FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF>	8-98300-364-2	01	1	1509-	●	●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98287-891-3	01	1	1506-1508	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98287-891-3	01	1	1509-	●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98287-894-2	01	1	1506-1508	●
1	02.480 HARNESS; CAB TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98287-894-2	01	1	1509-	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1506-1508	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1509-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1506-1508	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1509-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1506-1508	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1509-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1506-1508	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1509-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1506-1508	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1509-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1506-1508	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1509-	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1506-1508	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1506-1508	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	1509-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1506-1508	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	1509-	●	●
190	02.559 CONNECTOR; SHORT CIRCUIT 4JJ1-TCC ENG(RDU)	8-98302-775-0	01	1	1506-1508	●
190	02.559 CONNECTOR; SHORT CIRCUIT TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98302-775-0	01	1	1509-	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1506-1508	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	1509-	●	●
431	02.530 CONNECTOR; JOINT	8-98046-205-0	01	1	1506-1508	●
431	02.530 CONNECTOR; JOINT	8-98046-205-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK> (G)	8-98242-254-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC) (G)	8-98242-254-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (F)	8-94452-553-0	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (F)	8-94452-553-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-98114-566-1	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) (E)	8-98114-566-1	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1509-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1506-1508	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1509-	●	●
694	02.483 BOX ASM; CONNECTOR TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98190-772-0	01	1	1509-	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	1506-1508	●
694	02.483 BOX ASM; CONNECTOR RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,FOG LAMP FRONT VAR2<X99>,REMOTE CONT DOOR LOCK<6NF>	8-98057-772-0	01	1	1509-	●	●
694	02.483 BOX ASM; CONNECTOR CHILE EQUIPMENT(KE1) FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,REMOTE CONT DOOR LOCK<6NF>	8-98057-772-0	01	1	1509-	●	●
694	02.483 BOX ASM; CONNECTOR RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98057-772-0	01	1	1509-	●	●
694	02.483 BOX ASM; CONNECTOR TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98057-772-0	01	1	1509-	●

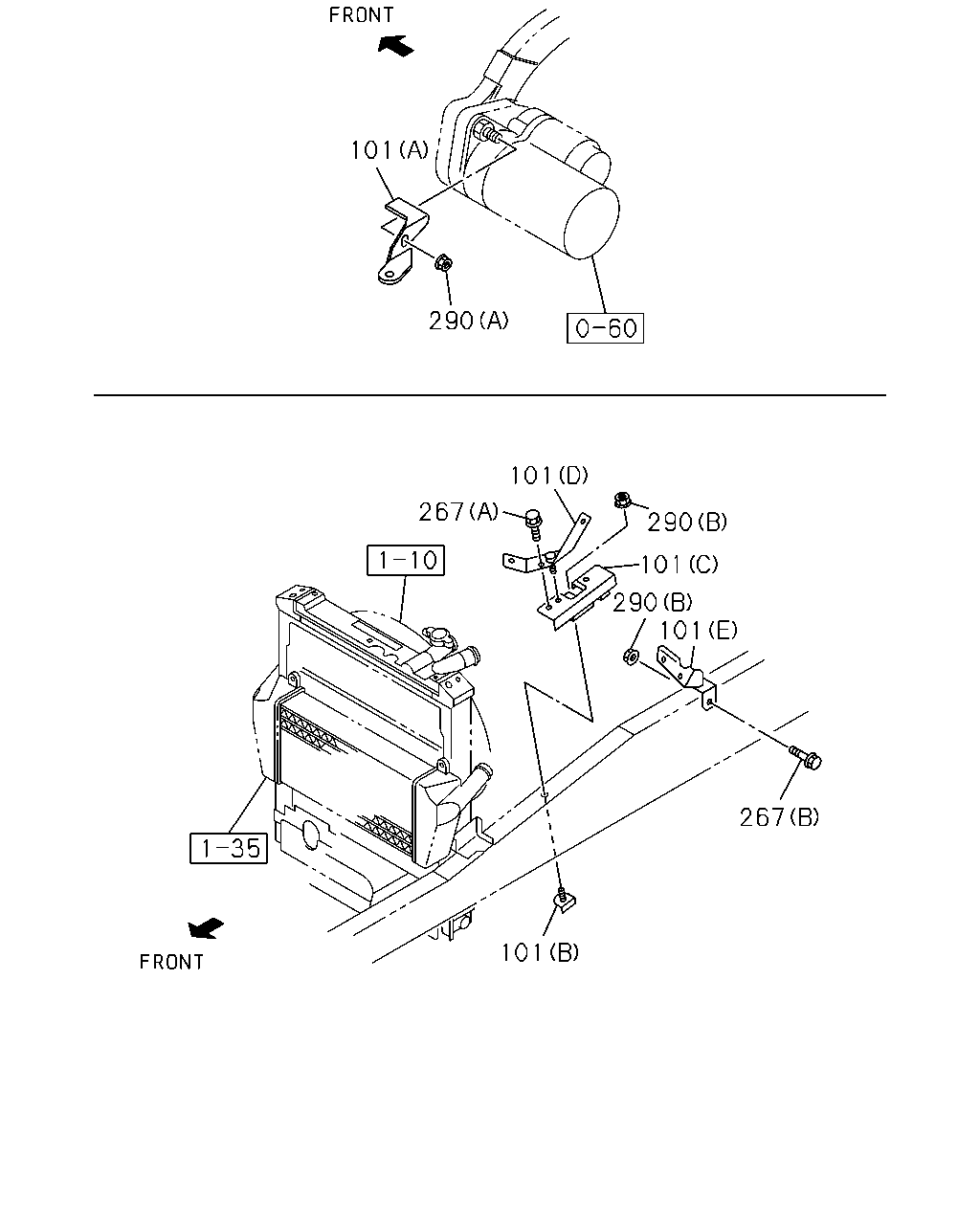

267 101 101 290 290 101 267 290 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) (E)	8-98217-757-0	01	1	1509-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1506-1508	●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1509-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1506-1508	●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1509-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	1506-1508	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	1509-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) 02.183 (A)	8-98030-725-1	01	1	1506-1508	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	1509-	●	●
267	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1506-1508	●
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1509-	●	●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1509-	●	●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1506-1508	●
290	02.483 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1509-	●	●

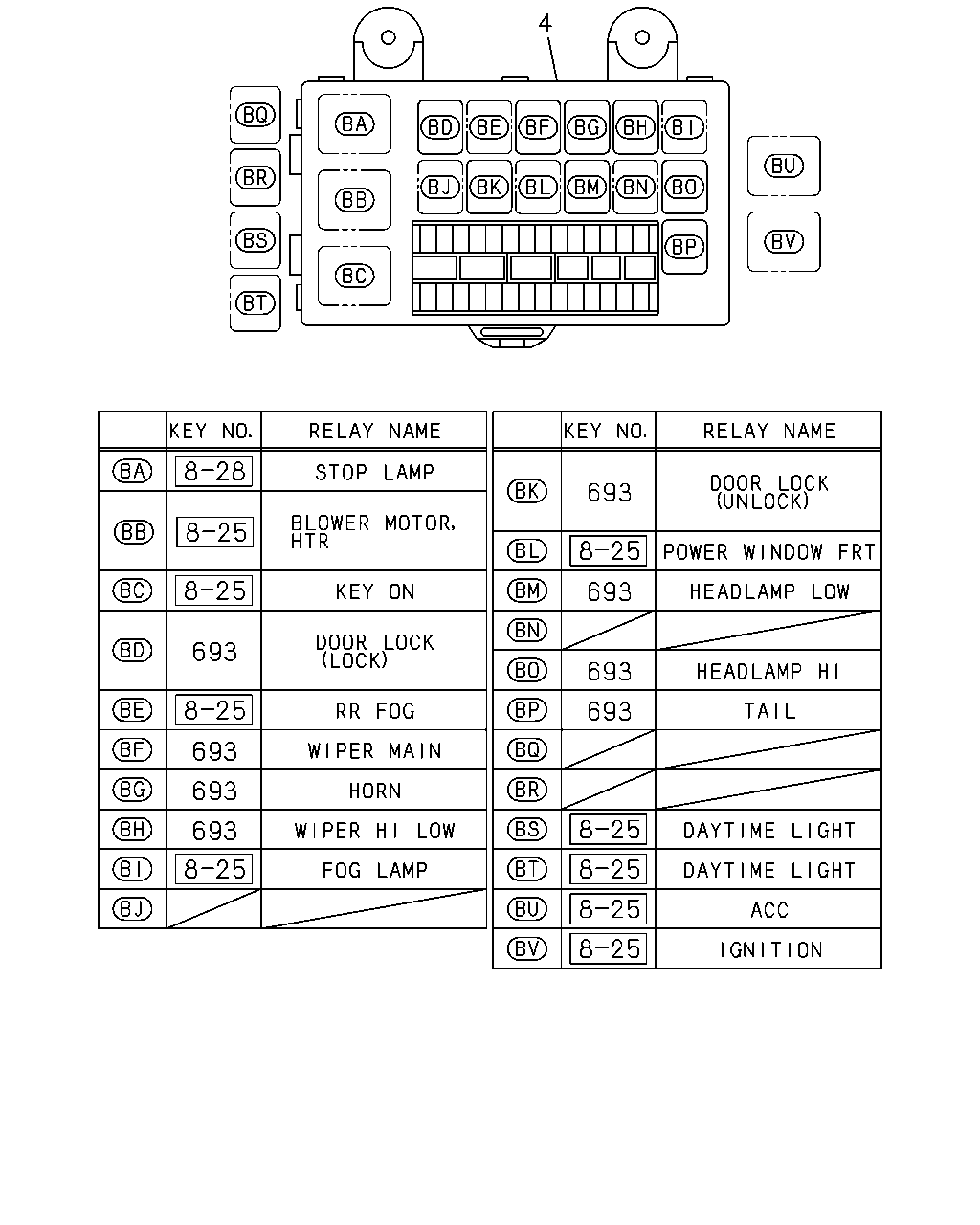

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1506-1508	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1509-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1506-1508	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	1509-	●	●

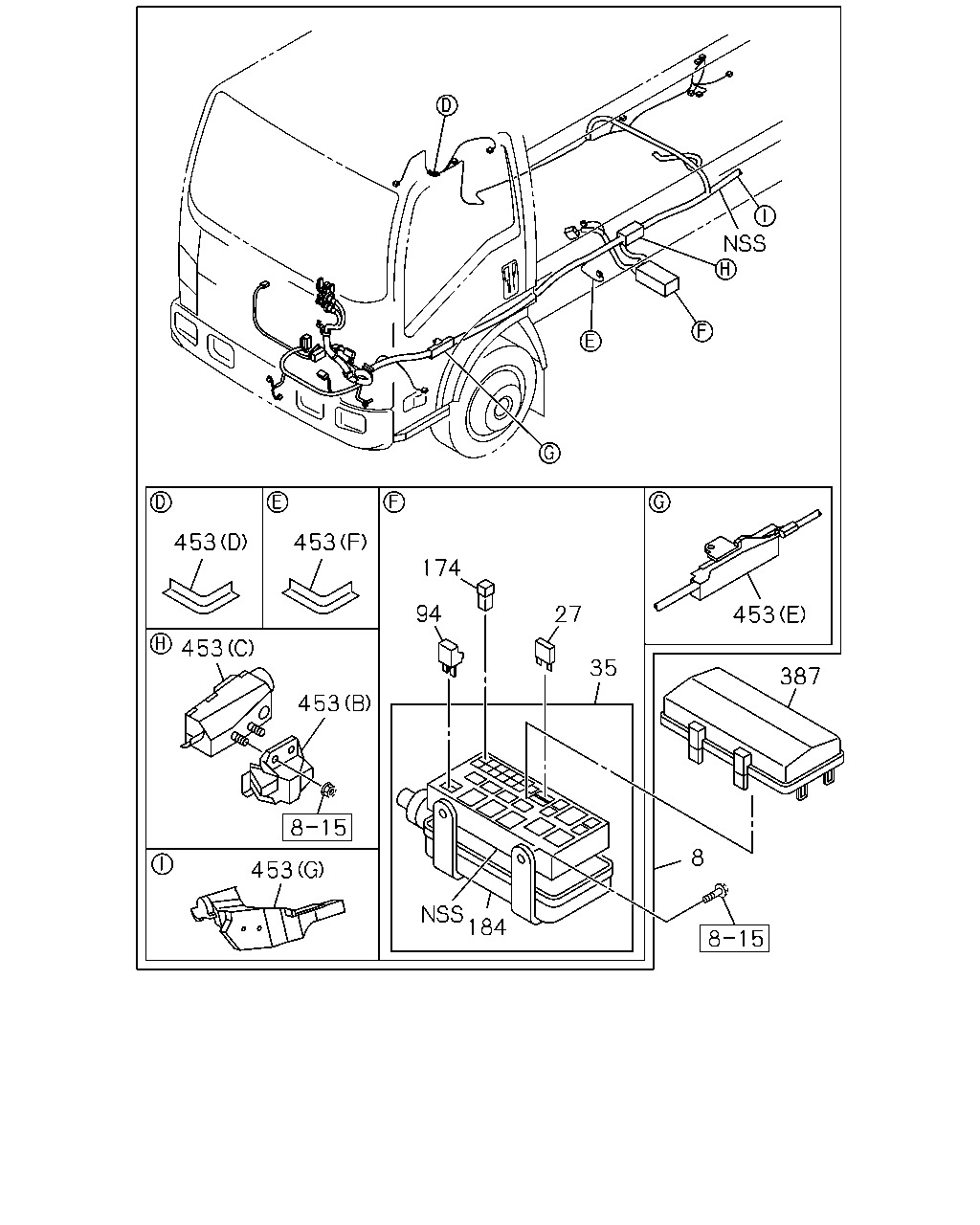

453 453 453 453 453 174 94 27 35 184 453 387 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

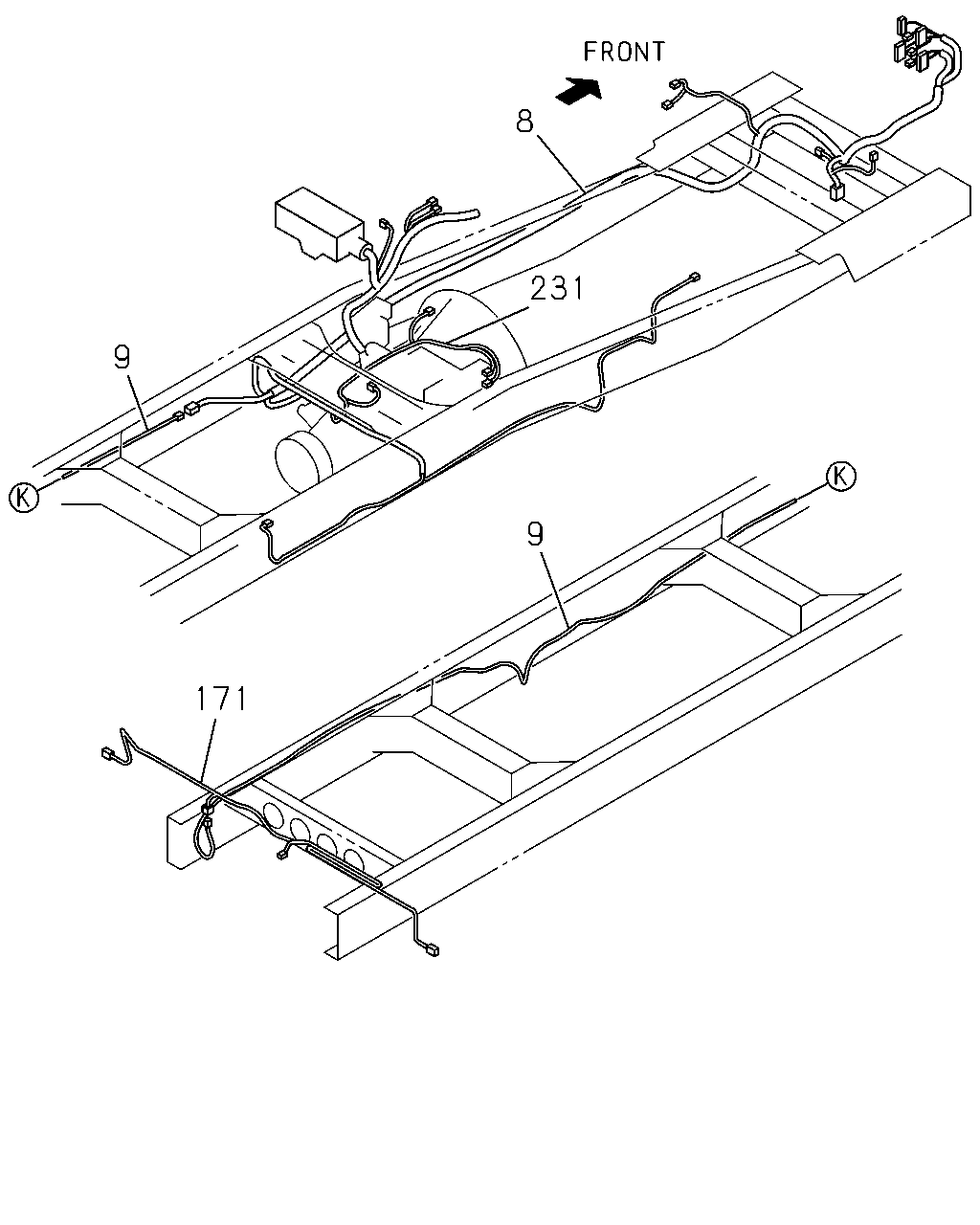

8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC) ,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-953-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK>	8-98296-953-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-953-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-953-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98296-953-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC) ,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-952-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK>	8-98296-952-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-952-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-952-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98296-952-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME <6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FU EL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATE R HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME <6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FU EL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATE R HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME <6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FU EL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATE R HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98298-199-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98298-199-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. IMMOBILIZER SYSTEM(7KC)	8-98298-199-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. HEAVY DUTY FRAME<6WB>	8-98298-199-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK>	8-98298-199-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC) ,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-200-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK>	8-98298-200-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-200-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-200-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98298-200-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-98297-589-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98297-589-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98297-589-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT	8-98297-587-0	01	1	1506-1508	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-98297-587-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98297-587-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-587-0	01	1	1509-	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1506-1508	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	1509-	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1506-1508	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	1509-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1506-1508	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1509-	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1506-1508	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1509-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1506-1508	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1509-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1506-1508	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1509-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1506-1508	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1509-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1506-1508	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1509-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1506-1508	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK> (G)	8-98242-254-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC) (G)	8-98242-254-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (D)	8-94417-716-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (F)	8-94452-553-0	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (F)	8-94452-553-0	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-98114-566-1	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) (E)	8-98114-566-1	01	1	1509-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1506-1508	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1509-	●	●

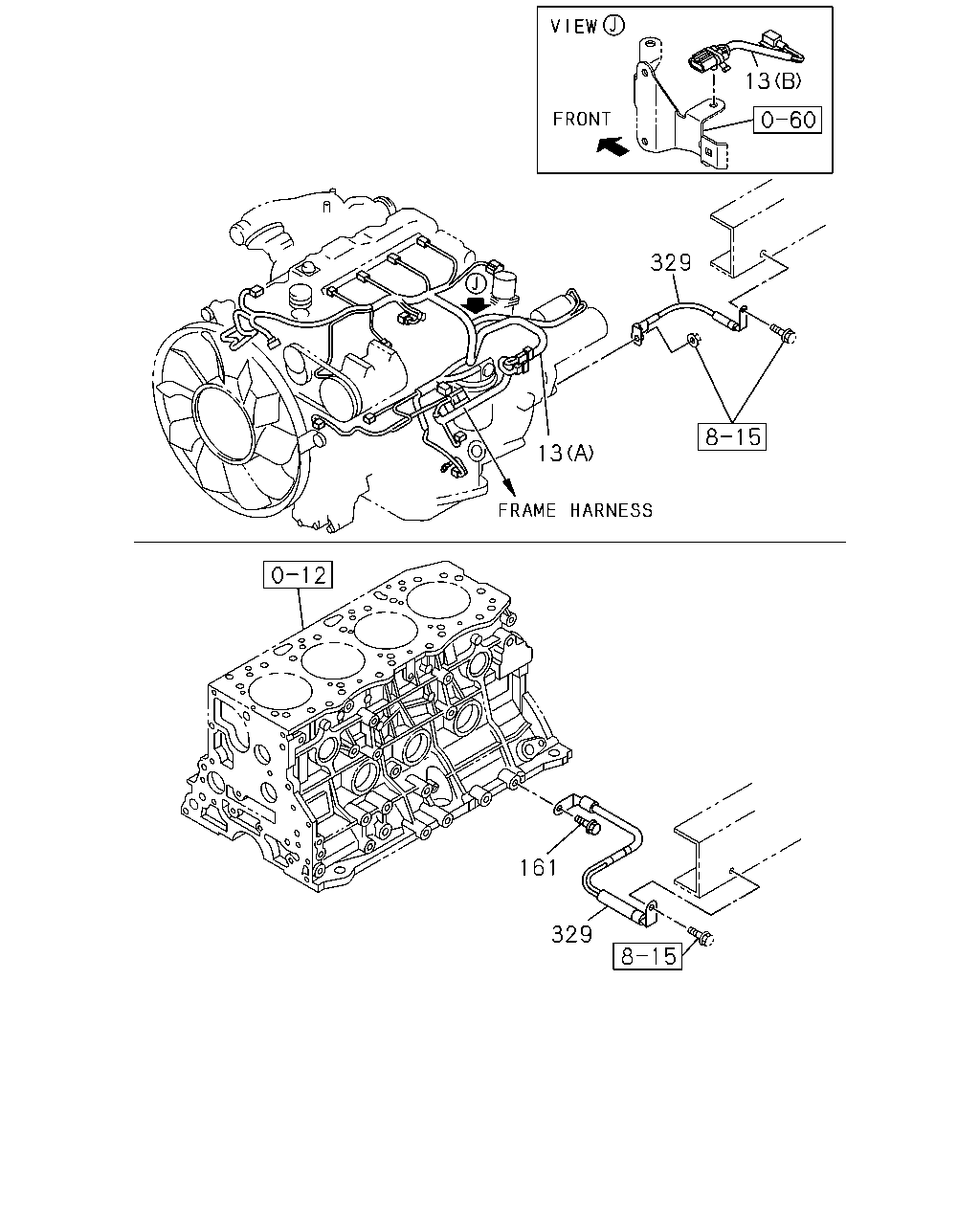

13 13 161 329 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98244-735-0	01	1	1509-	●	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98277-839-1	01	1	1509-	●	●
13	02.525 HARNESS; ENG (A)	8-98249-767-0	01	1	1506-1508	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98249-767-0	01	1	1509-	●	●
13	02.525 HARNESS; ENG (B)	8-98249-769-0	01	1	1506-1508	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98249-769-0	01	1	1509-	●	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1509-	●	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB)	8-98039-854-1	01	1	1509-	●	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU)	8-98227-630-1	01	1	1506-1508	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU)	8-98227-630-1	01	1	1509-	●	●

171 9 231 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC) ,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-953-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK>	8-98296-953-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-953-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-953-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98296-953-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC) ,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-952-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK>	8-98296-952-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-952-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98296-952-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98296-952-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME <6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FU EL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATE R HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-717-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME <6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FU EL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATE R HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-716-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME <6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FU EL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEA TER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATE R HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-201-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98298-199-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC)	8-98298-199-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. IMMOBILIZER SYSTEM(7KC)	8-98298-199-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK> EXC. HEAVY DUTY FRAME<6WB>	8-98298-199-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACITY <8NK>	8-98298-199-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC) ,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-200-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIG H CAPACITY<8NK>	8-98298-200-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-200-1	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>,FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK>	8-98298-200-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FUEL SEDIMENTER WITH HEATER HIGH CAP ACITY<8NK>	8-98298-200-1	01	1	1509-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-98297-589-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEAVY DUTY FRAME<6WB>	8-98297-589-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98297-589-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT	8-98297-587-0	01	1	1506-1508	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB>	8-98297-587-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HEAVY DUTY FRAME<6WB>	8-98297-587-0	01	1	1509-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98297-587-0	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD)	8-98080-439-0	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-413-4	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD)	8-98048-412-2	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-412-2	01	1	1509-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-419-1	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-419-1	01	1	1509-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD)	8-98048-418-2	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-418-2	01	1	1509-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SINGLE RR TIRE(6TD)	8-98048-422-2	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-422-2	01	1	1509-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-414-2	01	1	1506-1508	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-414-2	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-414-2	01	1	1509-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-424-1	01	1	1506-1508	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-424-1	01	1	1509-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-424-1	01	1	1509-		●
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. RR FOG LAMP<T79>	8-98222-483-0	01	1	1509-	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1506-1508	●
171	02.596 HARNESS; CABLE,TAIL LAMP RR FOG LAMP<T79>	8-98156-025-0	01	1	1509-	●	●
231	02.480 HARNESS; TRANS CATALYSIS CONTROL WITH DPD(8JM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ)	8-98029-598-1	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
