◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#162264) — 42 parça

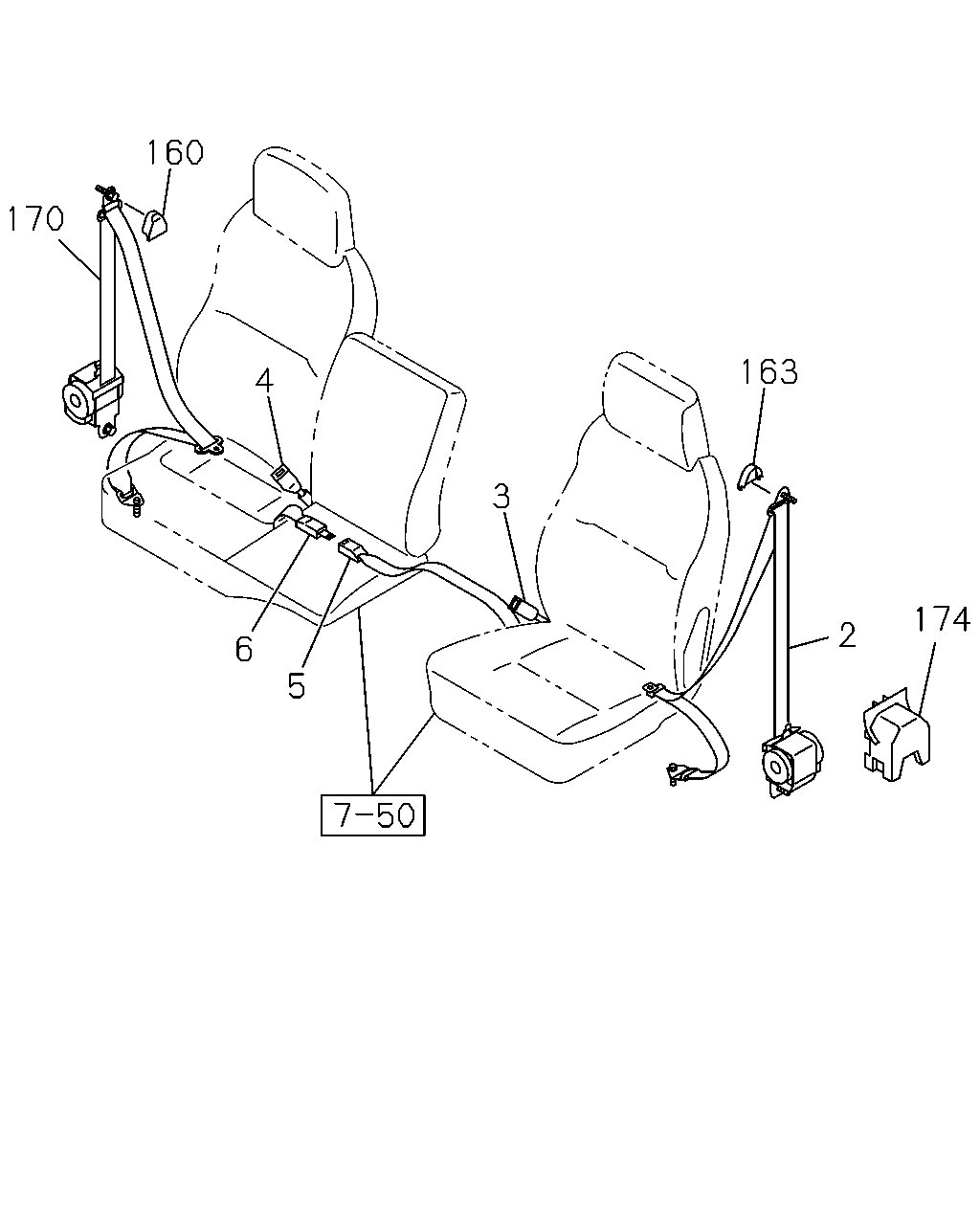

çizim 480473
174 2 163 3 5 6 4 160 170
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.714 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY 		8-97428-087-0 01 1 1509- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-456-0 01 1 1506-1508 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97428-456-0 01 1 1509- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97428-456-0 01 1 1509- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1506-1508 ●
2 16.714 BELT; SEAT,TONGUE SIDE
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1509- ●
2 16.714 BELT; SEAT,TONGUE SIDE
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1509- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1506-1508 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1509- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1506-1508 ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1509- ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1506-1508 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1509- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY 		8-97428-088-0 01 1 1509- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1506-1508 ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97411-507-2 01 1 1509- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97411-507-2 01 1 1509- ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1506-1508 ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1509- ● ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1506-1508 ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1509- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-087-0 01 1 1509- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-456-0 01 1 1506-1508 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97428-456-0 01 1 1509- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY 		8-97428-456-0 01 1 1509- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1506-1508 ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1509- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1509- ●
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1506-1508 ●
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1509- ● ●

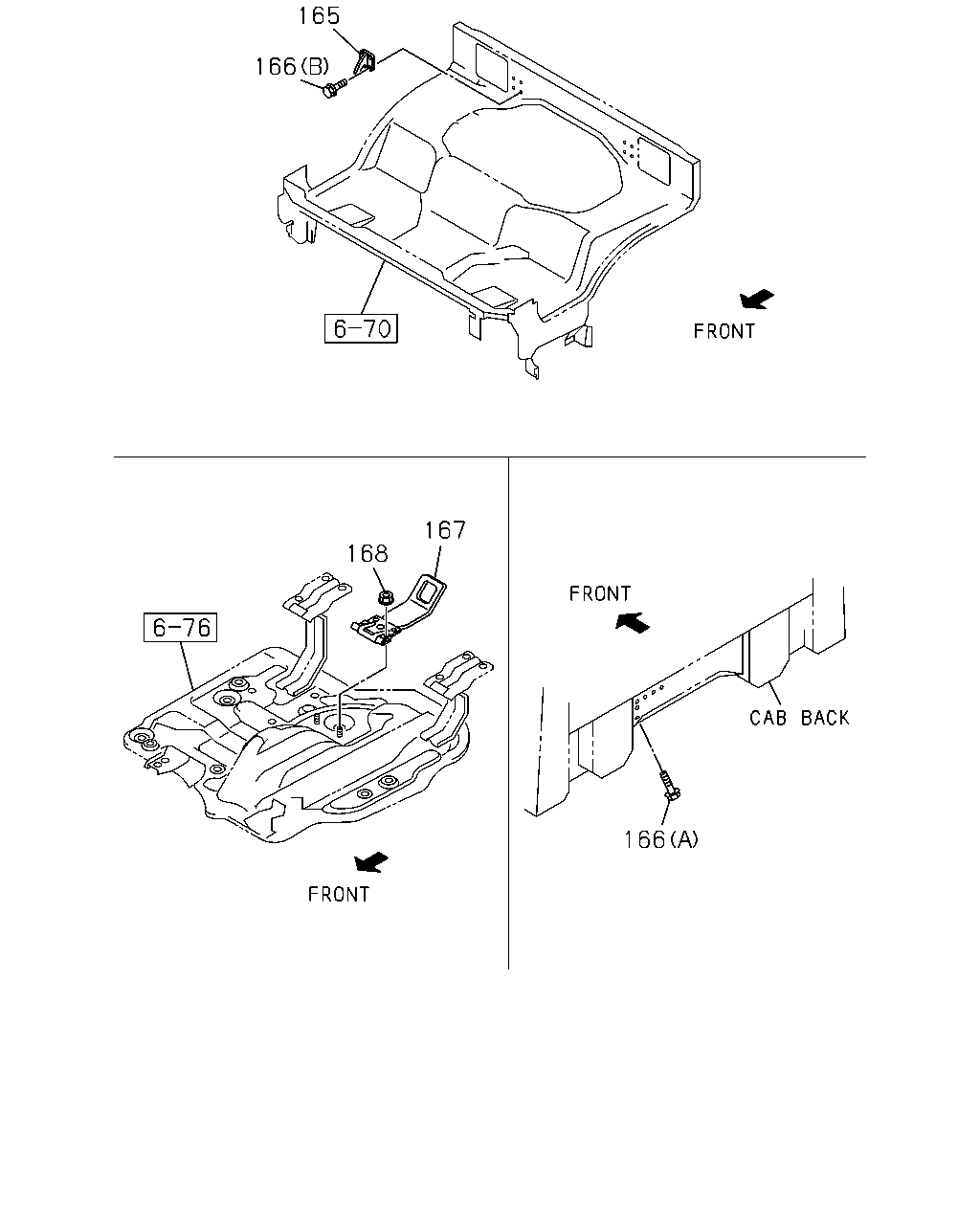

çizim 480500
165 166 167 168 166
BalonParca AdiParca NoAdetTipApplied Date A B
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1506-1508 ●
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1509- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1506-1508 ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1506-1508 ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1509- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1509- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1506-1508 ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1509- ● ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1506-1508 ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1509- ● ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
