7-50 — FRONT SEAT (#162263) — 162 parça

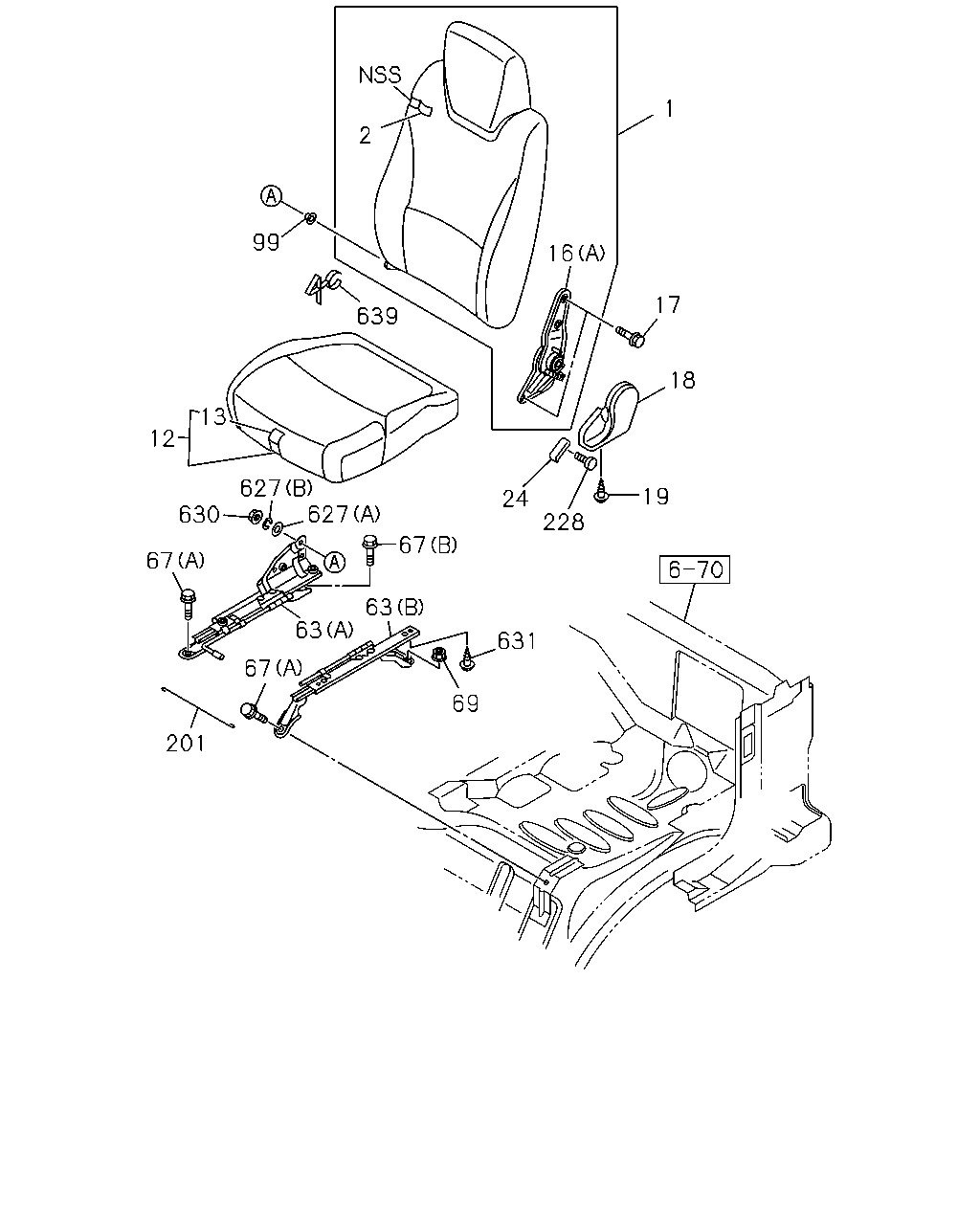

çizim 480638
1 16 17 18 19 228 24 67 63 631 69 63 67 201 67 12 13 630 627 627 639 99 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.720 BACK ASM; SEAT
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-237-1 01 1 1509- ● ●
1 16.720 BACK ASM; SEAT
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-236-1 01 1 1509- ● ●
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-160-7 01 1 1506-1508 ●
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-160-7 01 1 1509- ● ●
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-155-5 01 1 1506-1508 ●
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-155-5 01 1 1509- ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97429-980-0 01 1 1506-1508 ●
1 16.720 BACK ASM; SEAT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97429-980-0 01 1 1509- ● ●
1 16.720 BACK ASM; SEAT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97429-980-0 01 1 1509- ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-002-0 01 1 1506-1508 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-002-0 01 1 1509- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-256-0 01 1 1509- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-255-0 01 1 1509- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-038-2 01 1 1506-1508 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-038-2 01 1 1509- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-152-2 01 1 1506-1508 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-152-2 01 1 1509- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97429-981-0 01 1 1506-1508 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97429-981-0 01 1 1509- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97429-981-0 01 1 1509- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-004-0 01 1 1506-1508 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-004-0 01 1 1509- ● ●
12 16.670 CUSHION; SEAT,FRT
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-243-1 01 1 1509- ● ●
12 16.670 CUSHION; SEAT,FRT
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-242-1 01 1 1509- ● ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-163-3 01 1 1506-1508 ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-163-3 01 1 1509- ● ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-153-3 01 1 1506-1508 ●
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-153-3 01 1 1509- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-011-0 01 1 1506-1508 ●
12 16.670 CUSHION; SEAT,FRT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-011-0 01 1 1509- ●
12 16.670 CUSHION; SEAT,FRT
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-011-0 01 1 1509- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-008-0 01 1 1506-1508 ●
12 16.670 CUSHION; SEAT,FRT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-008-0 01 1 1509- ●
12 16.670 CUSHION; SEAT,FRT
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-008-0 01 1 1509- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-006-0 01 1 1506-1508 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-006-0 01 1 1509- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-262-1 01 1 1509- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-261-1 01 1 1509- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-164-2 01 1 1506-1508 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-164-2 01 1 1509- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-154-2 01 1 1506-1508 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-154-2 01 1 1509- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-017-0 01 1 1506-1508 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-017-0 01 1 1509- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-017-0 01 1 1509- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-014-0 01 1 1506-1508 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-014-0 01 1 1509- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-014-0 01 1 1509- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-012-0 01 1 1506-1508 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-012-0 01 1 1509- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 1506-1508 ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 1509- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-274-3 01 1 1506-1508 ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-274-3 01 1 1509- ● ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1506-1508 ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1509- ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1506-1508 ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1509- ● ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1506-1508 ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1509- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1506-1508 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1509- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-98002-907-2 01 1 1506-1508 ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) INNER 		8-98002-907-2 01 1 1509- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-98002-908-1 01 1 1506-1508 ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) OUTER 		8-98002-908-1 01 1 1509- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1506-1508 ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1509- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1506-1508 ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1509- ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1506-1508 ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1509- ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1506-1508 ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1509- ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1506-1508 ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1509- ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1506-1508 ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1509- ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1506-1508 ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1509- ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1506-1508 ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1509- ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1506-1508 ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1509- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1506-1508 ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1509- ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1506-1508 ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1509- ● ●
639 16.679 CLIP; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 1506-1508 ●
639 16.679 CLIP; SEAT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 1509- ●
639 16.679 CLIP; SEAT
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 1509- ●

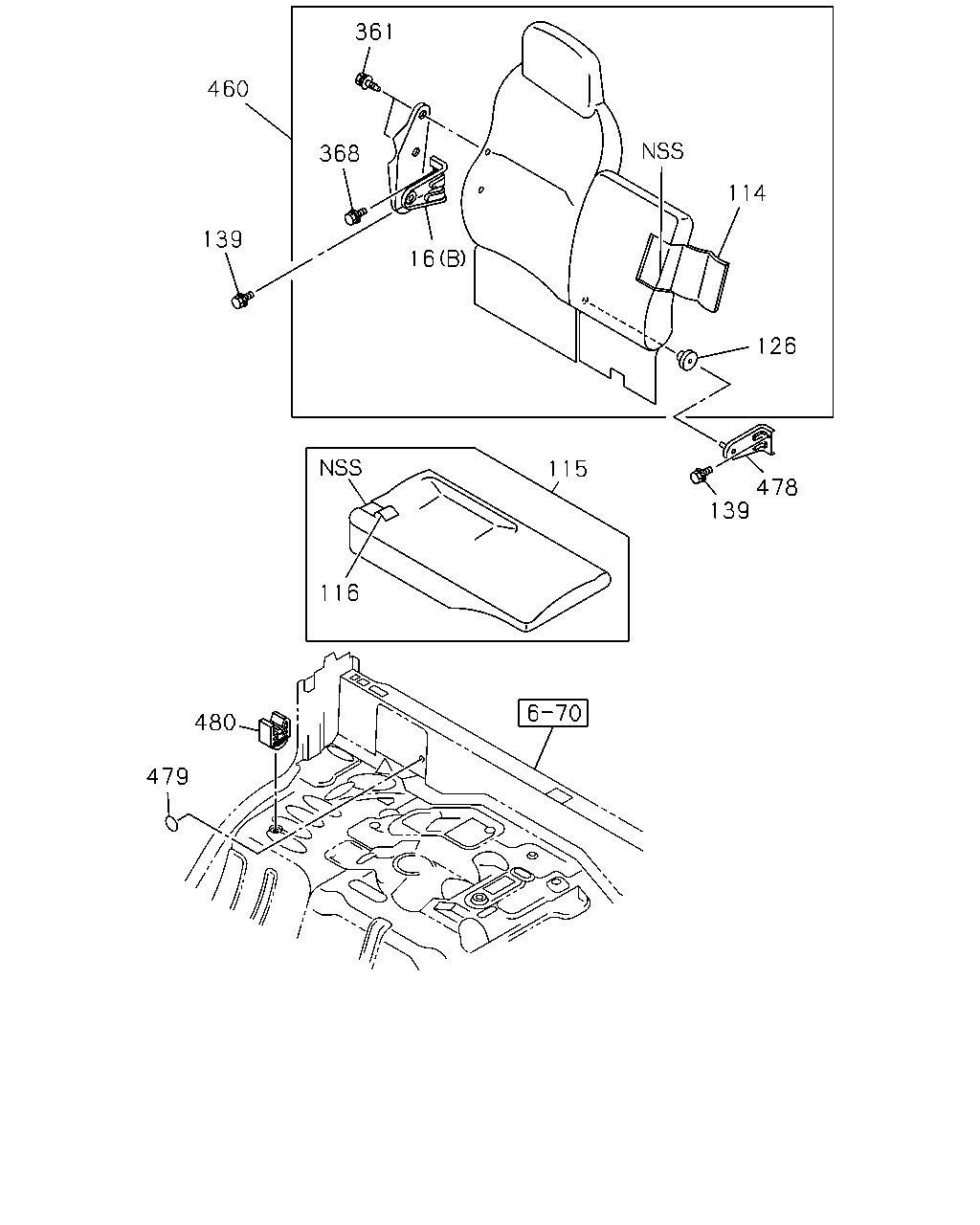

çizim 480688
460 361 368 139 16 114 126 478 139 115 116 480 479
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 1506-1508 ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98005-418-1 01 1 1509- ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-274-3 01 1 1506-1508 ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-274-3 01 1 1509- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-294-1 01 1 1509- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-722-0 01 1 1506-1508 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-722-0 01 1 1509- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-722-0 01 1 1509- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-722-0 01 1 1509- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-027-0 01 1 1506-1508 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-027-0 01 1 1509- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-027-0 01 1 1509- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-028-0 01 1 1506-1508 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-028-0 01 1 1509- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-028-0 01 1 1509- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-028-0 01 1 1509- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-323-1 01 1 1509- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-707-1 01 1 1506-1508 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-707-1 01 1 1509- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-707-1 01 1 1509- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-707-1 01 1 1509- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-043-0 01 1 1506-1508 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-043-0 01 1 1509- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-043-0 01 1 1509- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-042-0 01 1 1506-1508 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-042-0 01 1 1509- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-042-0 01 1 1509- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-042-0 01 1 1509- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-343-1 01 1 1509- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-736-1 01 1 1506-1508 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-736-1 01 1 1509- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-736-1 01 1 1509- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-736-1 01 1 1509- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-052-0 01 1 1506-1508 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-052-0 01 1 1509- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-052-0 01 1 1509- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-051-0 01 1 1506-1508 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-051-0 01 1 1509- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-051-0 01 1 1509- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-051-0 01 1 1509- ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 1506-1508 ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 1509- ● ●
139 16.679 BOLT; PASSENGER SEAT
TAIWAN EQUIPMENT(B04) EXC. IDENTIFICATION LABEL FOR KD<6UT> M8X20 W/PL WASHER 		8-98031-841-0 02 1 1509- ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 1506-1508 ●
139 16.679 BOLT; PASSENGER SEAT
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> M8X20 W/PL WASHER 		8-98031-841-0 03 1 1509- ● ●
139 16.679 BOLT; PASSENGER SEAT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M8X20 W/PL WASHER 		8-98031-841-0 03 1 1509- ●
139 16.679 BOLT; PASSENGER SEAT
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M8X20 W/PL WASHER 		8-98031-841-0 03 1 1509- ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 1506-1508 ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 1509- ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 1506-1508 ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 1509- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CHILE EQUIPMENT(KE1) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-281-2 01 1 1509- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-693-1 01 1 1506-1508 ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-693-1 01 1 1509- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-693-1 01 1 1509- ●
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-693-1 01 1 1509- ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-020-0 01 1 1506-1508 ●
460 16.670 BACK ASM; PASSENGER SEAT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-020-0 01 1 1509- ●
460 16.670 BACK ASM; PASSENGER SEAT
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-020-0 01 1 1509- ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-021-0 01 1 1506-1508 ●
460 16.670 BACK ASM; PASSENGER SEAT
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-021-0 01 1 1509- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-021-0 01 1 1509- ●
460 16.670 BACK ASM; PASSENGER SEAT
RUSSIA EQUIPMENT(B12) SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-021-0 01 1 1509- ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-187-0 01 1 1506-1508 ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-187-0 01 1 1509- ● ●
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 1506-1508 ●
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 1509- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 1506-1508 ●
480 16.716 CLIP; CUSHION
TAIWAN EQUIPMENT(B04) IDENTIFICATION LABEL FOR KD<6UT> 		8-94279-977-0 05 1 1509- ● ●
480 16.716 CLIP; CUSHION
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-94279-977-0 05 1 1509- ●
480 16.716 CLIP; CUSHION
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-94279-977-0 05 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
