7-40 — INSTRUMENT PANEL AND BOX (#162260) — 224 parça

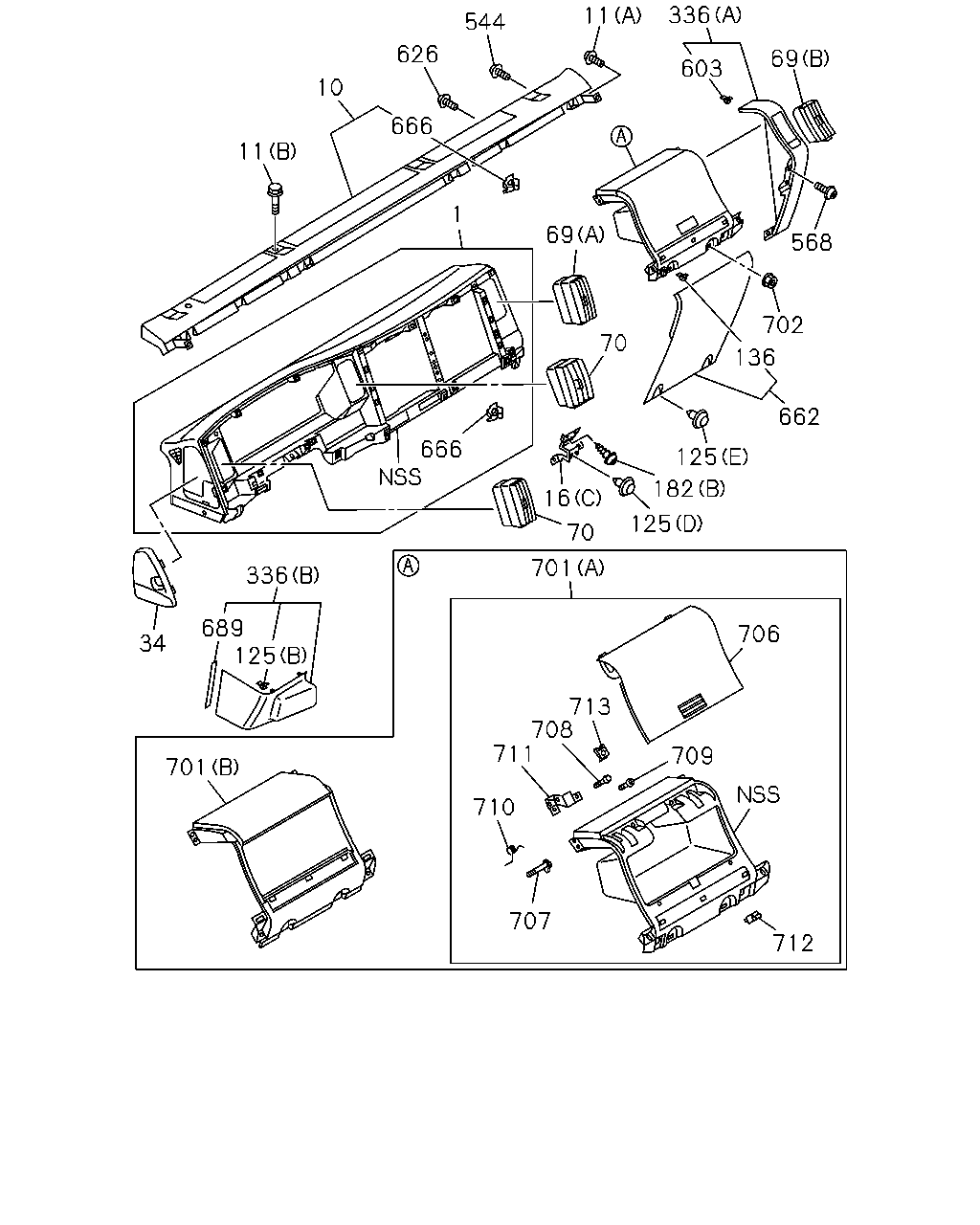

çizim 479852
712 709 706 713 708 711 710 707 701 125 689 336 34 701 125 70 16 182 125 662 666 1 70 136 702 568 69 603 336 69 11 544 626 666 10 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1506-1508 ●
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1509- ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1506-1508 ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1509- ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1506-1508 ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1509- ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1506-1508 ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1509- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1509- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1506-1508 ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1509- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1506-1508 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1509- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1506-1508 ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1509- ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1506-1508 ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1509- ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1509- ● ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 1506-1508 ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1506-1508 ●
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1506-1508 ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1509- ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1506-1508 ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 1509- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1506-1508 ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1509- ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1506-1508 ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 1509- ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1506-1508 ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509- ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1506-1508 ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 1506-1508 ●
603 16.090 CLIP; COVER
16.085 		8-98021-271-0 01 1 1509- ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1506-1508 ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1509- ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 1506-1508 ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 1509- ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 1506-1508 ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 1509- ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1506-1508 ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 1509- ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 1506-1508 ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 1509- ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 1506-1508 ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 1509- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506-1508 ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 1506-1508 ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 1509- ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1506-1508 ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1509- ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1506-1508 ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1509- ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1506-1508 ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1509- ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1506-1508 ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1509- ● ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1506-1508 ●
710 09.744 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1509- ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-396-0 01 1 1506-1508 ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-396-0 01 1 1509- ● ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-397-0 01 1 1506-1508 ●
711 16.100 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.081 		8-97926-397-0 01 1 1509- ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1506-1508 ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1509- ● ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.085 M5 		8-97926-400-0 04 1 1506-1508 ●
713 16.069 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 16.085 M5 		8-97926-400-0 04 1 1509- ● ●

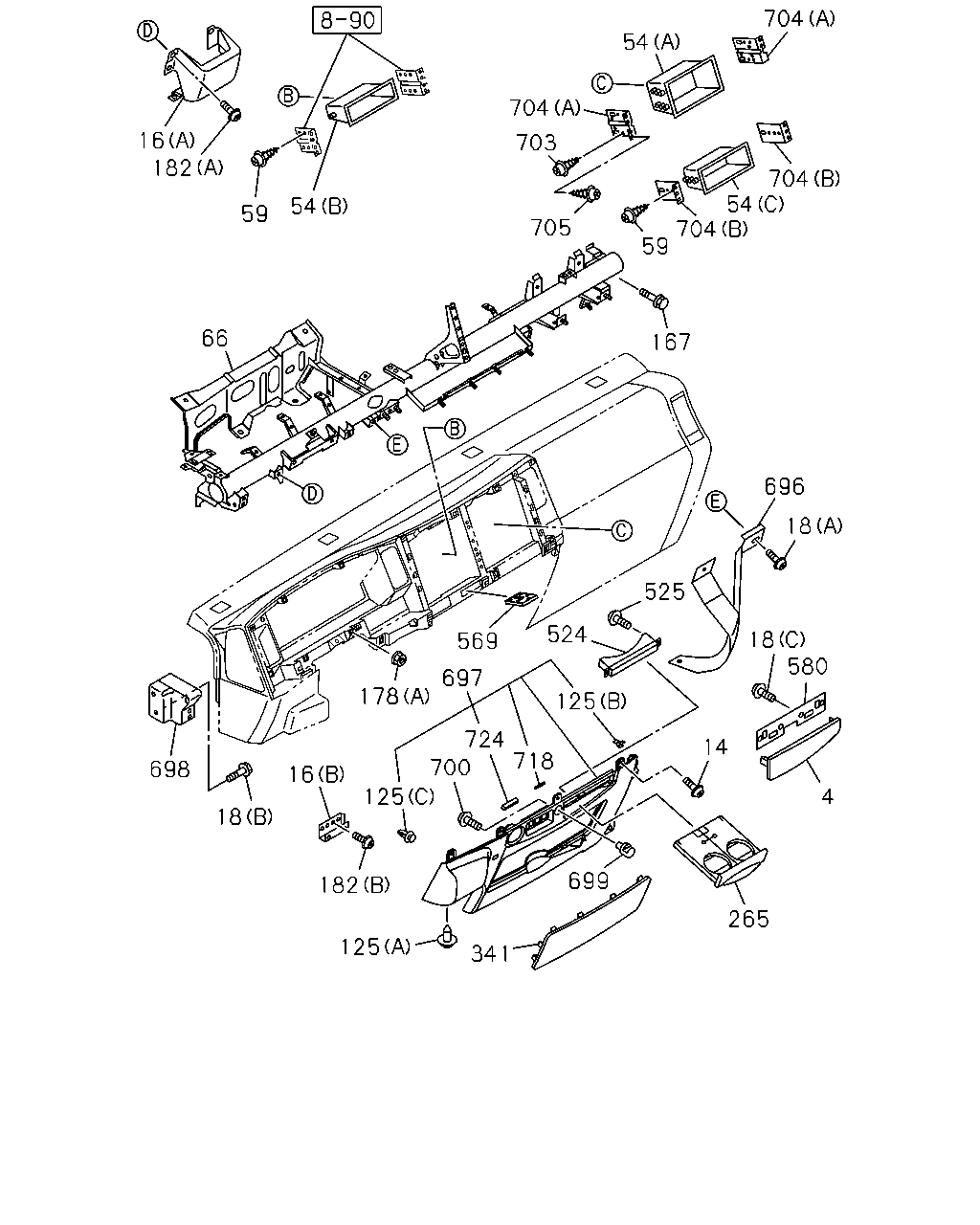

çizim 479904
54 704 704 703 705 59 704 54 704 16 182 59 54 66 167 696 18 525 18 580 4 14 524 569 178 16 697 18 698 182 125 724 700 125 718 265 699 341 125
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1506-1508 ●
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1509- ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1506-1508 ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509- ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1509- ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506-1508 ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1506-1508 ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1509- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1506-1508 ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1509- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1506-1508 ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1509- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=58.4 BLACK 		8-97408-864-3 01 1 1506-1508 ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=58.4 BLACK 		8-97408-864-3 01 1 1509- ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=69.8 BLACK 		8-97408-865-3 01 1 1506-1508 ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=69.8 BLACK 		8-97408-865-3 01 1 1509- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1506-1508 ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1509- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1506-1508 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1506-1508 ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98192-943-0 01 1 1506-1508 ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98192-943-0 01 1 1509- ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98192-942-0 01 1 1506-1508 ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98192-942-0 01 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1509- ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 1509- ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1506-1508 ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 1509- ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1506-1508 ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1509- ● ●
178 16.085 NUT; INST PANEL
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1509- ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1506-1508 ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1506-1508 ●
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1506-1508 ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1509- ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1506-1508 ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1509- ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1506-1508 ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1509- ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1506-1508 ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1509- ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1506-1508 ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509- ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1506-1508 ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1509- ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1506-1508 ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1509- ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1506-1508 ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1509- ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1506-1508 ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1509- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1506-1508 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1509- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1506-1508 ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1509- ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1506-1508 ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1509- ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1506-1508 ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1506-1508 ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1509- ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1506-1508 ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1509- ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		8-97585-618-2 02 1 1506-1508 ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		8-97585-618-2 02 1 1509- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506-1508 ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506-1508 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509- ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1506-1508 ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1509- ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1506-1508 ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1509- ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1506-1508 ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1509- ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1506-1508 ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1509- ● ●

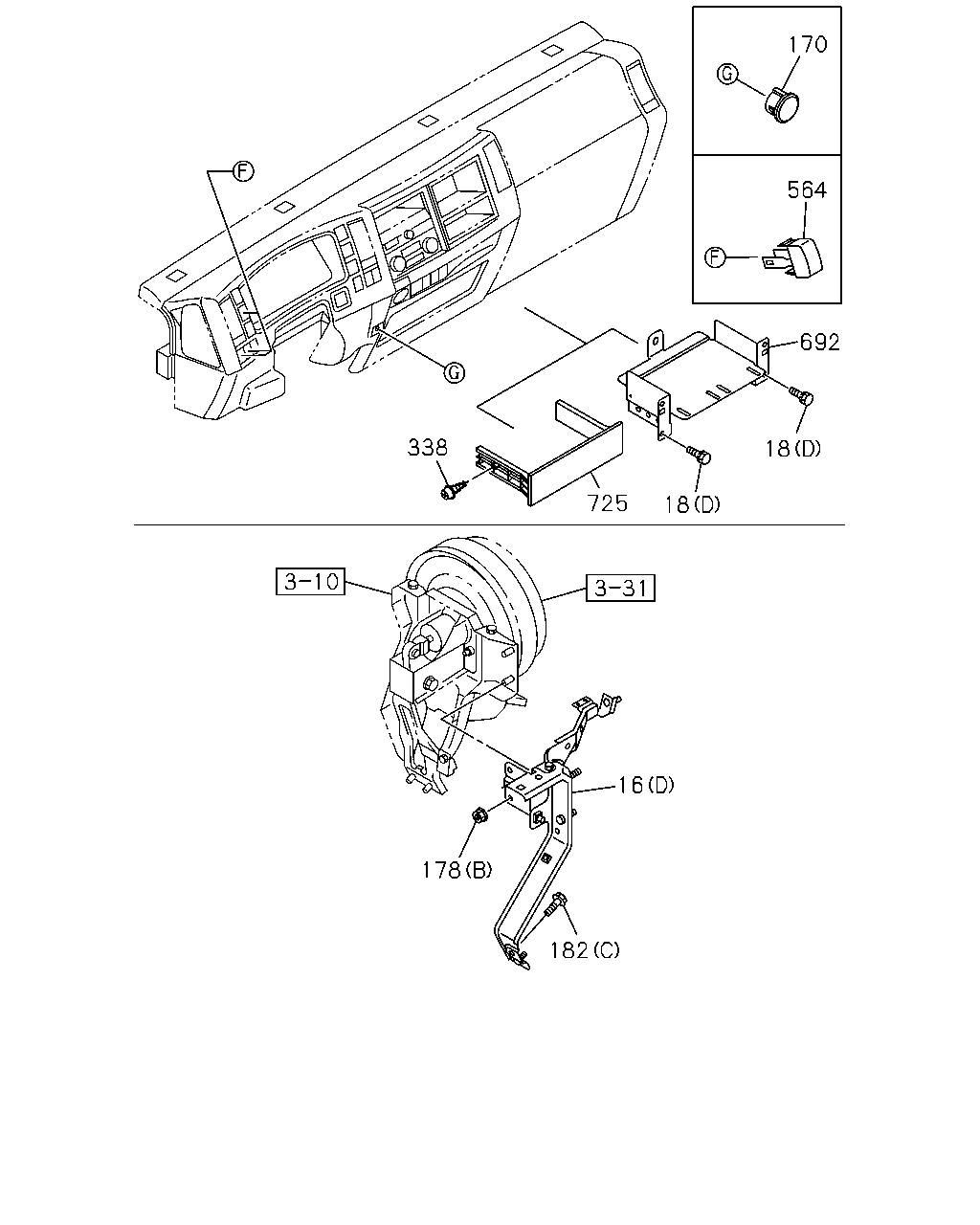

çizim 480716
170 564 692 18 18 725 338 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98278-076-0 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 1509- ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1506-1508 ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 1509- ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1506-1508 ●
18 16.085 BOLT; BRKT
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1509- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1506-1508 ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1509- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1506-1508 ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1509- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1506-1508 ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1509- ● ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1506-1508 ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1509- ● ●
178 16.085 NUT; INST PANEL
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1509- ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1506-1508 ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1506-1508 ●
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1506-1508 ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1509- ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1506-1508 ●
338 16.081 SCREW; COVER
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509- ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1506-1508 ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1509- ● ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1506-1508 ●
692 16.085 BRACKET; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-272-0 01 1 1509- ● ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK 		8-97407-896-2 01 1 1506-1508 ●
725 16.081 COVER; TACHOGRAPH
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK 		8-97407-896-2 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
