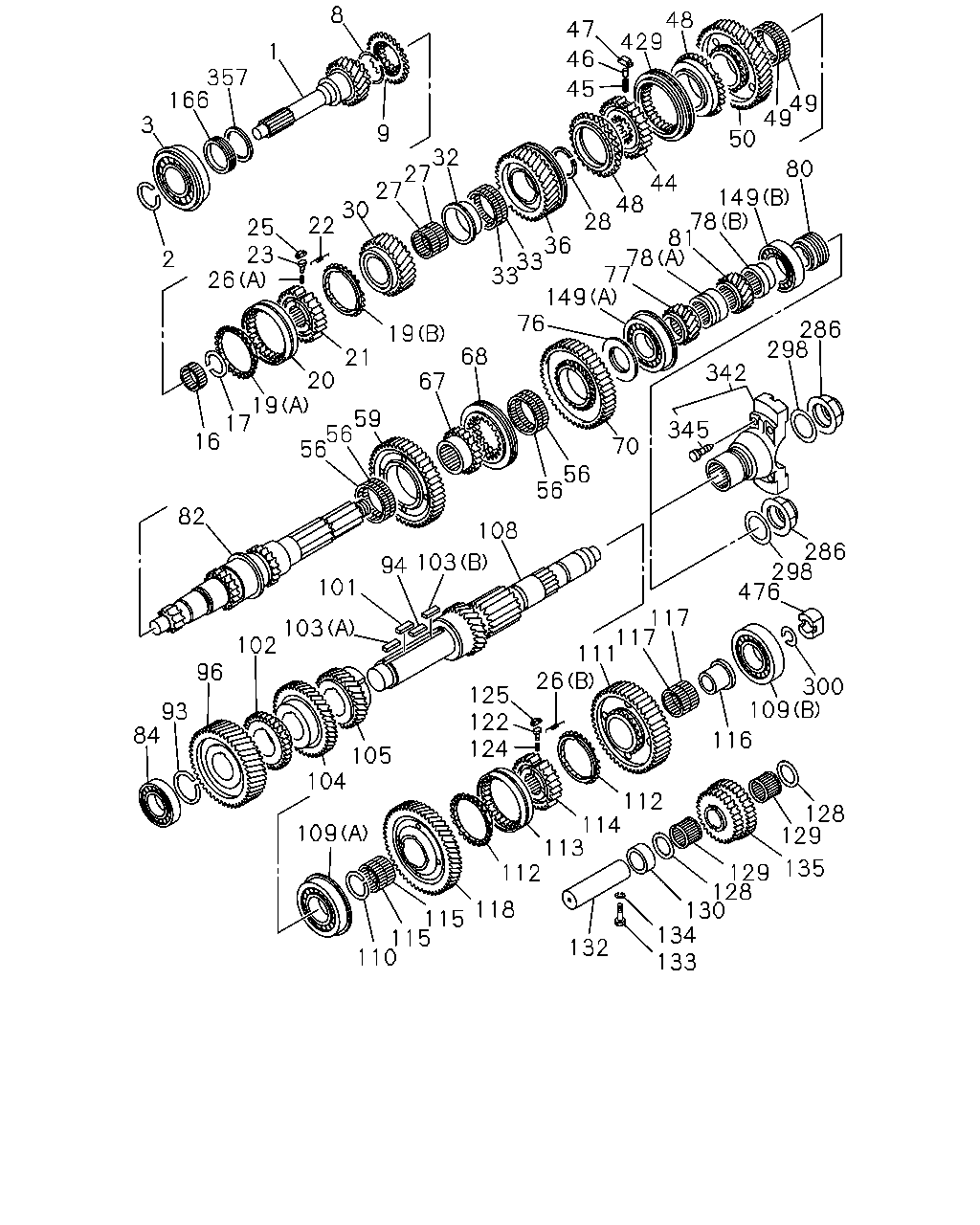

2-26 — MANUAL TRANSMISSION GEAR (#16226) — 103 parça

8 48 429 47 1 46 357 166 45 49 49 50 3 9 32 27 27 30 22 80 44 48 28 149 78 81 78 77 149 76 25 23 26 36 33 33 2 286 298 19 68 21 342 20 67 19 17 16 59 56 56 345 70 56 56 82 108 286 298 476 103 94 101 117 117 111 26 103 102 96 300 109 125 122 124 93 84 116 105 104 112 114 113 112 128 129 109 135 129 128 130 134 133 118 115 115 110 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-861-1	01	1	0907-
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0907-
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0907-
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0907-
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0907-
3	BEARING; TOP GEAR SHAFT NTN	1-09810-220-2	01	1	0907-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-237-1	01	1	0907-
8	CLIP; DOG CLU	1-33219-008-0	01	1	0907-
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0907-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0907-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0907-
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0907-
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	0907-
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	0907-
20	SLEEVE	1-33262-097-1	01	1	0907-
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0907-
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0907-
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0907-
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0907-
26	SPRING; BLOCK,INSERT (A) D=6.2	1-09580-091-1	03	1	0907-
26	SPRING; BLOCK,INSERT (B)	1-09583-171-0	03	1	0907-
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0907-1311
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0907-
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0907-
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-604-0	01	1	0907-
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0907-
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0907-
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0907-
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	0907-
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0907-
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0907-
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0907-
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0907-
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0907-
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0907-
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0907-
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0907-
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0907-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0907-
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0907-
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0907-
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0907-
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0907-
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0907-
77	GEAR; 6TH,MAINSHAFT Z=19	1-33253-474-0	01	1	0907-
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-082-1	01	1	0907-
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33235-100-0	01	1	0907-
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0907-
81	GEAR; 7TH,MAIN Z=22	1-33254-011-0	01	1	0907-
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-309-0	01	1	0907-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0907-1405
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0907-1405
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0907-
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0907-
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	0907-
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0907-
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0907-
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	0907-
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	0907-
104	GEAR; 4TH,COUNTER Z=35	1-33338-290-0	01	1	0907-
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	0907-
108	SHAFT; COUNTER Z=22-13	1-33311-264-1	01	1	0907-
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	0907-
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	0907-
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0907-
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0907-
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0907-
111	GEAR; 7TH COUNTER SHAFT Z=55	1-33338-295-0	01	1	0907-
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	02	1	0907-
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-097-1	01	1	0907-
114	HUB; CLU,7TH	1-33261-188-2	01	1	0907-
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0907-1311
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0907-
116	COLLAR; DIST,COUNTER SHAFT	1-33314-028-0	01	1	0907-
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	0907-1311
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	0907-
118	GEAR; 6TH,COUNTER Z=44	1-33338-307-0	01	1	0907-
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0907-
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0907-
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0907-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0907-
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0907-
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0907-
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0907-
132	SHAFT; REV	1-33351-012-2	01	1	0907-
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0907-
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0907-
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	0907-
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0907-
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0907-
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0907-
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0907-
166	PIECE; DIST	1-33363-033-1	01	1	0907-
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0907-
298	GASKET; MAINSHAFT	9-09920-607-0	01	1	0907-
300	RING; SNAP,COUNTER SHAFT,RR END ID=41.9	1-09588-075-1	01	1	0907-
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-282-0	01	1	0907-1204
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	8-98214-317-0	01	1	1205-
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M12X75	1-09046-012-0	04	1	0907-
357	RING	1-31349-015-0	01	1	0907-
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0907-
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
