Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

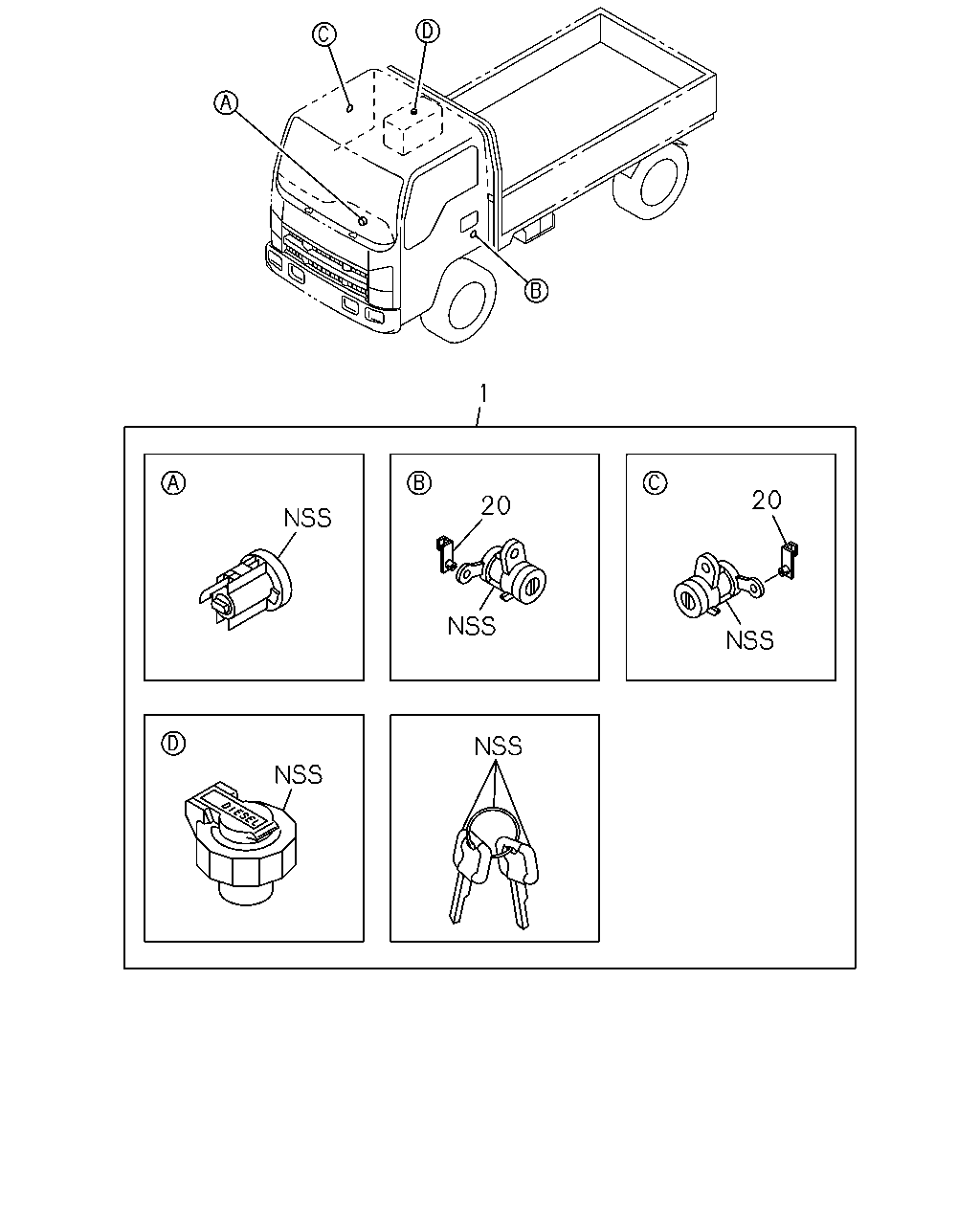

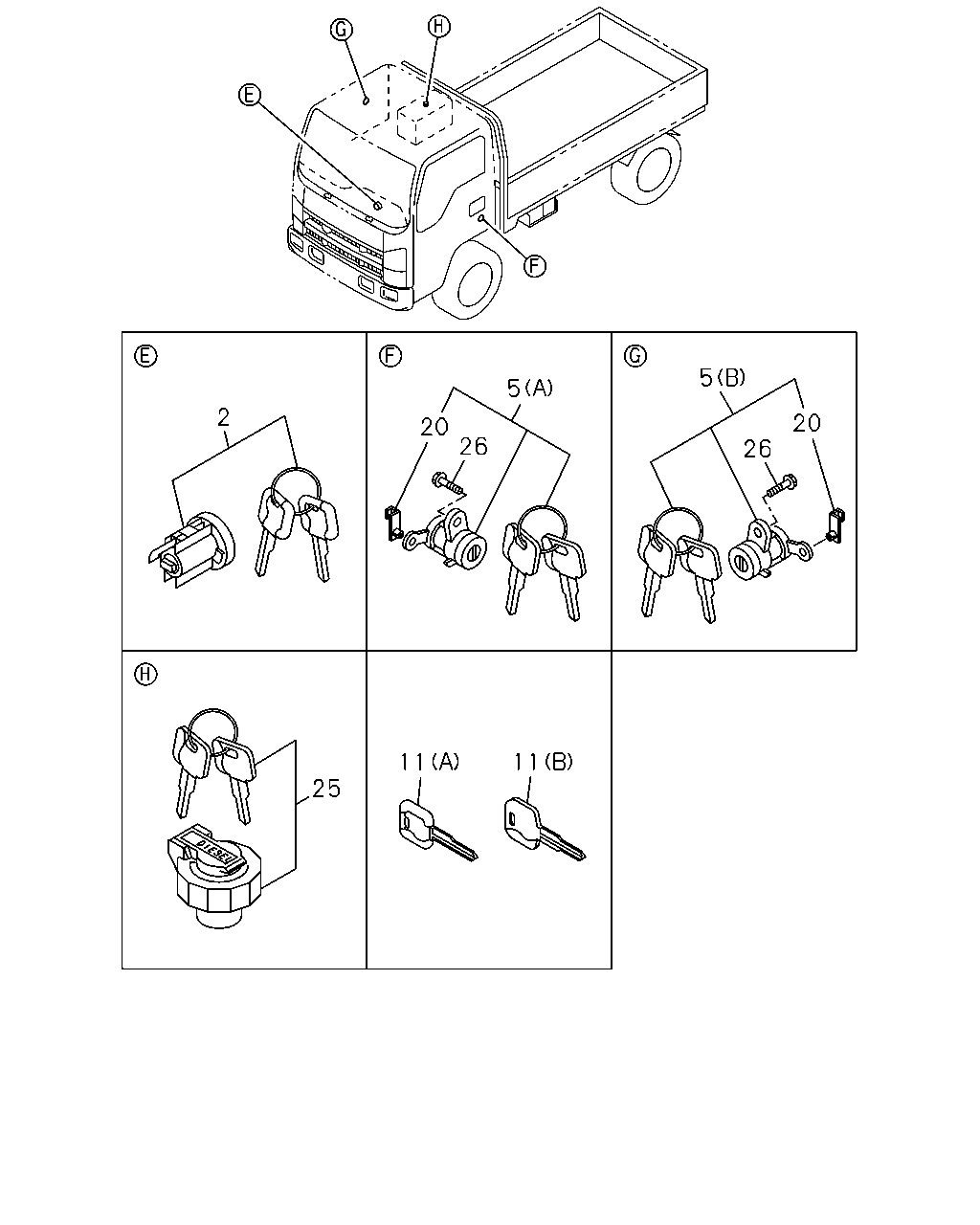

7-30 — LOCK CYLINDER SET (#162259) — 49 parça

1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98201-216-0	01	1	1509-	●	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-230-0	01	1	1509-	●	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98201-161-0	01	1	1509-	●	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-158-0	01	1	1509-	●	●
1	02.188 CYLINDER SET; CAR LOCK	8-98201-214-0	01	1	1506-1508	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) ISUZU BRAND<7WL>	8-98201-214-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1506-1508	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98055-181-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98055-181-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98055-181-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-181-0	01	1	1509-		●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1506-1508	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98055-182-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98055-182-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98055-182-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-182-0	01	1	1509-		●

11 11 25 2 20 26 5 5 26 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC)	8-98201-342-0	01	1	1509-	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98201-352-0	01	1	1509-	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1506-1508	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) ISUZU BRAND<7WL>	8-98201-341-0	01	1	1509-	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B)	8-98055-161-0	01	1	1509-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (A)	8-98055-162-0	01	1	1509-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1506-1508	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B)	8-98055-149-0	01	1	1509-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) ISUZU BRAND<7WL> (B)	8-98055-149-0	01	1	1509-	●
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1506-1508	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (A)	8-98055-150-0	01	1	1509-	●	●
5	16.328 CYLINDER ASM; DOOR LOCK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) ISUZU BRAND<7WL> (A)	8-98055-150-0	01	1	1509-	●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL> (B)	8-98055-171-0	AR	1	1509-	●	●
11	02.187 KEY; BLANK (A) IMMOBILIZER	8-98055-168-0	AR	1	1506-1508	●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) ISUZU BRAND<7WL> (A) IMMOBILIZER	8-98055-168-0	AR	1	1509-	●
11	02.187 KEY; BLANK (B)	8-98055-170-0	AR	1	1506-1508	●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> ISUZU BRAND<7WL> EXC. IMMOBILIZER SYSTEM(7KC) (B)	8-98055-170-0	AR	1	1509-	●	●
11	02.187 KEY; BLANK FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM(7KC) ISUZU BRAND<7WL> (B)	8-98055-170-0	AR	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1506-1508	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98055-181-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98055-181-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98055-181-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-181-0	01	1	1509-		●
20	16.328 SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1506-1508	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98055-182-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> EXC. FUEL TANK CAP W/LOCK<N05>, IMMOBILIZER SYSTEM(7KC)	8-98055-182-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98055-182-0	01	1	1509-	●
20	16.328 SNAP; DOOR LOCK CYL FUEL TANK 100L<N02>,FUEL TANK 75L<7GX>	8-98055-182-0	01	1	1509-		●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM(7KC),ISUZU BRAND<7WL>	8-98146-014-0	01	1	1509-	●	●
25	03.028 CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	1506-1508	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98146-010-0	01	1	1509-	●	●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1506-1508	●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
