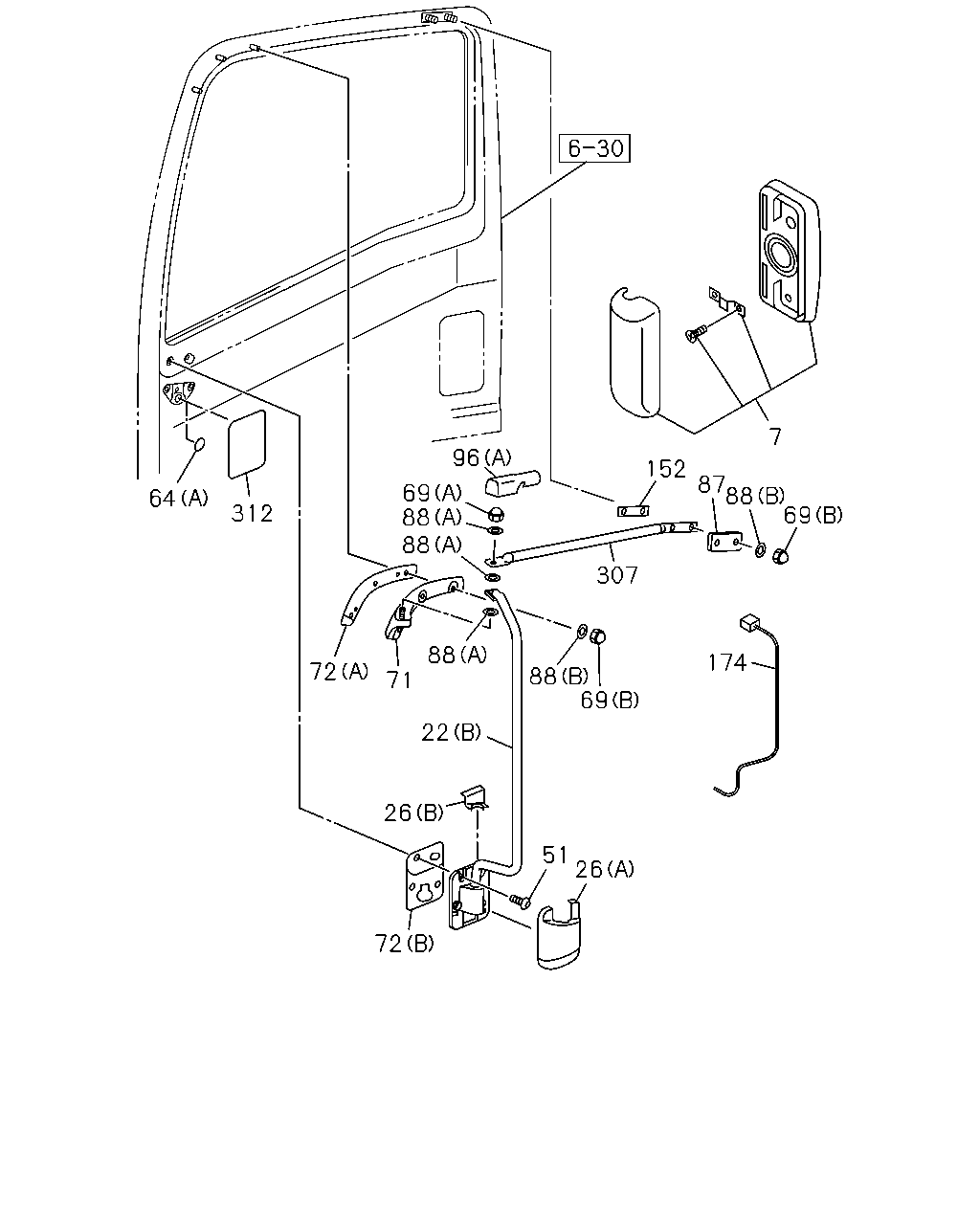

7 |
16.068 MIRROR ASM; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
|
8-98043-060-1 |
01 |
1 |
1509- |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
|
8-98043-176-1 |
01 |
1 |
1509- |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
|
8-98043-058-1 |
01 |
1 |
1509- |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
|
8-98043-174-1 |
01 |
1 |
1509- |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
|
8-98055-991-1 |
01 |
1 |
1506-1508 |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,O/SIDE MIRROR ASSIST SIDE MANUAL
SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MAN
UAL LONG STAY<6TF>,MIRROR - O/SIDE RR
VIEW,HEATED<7SV>
|
8-98055-991-1 |
01 |
1 |
1509- |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
|
8-98055-992-1 |
01 |
1 |
1506-1508 |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,O/SIDE MIRROR ASSIST SIDE MANUAL
SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MAN
UAL LONG STAY<6TF>,MIRROR - O/SIDE RR
VIEW,HEATED<7SV>
|
8-98055-992-1 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
DOOR MIRROR<6VE>
(B)
|
8-98166-176-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
DOOR MIRROR<6VE>
(B)
|
8-98166-177-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98166-178-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98166-179-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>
UNDER MIRROR<RR9>
(A)
|
8-98070-506-0 |
01 |
1 |
1509- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-504-0 |
01 |
1 |
1509- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
(A)
|
8-98070-503-0 |
01 |
1 |
1509- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(A)
|
8-98070-503-0 |
01 |
1 |
1509- |
|
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(A)
|
8-98070-510-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
(C)
|
8-98081-403-0 |
01 |
1 |
1509- |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON
G STAY<6TF>
(C)
|
8-98081-403-0 |
01 |
1 |
1509- |
|
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-508-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98158-846-0 |
01 |
1 |
1506-1508 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-846-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98158-847-0 |
01 |
1 |
1506-1508 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-847-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98158-848-0 |
01 |
1 |
1506-1508 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-848-0 |
01 |
1 |
1509- |
● |
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98158-849-0 |
01 |
1 |
1506-1508 |
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
(B)
|
8-98158-849-0 |
01 |
1 |
1509- |
● |
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
(C)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1509- |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
(C)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1509- |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(C)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1509- |
|
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(C)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1509- |
|
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
(A)
|
8-98031-802-2 |
01 |
1 |
1506-1508 |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
|
8-98031-802-2 |
01 |
1 |
1509- |
● |
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
(A)
|
8-98031-803-2 |
01 |
1 |
1506-1508 |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
|
8-98031-803-2 |
01 |
1 |
1509- |
● |
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
(B)
|
8-98031-805-0 |
01 |
1 |
1506-1508 |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-98031-805-0 |
01 |
1 |
1509- |
● |
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
(B)
|
8-98031-806-0 |
01 |
1 |
1506-1508 |
● |
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-98031-806-0 |
01 |
1 |
1509- |
● |
● |
| |
51 |
16.069 SCREW; MIRROR
16.323
M8X23
|
8-97310-216-1 |
08 |
1 |
1506-1508 |
● |
|
| |
51 |
16.069 SCREW; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
16.323
M8X23
|
8-97310-216-1 |
08 |
1 |
1509- |
● |
● |
| |
64 |
16.069 SEAL; MIRROR
UNDER MIRROR<RR9>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
1509- |
● |
|
| |
64 |
16.069 SEAL; MIRROR
UNDER MIRROR<RR9>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON
G STAY<6TF>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
1509- |
|
● |
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR
ALGRAY(517),BODY COLOR PURPLISH BLUE(668),
BODY COLOR GERANIUM RED(681),BODY COLOR
DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL
OR WHEATLAND YELLOW(812),BODY COLOR
SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),
BODY COLOR HIGHWAY ORANGE(944),BODY
COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV
ER MET(998),BODY COLOR TRANS BLUE(999)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
WINDOW RR<8LF>
16.165
(C)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1509- |
● |
● |
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
WINDOW RR<8LF>
16.570
(C)
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
02 |
1 |
1509- |
● |
● |
| |
64 |
16.069 SEAL; MIRROR
16.332
(A)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1506-1508 |
● |
|
| |
64 |
16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,
HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>
16.332
(A)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1509- |
● |
● |
| |
64 |
16.069 SEAL; MIRROR
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1508 |
● |
|
| |
64 |
16.069 SEAL; MIRROR
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,UNDER MIRROR<RR9>,O/SIDE
MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1509- |
● |
|
| |
64 |
16.069 SEAL; MIRROR
EXC. UNDER MIRROR<RR9>,O/SIDE MIRROR
ASSIST SIDE MANUAL LONG STAY<6TF>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1509- |
|
● |
| |
69 |
16.069 NUT; CAP
(A)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1506-1508 |
● |
|
| |
69 |
16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1509- |
● |
● |
| |
69 |
16.069 NUT; CAP
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1506-1508 |
● |
|
| |
69 |
16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1509- |
● |
● |
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
|
8-98031-793-2 |
01 |
1 |
1506-1508 |
● |
|
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98031-793-2 |
01 |
1 |
1509- |
● |
● |
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
|
8-98031-794-2 |
01 |
1 |
1506-1508 |
● |
|
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98031-794-2 |
01 |
1 |
1509- |
● |
● |
| |
72 |
16.069 SHEET
(A)
|
8-98031-796-0 |
01 |
1 |
1506-1508 |
● |
|
| |
72 |
16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
|
8-98031-796-0 |
01 |
1 |
1509- |
● |
● |
| |
72 |
16.069 SHEET
(A)
|
8-98031-797-0 |
01 |
1 |
1506-1508 |
● |
|
| |
72 |
16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
|
8-98031-797-0 |
01 |
1 |
1509- |
● |
● |
| |
72 |
16.069 SHEET
(B)
|
8-98080-418-0 |
02 |
1 |
1506-1508 |
● |
|
| |
72 |
16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-98080-418-0 |
02 |
1 |
1509- |
● |
● |
| |
87 |
16.069 SPACER
|
8-98063-789-0 |
02 |
1 |
1506-1508 |
● |
|
| |
87 |
16.069 SPACER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-789-0 |
02 |
1 |
1509- |
● |
● |
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1506-1508 |
● |
|
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1509- |
● |
● |
| |
88 |

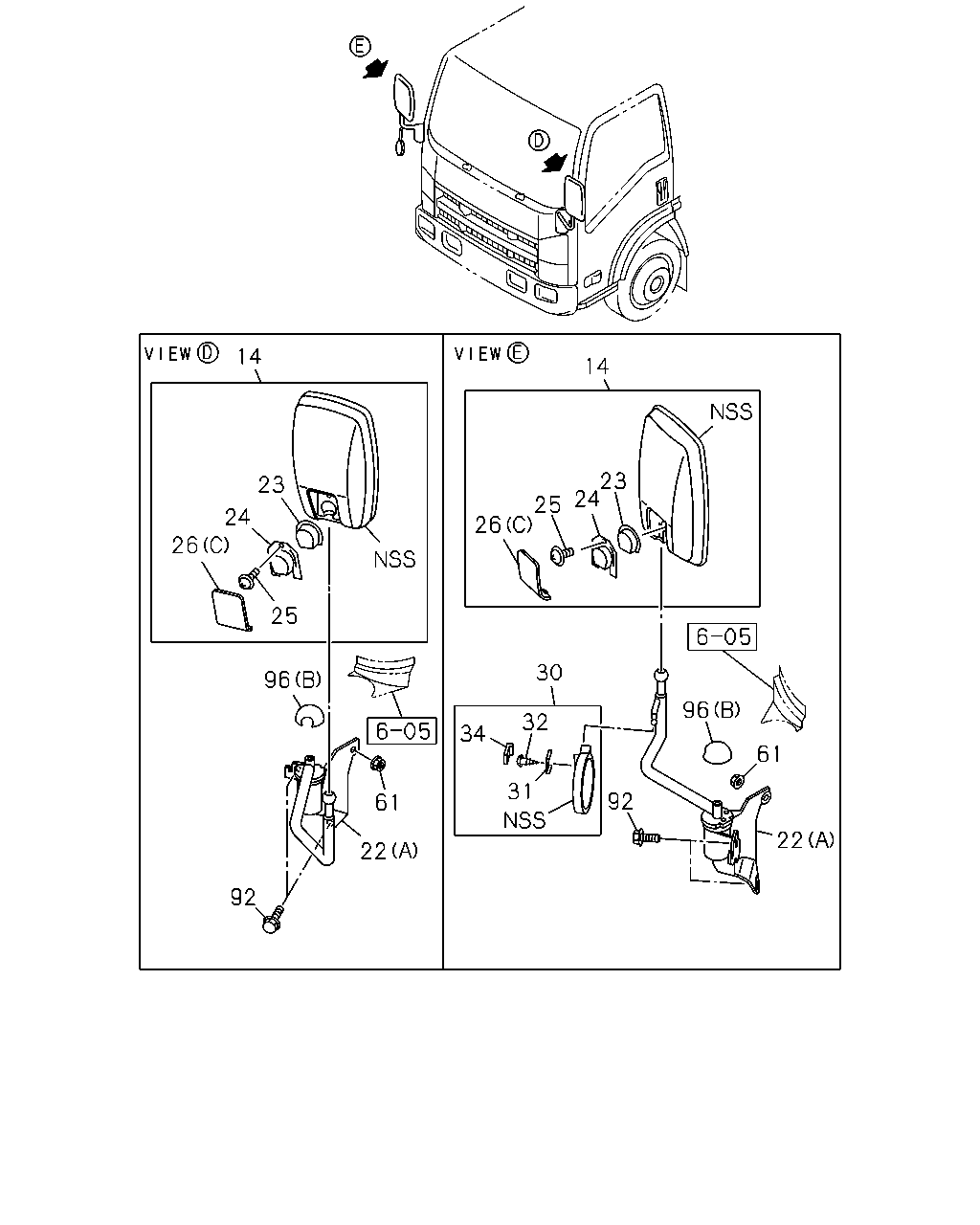

16.069 WASHER; PL,SUPPORT STAY
(A)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1506-1508 |
● |
|
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1509- |
● |
● |
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
(B)
|
8-98027-552-2 |
02 |
1 |
1509- |
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA
Y<6TF>
(B)
|
8-98027-552-2 |
02 |
1 |
1509- |
|
● |
| |
96 |
16.069 CAP; MIRROR STAY
UNDER MIRROR<RR9>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
(B)
|
8-98027-552-2 |
01 |
1 |
1509- |
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
UNDER MIRROR<RR9>
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON
G STAY<6TF>
(B)
|
8-98027-552-2 |
01 |
1 |
1509- |
|
● |
| |
96 |
16.069 CAP; MIRROR STAY
(A)
|
8-98080-173-0 |
02 |
1 |
1506-1508 |
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
|
8-98080-173-0 |
02 |
1 |
1509- |
● |
● |
| |
152 |
16.069 SHEET; MIRROR STAY
|
8-98063-786-0 |
02 |
1 |
1506-1508 |
● |
|
| |
152 |
16.069 SHEET; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-786-0 |
02 |
1 |
1509- |
● |
● |
| |
174 |
16.068 HARNESS; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
MIRROR - O/SIDE RR VIEW,HEATED<7SV>
02.480
|
8-98079-660-0 |
02 |
1 |
1509- |
● |
● |
| |
307 |
16.069 STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
1506-1508 |
● |
|
| |
307 |
16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-784-2 |
01 |
1 |
1509- |
● |
● |
| |
307 |
16.069 STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
1506-1508 |
● |
|
| |
307 |
16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-785-2 |
01 |
1 |
1509- |
● |
● |
| |
312 |
16.081 TAPE
|
8-98164-812-0 |
02 |
1 |
1506-1508 |
● |
|
| |
312 |
16.081 TAPE
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL SHO
RT STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
|
8-98164-812-0 |
02 |
1 |
1509- |
● |
|
| |
312 |
16.081 TAPE
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON
G STAY<6TF>
|
8-98164-812-0 |
02 |
1 |
1509- |
|
● |
