◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#162257) — 56 parça

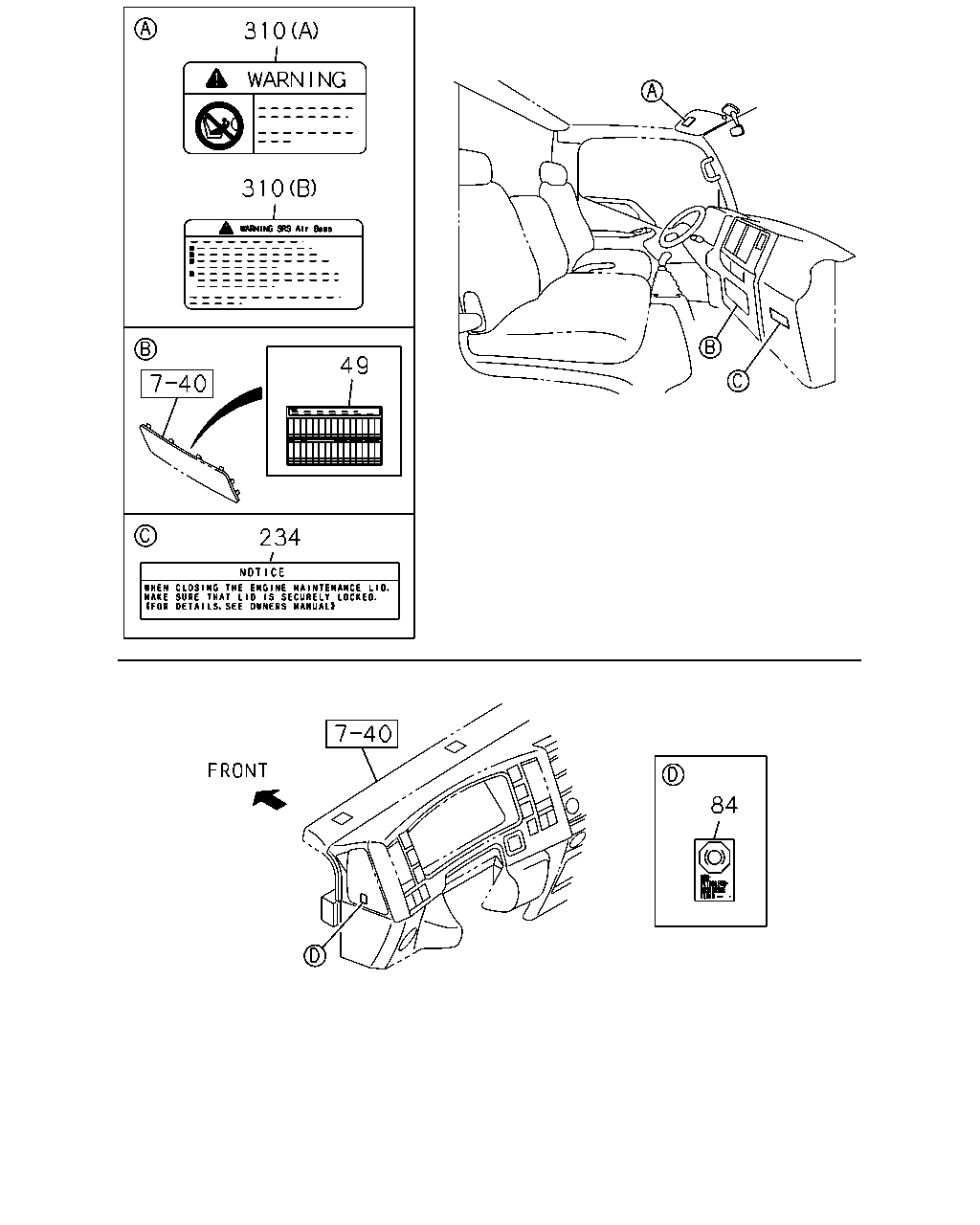

çizim 480656
49 310 310 234 84
BalonParca AdiParca NoAdetTipApplied Date A B
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1506-1508 ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1509- ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1506-1508 ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98022-836-1 01 1 1509- ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) 		8-98022-836-1 01 1 1509- ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1506-1508 ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1509- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1506-1508 ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1509- ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAUTION SPANISH<YN1> CATALYSIS CONTROL(6MZ) (B) DRIVER 		8-98224-287-0 01 1 1509- ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CATALYSIS CONTROL(6MZ) EXC. CAUTION SPANISH<YN1> (B) DRIVER 		8-98139-964-0 01 1 1509- ● ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) PASSENGER 		8-98080-839-0 01 1 1506-1508 ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) PASSENGER 		8-98080-839-0 01 1 1509- ● ●

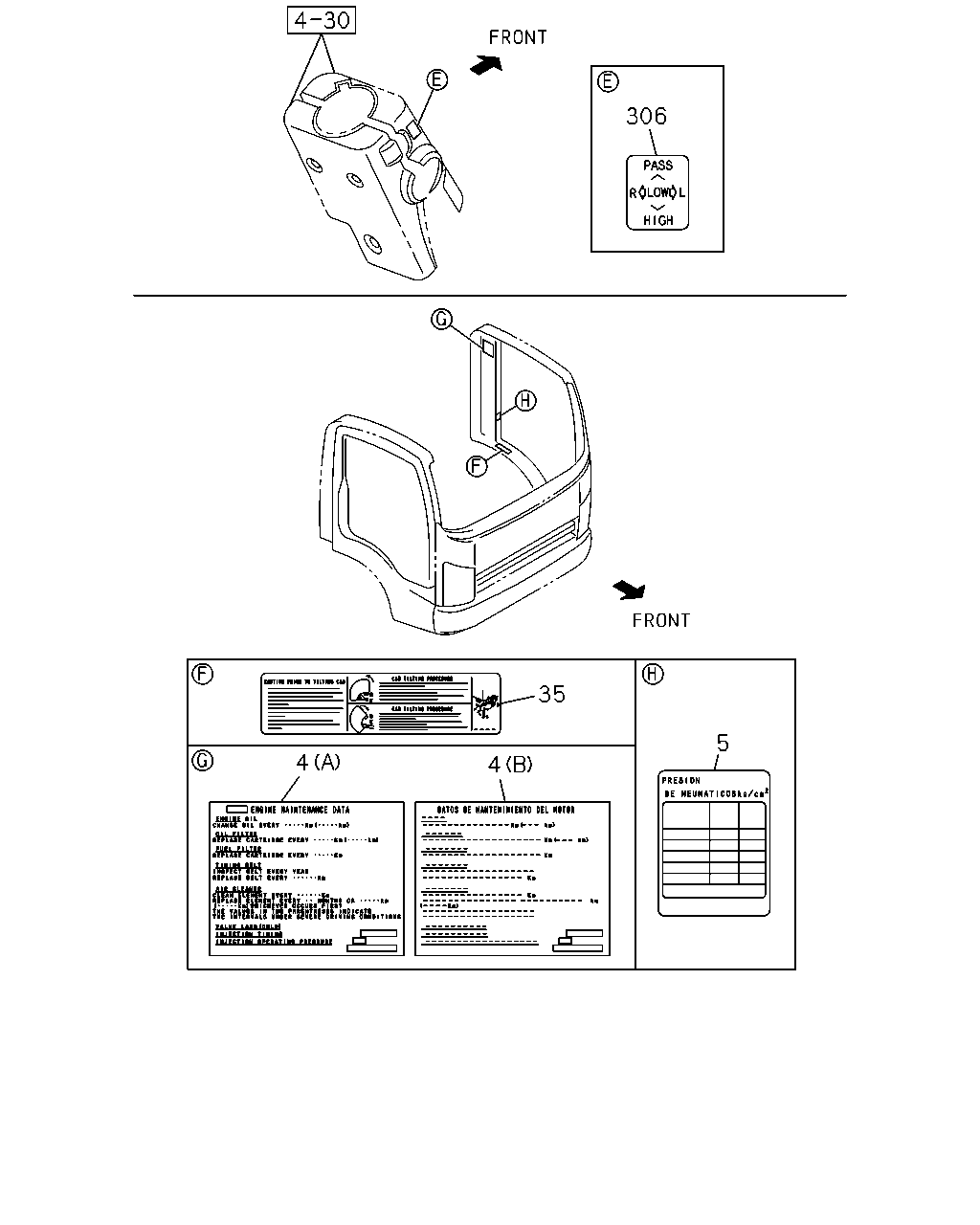

çizim 480685
306 5 35 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1509- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1509- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) CAUTION SPANISH<YN1> 		8-98096-198-3 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-1 5-25(CUQ) EXC. CAUTION SPANISH<YN1> 		8-98096-197-3 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) CAUTION SPANISH<YN1> 		8-98100-911-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK) EXC. CAUTION SPANISH<YN1> 		8-98300-070-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85SILVER(CYR) CAUTION SPANISH<YN1> 		8-97188-833-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE (CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J-85SILVER(CYR) EXC. CAUTION SPANISH<YN1> 		8-97188-832-0 01 1 1509- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1506-1508 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1509- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1506-1508 ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1509- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1506-1508 ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1509- ● ●
çizim 480713
9 48 2 96 96
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1506-1508 ●
2 03.680 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1509- ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1506-1508 ●
2 03.680 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1509- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCC ENG(RDU) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 205/75R16C DISC 16X5.5J-85(CVK),F&R 205/75R16C L.R.R RIB 16X5.5J-85 WHITE(CYQ),F&R 205/75R16C L.R.R RIB 16X5.5J -85 SILVER(CYR) RUSSIA EQUIPMENT(B12) SPEED LIMITER 90KM(NMJ) G.V.W. 3.5-4.0TON(RPQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98323-164-0 01 1 1509- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCC ENG(RDU) FINAL GEAR RATIO 43/9(S2J) F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SI LVER(CYS) RUSSIA EQUIPMENT(B12) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98323-164-0 01 1 1509- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCC ENG(RDU) FINAL GEAR RATIO 43/9(S2J) FRT&RR 7R-16-10 16X5.5F-115(07H) RUSSIA EQUIPMENT(B12) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98323-165-0 01 1 1509- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 1509- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1509- ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1506-1506 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1507-1508 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1509- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1506-1506 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1507-1508 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1509- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1506-1508 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CATALYSIS CONTROL WITH DPD(8JM) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1509- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1506-1508 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1509- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1506-1508 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CATALYSIS CONTROL WITH DPD(8JM) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1509- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1506-1508 ●
96 08.808 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
