6-90 — REAR BUMPER (#162255) — 72 parça

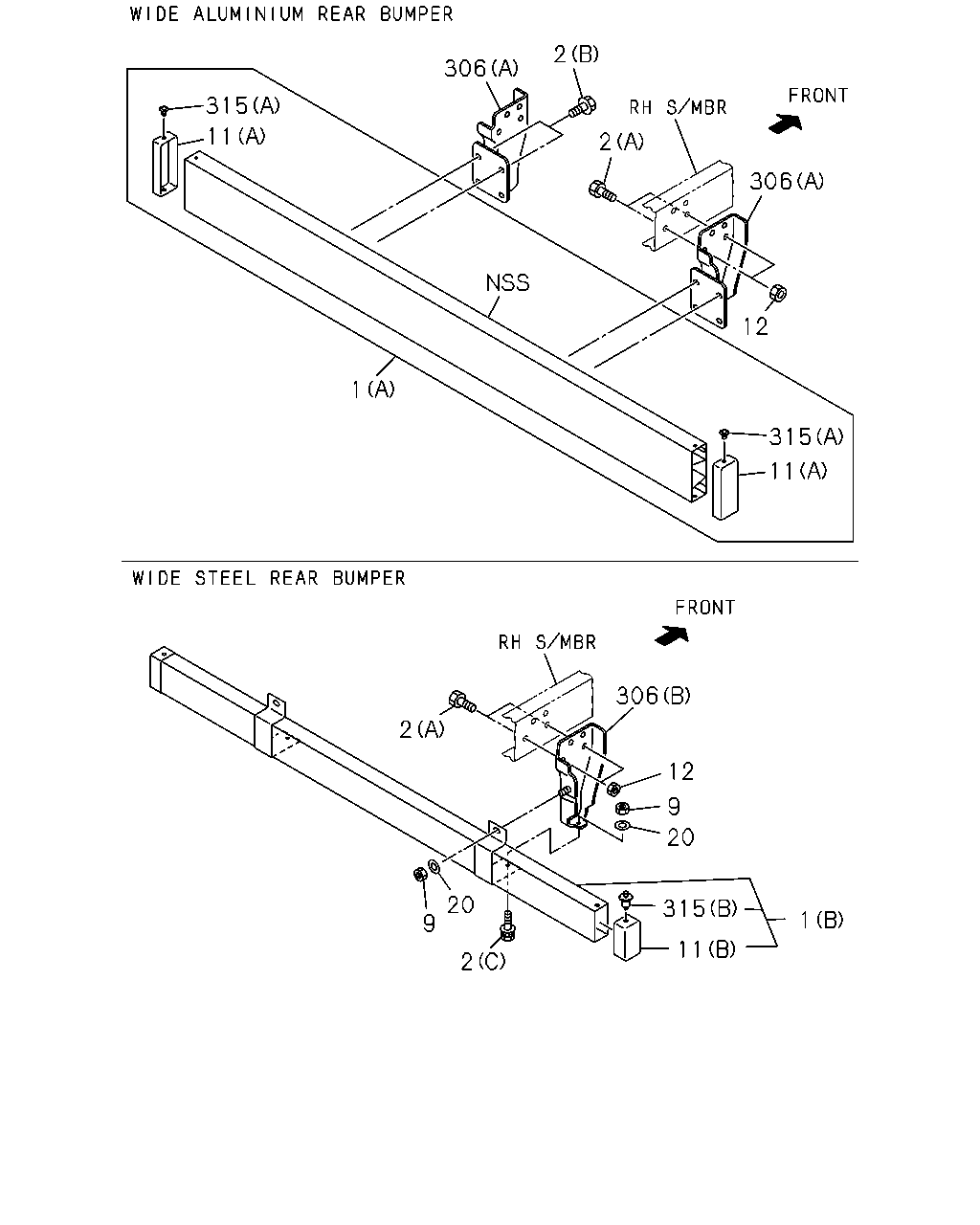

çizim 479721
1 11 315 20 12 9 306 2 20 9 2 11 315 12 306 2 2 306 1 315 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> (B) STAMP IJ2G 		8-98000-144-1 01 1 1509- ●
1 07.070 BUMPER; RR
(A) STAMP IH2J 		8-98088-673-0 01 1 1506-1508 ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL> (A) STAMP IH2J 		8-98088-673-0 01 1 1509- ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> 00.029 (C) M10X25 FLANGE 		0-28651-025-0 02 1 1509- ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) M14X30 		0-20851-430-0 08 1 1506-1508 ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL> (A) M14X30 		0-20851-430-0 08 1 1509- ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> (A) M14X30 		0-20851-430-0 08 1 1509- ●
2 07.874 BOLT; BACK BAR
07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1506-1508 ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 1509- ● ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1509- ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> (B) 		8-97174-008-0 02 1 1509- ●
11 07.829 CAP; RR BUMPER
(A) 		1-71290-064-0 02 1 1506-1508 ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL> (A) 		1-71290-064-0 02 1 1509- ● ●
12 07.833 NUT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE 		0-91180-214-0 08 1 1506-1508 ●
12 07.833 NUT; BRKT
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL> 00.429 M14 FLANGE 		0-91180-214-0 08 1 1509- ● ●
12 07.833 NUT; BRKT
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> 00.429 M14 FLANGE 		0-91180-214-0 08 1 1509- ●
20 07.070 WASHER; PL,BUMPER
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> 00.002 ID=10.5 OD=32 		0-91614-810-0 04 1 1509- ●
306 07.836 BAR; BACK,RR
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) EXC. FULL FLATLOW<6GL> (B) STAMP IC 		8-98211-480-0 01 1 1509- ●
306 07.836 BAR; BACK,RR
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> SINGLE RR TIRE(6TD) EXC. FULL FLATLOW<6GL> (B) STAMP IC 		8-98211-481-0 01 1 1509- ●
306 07.836 BAR; BACK,RR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) STAMP IA3 		8-98039-408-0 01 1 1506-1508 ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) (A) STAMP IA3 		8-98039-408-0 01 1 1509- ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (A) STAMP IA3 		8-98039-408-0 01 1 1509- ●
306 07.836 BAR; BACK,RR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A) STAMP IA3 		8-98039-409-0 01 1 1506-1508 ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) (A) STAMP IA3 		8-98039-409-0 01 1 1509- ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (A) STAMP IA3 		8-98039-409-0 01 1 1509- ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> EXC. FULL FLATLOW<6GL> 08.155 (B) D8X13.5 		1-09987-248-1 04 1 1509- ●
315 07.829 RIVET; CAP
(A) 		1-71290-062-0 04 1 1506-1508 ●
315 07.829 RIVET; CAP
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FULL FLATLOW<6GL> (A) 		1-71290-062-0 04 1 1509- ● ●

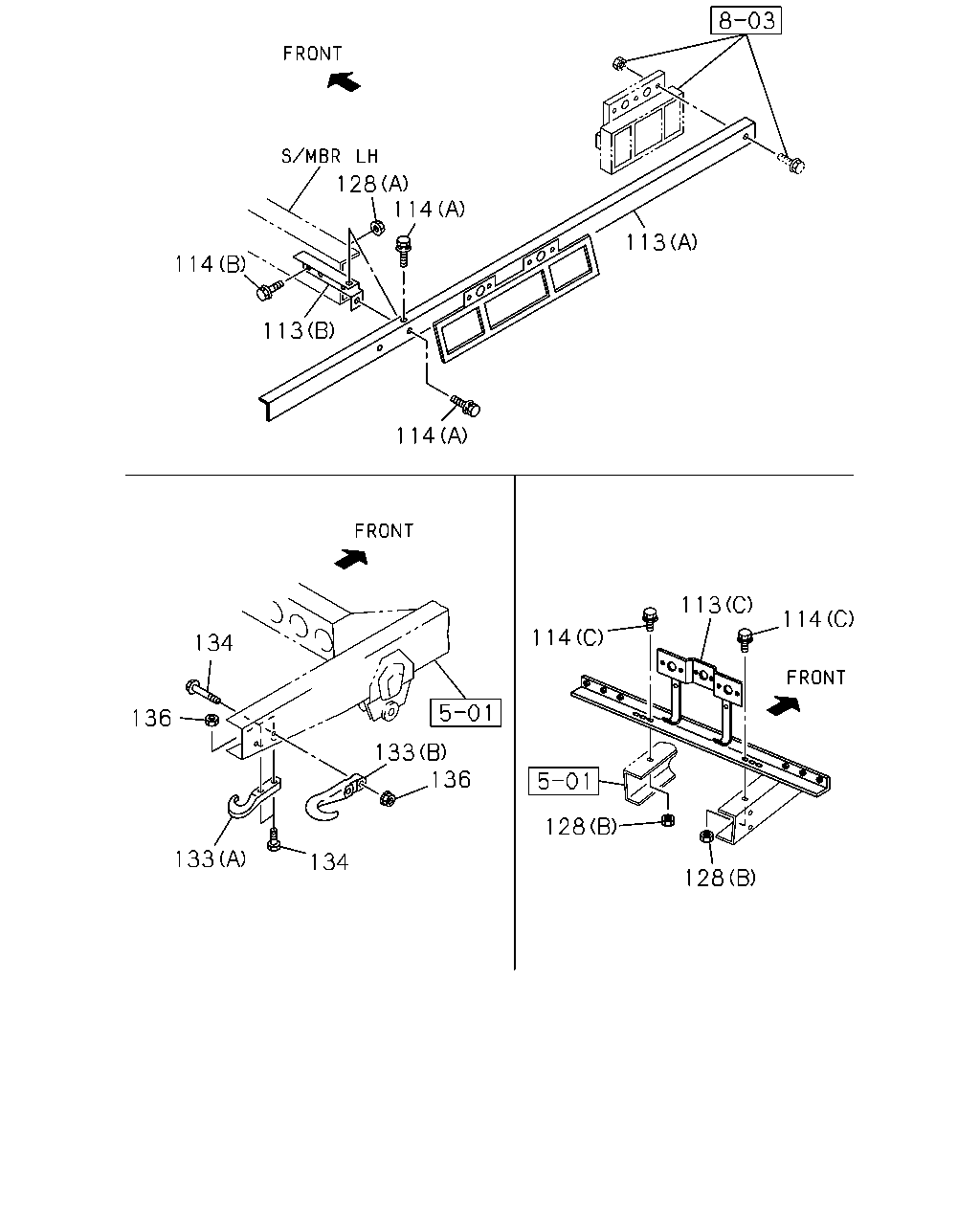

çizim 480122
128 113 114 114 114 113 113 114 114 128 128 136 133 134 133 134 136
BalonParca AdiParca NoAdetTipApplied Date A B
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) (B) 		8-98089-089-0 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) (B) 		8-98089-090-0 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C) 		8-98029-390-3 01 1 1509- ● ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) DOOR MIRROR<6VE> 02.664 (A) 		8-98030-832-0 01 1 1506-1508 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> 02.664 (A) 		8-98030-832-0 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A) 		8-97206-019-0 01 1 1506-1508 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.664 (A) 		8-97206-019-0 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) DOOR MIRROR<6VE> (A) 		8-98079-145-0 01 1 1506-1508 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> EXC. SINGLE RR TIRE(6TD) (A) 		8-98079-145-0 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98079-146-0 01 1 1506-1508 ●
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SINGLE RR TIRE(6TD) (A) 		8-98079-146-0 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-014-0 01 1 1506-1508 ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) (B) 		8-98100-014-0 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
(B) 		8-98100-015-0 01 1 1506-1508 ●
113 07.800 BRACKET; LICENSE PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) (B) 		8-98100-015-0 01 1 1509- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 04 1 1509- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1509- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1506-1508 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SINGLE RR TIRE(6TD) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1509- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 2400MM(24W) TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 04 1 1509- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
07.874 (B) M14X30 		0-20851-430-0 04 1 1506-1508 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) 07.874 (B) M14X30 		0-20851-430-0 04 1 1509- ●
128 02.662 NUT; CROSS PLATE
TURKEY EQUIPMENT(B11) SINGLE RR TIRE(6TD) 03.162 (A) M10 FLANGE 		0-91180-110-0 04 1 1509- ●
128 02.662 NUT; CROSS PLATE
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
128 02.662 NUT; CROSS PLATE
00.429 (A) M14 FLANGE 		0-91180-214-0 04 1 1506-1508 ●
128 02.662 NUT; CROSS PLATE
TURKEY EQUIPMENT(B11) EXC. SINGLE RR TIRE(6TD) 00.429 (A) M14 FLANGE 		0-91180-214-0 04 1 1509- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) SINGLE RR TIRE(6TD) EXC. WIDE STEEL REAR BUMPER<SMS>,FULL FLATLOW<6GL>,WIDE ALUMINUM REAR BUMPER<7HZ> 07.330 (A) 		8-94183-262-0 01 1 1509- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FULL FLATLOW<6GL> EXC. WIDE STEEL REAR BUMPER<SMS>,SINGLE RR TIRE(6TD),WIDE ALUMINUM REAR BUMPER<7HZ> 07.330 (A) 		8-94183-262-0 01 1 1509- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. WIDE STEEL REAR BUMPER<SMS>,FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),WIDE ALUMIN UM REAR BUMPER<7HZ> 07.068 (B) 		8-97387-665-0 01 1 1509- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. WIDE ALUMINUM REAR BUMPER<7HZ> 07.068 (B) 		8-97387-665-0 01 1 1509- ●
133 07.112 HOOK
WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FULL FLATLOW<6GL> EXC. WIDE STEEL REAR BUMPER<SMS>,SINGLE RR TIRE(6TD),WIDE ALUMINUM REAR BUMPER<7HZ> 07.068 (B) 		8-94249-270-2 01 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FULL FLATLOW<6GL> EXC. WIDE STEEL REAR BUMPER<SMS>,SINGLE RR TIRE(6TD),WIDE ALUMINUM REAR BUMPER<7HZ> 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) SINGLE RR TIRE(6TD) EXC. WIDE STEEL REAR BUMPER<SMS>,FULL FLATLOW<6GL>,WIDE ALUMINUM REAR BUMPER<7HZ> 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> EXC. WIDE STEEL REAR BUMPER<SMS>,FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),WIDE ALUMIN UM REAR BUMPER<7HZ> 07.039 M14X50 		0-10856-450-0 02 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FULL FLATLOW<6GL> IDENTIFICATION LABEL FOR KD<6UT> EXC. WIDE STEEL REAR BUMPER<SMS>,SINGLE RR TIRE(6TD),WIDE ALUMINUM REAR BUMPER<7HZ> 07.039 M14X50 		0-10856-450-0 02 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> EXC. WIDE ALUMINUM REAR BUMPER<7HZ> 07.039 M14X50 		0-10856-450-0 02 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. WIDE STEEL REAR BUMPER<SMS>,FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),IDENTIFICAT ION LABEL FOR KD<6UT>,WIDE ALUMINUM REAR BUMPER<7HZ> M14X60 		0-10861-460-0 02 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FULL FLATLOW<6GL> EXC. WIDE STEEL REAR BUMPER<SMS>,SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT>,WIDE ALUMINUM REAR BUMPER<7HZ> M14X60 		0-10861-460-0 02 1 1509- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. IDENTIFICATION LABEL FOR KD<6UT>, WIDE ALUMINUM REAR BUMPER<7HZ> M14X60 		0-10861-460-0 02 1 1509- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FULL FLATLOW<6GL> EXC. WIDE STEEL REAR BUMPER<SMS>,SINGLE RR TIRE(6TD),WIDE ALUMINUM REAR BUMPER<7HZ> 00.833 M10 		0-91110-510-0 02 1 1509- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) SINGLE RR TIRE(6TD) EXC. WIDE STEEL REAR BUMPER<SMS>,FULL FLATLOW<6GL>,WIDE ALUMINUM REAR BUMPER<7HZ> 00.833 M10 		0-91110-510-0 02 1 1509- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. WIDE STEEL REAR BUMPER<SMS>,FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),WIDE ALUMIN UM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 02 1 1509- ●
136 07.068 NUT; HOOK
WHEEL BASE 2800MM(28W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FULL FLATLOW<6GL> EXC. WIDE STEEL REAR BUMPER<SMS>,SINGLE RR TIRE(6TD),WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 02 1 1509- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 02 1 1509- ●
