6-80 — BACK PANEL (#162252) — 37 parça

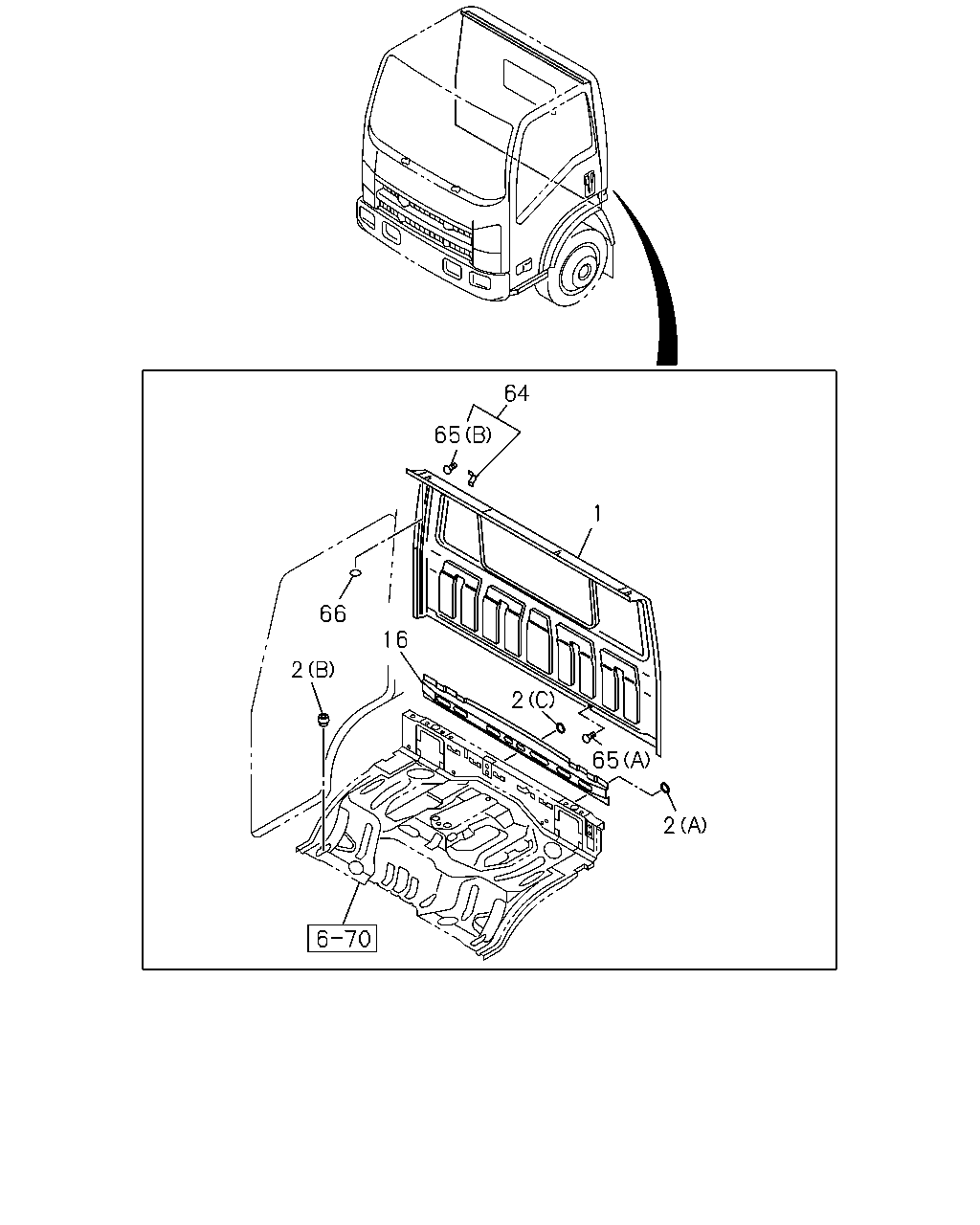

çizim 480441
1 64 65 66 2 16 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-303-4 01 1 1509- ● ●
1 16.587 PANEL; BACK OUTER
4JJ1-TCC ENG(RDU) 		8-97584-300-3 01 1 1506-1508 ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> 		8-97584-300-3 01 1 1509- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1506-1508 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1509- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506-1508 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1509- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 		8-97898-423-0 04 1 1506-1508 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 		8-97898-423-0 04 1 1509- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1506-1508 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1509- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1506-1508 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1509- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA> 		8-98313-204-0 01 1 1509- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JJ1-TCC ENG(RDU) 		8-97584-607-3 01 1 1506-1508 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> 		8-97584-607-3 01 1 1509- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
4JJ1-TCC ENG(RDU) 16.570 		8-97584-611-1 01 1 1506-1508 ●
64 16.587 BRACKET; AIR INTAKE DUCT
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 16.570 		8-97584-611-1 01 1 1509- ● ●
65 17.198 STUD; BACK PANEL
4JJ1-TCC ENG(RDU) (A) 		8-94389-701-0 01 1 1506-1508 ●
65 17.198 STUD; BACK PANEL
GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> (A) 		8-94389-701-0 01 1 1509- ● ●
65 17.198 STUD; BACK PANEL
4JJ1-TCC ENG(RDU) 16.588 (B) M6X12 		8-98013-112-0 04 1 1506-1508 ●
65 17.198 STUD; BACK PANEL
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) GLASS BACK LIGHT DELETE<8CA>,WINDOW RR<8LF> 16.588 (B) M6X12 		8-98013-112-0 04 1 1509- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1506-1508 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1509- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1506-1508 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1509- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1506-1508 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1509- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1506-1508 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLORSUNBELT GREEN(989),BODY COLOR QUICK SILV ER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1509- ● ●

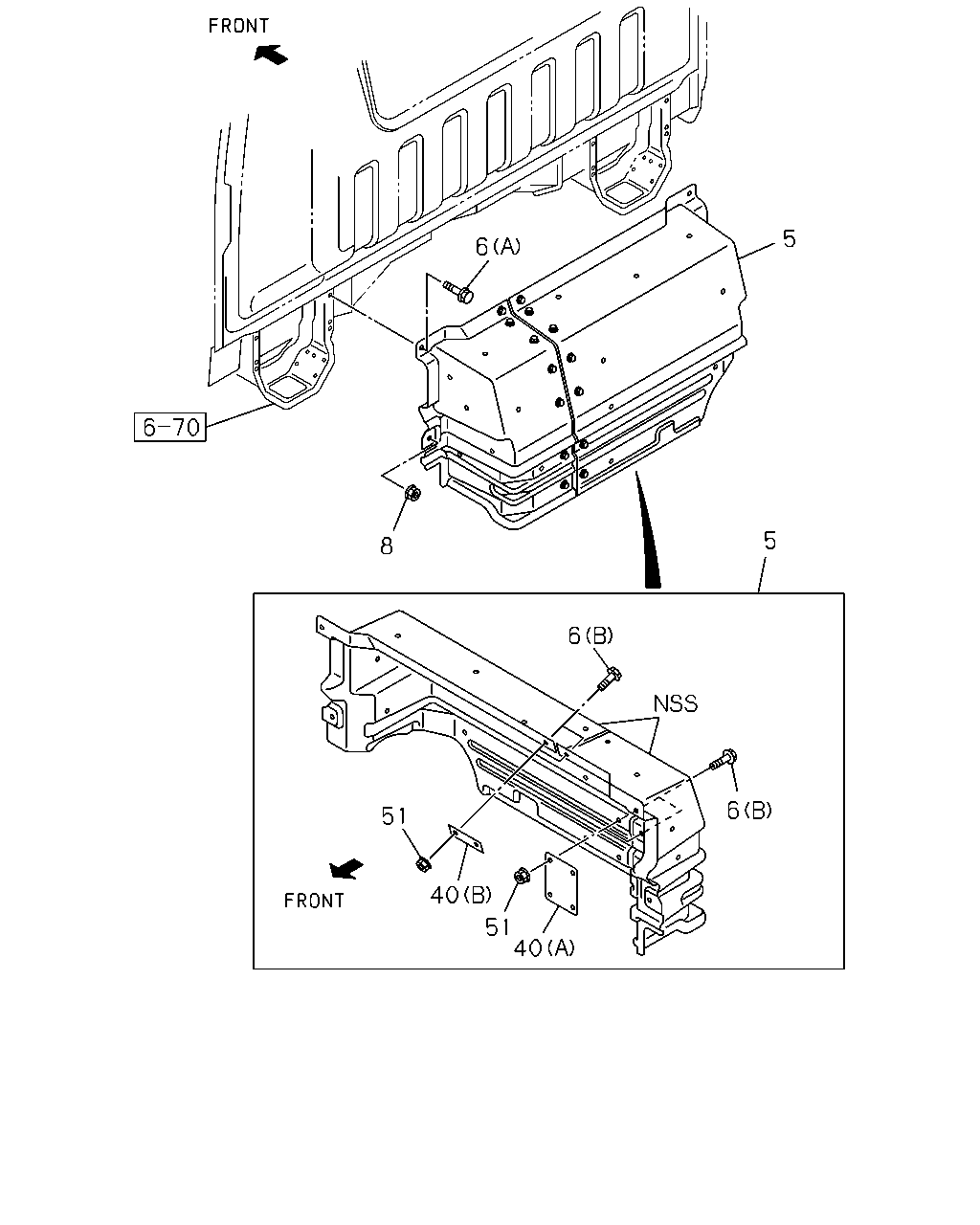

çizim 492915
5 5 6 8 6 6 40 51 40 51
BalonParca AdiParca NoAdetTipApplied Date A B
5 16.587 PANEL; CAB BACK
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) 		8-98180-758-0 01 1 1509- ● ●
6 16.587 BOLT; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) 08.155 (A) M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1509- ● ●
6 16.587 BOLT; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) 08.155 (B) M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 1509- ● ●
8 16.587 NUT; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509- ● ●
40 16.587 BRACKET; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) (A) 		8-98181-432-0 03 1 1509- ● ●
40 16.587 BRACKET; BACK PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) (B) 		8-98181-433-0 01 1 1509- ● ●
51 16.587 NUT; PANEL
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) 01.062 M6 FLANGE 		0-91180-106-0 14 1 1509- ● ●
